Presentation Transcript


Mobile broadband wireless access l.jpg

Mobile Broadband Wireless Access

Dr. Muid Mufti

20 December 2006


History of wireless l.jpg

History of Wireless

  • First Ever Wireless Communication ?

  • First Mobile Radio Telephone1924

  • Phenomenal growth with the turn of the century


The wireless experience l.jpg

Global

Satellite

Suburban

Urban

In-Building

Picocell

Microcell

Macrocell

Basic Terminal

PDA Terminal

Audio/Visual Terminal

The Wireless Experience


Advantages of wireless l.jpg

Advantages of Wireless

  • Low cost

  • Low maintenance

  • Quick deployment

  • Reduced sunk cost

  • Mobility


Disadvantages of wireless l.jpg

Disadvantages of Wireless

  • Non secure

  • Environmentally vulnerable

  • Frequency reuse issues


Ubiquitous networks l.jpg

Ubiquitous Networks

  • MBWA based product

    • Cell phone TV

    • Streaming Multimedia

    • Video on Demand

  • MBWA based Services

    • Mobile medical aid

    • Train entertainment systems

    • Surveillance

  • Strategic MBWA business


Defining broadband l.jpg

Defining Broadband

  • High dates rates ?

  • FCC definition of broadband: Connections with speed exceeding 200 Kb/s in at least one direction

  • PTA definition of broadband: High speed, ‘always on’ Internet connection. Speed of connection ranging from 128 Kbps to 2 Mbps or higher.

  • Refers to the ability of the user to view content across the internet that includes large files, such as video, audio, multimedia and 3D graphics

  • QoS Support


Mobile vs wireless l.jpg

Mobile vs. Wireless

Wireless

Mobile


Mobility l.jpg

Mobility

  • Range of mobility

    • Geographic range

    • Across networks

    • IP mobility

  • Speed of mobility

    • Personal mobility

    • Vehicular mobility

  • Frequency of mobility

    • Mobility Overhead


Slide10 l.jpg

MBWA

  • Be able to support broadband data rates with given QoS with mobility

  • Mobility speed

    • Personal mobility

    • 100+ km/h – high speed trains, cars, buses etc.


Qos conversational real time services l.jpg

QoS – Conversational / Real-time Services


Qos interactive services l.jpg

QoS - Interactive Services


Qos streaming services l.jpg

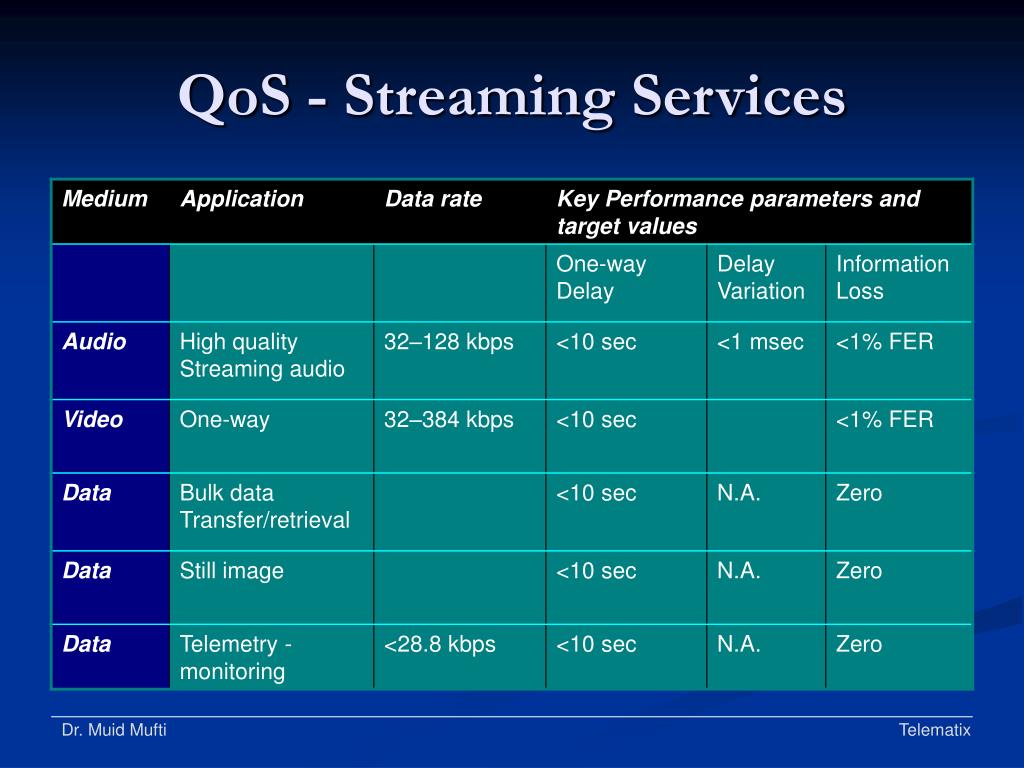

QoS - Streaming Services


Mobile broadband development streams l.jpg

Mobile Broadband Development Streams

  • UMTS-TDD (WCDMA-TDD)

  • FDD W-CDMA

  • TD-SCDMA

  • 1x EVDO

  • WiMAX (802.16e)

  • 802.20 (MobileFi)


Global wireless data standards l.jpg

Global Wireless Data Standards

WUSB

802.16

WiMax

802.15

Zigbee

Data Rates

802.11

Wifi

802.20

MobileFi

Bluetooth

UMTS

GPRS

Range


Global wireless data standards16 l.jpg

Global Wireless Data Standards


Basic modulation schemes l.jpg

Basic Modulation Schemes


Umts tdd l.jpg

UMTS-TDD

  • Up to 12Mbps

  • More than 3 times higher than any other commercial mobile platform.

  • True N=1 frequency reuse

    • Network operator can deploy a network with multiple towers using only one RF Channel

  • 5 MHz RF channel for a 3.84 Mcps system

  • 10 MHz channel for a 7.68 Mcps system.

  • Mobility up to 120 km/hr within the network footprint

  • Tower-to-tower handoff roaming

  • Network-to-network roaming


Fdd w cdma l.jpg

FDD W-CDMA

  • Frequency band:1920 MHz -1980 MHz and 2110 MHz - 2170 MHz (Frequency Division Duplex)

  • Minimum frequency band required: ~ 2x5MHz

  • Frequency re-use: 1

  • Carrier Spacing: 4.4MHz - 5.2 MHz

  • Maximum number of (voice) channels on 2x5MHz: ~196 (spreading factor 256 UL, AMR 7.95kbps) / ~98 (spreading factor 128 UL, AMR 12.2kbps)

  • Voice coding: AMR codecs (4.75 kHz - 12.2 kHz, GSM EFR=12.2 kHz) and SID (1.8 kHz)

  • Channel coding: Convolutional coding, Turbo code for high rate data

  • Duplexer needed (190MHz separation), Asymmetric connection supported

  • Tx/Rx isolation: MS: 55dB, BS: 80dB

  • Receiver: Rake

  • Receiver sensitivity: Node B: -121dBm, Mobile -117dBm at BER of 10-3

  • Data type: Packet and circuit switch

  • Modulation: QPSK

  • Pulse shaping: Root raised cosine, roll-off = 0.22

  • Chip rate: 3.84 Mcps


Fdd w cdma20 l.jpg

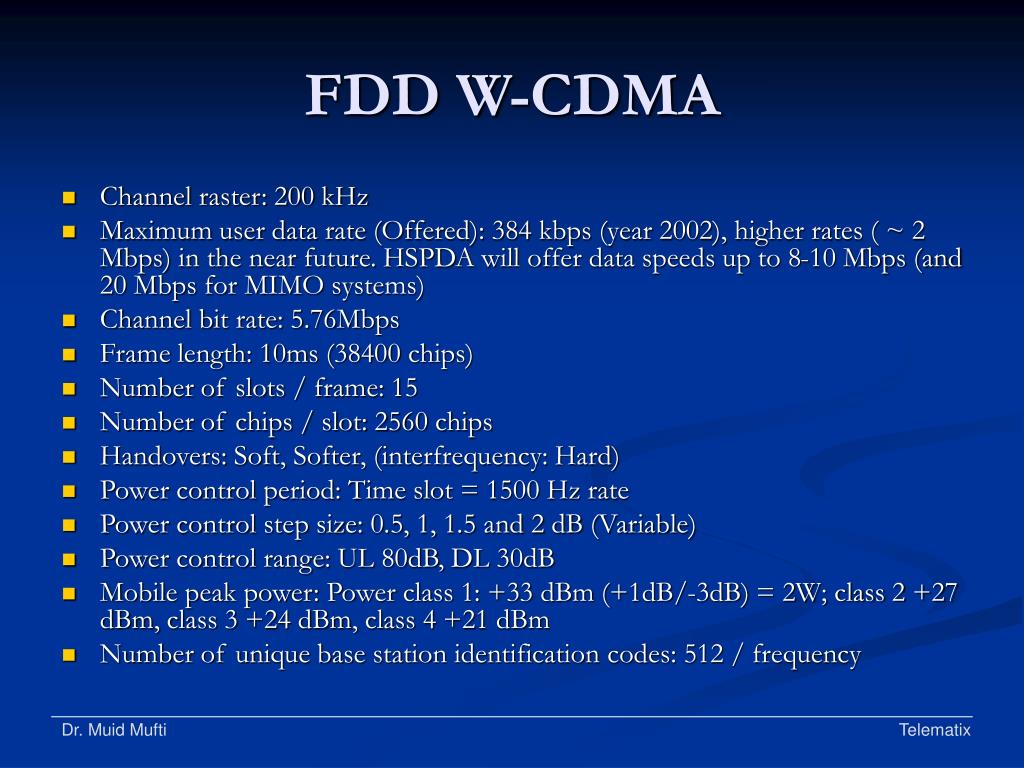

FDD W-CDMA

  • Channel raster: 200 kHz

  • Maximum user data rate (Offered): 384 kbps (year 2002), higher rates ( ~ 2 Mbps) in the near future. HSPDA will offer data speeds up to 8-10 Mbps (and 20 Mbps for MIMO systems)

  • Channel bit rate: 5.76Mbps

  • Frame length: 10ms (38400 chips)

  • Number of slots / frame: 15

  • Number of chips / slot: 2560 chips

  • Handovers: Soft, Softer, (interfrequency: Hard)

  • Power control period: Time slot = 1500 Hz rate

  • Power control step size: 0.5, 1, 1.5 and 2 dB (Variable)

  • Power control range: UL 80dB, DL 30dB

  • Mobile peak power: Power class 1: +33 dBm (+1dB/-3dB) = 2W; class 2 +27 dBm, class 3 +24 dBm, class 4 +21 dBm

  • Number of unique base station identification codes: 512 / frequency


Td scdma l.jpg

TD-SCDMA

  • China Wireless Telecommunication Standards group (CWTS)

  • Approved by the ITU in 1999

  • Developed by the Chinese Academy of Telecommunications Technology and Siemens

  • Frequency band: 2010 MHz - 2025 MHz in China (WLL 1900 MHz - 1920 MHz)

  • Minimum frequency band required: 1.6MHz

  • Frequency re-use: 1 (or 3)

  • Chip rate: 1.28 Mcps

  • Frame length: 10ms

  • Number of slots: 7

  • Modulation: QPSK or 8-PSK


Td scdma22 l.jpg

TD-SCDMA

  • Voice data rate: 8kbit/s

  • Circuit switched services: 12.2 kbits/s, 64 kbits/s, 144 kbits/s, 384 kbits/s, 2048 kbits/s

  • Packet data: 9.6kbits/s, 64kbits/s, 144kbits/s, 384kbits/s, 2048kbits/s

  • Receiver: Joint Detection, (mobile: Rake)

  • Power control period: 200 Hz

  • Number of slots / frame: 7

  • Frame length: 5ms

  • Multi carrier option

  • Handovers: Hard

  • Uplink synchronization


1x evdo cdma 2000 l.jpg

1x EVDO (CDMA 2000)

  • Qualcomm USA.

  • Frequency band: Any existing band.

  • Minimum frequency band required: 1x: 2x1.25MHz, 3x: 2x3.75

  • Chip rate: 1x: 1.2288, 3x: 3.6864 Mcps

  • Maximum user data rate: 1x: 144 kbps now, 307 kbps in the future 1xEV-DO: max 384 kbps - 2.4 Mbps, 1xEV-DV: 4.8 Mbps.

  • Frame length: 5ms, 10ms or 20ms

  • Power control rate: 800 Hz

  • Spreading factors: 4 ... 256 UL


Migration to 3g l.jpg

Migration to 3G


Ieee 802 16e l.jpg

IEEE 802.16e


802 16e l.jpg

802.16e

  • Mobile WirelessMAN

  • Approved by IEEE Feb 2006

  • NLOS with Antenna Diversity

  • FDD / TDD

  • Multiple Convergence layers

    • IP

    • Ethernet

    • ATM


Adaptive phy l.jpg

Adaptive PHY

Burst-by-burst adaptivity not shown


Wimax 802 16 2004 l.jpg

WIMAX-802.16-2004


Adaptive burst profiles l.jpg

Adaptive Burst Profiles

  • Burst profile

    • Modulation and FEC

  • Dynamically assigned according to link conditions

    • Burst by burst, per subscriber station

    • Trade-off capacity vs. robustness in real time

  • Roughly doubled capacity for the same cell area

  • Burst profile for downlink broadcast channel is well-known

    • All other burst profiles could be configured “on the fly”

    • Subscriber station capabilities recognized at registration


Duplex scheme support l.jpg

Duplex Scheme Support

  • On downlink , SS is associated with a specific burst

  • On uplink , SS is allotted a variable length time slot for their transmissions

  • Time-Division Duplex (TDD)

    • Downlink & Uplink time share the same RF channel

    • Dynamic asymmetry

    • SS does not transmit & receive simultaneously (low cost)

  • Frequency-Division Duplex (FDD)

    • Downlink & Uplink on separate RF channels

    • Static asymmetry

    • Half-duplex SSs supported

      • SS does not transmit & receive simultaneously (low cost)


Duplex scheme support31 l.jpg

Duplex Scheme Support

  • On downlink , SS is associated with a specific burst

  • On uplink , SS is allotted a variable length time slot for their transmissions

  • Time-Division Duplex (TDD)

    • Downlink & Uplink time share the same RF channel

    • Dynamic asymmetry

    • SS does not transmit & receive simultaneously (low cost)

  • Frequency-Division Duplex (FDD)

    • Downlink & Uplink on separate RF channels

    • Static asymmetry

    • Half-duplex SSs supported

      • SS does not transmit & receive simultaneously (low cost)


Tdd frame 10 66 ghz l.jpg

TDD Frame (10-66 GHz)

n PS = (Symbol Rate x Frame Length) / 4

Downlink Subframe

Uplink Subframe

Adaptive

PS 0

PS n-1

Frame j-2

Frame j - 1

Frame j

Frame j+1

Frame j+1


Tdd downlink subframe l.jpg

TDD Downlink Subframe

TDM Portion

Broadcast

Control

DUIC = 0

TDM

DUIC a

TDM

DUIC b

TDM

DUIC c

Preamble

Tx/Rx Transition Gap

Preamble

DL- MAP

UL-MAP

DIUC: Downlink Interval Usage Code


Burst fdd framing l.jpg

Burst FDD Framing

DOWNLINK

UPLINK

Frame

Broadcast

Half Duplex Terminal #1

Full Duplex Capable User

Half Duplex Terminal #2

Allows scheduling flexibility


Fdd downlink subframe l.jpg

FDD Downlink Subframe

TDM Portion

Broadcast

Control

DUIC = 0

TDM

DIUC a

TDM

DIUC b

TDM

DIUC c

Preamble

TDMA Portion

TDM

DIUC d

TDM

DIUC e

TDM

DIUC f

TDM

DIUC g

Preamble

Preamble

Preamble

Preamble

Burst Start Points

DL-MAP

UL-MAP

Preamble


Fragmentation l.jpg

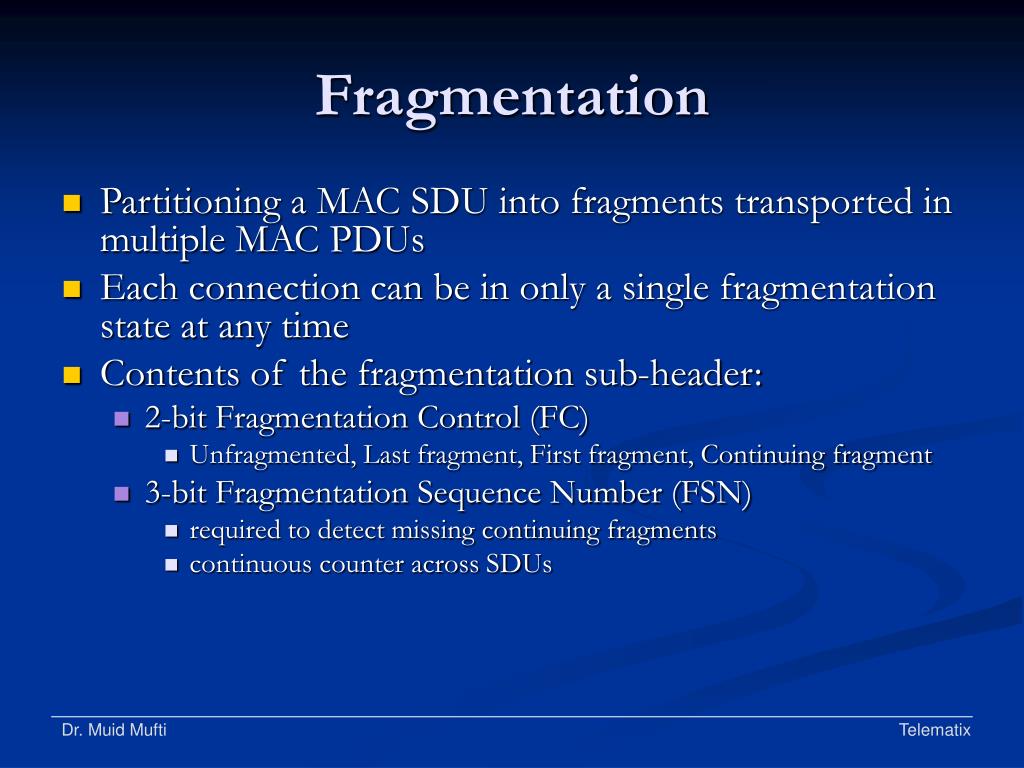

Fragmentation

  • Partitioning a MAC SDU into fragments transported in multiple MAC PDUs

  • Each connection can be in only a single fragmentation state at any time

  • Contents of the fragmentation sub-header:

    • 2-bit Fragmentation Control (FC)

      • Unfragmented, Last fragment, First fragment, Continuing fragment

    • 3-bit Fragmentation Sequence Number (FSN)

      • required to detect missing continuing fragments

      • continuous counter across SDUs


Packing l.jpg

Packing

  • The process of combining multiple MAC SDUs (or fragments thereof) into a single MAC PDU

  • On connections with variable length MAC SDUs

    • Packed PDU contains a sub-header for each packed SDU (or fragment thereof)

  • On connections with fixed length MAC SDUs

    • No packing sub-header needed

  • Packing and fragmentation can be combined

  • Can, in certain situations, save up to 10% of system bandwidth


Classes of service l.jpg

Classes of Service

Characteristic of the Service Flow

  • Unsolicited Grant Services (UGS)

    • for constant bit-rate (CBR) or CBR-like service flows (SFs) such as T1/E1

  • Real-time Polling Services (rtPS)

    • for rt -VBR-like SFs such as MPEG video

  • Non-real-time Polling Services (nrtPS)

    • for nrt SFs with better than best effort service such as bandwidth-intensive file transfer

  • Best Effort (BE)

    • for best-effort traffic


Slide39 l.jpg

UGS

  • No explicit bandwidth requests issued by SS

  • Prohibited from using any contention requests

  • No unicast request opportunity provided

  • May include a Grant Management (GM) sub-containing header containing

    • Slip indicator: indicates that there is an backlog in the buffer due to clock skew or loss of maps

    • Poll-me bit: indicates that the terminal needs to be polled (allows for not polling terminals with UGS-only services).


Slide40 l.jpg

RTPS

  • Intended for rt-VBR-like service flows such as MPEG video

  • Prohibited from using any contention requests

  • Terminals polled frequently enough to meet the delay requirements of the SFs

  • Bandwidth requested with BW request messages (a special MAC PDU header)

  • May use Grant Management sub-header

    • new request can be piggybacked with each transmitted PDU


Nrtps l.jpg

NRTPS

  • Intended for non-real-time service flows with better than best effort service

    • e.g. bandwidth-intensive file transfer

  • Works like rt-polling except that polls are issued less frequently

  • Allowed to use contention requests

  • May use Grant Management sub-header

    • new request can be piggybacked with each transmitted PDU


Slide42 l.jpg

BE

  • Generic data

    • e.g. HTTP, SMTP, etc.

  • No QoS guarantees

  • Allowed to use contention requests

  • May use Grant Management sub-header

    • new request can be piggybacked with each transmitted PDU


Request grant scheme l.jpg

Request/Grant Scheme

  • Self Correcting

    • No acknowledgement

    • All errors are handled in the same way, i.e., periodical aggregate requests

  • Bandwidth Requests are always per Connection

  • Grants are either per Connection (GPC) or per Subscriber Station (GPSS)

    • Grants (given as durations) are carried in the UL-MAP messages

    • SS needs to convert the time to amount of data using information about the UIUC


Wimax deployment l.jpg

WIMAX Deployment


Aperto l.jpg

Aperto

  • 2.5 GHz, 3.3 GHz , 3.5 GHz, 5.3GHz , 5.8 GHz

  • Deployed/trialed by:

    • Iberbanda, Spain;

    • Enertel, Holland;

    • Sequelle Communications Alliance, USA


Alvarion l.jpg

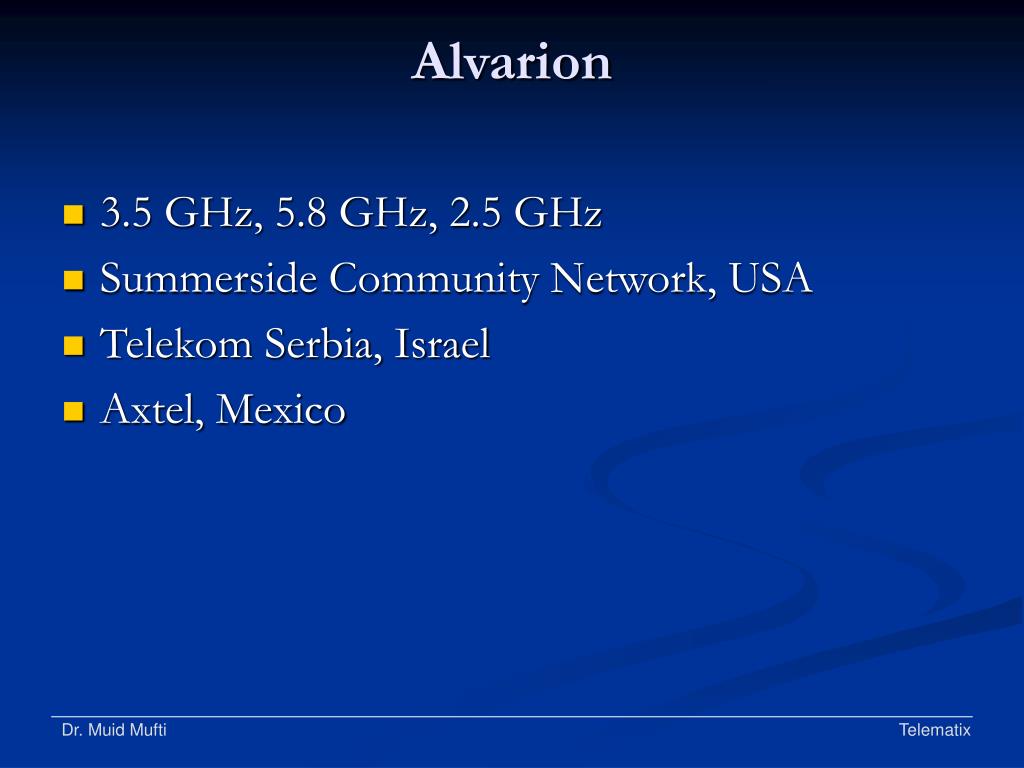

Alvarion

  • 3.5 GHz, 5.8 GHz, 2.5 GHz

  • Summerside Community Network, USA

  • Telekom Serbia, Israel

  • Axtel, Mexico


Nex g l.jpg

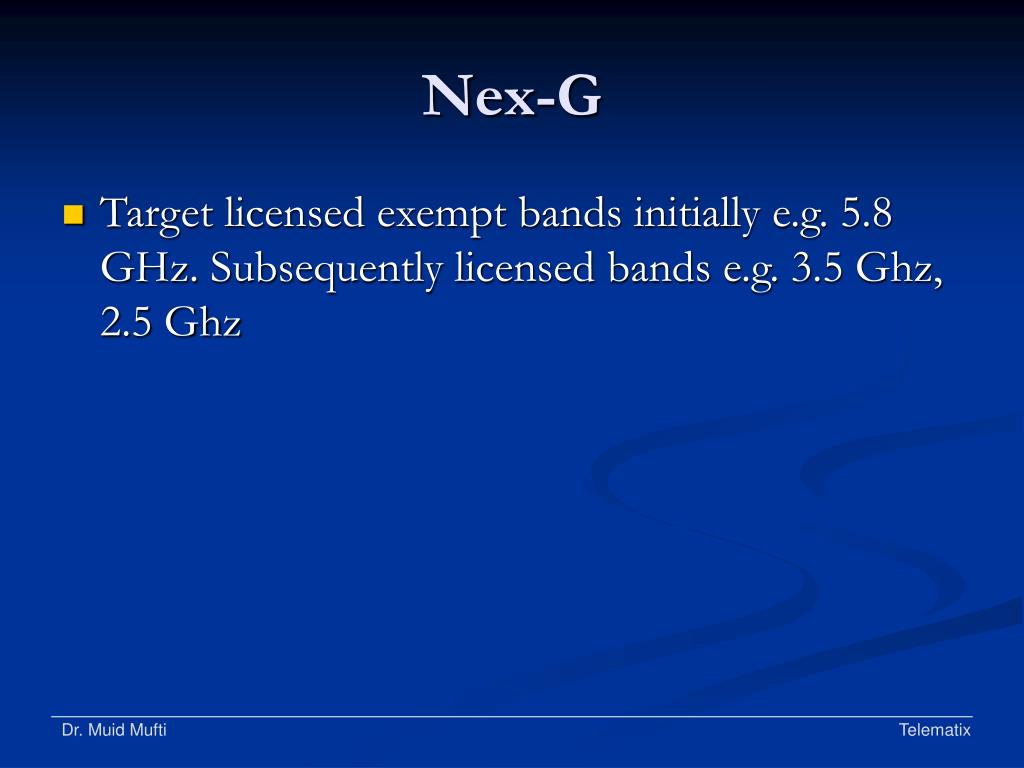

Nex-G

  • Target licensed exempt bands initially e.g. 5.8 GHz. Subsequently licensed bands e.g. 3.5 Ghz, 2.5 Ghz


Redline communications l.jpg

Redline Communications

  • 3.5 GHz, 5.4 GHz, 5.8 GHz

  • Telabria, UK

  • I-Netlink Wireless, Canada;

  • Thirteen WNET/New York, USA


Wilan l.jpg

WiLAN

  • 2.4 GHz, 3.5 GHz, 5.8GHz

  • Marathon Oil, USA

  • TM Net Sdn. Bhd, Malaysia


Ieee 802 20 l.jpg

IEEE 802.20


802 20 mobile fi l.jpg

802.20 (Mobile Fi)

  • Mobile Broadband Wireless Access (MBWA)

  • Below 3.5 GHz bands

  • Optimized for IP-data transport

  • Peak data rates per user in excess of 1 Mbps

  • supports various vehicular mobility classes up to 250 Km/h

  • Range up to 20 Km

  • Extremely low latency at 20 milliseconds or less


802 20 mobile fi52 l.jpg

802.20 (Mobile Fi)

  • The 802.20 interface seeks to boost real-time data transmission rates in wireless metropolitan area networks to speeds that rival DSL and cable connections

  • Cell sizes to commensurate with ubiquitous metropolitan

  • Targets spectral efficiencies, sustained user data rates

  • Numbers of active users significantly higher than achieved by existing mobile systems


802 20 mobile fi53 l.jpg

802.20 (Mobile Fi)

  • Efficient packet-based air interface with high-speed downlink and uplink capabilities

  • It will enable telephony using Voice over Internet Protocol (VoIP) and activities needing rapid network response times, such as online gaming and financial transactions

  • The standard also will support other IP-centric applications, so the many native IP applications can be used without alteration.


Spectral efficiencies l.jpg

Spectral Efficiencies


Design criteria l.jpg

Design Criteria

  • Broad Market Potential

    • Broad sets of applicability.

    • Multiple vendors and numerous users.

    • Balanced costs

  • Compatibility

    • Conformance with 802 Overview and Architecture

    • Conformance with 802.1D (MAC Bridges) and 802.1F (VLAN Bridges)

    • Conformance with 802.1F and compatible managed object definitions

    • Identification of any variance in conformance

  • Coexistence.


Design criteria56 l.jpg

Design Criteria

  • Distinct Identity

    • Substantially different from other IEEE 802 standards.

    • One unique solution per problem.

    • Easy for the document reader to select the relevant specification.

  • Technical Feasibility

    • Demonstrated system feasibility.

    • Proven technology, reasonable testing.

    • Confidence in reliability.

  • Economic Feasibility

    • Known cost factors, reliable data.

    • Reasonable cost for performance.

    • Consideration of installation costs


802 20 vs 802 16e l.jpg

802.20 vs. 802.16e

  • 802.16e - 2 to 6 GHz licensed bands, while 802.20 below 3.5GHz.

  • 802.16e - based on an existing standard (802.16a), while 802.20 is starting from scratch.

  • 802.16e – approved by IEEE February 2006, while 802.20 is under development.

  • 802.16e - 120 to 150 kilometers per hour , while 802.20 up to 250 kilometers per hour

  • 802.16e - mobile user walking around with a PDA or laptop, while 802.20 will address high-speed mobility issues

  • 80216e – deployment in their existing [.16a] footprint, while 802.20 is looking at more ubiquitous coverage.

  • Fate of both standards rests with 802.16 - if there's success in the 802.16 market, it will portend good things for the 802.20


Mbwa deployment l.jpg

MBWA Deployment


Arraycomm l.jpg

System

iBurst

Access Scheme

TDMA/FDMA/SDMA

Spectrum

5 or 10 MHz TDD

Per User Throughout (DL/UL)

1 Mbps/345 kbps(5 MHz bandwidth)

Available Customer Devices

PCMCIA,

Standalone Ethernet

USB modem

Mobility

< 80 kmph

Standard affiliation

802.20

Commercialization

PBA, Australia; WBS, South Africa,8 ongoing trials

ArrayComm


Flarion l.jpg

System

RadioRouter

Access Scheme

Flash OFDM, Flash-OFDM Flexband

Spectrum

2x 1.25 MHz FDD,

2 x 5Mhz FDD (three 1.25Mhz carriers),

2 x 5Mhz FDD (one 5Mhz carrier)

Per User Throughout (DL/UL)

1.5Mbps/500kbps, 2.5Mbps/900kbps,

6.0Mbps/2.5Mbps

Available Customer Devices

PCMCIA

Desktop modem

Chipset

WiFi/FOFDM AP

Mobility

< 300 kmph

Standard affiliation

802.20

Commercialization

Nextel, North Carolina, US; CellularOne, Texas, US; Vodafone, Japan; Telstra, Australia; T-Mobile, Netherlands; OCTO (Public Safety), Washington DC, US.

Flarion


Ipwirless l.jpg

System

IPWireless

Access Scheme

UMTS TD-CDMA

Spectrum

5 or 10 MHz TDD

2x 5 MHz FDD

2x 10MHz FDD

Per User Throughout (DL/UL)

1.5 Mbps/512 kbps (5 MHz bandwidth)

Available Customer Devices

PCMCIA

Standalone Ethernet

USB modem

Chipset

IPWireless/WiFi gateway

VoIP Integrated Access Device

Mobility

< 120 kmph

Standardisation affiliation

3GPP UMTS TDD

Commercialisation

Woosh Wireless, NZ;

UK Broadband (PCCW);

Maxis, Malaysia; Sentech, South Africa; AirData, Germany

15 ongoing trials:

IPWirless


Samsung l.jpg

System

WIMAX/Wibro

Access Scheme

OFDMA

Spectrum

10 MHz TDD

Per User Throughout (DL/UL)

3 Mbps/1 Mbps

Available Customer Device

PCMCIA

Mobility

< 120 kmph

Standard affiliation

WIMAX 802.16e

Commercialization

None yet.

Samsung


Navini l.jpg

System

Ripwave

Access Scheme

MC-SCDMA

Spectrum

5 MHz TDD

Per User Throughout (DL/UL)

2.0 Mbps/1.0 Mbps (max.) for standalone and outdoor modem.

1.0 Mbps/.5 Mbps (max.) for PCMCIA

Available Customer Devices

PCMCIA

Standalone Ethernet/USB modem

Outdoor Modem

Mobility

Limited low speed mobility until WIMAX 802.16e

Standard affiliation

802.20

802.16e

Commercialization

IBAX, Italy;

Unwired, Australia;

11 ongoing trials.

Navini


References l.jpg

References

  • http://grouper.ieee.org/groups/802/20/

  • http://www.iad.gov.pk

  • IEEE 802.16 specs


Questions l.jpg

Questions


  • Login
