  1. ISUAL ROCSAT-2 SSL ISUAL Radiation Effects Environmental Definitionand System Evaluation Innovative Concepts Inc. 8200 Greensboro Drive Suite 801 McLean, VA 22102 (703) 893-2007

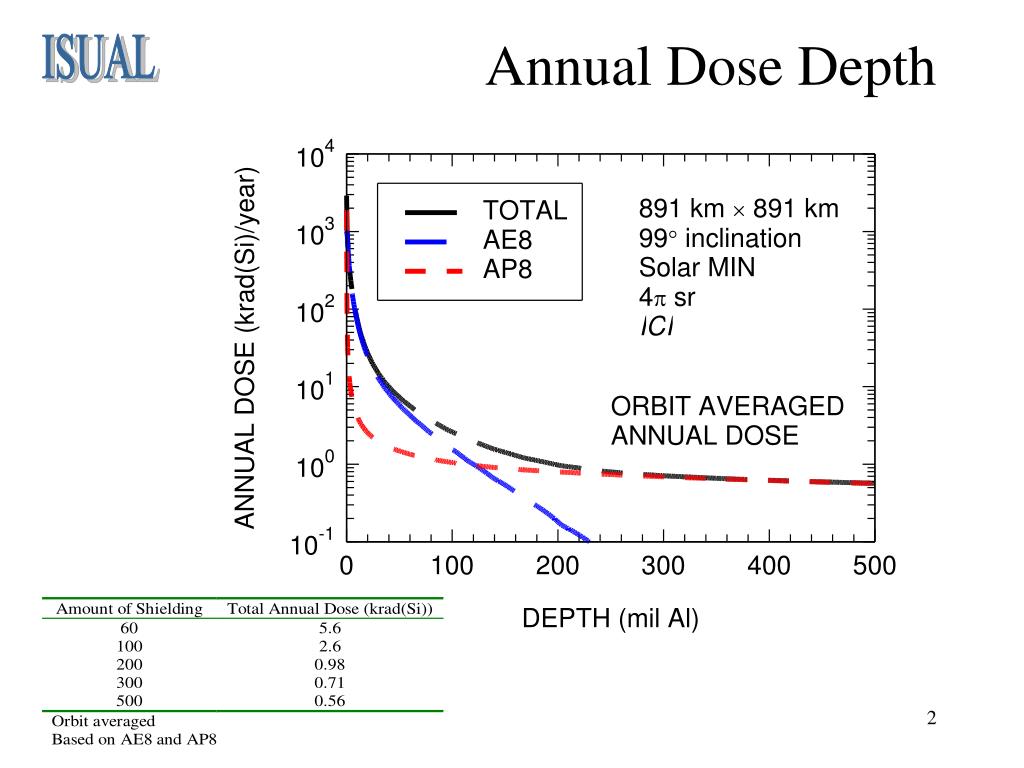

  2. Annual Dose Depth

  3. Integral Electron Flux

  4. Differential Proton Flux

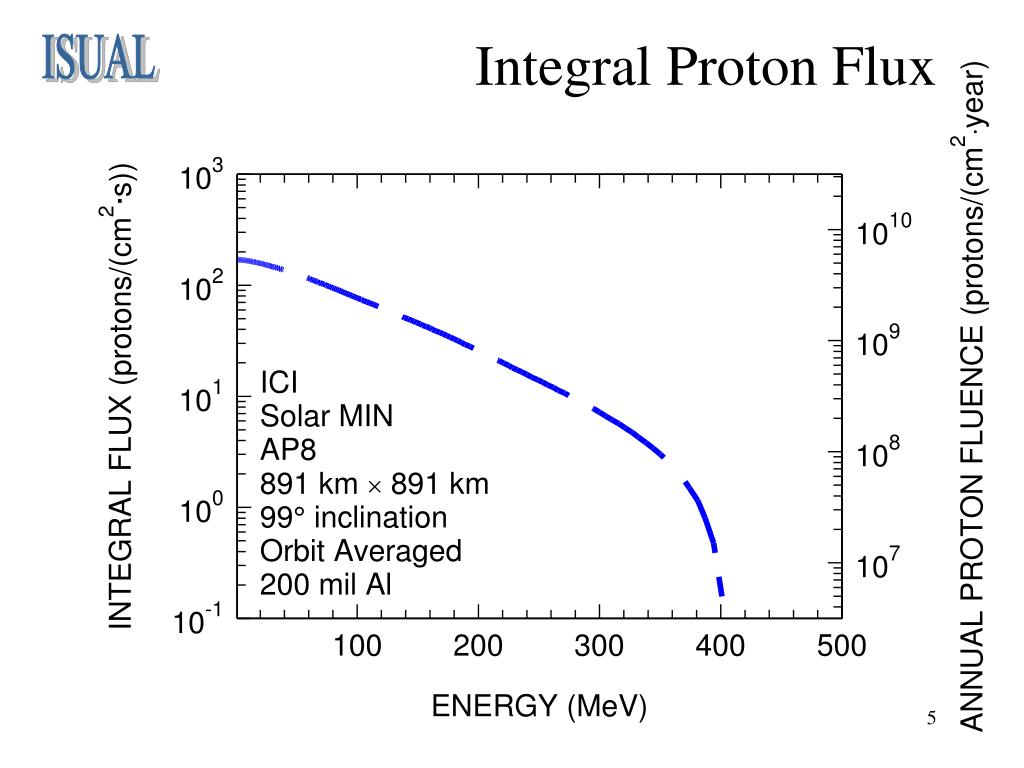

  5. Integral Proton Flux

  6. Integral GCR Flux

  7. Geographic Map of Proton Flux 891 km × 891 km 99° inclination Solar MIN 200 mil Al shielding minimum contour >100 particles/(cm2·s)

  8. Geographic Map of Electron Flux 891 km × 891 km 99° inclination Solar MIN 200 mil Al shielding minimum contour > 10 particles/(cm2 s)

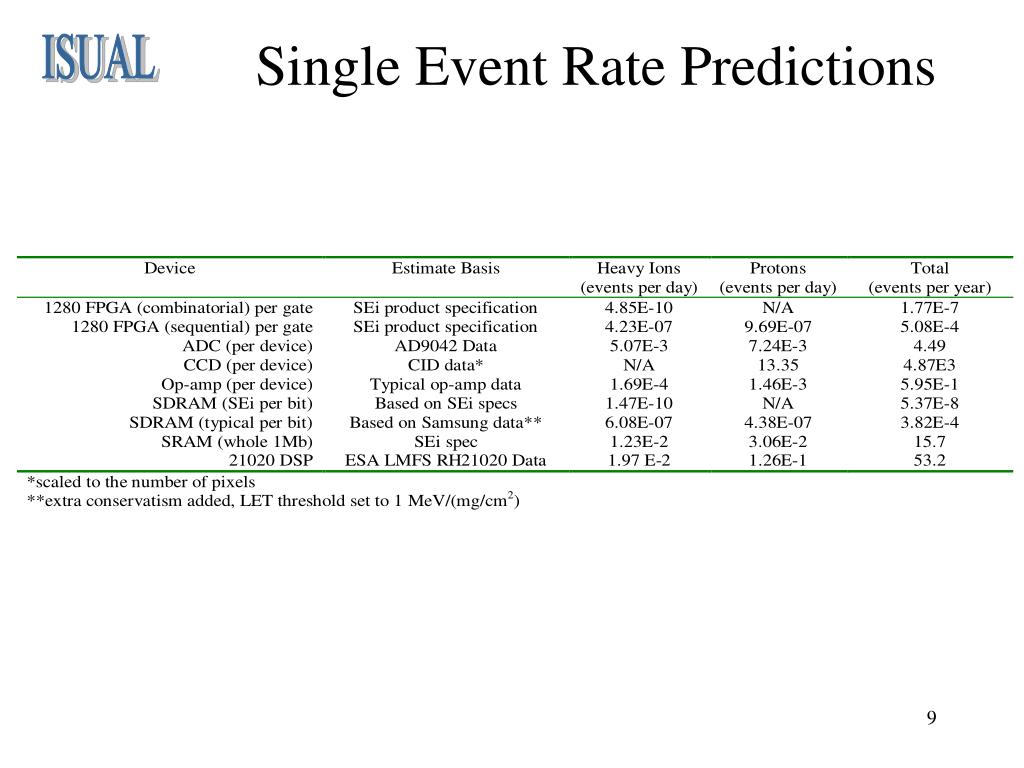

  9. Single Event Rate Predictions

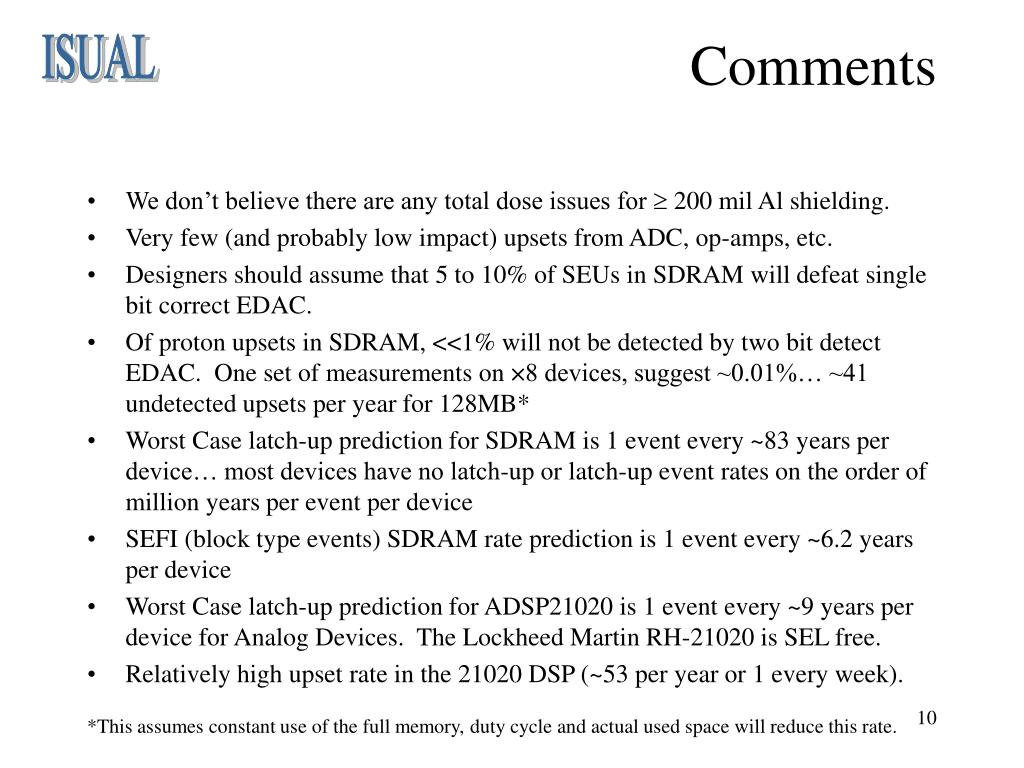

  10. Comments • We don’t believe there are any total dose issues for  200 mil Al shielding. • Very few (and probably low impact) upsets from ADC, op-amps, etc. • Designers should assume that 5 to 10% of SEUs in SDRAM will defeat single bit correct EDAC. • Of proton upsets in SDRAM, <<1% will not be detected by two bit detect EDAC. One set of measurements on ×8 devices, suggest ~0.01%… ~41 undetected upsets per year for 128MB* • Worst Case latch-up prediction for SDRAM is 1 event every ~83 years per device… most devices have no latch-up or latch-up event rates on the order of million years per event per device • SEFI (block type events) SDRAM rate prediction is 1 event every ~6.2 years per device • Worst Case latch-up prediction for ADSP21020 is 1 event every ~9 years per device for Analog Devices. The Lockheed Martin RH-21020 is SEL free. • Relatively high upset rate in the 21020 DSP (~53 per year or 1 every week). *This assumes constant use of the full memory, duty cycle and actual used space will reduce this rate.

  11. Recommendations • SEL in SDRAM • SEL measurements • Current limiting circuitry • Power management ... ON to use and OFF when not in use • Need to consider SEU in 21020 DSP
