  1. e+/eｰLinac Beam On 論理 （案） 2005/03/09

  2. Linacが「運転」である状態 安全Bend OFF 安全Bend ON 更新の要点 • 入射モードの改変 • 電子銃高圧印加条件の変更なし • 下流側からの信号の一部を変更 「KEKB & PF モード」（仮称）を設定 Beam On Logic

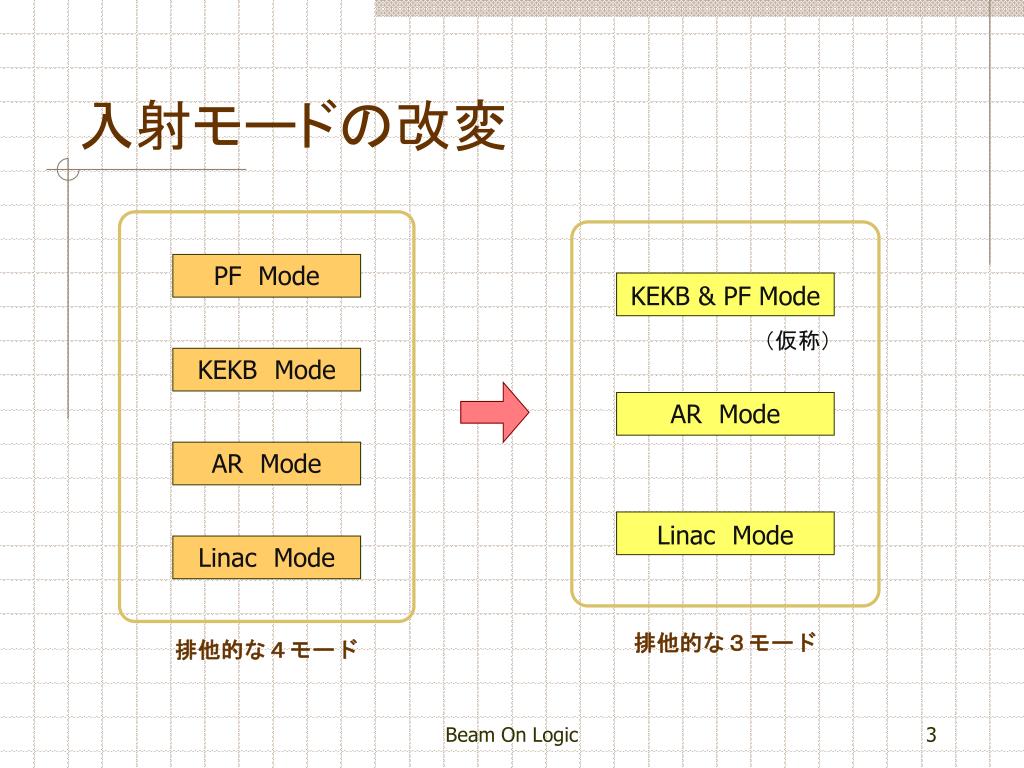

  3. PFMode KEKB & PF Mode （仮称） KEKBMode ARMode ARMode LinacMode LinacMode 排他的な３モード 排他的な４モード 入射モードの改変 Beam On Logic

  4. ２つの電子銃 • A-1 Gun KEKB, PF, AR へ入射可能 • C-T Gun PF, AR へ入射可能 （いずれも従来通り） A-1 Gun C-T Gun Beam On Logic

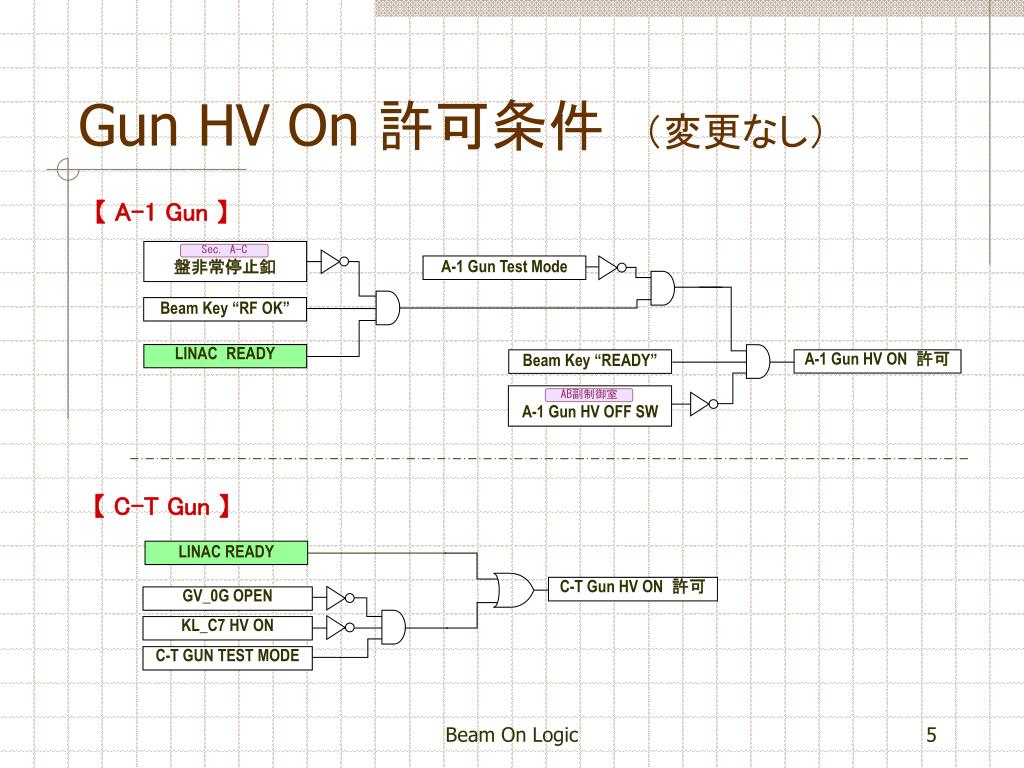

  5. Gun HV On 許可条件　（変更なし） 【 A-1 Gun 】 盤非常停止釦 Sec. A-C A-1 Gun Test Mode Beam Key “RF OK” LINACREADY Beam Key “READY” A-1 Gun HV ON許可 A-1 Gun HV OFF SW AB副制御室 【 C-T Gun 】 LINAC READY C-T Gun HV ON許可 GV_0G OPEN KL_C7 HV ON C-T GUN TEST MODE Beam On Logic

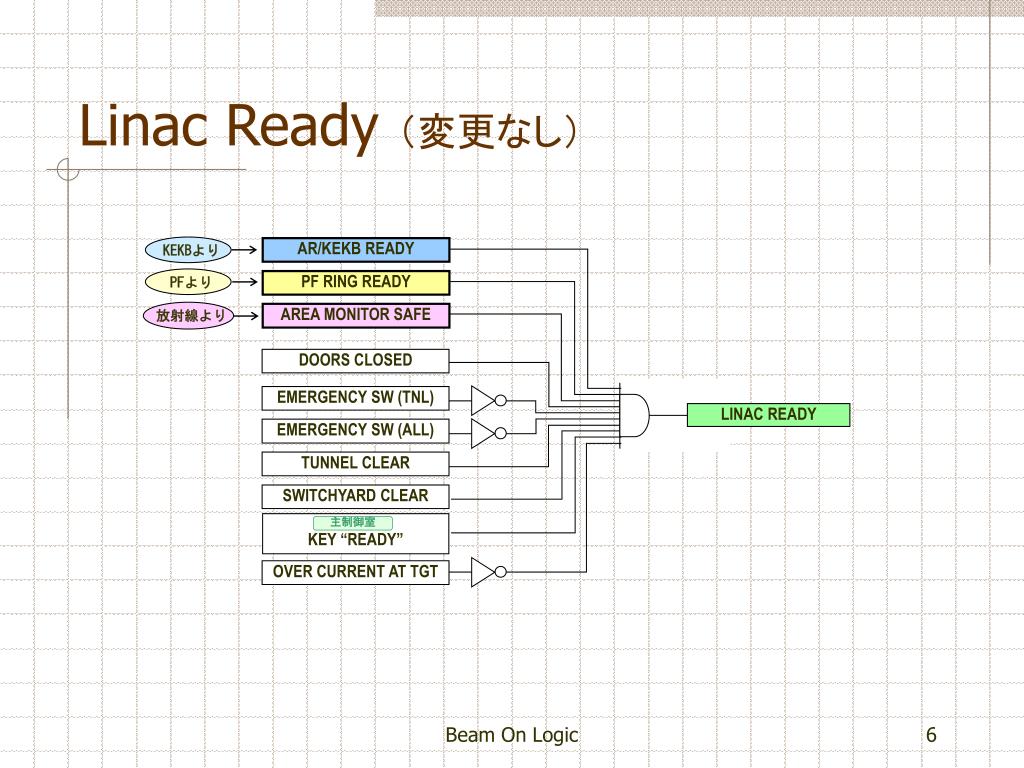

  6. KEKBより PFより 放射線より Linac Ready （変更なし） AR/KEKB READY PF RING READY AREA MONITOR SAFE DOORS CLOSED EMERGENCY SW (TNL) LINAC READY EMERGENCY SW (ALL) TUNNEL CLEAR SWITCHYARD CLEAR KEY “READY” 主制御室 OVER CURRENT AT TGT Beam On Logic

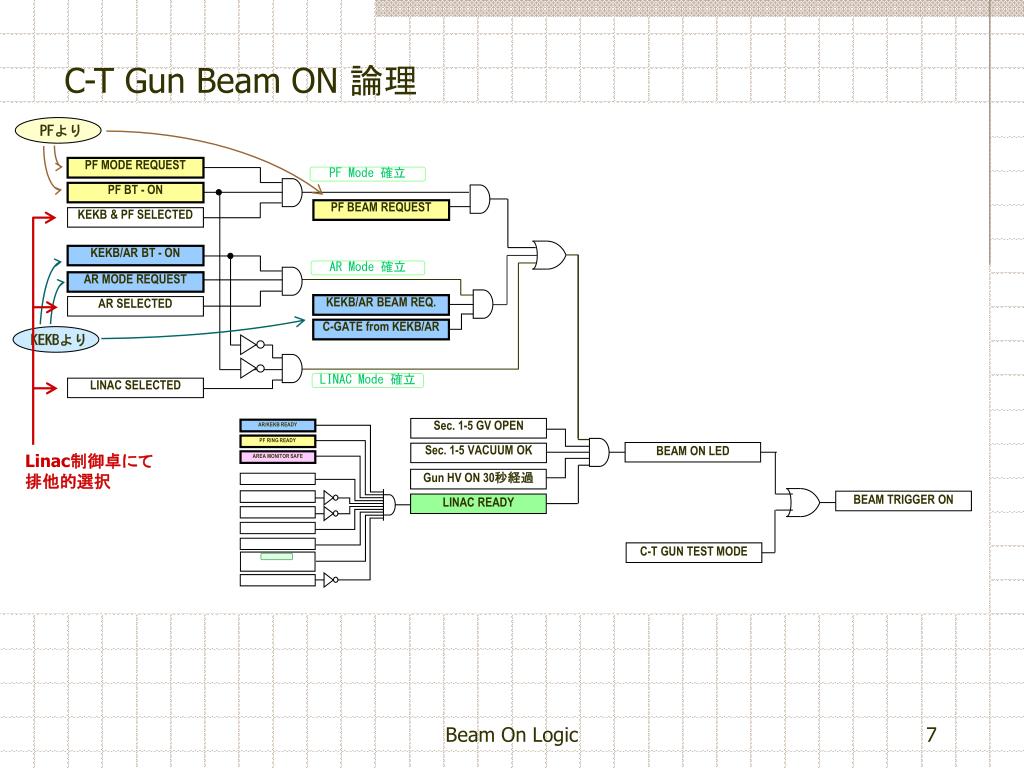

  7. Linac制御卓にて排他的選択 AR/KEKB READY KEKBより PF RING READY AREA MONITOR SAFE PFより C-T Gun Beam ON 論理 PF MODE REQUEST PF Mode 確立 PF BT - ON PF BEAM REQUEST KEKB & PF SELECTED KEKB/AR BT - ON AR Mode 確立 AR MODE REQUEST KEKB/AR BEAM REQ. AR SELECTED C-GATE from KEKB/AR LINAC Mode 確立 LINAC SELECTED Sec. 1-5 GV OPEN BEAM ON LED Sec. 1-5 VACUUM OK Gun HV ON 30秒経過 BEAM TRIGGER ON LINAC READY C-T GUN TEST MODE Beam On Logic

  8. 排他的選択 C-T Gun On の場合は不可 A-1 Gun Beam ON 論理（通常入射） PF MODE REQUEST PF Mode 確立 PF BT - ON PF BEAM REQUEST PF Beam ON LED TRIGGER ON for PF (トリガー許可） KEKB & PF SELECTED GU_A1 TEST MODE KEKB Mode 確立 KEKB MODE REQUEST TRIGGER ON for KEKB KEKB Beam ON LED KEKB/AR BEAM REQ. KEKB/AR BT - ON A-GATE from KEKB/AR AR MODE REQUEST AR Mode 確立 AR SELECTED LINAC Mode 確立 LINAC SELECTED ARC MAGNET OFF C-T GUN BEAM ON Sec.A-C BEAM ON許可 Sec.1-5 VACUUM OK Sec.1-5 GV OPEN OVER CURRENT at SY3 LINAC READY Beam On Logic

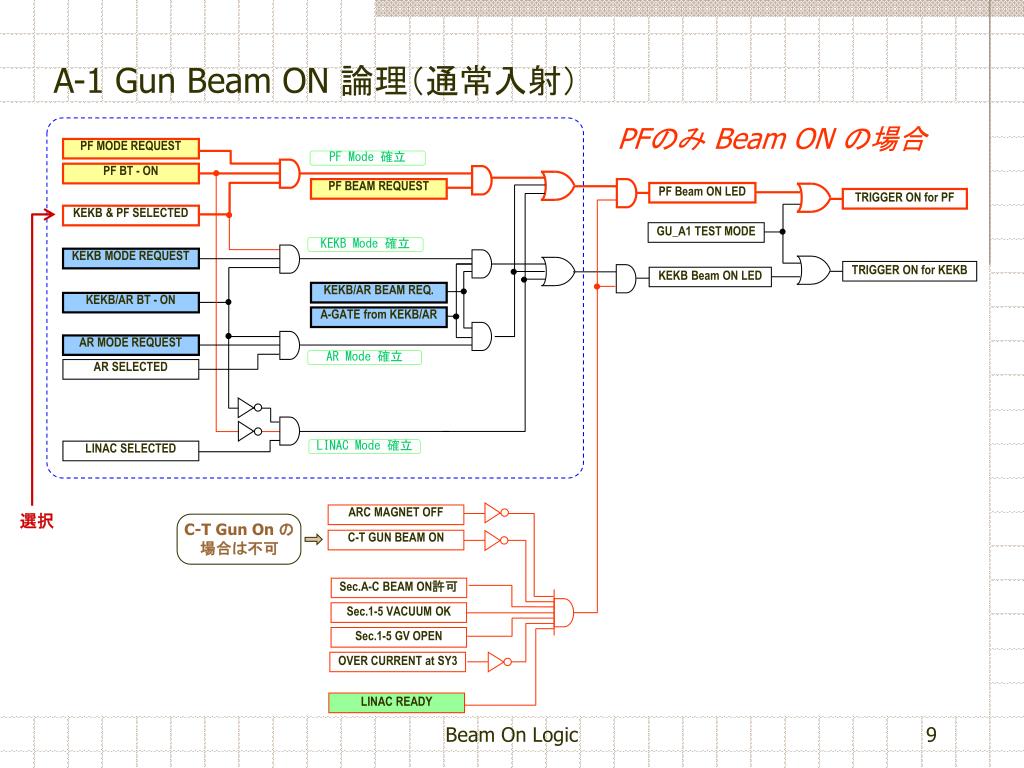

  9. C-T Gun On の場合は不可 A-1 Gun Beam ON 論理（通常入射） PFのみ Beam ON の場合 PF MODE REQUEST PF Mode 確立 PF BT - ON PF BEAM REQUEST PF Beam ON LED TRIGGER ON for PF KEKB & PF SELECTED GU_A1 TEST MODE KEKB Mode 確立 KEKB MODE REQUEST TRIGGER ON for KEKB KEKB Beam ON LED KEKB/AR BEAM REQ. KEKB/AR BT - ON A-GATE from KEKB/AR AR MODE REQUEST AR Mode 確立 AR SELECTED LINAC Mode 確立 LINAC SELECTED 選択 ARC MAGNET OFF C-T GUN BEAM ON Sec.A-C BEAM ON許可 Sec.1-5 VACUUM OK Sec.1-5 GV OPEN OVER CURRENT at SY3 LINAC READY Beam On Logic

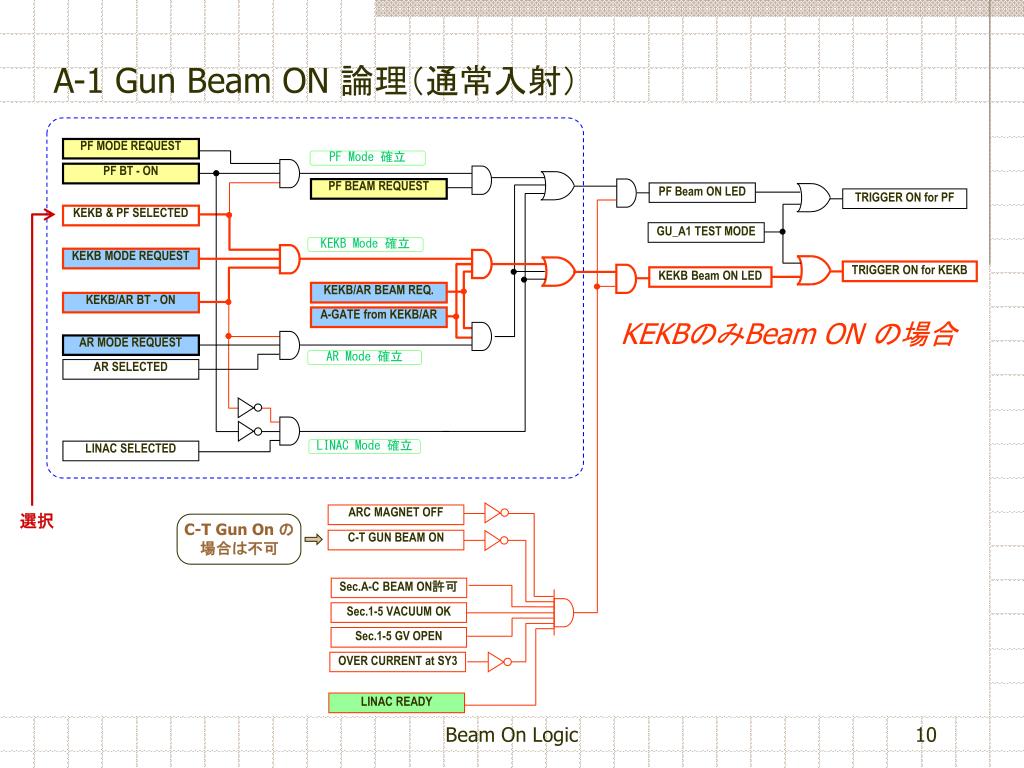

  10. C-T Gun On の場合は不可 A-1 Gun Beam ON 論理（通常入射） PF MODE REQUEST PF Mode 確立 PF BT - ON PF BEAM REQUEST PF Beam ON LED TRIGGER ON for PF KEKB & PF SELECTED GU_A1 TEST MODE KEKB Mode 確立 KEKB MODE REQUEST TRIGGER ON for KEKB KEKB Beam ON LED KEKB/AR BEAM REQ. KEKB/AR BT - ON A-GATE from KEKB/AR KEKBのみBeam ON の場合 AR MODE REQUEST AR Mode 確立 AR SELECTED LINAC Mode 確立 LINAC SELECTED 選択 ARC MAGNET OFF C-T GUN BEAM ON Sec.A-C BEAM ON許可 Sec.1-5 VACUUM OK Sec.1-5 GV OPEN OVER CURRENT at SY3 LINAC READY Beam On Logic

  11. C-T Gun On の場合は不可 A-1 Gun Beam ON 論理（通常入射） PF & KEKB Beam ON の場合 PF MODE REQUEST PF Mode 確立 PF BT - ON PF BEAM REQUEST PF Beam ON LED TRIGGER ON for PF KEKB & PF SELECTED GU_A1 TEST MODE KEKB Mode 確立 KEKB MODE REQUEST TRIGGER ON for KEKB KEKB Beam ON LED KEKB/AR BEAM REQ. KEKB/AR BT - ON A-GATE from KEKB/AR AR MODE REQUEST AR Mode 確立 AR SELECTED LINAC Mode 確立 LINAC SELECTED 選択 ARC MAGNET OFF C-T GUN BEAM ON Sec.A-C BEAM ON許可 Sec.1-5 VACUUM OK Sec.1-5 GV OPEN OVER CURRENT at SY3 LINAC READY Beam On Logic
