Concept selection for the 2005 solar decathlon heat pump system

Concept Selection for the 2005 Solar Decathlon Heat Pump System

Heat Pump Group (HPG) - Robert Krickus, William Lancaster, Carrie O’Planick, Kris Powers, and Chris van Swol


Concept selection for the 2005 solar decathlon heat pump system

Mission Statement


Overview of concept selection process

Overview of Concept Selection Process

Review and Ranking of Needs

Preliminary Specs

Alternative Designs and

Concept Selection


Concept selection for the 2005 solar decathlon heat pump system

Review of Surveyed Customer Needs

Overall Size of Unit

Accessibility of Unit

Energy Cost to run Unit

Ease of Use

Ease of Maintenance


Concept selection for the 2005 solar decathlon heat pump system

Ranking of Needs with a Concept Metrics


Initial concepts

Initial Concepts

The Concepts where broken down into three different types.

-Heating

-Cooling

-Configuration


Heating methods

Heating Methods

Forced Air Through Ducts

Stable and standard Design

Takes up wall space

Uneven Heating

Passive Solar on the House

Simple

ArchitecturalVariable Heating

Radiant Flooring

Uses Floor Space

Even Heating

Simple Heat Pump


Cooling methods

Cooling Methods

Duct Cooling

Single Exit

Less Space

Less Air Flow

Multiple Exit

More Space

Better Cooling

Radiant Ceiling

Best cooling

Problems with Condensation


Configuration

Configuration

One of the most important ways to save space.

Folding areas give a reduction of space with

good maintenance. Unfortunately they do not

Have a long life span.

A vertical design saves space but

Is hard to maintain.


Horizontal designs

Horizontal Designs

Horizontal Designs are easy to construct and work on. They are also the largest and most unwieldy of the designs.


Concept selection for the 2005 solar decathlon heat pump system

In order to select a concept, we needed to be able to visualize the system

The dimensions of the house will not be defined until after the competition

Initially, we used 2-D methods to find the most compact design


Concept selection for the 2005 solar decathlon heat pump system

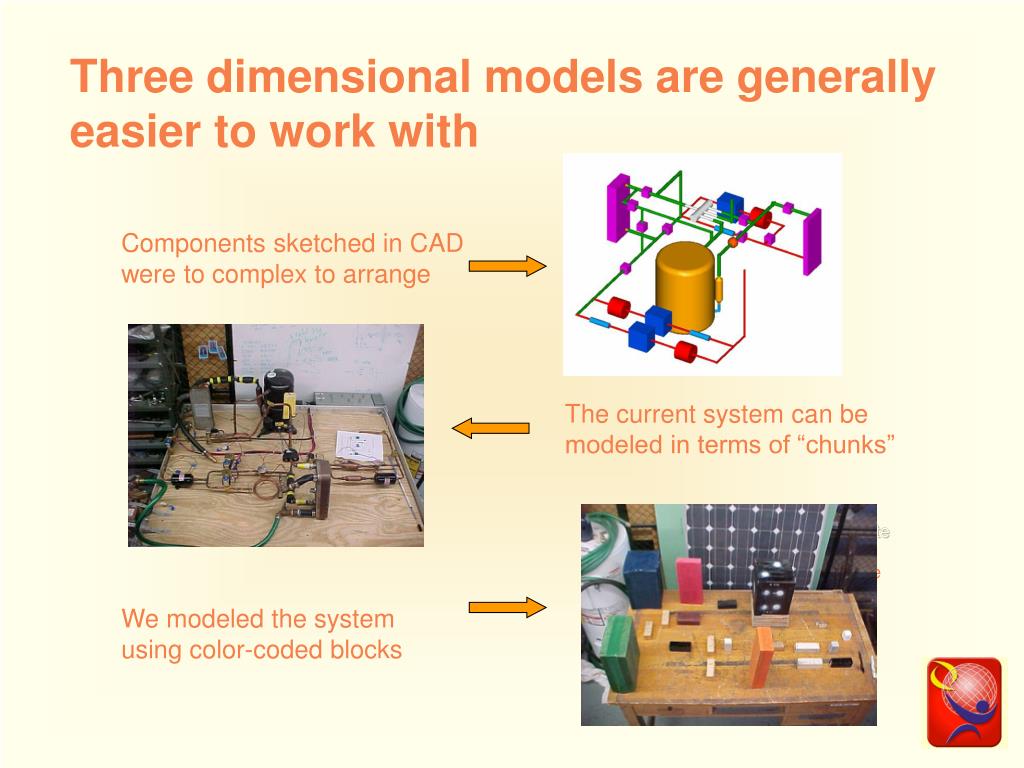

Three dimensional models are generally easier to work with

Components sketched in CAD were to complex to arrange

The current system can be modeled in terms of “chunks”

CompressorBlack & White

Pumps Blue, Green

Heat Exchangers Red, Orange

Check Valves Cream

Expansion Valves Silver

Liquid Line Dryers Black

Solenoid Valves Gold

Sight Glass White

Four-way Valve Brown

We modeled the system using color-coded blocks


Concept selection for the 2005 solar decathlon heat pump system

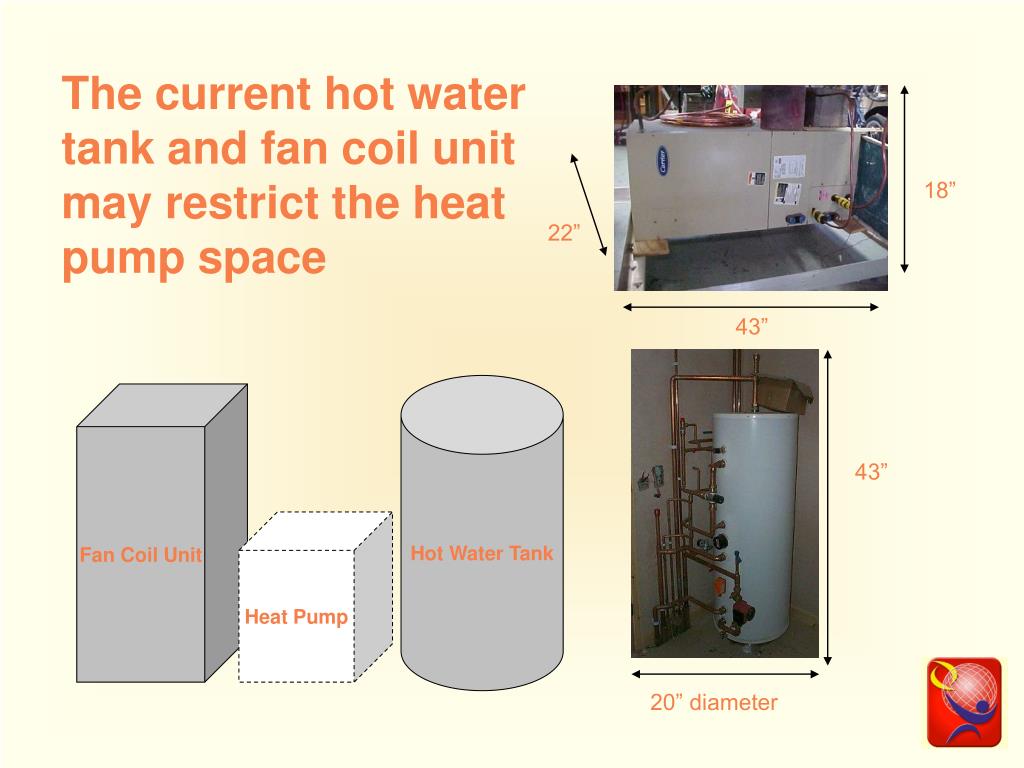

The current hot water tank and fan coil unit may restrict the heat pump space

18”

22”

43”

Hot Water Tank

Fan Coil Unit

43”

Heat Pump

20” diameter


Concept selection for the 2005 solar decathlon heat pump system

Our objective for the first design was to meet the geometric specifications

To Fan Coil Unit

20”

One drawback to the design is the internal piping

20”

24”

Based on customer needs, ease of maintenance was rated a 1.4

In the future, we could modify the design with external piping

To Tempered Water Tank

To Hot Water Tank


Concept selection for the 2005 solar decathlon heat pump system

A number of geometrical configurations for the system are possible

This system, mounted vertically, conserves floor space

14”

36”

Other advantages include the external piping and separate switches

In the future, more design options will be offered

Questions?
