  1. Team Incidence Jeffrey Konetski Matt Lewinsohn Garrett Marsh

  2. We have decided to set a photovoltaic system in a residential neighborhood in Miami, FL.

  3. This house is ideal because: • It has an open roof facing south that has excellent sky exposure • This house would have a significant energy consumption due the locale

  4. Shading The blue circle is where the panels will go, and there are no apparent sources of shading.

  5. 3352 sq foot home • One story • With a pool • 3 bedroom, single family • Estimated worth is $750,000 http://www.zillow.com/homedetails/7500-SW-53rd-Pl-Miami-FL-33143/44226164_zpid/

  6. Load • Average power use in according to EIA is 1194 kWh/month • The house is fairly large and has a pool • We assumed the house uses about 1500 kWh a month http://www.eia.gov/tools/faqs/faq.cfm?id=97&t=3

  7. Incentives • Federal incentive • Sales tax • Property tax • State program – $2/watt • Net metering

  8. SRECS http://www.srectrade.com/background.php

  9. Array • Our array is 2 kW of installed power • 43 panels in series • Multi-crystalline Silicon • 28.8 m2 • 20O tilt • 0O azimuth

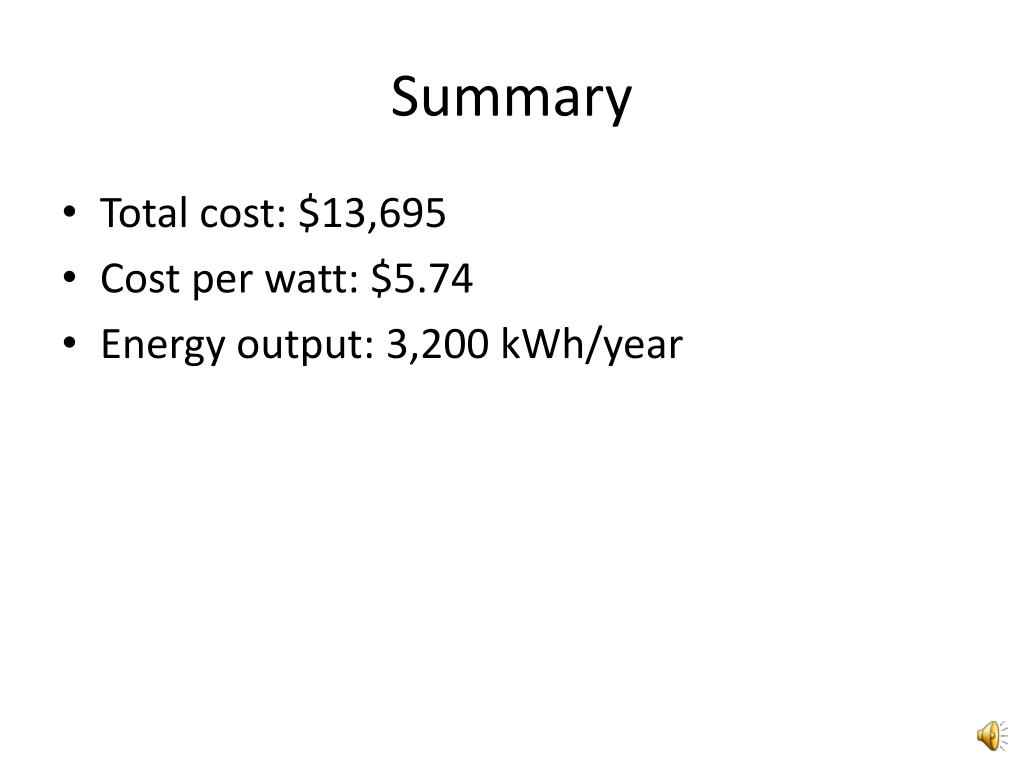

  10. Summary • Total cost: $13,695 • Cost per watt: $5.74 • Energy output: 3,200 kWh/year

  11. Conclusions • It is a good investment, all things considered.

  12. Thank you for watching • Images of the house are from Google maps • Clip art is from Google images
