Presentation Transcript


Netlens iterative exploration of content actor network data

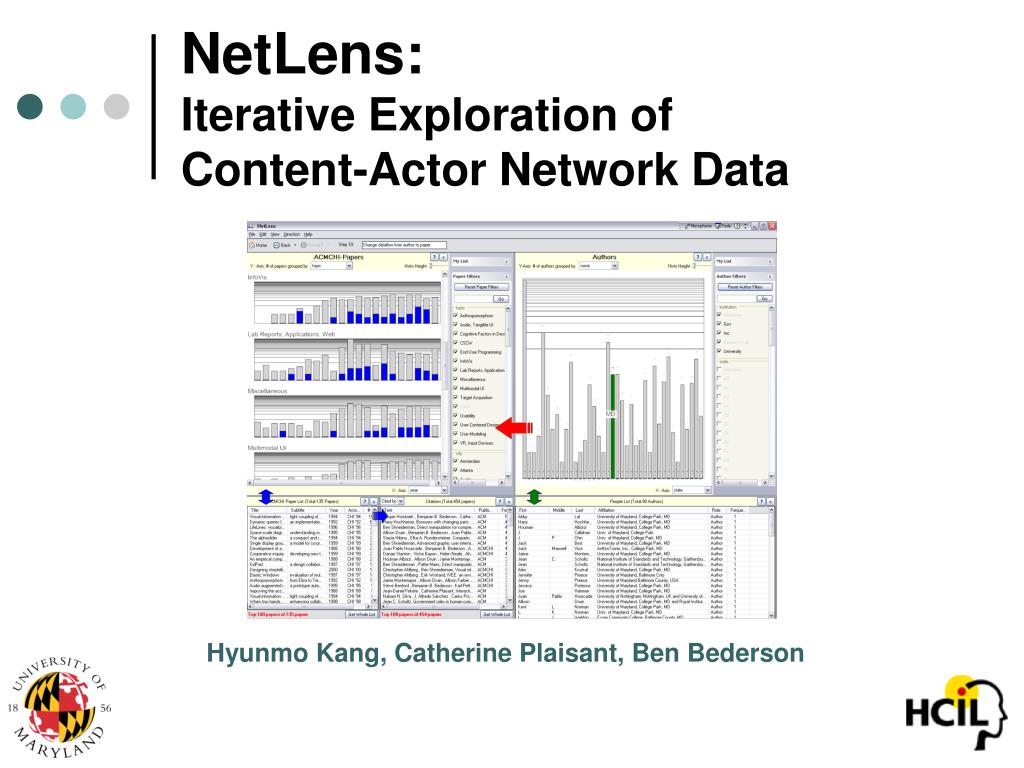

NetLens:Iterative Exploration of Content-Actor Network Data

Hyunmo Kang, Catherine Plaisant, Ben Bederson


Challenges of network data visualization

Challenges of Network Data Visualization

by Frank van Ham

TouchGraph


Challenges of network data visualization1

Challenges of Network Data Visualization

  • Complex Analytic Tasks

    • Incremental data exploration

    • Iterative query refinement

  • Scalability

    • Common simple UI components e.g. histogram and lists

  • Generality

    • Apply to any dataset matching Content-Actor modele.g. digital library, photo collections, email collections, case law, etc.


Data analysis content actor model

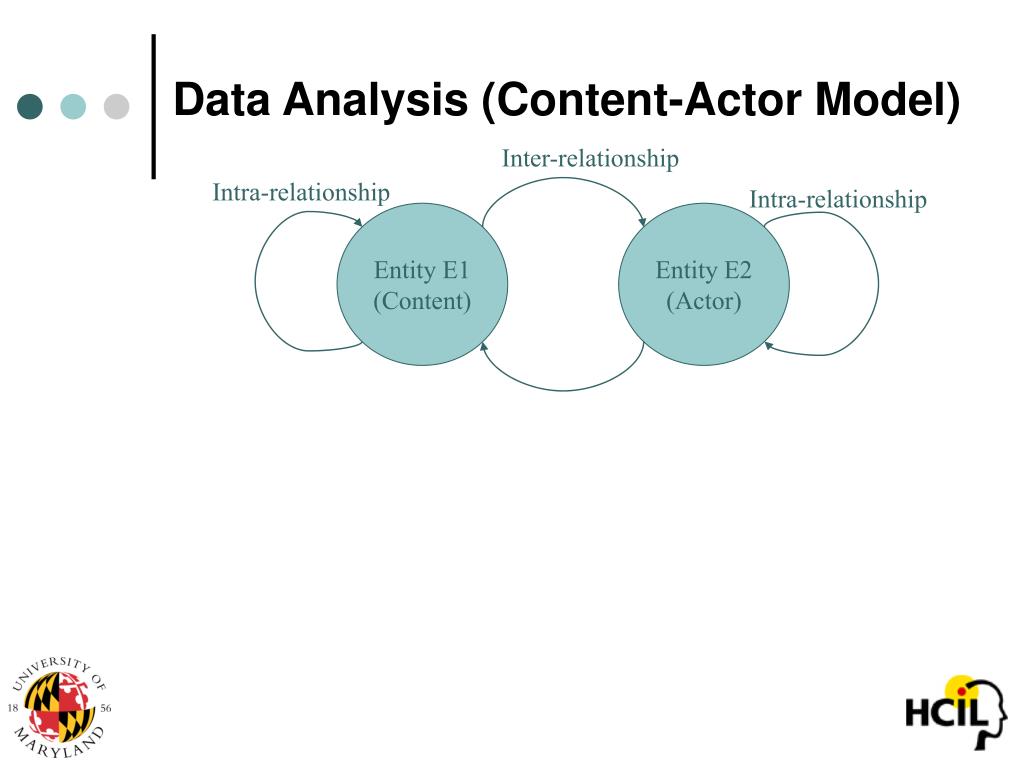

Data Analysis (Content-Actor Model)

Inter-relationship

Intra-relationship

Intra-relationship

Entity E1

(Content)

Entity E2

(Actor)


Data analysis content actor model1

Data Analysis (Content-Actor Model)

Inter-relationship

Intra-relationship

Intra-relationship

Content

(Paper)

Actor

(Author)


Data analysis content actor model2

Data Analysis (Content-Actor Model)

Inter-relationship

Intra-relationship

Intra-relationship

Content

(Email)

Actor

(People)


Data analysis content actor model3

Data Analysis (Content-Actor Model)

Inter-relationship

Intra-relationship

Intra-relationship

Actor

(Photo)

Content

(People or Category)


Demo screenshots at www cs umd edu hcil netlens video at www cs umd edu hcil netlens vastvideo

DEMOScreenshots at www.cs.umd.edu/hcil/netlensVideo at www.cs.umd.edu/hcil/netlens/VASTvideo


Task analysis

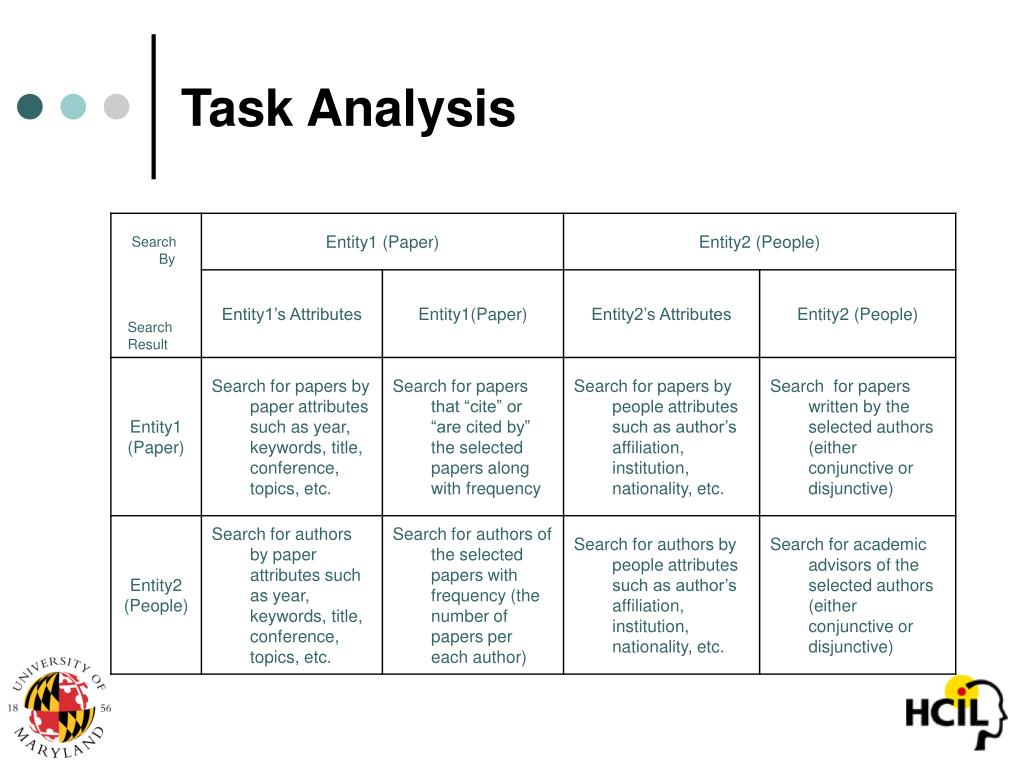

Task Analysis


Task analysis1

Task Analysis

  • Single step tasks

    • How many papers on “User Study” were published in 1998?

    • Who are the authors of the papers on “Virtual Reality”, which were published at the CHI 99 conference?

    • Which paper is the most frequently cited by the papers published at the CHI 04 conference?

    • Which author is most frequently cited in the “InfoVis” topic?

    • How many papers were published by UMD HCIL people?

    • Who are the authors whose nationality is Korea?


Task analysis2

Task Analysis

  • Multiple step tasks

    • Evaluate individuals:

      - how many papers were self-referenced?

      - how frequently was each paper referenced by other papers?

    • Identify communities:

      - what are the major paper topics published by UMD HCIL? and who in this group has the most papers in that topic?

      - how do UMD HCIL’s research interests change over time? and who in this group made that change?

    • Find experts (to review papers or come to workshop):

      - who wrote the most papers in the InfoVis topic? and how many papers cited his papers?

      - whose paper in the InfoVis area is most frequently referenced by other papers?

    • Learning about a new topic (to find a good PhD topic):

      - which topic has growing publications? and who contributed most to this topic last 3 years?

      - what are the other topics the authors in InfoVis area also get interested in?

    • Where should I go on a sabbatical?

      - which country (or research group)’s authors most frequently reference my papers?


Design challenges

Design Challenges

  • History and Integrated Help

    • Sequence of interactions to accomplish a task (lost in exploration)

    • “How did I get here?”

    • “What does the current filtered dataset mean?”


Design challenges1

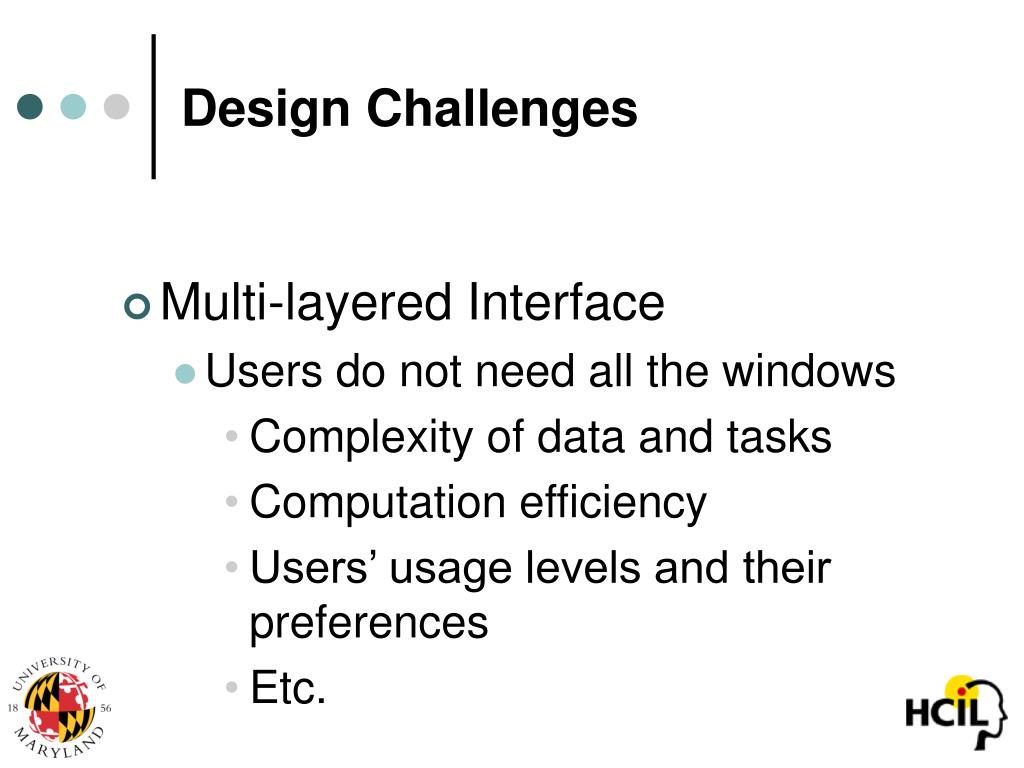

Design Challenges

  • Multi-layered Interface

    • Users do not need all the windows

      • Complexity of data and tasks

      • Computation efficiency

      • Users’ usage levels and their preferences

      • Etc.


Design challenges2

Design Challenges

  • Data Export

    • Integration of graph visualizing tool TreePlus

    • Exporting methods

      • Windows clipboard

      • Internal graph class object

      • Xml documents


Netlens extension

NetLens Extension

(Joint Institute for Knowledge Discovery) - http://jikd.umiacs.umd.edu

Emails on the leftPeople on the right

Overviews provided for all attributes (here for emotional tone on emails side)

Filtered to show only emails related to CAenergy crisis; and the people who sentthem are shown on the right side.


Netlens extension1

NetLens Extension

(Joint Institute for Knowledge Discovery)

  • Generality and Scalability

JIKD data schema


Netlens data schema

NetLens Data Schema


Netlens system architecture

NetLens System Architecture

  • NetLens

    • Written in C#, Piccolo toolkit

  • Database Server

    • MySQL

  • ADO.NET driver for MySQL

    • MySQL connector/NET 1.0.7

  • Web Server

    • Mac OS X Server

  • Web API

    • CGI, JSP (e.g. email search, people’s bio, etc.)

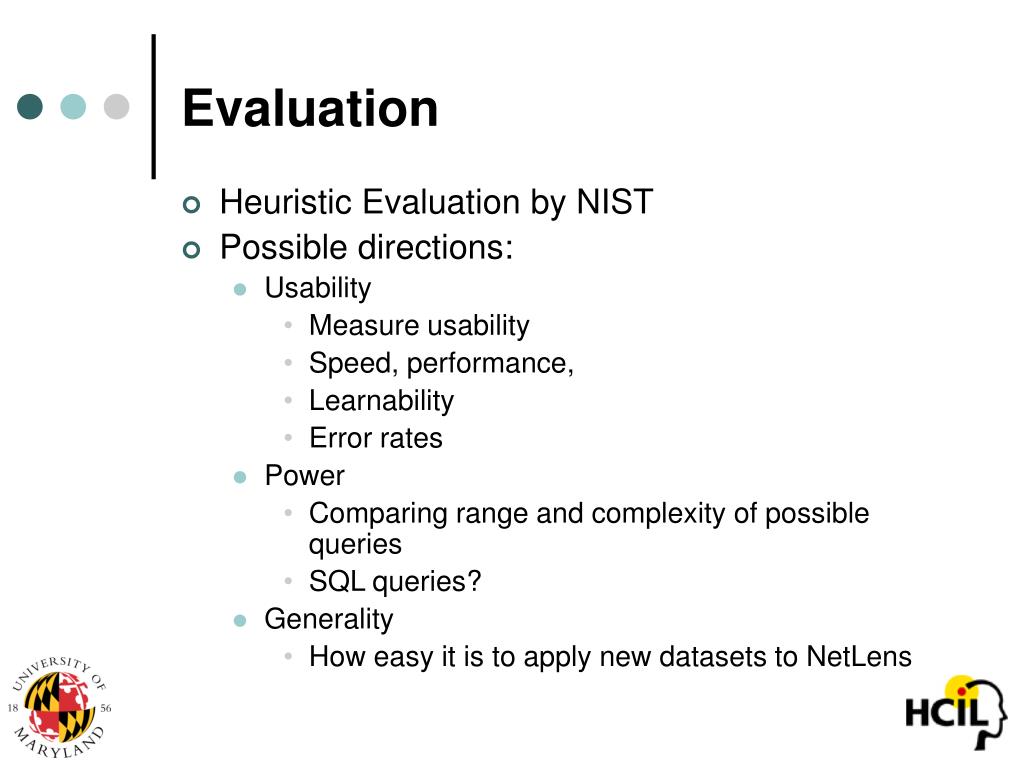

Evaluation

Evaluation

  • Heuristic Evaluation by NIST

  • Possible directions:

    • Usability

      • Measure usability

      • Speed, performance,

      • Learnability

      • Error rates

    • Power

      • Comparing range and complexity of possible queries

      • SQL queries?

    • Generality

      • How easy it is to apply new datasets to NetLens


Photomesa browse annotate and search digital images

PhotoMesaBrowse, Annotate, and Search Digital Images

Hyunmo Kang and Ben Bederson


Photomesa image browsing

PhotoMesa Image Browsing

  • Zoomable User Interface

Zooming into a group of photos

Zooming into a single photo

  • PhotoMesa shows all photos in a single view

  • Bigger preview by moving over a thumbnail

  • Browse photos by zooming in or out

  • Dynamic sorting and grouping


Photomesa image browsing1

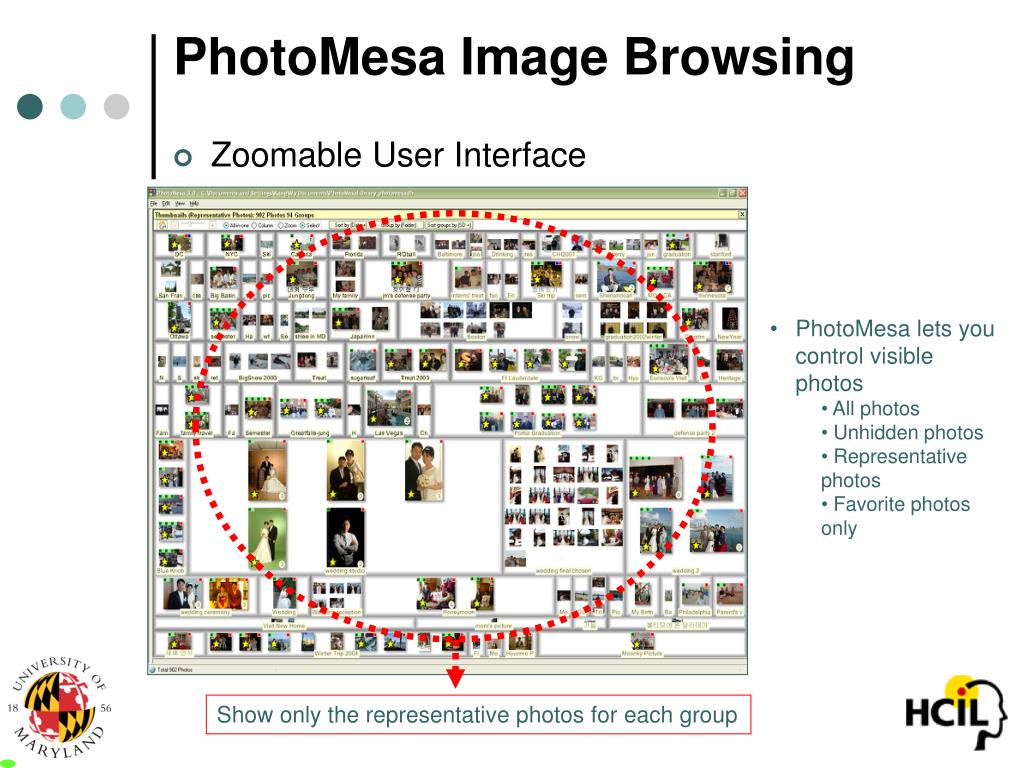

PhotoMesa Image Browsing

  • Zoomable User Interface

  • PhotoMesa lets you control visible photos

    • All photos

    • Unhidden photos

    • Representative photos

    • Favorite photos only

Show only the representative photos for each group


Photomesa image browsing2

PhotoMesa Image Browsing

  • Browse photos in “Scroll” mode with detail photo view

  • Zoomable User Interface

Scrollable Thumbnails Panel

Photo Information with EXIF

Detail Photo Panel


Photomesa annotating

PhotoMesa Annotating

Label objects in the photo (e.g. animals, locations, etc.)

Label who is in the photo

Add a caption and mark photo as favorite or hidden

  • People Annotation Mechanisms: Checkbox Annotation, Drag-and-drop Annotation, Hotkey Annotation

  • Category Annotation: Create user-defined hierarchical structure of object types to annotate your photos with

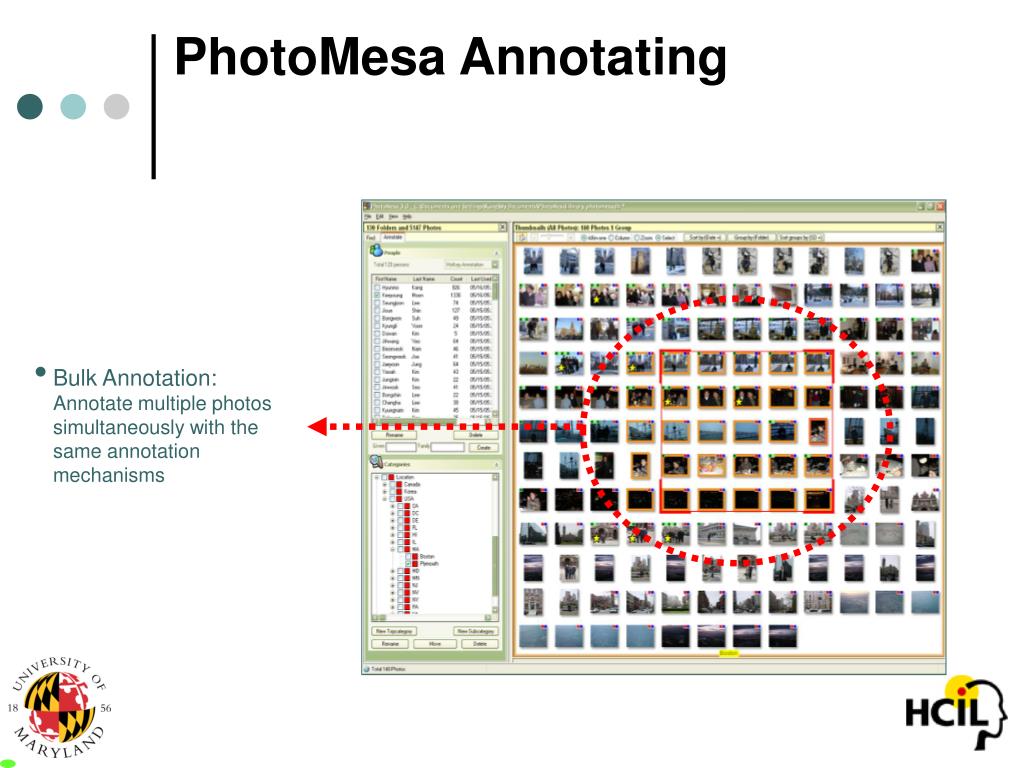

Photomesa annotating1

PhotoMesa Annotating

  • Bulk Annotation: Annotate multiple photos simultaneously with the same annotation mechanisms


Photomesa searching

PhotoMesa Searching

By keyword

By folders

By people

By category

By year

By month


Photomesa photo sharing

PhotoMesa Photo Sharing

  • Upload

    • Photos

    • Metadata e.g.) people, category, photo info, etc.

  • Remove

  • Update

  • Search

  • Web Services

    • Browse with web browser

    • Add comments


Photomesa data schema

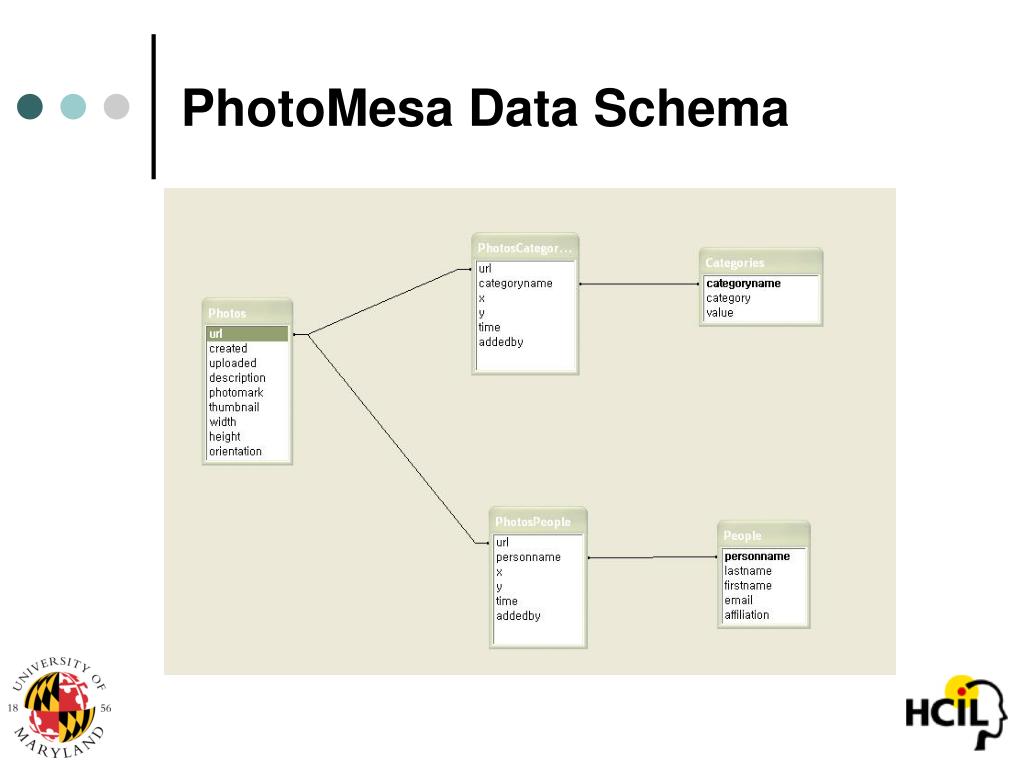

PhotoMesa Data Schema

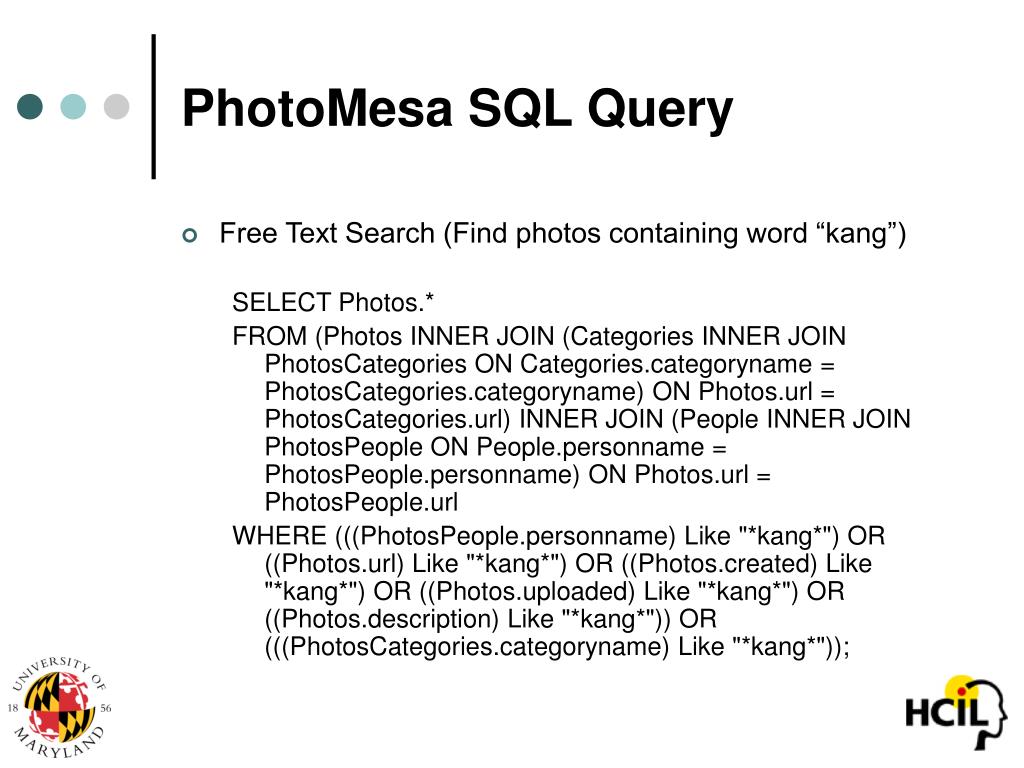

Photomesa sql query

PhotoMesa SQL Query

  • Free Text Search (Find photos containing word “kang”)

    SELECT Photos.*

    FROM (Photos INNER JOIN (Categories INNER JOIN PhotosCategories ON Categories.categoryname = PhotosCategories.categoryname) ON Photos.url = PhotosCategories.url) INNER JOIN (People INNER JOIN PhotosPeople ON People.personname = PhotosPeople.personname) ON Photos.url = PhotosPeople.url

    WHERE (((PhotosPeople.personname) Like "*kang*") OR ((Photos.url) Like "*kang*") OR ((Photos.created) Like "*kang*") OR ((Photos.uploaded) Like "*kang*") OR ((Photos.description) Like "*kang*")) OR (((PhotosCategories.categoryname) Like "*kang*"));


Photomesa sql query1

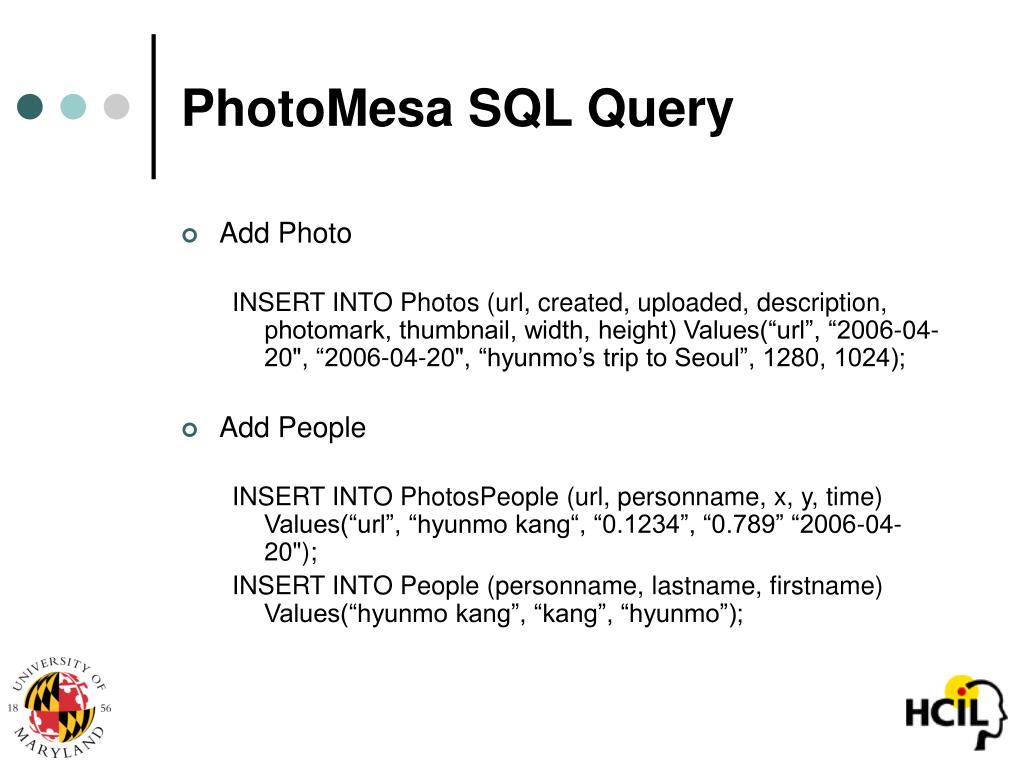

PhotoMesa SQL Query

  • Add Photo

    INSERT INTO Photos (url, created, uploaded, description, photomark, thumbnail, width, height) Values(“url”, “2006-04-20", “2006-04-20", “hyunmo’s trip to Seoul”, 1280, 1024);

  • Add People

    INSERT INTO PhotosPeople (url, personname, x, y, time) Values(“url”, “hyunmo kang“, “0.1234”, “0.789” “2006-04-20");

    INSERT INTO People (personname, lastname, firstname) Values(“hyunmo kang”, “kang”, “hyunmo”);


Photomesa system architecture

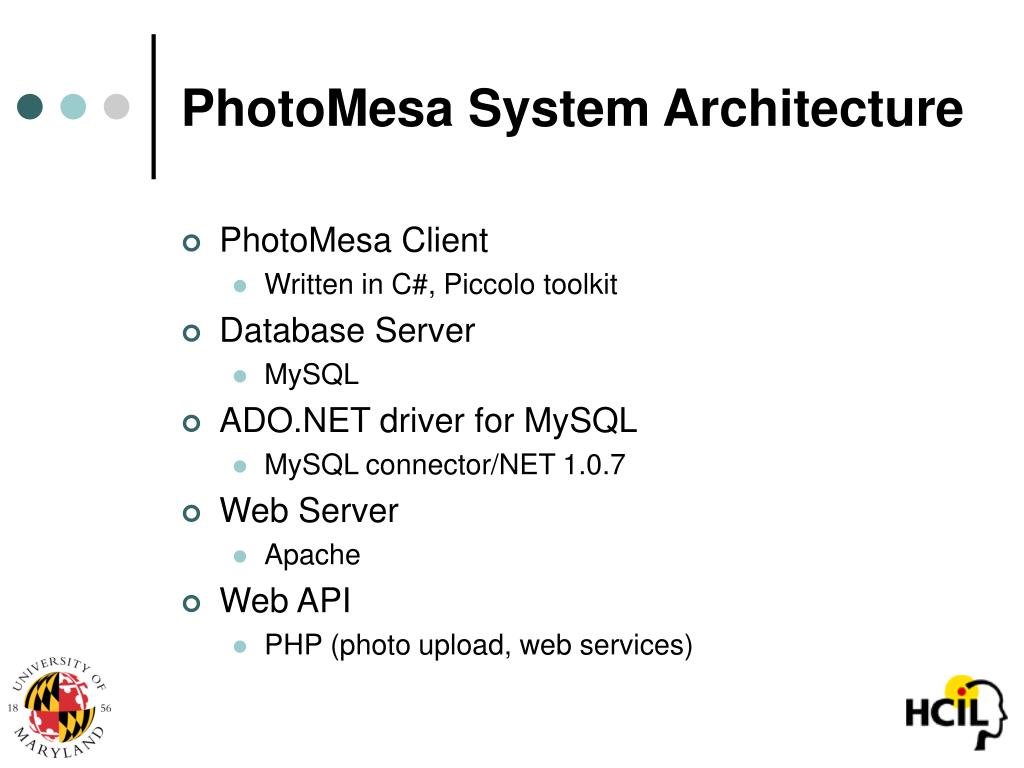

PhotoMesa System Architecture

  • PhotoMesa Client

    • Written in C#, Piccolo toolkit

  • Database Server

    • MySQL

  • ADO.NET driver for MySQL

    • MySQL connector/NET 1.0.7

  • Web Server

    • Apache

  • Web API

    • PHP (photo upload, web services)


Questions

Questions?

  • More visualization projects are available athttp://www.cs.umd.edu/hcil

  • PhotoMesahttp://windsorinterfaces.com

  • NetLenshttp://www.cs.umd.edu/hcil/netlens

  • Email: [email protected]
