Results from development of Glass RPCs for INO detector. B.Satyanarayana (For INO Collaboration) TIFR, Mumbai. Plan of the presentation. Introduction Principle of operation of a glass RPC Overview of the field Our prototype designs and fabrication RPC gas mixtures and gas system

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.

Download Presentation

Results from development of Glass RPCs for INO detector

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Results from development of glass rpcs for ino detector

Results from development ofGlass RPCs for INO detector

B.Satyanarayana

(For INO Collaboration)

TIFR, Mumbai

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Plan of the presentation

Plan of the presentation

  • Introduction

  • Principle of operation of a glass RPC

  • Overview of the field

  • Our prototype designs and fabrication

  • RPC gas mixtures and gas system

  • Cosmic ray muon telescope

  • Data acquisition system

  • Preliminary results

  • RPC aging problem

  • Future work plan

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Introduction

Introduction

  • Neutrinos are one of the fundamental particles of matter.

  • Electrically neutral and were initially thought to be mass less.

  • Three types or flavors (ne,nm,nt) of neutrinos known.

  • Recent evidence indicates that neutrinos have mass and also experience mixing among these flavors.

  • Neutrino oscillations can explain the discrepancy between theory and observations about its flux; can be used to estimate its mass.

  • Pioneering experiments at the KGF underground laboratories.

  • Formation of Indian Neutrino Observatory (INO) collaboration.

  • Feasibility studies for setting up of a neutrino experiment in India is in progress.

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Proposed ino detector

Proposed INO detector

  • RPC dimension: 3m X 2m

  • No of chambers: 11K

  • No of channels: 220K

  • No of TDC channels: 3K

Magnetised iron calorimeter

Iron

140 layers

RPC

35KTons

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Principle of operation of a rpc

Principle of operation of a RPC

V-I model

Each discharge locally deadens the RPC. The recovery time is approximately

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Our prototype designs single gap

Our prototype designs: Single gap

Gas inlet

Two versions

Graphite coat

Spacer

Gas outlet

HV terminals

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Our prototype designs double gap

Our prototype designs: Double gap

Double gap RPC for better detection efficiencies

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Jigs for rpc fabrication

Jigs for RPC fabrication

Glass handlers

Resistivity measurement jig

Glue and dispensers

RPC fabrication jig

A finished small area RPC

A glued RPC

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Gas mixing and flow control unit

Gas mixing and flow control unit

Flow monitor

Gas mixing unit

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Schematic of cosmic ray muon trigger

Schematic of Cosmic ray muon trigger

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Cosmic ray muon telescope setup

Cosmic ray muon telescope setup

Mounting structure for flexible and precise telescope alignment

Paddle alignment detail

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Schematic of data acquisition system

Schematic of data acquisition system

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Data acquisition system electronics

Data acquisition system electronics

CAMAC

NIM

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004

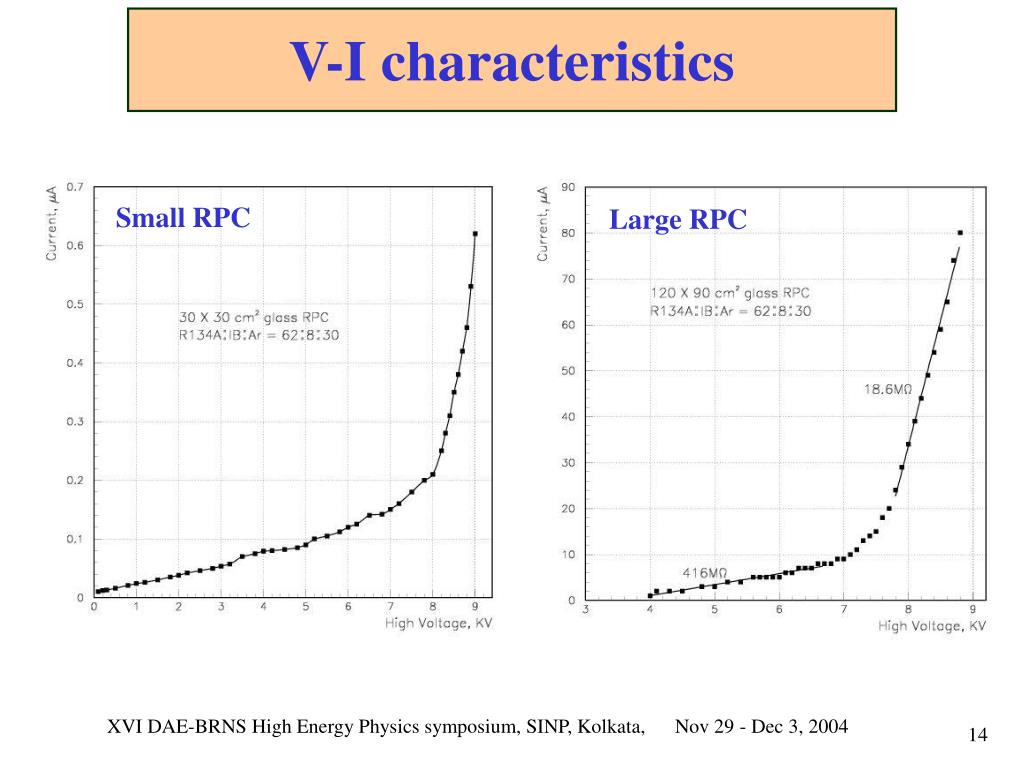

V i characteristics

V-I characteristics

Small RPC

Large RPC

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Typical rpc pulse profile

Typical RPC pulse profile

RPC pulse

Muon trigger

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Noise rate and efficiencies

Noise rate and efficiencies

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Charge performance

Charge performance

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Timing performance

Timing performance

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Charge time linearity

Charge-time linearity

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004

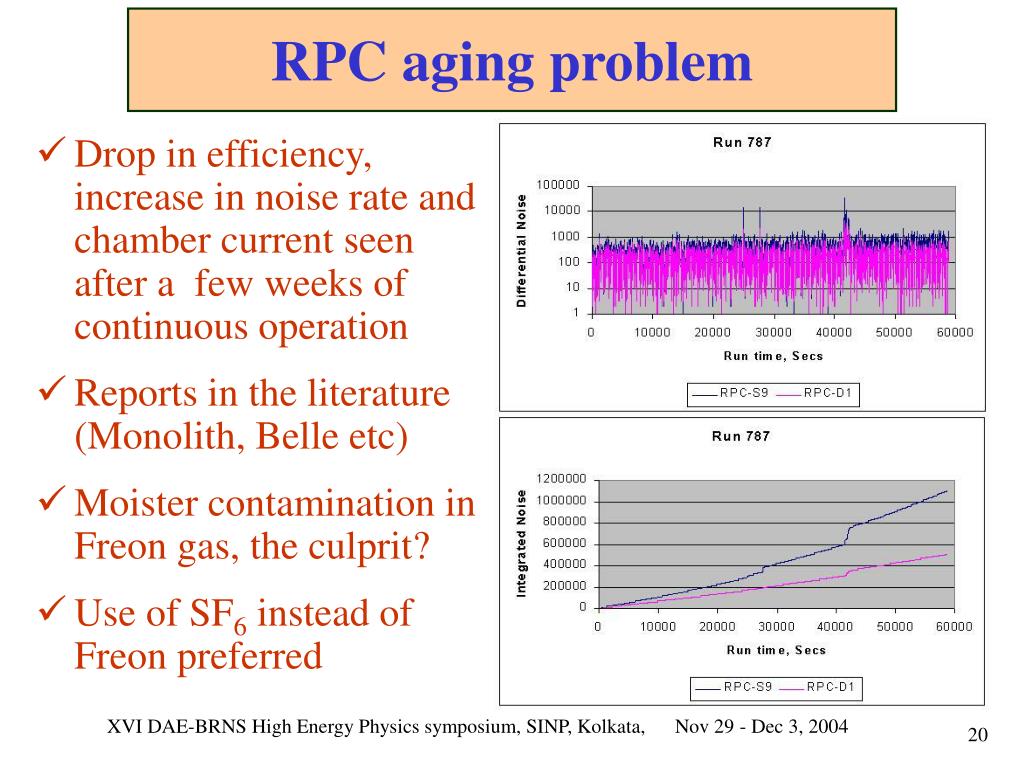

Rpc aging problem

RPC aging problem

  • Drop in efficiency, increase in noise rate and chamber current seen after a few weeks of continuous operation

  • Reports in the literature (Monolith, Belle etc)

  • Moister contamination in Freon gas, the culprit?

  • Use of SF6 instead of Freon preferred

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004

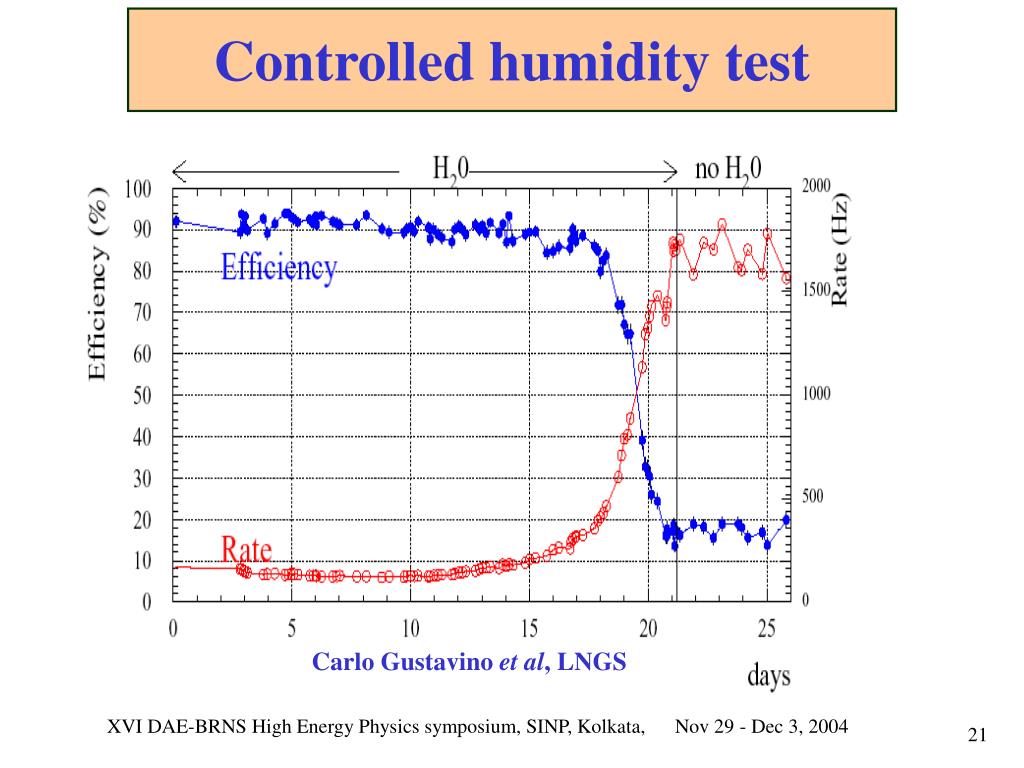

Controlled humidity test

Controlled humidity test

Carlo Gustavino et al, LNGS

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Afm images of damaged electrodes

AFM images of damaged electrodes

2 scans

10 scans

Raw glass

Damaged electrodes

Raw glass

Damaged electrodes

  • 500nm structures of 100nm thick seen in the images

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Sem image of damaged electrode

SEM image of damaged electrode

6 scan

2 scan

Raw glass Fluorine: 4%

Damaged electrode Fluorine: 38%

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Future work plan

Future work plan

  • Systematic study of RPC stability problem

  • Fabrication of more large area RPCs and studies

  • Detailed studies on timing, spatial resolution, cross-talk

  • Optimization of detector gas composition

  • INO prototype detector; needs about 16 large area RPCs

  • Performance studies of prototype detector; comparison of results with those from simulation studies

  • RPC Parameter inputs for electronics and data acquisition system design

  • Full pledged RPC device simulations

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Backup slides

Backup slides

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Rpcs of modern designs

RPCs of modern designs

Hybrid RPC

Micro RPC

Multi gap

  • Applications in HEP research

    • Cosmic ray experiments: EAS-Top, Cover-Plastex, Argo, Auger

    • Accelerator based experiments: Belle, Babar, Star, Harp

    • Future experiments: Alice, ATLAS, CMS, LHCb

    • Medical applications etc

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Telescope stability monitoring

Telescope stability monitoring

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Preliminary cross talk measurements

Preliminary cross-talk measurements

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004


Recovery of a damaged rpc

Recovery of a damaged RPC

  • Purging with pure Argon at high flow rate.

  • Bubbling pure Argon through pure ethyl alcohol.

  • Bubbling pure Argon through 3% Ammonia solution for 24 hours with high voltage off.

  • Recovers efficiency and brings down noise rate.

XVI DAE-BRNS High Energy Physics symposium, SINP, Kolkata, Nov 29 - Dec 3, 2004
