Monitoring of resource consumptionin Java-based application servers

Jarle [email protected]

Swiss Federal Institute of Technology in Lausanne (EPFL)

Switzerland

(Formerly at CUI, Uni Geneva)

Dimitri [email protected]

University of Geneva

Switzerland

10th HP-OVUA workshop, Geneva, Switzerland

July 7, 2003


Overview

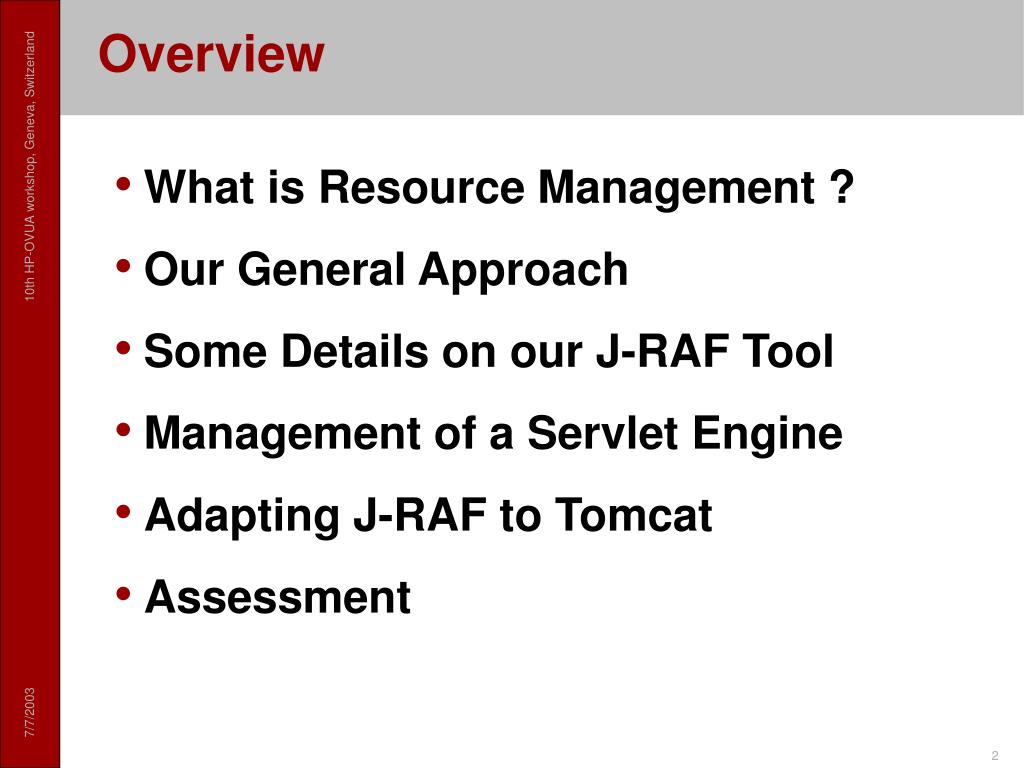

Overview

  • What is Resource Management ?

  • Our General Approach

  • Some Details on our J-RAF Tool

  • Management of a Servlet Engine

  • Adapting J-RAF to Tomcat

  • Assessment

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


What is resource management

What is Resource Management ?

  • Physical resources:

    • CPU

    • (Virtual) Memory

    • Network bandwidth

  • Management of resources:

    • Monitoring of consumption

    • Controlling (i.e. limiting) it

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


Benefits of resource management

Benefits of Resource Management

  • Software development

    • Monitoring and profiling of distributed applications

  • Security

    • Prevention against Denial-of-Service attacks

  • Reliability

    • More robust behaviours in presence of resource shortage

    • Accountability (liability) for resource consumption

  • E-commerce

    • Billing for resource consumption

    • Quality-of-Service guarantees, load balancing

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


What about java

www.

.org

The Java Resource Accounting Framework, 2nd edition

What about Java ?

  • Problem: Java offers no support for resource management !

  • Our solution: portable resource management through byte-code rewriting schemes

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


General approach

Per-thread

accounting objects

Meta-level

Mem

CPU

Net

Execution

hooks

Rewrite

bytecode

Transformed, resource-aware version of Application

OriginalJava Application(compiled)

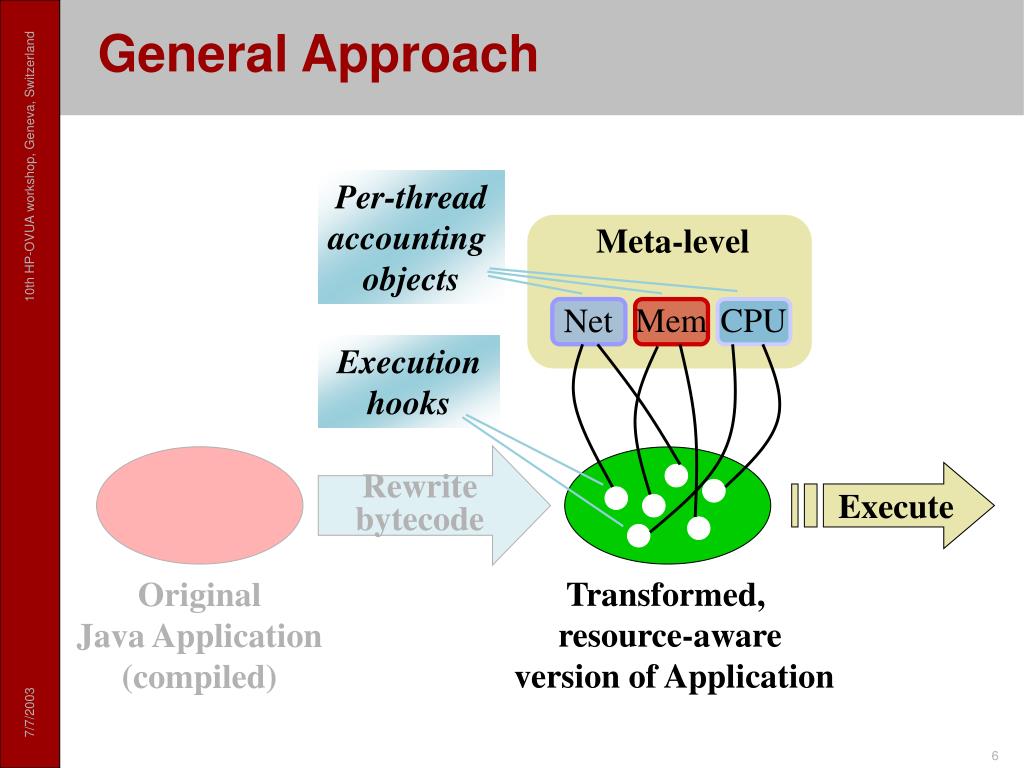

General Approach

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland

Execute


Our solution

Our Solution

  • Program transformations to expose resource consumption

    • Application classes and libraries, incl. JDK

  • Rewritten programs unknowingly update accounting objects

    • CPU: count the number of executed JVM instructions

    • Memory: redirection of memory allocations

    • Network bandwidth: wrapper libraries

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


Class analysis for cpu monitoring

1

2

3

1 (size=2)

4

2 (size=3)

3 (size=6)

4 (size=3)

5

5 (size=3)

6

7 (size=3)

6 (size=2)

7

8

8 (size=1)

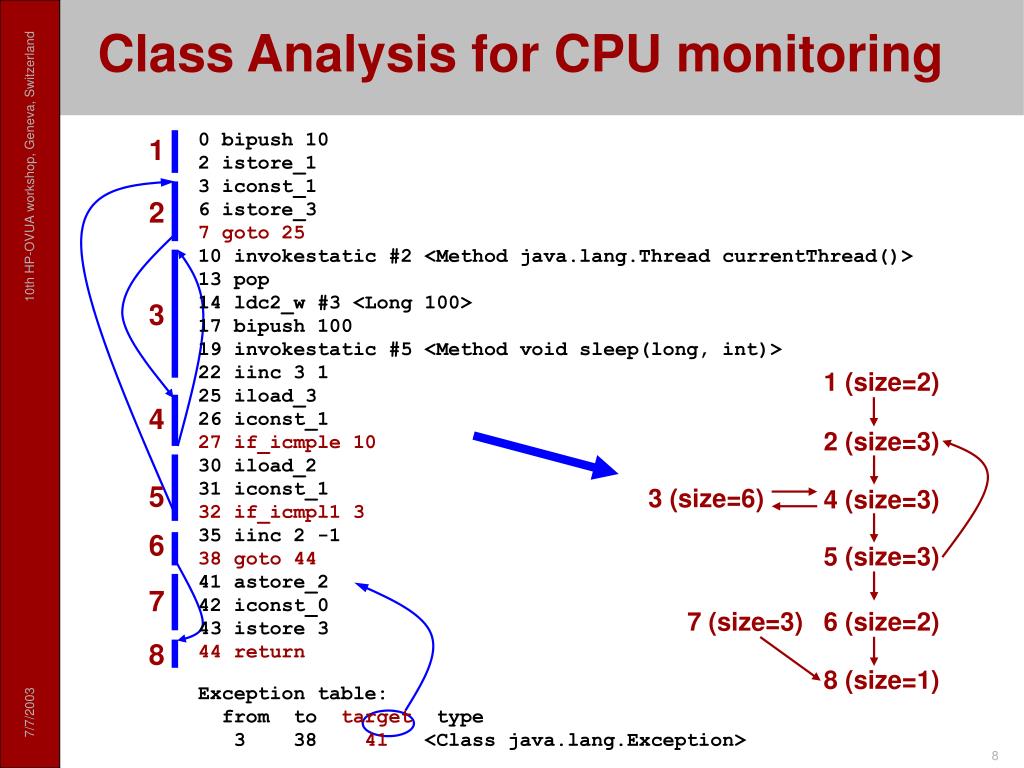

Class Analysis for CPU monitoring

0 bipush 10

2 istore_1

3 iconst_1

6 istore_3

7 goto 25

10 invokestatic #2 <Method java.lang.Thread currentThread()>

13 pop

14 ldc2_w #3 <Long 100>

17 bipush 100

19 invokestatic #5 <Method void sleep(long, int)>

22 iinc 3 1

25 iload_3

26 iconst_1

27 if_icmple 10

30 iload_2

31 iconst_1

32 if_icmpl1 3

35 iinc 2 -1

38 goto 44

41 astore_2

42 iconst_0

43 istore 3

44 return

Exception table:

from to target type

3 38 41 <Class java.lang.Exception>

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


Method rewriting by j raf

Method Rewriting by J-RAF

Object f (int x, MemAccObj mem, CPUAccObj cpu) {

cpu.usage += 8;

if (x < 0) {

cpu.usage += 8;

return null;

} else {

cpu.usage += 26;

int y = g(x, mem, cpu);

mem.checkAllocation(SIZEOF_FOO);

Object o = new Foo(y, mem, cpu);

mem.register(o);

return o;

}

}

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


Generic application structure

Resource-aware Application

High-level Resource

Accounting & Control

Low-level Resource

Acc&Control (Memory, CPU)

Resource-aware JDK

JVM Native Code

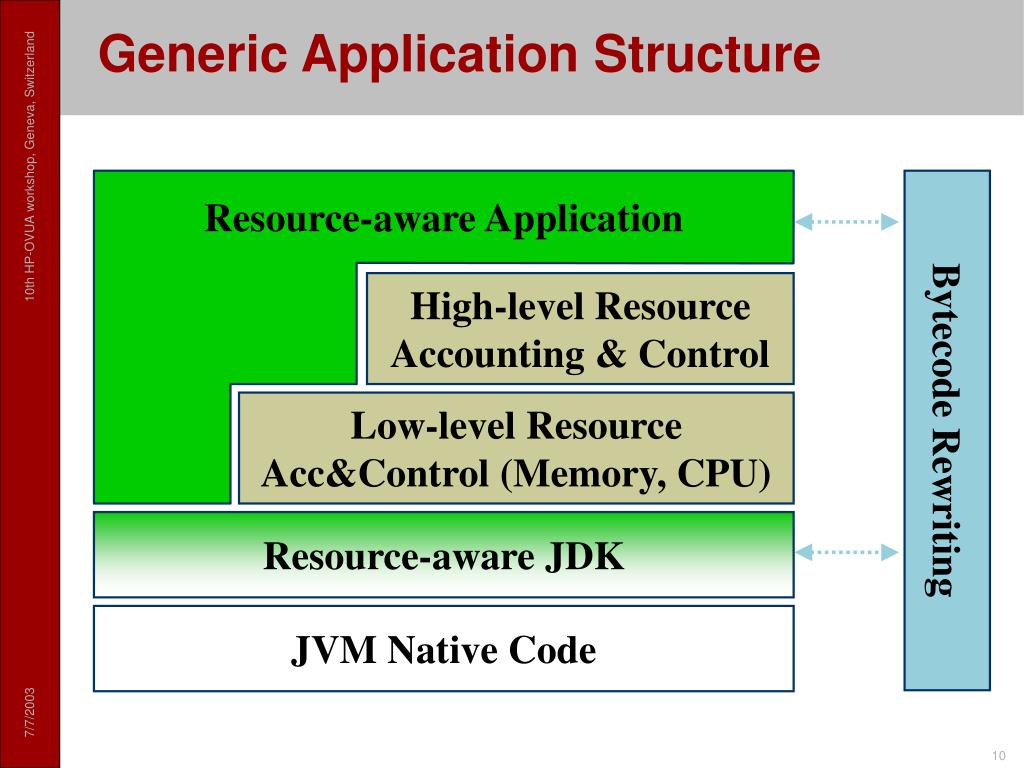

Generic Application Structure

Bytecode Rewriting

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


J raf in action

J-RAF in Action

  • CPU monitoring for some multi-threaded applet

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


Validation of the j raf approach

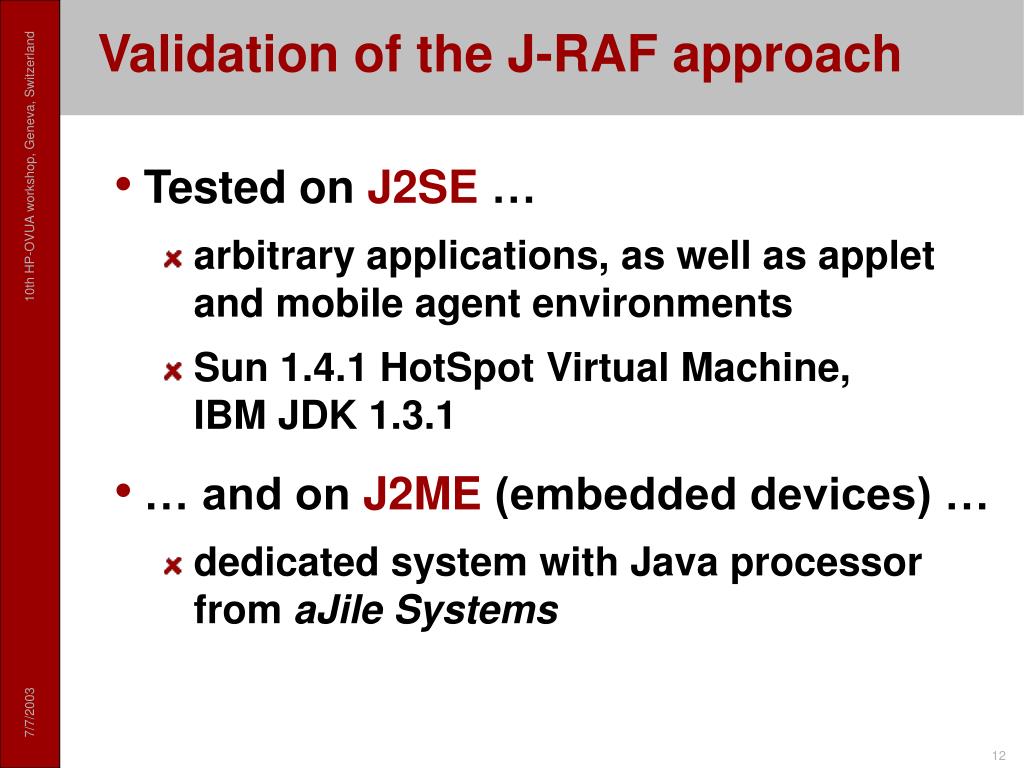

Validation of the J-RAF approach

  • Tested on J2SE …

    • arbitrary applications, as well as applet and mobile agent environments

    • Sun 1.4.1 HotSpot Virtual Machine,IBM JDK 1.3.1

  • … and on J2ME (embedded devices) …

    • dedicated system with Java processor from aJile Systems

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


Benchmarks for cpu accounting

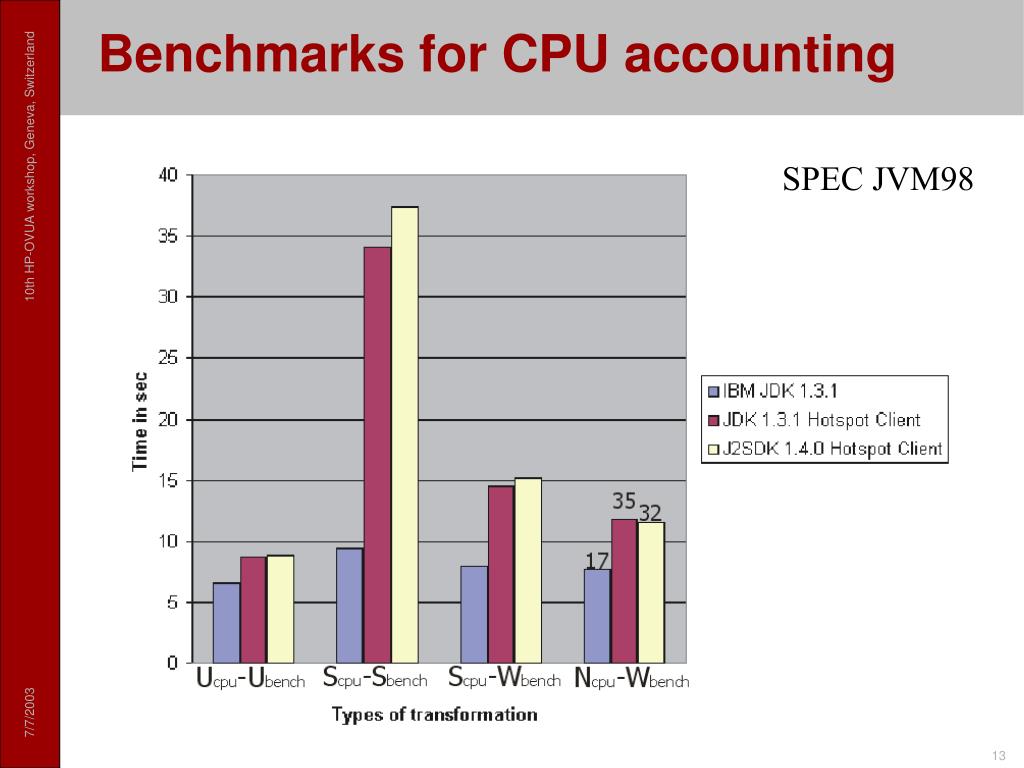

Benchmarks for CPU accounting

SPEC JVM98

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


Resource mgmt for servlet engines

Resource Mgmt for Servlet Engines

Resource Mgmt for Servlet Engines

Servlet Engines

Access rights

HTML, streams

Requests

Reporting

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland

End-user

Provider’s Database


Objectives

Objectives

  • Fine-grained basis for:

    • Usage-based billing(pricing policies are out of our scope)

    • Identification of bottlenecks

      • Badly programmed or malicious apps

    • Load-balancing on clusters of servers

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


Required j raf extensions

Required J-RAF extensions

  • Define a servlet as a coherent set of threads

  • Flexible concept of client (end-user) context

  • Enhanced detection of bandwidth consumption

  • Remote reporting

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


Servlets as sets of threads

Servlets as sets of threads

  • How to detect the start and end of a request processing ?

    • Special rewriting of methods like doGet and doPost, to cope with Tomcat’s thread pooling

    • Register and account for created sub-threads

    • Add a RequestAccount class for aggregating usage of all these threads

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


User level accounting

User-level accounting

  • Periodically do:

    • Summarize usage of all individual threads inside a servlet

    • Summarize usage of all servlets run on behalf of a given user

    • Report this usage to a database

  • Problems that had to be solved:

    • Overflow of counters at all levels

    • Calibration of timeslices according to processing power

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


User context

User context

  • Allow servlet programmers to define their own:

    • Authentication schemes, IP-based or password-based

      • Programmer must implement a ClientID interface

      • Read usage rights from database

    • User data reporting schemes

      • Allow extensible reporting of user data, e.g. session IDs

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


Resulting servlet structure

Bytecode Rewriting

Resource-aware Servlet

High-level Resource

Accounting & Control

Low-level Resource

Acc&Control (Memory, CPU)

Resource-aware Servlet Engine

Resource-aware JDK

JVM Native Code

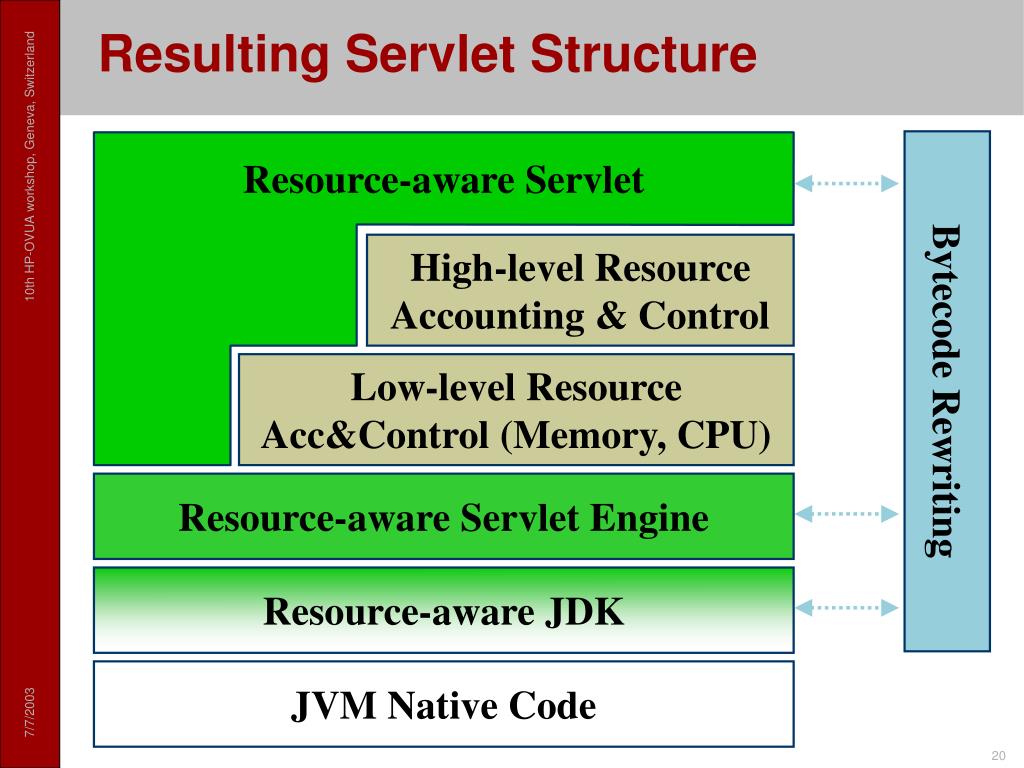

Resulting Servlet Structure

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


Sample log for a given client

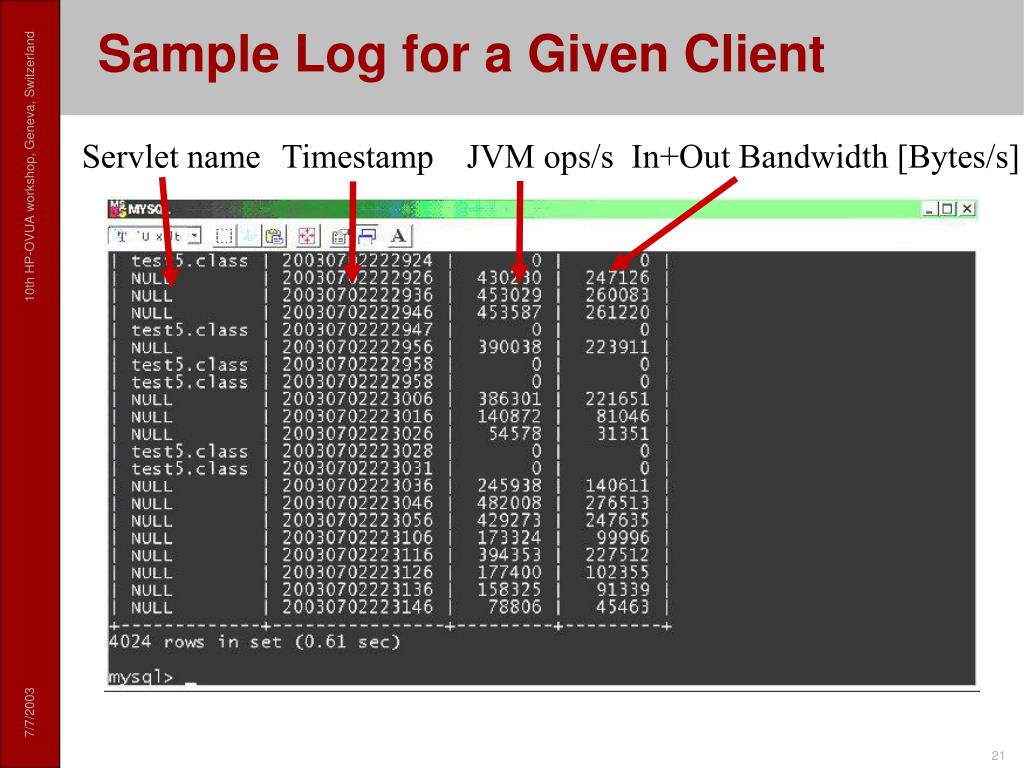

Sample Log for a Given Client

Servlet name

Timestamp

JVM ops/s

In+Out Bandwidth [Bytes/s]

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


Performance testing

Performance Testing

  • Setting: Pentium-class PCs in a 100Mb LAN, Tomcat 4.1, MySQL 4.0.13

  • Generate many simultaneous connections with Jmeter 1.8.1

  • Different test servlets:

    • Output of an empty page

    • Streaming of factorials

    • Download, ZIP-compress, and output a web page

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


Preliminary performance results

Preliminary Performance Results

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland

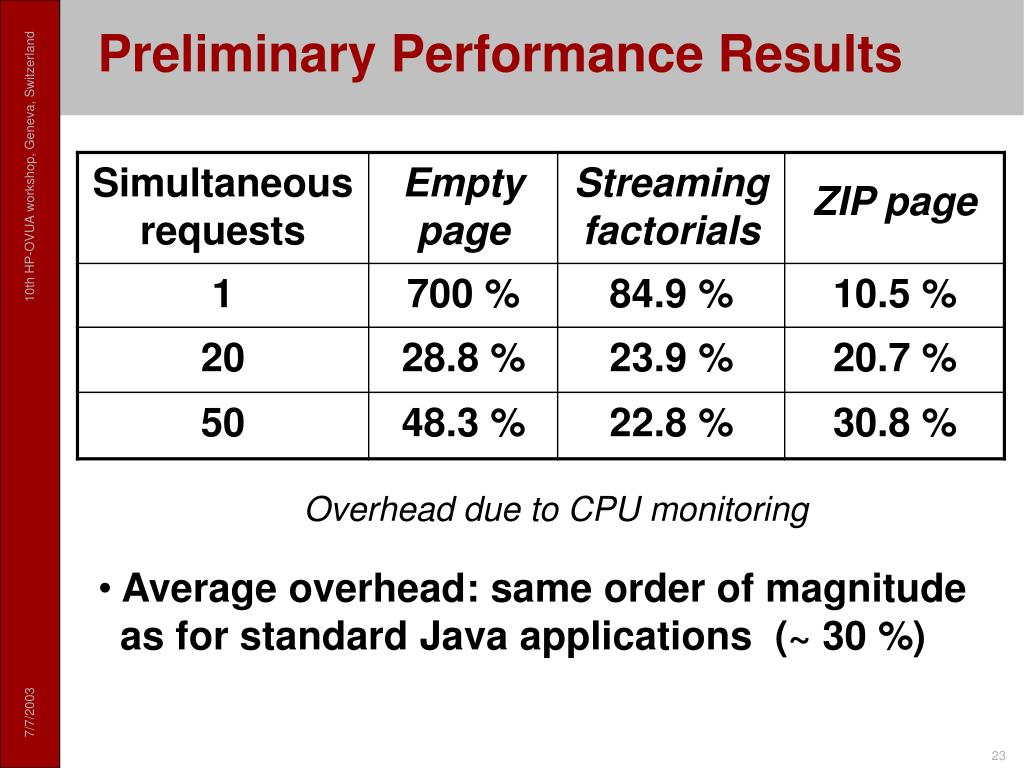

Overhead due to CPU monitoring

  • Average overhead: same order of magnitude as for standard Java applications (~ 30 %)


Monitoring of resource consumption in java based application servers

Cons

  • Purely a Java-level framework:

    • Difficult to account for resources consumed by native code

    • No real-time / resource reservation capabilities

  • Increase of code size

  • Restrictions on what servlets may do

    • to play with thread priorities

    • to perform introspection to inspect or modify accounting objects

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


Conclusions

Conclusions

  • Initial work towards fine-grained management of Java servers

  • Reasonable overheads

  • Future work:

    • Finalize management of memory

    • Improve control vs monitoring

    • Support for clusters of servers

      www.jraf2.org

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland


Monitoring of resource consumption in java based application servers

Thank you for your attention !

7/7/2003 10th HP-OVUA workshop, Geneva, Switzerland
