Quiz on DNA & RNA PowerPoint PPT Presentation


  • 83 Views
  • Uploaded on
  • Presentation posted in: General

Quiz on DNA & RNA. Actual link to quiz in case hyperlink doesn’t work: http://www.biologyjunction.com/qz_DNA.html. PROTEIN SYNTHESIS. Genes: small sections of DNA Controls production of proteins Nucleotide: base unit for strand of DNA (made of sugar, phosphate and nitrogenous base.

Download Presentation

Quiz on DNA & RNA

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript

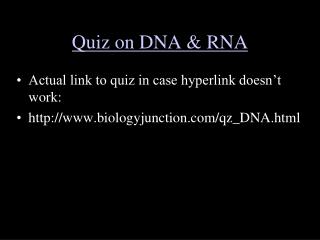

Quiz on dna rna l.jpg

Quiz on DNA & RNA

  • Actual link to quiz in case hyperlink doesn’t work:

  • http://www.biologyjunction.com/qz_DNA.html


Protein synthesis l.jpg

PROTEIN SYNTHESIS

  • Genes: small sections of DNA

    • Controls production of proteins

    • Nucleotide: base unit for strand of DNA (made of sugar, phosphate and nitrogenous base


Protein synthesis3 l.jpg

PROTEIN SYNTHESIS

  • Proteins are used to build cells and control chemical reactions so they do most of the work

    • Ex: breaking down glucose in cellular respiration, digesting food, making spindle fibers in mitosis


Protein synthesis4 l.jpg

PROTEIN SYNTHESIS

  • Proteins are polymers of amino acids

    • Amino acid chains are call polypeptides

  • Nucleotides in each gene has info for assembling string of amino acids that make up a single protein


Protein synthesis5 l.jpg

PROTEIN SYNTHESIS

  • Enzymes control all chemical reactions of organisms

  • DNA has instructions for making proteins, therefore, DNA controls cells

    • Provides workers with instructions

  • Workers for protein synthesis take instructions, the workers are RNA


Replication fork annimation l.jpg

Replication Fork Annimation

  • http://highered.mcgraw-hill.com/olcweb/cgi/pluginpop.cgi?it=swf::535::535::/sites/dl/free/0072437316/120076/micro04.swf::DNA Replication Fork

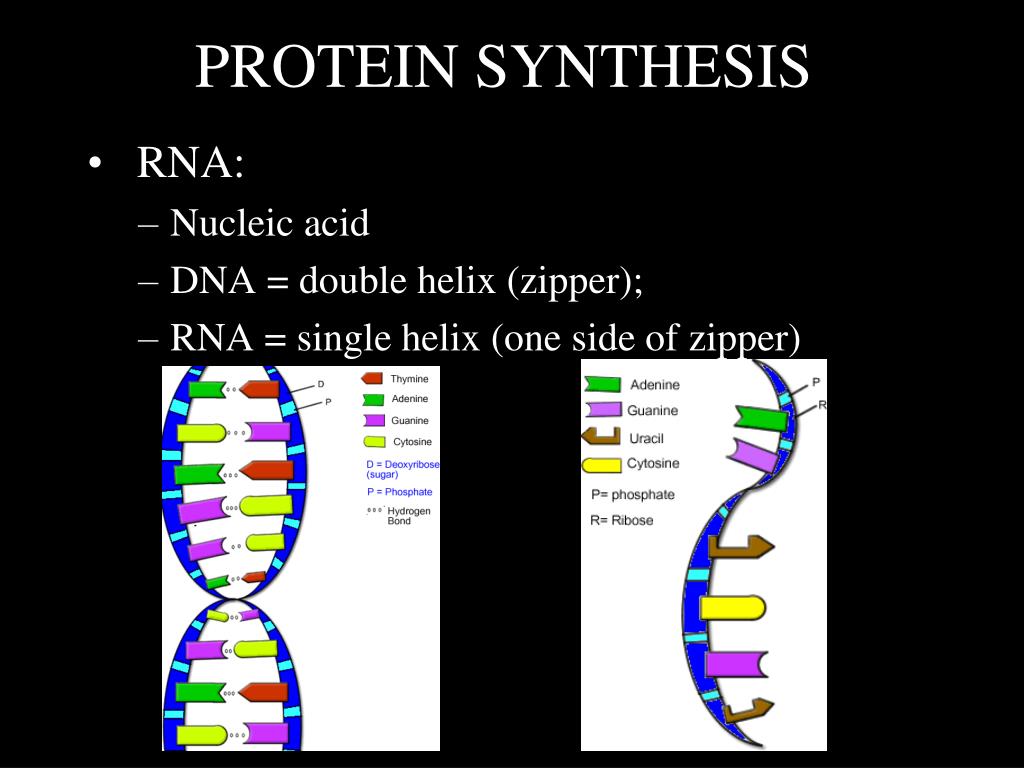

Protein synthesis7 l.jpg

PROTEIN SYNTHESIS

  • RNA:

    • Nucleic acid

    • DNA = double helix (zipper);

    • RNA = single helix (one side of zipper)


Protein synthesis8 l.jpg

PROTEIN SYNTHESIS

  • RNA: workers for protein synthesis

    • Take instructions for how proteins are assembled

    • RNA assembles protein


Protein synthesis9 l.jpg

PROTEIN SYNTHESIS

3 Types of RNA that build proteins:

  • Messenger RNA (mRNA)

  • Ribosomal RNA (rRNA)

  • Transfer RNA (tRNA)


Protein synthesis10 l.jpg

PROTEIN SYNTHESIS

  • Messenger RNA (mRNA):

    • Brings instructions from DNA to cytoplasm

    • In cytoplasm, moves to ribosome

    • The ribosome is made up of ribosomal RNA (rRNA)


Protein synthesis11 l.jpg

PROTEIN SYNTHESIS

  • Ribosomal RNA (rRNA):

    • Makes up ribosome

    • Binds to mRNA

    • Uses instructions to assemble amino acids in correct order

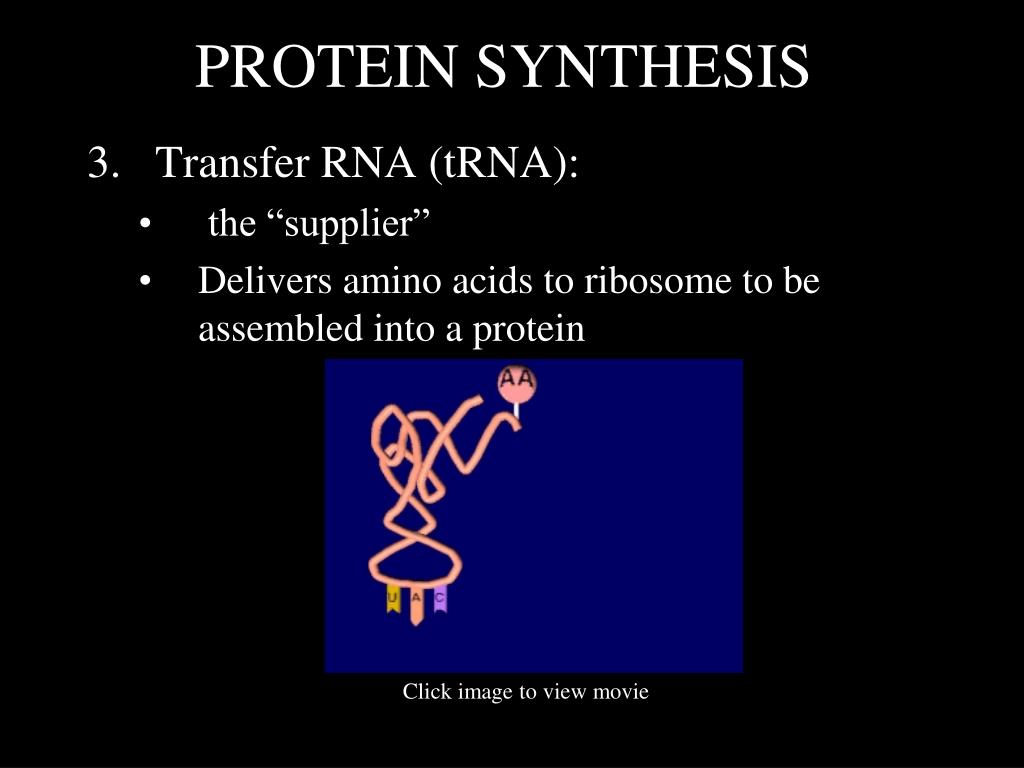

Protein synthesis12 l.jpg

PROTEIN SYNTHESIS

  • Transfer RNA (tRNA):

    • the “supplier”

    • Delivers amino acids to ribosome to be assembled into a protein

Click image to view movie


Protein synthesis13 l.jpg

PROTEIN SYNTHESIS

  • Transcription:

    • In nucleus, enzymes make an “RNA copy” of piece of DNA strand

    • Result: formation of 1 RNA molecule (1/2 zipper)

Click image to view movie


Protein synthesis14 l.jpg

PROTEIN SYNTHESIS


Protein synthesis15 l.jpg

PROTEIN SYNTHESIS

  • Genetic Code:

    • Genetic message of info for building protein

    • Proteins contain chains of amino acids

      • Language of proteins = alphabet of amino acids

    • In DNA, nitrogen bases are: A T C G

    • In RNA, nitrogen bases are: A U C G


Protein synthesis16 l.jpg

PROTEIN SYNTHESIS


Protein synthesis17 l.jpg

PROTEIN SYNTHESIS

  • Genetic Code:

    • Codon: group of three bases in mRNA

    • All organisms use same genetic code


Protein synthesis18 l.jpg

PROTEIN SYNTHESIS

  • Translation:

    • Converting info in sequence of mRNA bases into sequence of amino acids in protein

    • Takes place at ribosomes in cytoplasm


Protein synthesis19 l.jpg

PROTEIN SYNTHESIS

  • Translation: From mRNA to Protein

    • mRNA made in nucleus travels to cytoplasm

    • In cytoplasm, ribosome attaches to strand of mRNA like clothespin clamped onto clothesline


Protein synthesis20 l.jpg

PROTEIN SYNTHESIS

  • Function of tRNA

    • Transfers RNA to ribosomes

    • Each tRNA attaches to one type of amino acid


Protein synthesis21 l.jpg

PROTEIN SYNTHESIS

  • Function of tRNA:

    • Pairs with mRNA codon, two molecules join together

    • Ribosome slides along mRNA to next codon

    • Chain of amino acids is formed until a “stop” codon is reached on mRNA strand

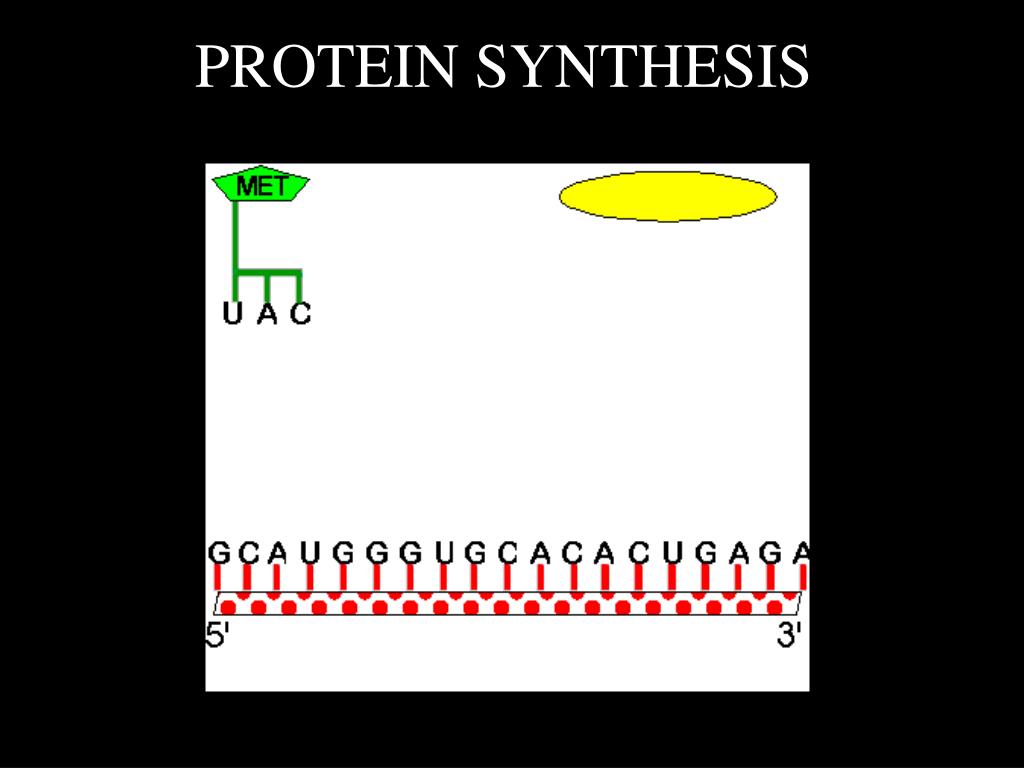

Protein synthesis22 l.jpg

PROTEIN SYNTHESIS


Protein synthesis23 l.jpg

PROTEIN SYNTHESIS

  • 5 Steps of Translation:

    • Ribosome attaches to mRNA strand; tRNA approaches ribosome

    • AUG codon signals “start” of protein synthesis

    • New tRNA molecule attaches to ribosome; amino acids on tRNA molecules join

    • Ribosome slides along mRNA to next codon; new tRNA carrying amino acid attaches to ribosome and mRNA

    • Chain of amino acids is formed until “stop” codon


Dnai animation of protein synthesis process from beginning watson crick to end l.jpg

DNAi animation of protein synthesis process from beginning (Watson & Crick) to end

  • http://www.dnai.org/a/index.html


Annimations l.jpg

Annimations

  • http://www.biostudio.com/demo_freeman_protein_synthesis.htm

  • http://www.wisc-online.com/objects/index_tj.asp?objID=AP1302

  • http://www.lewport.wnyric.org/JWANAMAKER/animations/Protein%20Synthesis%20-%20long.html
