The iso 15926 rdl applied to lca magne valen sendstad september 2005

The ISO 15926 RDL Applied to LCAMagne Valen-SendstadSeptember 2005


Technical information vigdis

EPC/Suppliers

Installation

Contract TLP

Nymo

EP Contractor

DB

Tipas

DB

SAGA

S-Div.

Project

DB

Viiking

DB

DB

DFO

Suppliers

DB

= Human interaction

= Electronic transfer

Technical Information- Vigdis

  • Terminology

  • Integration

  • Recognition

DFO = Documents For Operation

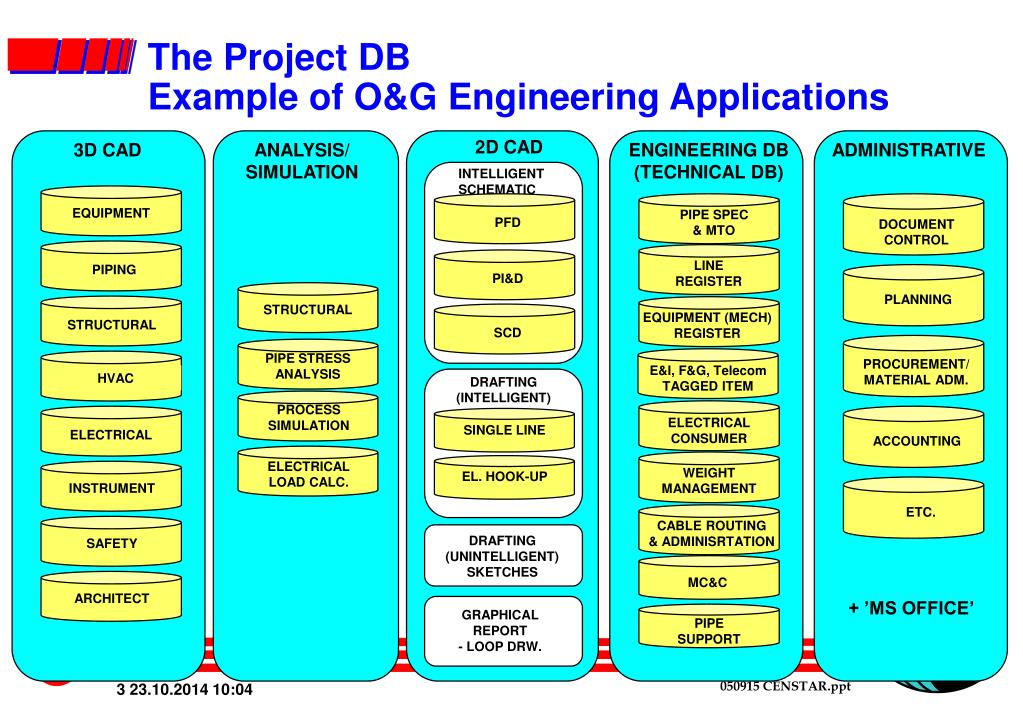

The project db example of o g engineering applications

PFD

PI&D

SCD

DOCUMENT

CONTROL

PIPING

PIPE STRESS ANALYSIS

E&I, F&G, Telecom

TAGGED ITEM

ELECTRICAL

SINGLE LINE

The Project DBExample of O&G Engineering Applications

2D CAD

3D CAD

ANALYSIS/

SIMULATION

ENGINEERING DB

(TECHNICAL DB)

ADMINISTRATIVE

INTELLIGENT

SCHEMATIC

EQUIPMENT

PIPE SPEC

& MTO

LINE

REGISTER

PLANNING

STRUCTURAL

EQUIPMENT (MECH)

REGISTER

STRUCTURAL

PROCUREMENT/

MATERIAL ADM.

HVAC

DRAFTING

(INTELLIGENT)

PROCESS

SIMULATION

ELECTRICAL

CONSUMER

ACCOUNTING

ELECTRICAL LOAD CALC.

WEIGHT

MANAGEMENT

EL. HOOK-UP

INSTRUMENT

ETC.

CABLE ROUTING

& ADMINISRTATION

DRAFTING

(UNINTELLIGENT)

SKETCHES

SAFETY

MC&C

ARCHITECT

+ ’MS OFFICE’

GRAPHICAL

REPORT

- LOOP DRW.

PIPE

SUPPORT


Mean time between failure 1 465 932 000

mean time between failure (#1 465 932 000)

  • MEAN TIME BETWEEN FAILURE (#792 523 400)A period of time which is the mean period of time interval between failures.

  • MEAN TIME BETWEEN FAILURES (MTBF) 1 A (TIME BETWEEN FAILURES) (#1 464 719 000)The time duration between two consecutive failures of a repaired item.

  • MEAN TIME BETWEEN FAILURES (MTBF) 1 B (TIME BETWEEN FAILURES) (#1 464 723 500)The expectation of the time between failures: Note. - In English, the use of the abbreviation MTBF in this sense is now deprecated.

  • MEAN TIME BETWEEN FAILURES (MTBF) 1 C (TIME BETWEEN FAILURES) (#1 464 728 000)The expectation of the operating time between failures.

  • MEAN TIME BETWEEN FAILURES (MTBF) 1 D (TIME BETWEEN FAILURES) (#1 464 732 500)Total time duration of operating time between two consecutive failures of a repaired item.

  • MEAN TIME BETWEEN FAILURES (MTBF) 2 (#1 464 741 500)Predicts the average number of hours that an item, assembly, or piece part will operate before it fails.

  • MEAN TIME BETWEEN FAILURES (MTBF) 3 (#1 464 714 500) For a particular interval, the total functional life of a population of an item divided by the total number of failures within the population during the measurement interval. The definition holds for time, rounds, miles, events, or other measure of life units.

  • MEAN TIME BETWEEN FAILURES (MTBF) 4 (#1 464 696 500)The average length of time a system or component works without failure.


Flanges

PIPING FLANGE

# 578 400

PROFILE FLANGE

FLANGED END

# 614 500

Flanges

Flange


Product data description inconsistencies

64 31 NUTS 1”UNC ASTM A453 GR660 EN10204/2.2

32 30 STUDBOLTS 1”UNC, 5 1/ 2 ” ASTM A453 GR660 EN10204/2.2

2 29 SUPPORT BRACKET 6-194-4

MANUFACTURERS DRAWING

ISO 15926 REFERENCE DATA LIBRARY

07.1 Nuts External Flanges ASTM A 453M GR660, TP1 (3.1B)

07.1 Bolts/External Flnges ASTM A 453M GR660, TP1 (3.1B)

07.1 Brackets/Supports BS 1501-316-S11__________ (3.1.B)

ENGINEERING DATASHEET

Product Data Description Inconsistencies

UniqueName:

ASTM A 453/A 453M - 660 CLASS A

Id:

<ISO15926-4>#NNNNNNN


Product data description inconsistencies1

ASTM A453 GR660

Company A Name

ISO 15926 REFERENCE DATA LIBRARY

Company B Name

ASTM A 453M GR660

Product Data Description Inconsistencies

This allows Company A and B representatives access to the RDL using their in-house terminology

This approach was applied when mapping the ISO 14048 nomenclatures and other terminology to the ISO 15926 RDL

UniqueName:

ASTM A 453/A 453M - 660 CLASS A

Id:

<ISO15926-4>#NNNNNNN

This approach allows mappings of any proprietary nomenclatures/dictionaries to the ISO 15926 RDL

Access to the RDL will be freely available over the web


Evolution towards data integration

Applications

Applications

Applications

Applications

Contr.'s & Company

ISO 15926 Reference Data

Integrated

Data Base

ISO 15926

Based

Data

Warehouse

View

Sharing Today

Sharing Tomorrow

Integration

Product model

Evolution towards Data Integration

ISO 15926 Scope


Iso tr 9007

ISO/TR 9007


Integration across applications

Integration Across Applications

Project Data Sheet

Product Data Sheet

External Level

3D CAD

P&ID

Conceptual Model

(Integration)

ISO 15926 DM+RDL

Physical Level

P1

P2


Integration across project phases

Integration Across Project Phases

Conceptual

Process

Design

Detailed

Engineering

Design

Procurement

Construction

Operation

External Level

Conceptual Model

(Integration)

ISO 15926 DM+RDL

Physical Level

P1

P2

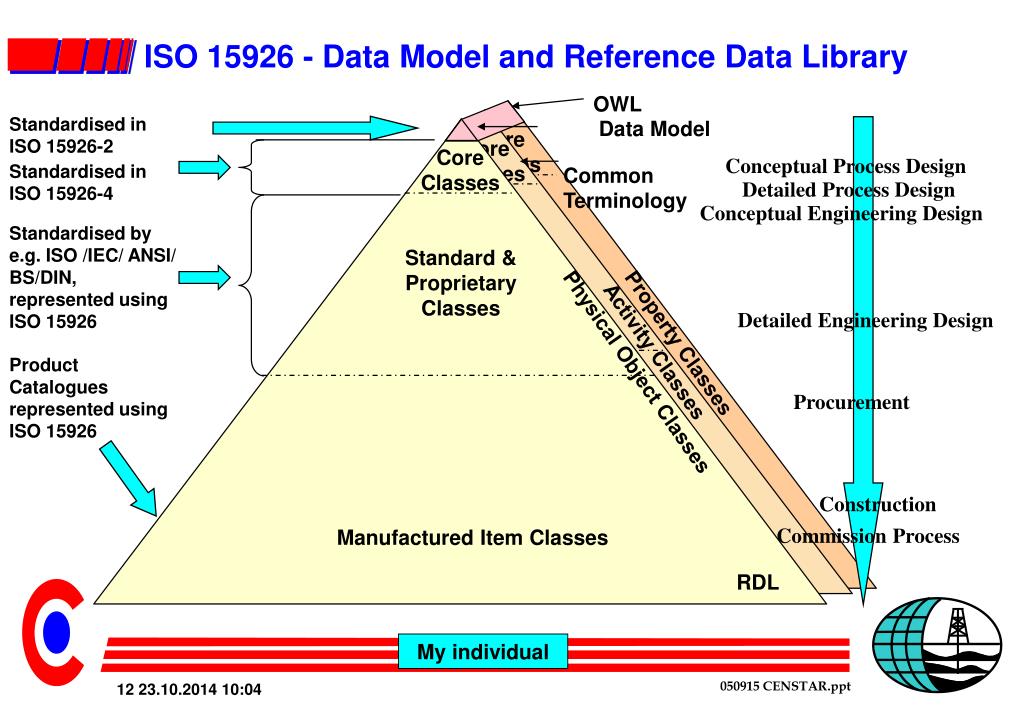

Iso 15926 data model and reference data library

Standardised in ISO 15926-2

Data Model

Core

Classes

Conceptual Process Design

OWL

Core

Classes

Core

Classes

Common

Terminology

Detailed Process Design

Standardised in ISO 15926-4

Conceptual Engineering Design

Standardised by e.g. ISO /IEC/ ANSI/ BS/DIN,

represented using ISO 15926

Standard &

Proprietary

Properties Classes

Standard &

Proprietary

Classes

Standard &

Proprietary

Activity Classes

Detailed Engineering Design

Property Classes

Activity Classes

Product Catalogues

represented using ISO 15926

Procurement

Construction

Manufacturer Specified Properties Classes

Manufacturer Specified Activity Classes

Commission Process

RDL

ISO 15926 - Data Model and Reference Data Library

Physical Object Classes

Manufactured Item Classes

My individual


The triangle as developed by cascade

The Triangle as Developed by CASCADE


Iso 14048 item 1 1 3 2

ISO 14048 File View

ISO 15926 Product Model (Ontology)

ISO 14048

QUANTITATIVE

REFERENCE

DESCRIPTION CLASS

Name

1.1.3.2

class_of_relationship_with_signature

ISO 14048

ANNEX B ROW ?????

ISO 14048

QUANTITATIVE

REFERENCE NAME

ISO 9000 PROCESS

ISO 14048

INPUT CELL 1.1.3.2

ISO 14048

ANNEX BCOLUMN ????

Class

Superclass

View Template

High level ont.

Instances data

Lower level ont.

Subclass

Member

1 KWH POWER GENERATION

MY ACTUAL

REFERENCE

Net production of electricity

#1

#3(#1-#2)

#2

ISO 14048 Item 1.1.3.2


Iso 15926 status

ISO 15926 Status

  • ISO 15926: Integration of life-cycle data for process plants including oil and gas production facilities

    • Part 1 Overview and fundamental principles (IS published June 2004)

    • Part 2 Data model (IS published December 2003)

    • Part 3 Ontology for geometry and topology (CD/TS proposal out for ballot)

    • Part 4 Initial reference data (CD/TS ballot issues resolution)

    • Part 5 Procedures for registration and maintenance of reference data (Input to ISO Maintenance Agency proposal)

    • Part 6 Scope and methodology for developing additional reference data (CD/TS proposal under preparation)

    • Part 7 Implementation methods for data exchange and integration (CD/TS proposal out for ballot)


Iso 15926 relationship to other terminology related standards

ISO 15926 Relationship to Other Terminology Related Standards

  • ISO 15926 is compatible with the following standards developed by TC 37 ISO/TC 37, Terminology (principles and coordination), Subcommittee SC 1, Principles of terminology.

    • ISO 704Terminology work — Principles and methods

    • ISO 1087-1Terminology work — Vocabulary — Part 1: Theory and application

    • ISO 10241International terminology standards – Preparation and layout (where applicable)

  • ISO 15926 is compatible with the following standard prepared by Technical Committee lSO/IECJTC 1, Information technology, Subcommittee SC 32, Data management and interchange.

    • ISO 11179Information technology — Metadata registries (MDR) (Relevant parts)

  • ISO 15926 is also compatible with W3C OWL.
