  1. Analysis of Rocket Flights Section 4, Team 4 Student 1, Student 2, Student 3, Student 4

  2. Temperature Predictions • Decrease in temperature upon ascent • Rise in temperature upon descent • Further increase after landing

  3. Thermistor 3 (middle of rocket body, on surface)

  4. Thermistor 2(on fin)

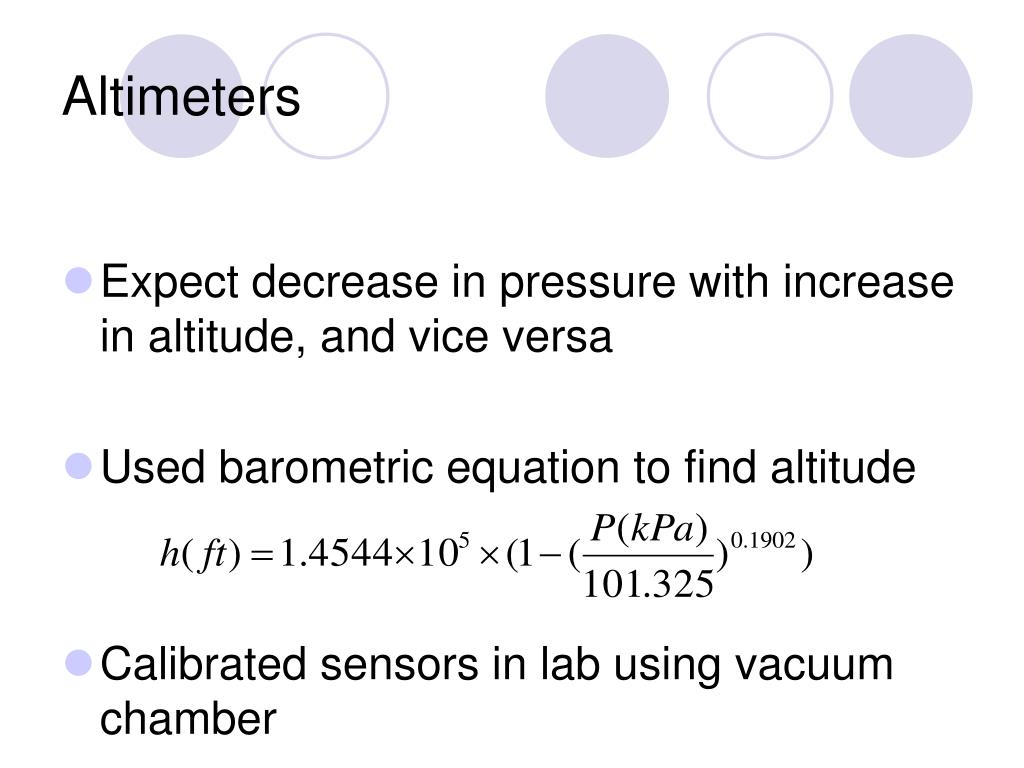

  5. Altimeters • Expect decrease in pressure with increase in altitude, and vice versa • Used barometric equation to find altitude • Calibrated sensors in lab using vacuum chamber

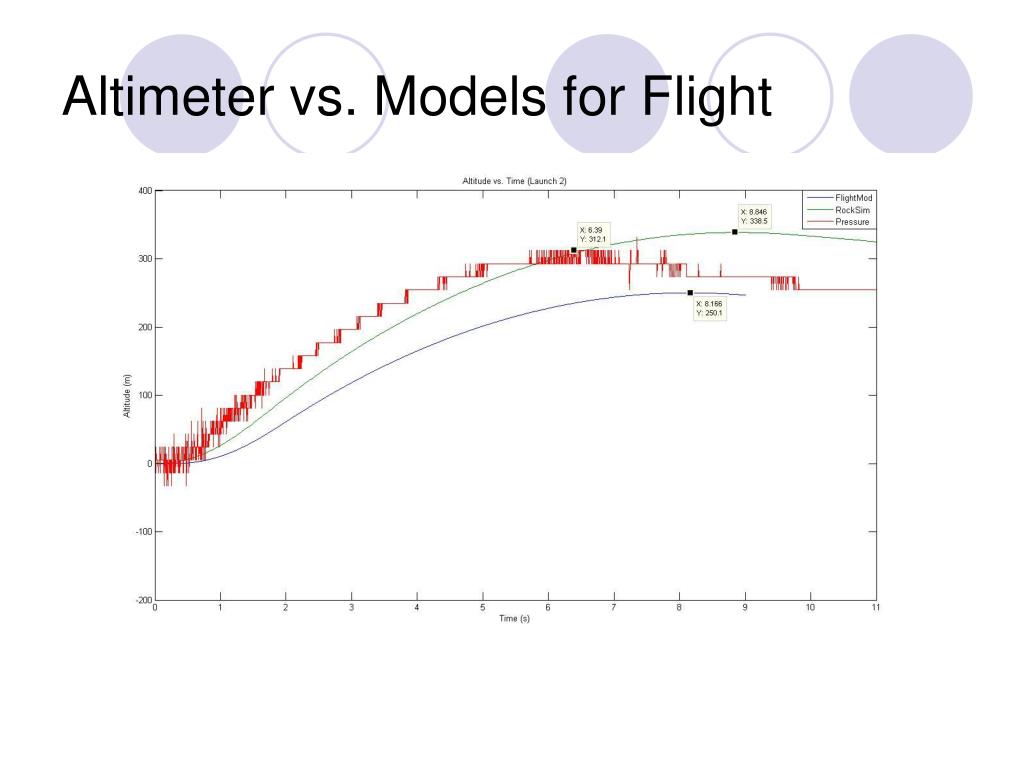

  6. Altimeter vs. Models for Flight

  7. Flight Modeling (2-D) T T z z y θ y CG CG r r CP Wind CP Wind mg mg D D

  8. Euler’s Integration • Method for numerical integration • Iterative • For given a(t) and initial conditions for x and v: v(t+Δt)=v(t)+a(t)*t x(t+Δt)=x(t)+v(t)*t

  9. az Az y ay az ax ax Ax Ay ay IMU Analysis: Mudd IIIC (Large) Rocket • Rotation from local to global axes • Euler integration of rotation matrix

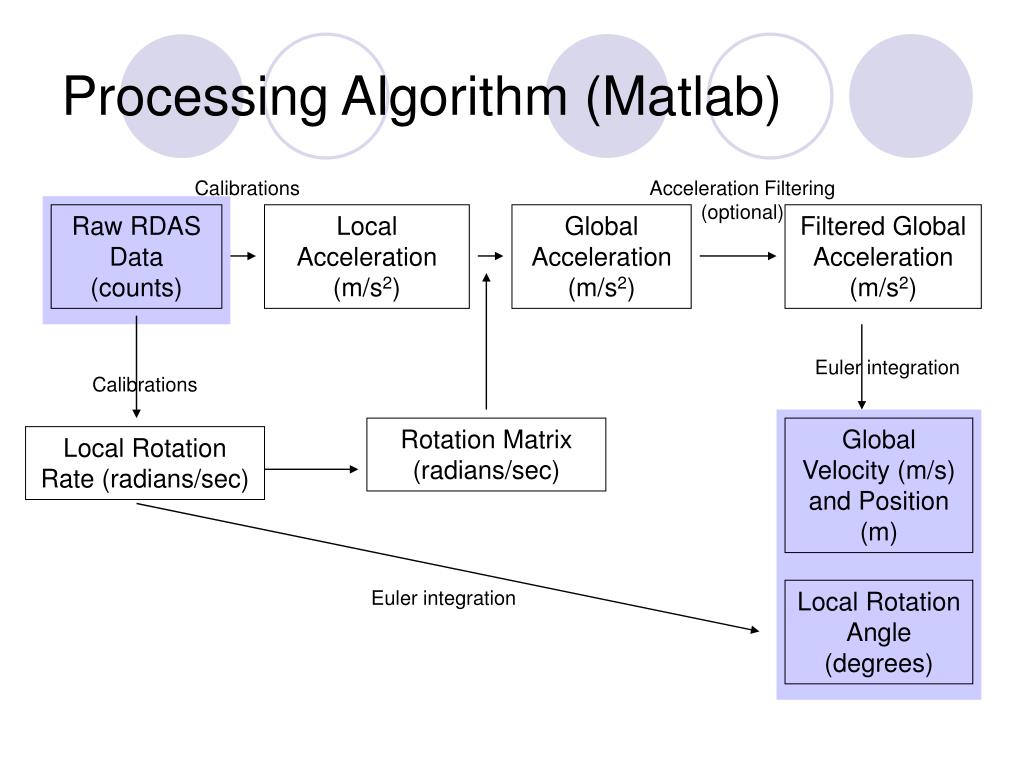

  10. Processing Algorithm (Matlab) Calibrations Acceleration Filtering (optional) Raw RDAS Data (counts) Local Acceleration (m/s2) Global Acceleration (m/s2) Filtered Global Acceleration (m/s2) Euler integration Calibrations Rotation Matrix (radians/sec) Global Velocity (m/s) and Position (m) Local Rotation Rate (radians/sec) Euler integration Local Rotation Angle (degrees)

  11. Principle Axis Rotation: Plot vs. Video

  12. 1-D Model Comparison (launch 2)

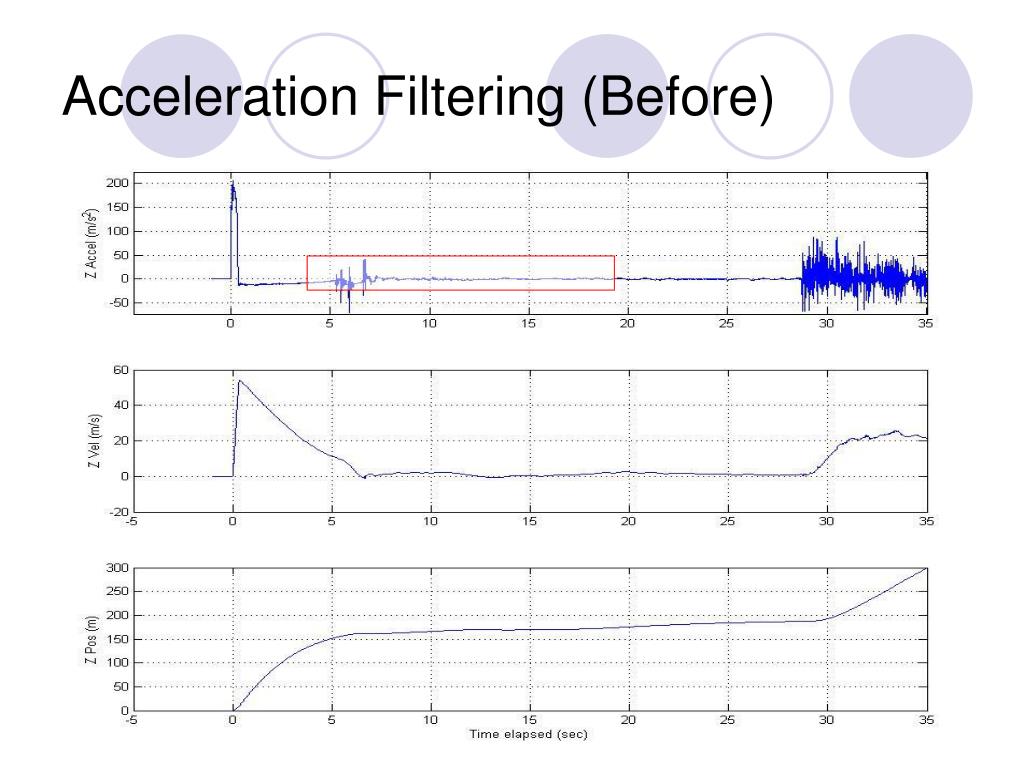

  13. Acceleration Filtering (Before)

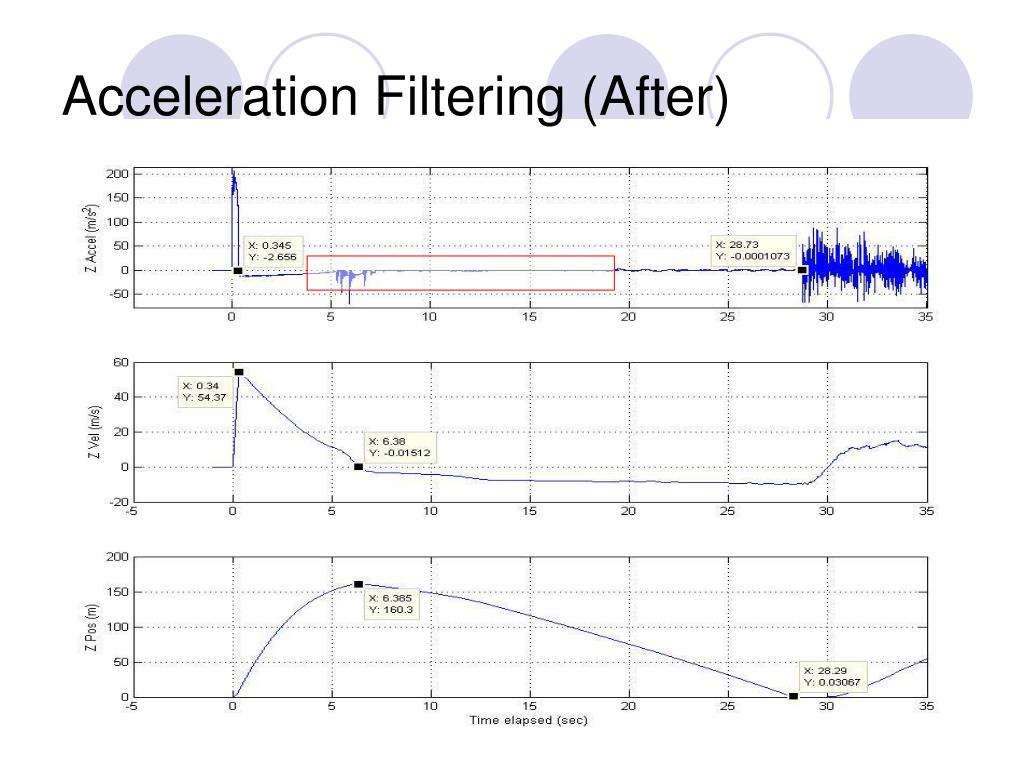

  14. Acceleration Filtering (After)

  15. z wind E80 teams Acceleration Filtering (Descent Plot)

  16. Bad Data • Mudd IIIA IMU rocket • Failure to eject parachute • Flat spin  crash after apogee • WHY? http://www.tribuneindia.com/2002/20020715/world.htm

  17. Principle Axis Rotation Plot vs. Video, Round 2

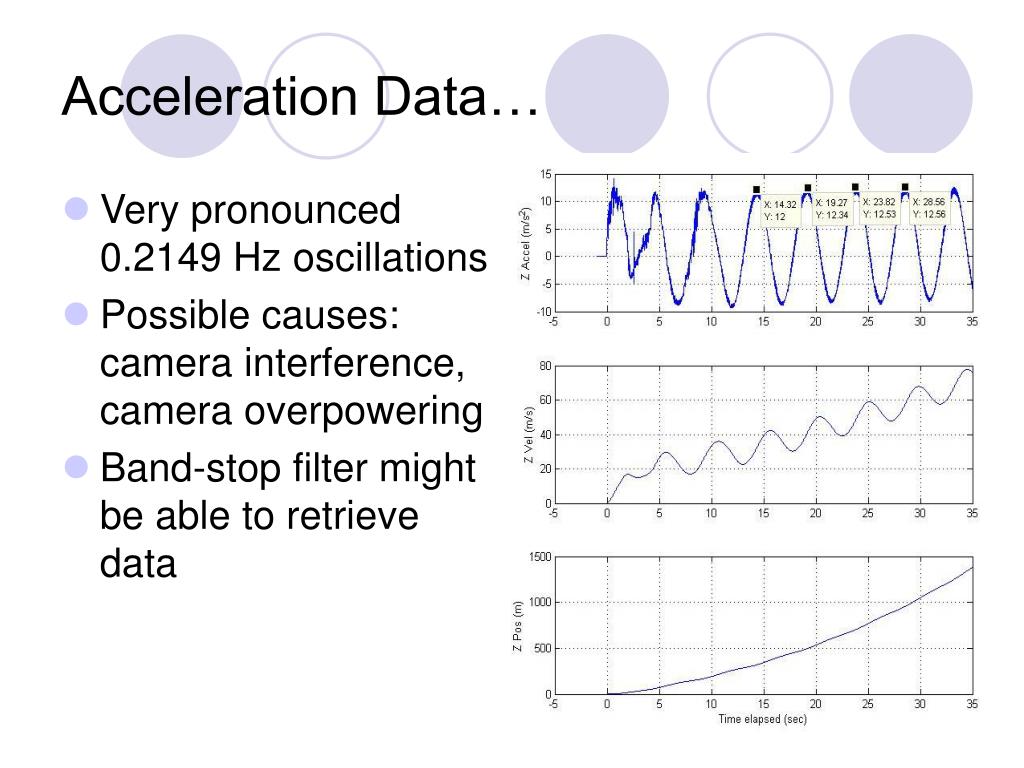

  18. Acceleration Data… • Very pronounced 0.2149 Hz oscillations • Possible causes: camera interference, camera overpowering • Band-stop filter might be able to retrieve data

  19. Vibration Analysis

  20. Theoretical Analysis • Tap tests on hollow tube are inaccurate • Mass spring damper system

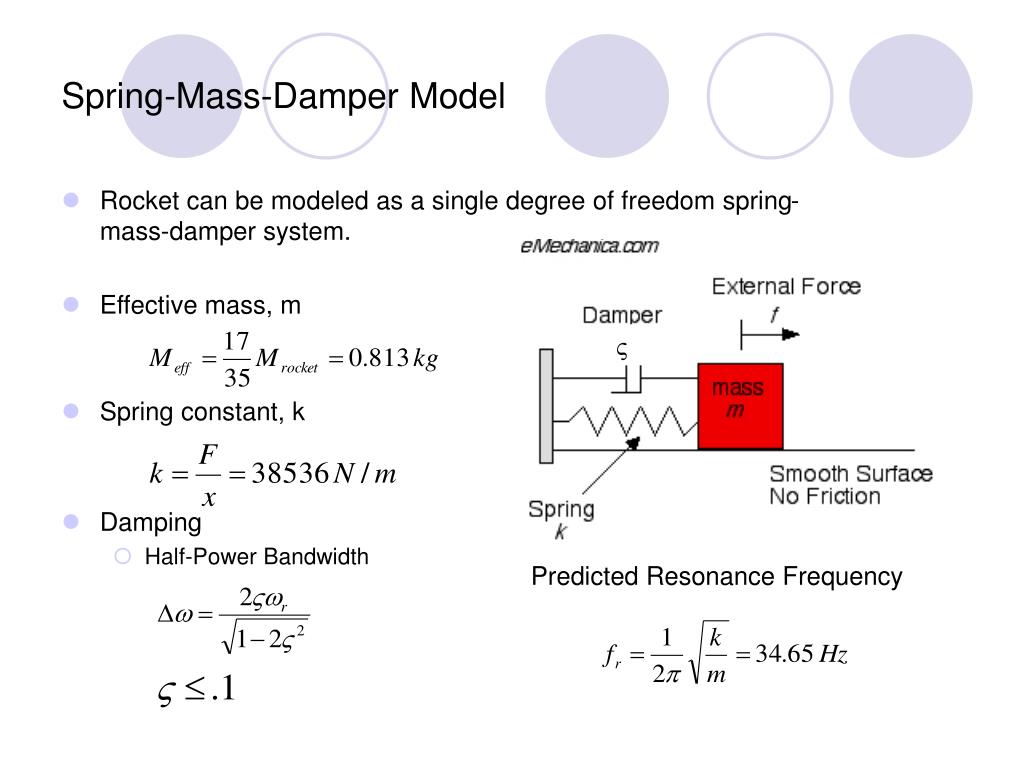

  21. Spring-Mass-Damper Model • Rocket can be modeled as a single degree of freedom spring-mass-damper system. • Effective mass, m • Spring constant, k • Damping • Half-Power Bandwidth  Predicted Resonance Frequency

  22. Analysis • No control variables! • Treat Sensor 10 as input. • Create FRFs of other sensors to see relative peaks Sensor 10

  23. FRF plots • Removed DC offset • fdomain.m used to generate Fourier Coefficients • Relative Amplitudes • First set of data is not trustworthy • Second set of data has more coherent peaks • Used 1st second of data, short motor burn time

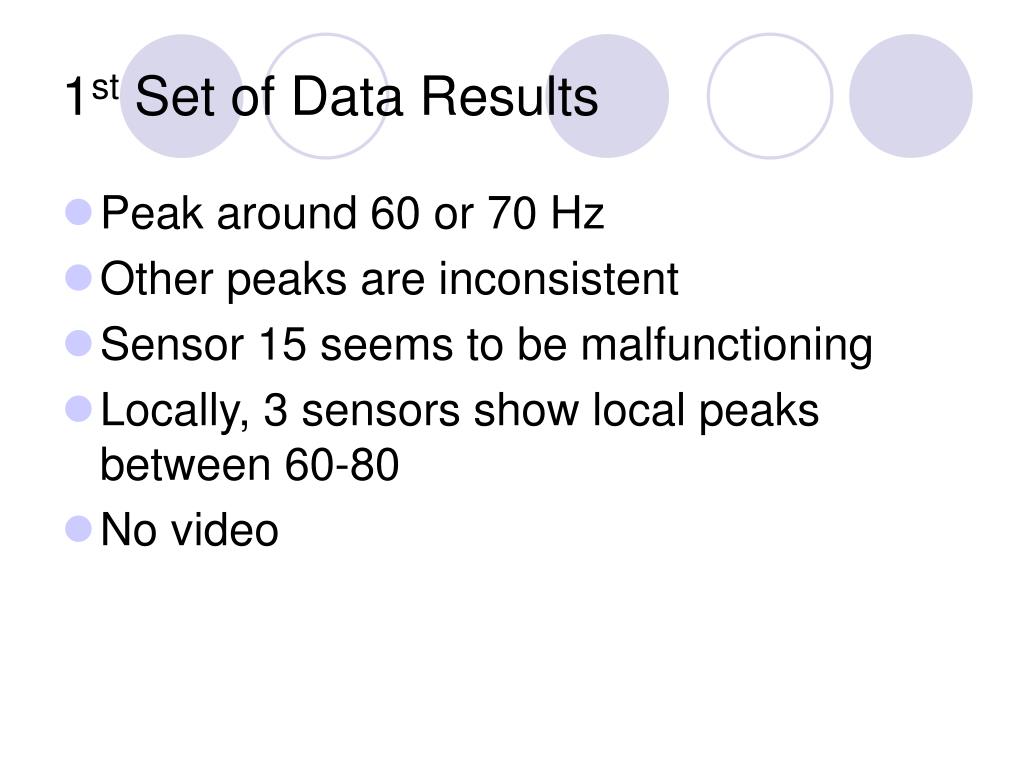

  24. 1st Set of Data Results • Peak around 60 or 70 Hz • Other peaks are inconsistent • Sensor 15 seems to be malfunctioning • Locally, 3 sensors show local peaks between 60-80 • No video

  25. 2nd Set of Data Results • Consistent peaks at 64 Hz • Possible peaks around 30 Hz, but not consistent • Sensors 1, 3, and 8 are 13 show peak frequencies • Sensor 13 farther away from the input source

  26. Noises • Only 64 Hz showed in every FRF • Others are jumbled by the noise • Running averages smoothes out the data too much. • Too little data during the 1st second of input • Ineffective way of removing noise

  27. Mode Shapes • Absolute magnitude of Fourier Coefficients vs Relative Sensor Distances • Sensor 10 was normalized as “0” point.

  28. Results from FRF • Not enough frequencies to test all 3 mode shapes • Does not deal well with noise, especially with highly aliased data

  29. Problems with FFT • Using just FFT coefficients to calculate Frequency Response Functions assumes a clean periodic signal. • The rocket data is neither. • A better estimator is Power Spectral Density (PSD).

  30. Power Spectral Density Auto power spectral density Cross power spectral density Frequency Response Function

  31. H(jw) PSD and Noise x(t) v(t) y(t) n(t) Assume n(t) is unrelated to v(t) 0

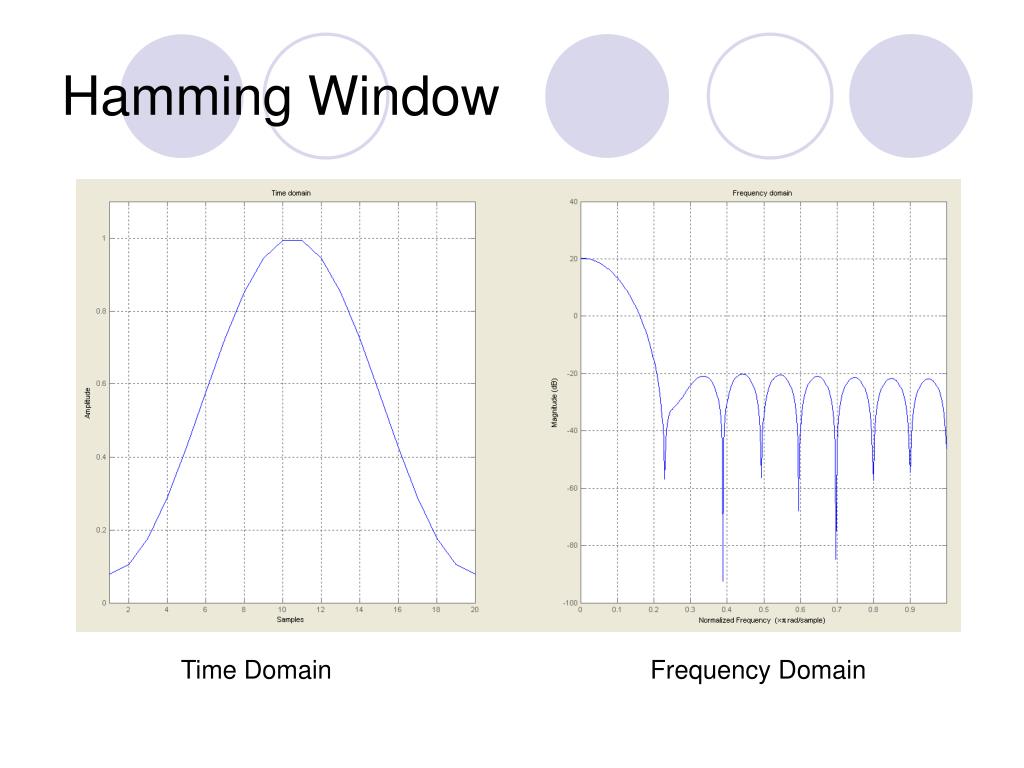

  32. Hamming Window Time Domain Frequency Domain

  33. Averaging Overlap Overlapping windowed segments by 50% minimizes attenuation of time domain signal near the end of segment

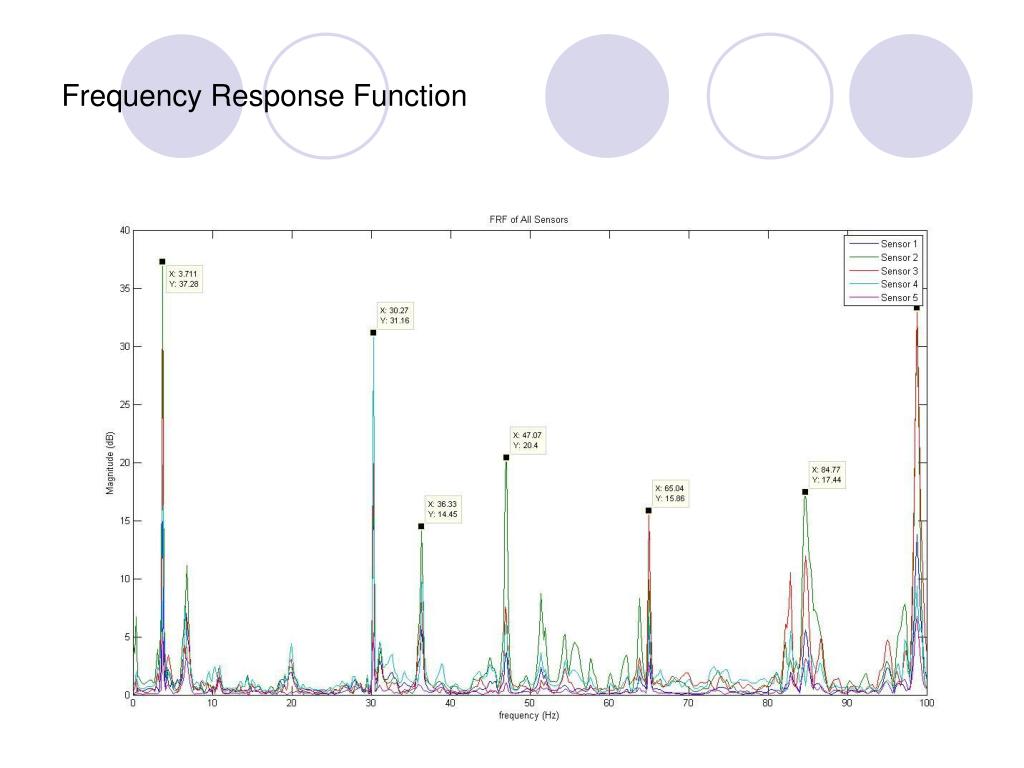

  34. Frequency Response Function

  35. Waterfall Analysis FRF of Sensor 5 over time magnitude (dB) time (.1 sec) freq (Hz)

  36. Conclusions • Thermistor behavior depends on location • Euler Integration Method not sufficient to model whole flight path • Spring-Mass-Damper model can simplify system to find theoretical resonance • FFT method of finding FRF is not consistent due to large noise component • PSD method gives much sharper peaks in FRF

  37. Interesting Precautions... • Check battery…sensors are sensitive! • Wait until last moment to turn on R-DAS and video camera…otherwise, ejection charge could go off early! • Don’t try to catch rocket…it may have a chute, but it’s still falling fast!

  38. Extra: Altimeter Plots

  39. Extra: Altimeter Plots

  40. Extra: Why We Didn’t Do 2-D Model Comparison

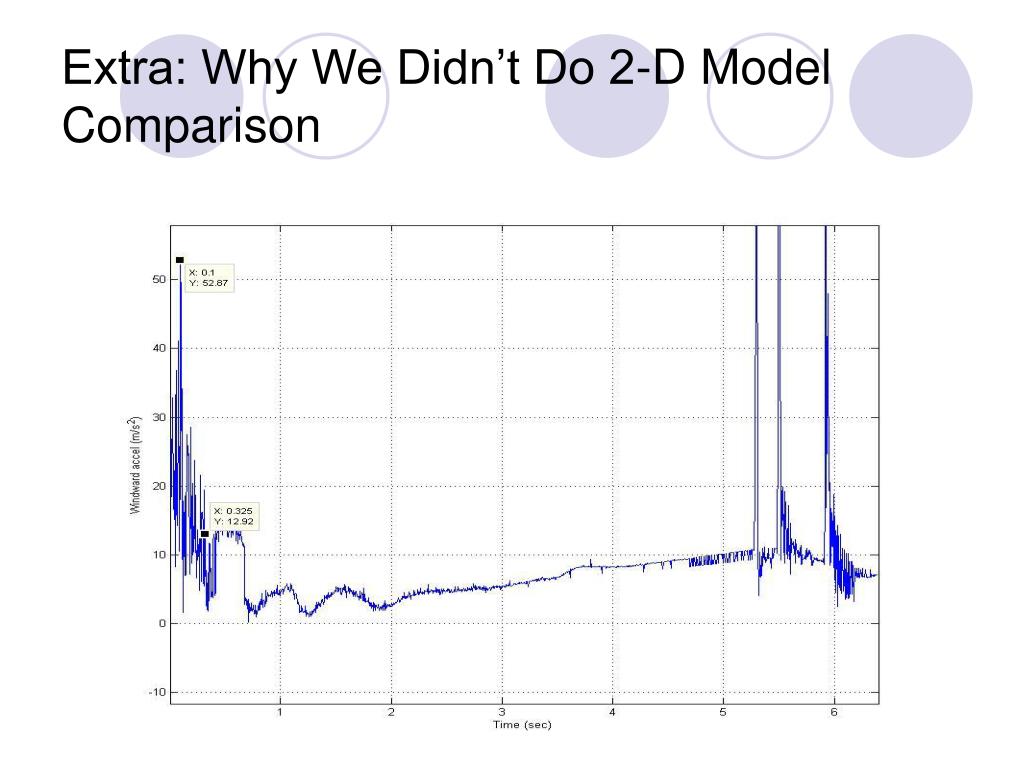

  41. Extra: Why We Didn’t Do 2-D Model Comparison

  42. Acknowledgements • The professors and proctors who helped to make this beta-test a success. • All of our classmates for their infinite support and advice during this semester • Student A for a discussion on the causes of small rocket IMU corruption • Student B for his help with setting up the Single Degree of Freedom model

  43. References • E80 The Next Generation Spring 2008, http://www.eng.hmc.edu/New E80/index.html. • R. Wang, http://fourier.eng.hmc.edu/e80/inertialnavigation/ • Q. Yang, http://www.eng.hmc.edu/NewE80/PDFs/Lecture_PressureSensor Thermistors.ppt • H. Buchholdt, Structural Dynamics for Engineers (Telford, 1997), pp. 17-22. • The Hanning Window, http://www.dliengineering.com/vibman/thehanning window.htm
