Nablus city hall

Nablus City Hall

By

Areen Abu Zaid

Zinab Abu Shaqdam

Mdlaeen Godeh


Nablus city hall

Chapters

Chapter one:Introdution

Chapter two: architectural design

Chapter three: Inviromental design

Chapter four: Structural design

Chapter five: Internal system design


Nablus city hall

Chapter One : Introduction

A building lies in the western side of Nablus , this building consist of two stories of (8000 m2) , and height of each storey is (5m).

Ground floor consists of two main halls, library, cafeteria, bathrooms, and security and Theatre.

1st floor consists of computer hall, bathrooms, cafeteria , theare first floor.


Nablus city hall

Buildings of the project:

1-Building Main Halls

2-theater of the project

3-Central cafeteria

4-A major public library

5-Computer hall


Nablus city hall

The site with respect to palestine


Nablus city hall

Analysis of street


Nablus city hall

Suggested Enterance


Nablus city hall

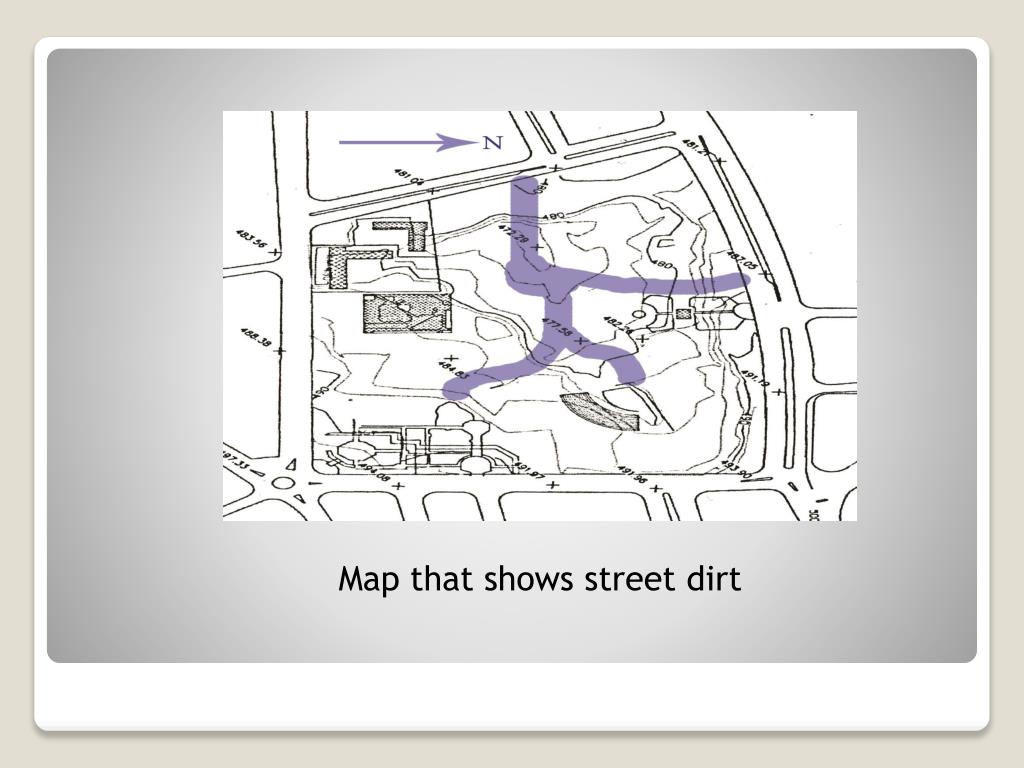

Map that shows street dirt


Nablus city hall

Traffic around the site


Nablus city hall

Elements of agroup within the site


Nablus city hall

Analysis of the noise level


Nablus city hall

Nablus City Hall

Architicture Design


Nablus city hall

Site plan


Nablus city hall

Master plan (ground floor)


Nablus city hall

Master plan (FIRST FLOOR)


Nablus city hall

Sections


Nablus city hall

Elevations


Nablus city hall

Elevations


Nablus city hall

Chapter Two

Nablus City Hall

Structural Design


Nablus city hall

Design Data

  • Yielding strength of steel, fy = 4200 kg/cm2.

  • Modulus of elasticity of steel, Es = 2.04x106 kg/cm2.

  • Modulus of elasticity of concrete, Ec = 15100 √ fc .

    B300 → fc = 240 kg /cm2 → Ec = 2.34×105 Kg /cm2


Nablus city hall

Design Data

  • Unit weights of materials: Reinforced concrete = 2.5 ton/m3 . Blocks = 1.2 ton/m3 . Stone =2.6 ton/m3. Sand =2 ton/m3.

  • soil bearing capacity = 1.5kg/cm2 .


Nablus city hall

Design Data

Design loads:

live load is 500 kg/m2 =0.5 T/m2 for grond and first floor __ L.L For final roof=0.2 T/m2 .

Super imposed dead load is 0.3 T/m2 .

Slap thickness = 20 cm solid slap (roof)

Stair thickness =25 cm

Wall thickness = 20 cm


Nablus city hall

Theatre column center


Nablus city hall

Pannel beam roof reinforcement


Nablus city hall

Footing and tie beam for theatre


Nablus city hall

Structural Details for theatre


Nablus city hall

Theatre and cantiliever stairs


Nablus city hall

Structural analysis

laws and checking the results:

Theatre Block

Service Block


Nablus city hall

In this block we use pannel beam system using solid slab 20 cm depth with continuos beams carried on shear wall.because of long spans and to achieve theatre function.

first floor

Ground floor


Nablus city hall

Design steel for ground floor as the shear wall carry the load

Moment from sap (M=20t.m/m)


Nablus city hall

Design steel for first floor as the shear wall carry the load

Moment from sap (M=20t.m/m)


Nablus city hall

Case 2:

As another solution if there is compressive refile siolwith minnimum load 98% underground use 7 Ø12/ m in two direction upper and bottom steel use minnimum steel.


Nablus city hall

Design of beam

After design on sap and select beam dimension(120*80cm) approximetly each 4 m, the figure from sap show steel value as follow:

Use 22 Ø20 mm for the bottom

  • For the top steel use As minUse 12 Ø18

Use Ø10/20cm

Stirups


Nablus city hall

Design for exterior wall:

From sap we find F11 = 14 t/m

Use 5 Ø12/ m Horizontal Steel


Nablus city hall

We find from sap F22 = 46t/m

Shear wall reinforcement

Use 7 Ø16/ m Vertical Steel


Nablus city hall

Footing design:

After analysis on sap and finding load on footing per meter :

DL on Foundation = 40t/m

LL on Foundation = 20t/m

Section in footing


Nablus city hall

Column design

  • The design load can be calculated using the following equation:

  • Pd= 𝜙Pn=𝜙*λ {0.85* fc(Ag-As) + As*f y}.

  • 𝜙 = 0.65 for tied columns.

  • 𝜙 = 0.7 for spiral columns.

  • λ = 0.8 for tied columns.

  • λ = 0.85 for spiral columns.


Nablus city hall

Type of column


Nablus city hall

Service block (rib distribution)


Nablus city hall

Structural details for service block


Nablus city hall

Column centre and footing for service


Nablus city hall

Piles design


Nablus city hall

Chapter three

Nablus City Hall

Electrical Design


Nablus city hall

Lighting calculation

N=E*A/(n* FL*Ku*Km)

Where:

N=number of units in place(#of luminair).

E=Illuminance,measured by lux.

A=area of space.

n= number of lamp.

FL=Flux (lumen/lamp).

Ku=utilization factor (depend on room factor ).

Km=maintenance factor.


Nablus city hall

Sample of calculation


Nablus city hall

Calculation of the (MDB) and cross section area of cables

Total current for lighting = 80 A

We select diameter of cables

D cables = 25 mm


Nablus city hall

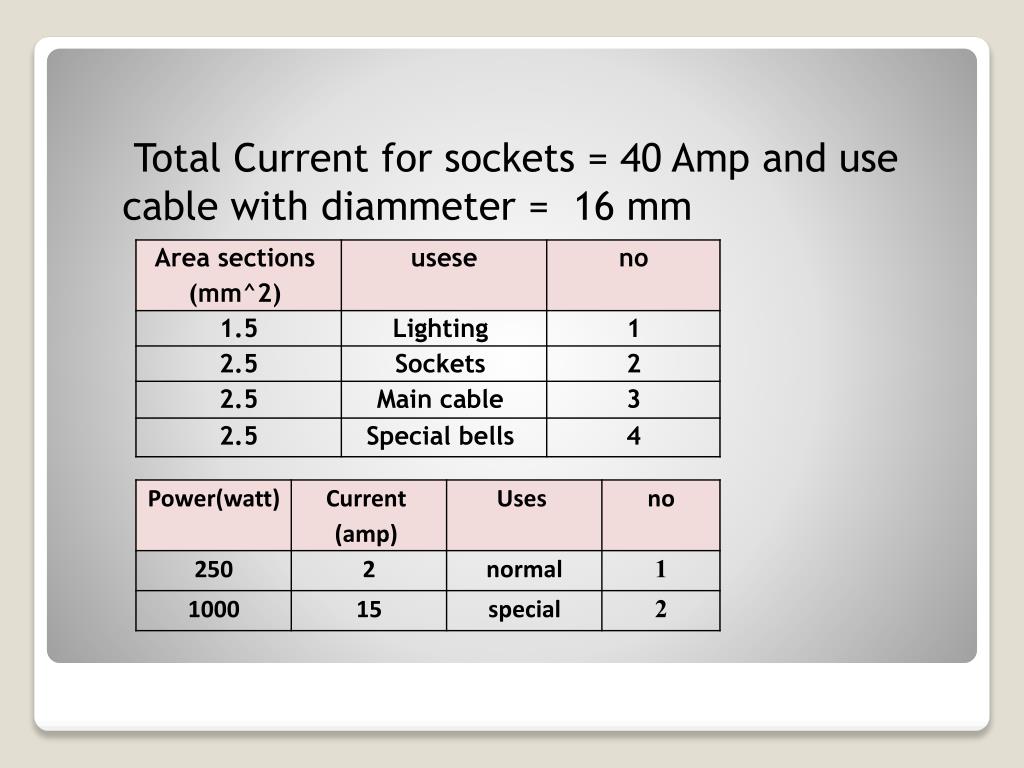

Total Current for sockets = 40 Amp and use cable with diammeter = 16 mm


Nablus city hall

Power for ground floor


Nablus city hall

Lighting for ground floor


Nablus city hall

Theatre (MDB)


Nablus city hall

Chapter four

Nablus City Hall

Mechanical Design


Nablus city hall

WATER SYSTEM

We use direct up feed system


Nablus city hall

We use cold water collecter

And hot water collecter

and electrical heater

Water distribution plan


Nablus city hall

Drainage system


Nablus city hall

Fire system


Nablus city hall

Slope plan


Nablus city hall

We Used (2) system in the project:

1- chilled water systym in the main hall. 2- gas to gas systym in the secondary hall.

  • FAN COILT

CHILLER 136 ton (Heat pump)327 GPM

We used air handler unit with capacity 8000 CFM


Nablus city hall

- Heating Load Calculation:


Nablus city hall

ACH=1.5

Required ventilation = 8 (L\s)\ person

#No Person= 900

Q Total=80 TON

  • NO diff = 100 we used (60x60) provide 400 CFM


Nablus city hall

Cooling load


Nablus city hall

Cooling calculation

Q total = 61.25 Kw

Q s= 43.10 Kw

V cir = 3591.71 L/S

V cir =7901.76 CFM

No . diffuser =100 use 100SIZE THE DIFFUSER FOR 400 CFM (60x60) CM


Nablus city hall

Difuser and grill for the building

Difuser and grill for theatre


Nablus city hall

ventelation

Use two type

Exhust fan window

Exhust duct grill


Nablus city hall

Chapter Five

Nablus City Hall

Inviromental Design


Nablus city hall

Inviromental analysis

تصنيف منطقة المشروع مناخياً:

تقع في المنطقة المناخية الثالثة وتقع بين خط طول شرقا ((35.370 وخط عرض (32.322) شمالاً


Nablus city hall

Design Condition


Nablus city hall

Sun Motion


Nablus city hall

Heat calculation

Calculate the thermal of the external wall


Nablus city hall

Calculate the thermal of the internal wall

Calculate the thermal of the ceiling


Nablus city hall

Sample of calculation

Heat loss for the All external and internal walls of the building (theatre ):

North wall:

Area wall = ((28.35+25.2+47+40.5+22.5+24+17.2+311.8+76.2)-(4+3)-(40)

= 540 m²

Area windows = 7 m²

Area door = 40 m²

Q(heat loss) = Σ Area × U × T

= [540 × 2.6 + 7 ×6.7+40×3.5]×[20] = 31818 watt.


Nablus city hall

materials

For external ceiling

For internal wall


Nablus city hall

Accostics


Nablus city hall

منطقة المرافق المحيطة بالمسرح ويكون فيها ضجيج عالي

منطقة المخازن المحيطة ويكون مستوى الضجيج فيها اقل

منطقة اللوبي والحركة الخارجية قريبا من المسرح ويكون مستوى الضوضاء فيها عالية اثناء وبعد العرض


Nablus city hall

Noise Plan of theatre


Nablus city hall

Thank you
