  1. Master-WorkerTutorialCondor Week 2006

  2. Agenda • What is M-W • When to use M-W • How to build a simple M-W application • Q & A

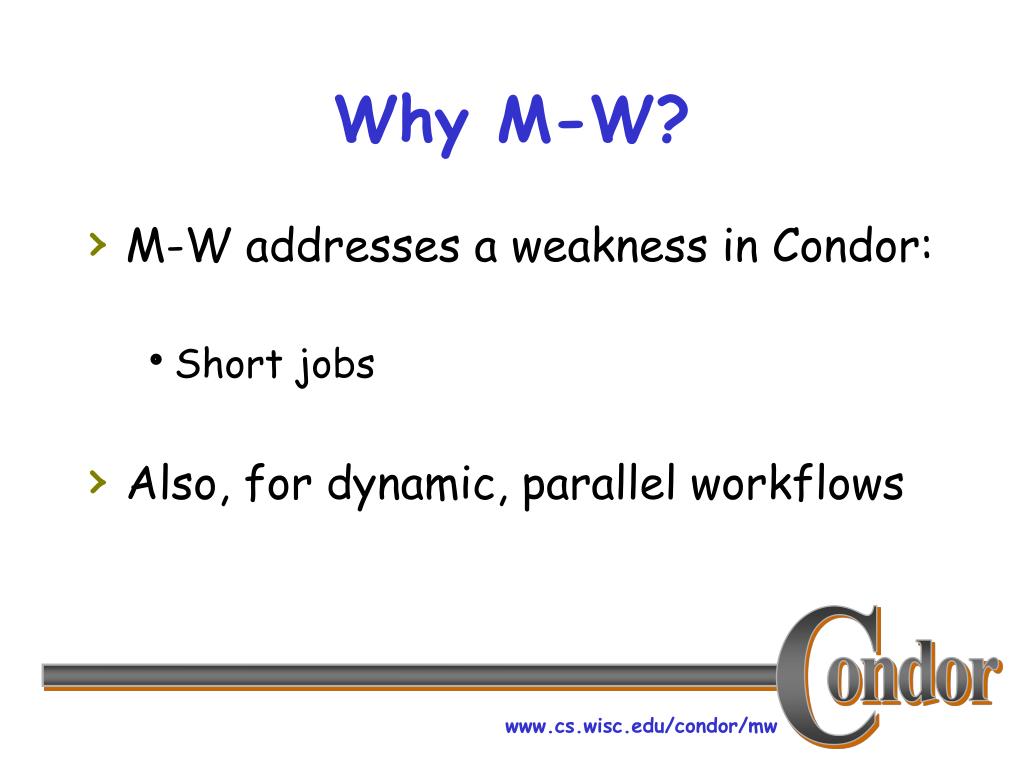

  3. Why M-W? • M-W addresses a weakness in Condor: • Short jobs • Also, for dynamic, parallel workflows

  4. A Condor Job…

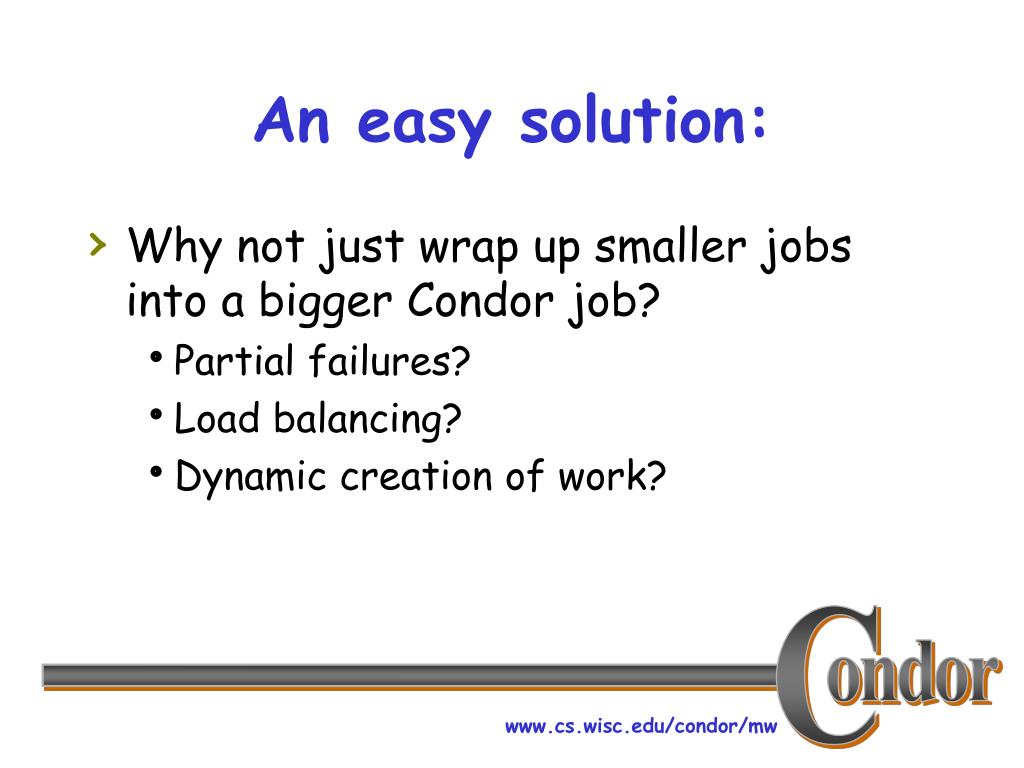

  5. An easy solution: • Why not just wrap up smaller jobs into a bigger Condor job? • Partial failures? • Load balancing? • Dynamic creation of work?

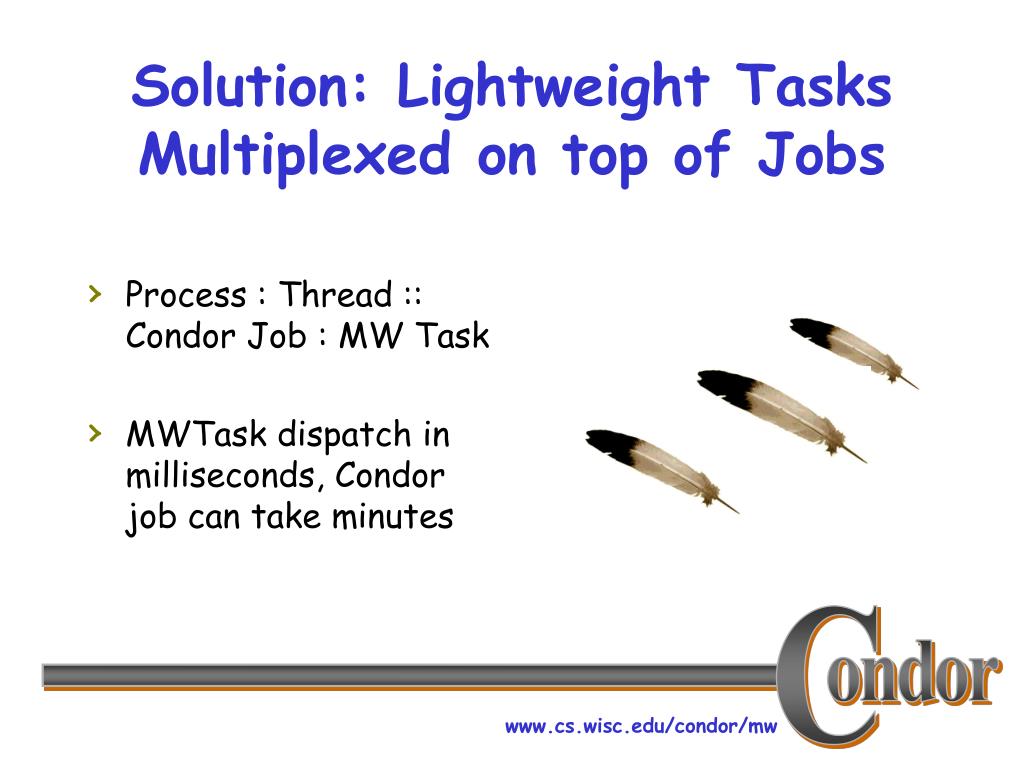

  6. Solution: Lightweight TasksMultiplexed on top of Jobs • Process : Thread :: Condor Job : MW Task • MWTask dispatch in milliseconds, Condor job can take minutes

  7. MW is… • C++ Framework • To re-use condor worker jobs • To each run many tasks • Results in very parallel application

  8. MW is not • MPI • General parallel programming scheme

  9. MW in action T Worker Master exe T T T T T T T T T Worker T condor_submit Worker Submit machine

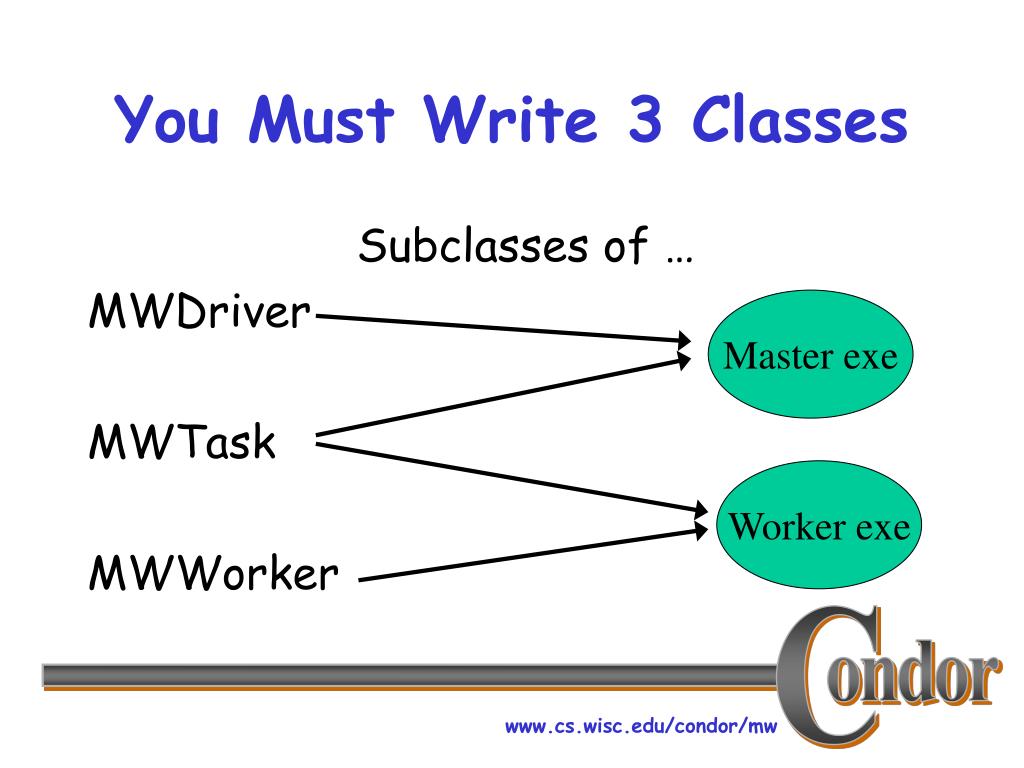

  10. You Must Write 3 Classes Subclasses of … MWDriver MWTask MWWorker Master exe Worker exe

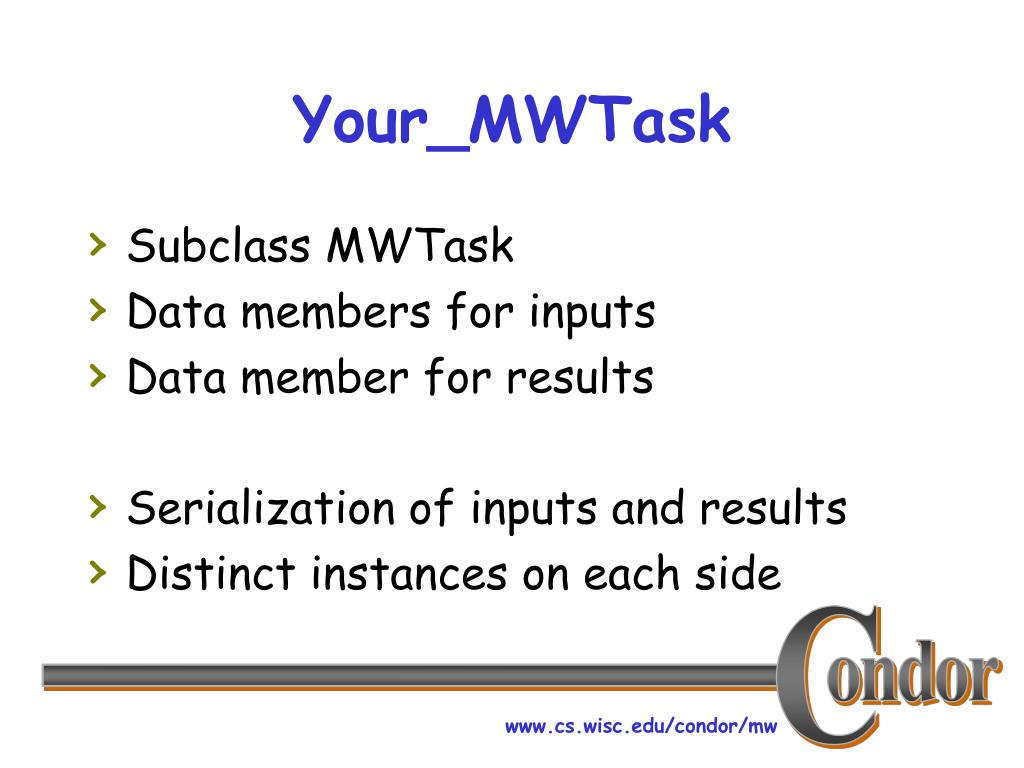

  11. Your_MWTask • Subclass MWTask • Data members for inputs • Data member for results • Serialization of inputs and results • Distinct instances on each side

  12. The Four Task Methods • void MyTask::pack_work(void); • void MyTask::unpack_work(void); • void MyTask::pack_results(void); • void MyTask::unpack_results(void); • Also ctor/dtor!

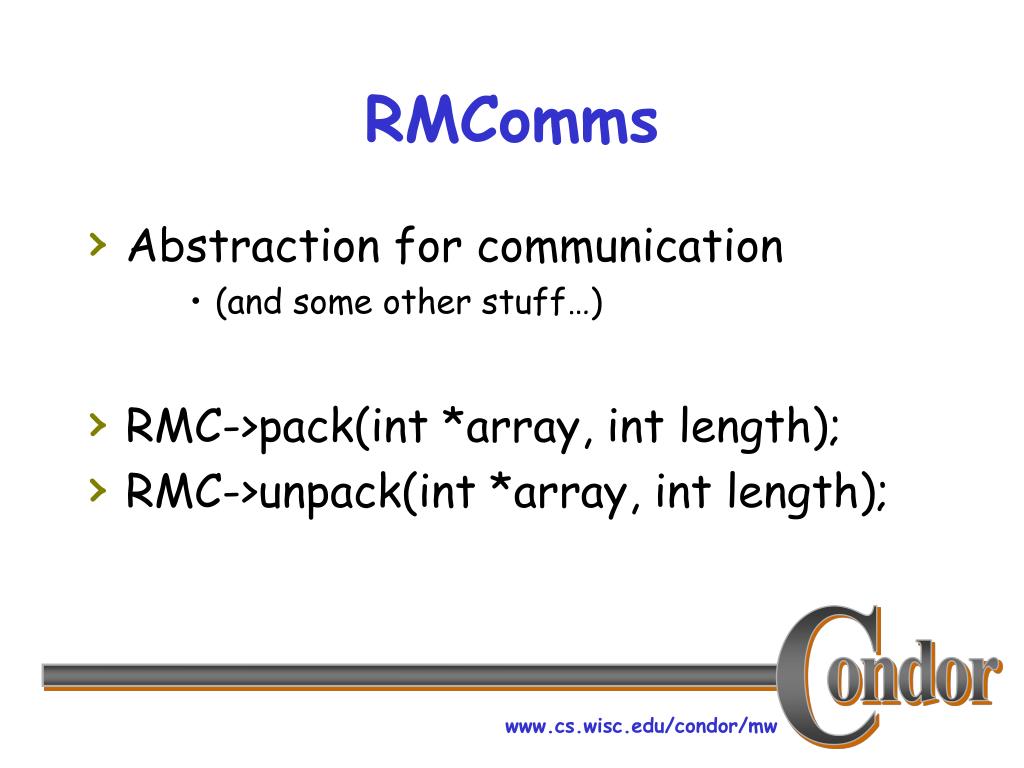

  13. RMComms • Abstraction for communication • (and some other stuff…) • RMC->pack(int *array, int length); • RMC->unpack(int *array, int length);

  14. MWWorker • Just one method: • executeTask(MWTask *t) • Also ctor/dtor!

  15. MWDriver • get_userinfo(int argc, char **argv) • RMC->add_executable(char *exe, char *requirements); • setup_initial_tasks(int num_tasks, MWTask ***init_tasks) • act_on_completed_task(MWTask *t) • RMC->add_task(MWTask *t) • Also ctor/dtor

  16. Putting it all together:new_skel • ./new_skel MY_PROJECT • Use configure –help for options • make

  17. Debugging with Independent Mode • Special RMComm for debugging • Single process, can run under gdb

  18. Running on the Grid… • Just launch the appropriate master • condor_q to see it in action

  19. Advice for Large Runs • Use personal condor • Flock, glide-in, schedd-on-side, hobblein • Use checkpointing! • Set_worker_increment high

  20. User-level Checkpointing • MWTask::write_chkpt_info(FILE *) • MWTask::read_chkpt_info(FILE *) • MWDriver::read_master_state(FILE *) • MWDriver::write_master_state(FILE *)

  21. Example codes with MW • Matmul • Blackbox • knapsack

  22. MW Philosophy • Reuse either code or concept • Key idea: Late binding

  23. Other resources • http://www.cs.wisc.edu/condor/mw • Online manual • MW-users mailing list

  24. Thank You! Questions? MW Home page: http://www.cs.wisc.edu/condor/mw
