Local storm reports and storm prediction center products

Local Storm Reports and Storm Prediction Center Products

John Ferree

NWS Severe Storms Services Leader

Partner’s Meeting

January 21, 2010

Atlanta, Georgia


Desired outcomes

Desired Outcomes

  • Obtain partner participation in the development of a new Local Storm Report (LSR) format

  • Obtain partner participation in developing changes to severe thunderstorm and tornado watch product suite


Drivers for change computer read vs human read

Drivers for ChangeComputer Read vs Human Read

Local Storm Report Summary

Public Information Statement


Drivers for change

Drivers for Change

  • Increasing number of reports

  • Need for improved geospatial accuracy

  • Ability to correct mistakes (tracking)

  • Summary reports

    • One line per report (15 reports in 15 lines)

    • Flexible time range (severe reports 18Z – 21Z)

    • Flexible report type (snowfall accumulation)

  • Multiple Formats


Speculative example

Speculative Example

NWUS56 KMFR 121922

LSRMFR

PRELIMINARY LOCAL STORM REPORT

NATIONAL WEATHER SERVICE MEDFORD OR

1122 AM PST TUE JAN 12 2010

..TIME... ...EVENT... ...CITY LOCATION... ...LAT.LON...

..DATE... ....MAG.... ..COUNTY LOCATION..ST.. ...SOURCE....

..REMARKS..

1122 AM HEAVY RAIN 3 NW MOUNT SHASTA 41.35N 122.35W

01/12/2010 M1.42 INCH SISKIYOU CA TRAINED SPOTTER

12 HRS ENDING AT 11AM.

&&

$$

GLASER

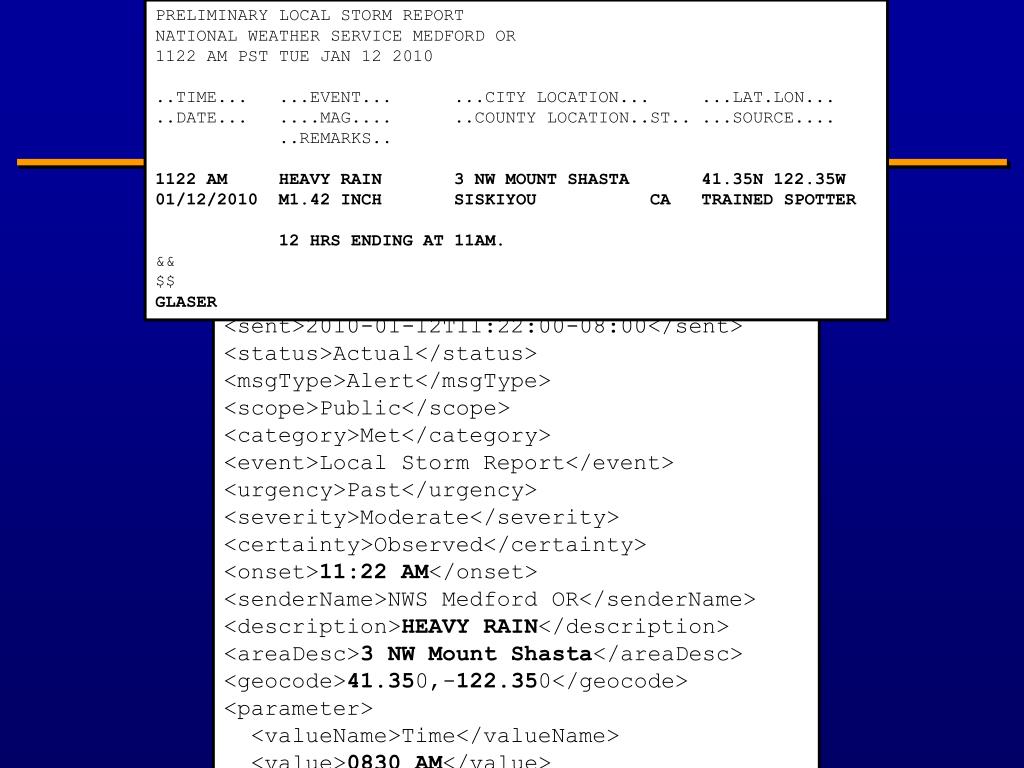

Speculative example cap xml format

PRELIMINARY LOCAL STORM REPORT

NATIONAL WEATHER SERVICE MEDFORD OR

1122 AM PST TUE JAN 12 2010

..TIME... ...EVENT... ...CITY LOCATION... ...LAT.LON...

..DATE... ....MAG.... ..COUNTY LOCATION..ST.. ...SOURCE....

..REMARKS..

1122 AM HEAVY RAIN 3 NW MOUNT SHASTA 41.35N 122.35W

01/12/2010 M1.42 INCH SISKIYOU CA TRAINED SPOTTER

12 HRS ENDING AT 11AM.

&&

$$

GLASER

Speculative ExampleCAP/XML Format

<?xml version = "1.0" encoding = "UTF-8"?>

<alert xmlns = "urn:oasis:names:tc:emergency:cap:1.1">

<identifier>MFR1000182</identifier>

<sender>NWS.NOAA.GOV</sender>

<sent>2010-01-12T11:22:00-08:00</sent>

<status>Actual</status>

<msgType>Alert</msgType>

<scope>Public</scope>

<category>Met</category>

<event>Local Storm Report</event>

<urgency>Past</urgency>

<severity>Moderate</severity>

<certainty>Observed</certainty>

<onset>11:22 AM</onset>

<senderName>NWS Medford OR</senderName>

<description>HEAVY RAIN</description>

<areaDesc>3 NW Mount Shasta</areaDesc>

<geocode>41.350,-122.350</geocode>

<parameter>

<valueName>Time</valueName>

<value>0830 AM</value>

</parameter>

<parameter>

<valueName>Date</valueName>

<value>2010-01-12</value>

</parameter>

<parameter>

<valueName>Magnitude</valueName>

<value>M1.42 Inch</value>

</parameter>

<parameter>

<valueName>County Location</valueName>

<value>Siskiyou</value>

</parameter>

<parameter>

<valueName>Source</valueName>

<value>Trained Spotter</value>

</parameter>

<parameter>

<valueName>Remarks</valueName>

<value>12 hrs ending at 11AM</value>

</parameter>

<contact>GLASER</contact>

</alert>


Speculative example cap xml format1

PRELIMINARY LOCAL STORM REPORT

NATIONAL WEATHER SERVICE MEDFORD OR

1122 AM PST TUE JAN 12 2010

..TIME... ...EVENT... ...CITY LOCATION... ...LAT.LON...

..DATE... ....MAG.... ..COUNTY LOCATION..ST.. ...SOURCE....

..REMARKS..

1122 AM HEAVY RAIN 3 NW MOUNT SHASTA 41.35N 122.35W

01/12/2010 M1.42 INCH SISKIYOU CA TRAINED SPOTTER

12 HRS ENDING AT 11AM.

&&

$$

GLASER

Speculative ExampleCAP/XML Format

<value>Siskiyou</value>

</parameter>

<parameter>

<valueName>Source</valueName>

<value>Trained Spotter</value>

</parameter>

<parameter>

<valueName>Remarks</valueName>

<value>12 hrs ending at 11AM</value>

</parameter>

<parameter>

<valueName>Photographs</valueName>

<value>wrh.noaa.gov/mfr/pic/00182</value>

</parameter>

<contact>GLASER</contact>

</alert>

<value>Siskiyou</value>

</parameter>

<parameter>

<valueName>Source</valueName>

<value>Trained Spotter</value>

</parameter>

<parameter>

<valueName>Remarks</valueName>

<value>12 hrs ending at 11AM</value>

</parameter>

<contact>GLASER</contact>

</alert>

Add Photograph


Local storm report summary

Local Storm Report Summary

  • Requesting partner participation in development of a new Preliminary Local Storm Report (LSR) format

  • 2 Hours per month February - July 2010

Contact Information

[email protected]

405-325-2209


Storm prediction center products

Storm Prediction Center Products

John Ferree

Office of Climate Water and Weather Services

Dr. Russell Schneider

Storm Prediction Center

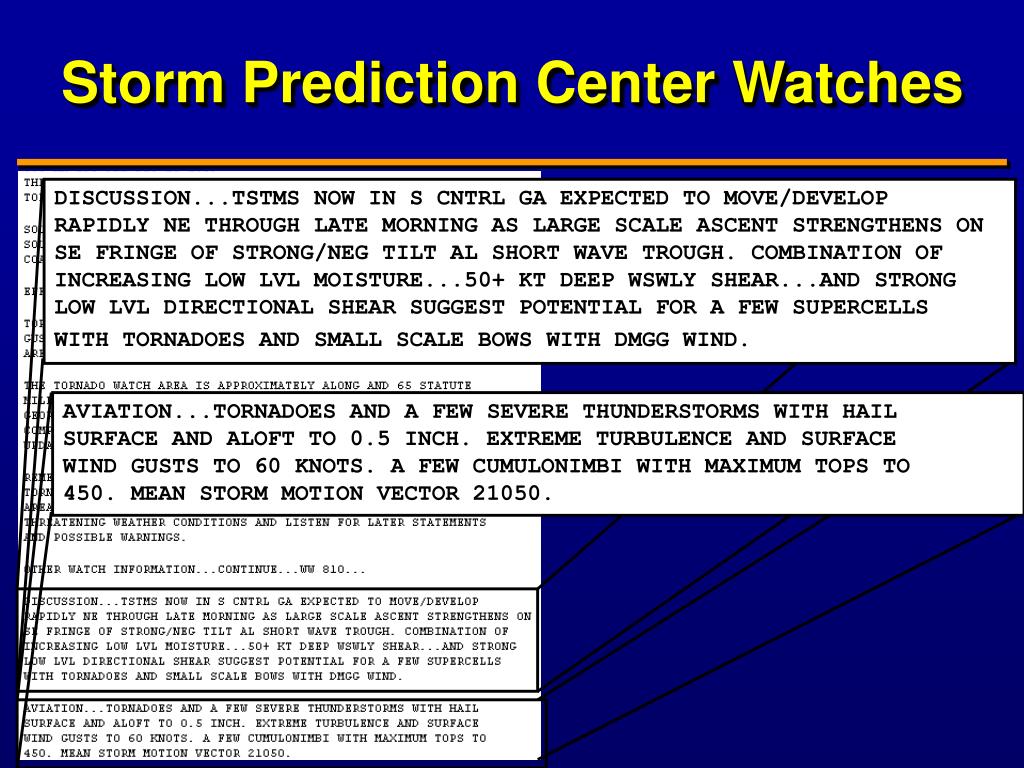

Storm prediction center watches

Storm Prediction Center Watches

DISCUSSION...TSTMS NOW IN S CNTRL GA EXPECTED TO MOVE/DEVELOP

RAPIDLY NE THROUGH LATE MORNING AS LARGE SCALE ASCENT STRENGTHENS ON

SE FRINGE OF STRONG/NEG TILT AL SHORT WAVE TROUGH. COMBINATION OF

INCREASING LOW LVL MOISTURE...50+ KT DEEP WSWLY SHEAR...AND STRONG

LOW LVL DIRECTIONAL SHEAR SUGGEST POTENTIAL FOR A FEW SUPERCELLS

WITH TORNADOES AND SMALL SCALE BOWS WITH DMGG WIND.

AVIATION...TORNADOES AND A FEW SEVERE THUNDERSTORMS WITH HAIL

SURFACE AND ALOFT TO 0.5 INCH. EXTREME TURBULENCE AND SURFACE

WIND GUSTS TO 60 KNOTS. A FEW CUMULONIMBI WITH MAXIMUM TOPS TO

450. MEAN STORM MOTION VECTOR 21050.


Storm prediction center watches better meet user needs

Storm Prediction Center Watches Better Meet User Needs

  • Realign information in watch product suite

    • Hazard info collocated with routing info

      • Public (SEL), Aviation (SAW), Outline (WOU), Discussion (MD), Probabilities (WPP)

    • Aviation information in aviation products

    • Meteorological discussion moved to MD

    • Create computer friendly products more amenable to parsing and partner redistribution

  • Partner ideas are critical to success


Storm prediction center products1

Storm Prediction Center Products

  • The Storm Prediction Center requests partner participation in a review of the watch product suite.

  • Max – Two hours per month Feb. - July 2010

Compliments

[email protected]

405-325-2209Complaints

[email protected]

405-325-2066
