Deploying IPv6 Across the Internet2 Infrastructure

Rick Summerhill

Associate Director, Backbone Network Infrastructure, Internet2

North American IPv6 Global Summit

San Diego, CA

24 June 2003


Outline l.jpg

Outline

  • General Internet2 Infrastructure

    • Internet2 Goals

    • Abilene Partners

    • Abilene Backbone

    • Connectors

    • Peers

    • Focus

  • IPv6 Deployment

    • Goals

    • History

    • Backbone

    • Measurement

    • Support


Internet2 goals l.jpg

Internet2 Goals

  • Create a leading edge network capability for the national research community

  • Enable revolutionary Internet applications

  • Ensure the rapid transfer of new network services and applications to the broader Internet community.


Partners l.jpg

Partners

  • Internet2

  • Cisco Systems

  • Indiana University

  • Juniper Networks

  • Nortel Networks

  • Qwest Communications

  • North Carolina, Ohio, San Diego ITECs


Abilene backbone l.jpg

Abilene Backbone

  • Abilene backbone – OC-192c over unprotected DWDM waves with SONET framing

  • In final stages of an upgrade to OC-192c

  • Often easier to deploy advanced services on a backbone network than at the edges

    • Multicast

    • IPv6

  • Topology


Abilene backbone late summer 2003 l.jpg

Abilene Backbone(Late Summer 2003)


Abilene backbone early summer 2003 l.jpg

Abilene Backbone(Early Summer 2003)


Abilene scale april 2003 l.jpg

Abilene scale(April 2003)

  • 48 direct connections (OC-3c  10-Gbps)

    • 2 10-Gbps connections (both 10-Gigabit Ethernet)

    • 6 OC-48c

    • 1 Gigabit Ethernet

    • 23 connections at OC-12c (622 Mbps) or higher

  • 221 participants – universities and labs

    • All 50 states, District of Columbia, & Puerto Rico

    • Recently: Oak Ridge National Laboratory

  • Expanded access

    • 85 sponsored participants

    • 28 state education networks


Abilene federal research peering late spring 2003 l.jpg

09 January 2002

Last updated: 17 January 2003

Abilene Federal/Research Peering (Late Spring 2003)


Abilene international peering late spring 2003 l.jpg

09 January 2002

Abilene International Peering(Late Spring 2003)


Internet2 infrastructure l.jpg

Internet2 Infrastructure

  • The Full Internet2 infrastructure is diverse and complex

    • Backbone is relatively simple

      • Management provided by Indiana Global NOC

      • Testing by Internet2 Test and Evaluation Centers (ITECs)

    • Connectors often exhibit a complicated hierarchy

      • Some research institutions connected directly

      • Some are connected through regional networks, state networks, and some have complex campus networks

      • Land Grant institutions often have county extension offices

      • Diversity/Complexity increases as one gets closer to the edges of the network

  • Influences the way IPv6 is implemented

    • Consider the classic IPv6 addressing/routing plan, with potentially multiple connections, in this diverse infrastructure


Internet2 infrastructure12 l.jpg

Internet2 Infrastructure

Simple to Complex Hierarchies within the Internet2 Infrastructures

DNS and multi-homing issues within these types of hierarchies


Abilene focus areas 2003 l.jpg

Abilene Focus Areas - 2003

  • Advanced Services

    • IPv6 and Multicast (and IPv6 Multicast)

    • All the following include both IPv4 and IPv6 – the common bearer service for Abilene is both IPv4 and IPv6

  • Facilitating end-to-end performance

  • Supporting network research – Abilene Observatory

  • Experimenting with MPLS/VPN on backbone

  • Supporting large MTUs

  • Security and the REN-ISAC


Internet2 ipv6 goals l.jpg

Internet2 IPv6 Goals

  • Support and encourage development of advanced applications using IPv6

  • Create a national infrastructure to support IPv6

    • Implement IPv6 on Abilene Backbone

    • Encourage deployment of IPv6 throughout the Internet2 infrastructure

    • Support end-2-end transparency for IPv6 advanced applications

      • Important issue for high performance applications

      • High performance applications often have trouble with NATs

      • Provide a more robust infrastructure to provide security

  • Educating the Internet2 IPv6 user base

  • Support interconnectivity and transit during the initial stages of IPv6 deployment


Abilene ipv6 history l.jpg

Abilene IPv6 History

  • Substantial input from the Internet2 IPv6 working group

  • Initial Tunnel Approach

    • At the beginning stages, code was not available for backbone routers

    • Cisco donated four 7200 routers for a tunnel deployment, originally located in gigapops

    • Tunnels across the IPv4 backbone, and to IPv4 connectors

    • Gigapops used tunneled connections to this “tunnel backbone”, and connected universities also using tunnels

    • Routing – BGP and RIP-NG (later ISIS)

    • Relatively simple process – tunnel interfaces with v6 addresses


Abilene ipv6 history16 l.jpg

Abilene IPv6 History


Abilene ipv6 history17 l.jpg

Abilene IPv6 History

  • Transition to native dual stack backbone

    • Found we couldn’t do high-bandwidth applications across the tunnel backbone.

      • DVTS video application from Japan to DC stressed tunnel approach

    • Major concern was the effect of IPv6 on IPv4 performance

    • IPv6 configured on backbone routers – originally Cisco GSRs, now Juniper T-640s

    • Tunnel backbone and dual stack backbone connected together – Internal BGP and IS-IS.

    • Connectors transitioned to native dual stack mode

    • Tunnel backbone gradually replaced and reduced – now down to one router to support legacy tunnel connectors. Router is located at Indiana NOC.


Abilene ipv6 backbone l.jpg

Abilene IPv6 Backbone

  • Currently a native IPv6 Dual Stack implementation

  • Fully deployed on all Abilene Routers

  • Routing is BGP and ISIS (for both IPv4 and IPv6)

  • Peering and connectivity does not fall under the Abilene CoU

    • Is there interest in Abilene IPv6 connectivity?

  • Legacy tunnel connections still supported on single router at Indianapolis

  • Successful Tests:

    • 8 Gbps across backbone

    • IPv6 only and mixed IPv6/IPv4


Abilene ipv6 backbone19 l.jpg

Abilene IPv6 Backbone

  • Addressing Plan

    • Currently have /32, originally was a /35

    • Allocate a /40 to a gigapop or a /48 to a university

      • Some gigapops have 12 member universities and had to allocate their /40 to those universities plus state networks

    • Universities immediately felt constrained by this

      • Recall that some universities have locations in potentially 200 counties within a state (i.e. Land Grant Institutions)

  • WiscREN and Pittsburgh gigapops have obtained their own space

  • Some universities attempting to obtain space – could satisfy current ARIN guidelines


Abilene ipv6 backbone20 l.jpg

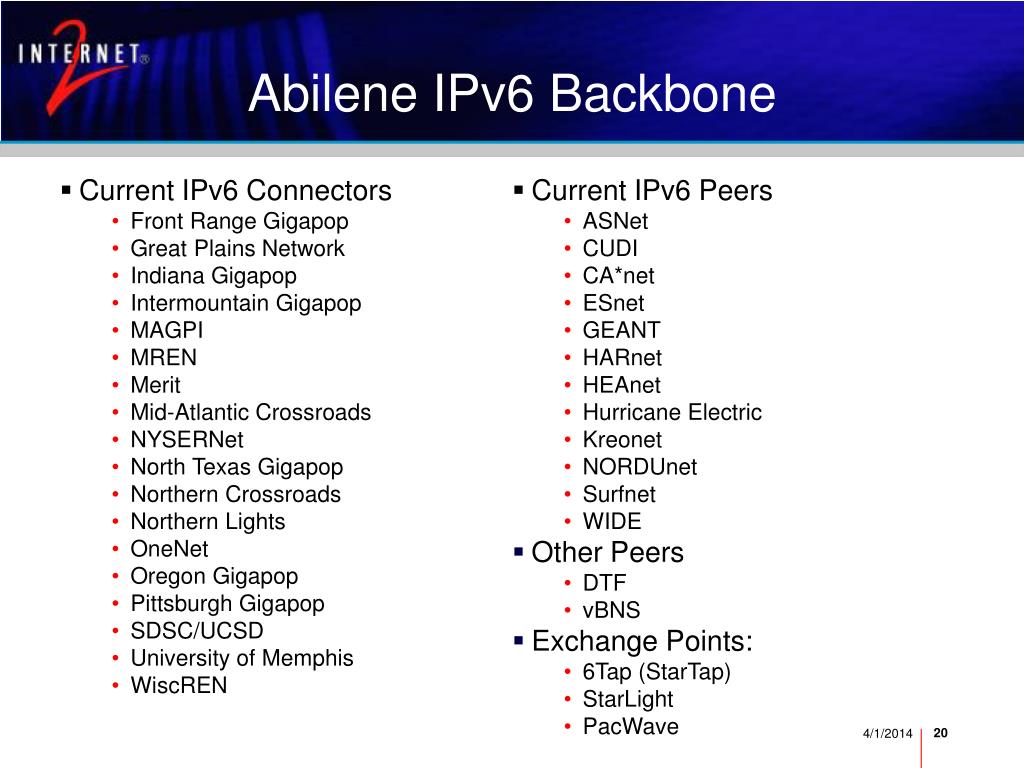

Abilene IPv6 Backbone

  • Current IPv6 Connectors

    • Front Range Gigapop

    • Great Plains Network

    • Indiana Gigapop

    • Intermountain Gigapop

    • MAGPI

    • MREN

    • Merit

    • Mid-Atlantic Crossroads

    • NYSERNet

    • North Texas Gigapop

    • Northern Crossroads

    • Northern Lights

    • OneNet

    • Oregon Gigapop

    • Pittsburgh Gigapop

    • SDSC/UCSD

    • University of Memphis

    • WiscREN

  • Current IPv6 Peers

    • ASNet

    • CUDI

    • CA*net

    • ESnet

    • GEANT

    • HARnet

    • HEAnet

    • Hurricane Electric

    • Kreonet

    • NORDUnet

    • Surfnet

    • WIDE

  • Other Peers

    • DTF

    • vBNS

  • Exchange Points:

    • 6Tap (StarTap)

    • StarLight

    • PacWave


Abilene ipv6 backbone21 l.jpg

Abilene IPv6 Backbone

  • Current Connectors/Peers

    • 18 native connections

    • 17 native peers

  • IPv6 Multicast

    • Testing at North Carolina ITEC

    • Internet2 consensus is that SSM is the appropriate direction for multicast under IPv6

    • Need layer 2 devices to do the correct thing

  • DNS

    • Production type server for reverse lookups at NOC – points to gigapop servers for details

    • Connectors/members handle there own forward lookups

    • Simple implementations right now


Abilene ipv6 backbone22 l.jpg

Abilene IPv6 Backbone

  • Will provide an IPv6 Measurement Infrastructure

    • Attempt to perform measurements using IPv4 and IPv6

    • Need for MIBs for basic measurements via SNMP

    • Types of data collected

      • One way latency tests

      • Throughput measurements

      • Netflow measurements

      • Routing

      • End-2-end performance testing


Ipv6 in gigapops campus l.jpg

IPv6 in Gigapops, Campus

  • Implementing IPv6 in gigaPoPs is similar to implementing on backbone, although there are different approaches

    • Most are native connections now

    • Some tunnels persist back to the campus or even to individual departments

  • Campus implementations vary, but are gradually progressing, and are migrating deeper into the campus environments

  • Problems include:

    • Older equipment in locations where there is reluctance to upgrade because of a production environment

    • DNS – often done on separate servers

    • Deploying other applications

      • Fear of deploying IPv6 servers in dual stack mode

      • Naming issues


Internet2 support for ipv6 l.jpg

Internet2 Support for IPv6

  • Tutorials

    • Two day workshops, hands-on experience

    • Descriptions and planning guides

      • http://ipv6.internet2.edu/workshops/index.shtml

    • Alternate discussion/lecture with hands-on work

    • Slides are available

      • http://ipv6.internet2.edu/fiu/presentations/

    • Very popular events


Internet2 support for ipv625 l.jpg

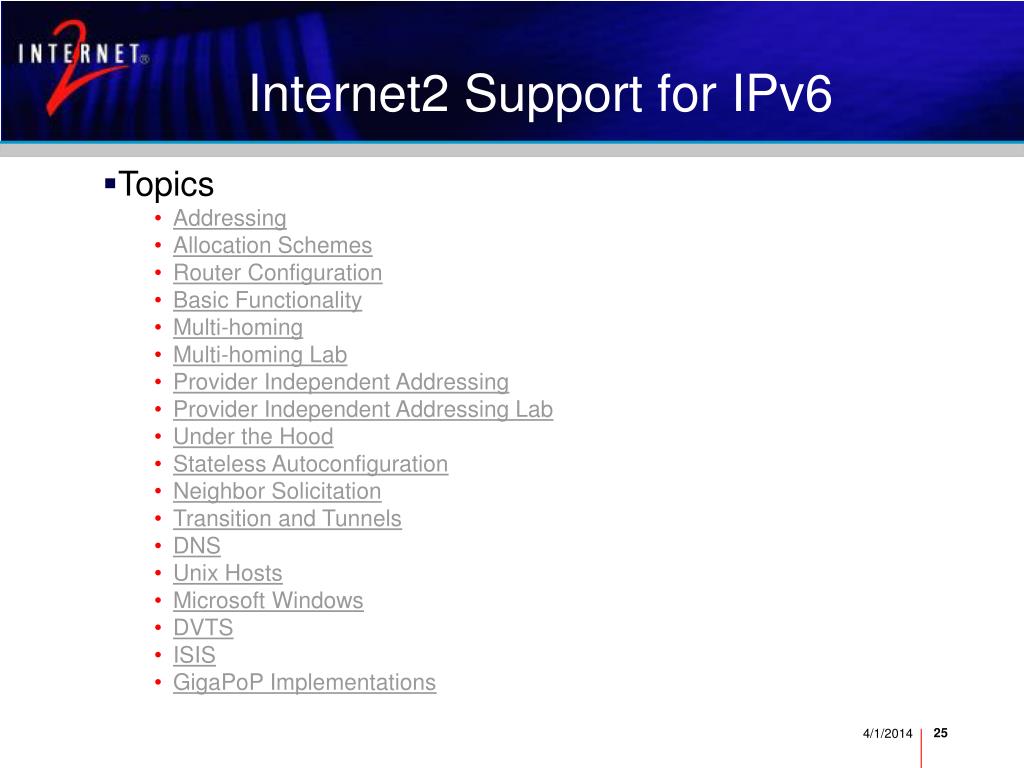

Internet2 Support for IPv6

  • Topics

    • Addressing

    • Allocation Schemes

    • Router Configuration

    • Basic Functionality

    • Multi-homing

    • Multi-homing Lab

    • Provider Independent Addressing

    • Provider Independent Addressing Lab

    • Under the Hood

    • Stateless Autoconfiguration

    • Neighbor Solicitation

    • Transition and Tunnels

    • DNS

    • Unix Hosts

    • Microsoft Windows

    • DVTS

    • ISIS

    • GigaPoP Implementations


Internet2 ipv6 deployment issues l.jpg

Internet2 IPv6 Deployment Issues

  • Addressing and routing – multi-homing

    • Abilene currently has a /32, allocates /40 prefixes to large connectors, /48 prefixes to universities

    • The classic model for IPv6 is PA addressing, to contain the size/stability of the global routing table – potentially very large if using PI addressing.

    • Recall the complicated hierarchy within our infrastructure

    • Within the next 6 months, we expect member institutions to inherit multiple prefixes, potentially from 2 or more research networks and 2 or more commodity networks

    • Policy requirements complicate the multi-homing problem


Internet2 ipv6 deployment issues the multi homing problem l.jpg

Internet2 IPv6 Deployment Issues – The Multi-homing Problem


Internet2 ipv6 deployment issues the multi homing problem28 l.jpg

Internet2 IPv6 Deployment Issues – The Multi-homing Problem

  • How should we deal with this problem? We have to make this work.

    • Should we allow others to punch holes in the Internet2 prefix?

    • Should we punch holes in the prefixes of other research networks?

    • Should we encourage all connectors to obtain their own space?

      • At some point in the hierarchy, this solution doesn’t work

  • How to deal with multiple addresses is very important to our deployment

  • Does the punching of holes in PA space make sense?

    • Would it make more sense to allocate some PI space, make it work for now, allowing time for development of a solution to the multi-homing problem? Use some scheme, possibly one geographically based, to allow for a few years of development?


Internet2 ipv6 deployment issues29 l.jpg

Internet2 IPv6 Deployment Issues

  • Routing databases – are these useful?

    • Should we deploy an IPv6 RADB database?

    • Experimental at first, production later?


Internet2 ipv6 deployment issues30 l.jpg

Internet2 IPv6 Deployment Issues

  • References

    • http://www.internet2.edu

    • http://abilene.internet2.edu

    • http://ipv6.internet2.edu

    • [email protected]

  • Questions?
