Language workbench competition 2011 the oomega language workbench l.jpg

Language WorkbenchCompetition 2011The OOMEGA languageworkbench

Christian Merenda2011/05/24

The OOMEGA language workbench - www.oomega.net


Agenda l.jpg

Agenda

  • Introducingthe OOMEGA languageworkbench

  • Exploration ofthe Language WorkbenchCompetition 2011

    • The Preamble

    • Phase 0 – Basics

    • Phase 1 – Advanced

    • Phase 2 – Non-Functional

    • Phase 3 - Freestyle

The OOMEGA language workbench - www.oomega.net


Slide3 l.jpg

Introducingthe OOMEGA languageworkbench

The OOMEGA language workbench - www.oomega.net


Oomega is based on the eclipse ide l.jpg

OOMEGA isbased on theEclipse IDE

OOMEGA isbased on theEclipse IDE

ATL supportfor model-to-model transformations

Xpandsupportfor model-to-text transformations

The OOMEGA language workbench - www.oomega.net


Correlation of the edgealgebra m2l oomega and metamodels org l.jpg

CorrelationoftheEdgeAlgebra, M2L, OOMEGA and metaMODELS.org

Platform for collaborative metamodel engineering

powered by

Open source implementation with commercial database backends

implements

Formal and high expressive metamodelling language

M2L

based on

Theoretical foundation for graph-based queries

EdgeAlgebra

The OOMEGA language workbench - www.oomega.net


Clear separation of abstract and concrete syntaxes l.jpg

Clear separation of abstract and concrete syntaxes

M E T A M O D E L - M2L –

Abstract Syntax

structureofthemodel

Concrete Syntax

Concrete Syntax

bridge the gap between this structure

and concrete textual representations

The OOMEGA language workbench - www.oomega.net


Text editors with folding linking and syntax highlighting l.jpg

Text editors with folding, linking and syntax highlighting

The OOMEGA language workbench - www.oomega.net


Incremental parsing and projection of models l.jpg

Incrementalparsingandprojectionofmodels

Model

Text

p1.Personp= {

name=„Merenda“

firstname= „Christian“

}

Changestothemodelareprojectedtothetext.

Incremental update ofthemodelifthetextischanged.

OOMEGA has implemented its own scannerless parser; we do not rely on ANTLR or some other parser generator.

The OOMEGA language workbench - www.oomega.net


Various techniques for defining constraints l.jpg

Varioustechniquesfordefiningconstraints

  • Primary local keysmust be unique within the set of all sister nodes in the composition tree.

  • Context sensitive domainsfurther constrain the domain of a property with respective Edge Algebra statements – beyond the traditional type safety.

  • Weak entity and attribute conceptsmust be referenced by exactly one composite object.

  • Multiplicitiesdefine lower and upper limits for the number of referenced objects in the context of a property.

  • Abstract conceptscan’t be instantiated – i.e. corresponding objects must not exist in the database.

  • Additional constraintsmust hold for every instance of the respective concept. Again – the Edge Algebra is used to define those constraints.

The OOMEGA language workbench - www.oomega.net


Agenda10 l.jpg

Agenda

  • Introducingthe OOMEGA languageworkbench

  • Exploration ofthe Language WorkbenchCompetition 2011

    • The Preamble

    • Phase 0 – Basics

    • Phase 1 – Advanced

    • Phase 2 – Non-Functional

    • Phase 3 - Freestyle

The OOMEGA language workbench - www.oomega.net


Slide11 l.jpg

The Preamble

The OOMEGA language workbench - www.oomega.net


We ve designed five interelated dsls to showcase language modularity and composition l.jpg

We‘vedesignedfiveinterelated DSLs toshowcaselanguagemodularityandcomposition

Domain

Instance

EntityRelationship

Expression

Primitive

The OOMEGA language workbench - www.oomega.net


No 3gl code 350 lines of code l.jpg

No 3GL code / ~350 linesofcode

  • The final solution does not contain a single line of 3GL code for designing the language, implementing constraints or setting up text editors

  • You need to code ~350 lines of code with OOMEGA’s meta-modelling language M2L in order to realize the whole functionality of the LWC2011 case

  • You do only specify abstract and concrete syntaxes of your DSLs. That‘s it.

The OOMEGA language workbench - www.oomega.net


Slide14 l.jpg

Phase 0 - Basics

The OOMEGA language workbench - www.oomega.net


Task 0 1 simple structural dsl without any fancy expression language or such l.jpg

Task 0.1 - Simple (structural) DSL without any fancy expression language or such

  • Challenge:Build a simple data definition language to define entities with properties. Properties have a name and a type. It should be possible to use primitive types for properties, as well as other Entities.

entity Person {

string name

string firstname

date bithdate

Car ownedCar

}

entity Car {

string make

string model

}

The OOMEGA language workbench - www.oomega.net


The language module primitive l.jpg

The languagemodule „Primitive“

The OOMEGA language workbench - www.oomega.net


The language module primitive17 l.jpg

The languagemodule „Primitive“

  • [Primitive!!] refinesAttributeObject ::> ;

  • P_String!! refinesPrimitive::=&javaMapping[0..1](Singleton) : C:String := {{ String}},&xmlMapping[0..1](Singleton) : C:String := {{ String }} ;

  • P_Date!! refinesPrimitive ::=&javaMapping[0..1](Singleton) : C:String := {{ "java.util.Date" }},&xmlMapping[0..1](Singleton) : C:String := {{ Date }} ;

The OOMEGA language workbench - www.oomega.net


The language module primitive18 l.jpg

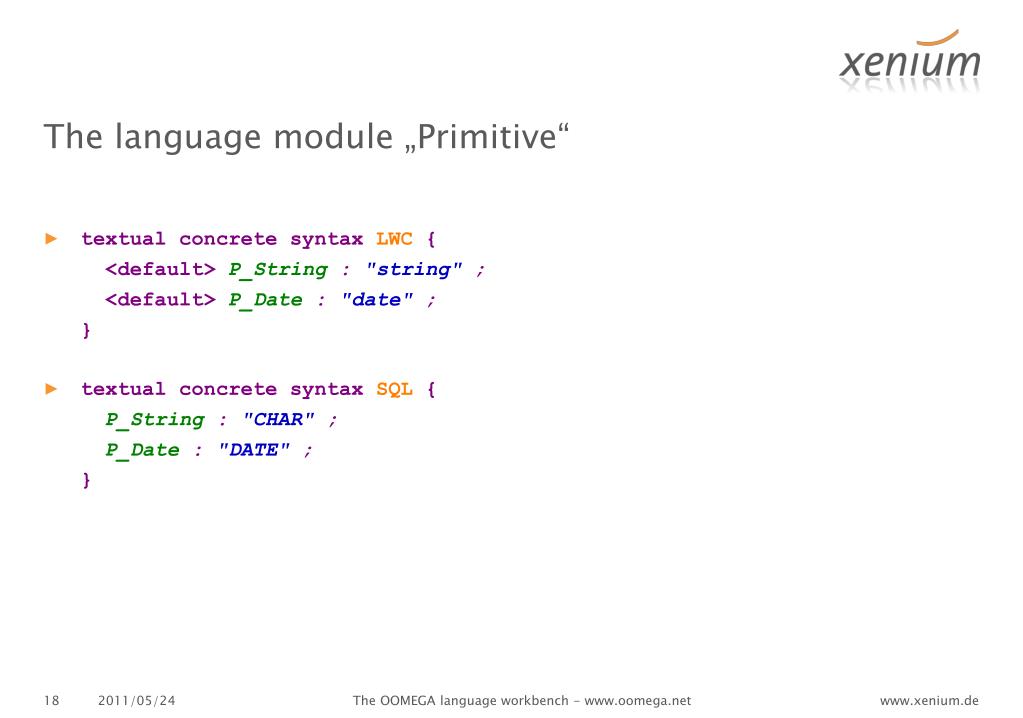

The languagemodule „Primitive“

  • textualconcretesyntaxLWC { <default> P_String: "string";<default> P_Date : "date" ;}

  • textualconcretesyntaxSQL {P_String: "CHAR" ;P_Date : "DATE" ;}

The OOMEGA language workbench - www.oomega.net


The language module domain l.jpg

The languagemodule „Domain“

  • DomainModel! refinesFolderEntry::=packages[0..*](Set) <-> belongsTo : C:Package,&entities[0..*](Set) : C:Entity := (P:packages.P:entities) ;

  • Entity! refinesNamed::>&belongsTo[0..1](Singleton) <-> entities : C:Package,&usedBy[0..*](Set) <-> type : C:Association,properties[0..*](Set) <-> belongsTo : C:Prop,&attributes[0..*](Set) : C:Attribute := (P:propertiesprojectOn C:org.metamodels.lwc2011.domain.Attribute),&associations[0..*](Set) : C:Association := (P:propertiesprojectOn C:org.metamodels.lwc2011.domain.Association),&context[0..1](Singleton) : C:EntityObject := self ;

The OOMEGA language workbench - www.oomega.net


The language module domain20 l.jpg

The languagemodule „Domain“

  • [Prop!] refinesNamed::>&belongsTo[0..1](Singleton) <-> properties : C:Entity;

  • Attribute! refinesProp::>type[1..1](Singleton) : C:Primitive;

  • Association! refinesProp::>&type[1..1](Singleton) <-> usedBy : C:EntityprojectOn ((P:belongsTo.P:belongsTo.P:entities) union (P:belongsTo.P:belongsTo.P:importedPackages.P:entities)),&includedContext[0..*](Set) : C:EntityObject := (P:belongsTo.P:belongsTo.P:importedPackages) ;

The OOMEGA language workbench - www.oomega.net


The language module domain21 l.jpg

The languagemodule „Domain“

  • textualconcretesyntaxDIRECTORY{ <helper> DomainModel: "domain" _ "model" _ <Named> ;}

  • textualconcretesyntaxLWC{ <default> DomainModel: "domain" _ "model" _ <Named> _ "{" (nl | P:packages) nl"}";<default> Entity : "entity" _ <Named> _ "{" (nl | P:properties) nl"}" ;<default> Attribute: (!P:type) _ <Named> ;<default> Association: "ref" _ (&P:type) _ <Named> ;}

The OOMEGA language workbench - www.oomega.net


Task 0 2 code generation to gpl such as java c c or xml l.jpg

Task 0.2 - Code generation to GPL such as Java, C#, C++ or XML

  • Challenge:Generate Java Beans (or some equivalent data structure in C#, Scala, etc.) with setters, getters and fields for the properties.

  • Solution: Code canbegeneratedwithOOMEGA‘sgeneratororEclipseXpand. WedemonstratedtheusageofXpand. Basicallythiscanbedone in three simple steps:

    • Code a Xpandtemplate

    • Create a workflow

    • Execute theworkflowwithin an Antscript

Due to time restrictions the code generation task is not explained here. Please have a look at our online documentation of the LWC2011 case.

The OOMEGA language workbench - www.oomega.net


Task 0 3 simple constraint checks such as name uniqueness l.jpg

Task 0.3 - Simple constraint checks such as name-uniqueness

  • Challenge:For example, check the name uniqueness of the properties in the entities.

  • Solution: The name uniqueness of the properties in the entities is already built in.

    • [Prop!] refinesNamed ::>&belongsTo[0..1](Singleton) <-> properties : C:Entity;

    • [Named] refinesEntityObject::>(PK)name[1..1](Singleton) : C:String,(K)alternativeName[0..*](Set) : C:String

  • Primary local keys must be unique within the set of all sister nodes in the composition tree. This means in our example: an Entity mustn’t contain multiple properties with identical names.

The OOMEGA language workbench - www.oomega.net


Slide24 l.jpg

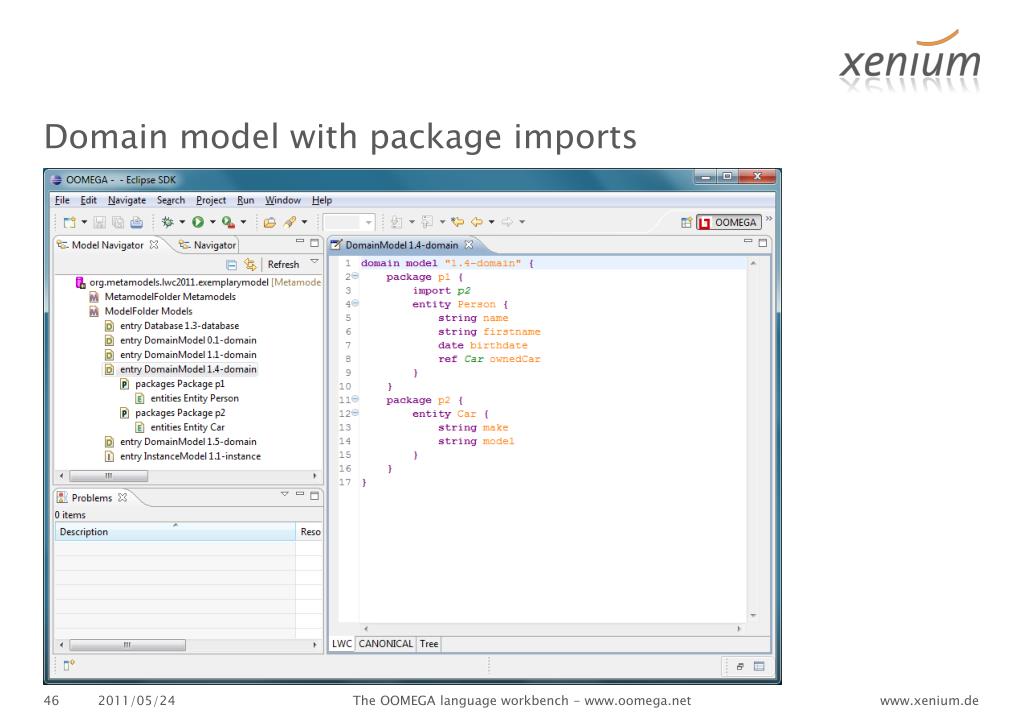

Task 0.4 - Show how to break down a (large) model into several parts, while still cross-referencing between the parts

  • Challenge:For example, put the Car and Person entities into different files, while still having the Person -> Car reference work.

ViewAspect

PersistenceAspect

A large model shouldn’t be stored in a single text file.

If you’ve got a large model you want to be able to view only parts of it.

Models are – by default – partitioned into little pieces: you can always decide which object to view or edit. The persistence aspect is solved by appropriate storage back-ends, e.g. an object-oriented database.

The OOMEGA language workbench - www.oomega.net


Slide25 l.jpg

Phase 1 - Advanced

The OOMEGA language workbench - www.oomega.net


Task 1 1 show the integration of several languages l.jpg

Task 1.1 - Show the integration of several languages

  • Challenge:Define a second language to define instances of the entities, including assignment of values to the properties. This should ideally really be a second language that integrates with the first one, not just "more syntax" in the same grammar. We want to showcase language modularity and composition here.

Person p = {

name = "Voelter"

firstname = "Markus"

birthdate = 14.02.1927

ownedCar = c

}

Car c = {

make = "VW"

model = "Touran"

}

The OOMEGA language workbench - www.oomega.net


The language module instance l.jpg

The languagemodule „Instance“

  • InstanceModel! refinesFolderEntry::=&basedOn[0..1](Singleton) : C:DomainModel,instances[0..*](Set) <-> belongsTo : C:Instance;

  • Instance! refinesNamed::>&belongsTo[0..1](Singleton) <-> instances : C:InstanceModel,&entity[0..1](Singleton) : C:EntityprojectOn (P:belongsTo.P:basedOn.P:entities),propertyValues[0..*](Set) <-> belongsTo : C:PropertyValue,&includedContext[0..*](Set) : C:EntityObject := (P:belongsTo.P:basedOn) ;

The OOMEGA language workbench - www.oomega.net


The language module instance28 l.jpg

The languagemodule „Instance“

  • PropertyValue! refinesEntityObject::>&belongsTo[0..1](Singleton) <-> propertyValues : C:Instance,(PK)&property[0..1](Singleton) : C:PropprojectOn (P:belongsTo.P:entity.P:properties),val[1..1](Singleton) : C:Value,&includedContext[0..1](Singleton) : C:EntityObject := (P:belongsTo.P:entity)

  • [Value!!] refinesAttributeObject ::> ;

  • V_Boolean!! refinesValue::>booleanValue[1..1](Singleton) : C:Boolean;

  • V_Ref!! refinesValue::>&refValue[0..1](Singleton) : C:Instance ;

The OOMEGA language workbench - www.oomega.net


The language module instance29 l.jpg

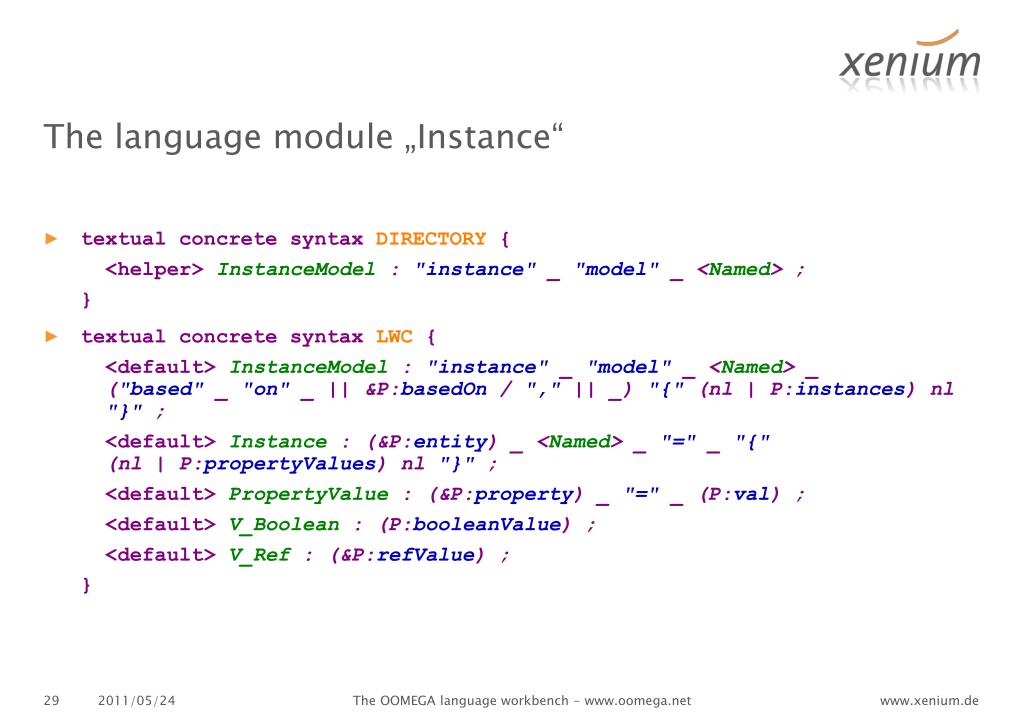

The languagemodule „Instance“

  • textualconcretesyntaxDIRECTORY{ <helper> InstanceModel: "instance" _ "model" _ <Named> ;}

  • textualconcretesyntaxLWC{ <default> InstanceModel: "instance" _ "model" _ <Named> _ ("based" _ "on" _ || &P:basedOn / "," || _) "{" (nl | P:instances) nl"}" ;<default> Instance : (&P:entity) _ <Named> _ "=" _ "{" (nl | P:propertyValues) nl"}";<default> PropertyValue : (&P:property) _ "=" _ (P:val) ;<default> V_Boolean : (P:booleanValue) ;<default> V_Ref : (&P:refValue) ;}

The OOMEGA language workbench - www.oomega.net


Instance model l.jpg

Instance model

The OOMEGA language workbench - www.oomega.net


Task 1 2 demonstrate how to implement runtime type systems l.jpg

Task 1.2 - Demonstrate how to implement runtime type systems

  • Challenge:The initialization values in the instance-DSL must be of the same type as the types of the properties.

The implementation of the runtime type system can be achieved with only one additional constraint for the concept PropertyValue in the language module “Instance”.

The OOMEGA language workbench - www.oomega.net


Additional constraint typesafety l.jpg

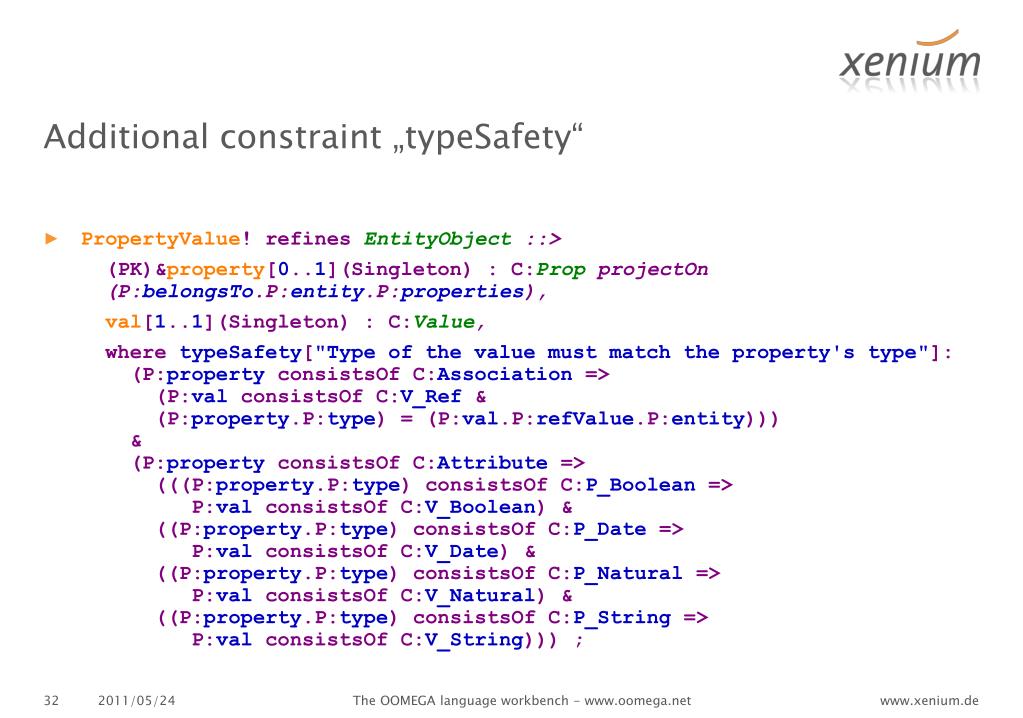

Additional constraint „typeSafety“

  • PropertyValue! refinesEntityObject ::>(PK)&property[0..1](Singleton) : C:PropprojectOn (P:belongsTo.P:entity.P:properties),val[1..1](Singleton) : C:Value,where typeSafety["Type of the value must match the property's type"]:(P:propertyconsistsOfC:Association=> (P:valconsistsOfC:V_Ref &(P:property.P:type) = (P:val.P:refValue.P:entity)))& (P:propertyconsistsOfC:Attribute=> (((P:property.P:type) consistsOfC:P_Boolean=> P:valconsistsOfC:V_Boolean) & ((P:property.P:type) consistsOfC:P_Date=> P:valconsistsOfC:V_Date) & ((P:property.P:type) consistsOfC:P_Natural=> P:valconsistsOfC:V_Natural) & ((P:property.P:type) consistsOfC:P_String=> P:valconsistsOfC:V_String))) ;

The OOMEGA language workbench - www.oomega.net


Task 1 3 show how to do a model to model transformation l.jpg

Task 1.3 - Show how to do a model-to-model transformation

  • Challenge:Define an ER-meta model (Database, Table, Column) and transform the entity model into an instance of this ER meta model.

  • Solution:Model-to-model transformationscanbedonewith ATLAS Transformation Language (ATL). Basicallythiscanbedone in two simple steps:

    • Code an ATL template

    • Execute the ATL transformation within an Ant script

Due to time restrictions the model-to-model transformation with ATL is not explained here. Please have a look at our online documentation.

The OOMEGA language workbench - www.oomega.net


The language module entityrelationship l.jpg

The languagemodule „EntityRelationship“

  • Database! refinesFolderEntry::=tables[0..*](Set) <-> belongsTo : C:Table;

  • Table! refinesNamed::>&belongsTo[0..1](Singleton) <-> tables : C:Database,columns[1..*](Set) <-> belongsTo : C:Column,foreignKeys[0..*](Set) <-> belongsTo : C:ForeignKey;

  • Column! refinesNamed::>&belongsTo[0..1](Singleton) <-> columns : C:Table,type[1..1](Singleton) : C:Primitive,length[0..1](Singleton) : C:Natural,primaryKey[1..1](Singleton) : C:Boolean

The OOMEGA language workbench - www.oomega.net


The language module entityrelationship35 l.jpg

The languagemodule „EntityRelationship“

  • ForeignKey! refinesEntityObject::>&belongsTo[0..1](Singleton) <-> foreignKeys : C:Table,&fkColumn[1..1](Singleton) : C:ColumnprojectOn (P:belongsTo.P:columns),&referencedTable[1..1](Singleton) : C:TableprojectOn (P:belongsTo.P:belongsTo.P:tables),&referencedColumn[1..1](Singleton) : C:ColumnprojectOn (P:referencedTable.P:columns) ;

The OOMEGA language workbench - www.oomega.net


The language module entityrelationship36 l.jpg

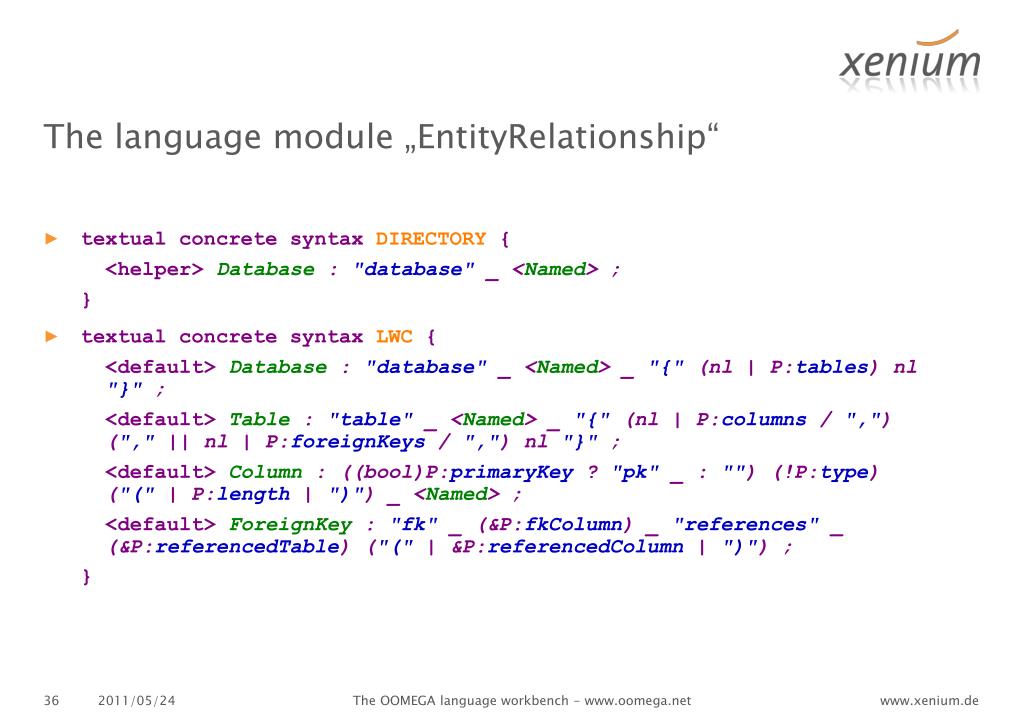

The languagemodule „EntityRelationship“

  • textualconcretesyntaxDIRECTORY{ <helper> Database: "database" _ <Named> ;}

  • textualconcretesyntaxLWC{<default> Database : "database" _ <Named> _ "{" (nl | P:tables) nl"}" ;<default> Table : "table" _ <Named> _ "{" (nl | P:columns / ",") ("," || nl | P:foreignKeys / ",") nl"}" ; <default> Column: ((bool)P:primaryKey ? "pk" _ : "") (!P:type) ("("| P:length | ")") _ <Named> ;<default> ForeignKey: "fk" _ (&P:fkColumn) _ "references" _ (&P:referencedTable) ("(" | &P:referencedColumn | ")") ;}

The OOMEGA language workbench - www.oomega.net


The language module entityrelationship37 l.jpg

The languagemodule „EntityRelationship“

  • textualconcretesyntaxSQL{ <readonly> Database : "CREATE" _ "DATABASE" _ <Named> (nl | P:tables) ;<readonly> Table: "CREATE" _ "TABLE" _ <Named> nl"(" (nl | P:columns / ",") ("," || nl | P:foreignKeys / ",") nl")";<readonly> Column: <Named> _ (P:type) ("(" | P:length | ")") ((bool)P:primaryKey ? _ "PRIMARY" _ "KEY" : "") ;<readonly> ForeignKey: "FOREIGN" _ "KEY" ("(" | &P:fkColumn | ")") _ "REFERENCES" _ (&P:referencedTable) ("("| P:referencedColumn.P:name | ")") ;}

The OOMEGA language workbench - www.oomega.net


E r model lwc syntax tab l.jpg

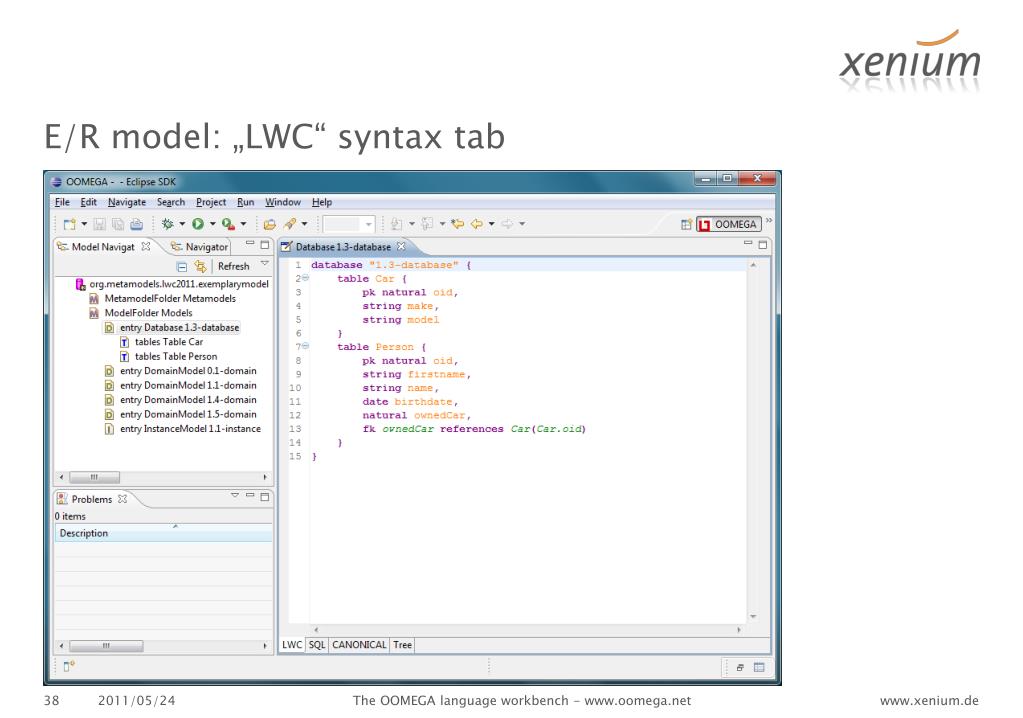

E/R model: „LWC“ syntaxtab

The OOMEGA language workbench - www.oomega.net


E r model sql syntax tab l.jpg

E/R model: „SQL“ syntaxtab

The OOMEGA language workbench - www.oomega.net


Task 1 4 some kind of visibility namespaces scoping for references l.jpg

Task 1.4 - Some kind of visibility/namespaces/scoping for references

  • Challenge:Integrate namespaces/packages into the entity DSL

package p1 {

import p2

entity Person {

string name

string firstname

date birthdate

Car ownedCar

}

}

package p2 {

entity Car {

string make

string model

}

}

The OOMEGA language workbench - www.oomega.net


Task 1 4 some kind of visibility namespaces scoping for references41 l.jpg

Task 1.4 - Some kind of visibility/namespaces/scoping for references

  • …and make sure in the instance DSL you can only assign values to the properties of the respective entity, i.e. make sure that writingis illegal.

Car c = {

birthdate = …

}

The OOMEGA language workbench - www.oomega.net


Namespaces introducing the concept package l.jpg

Namespaces – Introducingtheconcept „Package“

  • DomainModel! refinesFolderEntry::=packages[0..*](Set) <-> belongsTo : C:Package, ...

  • Package! refinesNamed::>&belongsTo[0..1](Singleton) <-> packages : C:DomainModel,entities[0..*](Set) <-> belongsTo : C:Entity,&importedPackages[0..*](Set) : C:Package,&path[0..1](Singleton) : C:String := Java: "return getName().replace('.', '/');" ;

  • textualconcretesyntaxLWC{ <default> Package: "package" _ <Named> _ "{" (nl"import" _ || &P:importedPackages / "," _) (nl | P:entities)nl"}" ;}

The OOMEGA language workbench - www.oomega.net


Visibility and scoping l.jpg

VisibilityandScoping

  • VisibilityAn entity can reference another entity only if the other entity is either part of the same package or part of an imported package.

  • ScopingA package import leads to a scope expansion: if an entity of an imported package is referenced, then the package prefix can be omitted in the reference.

The implementation of the features visibility and scoping takes only two lines of code.

The OOMEGA language workbench - www.oomega.net


Visibility and scoping44 l.jpg

VisibilityandScoping

  • Association! refinesProp::>&type[1..1](Singleton) <-> usedBy : C:EntityprojectOn ((P:belongsTo.P:belongsTo.P:entities) union (P:belongsTo.P:belongsTo.P:importedPackages.P:entities)),&includedContext[0..*](Set) : C:EntityObject := (P:belongsTo.P:belongsTo.P:importedPackages) ;

  • The context sensitive domain of the “type” property realizes the visibilityfeature: an association cannot reference entities of foreign packages that have not been imported.

  • The inferred property “includedContext” implements the scoping feature: all imported packages are included into the scope of an association.

Visibility

Scoping

The OOMEGA language workbench - www.oomega.net


Constrain property value assignments within instances according to the type of the instance l.jpg

Constrain property/value assignments within instances according to the type of the instance

  • This can be realized with a context sensitive domain. Let’s show the relevant part of the concept PropertyValue:

  • PropertyValue! refinesEntityObject::>(PK)&property[0..1](Singleton) : C:PropprojectOn (P:belongsTo.P:entity.P:properties), ...

  • The Edge Algebra statement ensures that the referenced property within a property/value assignment is a property that is defined within the type of the instance.

The OOMEGA language workbench - www.oomega.net


Domain model with package imports l.jpg

Domain modelwithpackageimports

The OOMEGA language workbench - www.oomega.net


Task 1 5 integrating manually written code again in java c or c l.jpg

Task 1.5 - Integrating manually written code (again in Java, C# or C++)

  • Challenge:Integrate derived attributes to entities.Note that if you want, you can also define or reuse an expression language that allows defining the algorithm for calculating the age directly in the model. Ideally, you will show both (manually written 3GL code as well as an expression language).

entity Person {

string name

string firstname

date birthdate

Car ownedCar

derived int age // somehow somewhere implement the code

// to calculate age

}

The OOMEGA language workbench - www.oomega.net


Introducing a simple expression language l.jpg

Introducing a simple expressionlanguage

  • We have decided to implement a simple expression language that allows defining the algorithm for calculating the age directly in the model.

  • entityPerson{datebirthdatederived natural age = YearOf((Today - P(birthdate)))}

The OOMEGA language workbench - www.oomega.net


The language module expression l.jpg

The languagemodule„Expression“

The OOMEGA language workbench - www.oomega.net


The language module expression50 l.jpg

The languagemodule „Expression“

  • Today!! refinesDateExp ::> ;

  • DateSubtraction!! refinesDateExp::>leftOperand[1..1](Singleton) : C:DateExp,rightOperand[1..1](Singleton) : C:DateExp;

  • YearOf!! refinesNaturalExp::>dateExp[1..1](Singleton) : C:DateExp;

  • textualconcretesyntaxLWC{ <default> DateSubtraction: "(" (P:leftOperand) _ "-" _ (P:rightOperand) ")";<default> Today: "Today";<default> YearOf: "YearOf""(" (P:dateExp) ")";}

The OOMEGA language workbench - www.oomega.net


Enhancement of the language module domain l.jpg

Enhancementofthelanguagemodule „Domain“

  • DateProperty!! refinesDateExp::>&attr[1..1](Singleton) : C:AttributeprojectOn (P:context.P:attributes)where typeSafety["The referenced attribute must be of type Date"]:(P:attr.P:type) consistsOfC:P_Date ;

  • Derived! refinesProp::>type[1..1](Singleton) : C:Primitive,expression[1..1](Singleton) : C:Expression,&context[0..1](Singleton) : C:EntityObject := (P:parent.P:context)where typeSafety["Return type must match the expression's type"]:(P:typeconsistsOfC:P_Boolean=> P:expressionconsistsOfC:BooleanExp) & (P:typeconsistsOfC:P_Date=> P:expressionconsistsOfC:DateExp) & (P:typeconsistsOfC:P_Natural=> P:expressionconsistsOfC:NaturalExp) &(P:typeconsistsOfC:P_String=> P:expressionconsistsOfC:StringExp) ;

The OOMEGA language workbench - www.oomega.net


Enhancement of the language module domain52 l.jpg

Enhancementofthelanguagemodule „Domain“

  • textualconcretesyntaxLWC{ <default> DateProperty: "P""(" (&P:attr) ")";<default> Derived: "derived" _ (P:type) _ <Named> _ "=" _ (P:expression) ;}

The OOMEGA language workbench - www.oomega.net


Domain model with derived property l.jpg

Domain modelwithderivedproperty

The OOMEGA language workbench - www.oomega.net


Task 1 6 multiple generators l.jpg

Task 1.6 - Multiple generators

  • Challenge:Generate some kind of XML structure from the entity model.

  • Solution: We enhanced the Xpand based code generator from task 0.2. This can be done in two simple steps:

    • Code another Xpand template

    • Enhance the workflow

Due to time restrictions the code generation task is not explained here. Please have a look at our online documentation of the LWC2011 case.

The OOMEGA language workbench - www.oomega.net


Slide55 l.jpg

Phase 2 – Non-functional

The OOMEGA language workbench - www.oomega.net


Task 2 1 how to evolve the dsl without breaking existing models l.jpg

Task 2.1 - How to evolve the DSL without breaking existing models

  • Howtoevolveconcretesyntaxesof a DSL withoutbreakingexistingmodels?

  • How to evolve the abstract syntax of a DSL without breaking existing models?

M E T A M O D E L - M2L –

Abstract Syntax

Concrete Syntax

Concrete Syntax

The OOMEGA language workbench - www.oomega.net


Task 2 1 how to evolve the dsl without breaking existing models57 l.jpg

Task 2.1 - How to evolve the DSL without breaking existing models

Howtoevolveconcretesyntaxes?

Howtoevolvetheabstractsyntax?

  • In fact you can alter concrete syntaxes of a DSL at runtime – even if your model repository already contains instances of your DSL.

  • As soon as you change the concrete syntax of your metamodel, the respective models will be immediately updated by the model repository.

  • Textual representation of a model is just a projection of an object graph to text and thus – by changing the concrete syntax – the projection rules are changed and interpreted accordingly.

  • Migration of a model can be implemented with ATL – it’s just a model-to-model transformation.

  • Moreover you can use our Java API to programmatically access the contents of a model repository and store those contents into another repository with some other structure.

The OOMEGA language workbench - www.oomega.net


Task 2 2 how to work with the models efficiently in the team l.jpg

Task 2.2 - How to work with the models efficiently in the team

ATL

Modelling UI

withinEclipse

Xpand

CLIENT

API

OOMEGANetwork Layer

Multi-user synchronisation

incl. notifications

MIDDLEWARE

API

API

OOMEGAMemoryDB

Third-party

Databases

db4objects

Hibernate

VersantObject Database

SDF – Structured Data Format

XML – Extensible Markup Language

Text – accordingtoyourconcretesyntax

BACKEND

The OOMEGA language workbench - www.oomega.net


Task 2 2 how to work with the models efficiently in the team59 l.jpg

Task 2.2 - How to work with the models efficiently in the team

MemoryDBand Apache Subversion

Third-party databasebindings

  • SDF – Structured Data FormatSDF is the appropriate format, if your model is shared between several team members but not concurrently modified.

  • XML – Extensible Markup LanguageXML is the best choice, if your model is shared between several team members and only concurrently modified in rare cases.

  • Text – according to your default concrete syntax specificationIf your models will be often concurrently modified by several team members, then you should opt for storing and sharing your models according to your default concrete syntax specification.

  • Concurrent EditingUsers can edit model elements concurrently – even if they change exactly the same objects; there are no read/write locks acquired at the server when reading or changing some contents.

  • Transaction IsolationLocal changes to the model won’t be visible to other users as long as those changes are not committed to the database (transaction isolation).

  • NotificationsAs soon as local changes are committed to the database (the modeller hits the Save button in the Eclipse workbench), concurrent transactions of other users will be instantly notified by those changes.

You will notice the changes of other team members online – text passages might be changed by others, graphical boxes may arise or might be moved, etc.

The OOMEGA language workbench - www.oomega.net


Task 2 3 demonstrate scalability of the tools l.jpg

Task 2.3 - Demonstrate Scalability of the tools

  • Large-scale modelsthe language workbench must be able to handle large-scale models with possibly millions of objects in the model repository.

  • High degree of concurrent modellingthe language workbench must allow a high degree of concurrent modelling with possibly hundreds or thousands of transactions editing the contents of the model repository concurrently.

OOMEGA’s solution for aforementioned challenges: we provide bindings to high-performance third-party databases.

Versant Object Database is best-suited for that purpose.

The OOMEGA language workbench - www.oomega.net


Slide61 l.jpg

Phase 3 - Freestyle

The OOMEGA language workbench - www.oomega.net


Cool features l.jpg

Cool Features

  • Eclipse-based solution & Support for ATL and XpandOOMEGA is based on the Eclipse IDE; it supports ATL and Xpand for model-to-model and model-to-text transformations.

  • ScannerlessparserOOMEGA has implemented its own scannerless parser; we do not rely on ANTLR or some other parser generator.

  • Text editors with syntax highlighting, linking and incremental parsingAll you need to do is to specify abstract and concrete syntaxes of your domain-specific languages; OOMEGA will instantly provide a comfortable text editor with syntax highlighting, linking and incremental parsing. No programming effort required!

  • Object-orienteddatabaseback-endYou can edit your models with an Eclipse-based text editor. Anyway, the storage back-end is always a database: when you type some text in the editor, objects are instantly created in the context of a database transaction. As soon as you press the Eclipse “Save” button, your database transaction is committed.

The OOMEGA language workbench - www.oomega.net


Cool features63 l.jpg

Cool Features

  • Various implementations of object-oriented storage back-endsThere are various implementations of OOMEGA’s persistency API available. You might choose to store and share your models with a relational or object-oriented database. But you can also use file-based storage back-ends on the basis of our binary codec SDF, our XML support or your textual concrete syntax definition. Irrespective of your concrete choice, the editors interact with the models on the basis of our object-oriented database API.

  • Clear separation of abstract and concrete syntaxesWe strictly distinguish between abstract and concrete syntax definitions. The abstract syntax defines the structure of the model whereas the concrete syntax only bridges the gap between this structure and a concrete textual representation of the model. Therefore it’s easy to define several concrete syntaxes for one and the same abstract syntax.

  • Graphicalor form-basededitorsIt’s possible to combine text editors with graphical or form-based editors. You can embed those special editors in additional syntax tabs. The observer pattern of OOMEGA’s API will ensure that changes made in the text editor will instantly update your graphical or form-based editors, and vice versa.

The OOMEGA language workbench - www.oomega.net


Cool features64 l.jpg

Cool Features

  • M2L and the Edge AlgebraOur metamodelling language M2L and its foundation – the Edge Algebra – allow very accurate abstract syntax specifications. It’s a very powerful and compact language. Please remember: we were able to implement the whole functionality of the LWC2011 case in less than 350 lines of code and didn’t require a single line of additional 3GL code for designing the language, implementing constraints or setting up text editors.

  • VarioustechniquesfordefiningconstraintsM2L and the Edge Algebra provide various techniques for constraining your models: primary local keys, context sensitive domains, weak entity and attribute concepts, multiplicities, abstract concepts, and additional constraints. All these constraints are guaranteed by the storage back-end, thus it’s impossible to commit an invalid state of a model. Due to the advanced metamodelling concepts you can very accurately specify the range of valid models – far beyond traditional data modelling techniques.

  • Multi-user support via online interactionor CVS/SVN repositoryOOMEGA supports multi-user environments via online interaction on top of database back-ends. We have invented and implemented a highly interactive multi-user synchronisation mechanism that is similar but not identical to the well-known optimistic locking scheme: you will instantly receive committed updates from other users in your language workbench. Moreover you might choose to share your models with a standard CVS or SVN repository.

The OOMEGA language workbench - www.oomega.net


Thank you l.jpg

Thankyou!

The OOMEGA language workbench - www.oomega.net


  • Login
