Lecture 3. CS157B. RELATIONAL ALGEBRA and Tuple Calculus. Prof. Sin-Min LEE Department of Computer Science. Codd’s Relational Algebra. A set of mathematical operators that compose, modify, and combine tuples within different relations

tadita
Download Presentation

RELATIONAL ALGEBRA and Tuple Calculus

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Lecture 3 CS157B RELATIONAL ALGEBRA and Tuple Calculus Prof. Sin-Min LEE Department of Computer Science

  2. Codd’s Relational Algebra • A set of mathematical operators that compose, modify, and combine tuples within different relations • Relational algebra operations operate on relations and produce relations (“closure”) f: Relation  Relation f: Relation x Relation  Relation

  3. A Set of Logical Operations: The Relational Algebra • Six basic operations: • Projection  (R) • Selection  (R) • Union R1UR2 • Difference R1 – R2 • Product R1X R2 • (Rename) ->b (R) • And some other useful ones: • Join R1 ⋈ R2 • Semijoin R1 ⊲ R2 • Intersection R1Å R2 • Division R1¥ R2

  4. Data Instance for Operator Examples STUDENT COURSE Takes PROFESSOR Teaches

  5. Rename, ab • The rename operator can be expressed several ways: • The book has a very odd definition that’s not algebraic • An alternate definition: ab(x) Takes the relation with schema  Returns a relation with the attribute list  • Rename isn’t all that useful, except if you join a relation with itself Why would it be useful here?

  6. Deriving Intersection Intersection: as with set operations, derivable from difference A Å B ≡(A [ B) – (A – B) – (B – A) ≡ A – (A – B) A-B B-A A B

  7. Division • A somewhat messy operation that can be expressed in terms of the operations we have already defined • Used to express queries such as “The fid's of faculty who have taught all subjects” • Paraphrased: “The fid’s of professors for which there does not exist a subject that they haven’t taught”

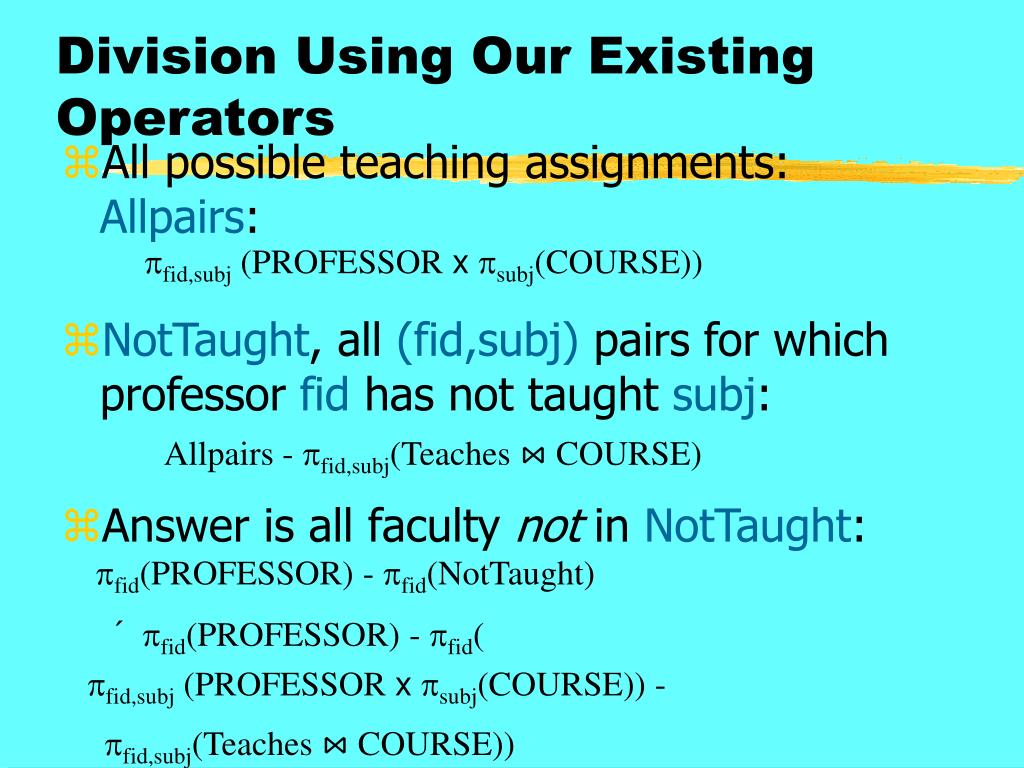

  8. Division Using Our Existing Operators • All possible teaching assignments: Allpairs: • NotTaught, all (fid,subj) pairs for which professor fidhas not taught subj: • Answer is all faculty not in NotTaught: fid,subj (PROFESSOR xsubj(COURSE)) Allpairs - fid,subj(Teaches ⋈ COURSE) fid(PROFESSOR) - fid(NotTaught) ´ fid(PROFESSOR) - fid( fid,subj (PROFESSOR xsubj(COURSE)) - fid,subj(Teaches ⋈ COURSE))

  9. Division: R1¸ R2 • Requirement: schema(R1) ÷schema(R2) • Result schema: schema(R1) – schema(R2) • “Professors who have taught all courses”: • What about “Courses that have been taught by all faculty”? fid (fid,subj(Teaches ⋈ COURSE) ¸subj(COURSE))

  10. DIVISION - The division operator is used for queries which involve the ‘all’ qualifier such as “Find the names of sailors who have reserved all boats”. - The division operator is a bit tricky to explain, and perhaps best approached through examples as will be done here. • Cartesian Product (R1 ×R2) combines two relations by concatenating their tuples together, evaluating all possible combinations. If the name of a column is identical for two relations, this ambiguity is resolved by attaching the name of each relation to a column. e.g., Emp × Dept • (SS#, name, age, salary, Emp.dno, Dept.dno, dname, floor, mgrSS#) • If t(Emp) and t(Dept) is the cardinality of the Employee and Dept relations respectively, then the cardinality of Emp × Dept is: t(Emp) × t(Dept)

  11. EXAMPLES OF DIVISION

  12. DIVISION Interpretation of the division operation A/B: - Divide the attributes of A into 2 sets: A1 and A2. - Divide the attributes of B into 2 sets: B2 and B3. - Where the sets A2 and B2 have the same attributes. - For each set of values in B2: - Search in A2 for the sets of rows (having the same A1 values) whose A2 values (taken together) form a set which is the same as the set of B2’s. - For all the set of rows in A which satisfy the above search, pick out their A1 values and put them in the answer.

  13. DIVISION Example: Find the names of sailors who have reserved all boats: (1) A = sid,bid(Reserves). A1 = sid(Reserves) A2 = bid(Reserves) (2) B2 = bid(Boats) B3 is the rest of B. Thus, B2 ={101, 102, 103, 104} (3) Find the rows of A such that their A.sid is the same and their combined A.bid is the set B2. Thus we find A1 = {22} (4) Get the set of A2 corresponding to A1: A2 = {Dustin}

  14. FORMAL DEFINITION OF DIVISION The formal definition of division is as follows: A/B = x(A) - x((x(A)  B) – A)

  15. CARTESIAN PRODUCT (Cont…) • Example: Emp table: Dept table: SS# Name age salary dno dno dname floor mgrSS#

  16. CARTESIAN PRODUCT (Cont…) SS# Name age salary Emp.dno Dept.dno dname floor mgrSS# • Cartesian product of Emp and Dept: Emp × Dept:

  17. CARTESIAN PRODUCT • Example: retrieve the name of employees that work in the toy department:

  18. CARTESIAN PRODUCT • Example: retrieve the name of employees that work in the toy department: • ∏name(бEmp.dno=Dept.dno(Emp × бdname=‘toy’(Dept)))

  19. CARTESIAN PRODUCT (Cont…) • ∏name(бdname=‘toy’(бEmp.dno=Dept.dno(Emp × Dept))) SS# Name age salary Emp.dno Dept.dno dname floor mgrSS#

  20. CARTESIAN PRODUCT (Cont…) • ∏name(бdname=‘toy’(б Emp.dno=Dept.dno(Emp × Dept))) SS# Name age salary Emp.dno Dept.dno dname floor mgrSS#

  21. CARTESIAN PRODUCT (Cont…) • ∏name(бdname=‘toy’(б Emp.dno=Dept.dno(Emp × Dept))) SS# Name age salary Emp.dno Dept.dno dname floor mgrSS#

  22. CARTESIAN PRODUCT (Cont…) • ∏name(бdname=‘toy’(б Emp.dno=Dept.dno(Emp × Dept))) Name

  23. EQUALITY JOIN, NATURAL JOIN, JOIN, SEMI-JOIN • Equality join connects tuples from two relations that match on certain attributes. The specified joining columns are kept in the resulting relation. • ∏name(бdname=‘toy’(Emp Dept))) • Natural join connects tuples from two relations that match on the specified common attributes • ∏name(бdname=‘toy’(Emp Dept))) • How is an equality join between Emp and Dept using dno different than a natural join between Emp and Dept using dno? • Equality join: SS#, name, age, salary, Emp.dno, Dept.dno, … • Natural join: SS#, name, age, salary, dno, dname, … • Join is similar to equality join using different comparison operators • A S op = {=, ≠, ≤, ≥, <, >} att op att (dno) (dno)

  24. EXAMPLE JOIN • Equality Join, (Emp Dept))) Dept EMP (dno)

  25. EXAMPLE JOIN • Natural Join, (Emp Dept))) Dept EMP (dno)

  26. EXAMPLE JOIN • Join, (Emp ρx(Emp)))) Dept EMP Salary > 5 * salary

  27. EQUALITY JOIN, NATURAL JOIN, JOIN, SEMI-JOIN (Cont…) • Example: retrieve the name of employees who earn more than Joe: • ∏name(Emp (sal>x.sal)бname=‘Joe’(ρ x(Emp))) • Semi-Join selects the columns of one relation that joins with another. It is equivalent to a join followed by a projection: • Emp (dno)Dept ≡∏SS#, name, age, salary, dno(Emp Dept)

  28. JOIN OPERATORS Condition Joins: - Defined as a cross-product followed by a selection: R ⋈cS = σc(R  S) (⋈ is called the bow-tie) where c is the condition. - Example: Given the sample relational instances S1 and R1 The condition join S ⋈S1.sid<R1.sid R1 yields

  29. JOIN OPERATORS Condition Joins: - Defined as a cross-product followed by a selection: R ⋈cS = σc(R  S) (⋈ is called the bow-tie) where c is the condition. - Example: Given the sample relational instances S1 and R1 The condition join S ⋈S1.sid<R1.sid R1 yields

  30. Equijoin: Special case of the condition join where the join condition consists solely of equalities between two fields in R and S connected by the logical AND operator (∧). Example: Given the two sample relational instances S1 and R1 The operator S1 R.sid=Ssid R1 yields

  31. Natural Join - Special case of equijoin where equalities are implicitly specified on all fields having the same name in R and S. - The condition c is now left out, so that the “bow tie” operator by itself signifies a natural join. - N. B. If the two relations have no attributes in common, the natural join is simply the cross-product.

  32. Selection: TR[R] • Suppose we have (e’), where e’ is another RA expression that translates as: TR[e’]= {<x1,x2, …, xn>| p} • Then the translation of c(e’) is {<x1,x2, …, xn>| p’}where ’ is obtained from  by replacing each attribute with the corresponding variable • Example: TR[#1=#2 #4>2.5R] (if R has arity 4) is {<x1,x2, x3, x4>| < x1,x2, x3, x4>  R  x1=x2  x4>2.5}
