  1. Earth Science and M.E.A.P The benchmarks and you!

  2. EG. Geosphere Benchmark 1 Explain the surface features of the Great Lakes region using Ice Age theory. Michigan Geography

  3. Key concepts: Glacial processes climate change snow changing to ice pressure moving (advance, retreat) melting deposits features—hills, lakes, Great Lakes

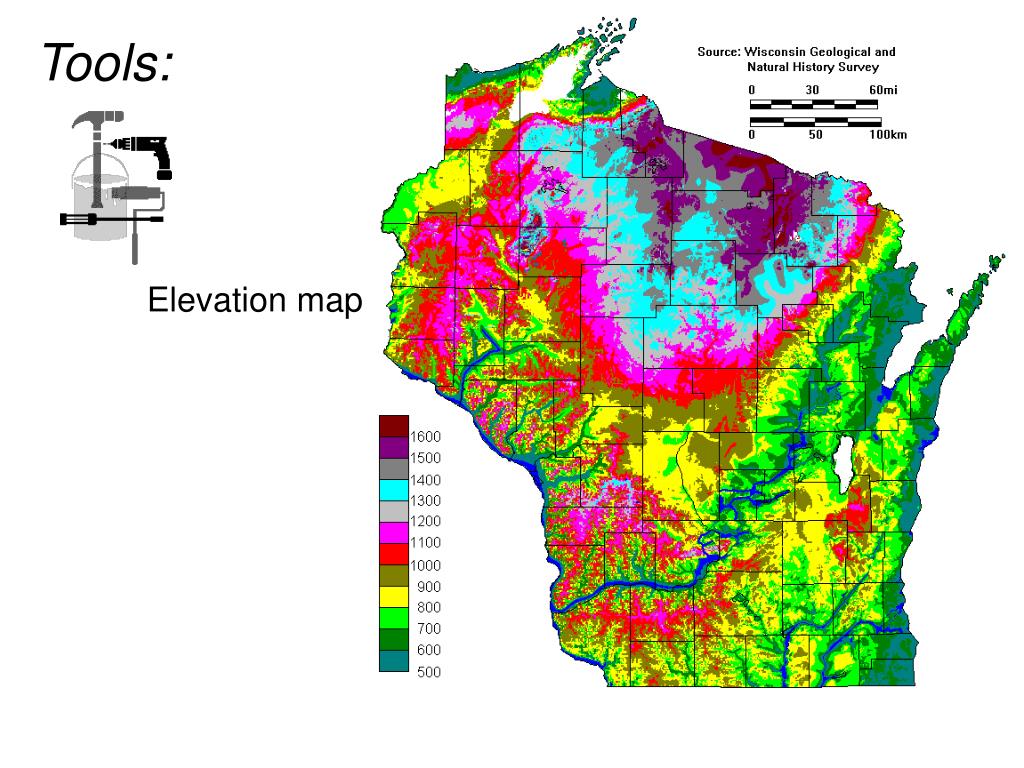

  4. Tools: Elevation map

  5. Tools: Relief map

  6. Topographic map Tools:

  7. Real-world contexts: Examples in Michigan of… glacial formations.. such as moraines, kettles, drumlins

  8. What is a glacier? a thick mass of moving ice http://www.jadecoast.ca/Sawyer%20glacier.JPG

  9. How do glaciers form? Step 1: Snow accumulates. More snow falls during the winter than melts in the summer. Over the years, a thick accumulation of snow develops.

  10. Step 2: Snow changes to firn. As snow accumulates, its weight compress the individual snowflakes to form firn. FIRN http://www.gsw.edu/~bcarter/physgeol/glac/firn.jpg

  11. Firn http://crevassezone.org/Photos/Graphics/3441L-(Firn).jpg

  12. Step 3: Firn is compressed to form solid glacial ice. http://patti.tensegrity.net/album/alaska/thompson/ice4.jpg

  13. http://www.asf.alaska.edu:2222/img/firn_diagram.gifhttp://207.239.98.44/IcelandI%20232.jpghttp://www.asf.alaska.edu:2222/img/firn_diagram.gifhttp://207.239.98.44/IcelandI%20232.jpg

  14. Step 4: The ice begins to move. Once the ice becomes 50m thick, the pressure on the bottom of the glacier is so great that it becomes plastic-like and flows like silly putty out from its thickest point. http://www-math.science.unitn.it/Bike/Countries/Europe/Tour_Reports/Tour_of_the_Alps/Gallery/glacier.jpg

  15. How do glaciers erode the surface? • Plucking – as a glacier flows over the ground, it loosens and lifts blocks of rock into the bottom of the glacier. • As the glacier moves, these rocks scrape deep grooves, called striations, into the rock below.

  16. Glaciers pick up lots of sediment as they advance over the land. http://www.geographyjim.org/Newzealandglacier.jpg

  17. Melting Glaciers • As glaciers move over the land (advance), they carry sediment with them. As they melt (retreat), the sediment that they were carrying is dropped into unsorted piles called moraines.

  18. How do glaciers leave their mark on the earth’s surface as they retreat? • Melting glaciers deposit moraine (piles of unsorted sediment that they were carrying) all along the front edge of the glacier http://www.helsinki.fi/~jhyvonen/PB/M/Cerro%20Tronador%20moraine-pp.JPG

  19. Why do scientists believe that glaciers once covered Michigan?

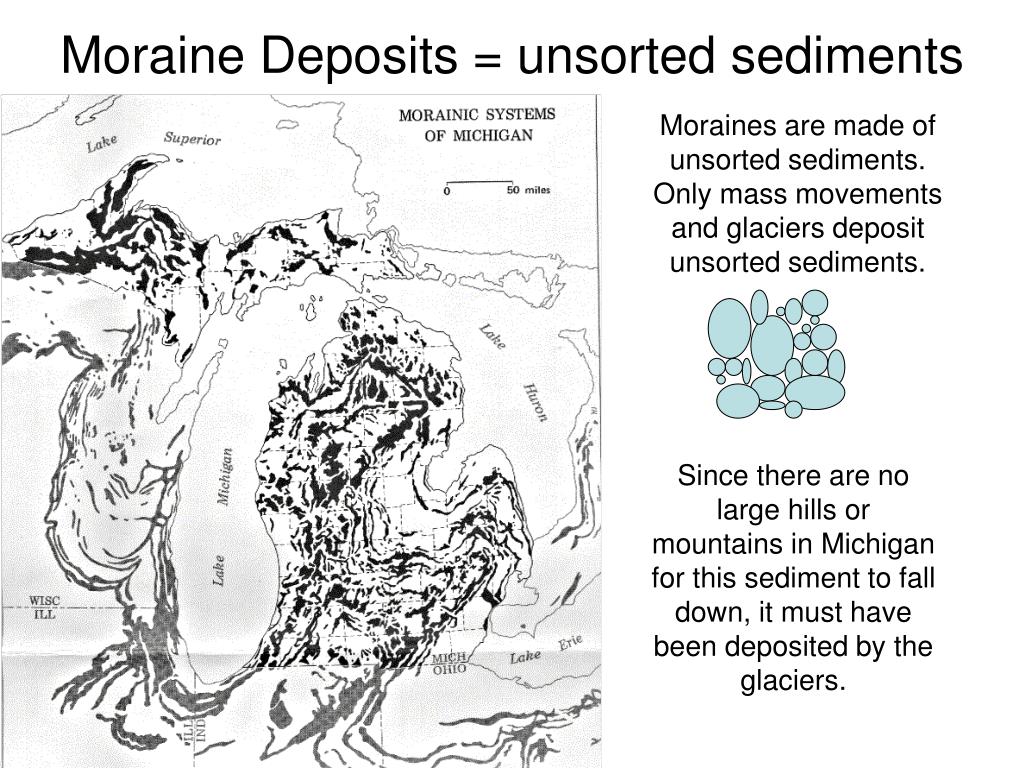

  20. Moraine Deposits = unsorted sediments Moraines are made of unsorted sediments. Only mass movements and glaciers deposit unsorted sediments. Since there are no large hills or mountains in Michigan for this sediment to fall down, it must have been deposited by the glaciers.

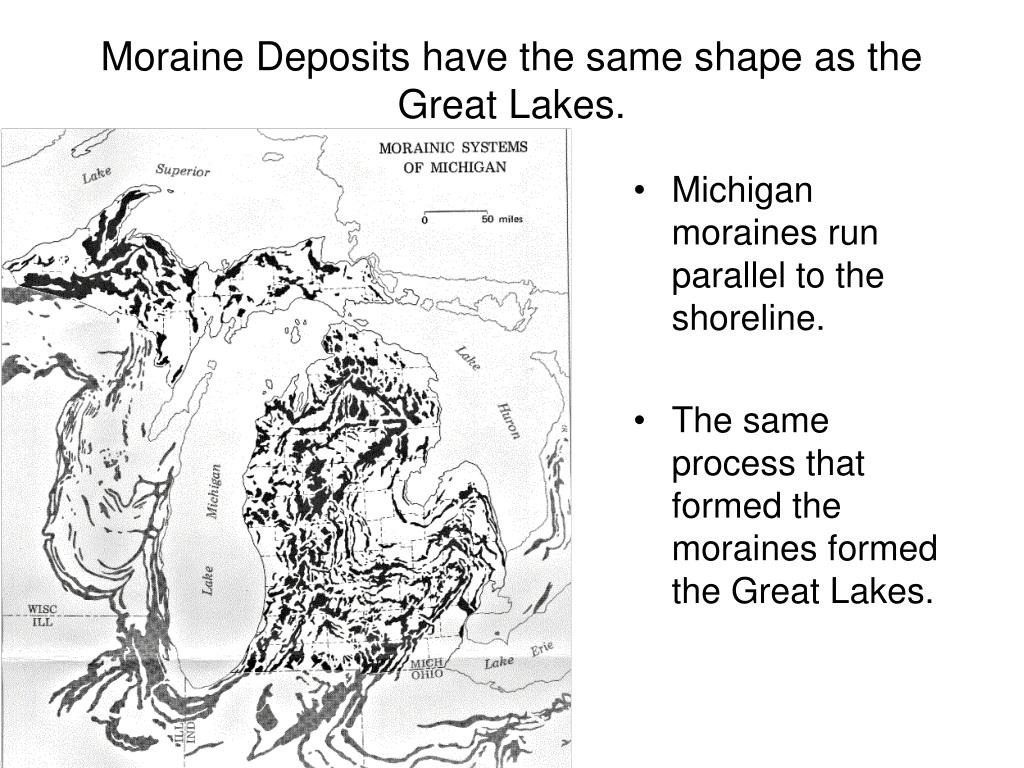

  21. Moraine Deposits have the same shape as the Great Lakes. • Michigan moraines run parallel to the shoreline. • The same process that formed the moraines formed the Great Lakes.

  22. Each of the Great Lakes began as a river. Image from Earth Science, Tarbuck and Lutgens, 2003

  23. When the climate cooled… Ice advanced over the land, moving southward from Canada over the Great Lakes Region.

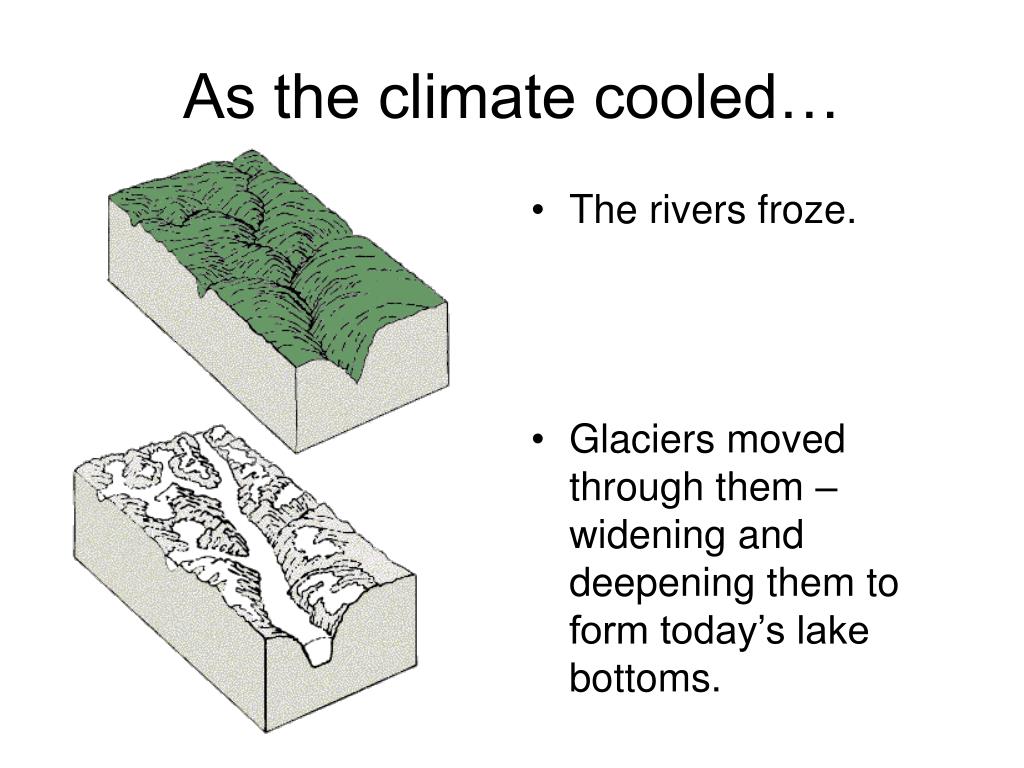

  24. As the climate cooled… • The rivers froze. • Glaciers moved through them – widening and deepening them to form today’s lake bottoms.

  25. The sediment removed from the river valleys was deposited in the moraines covering our state. This is why the moraines run parallel to the shorelines of the Great Lakes.

  26. When the climate began to warm, the glaciers began to melt and retreat. http://www.msstate.edu/dept/geosciences/CT/TIG/WEBSITES/LOCAL/Spring2002/Michael_Marsicek/images/Great_Lakes_Formation.gif

  27. The fresh water from the melting glaciers filled in the deep U-shaped valleys that they had carved and turned them into the lakes we have today. http://www.ofps.ucar.edu/gapp/networks/images/greatlakes_map.jpg

  28. What other evidence do we have that glaciers once covered our state? • Depositional features such as drumlins and kettle lakes. Kalkaska, Michigan

  29. Kettle Lakes • Kettle lakes form when blocks of ice break off the front edge of a glacier, become buried by sediment. The ice melts leaving a hole which fills with water creating a lake.

  30. Kettle Lakes

  31. Drumlins • Hills of sediment deposited by the glacier

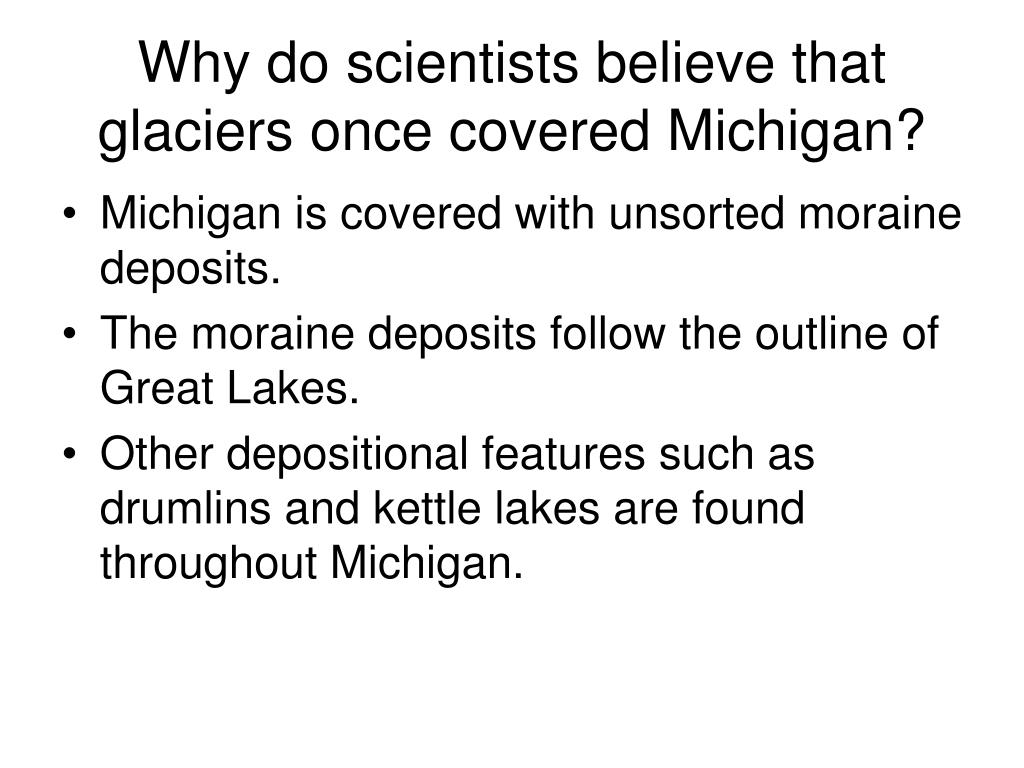

  32. Why do scientists believe that glaciers once covered Michigan? • Michigan is covered with unsorted moraine deposits. • The moraine deposits follow the outline of Great Lakes. • Other depositional features such as drumlins and kettle lakes are found throughout Michigan.

  33. Resources • http://cse.cosm.sc.edu/erth_sci/Erosion/plucking.jpg • http://www.skidmore.edu/academics/geo/courses/ge101/Pictures/Glaciers/GlacialStriations.jpg • http://www.go2moon.com/image/Valdez-Glacier.jpg • http://www.glaciers.pdx.edu/kennicott/photos99/glacier.jpg • http://www.brownbearsw.com/photos/pws/moraine.jpg • http://www.homepage.montana.edu/~geol445/hyperglac/depproc1/moraine.JPG • http://www.ucalgary.ca/~dgsmit/MORAINE.jpg • http://mac01.eps.pitt.edu/harbbook/c_viii/images/icefields/Hwb0530.GIF • http://www.geographyhigh.connectfree.co.uk/s3glacgeoghigh34b.gif • http://www.uwsp.edu/geo/faculty/lemke/images/lithosphere/drumlin_diagram_small.gif • http://online.sd43.bc.ca/della/images/drumlin.jpg • http://www.geology.wisc.edu/~qlab/g420/drumlin.jpg • http://www.bbc.co.uk/scotland/education/bitesize/standard/img/geography/glaciation/g98.gif • http://pbisotopes.ess.sunysb.edu/esp/Science_Walks/carmans/kettle-hole.gif

  34. http://perth.uwlax.edu/faculty/stoelting/Intro/Guides/Images3/southern_Kettle_Moraine_lakes_WI_800.jpghttp://perth.uwlax.edu/faculty/stoelting/Intro/Guides/Images3/southern_Kettle_Moraine_lakes_WI_800.jpg • http://images3.vrbo.com/vrbo/images/18982c.jpg • http://www.on.ec.gc.ca/greatlakeskids/images/g_lakes_form.gif • http://wrgis.wr.usgs.gov/docs/parks/glacier/UvalleyB.gif • http://wrgis.wr.usgs.gov/docs/parks/glacier/UvalleyC.gif • http://www.jchl.co.uk/photos/greenland/Valley.jpg • http://www.emporia.edu/earthsci/student/martel1/ice.jpg
