1 / 3

Horizontal Laboratory Autoclave/Net weight 2600 Kg

<br>A horizontal laboratory autoclave/Net weight 2600 Kg is a sterilization device used in laboratories, <br>medical facilities, and research institutions to effectively eliminate microorganisms from equipment, <br>glassware, surgical instruments, and other materials that require sterilization. Unlike vertical autoclaves,<br>which have a chamber oriented vertically, horizontal autoclaves have a chamber oriented horizontally.

sylvia22
Download Presentation

Horizontal Laboratory Autoclave/Net weight 2600 Kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

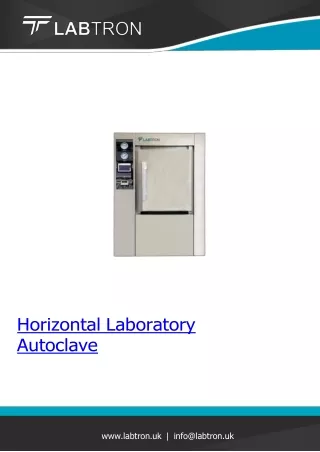

  1. Horizontal Laboratory Autoclave www.labtron.uk | info@labtron.uk

  2. Overview Horizontal Laboratory autoclave is a 2000 L capacited pulse vacuum single door autoclave. With a maximum working temperature of 134 °C it effectively sterilizes media, liquids and waste to be discarded. High quality insulation and air sealed structure makes it efficient for large scale sterilization. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure making a reliable and user friendly device. Specifications : Capacity 2000 L Sterilization Temperature 139 °C Sterilization Pressure 0.25MPa Steam Pressure and the Consumption 0.4 - 0.6 MPa / 65 kg Water Source Pressure and the Consumption 0.2 to 0.3 MPa / 400 kgs Compressed Air Pressure 0.6 - 0.8 MPa Inner Chamber Dimension ( L × W × H ) 1700 × 1000 × 1200 mm Outer Dimension ( L × W × H ) 2000 × 1850 × 2000 mm Net Weight 2600 kg Features : -Digital LCD display to monitor working status and parameters -Working pressure : 0.22 MPa -Working temperature : 134 ℃ -Door lock feature : Door cannot be opened till the pressure inside the

  3. chamber doesn’t fall to 0.027 MPa -Self-inflating leak proof chamber -Safe door lock system ensuring safety / protection during sterilization -Automatic power cut off with alarm with low water levels indication -Controlled power with built in steam generator Applications : Horizontal autoclave is widely used in pharmaceuticals, medical & clinical research laboratories, and life science industry to sterile material to be used and also to sterile the waste before discarding Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
