Horizontal Laboratory Autoclave/Net Weight 260 kg

A horizontal laboratory autoclave /Net Weight 260 kg is an indispensable apparatus utilized across <br>scientific, medical, and research domains, serving as a cornerstone for sterilization processes. <br>Distinguished by its unique chamber orientation, wherein the chamber lies horizontally within the unit, <br>this autoclave offers an array of advantages in terms of accessibility, efficiency, and functionality.

sylvia22
Download Presentation

Horizontal Laboratory Autoclave/Net Weight 260 kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

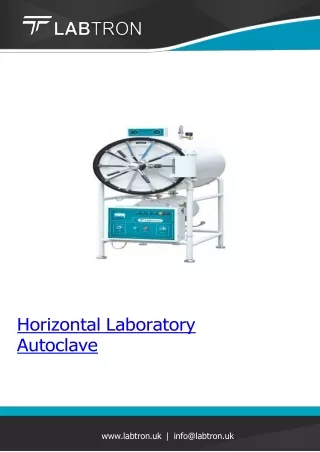

  1. Horizontal Laboratory Autoclave www.labtron.uk | info@labtron.uk

  2. Overview Horizontal Laboratory Autoclave is a microprocessor controlled automatic autoclave.It has a capacity of 200 L and a maximum working temperature of 134 °C. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure making a reliable and user friendly device. Specifications : Capacity 200 L Sterilization Temperature 134 °C Sterilization Pressure 0.22 MPa Timer Range 0 - 60 minutes Heat Average ≤ ± 1 ℃ Chamber Dimensions ( Φ × D ) 515 × 1000 mm Product Dimension ( L × W × H ) 1400 × 670 × 1650 mm Net Weight 260 kg Gross Weight 350kg Power Supply 9 kW / AC 220V 50 Hz Features : -Microprocessor control with fully automatic cycles -Digital LCD display to monitor working status and parameters -Working pressure : 0.22 MPa -Working temperature : 134 ℃ -Automated drying function

  3. -Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa -Safe door lock system ensuring safety / protection during sterilization -Automatic power cut off with alarm with low water levels indication Applications : Horizontal autoclave with cylindrical shape is suitable for medical, laboratory, microbiological, clinical use and to sterile the waste before discarding. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
