Horizontal Laboratory Autoclave

The Horizontal Laboratory Autoclave is a crucial apparatus in scientific and medical environments, designed to sterilize various materials and equipment effectively,<br>with a sterilizing temperature of 134 u00b0With 0.22 MPa of pressure, these come fitted with safety valve, steam release valve, pressure gauge and drying function.<br>

sylvia22
Download Presentation

Horizontal Laboratory Autoclave

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

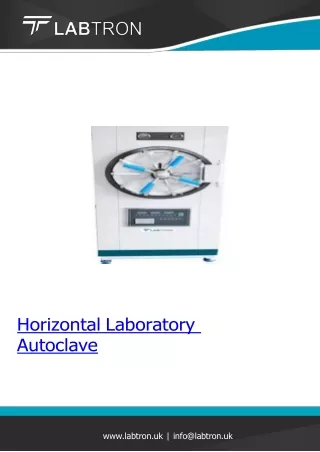

  1. Horizontal Laboratory Autoclave www.labtron.uk | info@labtron.uk

  2. Overview Horizontal Laboratory autoclave is a 200 L capacited easy to use front loading microprocessor controlled autoclave, with a sterilizing temperature of 134 °With 0.22 MPa of pressure, these come fitted with safety valve, steam release valve, pressure gauge and drying function. Automatic power and water cut off with an alarming indicator when there is lack of water makes this autoclave safe and reliable to use. Specifications : Capacity 200 L Sterilization Temperature 134 °C Sterilization Pressure 0.22 Mpa Timer Range 0 - 99 minutes Heat Average ≤ ± 2 ℃ Chamber Dimensions ( Φ × D ) 515 × 1000 mm Product Dimension ( L × W × H ) 1400×750×1650mm Net Weight 350 kg Gross Weight 436 kg Power Supply 9 kW / 380 V 50 Hz Features : -Digital LCD display to monitor working status and parameters -Working pressure : 0.22 MPa -Working temperature : 134 ℃ -Automated drying function

  3. -Door lock feature : Door cannot be opened till the pressure inside the chamber doesn’t fall to 0.027 MPa -Self-inflating leak proof chamber -Safe door lock system ensuring safety / protection during sterilization -Automatic power cut off with alarm with low water levels indication Applications: This microbiological, clinical use and to sterile the waste before discarding. horizontal autoclave is suitable for medical, laboratory, Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
