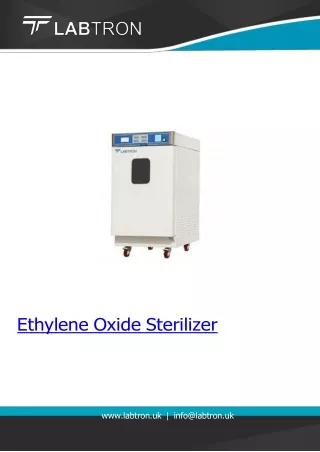

  1. Ethylene Oxide Sterilizer www.labtron.uk | info@labtron.uk

  2. Overview Ethylene Oxide Sterilizer is a vertical, constant temperature heating box type sterilizer cabinet with manual door opening offers 80 L of capacity, 50 ℃ sterilization temperature, -60 kPa work pressure. Sterilization room material is made of 304 anti-corrosion type stainless steel, and outer box material is of carbon steel (thickness1.8 mm) baked plastic powder with electric heating method having automatic ventilation with 30 mins interval once. Built-in temperature; humidity; pressure sensor with automatic control system ensures stability, efficiency and quality. Digital LCD screen shows temperature, humidity, pressure, sterilization time, residual treatment time, the number of times. Built-in printer prints the whole process of sterilization information for recording and verification check. Explosion-proof electric heating device with over- voltage and over-temperature protection, residual air automatic processing system, reliable operations. Specifications : Vertical; constant temperature heating box type Type Door opening Manual Capacity 80 L Sterilization temperature 50℃ ± 3℃ Work pressure -60 kPa Maximum pressure -140 kPa Humidity (sterilization) 45% to 75% Sterilizing gas Ethylene oxide; 1g/L Sterilization time 0 to 99 hrs; adjustable

  3. Vacuum speed -60 kPa in 15 mins Ventilation Automatic Ventilation cycle 3 times; 30 mins interval once Control system Automatic; one-button Display Digital LCD display Printer Yes Humidity sensor Yes; cavity humidity: >45% RH Pressure sensor Yes Yes; cavity temperature: 50℃ ± 3℃ (within precise range) Temperature sensor Vacuum system Oil free vacuum pump Electric; explosion-proof electric heating device Heating system Alarm system High/low temperature over-voltage, over-temperature protection, residual air automatic processing system Protection features Sterilization room material 304 anti-corrosion type stainless steel Carbon steel (thickness 1.8mm) baked plastic powder Outer box material Wear parts Seal Caster Yes Power 1.5 kW Chamber dimensions (W×D×H) 320×600×450 mm Dimensions (W×D×H) 620×780×1100 mm Weight 176 kg

  4. Features : -Vertical, constant temperature heating box type ethylene oxide sterilizer cabinet with manual door opening -304 stainless steel and carbon steel baked plastic powder for sterilization room and outer box respectively with electric heating method -Automatic ventilation, 3×cycle ventilation with 30 minutes interval once -Digital LCD display with automatic control system and printer -Built in sensor: humidity; pressure; temperature for precise and effective control -Oil-free vacuum pump; explosion-proof electric heating device for convenience -High and low temperature alarm system -Incorporated with casters for easy movements -Sealed wear parts -Simple and convenient operation with long service life Applications : Ethylene Oxide Sterilizer used to sterilize catheters, resuscitation bags, anesthesia masks, most fiber-optic instruments, glassware, solution medium, assembled complex devices, Custom procedure packs, equipment with integrated electronics, multi-lumen tubing products, stents, wound care dressings etc. across the field of pharmaceutical industries, metal & glass industries, hospitals, laboratories and research institutes etc. This autoclave most suits for prosthetic implants (joint, hip and knee replacements) sterilization.

  5. Labtron Equipment Ltd.Quatro House,Lyon Way,Camberley,SurreyGU16 7ER, United Kingdom Email: info@labtron.uk | Website: www.labtron.uk Phone: +44 2080 043 608
