Acknowledgements

ICDD’S NEW PDF-4 DATABASES: SEARCH INDEXES, FULL PATTERN ANALYSIS AND DATA MININGJohn Faber International Centre for Diffraction Data Newtown Square, PA, 19073


Acknowledgements

Acknowledgements

  • Bruker-AXS

    • Thanks very much

  • At ICDD –

    • Justin Blanton

    • Fangling Needham


Outline

Outline

  • PDF-4/Organics 2003 – new Relational Database (RDB)

  • ICDD Experimental organic powder patterns and organic calculated patterns from the Cambridge Crystallographic Data Centre’s CSD

  • New features available in PDF-4

    • Digitized patterns

    • 2D Structures


Pdf 2 card display

PDF-2 “Card” Display

Only stick pattern


Database subfile statistics full file

Database Subfile StatisticsFull-File


Types of databases

TYPES OF DATABASES

arrows

On-going collaborations


Cambridge structural database csd

CAMBRIDGE STRUCTURAL DATABASE (CSD)

  • CSD Version: V5.23, 2003 Release

  • Cambridge Crystallographic Data Centre

    • ~ 272,000 entries

  • Most entries are derived from single crystal x-ray structural work

  • Some powder-derived entries

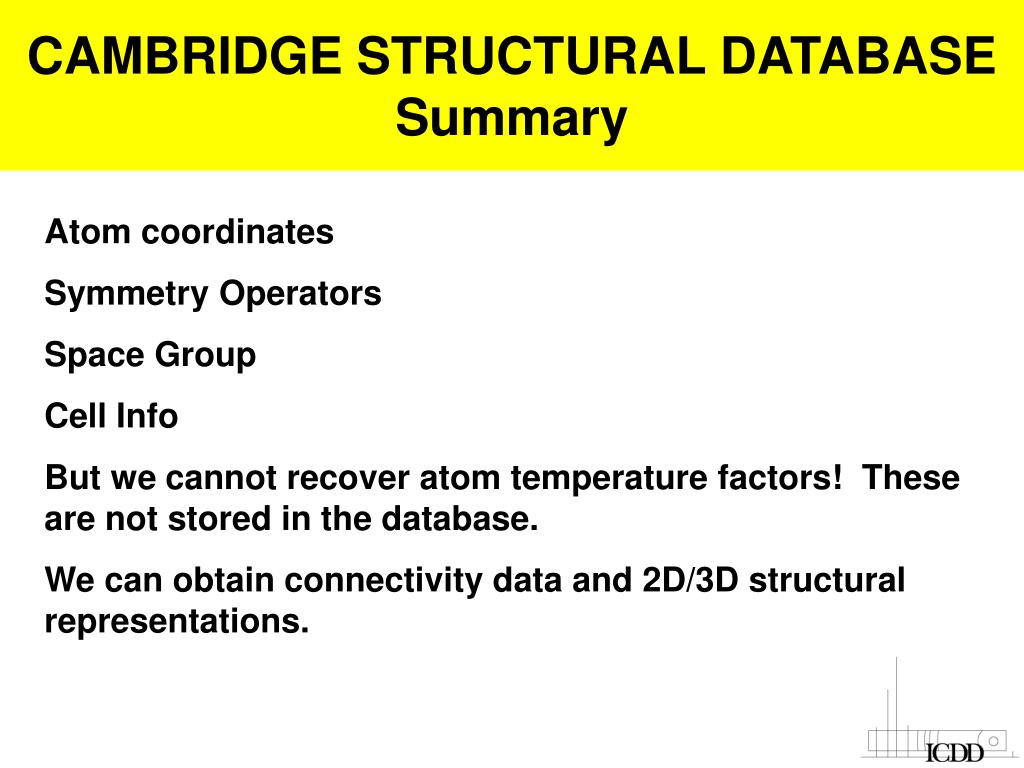

Cambridge structural database summary

CAMBRIDGE STRUCTURAL DATABASESummary

Atom coordinates

Symmetry Operators

Space Group

Cell Info

But we cannot recover atom temperature factors! These are not stored in the database.

We can obtain connectivity data and 2D/3D structural representations.


Pdf 4 organics 2003 new relational database

PDF-4/Organics 2003(New Relational Database)


Future growth in calculated organic entries

Future Growth in Calculated Organic Entries

CSD potential

ICDD level

ADD ~60,000 ENTRIES IN 2003


Calculated patterns in the pdf

CALCULATED PATTERNS IN THE PDF

  • The availability of both experimental and calculated patterns allows evaluation of experimental preferred orientation problems.

  • Experimental and specimen related effects such as instrumental resolution and size, strain and defect distortions of the line shapes may, at times, obscure details in the experimental pattern


Calculated patterns in the pdf1

CALCULATED PATTERNS IN THE PDF

  • There may be no experimental data available

  • Simulation of ill-ordered materials

  • Combine data to supplement PDF entries

  • Quantitative phase analysis possible because of I/Ic


Digitized calculated pattern new available in all pdf 4s

Digitized Calculated Pattern (NEW),available in ALL PDF-4s


Digitized pattern derived from d i peak new all pdf 4s

Digitized Pattern Derived from d,I(peak)-NEW, all PDF-4s


Types of pdf data searching indexes

TYPES OF PDF DATA SEARCHING INDEXES

New ICDD Software Product:

PCSIWIN PLUG-IN


Www bruker axs com recent news announcement

www.Bruker-AXS.comRecent News Announcement

Search finds Thalidomide phase using the ICDD PDF-4/Organics 2003


Acknowledgements

DATA MINING

  • Suppose we use:

  • an information source whose topology is uniform (no holes)

  • Inquiry to probe for information subsets

  • Models to capture the results


Acknowledgements

ENTRIES IN THE PDF-4/ORGANICS 2003

  • Taxol, paclitaxol 3 patterns

  • Theophylline24 pattern anhydrates, monohydrates, dichloro’s, Adenine-

  • Sulfanilamide43 patterns

  • Capfopril 2 patterns

  • Vitamin A 6 patterns

  • Vitamin C19 patterns

  • Histidine62 patterns


Acknowledgements

Anti-inflammatory, Piroxicam(Feldene by Pratt)

  • 4-hydroxy-2methyl-N-2-pyridyl-2H-1,2-benzothiazine-3-carboxamide 1,1-dioxide (HMPBCD); C15H13N3O4S


Acknowledgements

Experimental

Monoclinic

Calculated

Monoclinic


Acknowledgements

Calculated Pattern Comparisons - Piroxicam

P21/c, Monoclinic

Pca21, Orthorhombic


Alpha d glucose

Alpha-D Glucose

Rietveld refinement: preferred orientation seen:

Rwp=23%

X2=16

Ground specimen mortar and pestle


Glucose monohydrate c 6 h 14 o 7

Glucose Monohydrate, C6H14O7

Rietveld refinement:

preferred orientation seen:

Rwp=23%

X2=16

Micronizing Mill employed to reduce PO, fine particles


Tga dsc

TGA & DSC


Acknowledgements

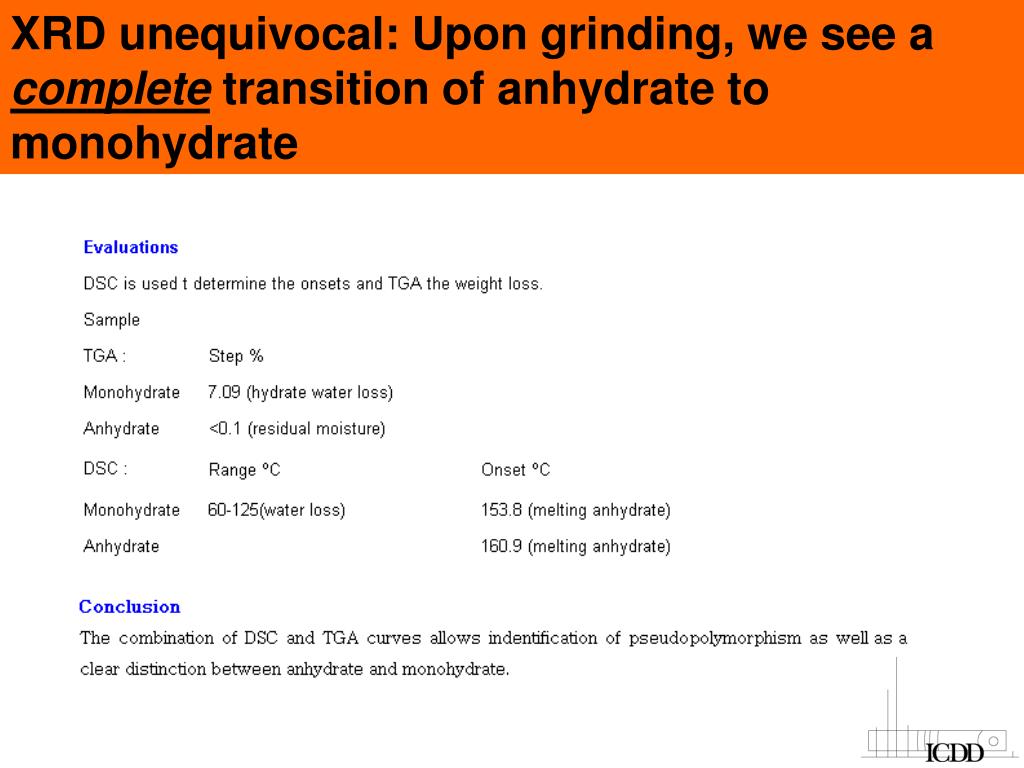

XRD unequivocal: Upon grinding, we see a complete transition of anhydrate to monohydrate


Hope to see you soon

Hope To See You Soon…

  • DXC (Denver X-ray Conference, Aug 2003

    • Faber & Kern Rietveld Workshop

      • Full day, extensive

  • Pharmaceutical Powder X-Ray Diffraction (PPXRD-3) planned for 2004

    • One registration from this meeting already!
