Presentation Transcript


5781710

活动对象


5781710

主要内容

  • 活动对象机制

  • 活动对象的使用

  • 用活动对象处理复杂事务


5781710

活动对象机制

  • 活动对象框架

    • 活动对象调度器CActiveScheduler

      class CActiveScheduler : public CBase

      {

      friend class CActiveSchedulerWait;

      public:

      struct TLoop;

      typedef TLoop* TLoopOwner;

      public:

      IMPORT_C CActiveScheduler();

      IMPORT_C ~CActiveScheduler();

      IMPORT_C static void Install(CActiveScheduler* aScheduler);

      IMPORT_C static void Add(CActive* aActive);

      IMPORT_C static void Start();

      IMPORT_C static void Stop();

      ... ...

      };


5781710

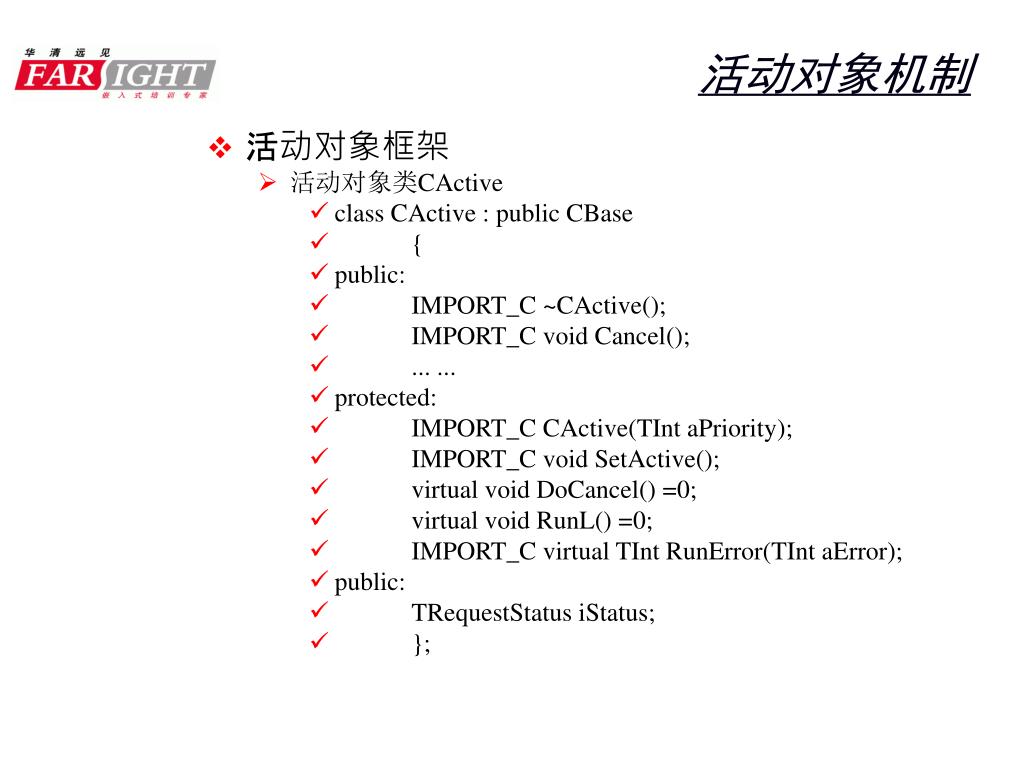

活动对象机制

  • 活动对象框架

    • 活动对象类CActive

      • class CActive : public CBase

      • {

      • public:

      • IMPORT_C ~CActive();

      • IMPORT_C void Cancel();

      • ... ...

      • protected:

      • IMPORT_C CActive(TInt aPriority);

      • IMPORT_C void SetActive();

      • virtual void DoCancel() =0;

      • virtual void RunL() =0;

      • IMPORT_C virtual TInt RunError(TInt aError);

      • public:

      • TRequestStatus iStatus;

      • };


5781710

活动对象机制

  • 活动对象的生命周期及操作顺序


5781710

活动对象的使用

  • 实现活动对象的必要步骤

    • (1)从CActive类派生活动对象类

    • (2)实现活动对象类的构造函数

    • (3)实现活动对象的二阶段构造函数ConstructL()

    • (4)实现CActive类的三个虚函数RunL()、DoCancel()、RunError()

    • (5)实现活动对象的析构函数


5781710

用活动对象处理复杂事务

  • 活动对象的RunL()方法不能长时间占用CPU

  • 把复杂大任务分割成许多小任务进行处理
