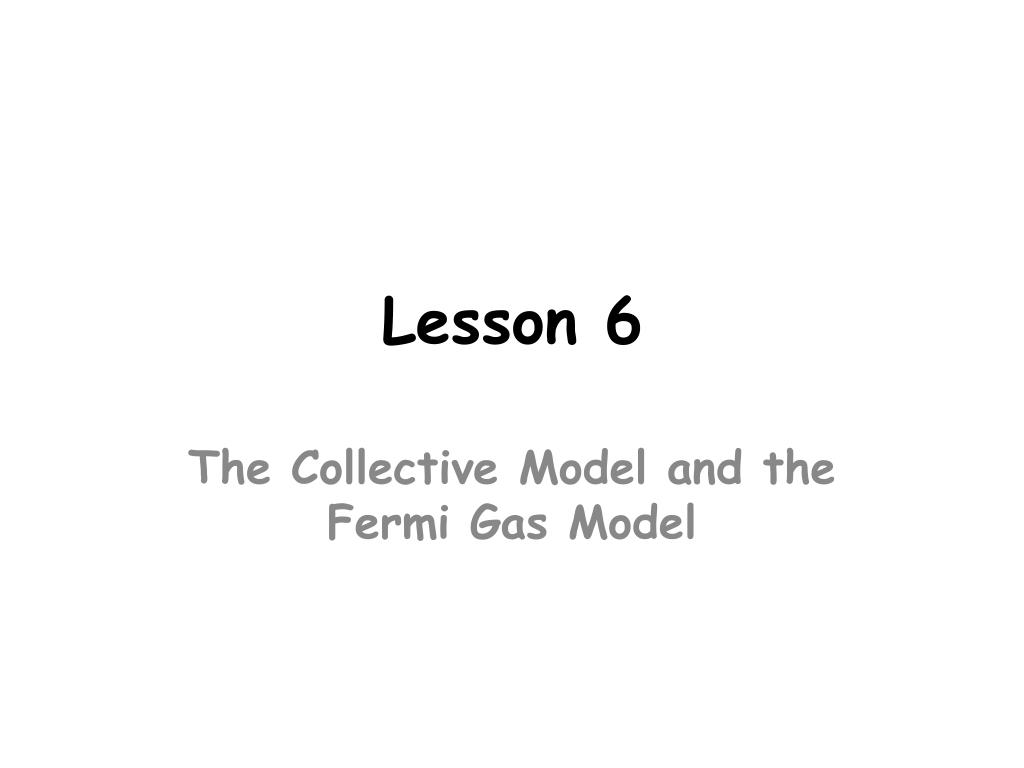

  1. Lesson 6 The Collective Model and the Fermi Gas Model

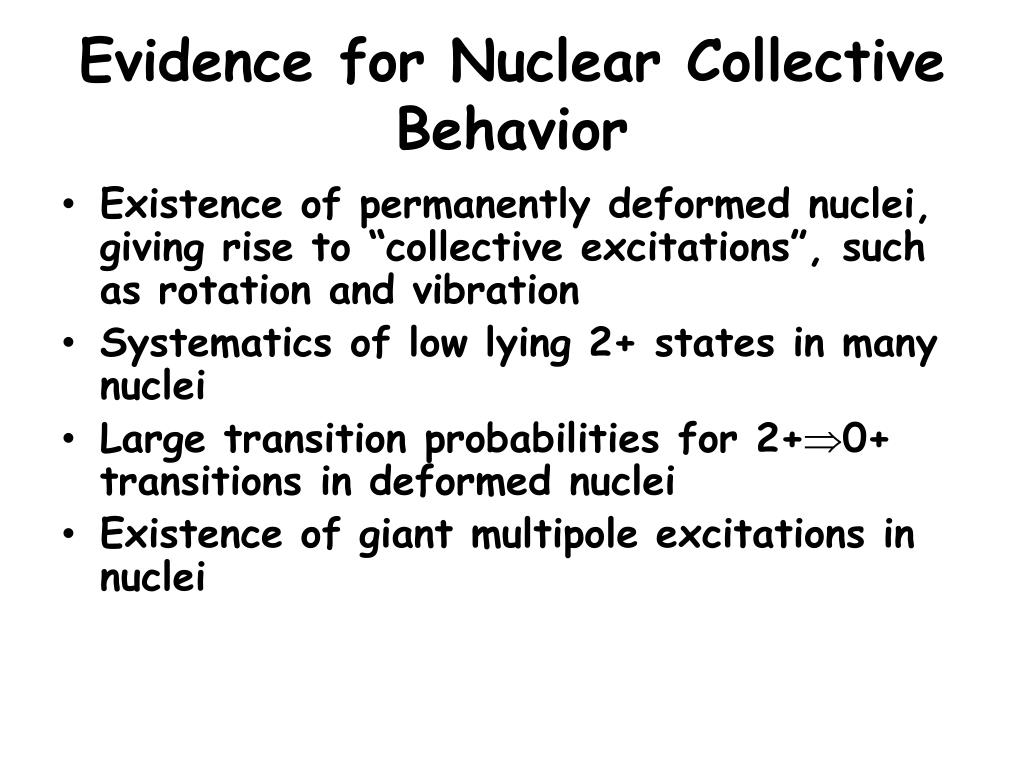

  2. Evidence for Nuclear Collective Behavior • Existence of permanently deformed nuclei, giving rise to “collective excitations”, such as rotation and vibration • Systematics of low lying 2+ states in many nuclei • Large transition probabilities for 2+0+ transitions in deformed nuclei • Existence of giant multipole excitations in nuclei

  3. Deformed Nuclei • Which nuclei? A=150-190, A>220 • What shapes?

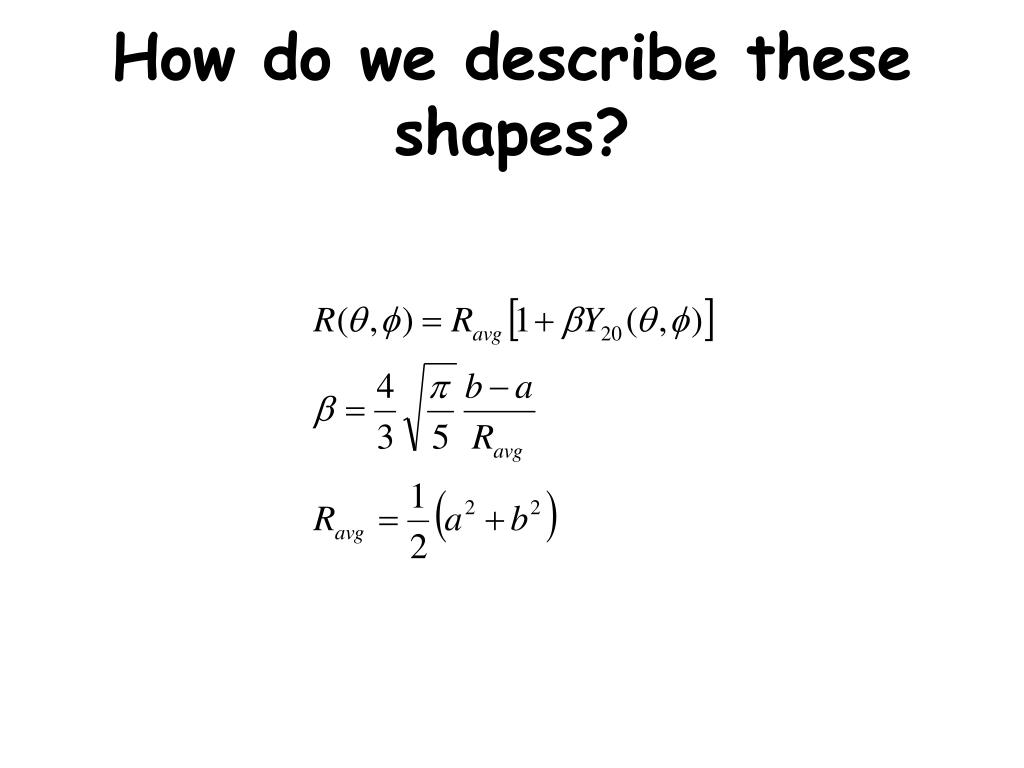

  4. How do we describe these shapes?

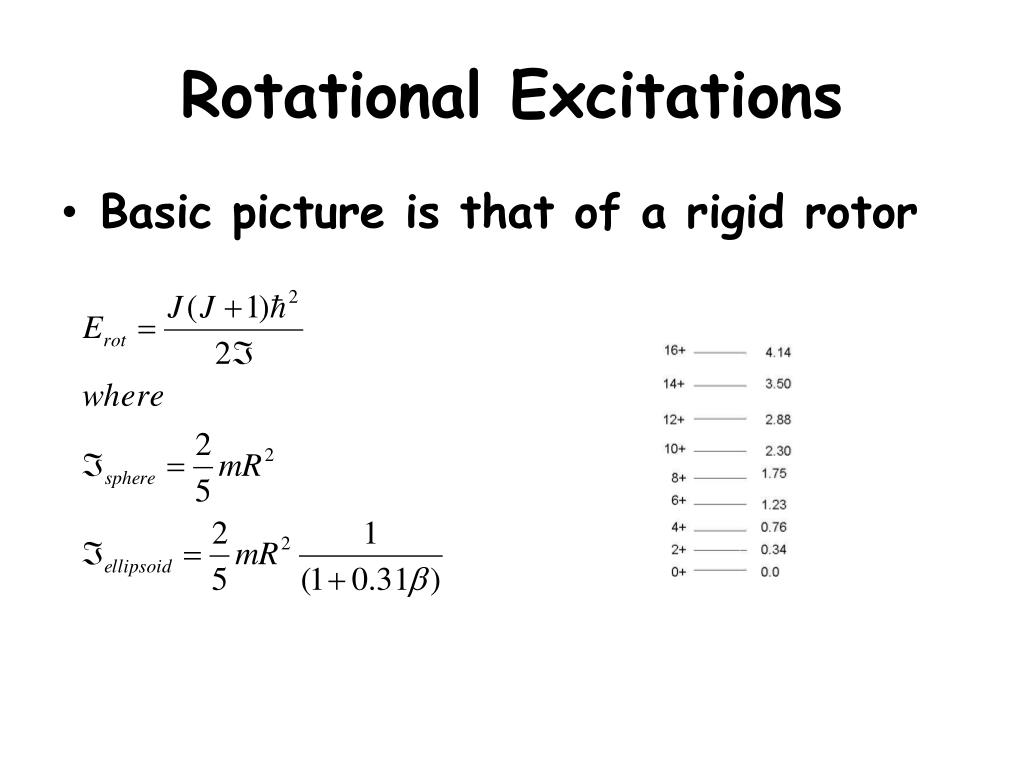

  5. Rotational Excitations • Basic picture is that of a rigid rotor

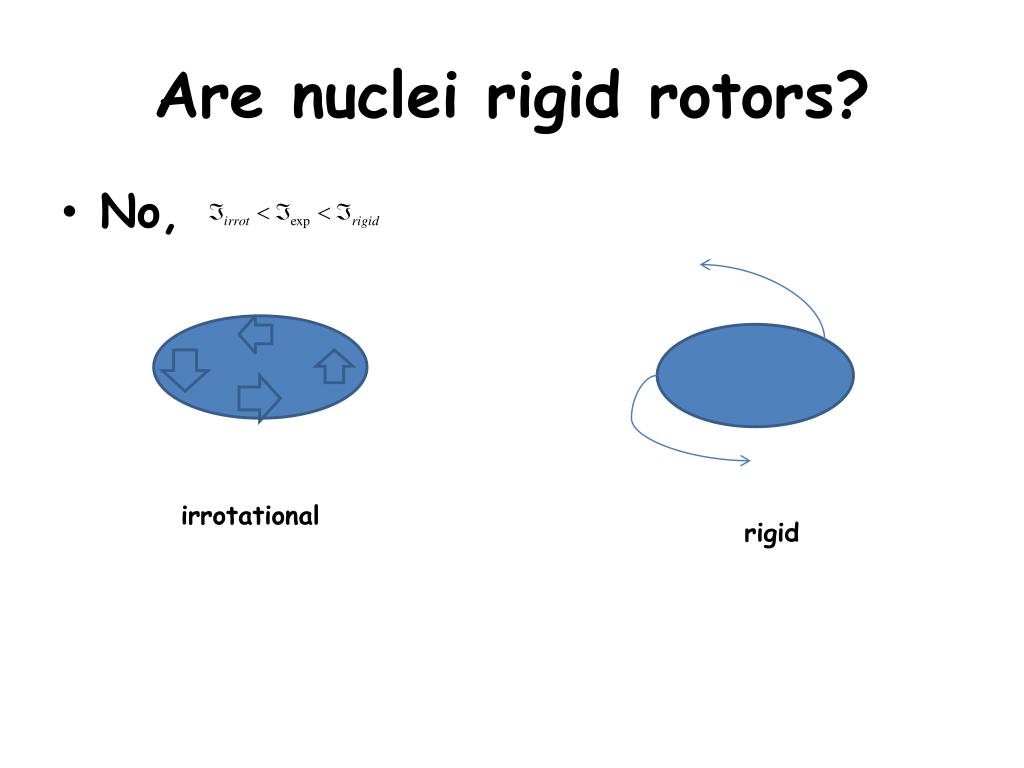

  6. Are nuclei rigid rotors? • No, irrotational rigid

  7. Backbending

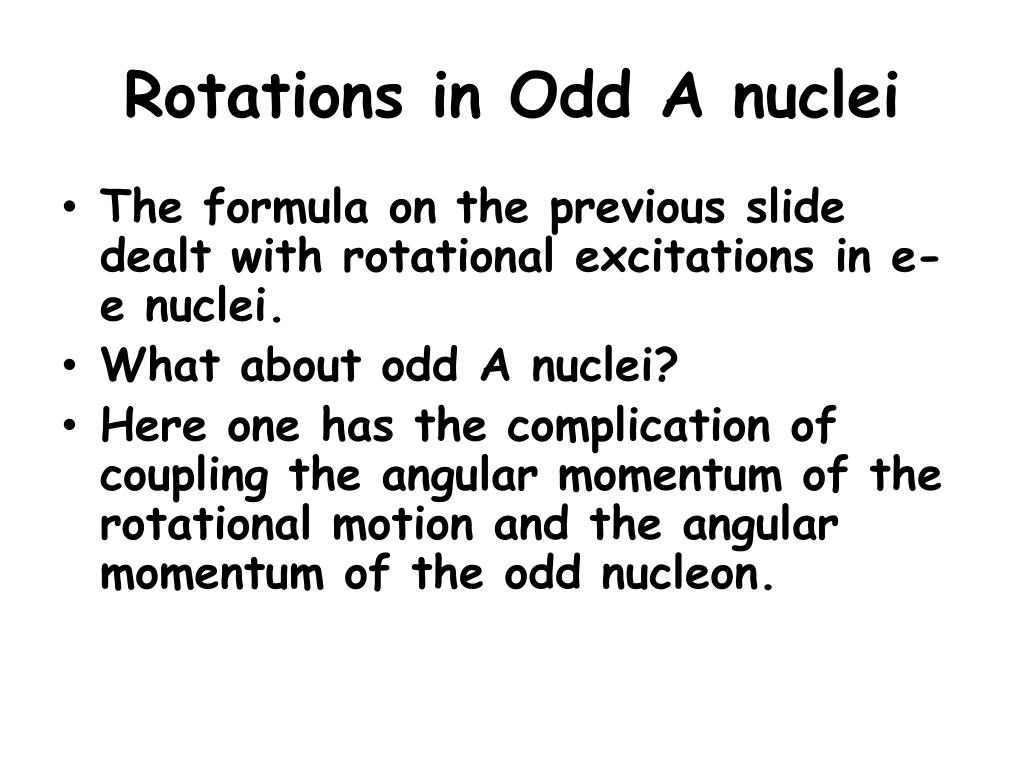

  8. Rotations in Odd A nuclei • The formula on the previous slide dealt with rotational excitations in e-e nuclei. • What about odd A nuclei? • Here one has the complication of coupling the angular momentum of the rotational motion and the angular momentum of the odd nucleon.

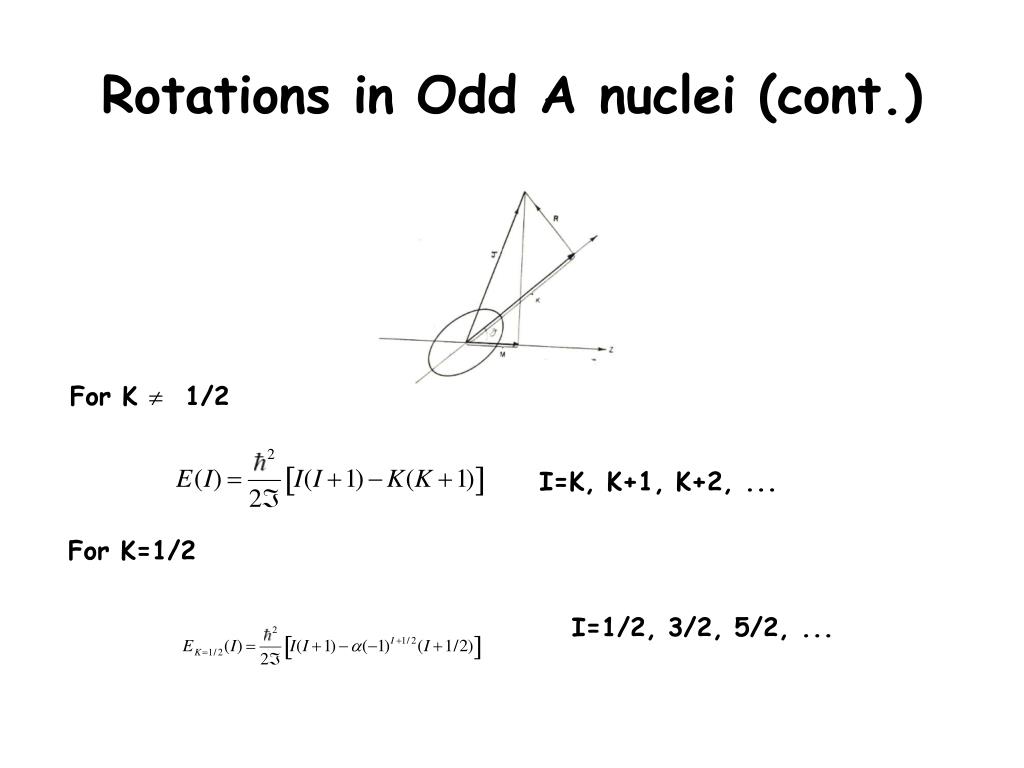

  9. Rotations in Odd A nuclei (cont.) For K  1/2 I=K, K+1, K+2, ... For K=1/2 I=1/2, 3/2, 5/2, ...

  10. Nuclear Vibrations • In analogy to molecules, if we have rotations, then we should also consider vibrational states • How do we describe them? • Most nuclei are spherical, so we base our description on vibrations of a sphere.

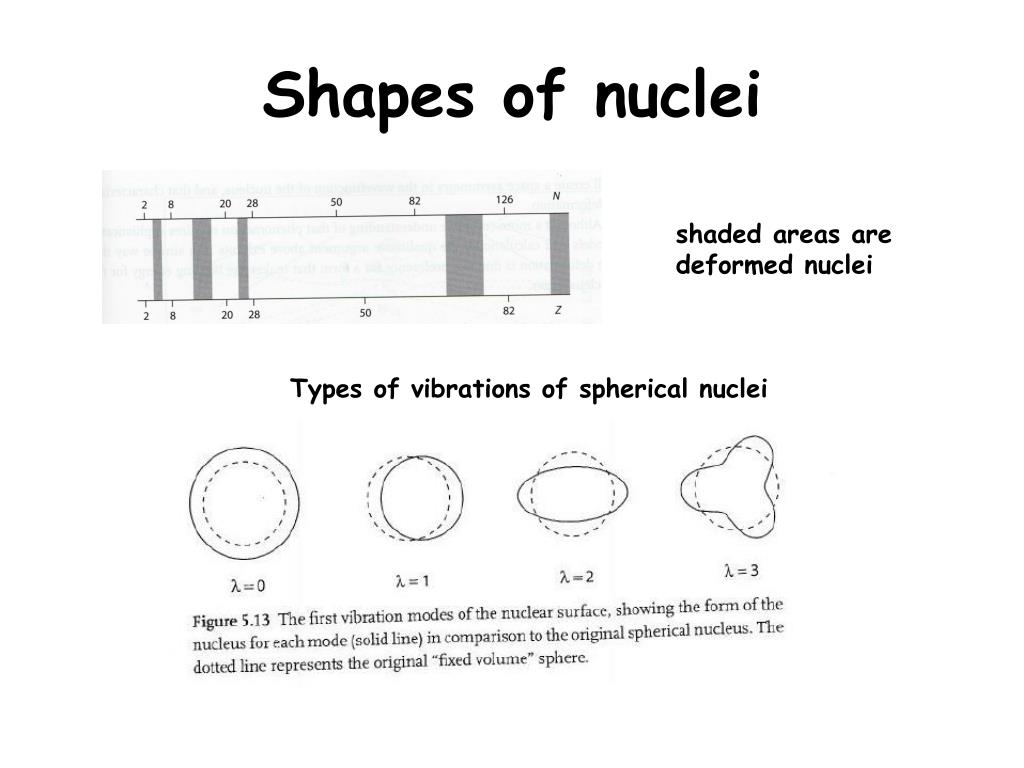

  11. Shapes of nuclei shaded areas are deformed nuclei Types of vibrations of spherical nuclei

  12. Formal description of vibrations Suppose =0 Suppose =1 Suppose =2

  13. Nuclear Vibrations

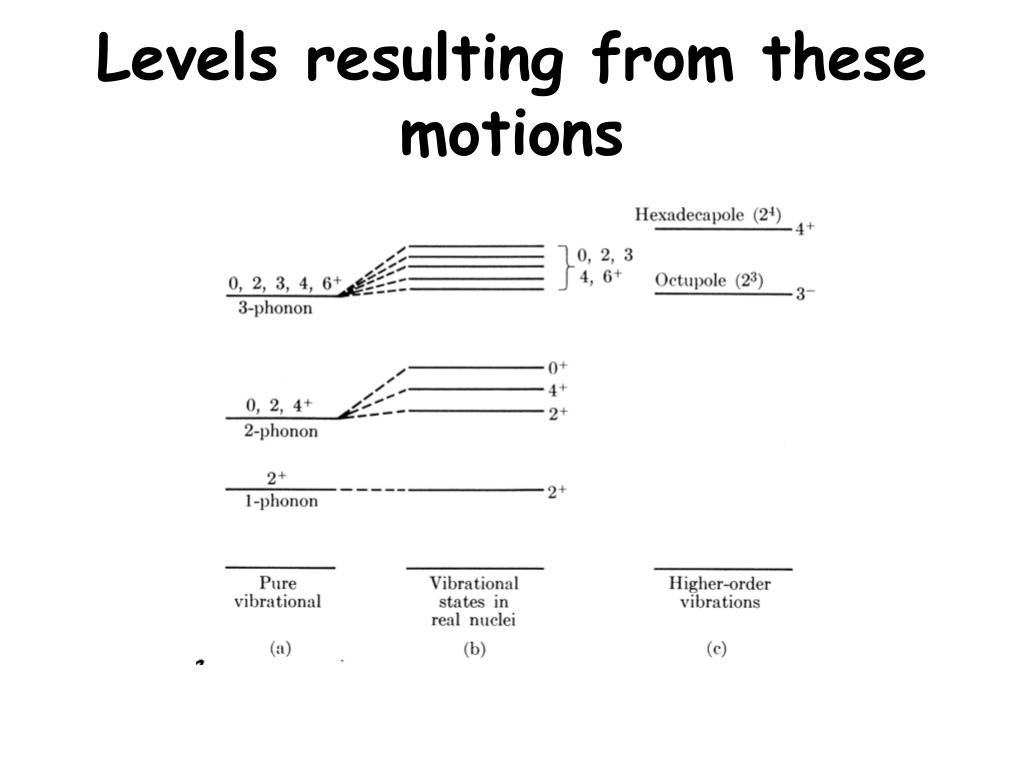

  14. Levels resulting from these motions

  15. You can build rotational levels on these vibrational levels

  16. Net Result

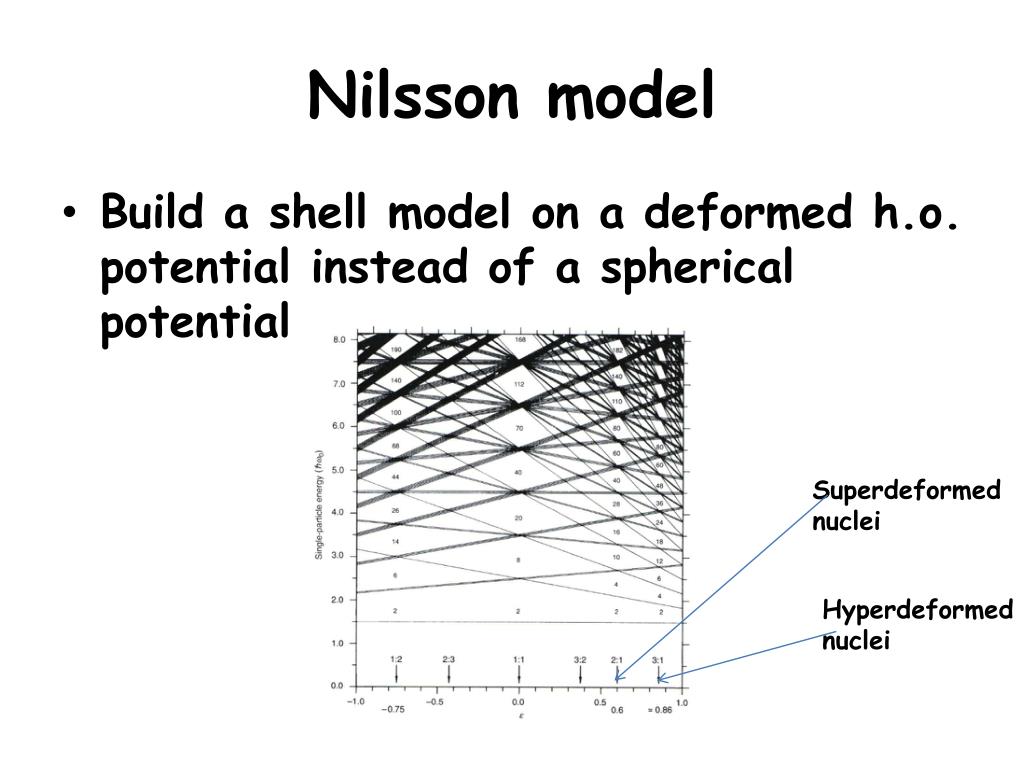

  17. Nilsson model • Build a shell model on a deformed h.o. potential instead of a spherical potential Superdeformed nuclei Hyperdeformed nuclei

  18. Successes of Nilsson model

  19. Real World Nilsson Model

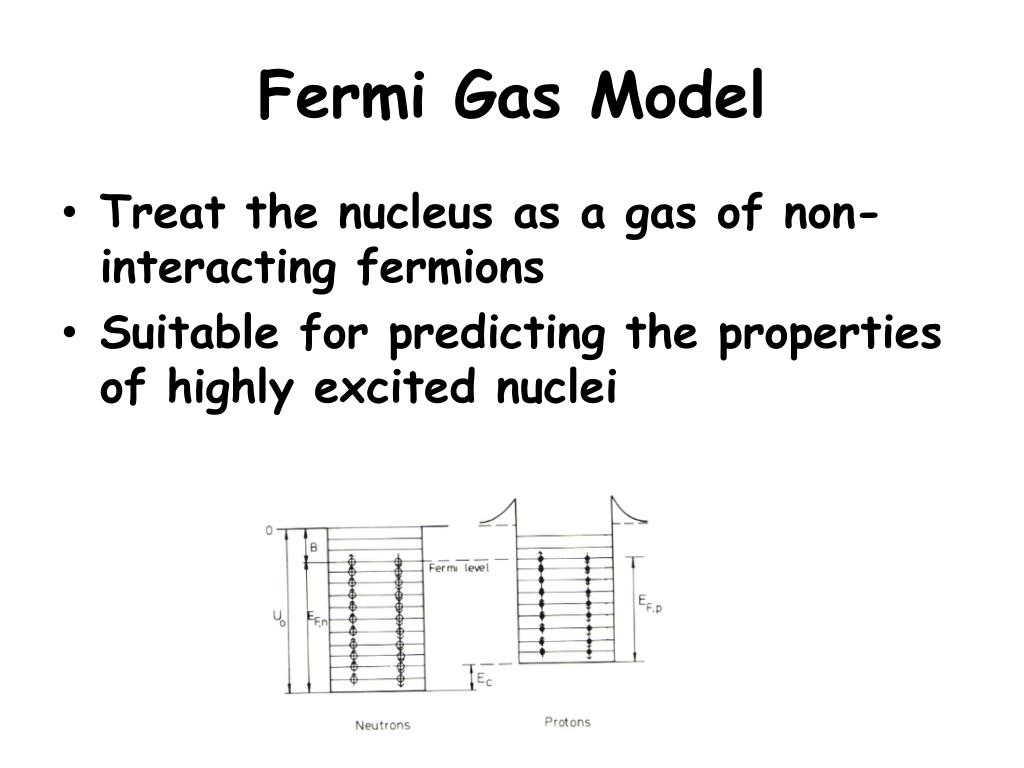

  20. Fermi Gas Model • Treat the nucleus as a gas of non-interacting fermions • Suitable for predicting the properties of highly excited nuclei

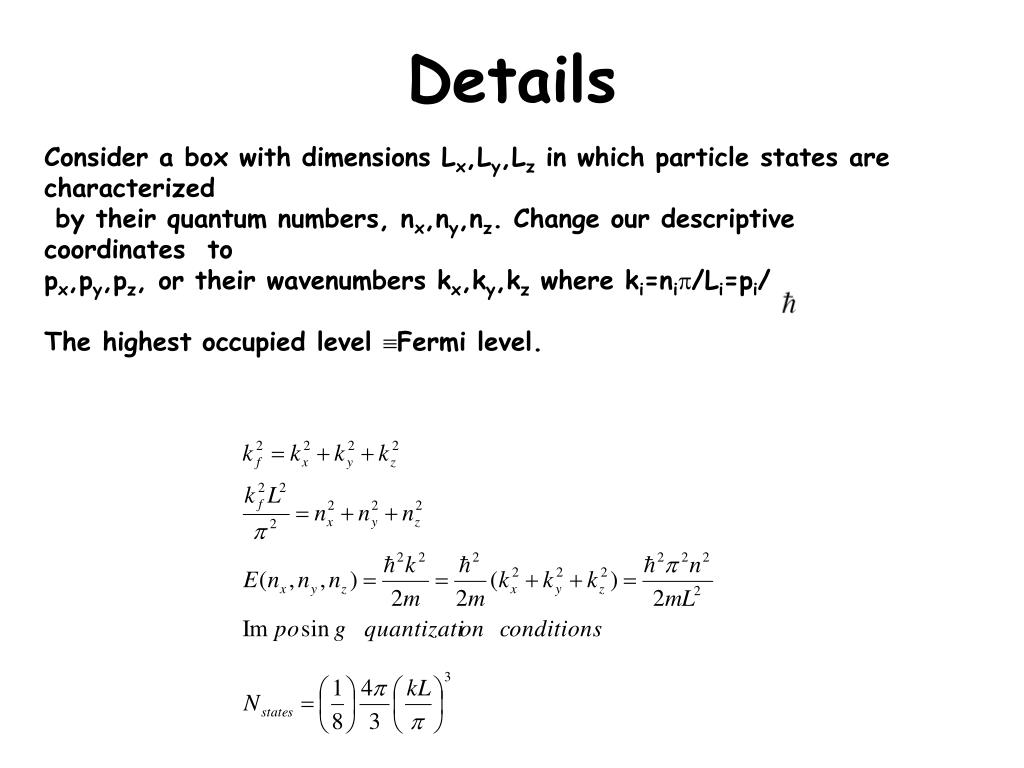

  21. Details Consider a box with dimensions Lx,Ly,Lz in which particle states are characterized by their quantum numbers, nx,ny,nz. Change our descriptive coordinates to px,py,pz, or their wavenumbers kx,ky,kz where ki=ni/Li=pi/ The highest occupied level Fermi level.

  22. Making the box a nucleus

  23. Thermodynamics of a Fermi gas • Start with the Boltzmann equation S=kBln • Applying it to nuclei

  24. Relation between Temperature and Level Density • Lang and LeCouteur • Ericson

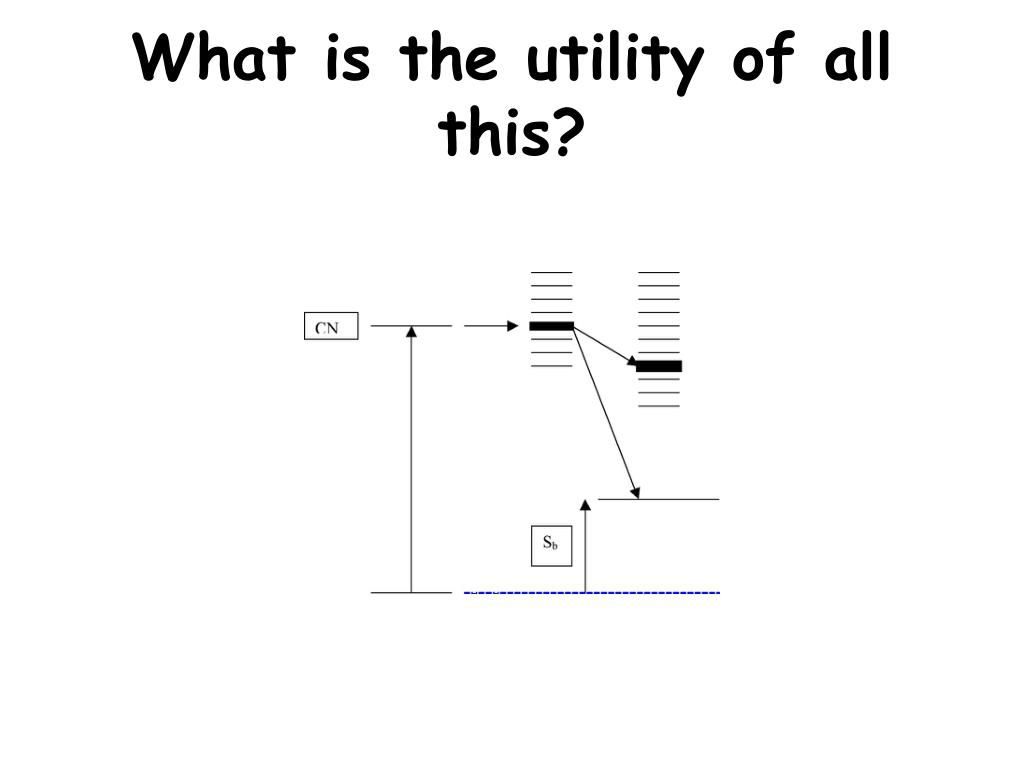

  25. What is the utility of all this?
