Presentation Transcript

Point Count System for Measuring Ground Cover from Digital Photos.Edward B. RayburnWest Virginia University1078 Ag. ScienceMorgantown, WV [email protected]

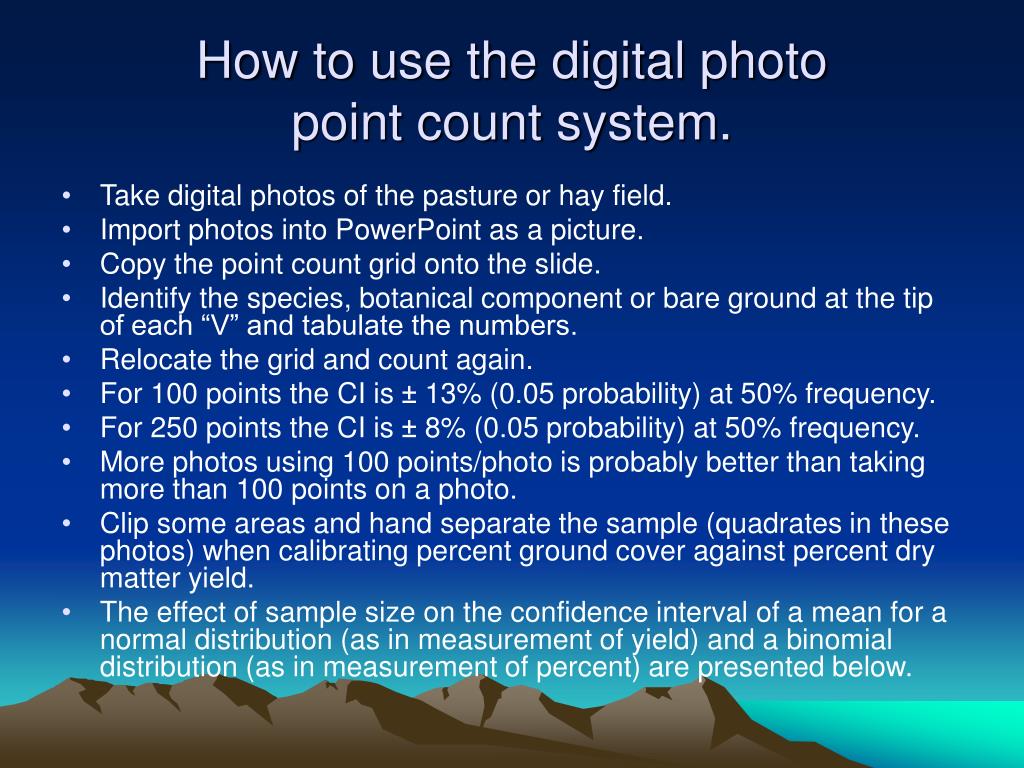

How to use the digital photo point count system
How to use the digital photo Photos.point count system.

  • Take digital photos of the pasture or hay field.

  • Import photos into PowerPoint as a picture.

  • Copy the point count grid onto the slide.

  • Identify the species, botanical component or bare ground at the tip of each “V” and tabulate the numbers.

  • Relocate the grid and count again.

  • For 100 points the CI is ± 13% (0.05 probability) at 50% frequency.

  • For 250 points the CI is ± 8% (0.05 probability) at 50% frequency.

  • More photos using 100 points/photo is probably better than taking more than 100 points on a photo.

  • Clip some areas and hand separate the sample (quadrates in these photos) when calibrating percent ground cover against percent dry matter yield.

  • The effect of sample size on the confidence interval of a mean for a normal distribution (as in measurement of yield) and a binomial distribution (as in measurement of percent) are presented below.
