Igneous rocks

Igneous Rocks

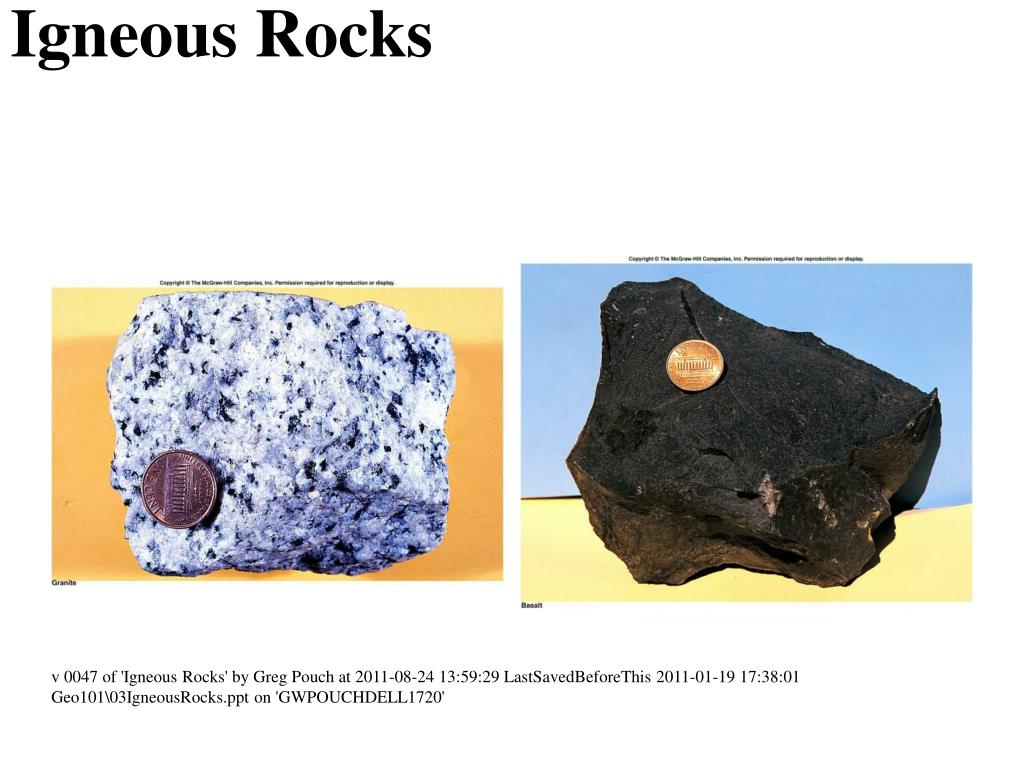

v 0047 of 'Igneous Rocks' by Greg Pouch at 2011-08-24 13:59:29 LastSavedBeforeThis 2011-01-19 17:38:01

Geo101\03IgneousRocks.ppt on 'GWPOUCHDELL1720'


Igneous rocks1

Igneous Rocks

3 Overview

4 Definitions 1

5 Texture

6 Phaneritic

7 Aphanitic

8 Porphyritic

9 Glassy

10 Vesicular

11 Tuffaceous

12 Minerals

13 Minerals

14 Minerals

15 Bowen’s Reaction Series

16 Types of igneous rocks

17 Bowen's Reaction Series/Classification

18 Telling Granite and Granodiorite apart

19 Caveat Emptor


Overview

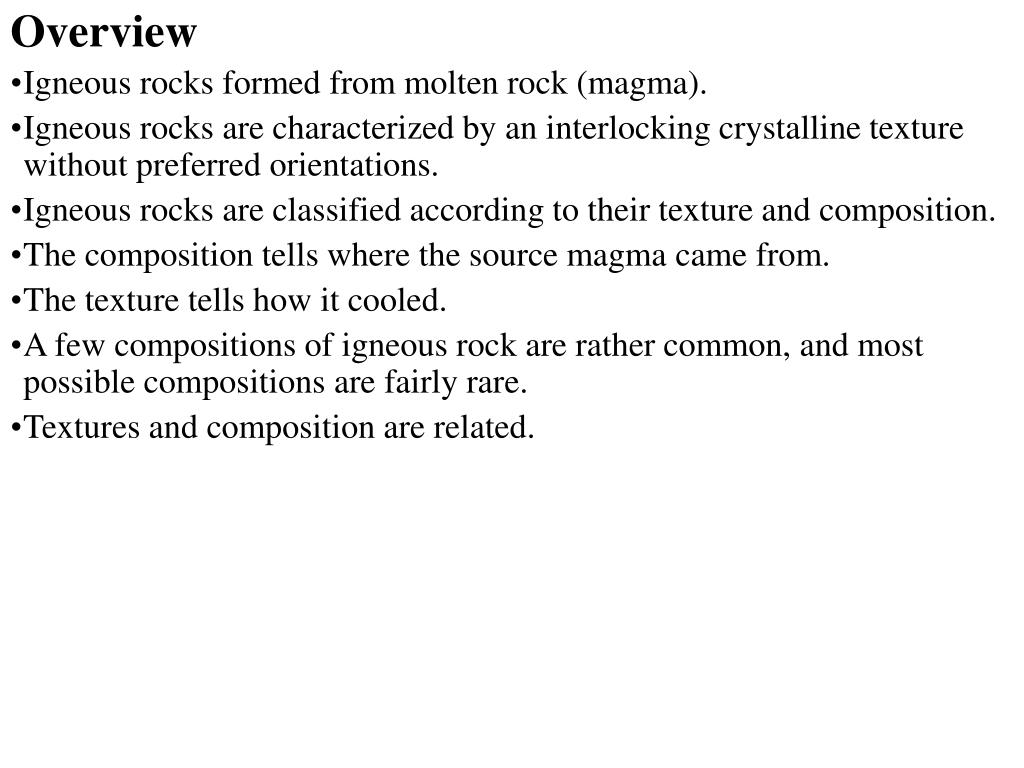

Overview

  • Igneous rocks formed from molten rock (magma).

  • Igneous rocks are characterized by an interlocking crystalline texture without preferred orientations.

  • Igneous rocks are classified according to their texture and composition.

  • The composition tells where the source magma came from.

  • The texture tells how it cooled.

  • A few compositions of igneous rock are rather common, and most possible compositions are fairly rare.

  • Textures and composition are related.

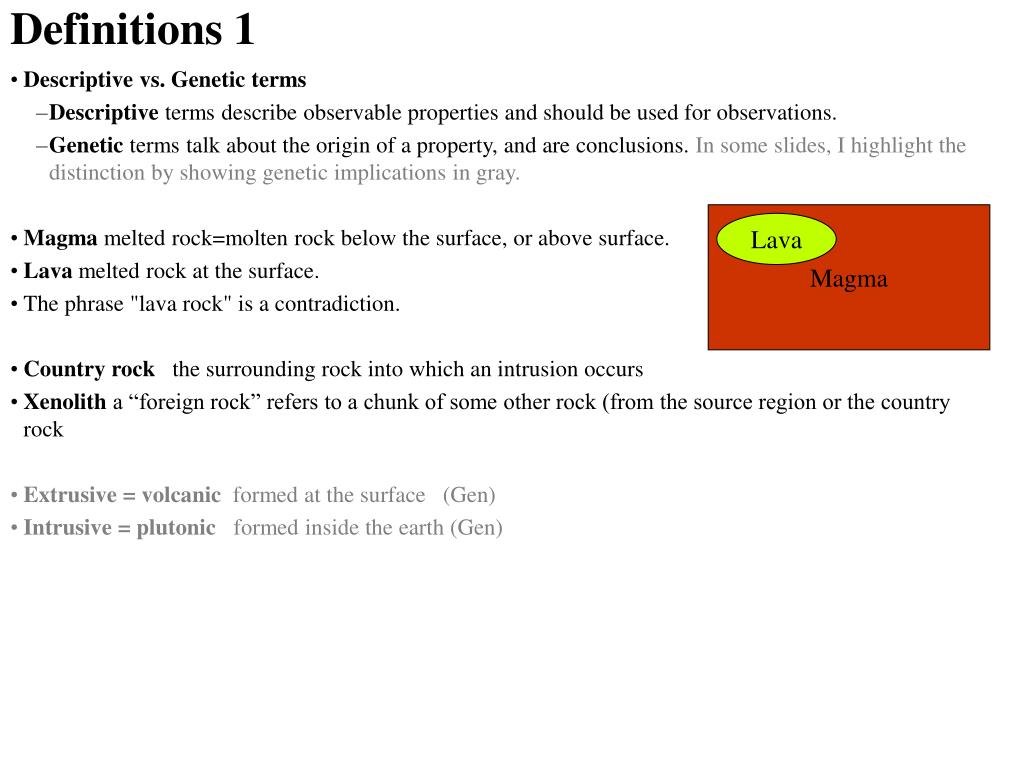

Definitions 1

Definitions 1

  • Descriptive vs. Genetic terms

    • Descriptive terms describe observable properties and should be used for observations.

    • Genetic terms talk about the origin of a property, and are conclusions. In some slides, I highlight the distinction by showing genetic implications in gray.

  • Magma melted rock=molten rock below the surface, or above surface.

  • Lava melted rock at the surface.

  • The phrase "lava rock" is a contradiction.

  • Country rock the surrounding rock into which an intrusion occurs

  • Xenolith a “foreign rock” refers to a chunk of some other rock (from the source region or the country rock

  • Extrusive = volcanic formed at the surface (Gen)

  • Intrusive = plutonic formed inside the earth (Gen)

Magma

Lava


Texture

Texture

Texture refers to the size of individual particles. Texture terms are Descriptive, but have Genetic implications.

  • Phaneritic crystals/grains large enough to be seen. Genetic interpretation is that large crystals indicates slow cooling, probably at depth.

  • Aphanitic crystals too small to be seen Indicates rapid cooling, probably at surface or shallow subsurface.

  • Porphyry two (or more) sets of grain sizes

    • Phenocrysts are the larger crystals/grains in a porphyry Usually have Xtl (Crystal) faces.

    • Groundmass is the smaller crystals in a porphyry.

      Porphyritic texture indicates two generations of cooling, one much faster than the other. This could be due to change in cooling rate (slowly cooling intrusive moving into near-surface region and cooling quickly) or to change in melting conditions (sudden loss of water leading to rapid crystallization).

  • Glassy No crystals at all: the rock is actually a glass rather than a true solid. Obsidian Usually indicates very rapid cooling or a magma that can't crystallize easily.

  • Vesicular Contains bubbles, but not enough to make up most of the volume. If the vesicles are filled with minerals, this becomes amygdaloidal (the "nodules" are amygdules). If the vesicles make up a lot of the rock, it can be scoria (still denser than water, but lots of bubbles) or pumice (less dense than water)

  • Tuff is an aphanitic igneous rock that occurs in beds with sedimentary features that indicate that it fell as ash rather than flowed as a liquid. Consists of ash and dust that were blown out of a volcano and welded themselves together like caramel corn. It grades into being a sedimentary rock.

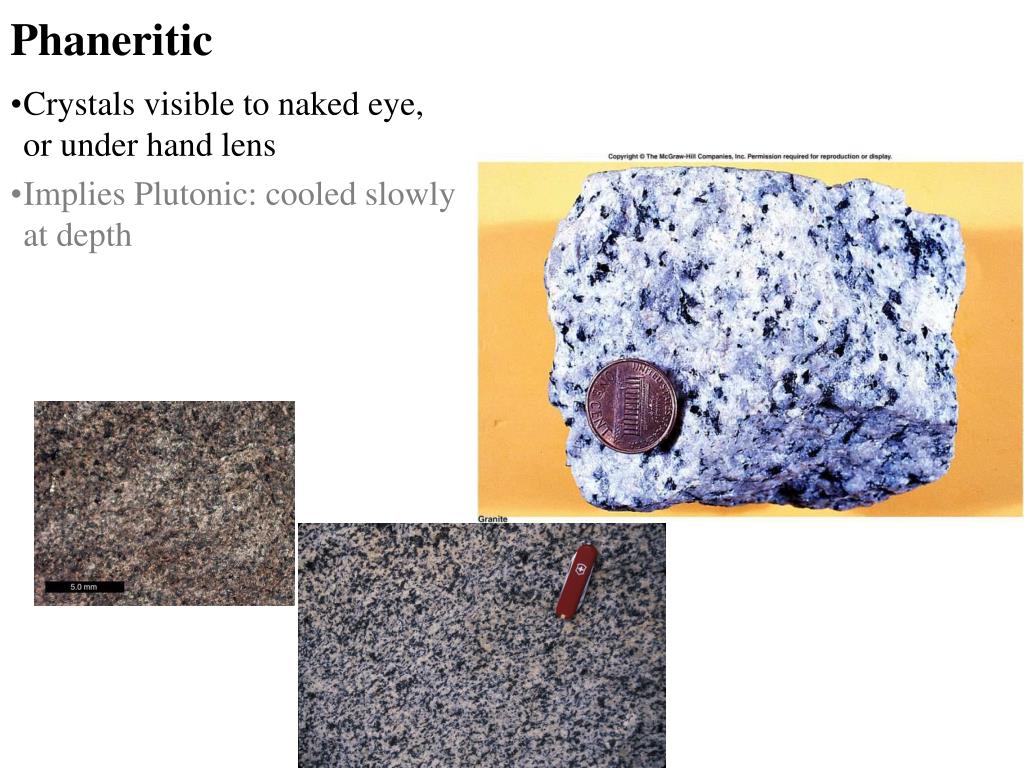

Phaneritic

Phaneritic

  • Crystals visible to naked eye, or under hand lens

  • Implies Plutonic: cooled slowly at depth


Aphanitic

Aphanitic

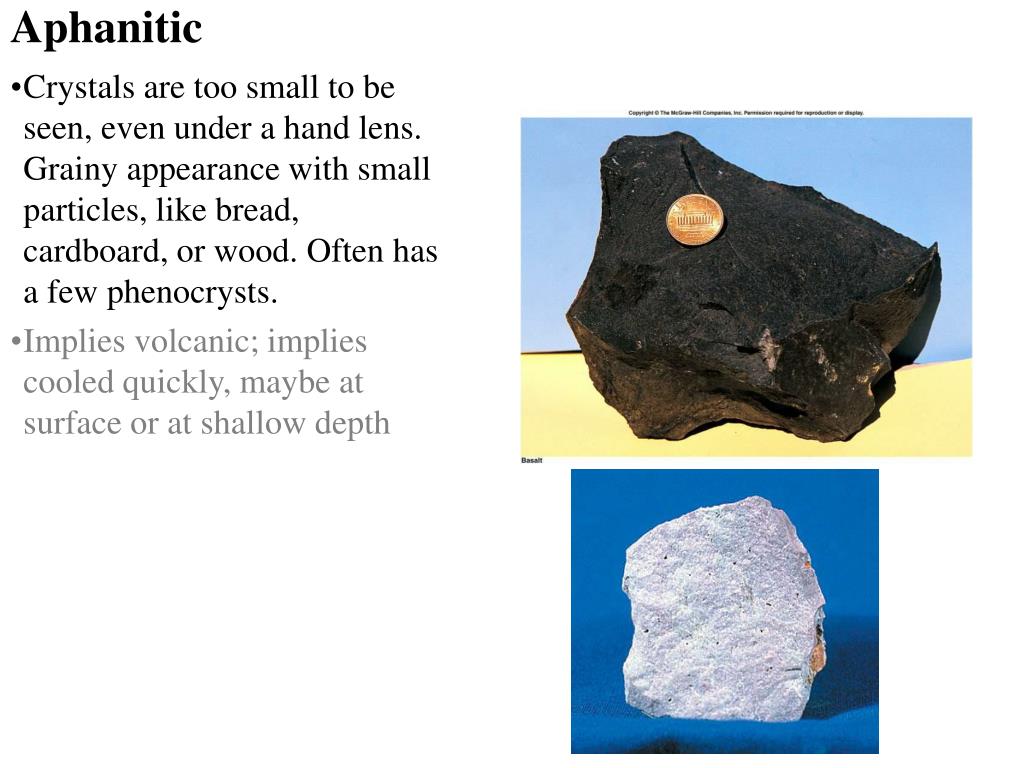

  • Crystals are too small to be seen, even under a hand lens. Grainy appearance with small particles, like bread, cardboard, or wood. Often has a few phenocrysts.

  • Implies volcanic; implies cooled quickly, maybe at surface or at shallow depth


Porphyritic

Porphyritic

  • At least two distinct sizes of crystals. The large crystals are called phenocrysts, the finer minerals are called groundmass.

  • Implies slow cooling for the larger size (phenocrysts) followed by faster cooling for the groundmass.

    • Might be due to slow cooling at depth, followed by eruption, or

    • Might be related to change of melting temperature due to loss of volatiles.

Groundmass

Phenocrysts


Glassy

Glassy

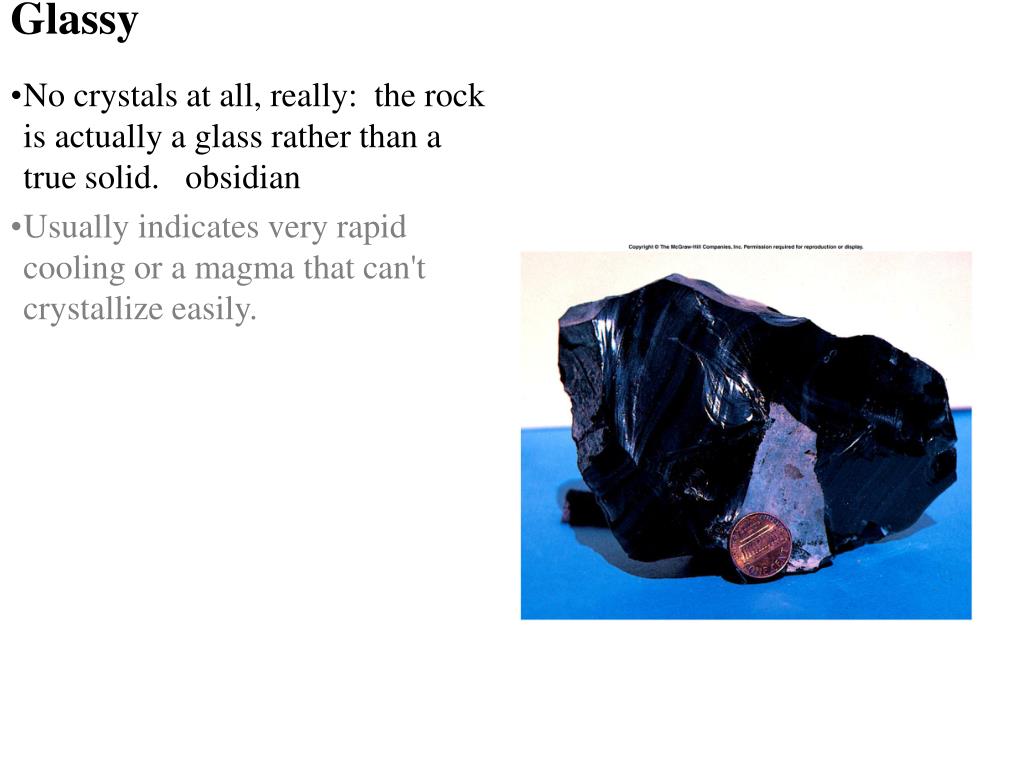

  • No crystals at all, really: the rock is actually a glass rather than a true solid. obsidian

  • Usually indicates very rapid cooling or a magma that can't crystallize easily.


Vesicular

Vesicular

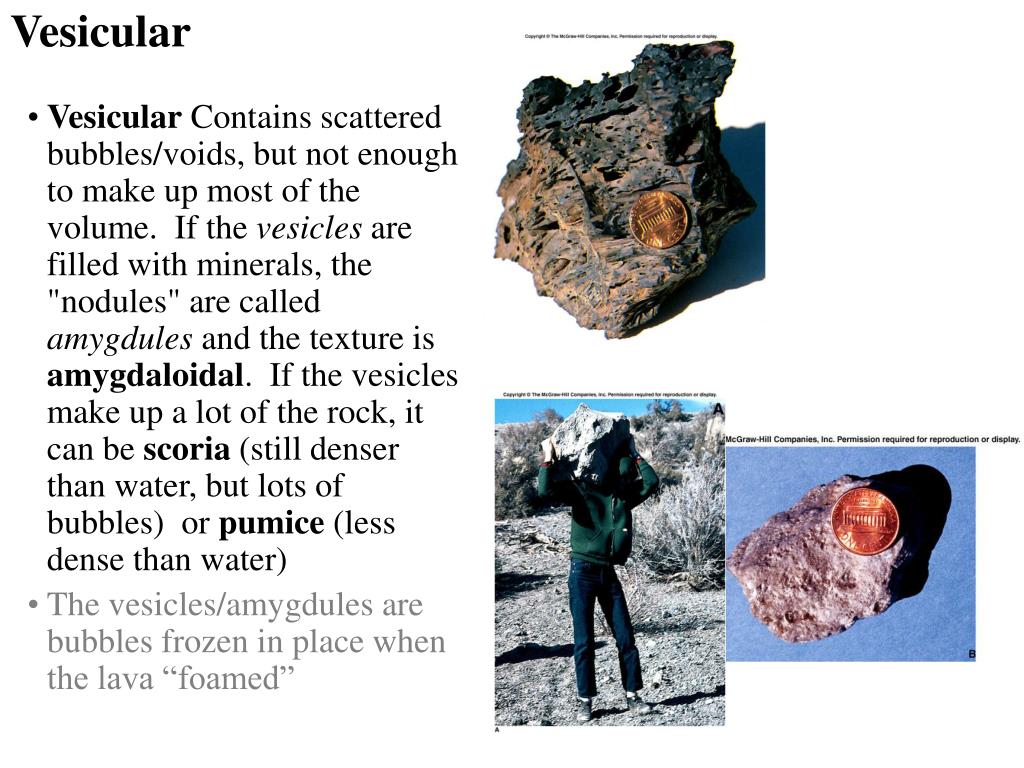

  • Vesicular Contains scattered bubbles/voids, but not enough to make up most of the volume. If the vesicles are filled with minerals, the "nodules" are called amygdules and the texture is amygdaloidal. If the vesicles make up a lot of the rock, it can be scoria (still denser than water, but lots of bubbles) or pumice (less dense than water)

  • The vesicles/amygdules are bubbles frozen in place when the lava “foamed”

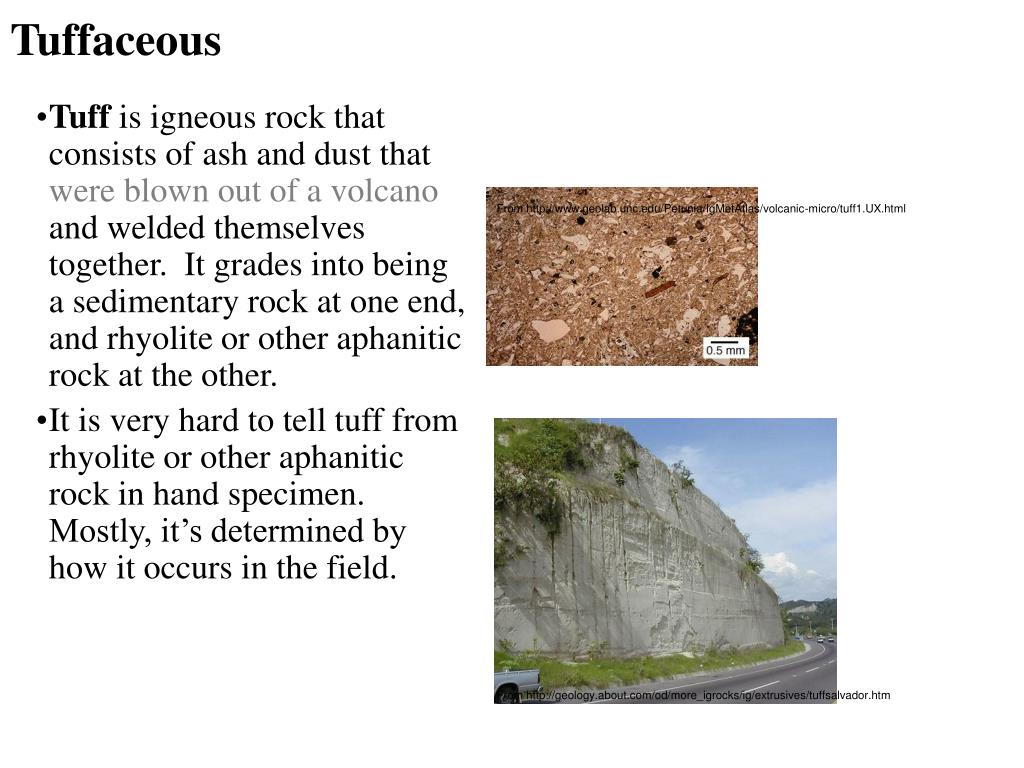

Tuffaceous

Tuffaceous

  • Tuff is igneous rock that consists of ash and dust that were blown out of a volcano and welded themselves together. It grades into being a sedimentary rock at one end, and rhyolite or other aphanitic rock at the other.

  • It is very hard to tell tuff from rhyolite or other aphanitic rock in hand specimen. Mostly, it’s determined by how it occurs in the field.

From http://www.geolab.unc.edu/Petunia/IgMetAtlas/volcanic-micro/tuff1.UX.html

From http://geology.about.com/od/more_igrocks/ig/extrusives/tuffsalvador.htm


Minerals

Minerals

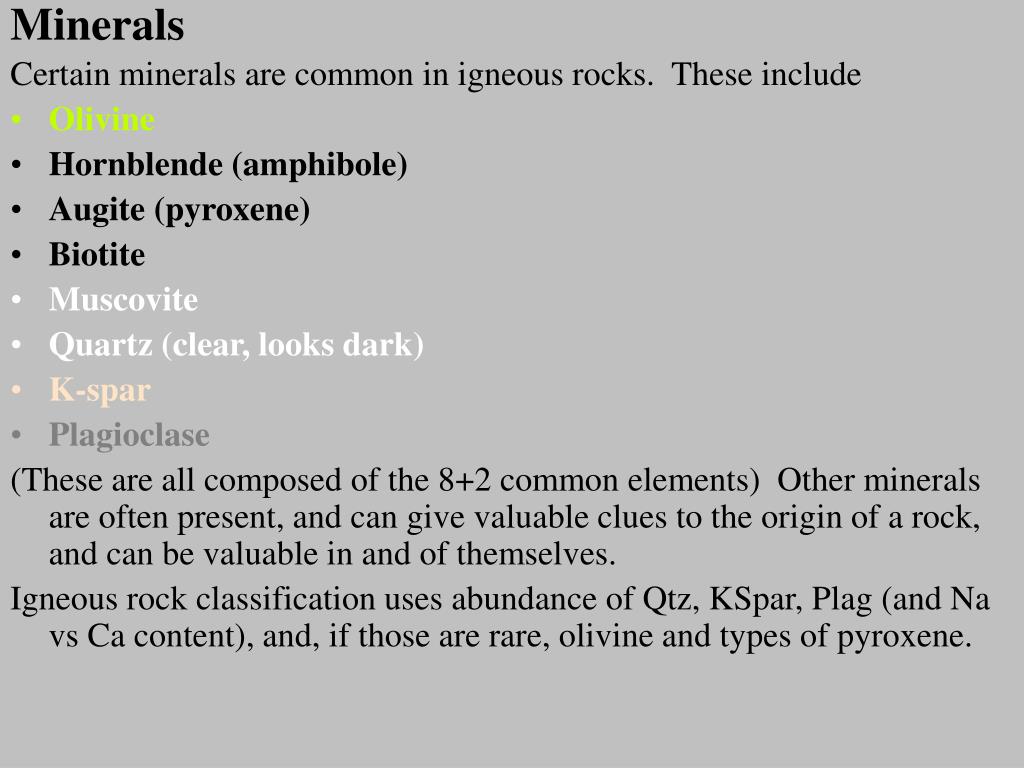

Certain minerals are common in igneous rocks. These include

  • Olivine

  • Hornblende (amphibole)

  • Augite (pyroxene)

  • Biotite

  • Muscovite

  • Quartz (clear, looks dark)

  • K-spar

  • Plagioclase

    (These are all composed of the 8+2 common elements) Other minerals are often present, and can give valuable clues to the origin of a rock, and can be valuable in and of themselves.

    Igneous rock classification uses abundance of Qtz, KSpar, Plag (and Na vs Ca content), and, if those are rare, olivine and types of pyroxene.


Minerals1

Minerals

Certain minerals are common in igneous rocks. These include

  • Olivine

  • Hornblende (amphibole)

  • Augite (pyroxene)

  • Biotite

  • Muscovite

  • Quartz

  • K-spar

  • Plagioclase

    (These are all composed of the 8+2 common elements) Other minerals are often present, and can give valuable clues to the origin of a rock, and can be valuable in and of themselves.

    Igneous rock classification uses abundance of Qtz, KSpar, Plag (and Na vs Ca content), and, if those are rare, olivine and types of pyroxene.


Minerals2

Minerals

  • Mafics=Ferromagnesian contain Fe and Mg and are black and green.

    • Olivine

    • Pyroxene

    • Hornblende

    • Biotite

  • Felsics= Sialiccontain Silica and Alumina and are generally white/light colored

    • Quartz

    • Muscovite

    • Feldspars

      • Plagioclase (CaAl, NaSi) AlSi2O8is a solid solution between two endmembers anorthite CaAl2Si2O8 and albite NaAlSi3O8

      • Potassium feldspar K-spar KAlSi3O8 includes three polymorphs (orthoclase, sanidine, microcline) and can incorporate sodium into its crystal structure at high temperatures

        • Alkali Feldspar (K,Na)AlSi3O8 is a solid solution between KSpar and Albite and is common in felsic rocks.

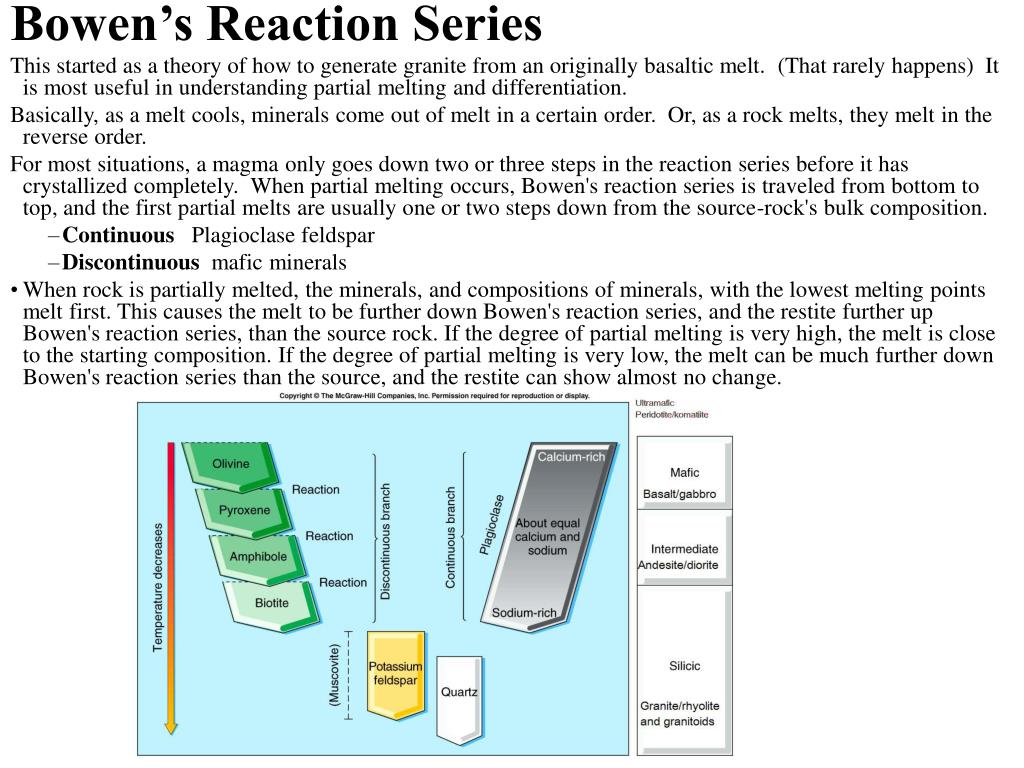

Bowen s reaction series

Bowen’s Reaction Series

This started as a theory of how to generate granite from an originally basaltic melt. (That rarely happens) It is most useful in understanding partial melting and differentiation.

Basically, as a melt cools, minerals come out of melt in a certain order. Or, as a rock melts, they melt in the reverse order.

For most situations, a magma only goes down two or three steps in the reaction series before it has crystallized completely. When partial melting occurs, Bowen's reaction series is traveled from bottom to top, and the first partial melts are usually one or two steps down from the source-rock's bulk composition.

  • Continuous Plagioclase feldspar

  • Discontinuous mafic minerals

  • When rock is partially melted, the minerals, and compositions of minerals, with the lowest melting points melt first. This causes the melt to be further down Bowen's reaction series, and the restite further up Bowen's reaction series, than the source rock. If the degree of partial melting is very high, the melt is close to the starting composition. If the degree of partial melting is very low, the melt can be much further down Bowen's reaction series than the source, and the restite can show almost no change.

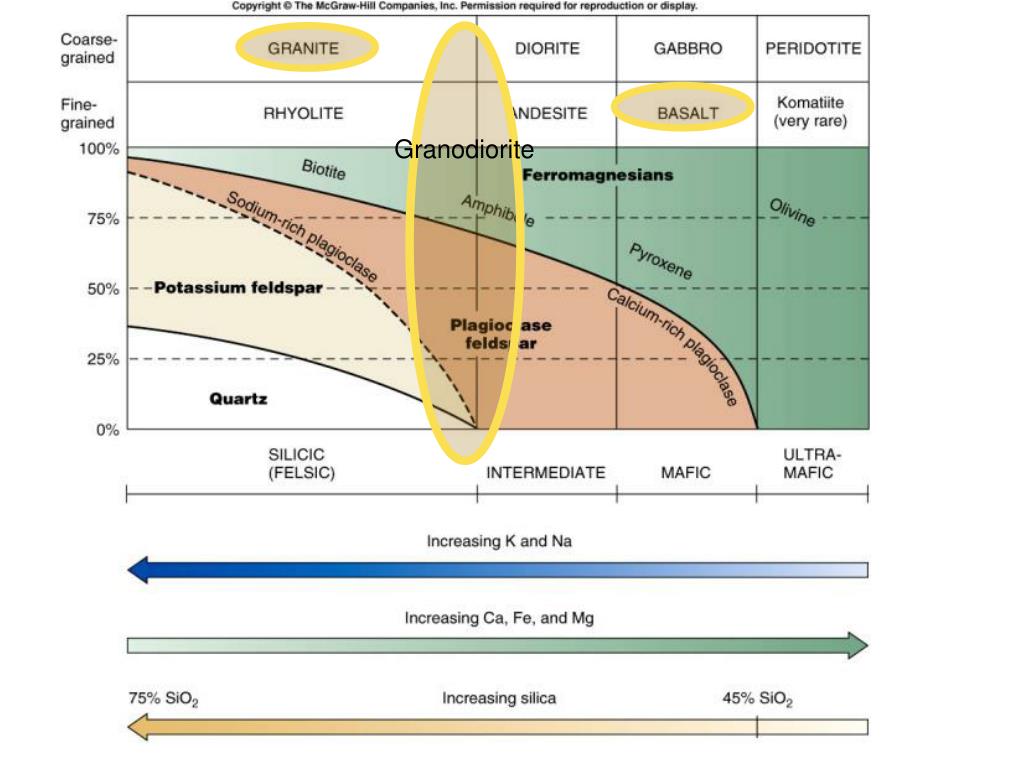

  • Types of igneous rocks

    Types of igneous rocks

    Igneous rocks are mostly classified on texture (crystal size) and composition (minerals)

    • The textures glassy, scoriaceous, pumaceous, and tuffaceous override composition, and the rocks obsidian, scoria, pumice, and tuff are based entirely on texture.

    • For phaneritic rocks, classification depends on abundances of essential minerals (quartz, plagioclase, K-spar, and total mafics, or types of mafics if total mafics > 90%), and is aided by accessory minerals (mafics, muscovite…),

    • For aphanitic rocks, classification uses observed minerals and overall color (and laboratory analysis)

    • This is a simplified classification scheme. A more comprehensive scheme is found at http://www.geol.lsu.edu/henry/Geology3041/lectures/02IgneousClassify/IUGS-IgneousClassFlowChart.htm


    Igneous rocks

    Granodiorite

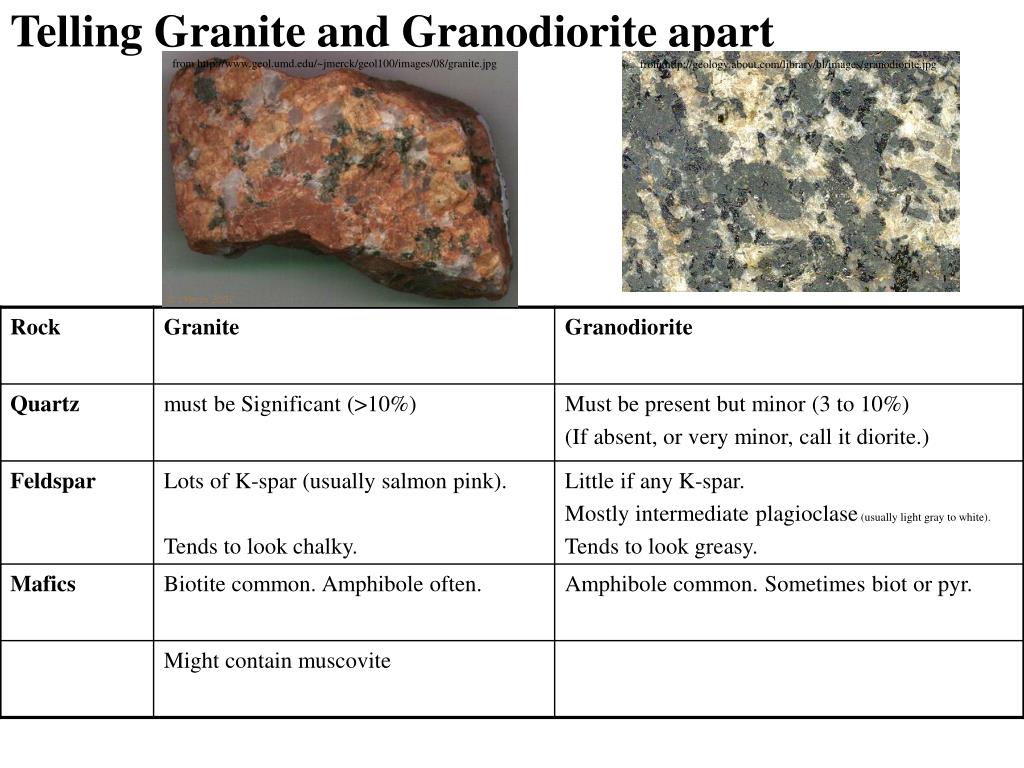

    Telling granite and granodiorite apart

    Telling Granite and Granodiorite apart

    from http://www.geol.umd.edu/~jmerck/geol100/images/08/granite.jpg

    from http://geology.about.com/library/bl/images/granodiorite.jpg


    Caveat emptor

    Caveat Emptor

    • In the building industry, any phaneritic rock might be called "granite". A "granite" countertop might be made from granite, granodiorite, diorite, or even gabbro.

    • Granite (senso stricto, or at least senso geologico) or granodiorite MIGHT, depending on the source, contain uranium or lead. (More on this when we talk about ex-solution and ores.) Think about this when selecting cooking utensils and surfaces.

    • Granite has a very specific definition. There are a lot of granite-like rocks that nearly meet the definition of granite and are called granitoids. (For example, a sample might have too little quartz to be a true granite, so we'd call it a granitoid.) The composition can vary in a deposit, so we are sometimes lax with our rock terms.


    Summary of igneous rocks

    Summary of Igneous Rocks

    • Igneous rocks formed from molten rock. Igneous rocks are characterized by an interlocking crystalline texture without preferred orientations. Igneous rocks are classified according to their texture and composition. The composition tells where the source magma came from, the texture tells how it cooled.

    • A few compositions of igneous rock are rather common, and most possible compositions are fairly rare.

    • The textures pumaceous, scoriaceous, tuffaceous, and glassy immediately determine rock name.

    • For phaneritic rocks, you need to determine the mineralogy and use that to find a rock name. For aphanitic rocks, you determine mineralogy of the phenocrysts and overall rock color, and use those to determine a rock name.

    • The classification scheme used in this class is a greatly-simplified taxonomy.

    • A more comprehensive scheme can be found at http://www.geol.lsu.edu/henry/Geology3041/lectures/02IgneousClassify/IUGS-IgneousClassFlowChart.htm
