  1. Cardiac Catheterisation Lancashire & South Cumbria Cardiac Network

  2. Involves the introduction of hollow shaped plastic tubes into the chambers of the heart and surrounding vessels • Under x-ray control • Aim – to diagnose & treat heart disease

  3. Procedures • Angiography – injection radio-opaque dye to establish blood flow, contractility and establish anatomical stenosis and abnormalities • Intra-cardiac pressure recordings – to establish pressure status within individual chambers/vessels • Oximetry – to establish level of oxygen saturation across chambers/vessels • Cardiac output measurements – to establish cardiac output and calculation of shunts and vascular resistances

  4. Techniques - LHC • Sones • Brachial artery ‘cut-down’ • Bed rest not required • Judkins • Seldinger method • Vessel/nerve damage less likely • Femoral or radial

  5. Technicians Role • What are the common duties carried out by the technician for diagnostic/intervention procedures within the catheter laboratory?

  6. Catheter definitions • Catheter • French size • Lumen • Length • Guide wire • Bolus • Flow • Radio-opaque • Radio-translucent

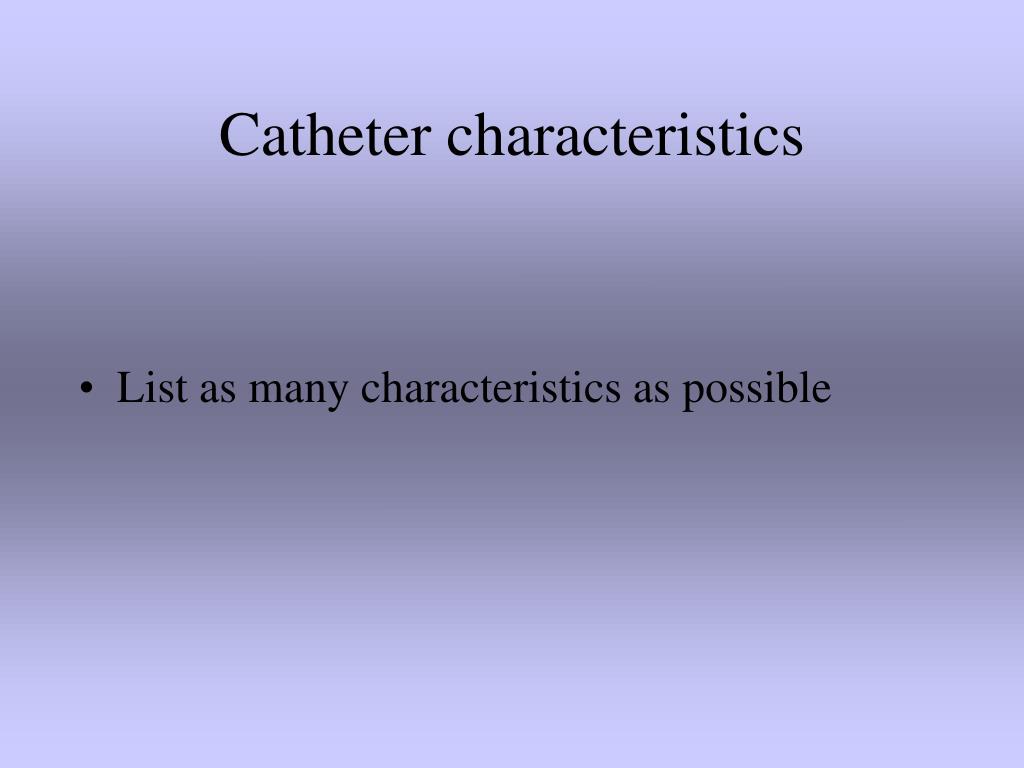

  7. Catheter characteristics • List as many characteristics as possible

  8. Instrumentation system • Catheter • Pressure line • Transducer • Pressure monitoring system

  9. System criteria • Stability • Sensitivity • Adequate frequency response

  10. Pressure line & transducer kit • Heparinised 0.9% saline • Maintain sterility • fluid filled – air free • Zero & calibration • Prevents backflow of blood

  11. Transducer • Mechanical to electrical • Strain gauge – wheatstone bridge technology • Strain defined as fractional change in length RESISTANCE  LENGTH

  12. Pressure Vent to air

  13. Electrical circuit R1 R3 R4 R2 V Resistances are equal – no current flows R1 & R2  and R3 & R4  - current flows

  14. Arrangement of the equipment • Name as many reference points as possible

  15. Pressure ranges • Left sided pressures what range? • Right sided pressures what range?

  16. calibration • Ensure scale and linked sensitivity is correct calibration zero INCORRECT ADJUSTED

  17. Damping • Reduction in amplitude & frequency of pressure waveform UNDERDAMPED OVERDAMPED CORRECT

  18. Causes of Damping • List the reasons for damping during cardiac catheterisation • (1) • (2) • (3)

  19. Overshoot & Sensitivity • Caused by compliance characteristics of the pressure system • Inclusion of ROSE will eliminate overshoot • ROSE ?
