Water pollution sources 1 point sources

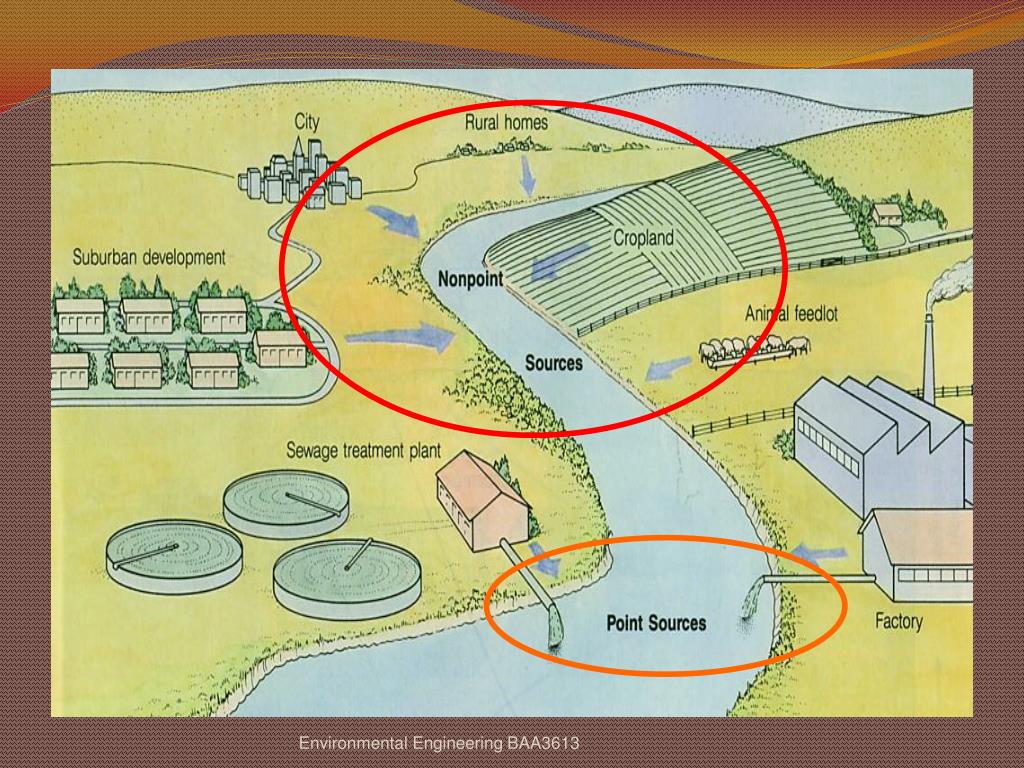

Water Pollution Sources

1. Point Sources

Wastewater that are discharged from known sources at an identifiable point. Point source pollution can be reduced or eliminated through proper wastewater treatment prior to discharge.

2. Non-point Sources

Non-point sources are characterized by multiple discharge points (eg. urban & agricultural runoff). Much of the non-point sources pollution occurs during rain storms. Reduction of non-point source pollution generally requires changes in land use practices.

Environmental Engineering BAA3613


Water pollution sources 1 point sources

Environmental Engineering BAA3613


Clean rivers

Clean Rivers

Environmental Engineering


Data from world water commision

Data from World Water Commision

  • 1.4 billion people live without clean drinking water

  • 7 million people die yearly from disease link to water

  • Half of world’s rivers and lakes are badly polluted.

  • 450 million people in 29 countries facing water shortage

  • By 2025, 2.5 billion people will face water shortage

Environmental Engineering


Condition of rivers

Condition of rivers

Environmental Engineering


Water pollution sources 1 point sources

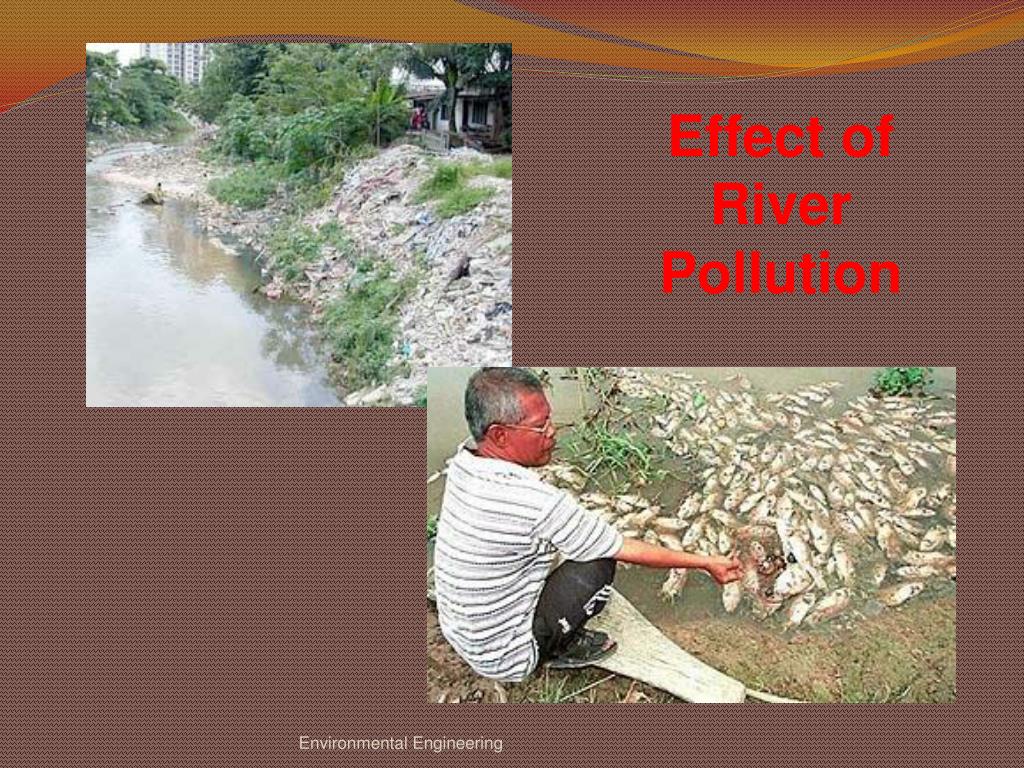

Effect of River Pollution

Environmental Engineering


Water pollution sources 1 point sources

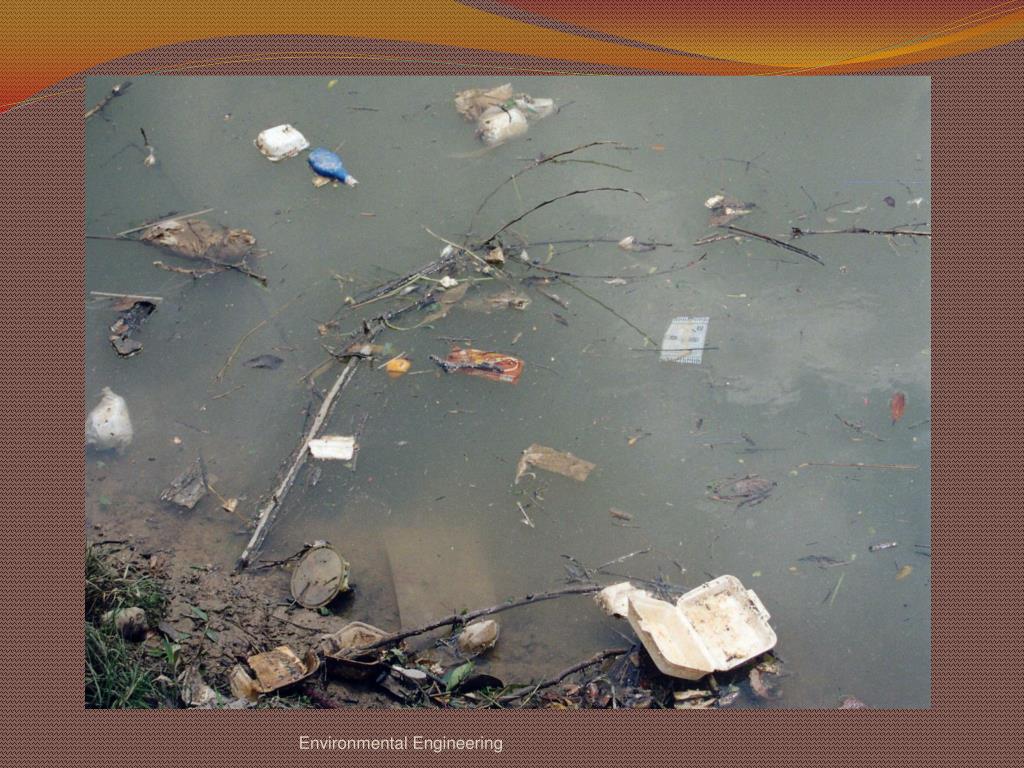

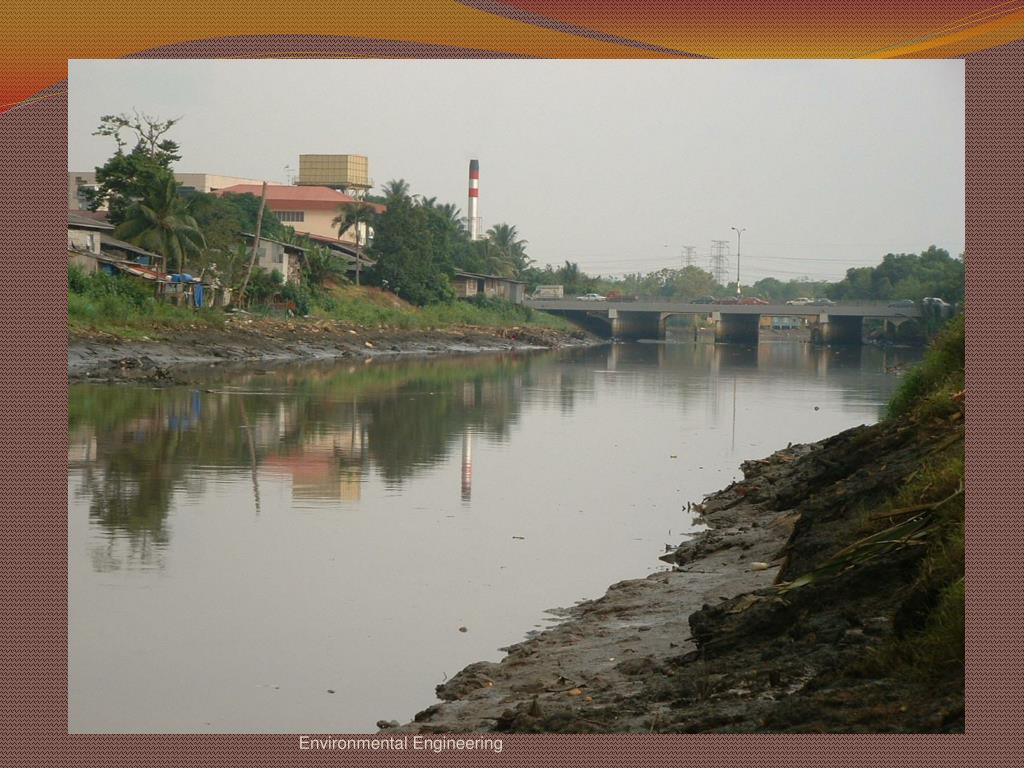

Polluted Rivers

Environmental Engineering


Water pollution sources 1 point sources

Environmental Engineering


Water pollution sources 1 point sources

Environmental Engineering


Water pollution sources 1 point sources

MAP

Environmental Engineering


Water source and demand

Water Source and Demand

  • 90% of water supply in Malaysia comes from rivers, streams and reservoirs.

  • Growing demand of water ( population growth and rapid development)

  • Per capita availability of water is decreasing due to river pollution

Environmental Engineering


Water quality index

WATER QUALITY INDEX

Environmental Engineering


Water pollution

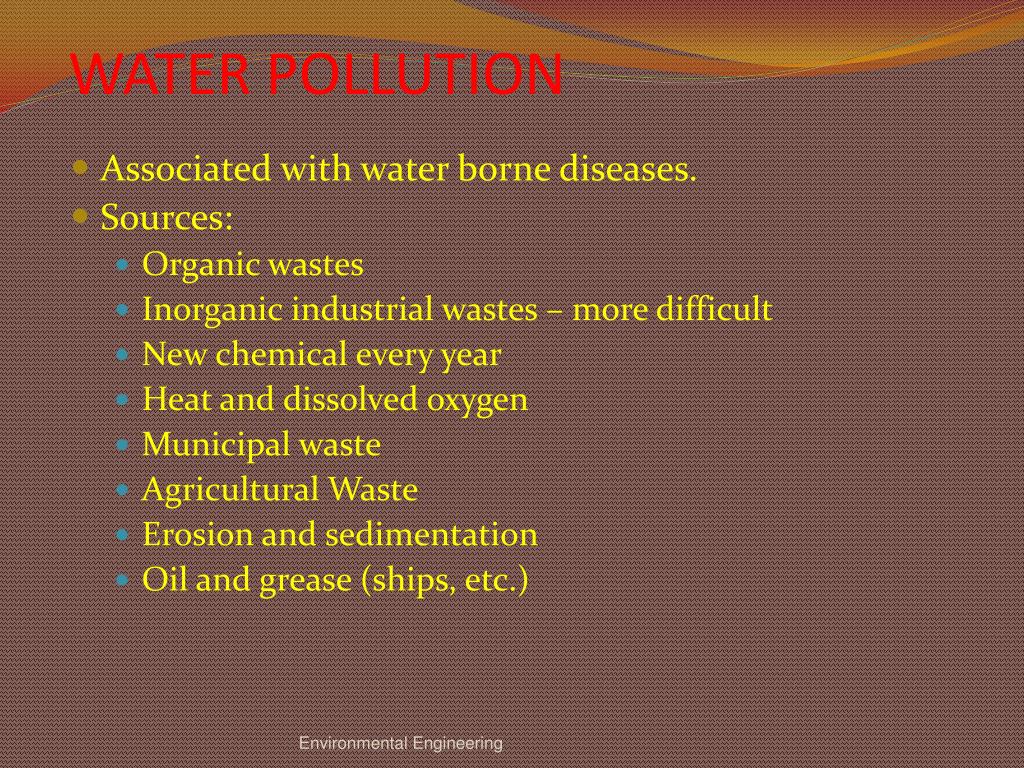

WATER POLLUTION

  • Associated with water borne diseases.

  • Sources:

    • Organic wastes

    • Inorganic industrial wastes – more difficult

    • New chemical every year

    • Heat and dissolved oxygen

    • Municipal waste

    • Agricultural Waste

    • Erosion and sedimentation

    • Oil and grease (ships, etc.)

Environmental Engineering


Malaysia

MALAYSIA

  • Rich in water resources

  • Rainfall – 3,000 mm/ yr.

  • 98 % water use – rivers and streams

  • Others – groundwater (but 90% - freshwater res.)

  • Annual average availability - 28,400 m3 per capita.

  • > 150 rivers in Malaysia

  • Usage – 5 billion m3 (domestic and industry)

  • Total – 25 billion m3 (storage) in dams.

  • Future: National water vision(2025)– Integrated Water Resources Mngt. (IWRM) – policies, various aspects of socio-economic dev. /conservation of the environment.

Environmental Engineering

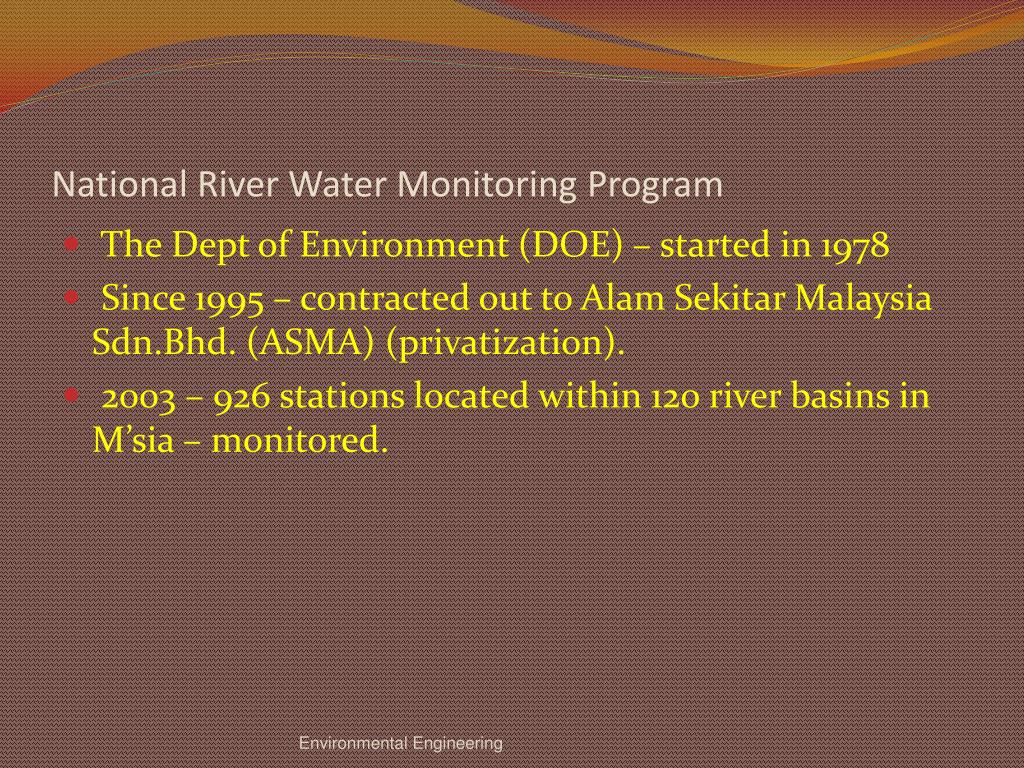

National river water monitoring program

National River Water Monitoring Program

  • The Dept of Environment (DOE) – started in 1978

  • Since 1995 – contracted out to Alam Sekitar Malaysia Sdn.Bhd. (ASMA) (privatization).

  • 2003 – 926 stations located within 120 river basins in M’sia – monitored.

Environmental Engineering


Cases

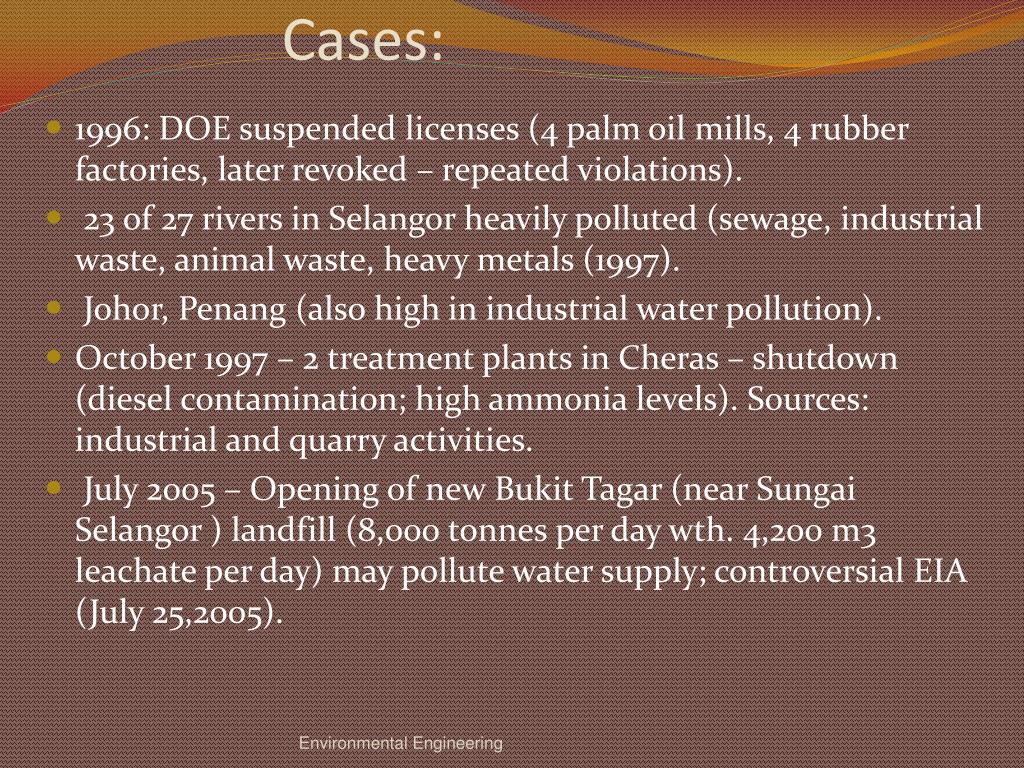

Cases:

  • 1996: DOE suspended licenses (4 palm oil mills, 4 rubber factories, later revoked – repeated violations).

  • 23 of 27 rivers in Selangor heavily polluted (sewage, industrial waste, animal waste, heavy metals (1997).

  • Johor, Penang (also high in industrial water pollution).

  • October 1997 – 2 treatment plants in Cheras – shutdown (diesel contamination; high ammonia levels). Sources: industrial and quarry activities.

  • July 2005 – Opening of new Bukit Tagar (near Sungai Selangor ) landfill (8,000 tonnes per day wth. 4,200 m3 leachate per day) may pollute water supply; controversial EIA (July 25,2005).

Environmental Engineering

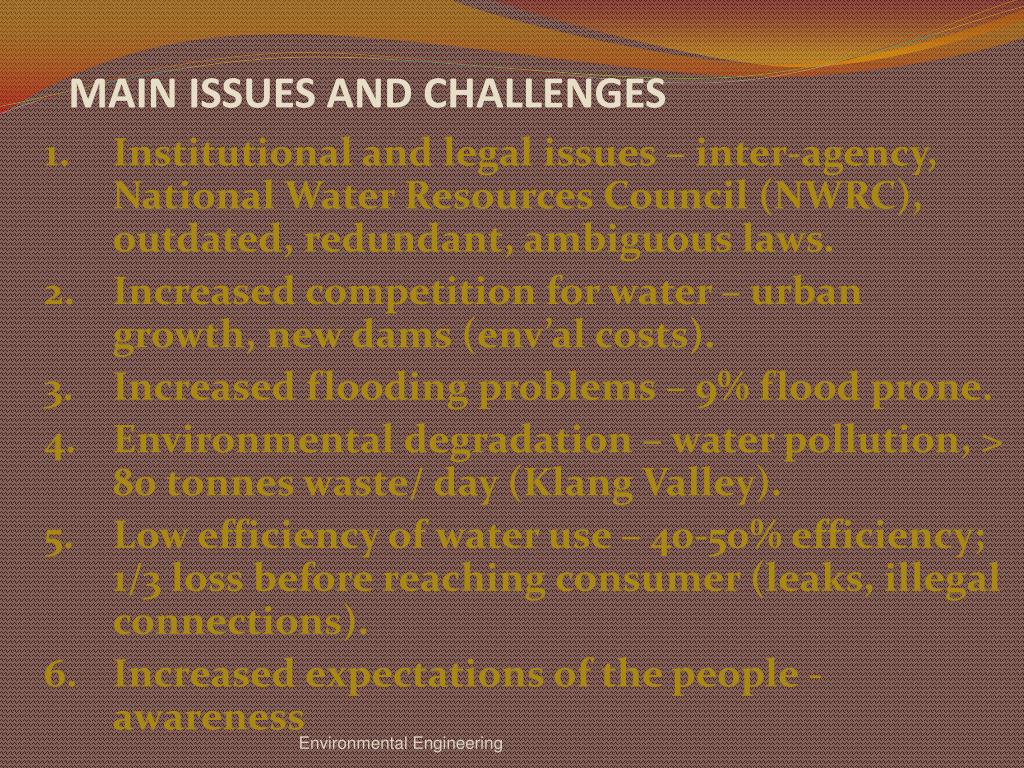

Main issues and challenges

MAIN ISSUES AND CHALLENGES

  • Institutional and legal issues – inter-agency, National Water Resources Council (NWRC), outdated, redundant, ambiguous laws.

  • Increased competition for water – urban growth, new dams (env’al costs).

  • Increased flooding problems – 9% flood prone.

  • Environmental degradation – water pollution, > 80 tonnes waste/ day (Klang Valley).

  • Low efficiency of water use – 40-50% efficiency; 1/3 loss before reaching consumer (leaks, illegal connections).

  • Increased expectations of the people - awareness

Environmental Engineering


Water pollution sources 1 point sources

Common Water Uses

  • Drinking

  • Cooking

  • Washing

  • Agriculture

  • Aquaculture

  • Power generation

  • Transportation

  • Recreational

  • Aesthetic

Environmental Engineering

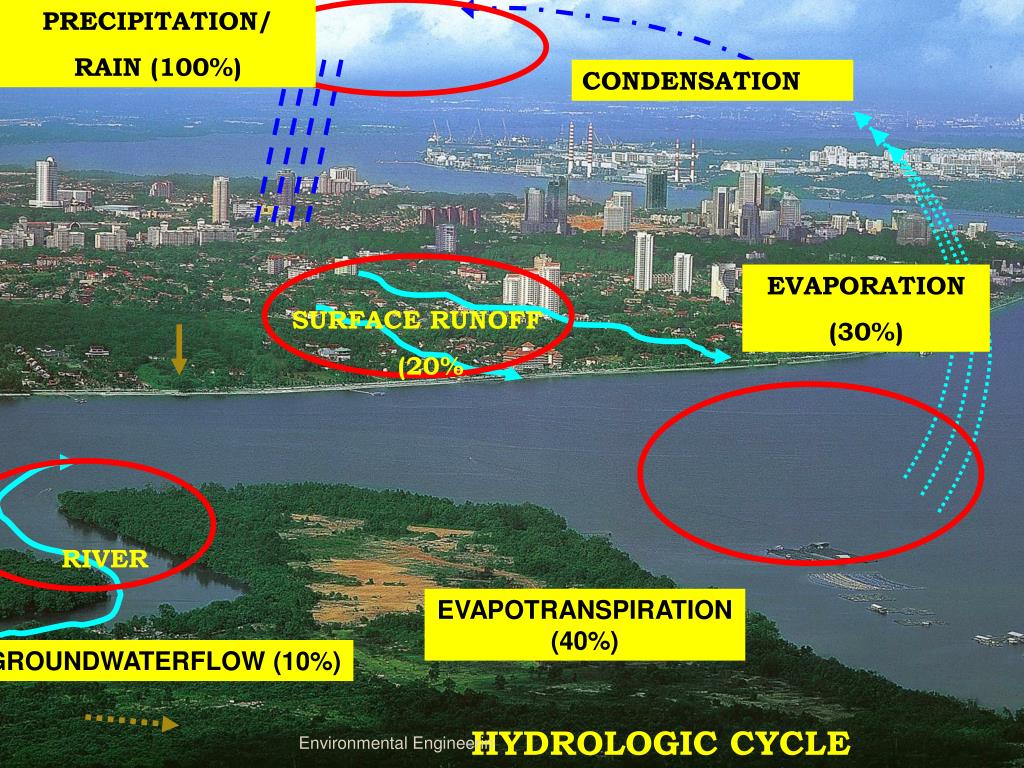

Percolation 50

PRECIPITATION/

RAIN (100%)

CONDENSATION

EVAPORATION

(30%)

SURFACERUNOFF

(20%

PERCOLATION

(50%)

RIVER

EVAPOTRANSPIRATION

(40%)

GROUNDWATERFLOW (10%)

Environmental Engineerin

HYDROLOGIC CYCLE


Lake pollution

Lake Pollution

  • Differs from river/stream pollution due to physical characteristics of the water mass.

  • Water in streams/rivers is constantly moving thus providing a flushing action for incoming pollutants.

  • However, in lakes, the water does not move very much and is retained for a relatively long period of time.

  • In some cases pollutants discharged into lakes can remain there for many years.

  • Water quality in lakes is largely influenced by the presence of nutrients.

Environmental Engineering


Eutrophication

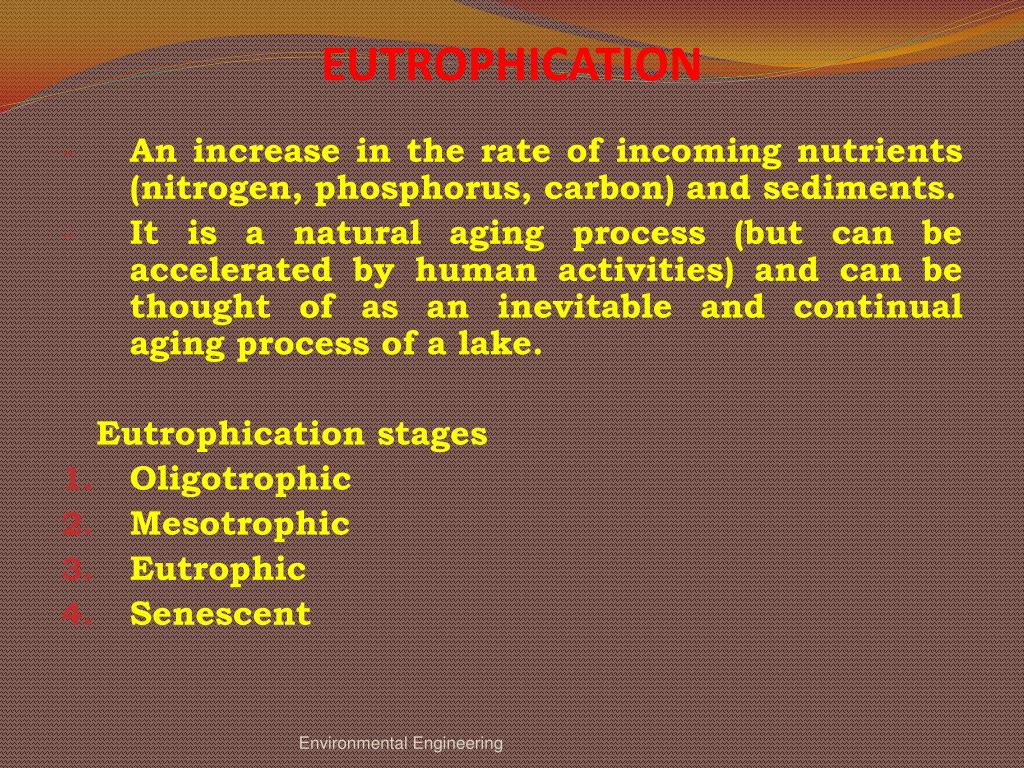

EUTROPHICATION

  • An increase in the rate of incoming nutrients (nitrogen, phosphorus, carbon) and sediments.

  • It is a natural aging process (but can be accelerated by human activities) and can be thought of as an inevitable and continual aging process of a lake.

    Eutrophication stages

  • Oligotrophic

  • Mesotrophic

  • Eutrophic

  • Senescent

Environmental Engineering


Water pollution sources 1 point sources

Nutrients as Algal Growth Requirements

1. Carbon

algae can obtain carbon from CO2 dissolved in the water. The largest source of CO2 is from the atmosphere.

2. Nitrogen

usually in the form of nitrate and comes from external sources.

3. Phosphorus

phosphorus in lakes originates from external sources and is taken up by algae in the organic form.

Environmental Engineering


Water pollution sources 1 point sources

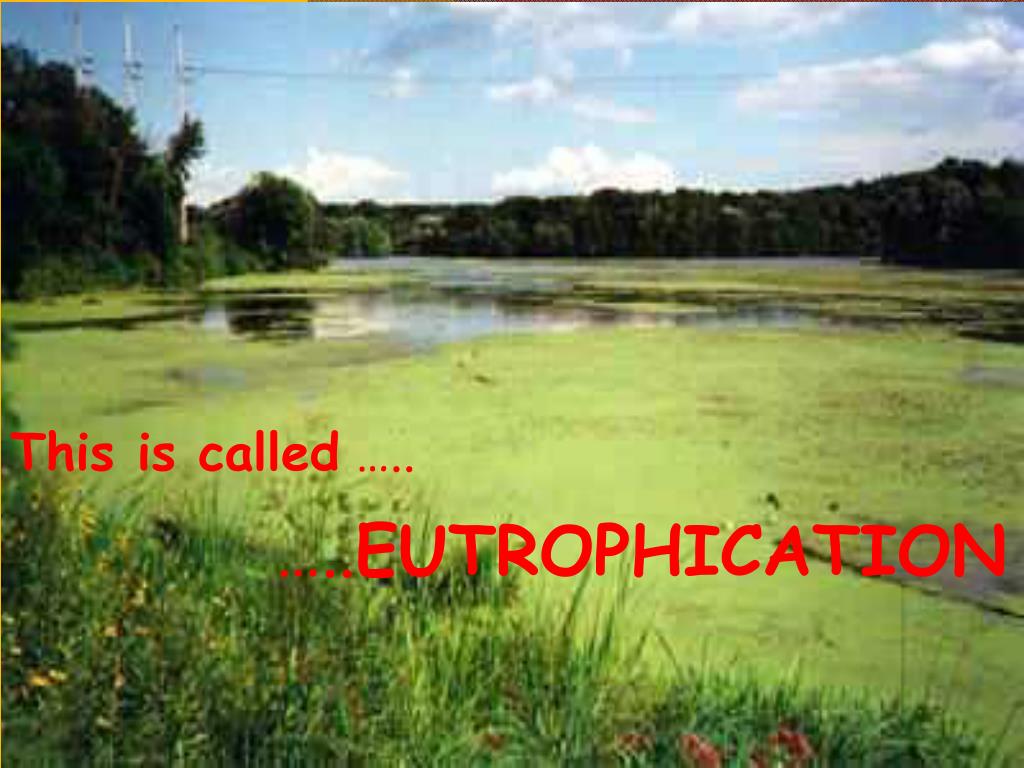

The process of

Eutrophication

This is called …..

…..EUTROPHICATION


Water pollution sources 1 point sources

Eutrophication

Stage 1

Deep, clear, cold nutrient-poor water, with very little aquatic life


Water pollution sources 1 point sources

Oligotrophic

Environmental Engineering


Water pollution sources 1 point sources

Eutrophication

Stage 2

Nutrients and sediment begin to accumulate; increasing populations of aquatic life appear


Water pollution sources 1 point sources

Mesotrophic

Environmental Engineering


Water pollution sources 1 point sources

Eutrophication

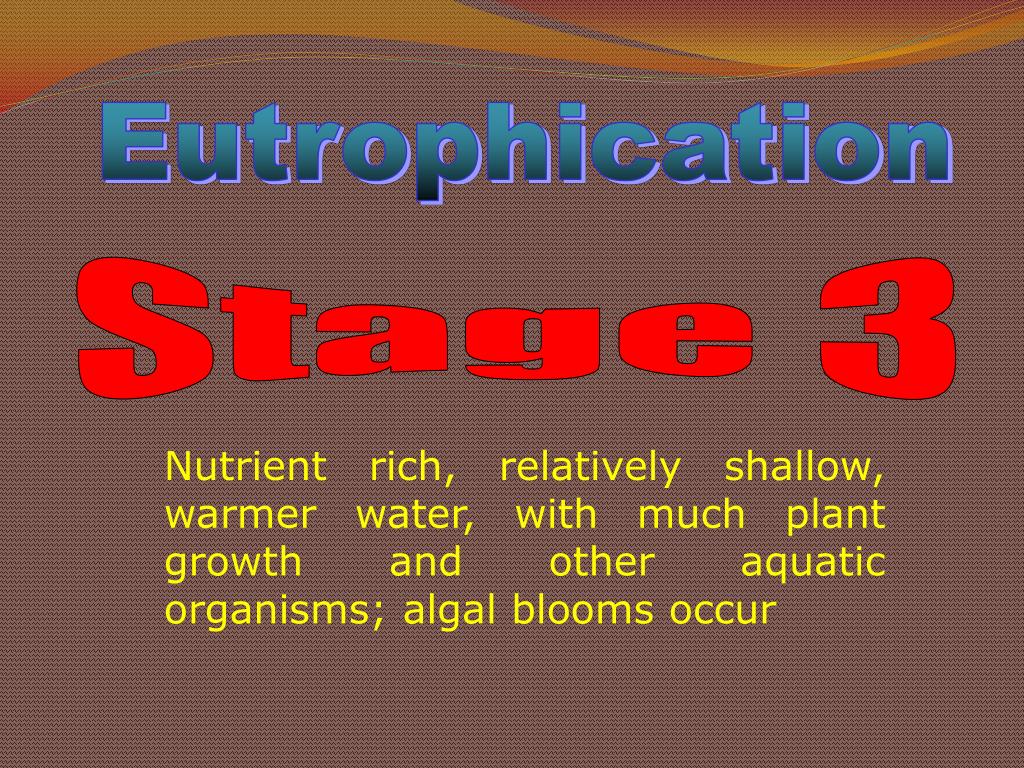

Stage 3

Nutrient rich, relatively shallow, warmer water, with much plant growth and other aquatic organisms; algal blooms occur


Water pollution sources 1 point sources

Eutrophic

Environmental Engineering


Water pollution sources 1 point sources

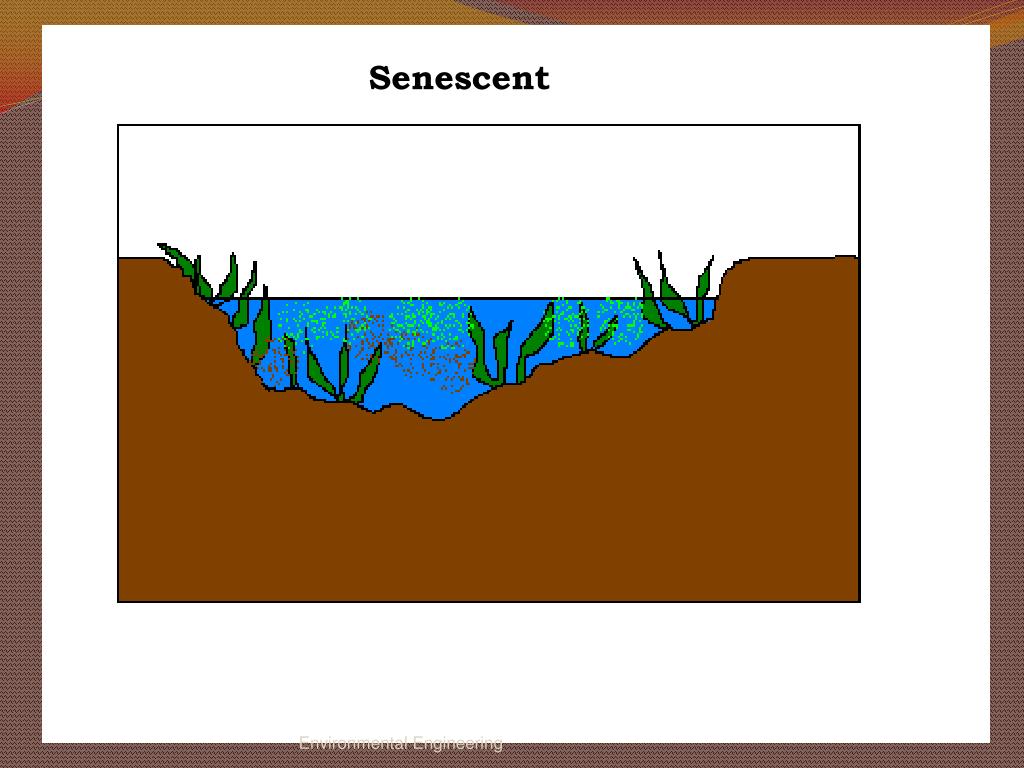

Eutrophication

Stage 4

Oldest stage of a lake; very shallow; overgrown with emerging rooted plant life


Water pollution sources 1 point sources

Senescent

Environmental Engineering


Water pollution sources 1 point sources

BEFORE EUTROPHICATION

AFTEREUTROPHICATION

Eutrophication will kill all animals

and plants in the water


Water pollution sources 1 point sources

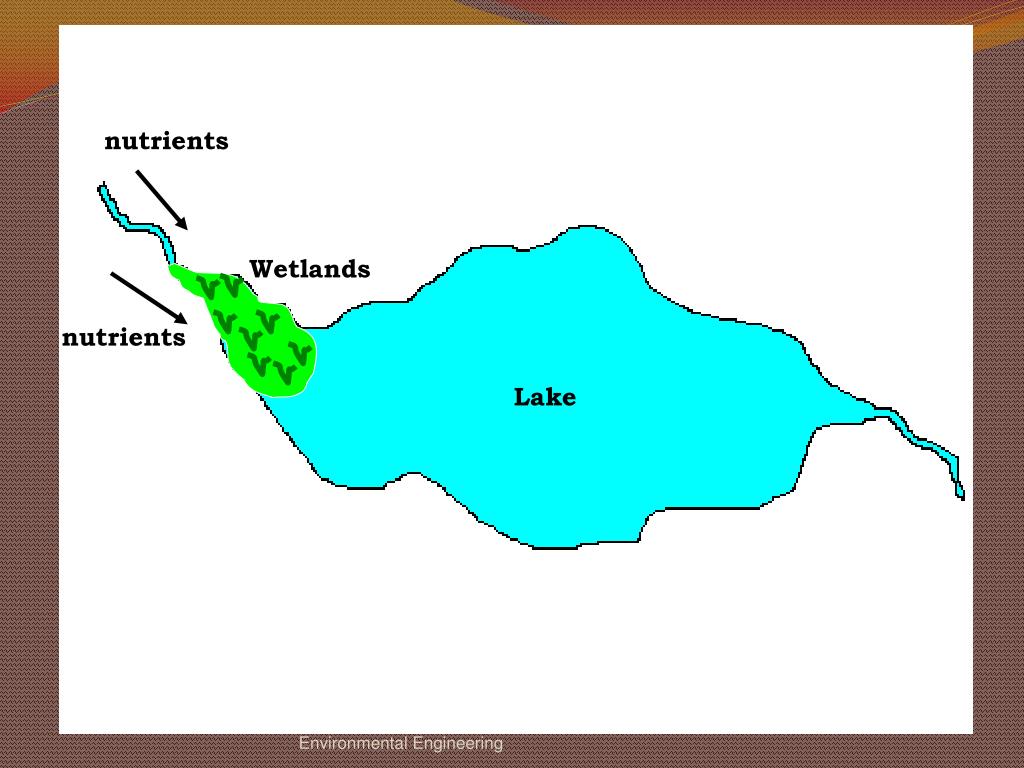

nutrients

Wetlands

nutrients

Lake

Environmental Engineering


Water pollution sources 1 point sources

WETLANDS

(Ramsar Convention 1971)

Areas of marsh, peatland, or water, whether natural or artificial, permanent or temporary, with water that is static or flowing, fresh brackish or salt, including areas of marine water the depth of which at low tide does not exceed 6 meters

(Biological definition)

Transition zone between terrestrial and aquatic environments

Criteria

  • The area must be permanently or seasonally inundated

  • The area must support hydrophytic vegetation

  • Soil in the area must be water logged for a sufficient time to become anaerobic

Environmental Engineering


Water pollution sources 1 point sources

Man made lakes, reservoirs

Man

Highland rivers, headwaters

Oxbow lakes

Lowland rivers

Peat swamp forest

Mangrove forest

Estuaries

Mud flats

Shallow inshore waters

Corals

Environmental Engineering


Water pollution sources 1 point sources

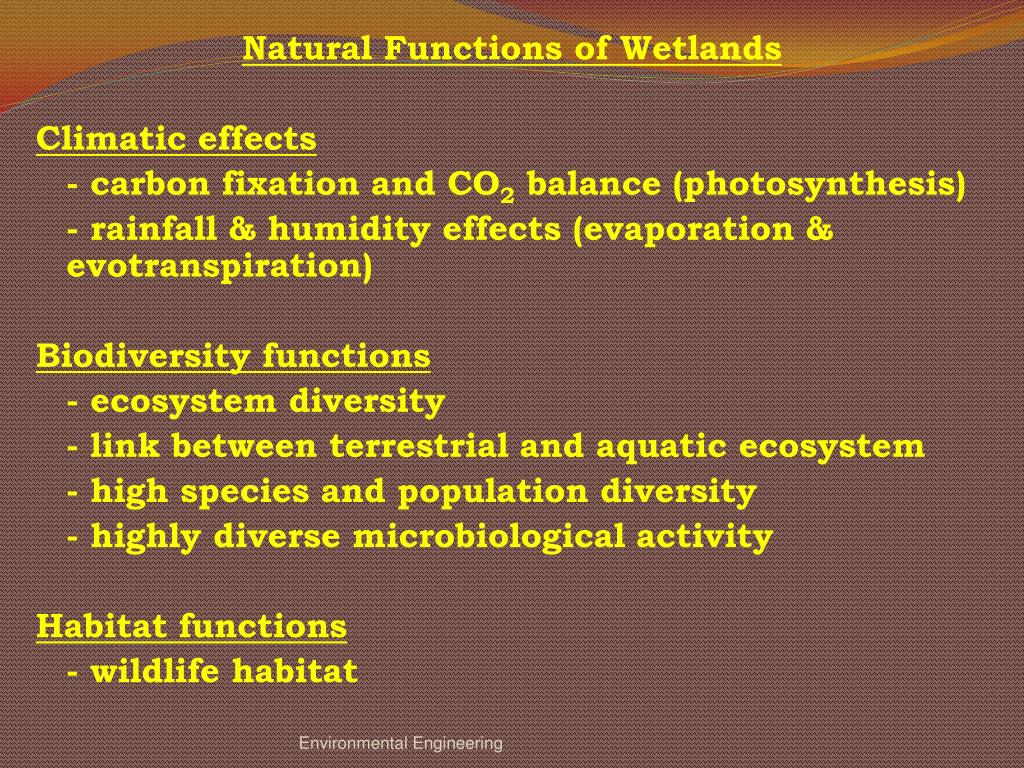

Natural Functions of Wetlands

Climatic effects

- carbon fixation and CO2 balance (photosynthesis)

- rainfall & humidity effects (evaporation & evotranspiration)

Biodiversity functions

- ecosystem diversity

- link between terrestrial and aquatic ecosystem

- high species and population diversity

- highly diverse microbiological activity

Habitat functions

- wildlife habitat

Environmental Engineering


Water pollution sources 1 point sources

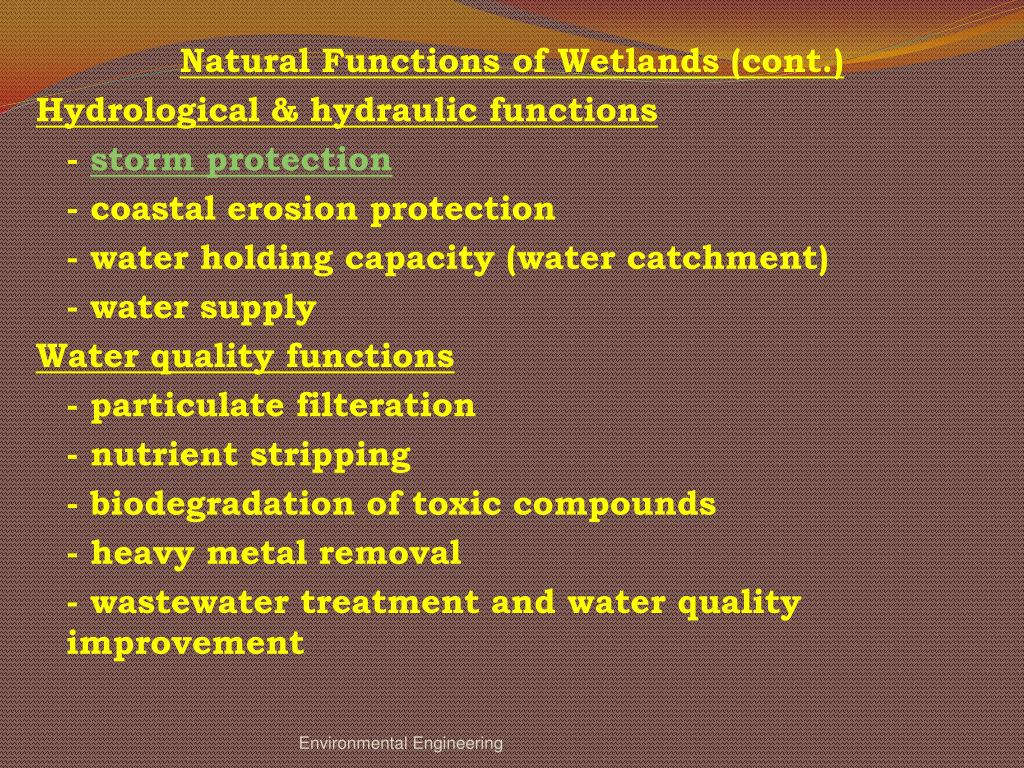

Natural Functions of Wetlands (cont.)

Hydrological & hydraulic functions

- storm protection

- coastal erosion protection

- water holding capacity (water catchment)

- water supply

Water quality functions

- particulate filteration

- nutrient stripping

- biodegradation of toxic compounds

- heavy metal removal

- wastewater treatment and water quality improvement

Environmental Engineering


Water pollution sources 1 point sources

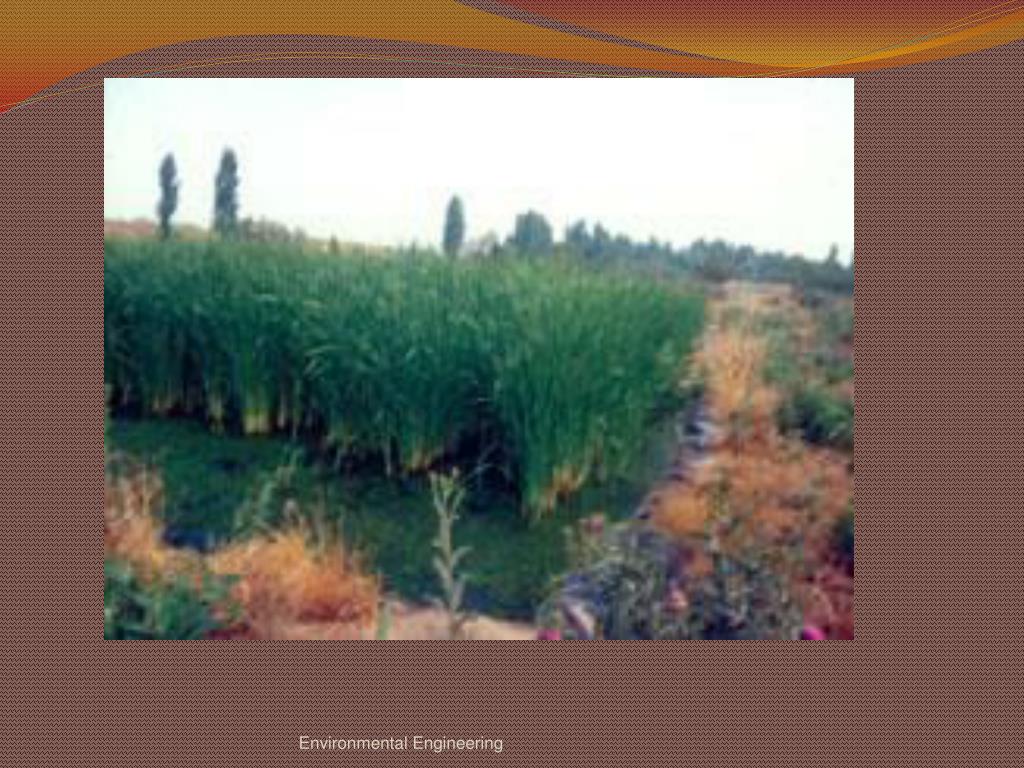

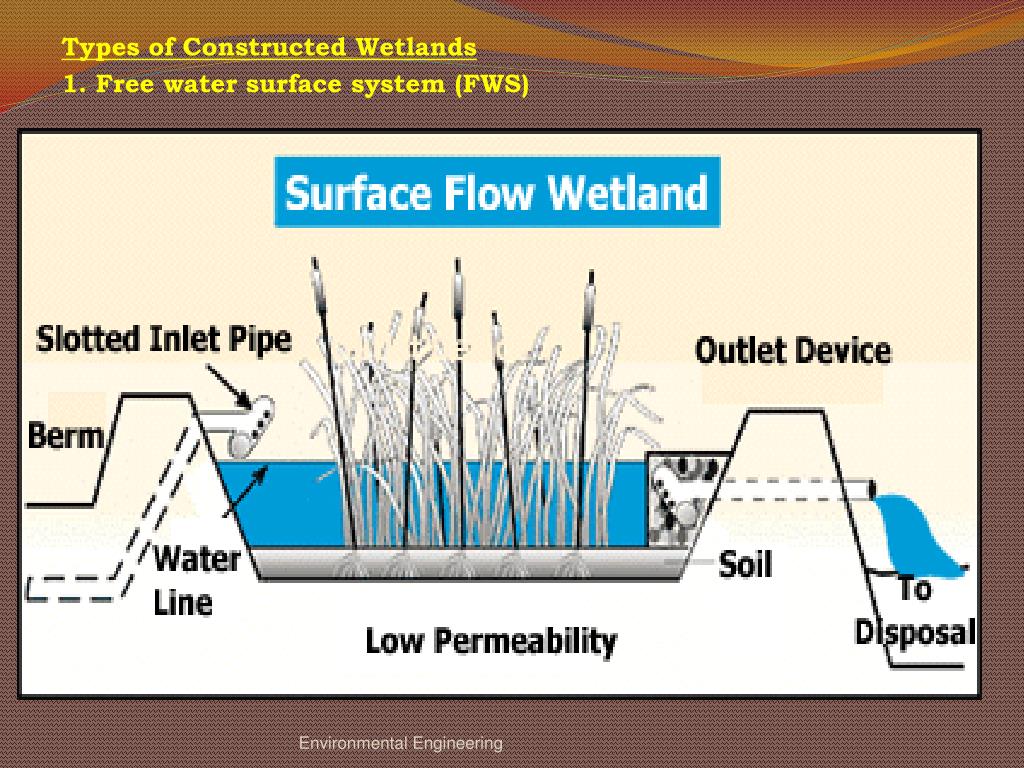

Types of Constructed Wetlands

1. Free water surface system (FWS)

Environmental Engineering


Water pollution sources 1 point sources

Environmental Engineering


Water pollution sources 1 point sources

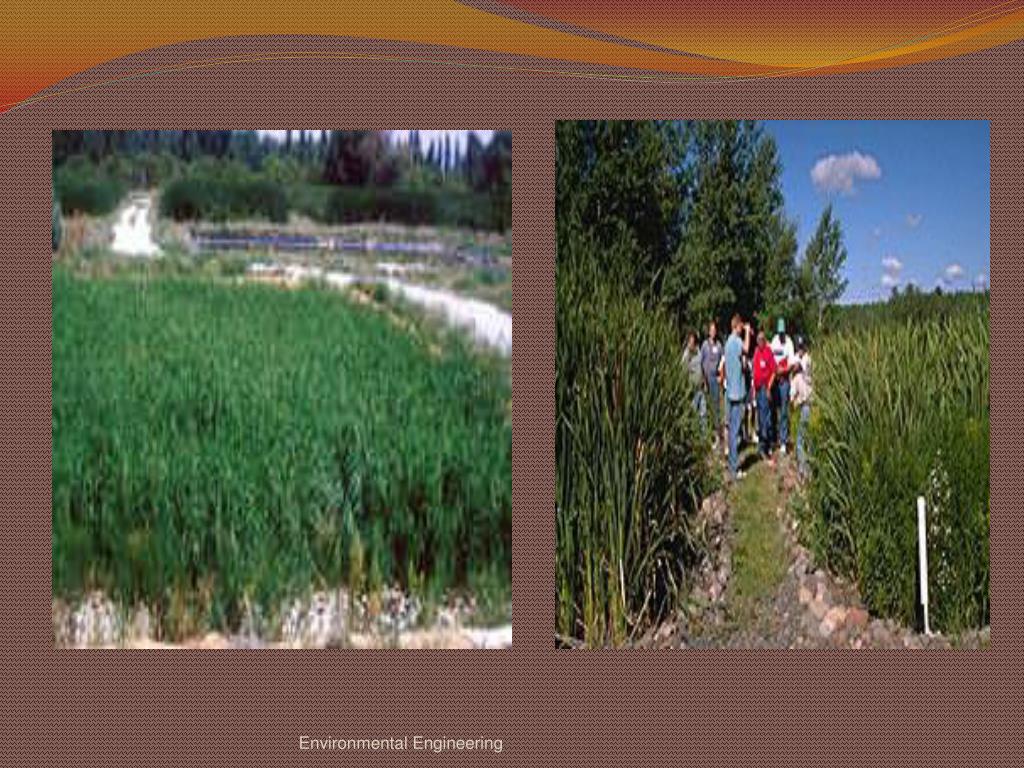

Types of Constructed Wetlands

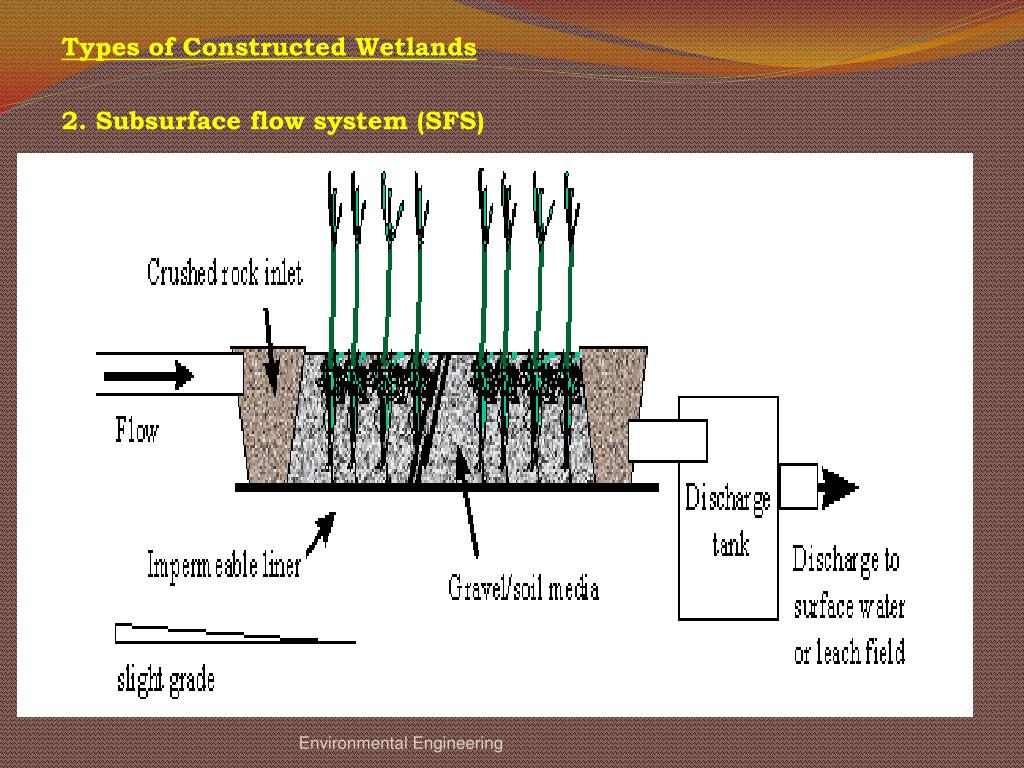

2. Subsurface flow system (SFS)

Environmental Engineering


Water pollution sources 1 point sources

Environmental Engineering


Water pollution sources 1 point sources

Environmental Engineering


Water pollution sources 1 point sources

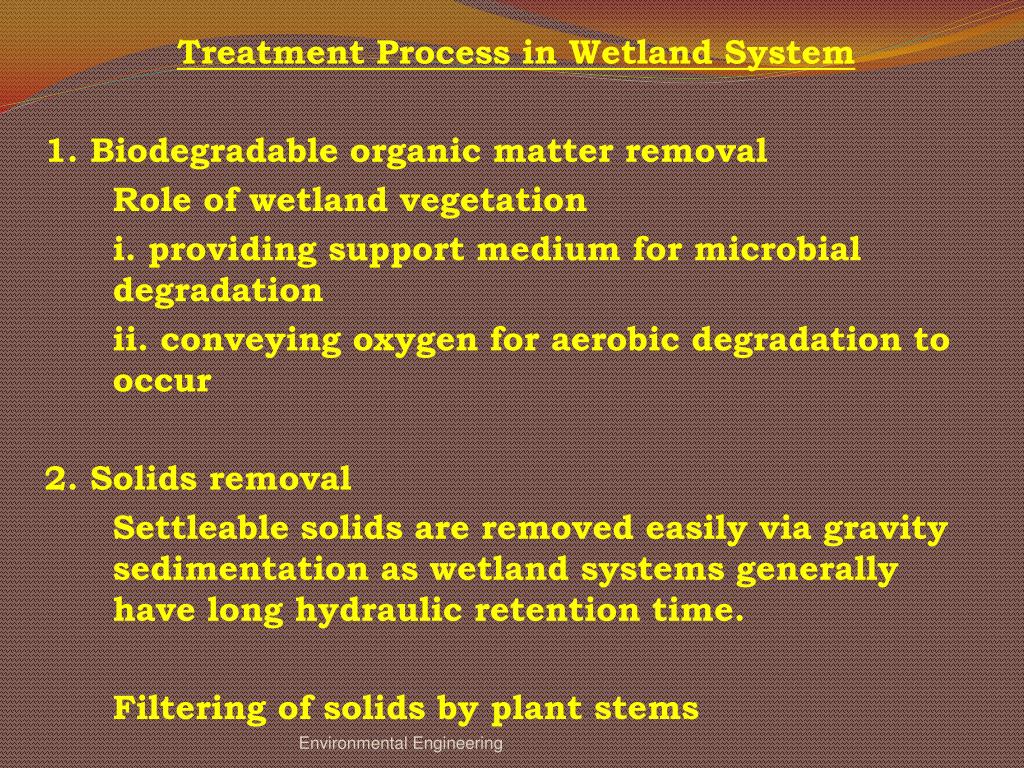

Treatment Process in Wetland System

1. Biodegradable organic matter removal

Role of wetland vegetation

i. providing support medium for microbial degradation

ii. conveying oxygen for aerobic degradation to occur

2. Solids removal

Settleable solids are removed easily via gravity sedimentation as wetland systems generally have long hydraulic retention time.

Filtering of solids by plant stems

Environmental Engineering


Water pollution sources 1 point sources

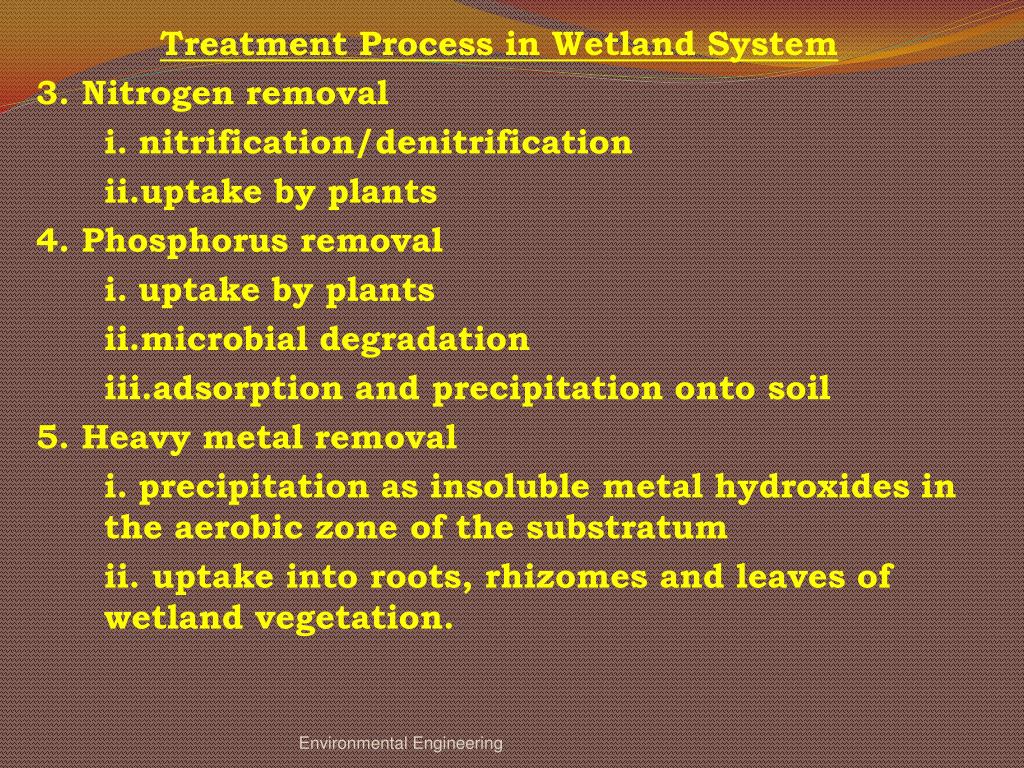

Treatment Process in Wetland System

3. Nitrogen removal

i.nitrification/denitrification

ii.uptake by plants

4. Phosphorus removal

i.uptake by plants

ii.microbial degradation

iii.adsorption and precipitation onto soil

5. Heavy metal removal

i.precipitation as insoluble metal hydroxides in the aerobic zone of the substratum

ii. uptake into roots, rhizomes and leaves of wetland vegetation.

Environmental Engineering
