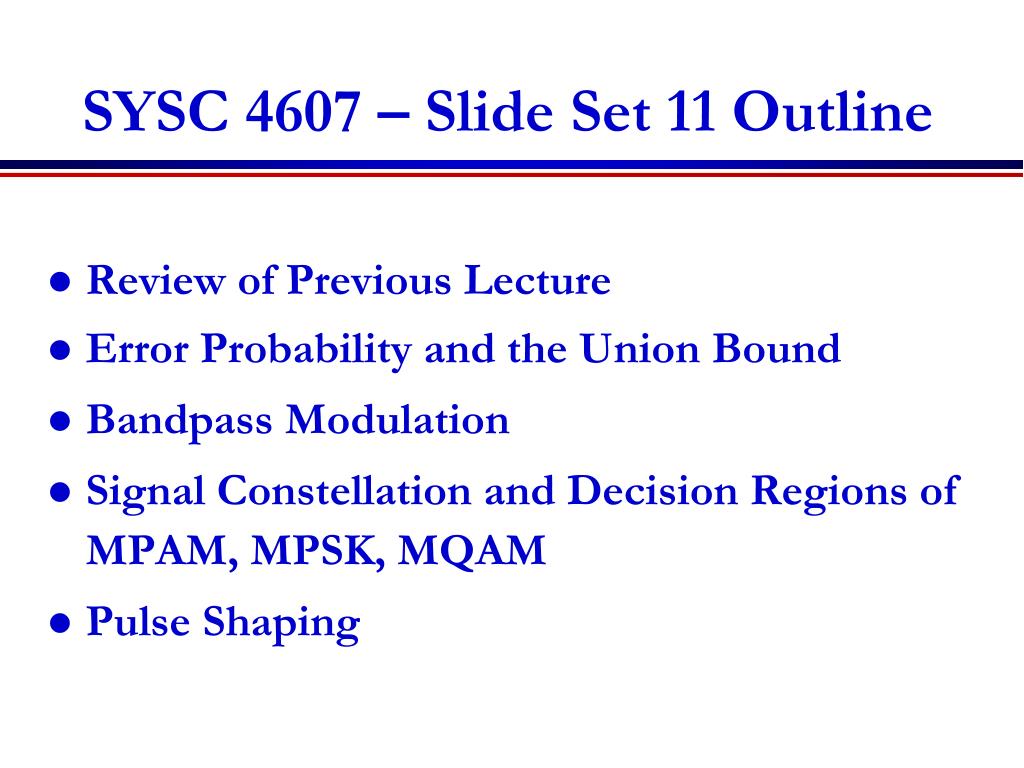

  1. SYSC 4607 – Slide Set 11 Outline • Review of Previous Lecture • Error Probability and the Union Bound • Bandpass Modulation • Signal Constellation and Decision Regions of MPAM, MPSK, MQAM • Pulse Shaping

  2. Review of Previous Lecture • Vector space representation of signals • Receiver Structure and Sufficient Statistics • Optimal Detection

  3. Decision Regions Optimum coherent Detector (Correlation Receiver)

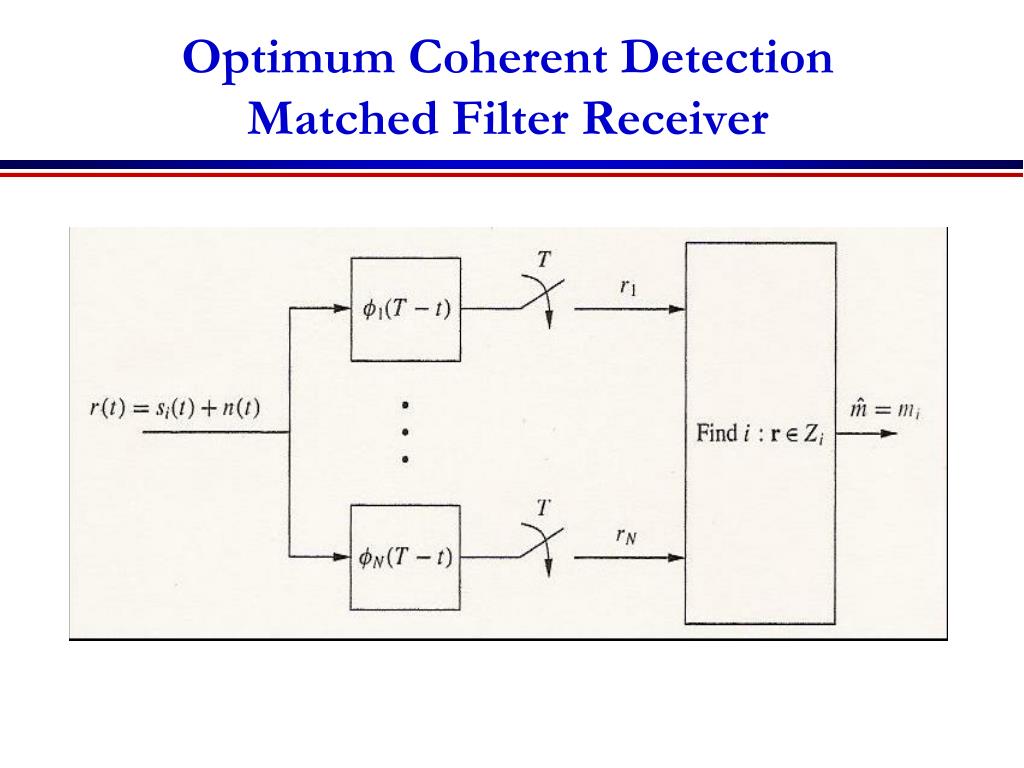

  4. Optimum Coherent DetectionMatched Filter Receiver

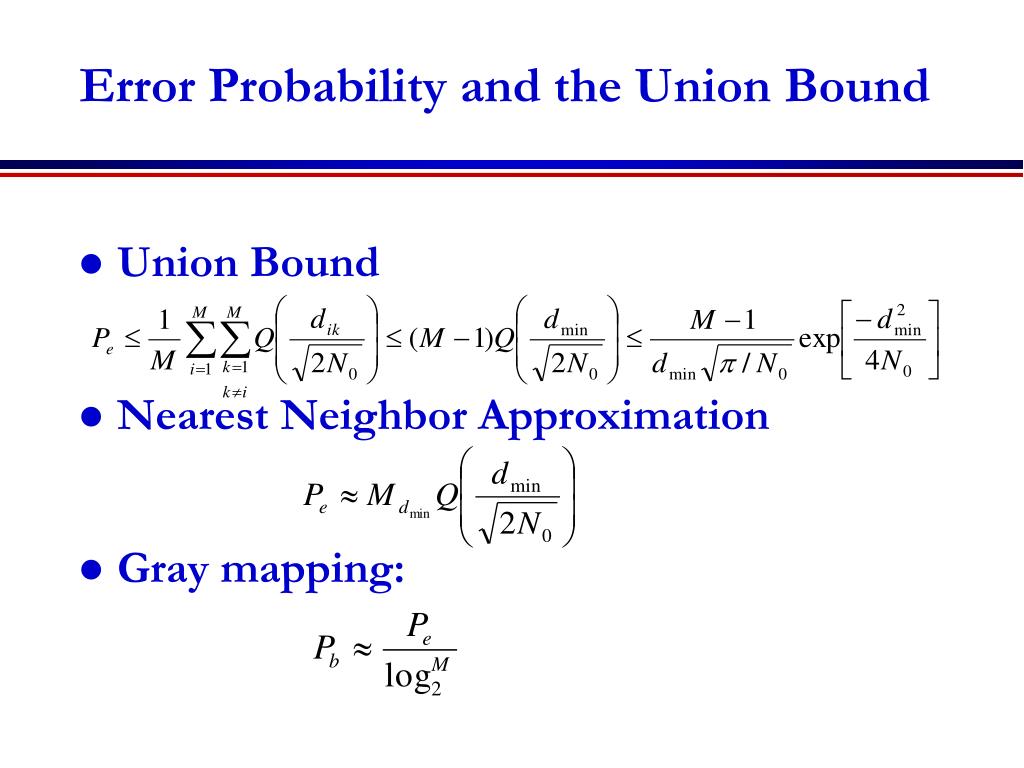

  5. Error Probability and the Union Bound • Union Bound • Nearest Neighbor Approximation • Gray mapping:

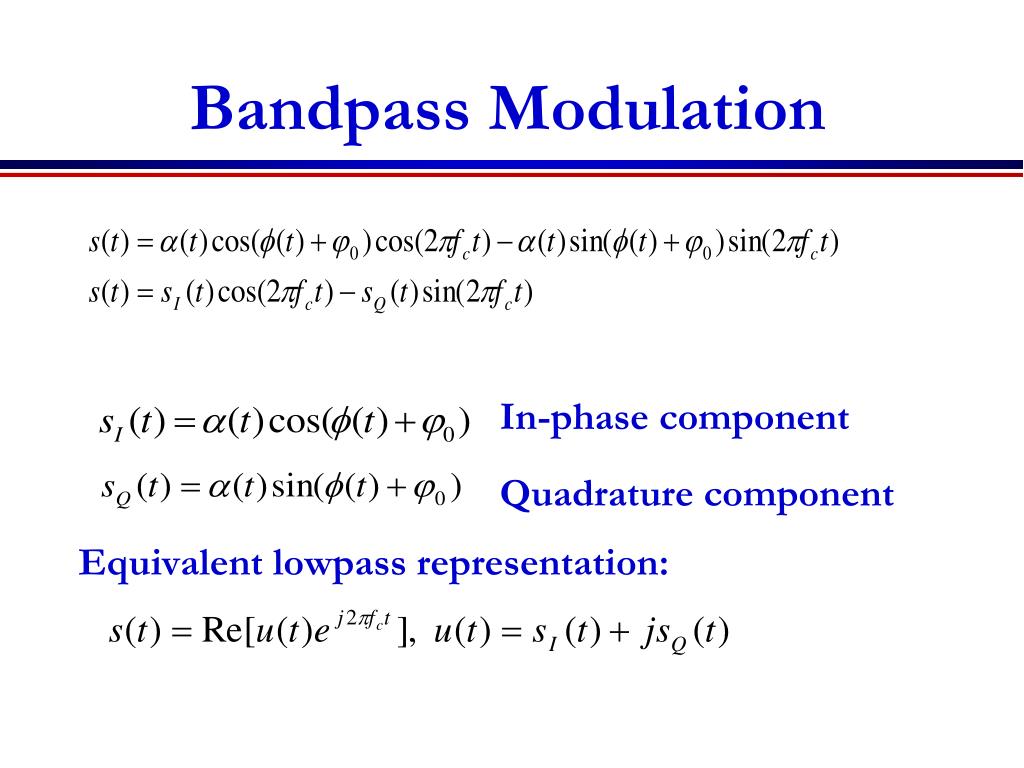

  6. Bandpass Modulation In-phase component Quadrature component Equivalent lowpass representation:

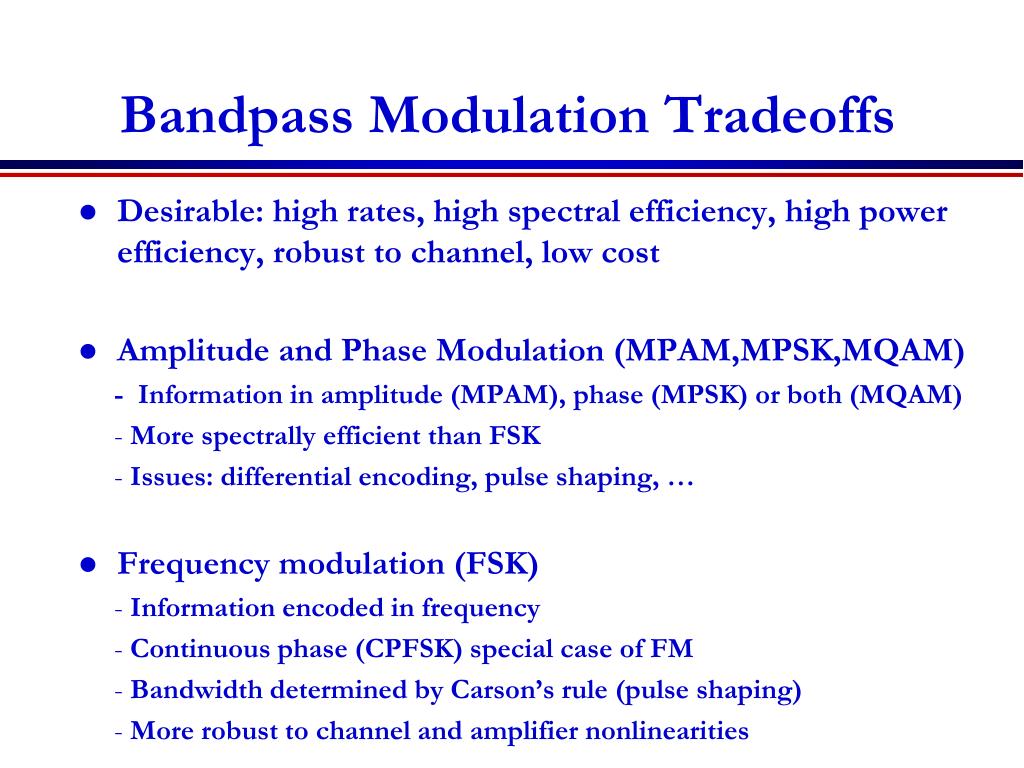

  7. Bandpass Modulation Tradeoffs • Desirable: high rates, high spectral efficiency, high power efficiency, robust to channel, low cost • Amplitude and Phase Modulation (MPAM,MPSK,MQAM) - Information in amplitude (MPAM), phase (MPSK) or both (MQAM) - More spectrally efficient than FSK - Issues: differential encoding, pulse shaping, … • Frequency modulation (FSK) - Information encoded in frequency - Continuous phase (CPFSK) special case of FM - Bandwidth determined by Carson’s rule (pulse shaping) - More robust to channel and amplifier nonlinearities

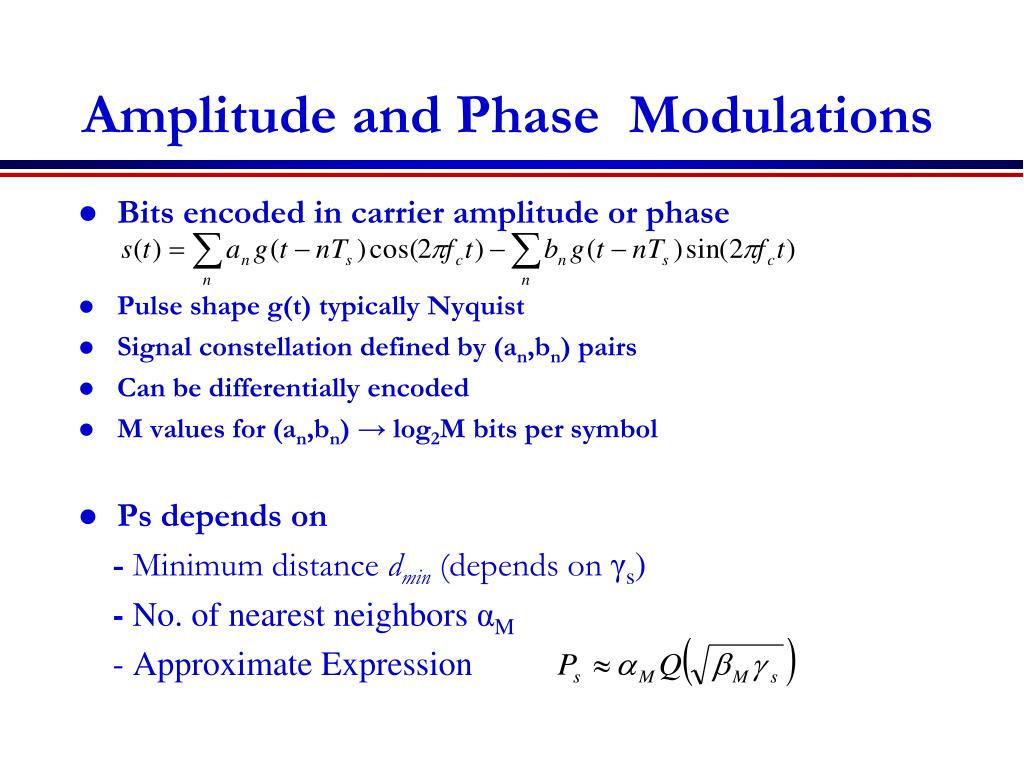

  8. Amplitude and Phase Modulations • Bits encoded in carrier amplitude or phase • Pulse shape g(t) typically Nyquist • Signal constellation defined by (an,bn) pairs • Can be differentially encoded • M values for (an,bn) → log2M bits per symbol • Ps depends on - Minimum distance dmin (depends on γs) - No. of nearest neighbors αM - Approximate Expression

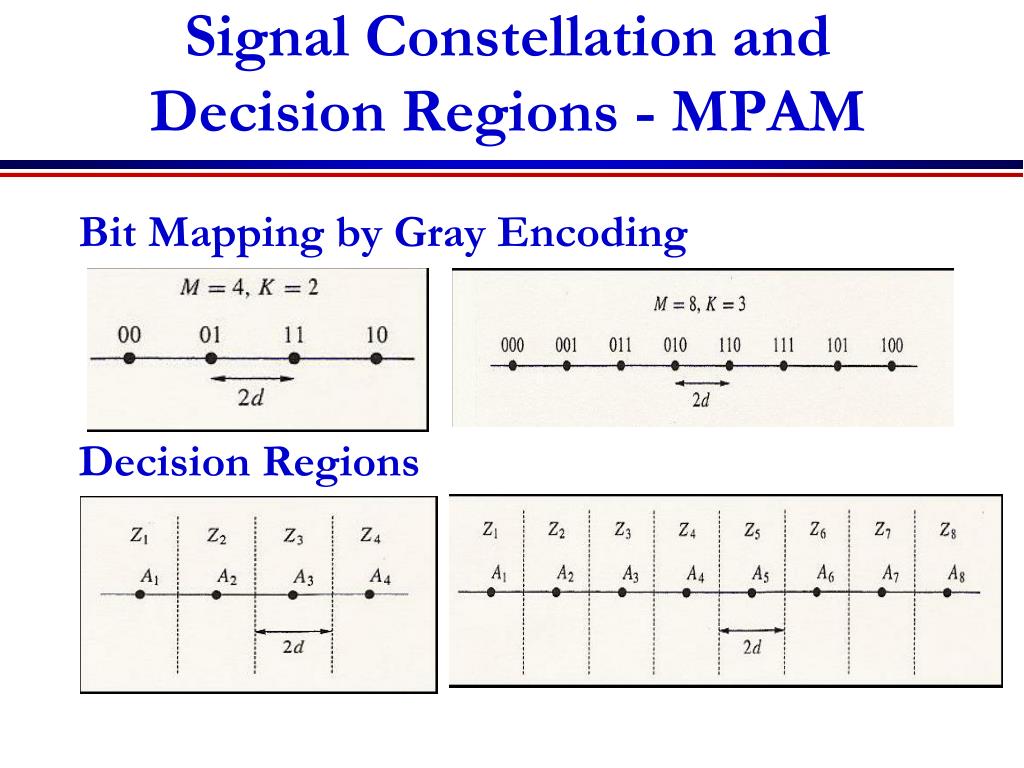

  9. Signal Constellation and Decision Regions - MPAM Bit Mapping by Gray Encoding Decision Regions

  10. Coherent Demodulation - MPAM

  11. Signal Constellation and Decision Regions - MPSK Bit Mapping by Gray Encoding Decision Regions

  12. Signal Constellations and Decision Regions - MQAM Signal Constellation Decision Regions

  13. Pulse Shaping • Linear passband modulation with N=2: • Pulse shaping improves poor spectral characteristics of rectangular pulses

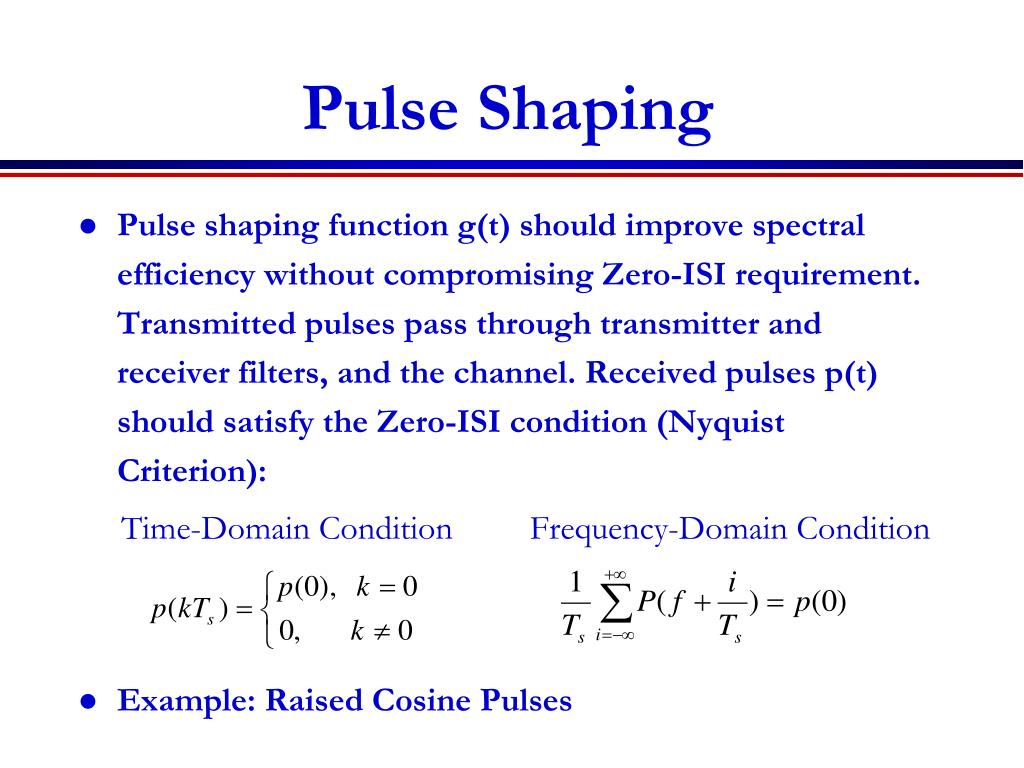

  14. Pulse Shaping • Pulse shaping function g(t) should improve spectral efficiency without compromising Zero-ISI requirement. Transmitted pulses pass through transmitter and receiver filters, and the channel. Received pulses p(t) should satisfy the Zero-ISI condition (Nyquist Criterion): Time-Domain Condition Frequency-Domain Condition • Example: Raised Cosine Pulses

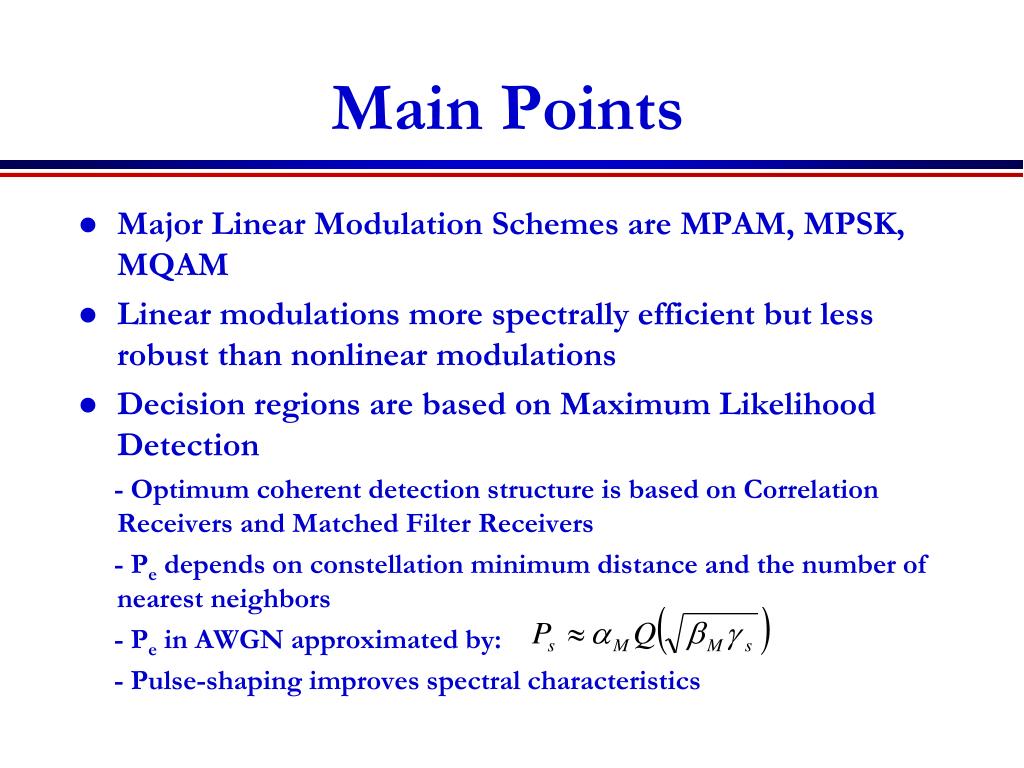

  15. Main Points • Major Linear Modulation Schemes are MPAM, MPSK, MQAM • Linear modulations more spectrally efficient but less robust than nonlinear modulations • Decision regions are based on Maximum Likelihood Detection - Optimum coherent detection structure is based on Correlation Receivers and Matched Filter Receivers - Pe depends on constellation minimum distance and the number of nearest neighbors - Pe in AWGN approximated by: - Pulse-shaping improves spectral characteristics
