A memory efficient parallel string matching for intrusion detection systems

A Memory-Efficient Parallel String Matching forIntrusion Detection Systems

HyunJin Kim, Hyejeong Hong, Hong-Sik Kim, and Sungho Kang, Member, IEEE

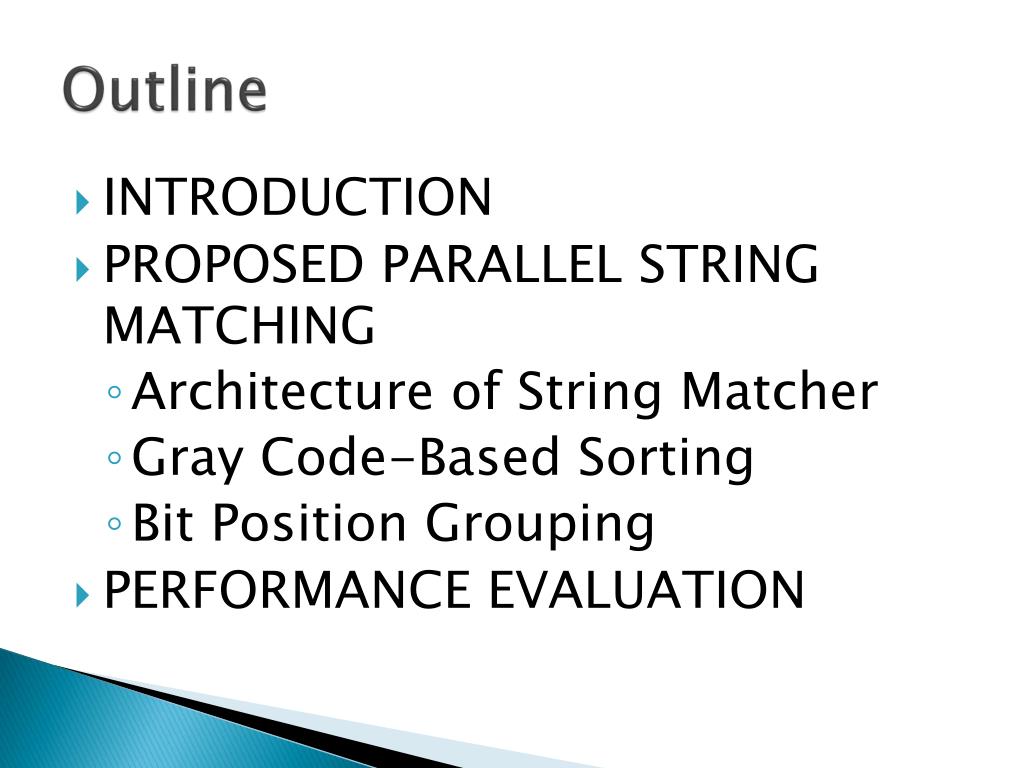

Outline

Outline

  • INTRODUCTION

  • PROPOSED PARALLEL STRING MATCHING

    • Architecture of String Matcher

    • Gray Code-Based Sorting

    • Bit Position Grouping

    • PERFORMANCE EVALUATION


Introduction

INTRODUCTION

  • The DFA-based string matcher improves both regularity and scalability with lower time complexity [1].

  • However, the memory requirements are proportional to the numbers of states and input symbols.


Introduction1

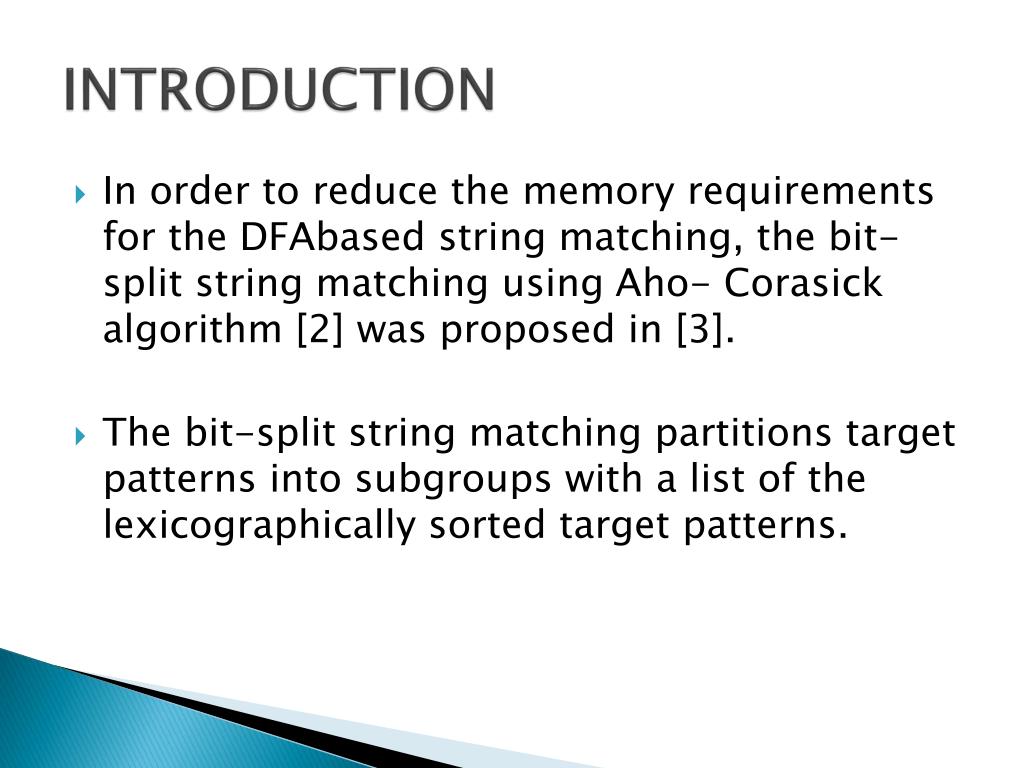

INTRODUCTION

  • In order to reduce the memory requirements for the DFAbased string matching, the bit-split string matching using Aho- Corasickalgorithm [2] was proposed in [3].

  • The bit-split string matching partitions target patterns into subgroups with a list of the lexicographically sorted target patterns.


Introduction2

INTRODUCTION

  • Due to the biased bit transitions for each bit position group, the memory usage between FSM tiles in a string matcher could be unbalanced.


Proposed parallel string matching

PROPOSED PARALLEL STRING MATCHING

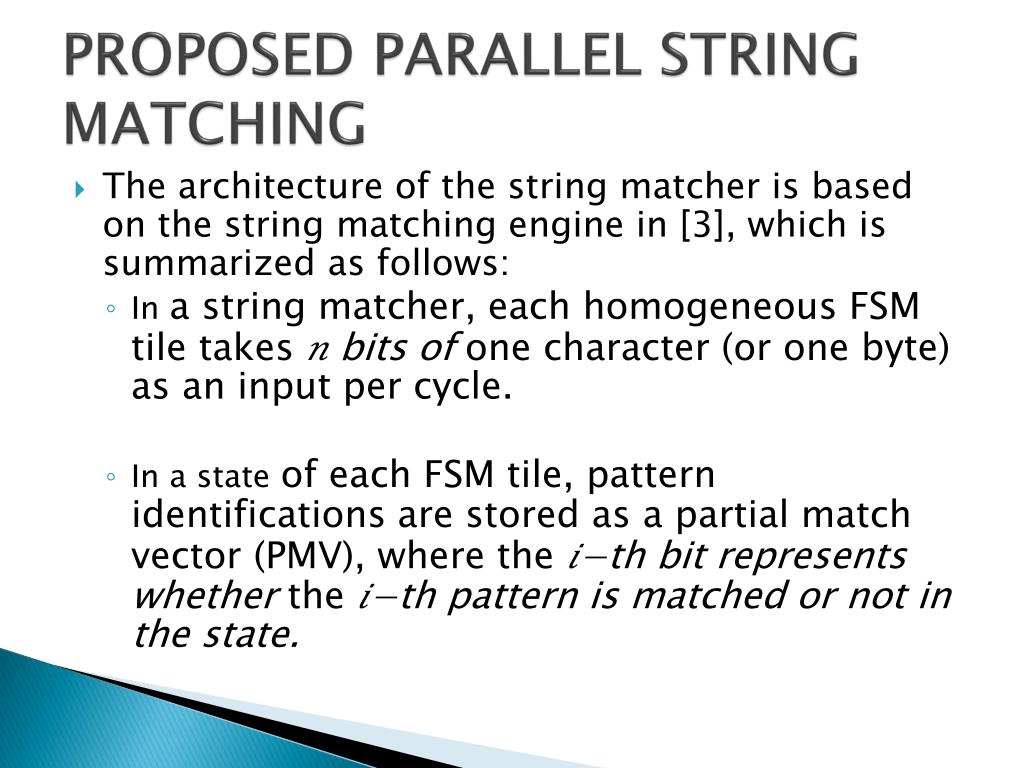

  • The architecture of the string matcher is based on the string matching engine in [3], which is summarized as follows:

    • In a string matcher, each homogeneous FSM tile takes 𝑛 bits of one character (or one byte) as an input per cycle.

    • In a state of each FSM tile, pattern identifications are stored as a partial match vector (PMV), where the π‘–βˆ’th bit represents whether the π‘–βˆ’th pattern is matched or not in the state.


Architecture of string matcher

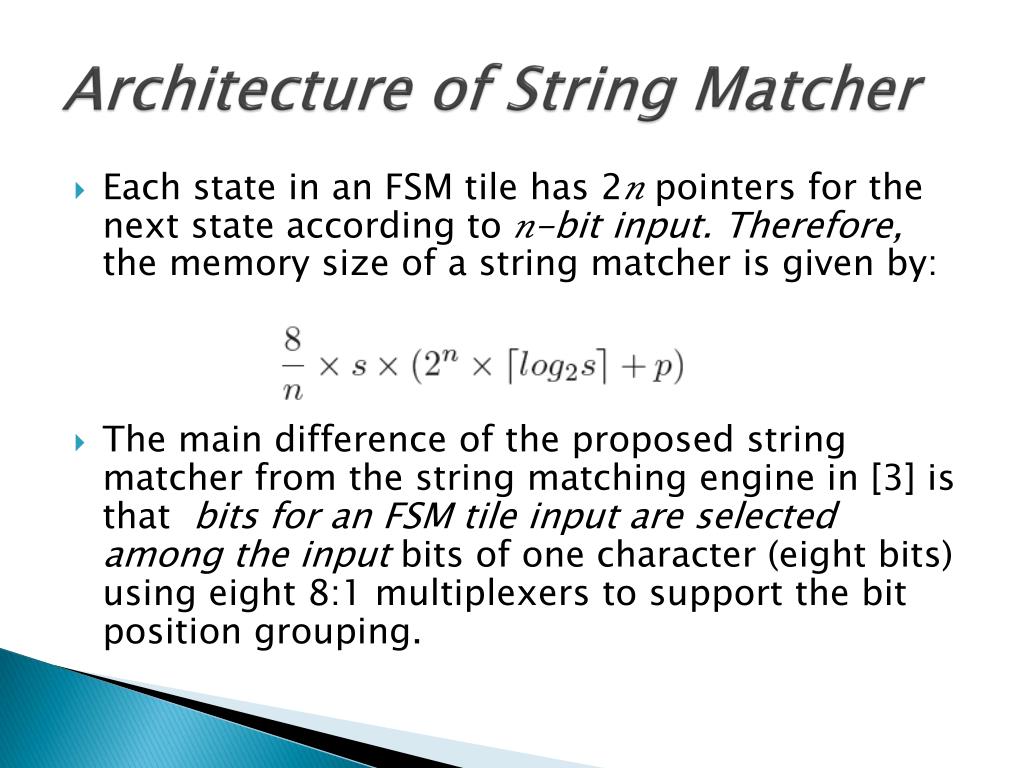

Architecture of String Matcher

  • Each state in an FSM tile has 2𝑛 pointers for the next state according to 𝑛-bit input. Therefore, the memory size of a string matcher is given by:

  • The main difference of the proposed string matcher from the string matching engine in [3] is that bits for an FSM tile input are selected among the input bits of one character (eight bits) using eight 8:1 multiplexers to support the bit position grouping.


Gray code based sorting

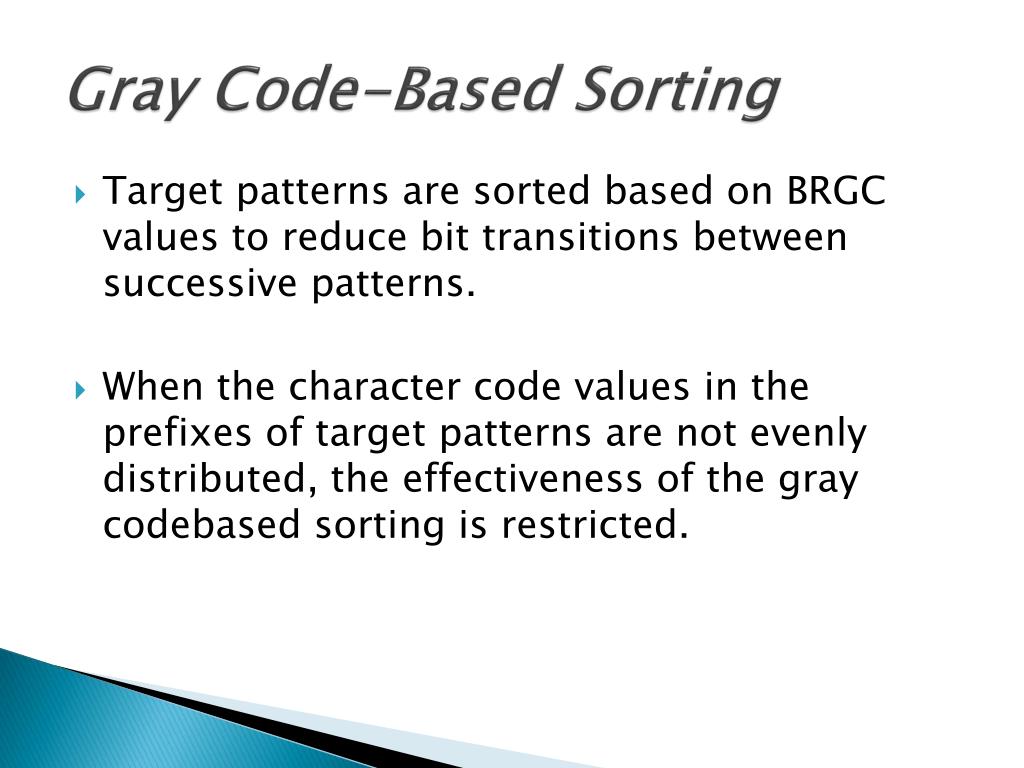

Gray Code-Based Sorting

  • Target patterns are sorted based on BRGC values to reduce bit transitions between successive patterns.

  • When the character code values in the prefixes of target patterns are not evenly distributed, the effectiveness of the gray codebased sorting is restricted.


Bit position grouping

Bit Position Grouping

  • Let us assume that a string matcher has four FSM tiles with two input bits. In addition, β€œhe,” β€œhas,” β€œhis,” and β€œhers” are assumed to be the patterns to be mapped.

  • For all string matchers in [3], a set of bit position groups for four FSM tiles is fixed as {(8, 7), (6, 5), (4, 3), (2, 1)}, where the number represents a bit position of one character from the LSB.


Bit position grouping1

Bit Position Grouping


Bit position grouping2

Bit Position Grouping

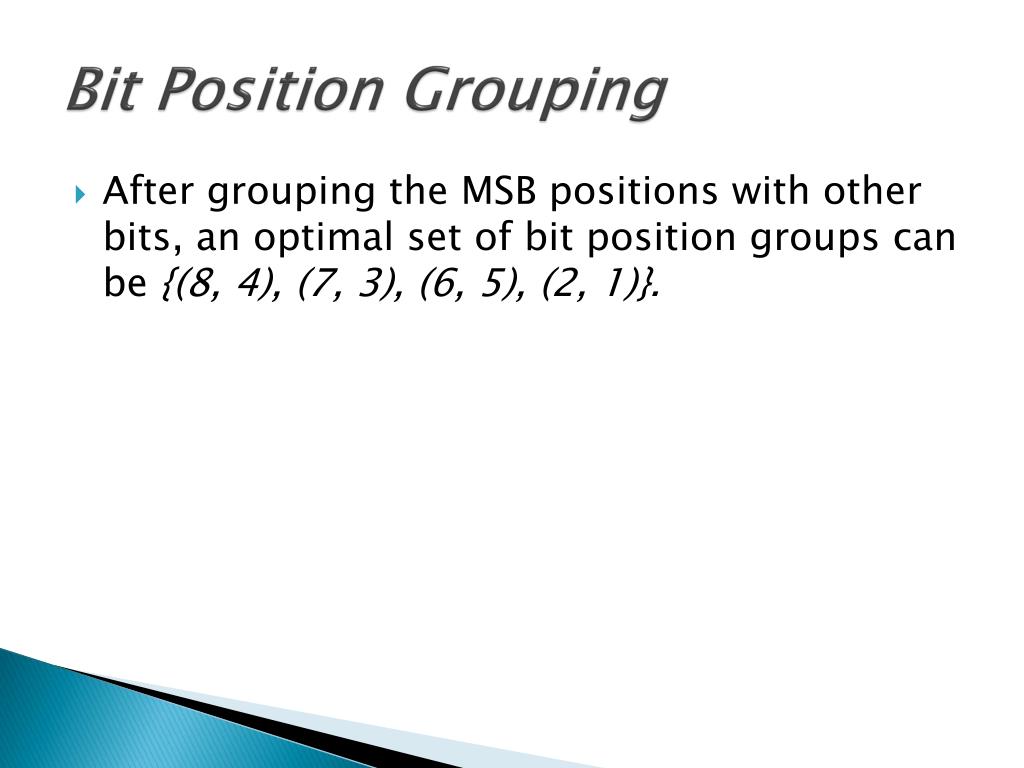

  • After grouping the MSB positions with other bits, an optimal set of bit position groups can be {(8, 4), (7, 3), (6, 5), (2, 1)}.


Bit position grouping3

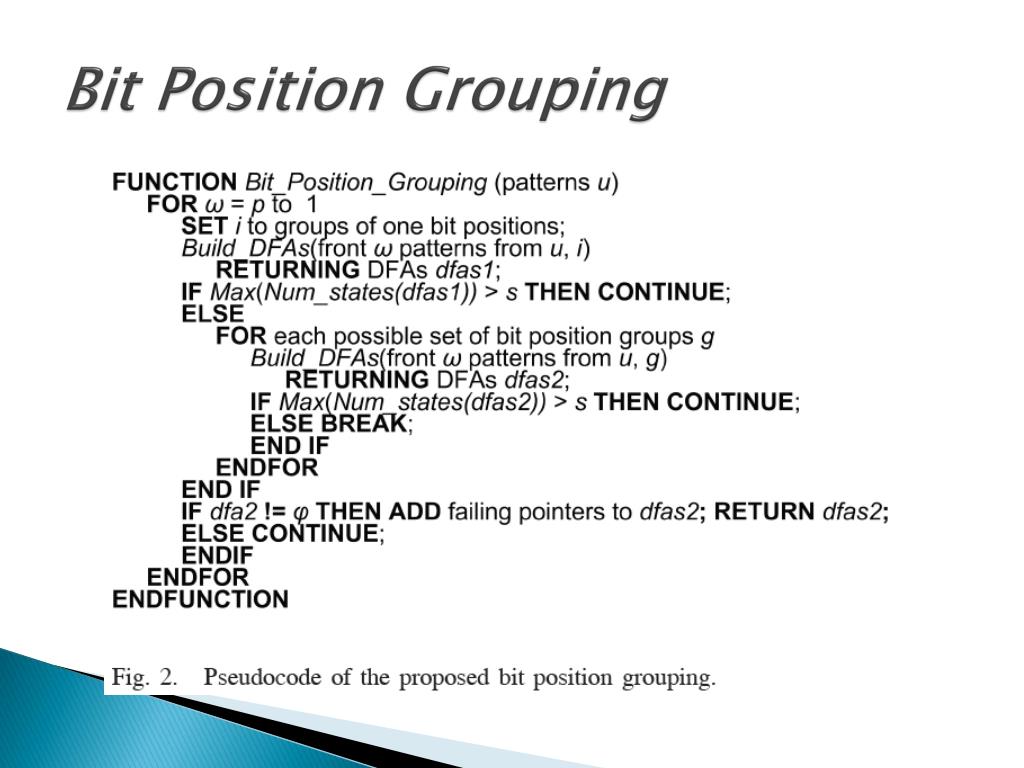

Bit Position Grouping


Bit position grouping4

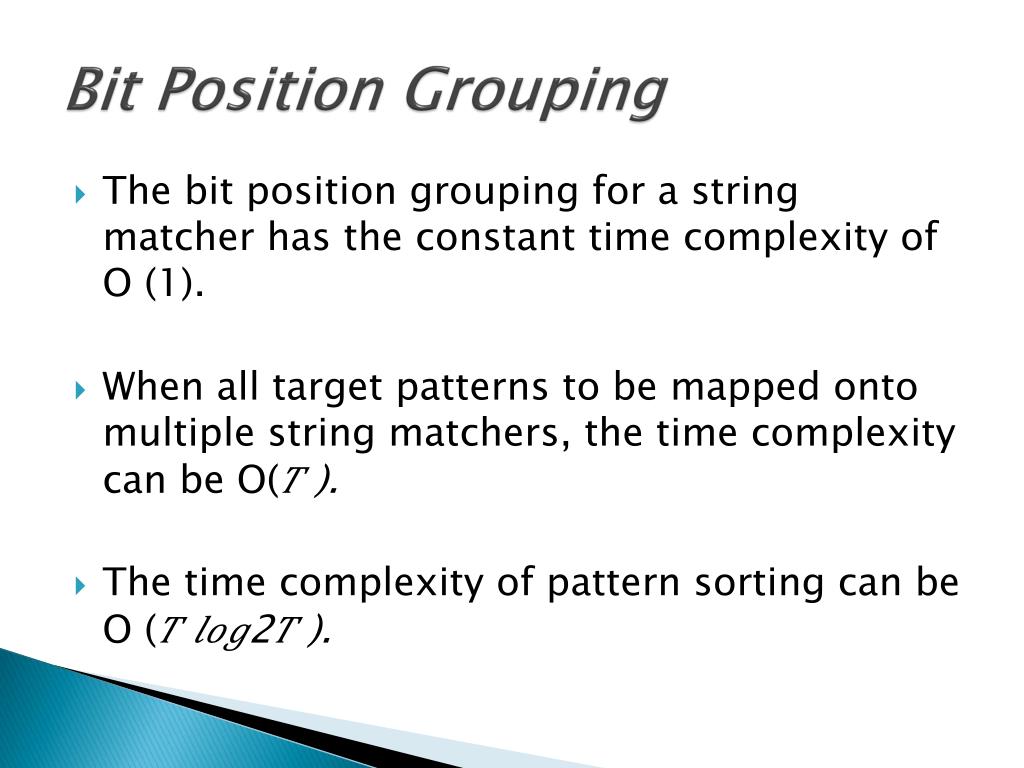

Bit Position Grouping

  • The bit position grouping for a string matcher has the constant time complexity of O (1).

  • When all target patterns to be mapped onto multiple string matchers, the time complexity can be O(𝑇 ).

  • The time complexity of pattern sorting can be O (𝑇 π‘™π‘œπ‘”2𝑇 ).


Bit position grouping5

Bit Position Grouping

  • However, due to the large constant factor of the bit position grouping complexity, if the number of target patterns 𝑇 is not sufficiently large, the pattern sorting will not be dominant.


Performance evaluation

PERFORMANCE EVALUATION

  • Target patterns were extracted from Snort v2.8 rules [4].

  • Considering design analysis in [3], an FSM tile was assumed to take two bits of one character as an input.


Performance evaluation1

PERFORMANCE EVALUATION


Performance evaluation2

PERFORMANCE EVALUATION

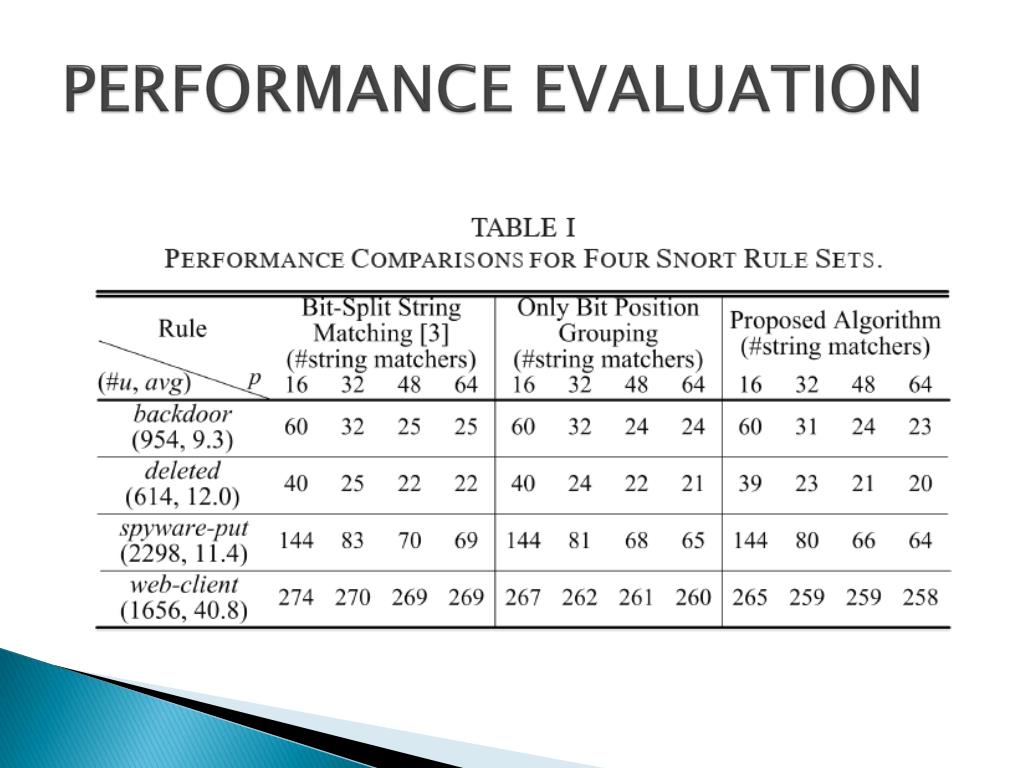

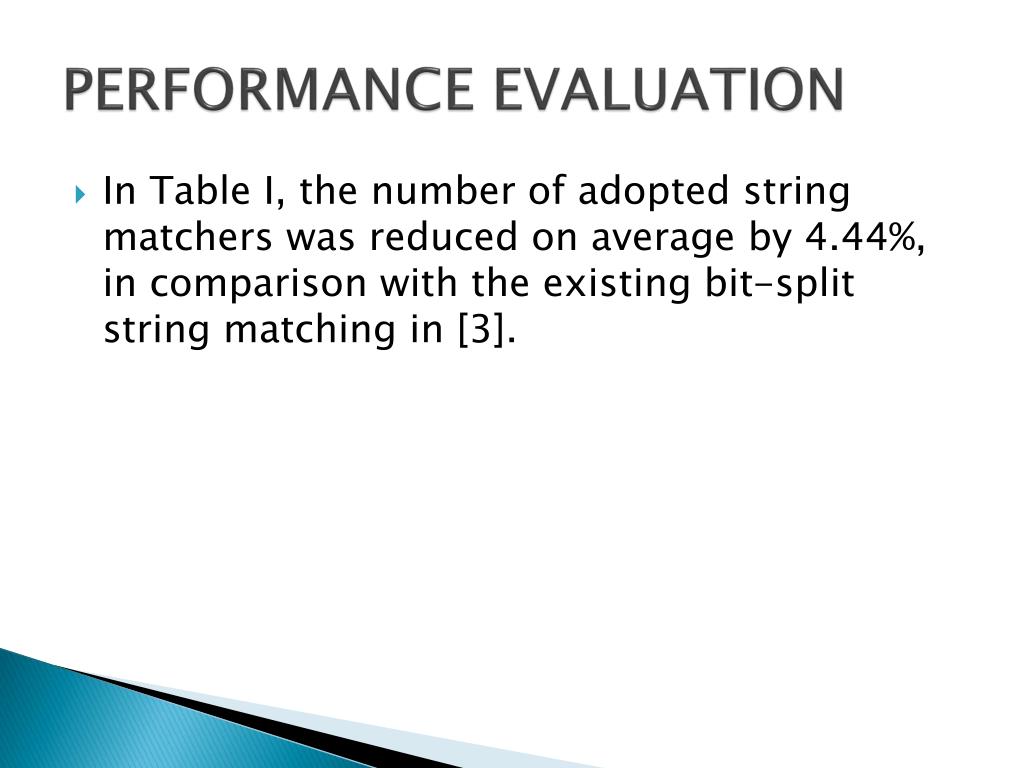

  • In Table I, the number of adopted string matchers was reduced on average by 4.44%, in comparison with the existing bit-split string matching in [3].


Performance evaluation3

PERFORMANCE EVALUATION


Performance evaluation4

PERFORMANCE EVALUATION

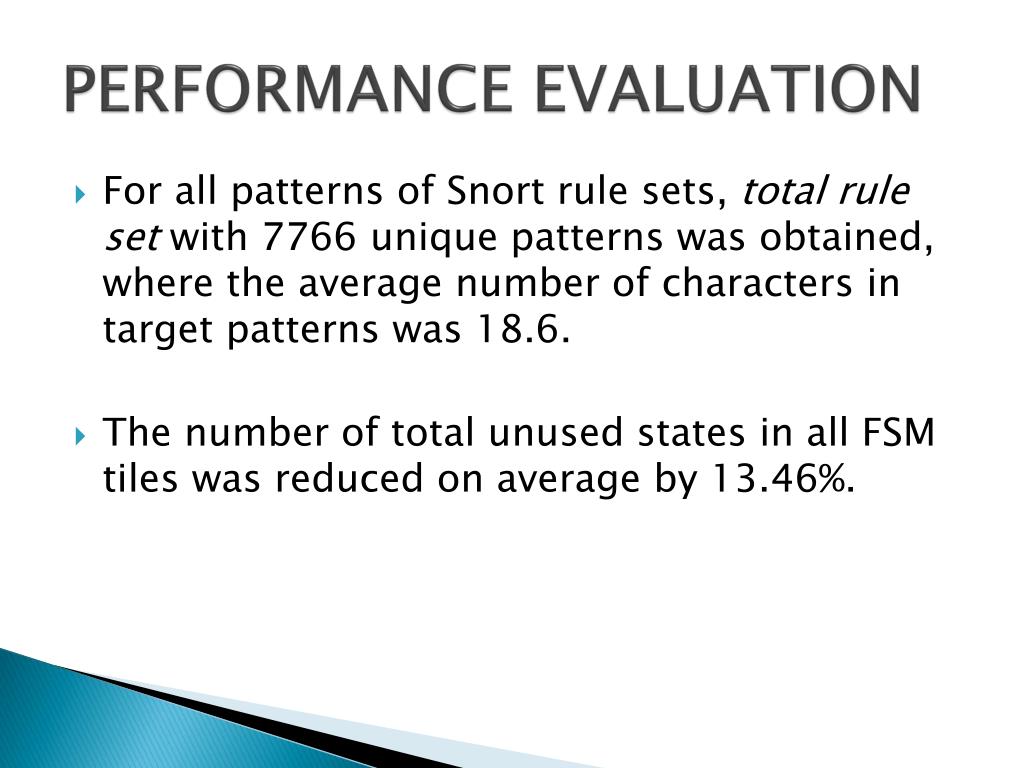

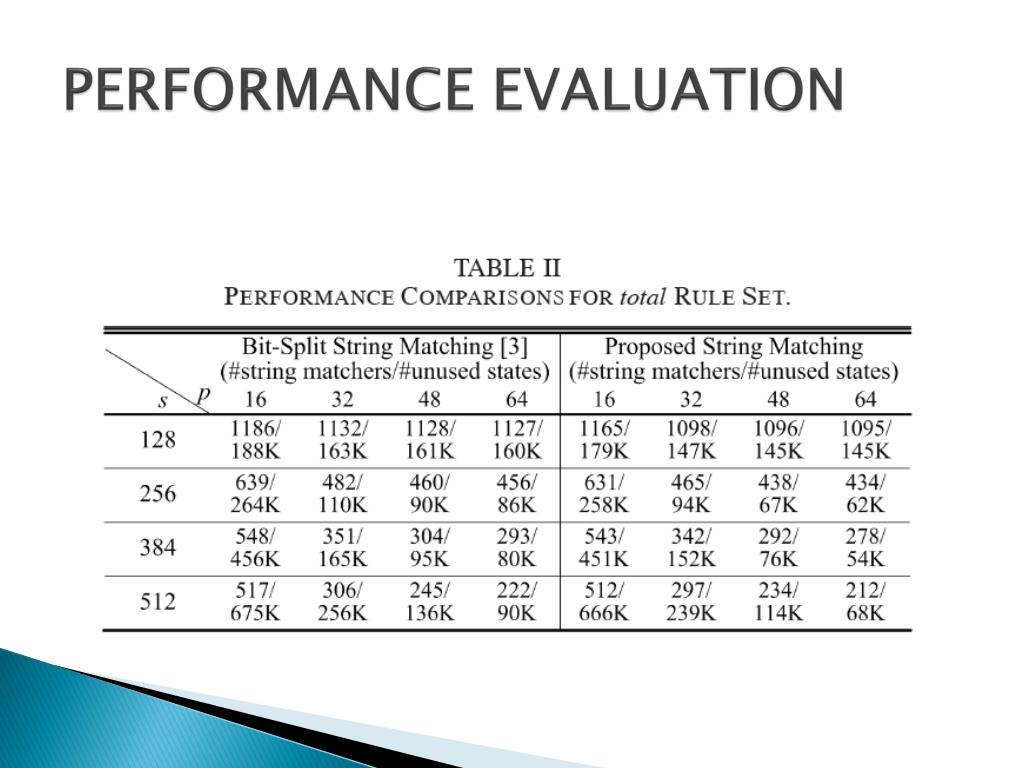

  • For all patterns of Snort rule sets, total rule set with 7766 unique patterns was obtained, where the average number of characters in target patterns was 18.6.

  • The number of total unused states in all FSM tiles was reduced on average by 13.46%.


Performance evaluation5

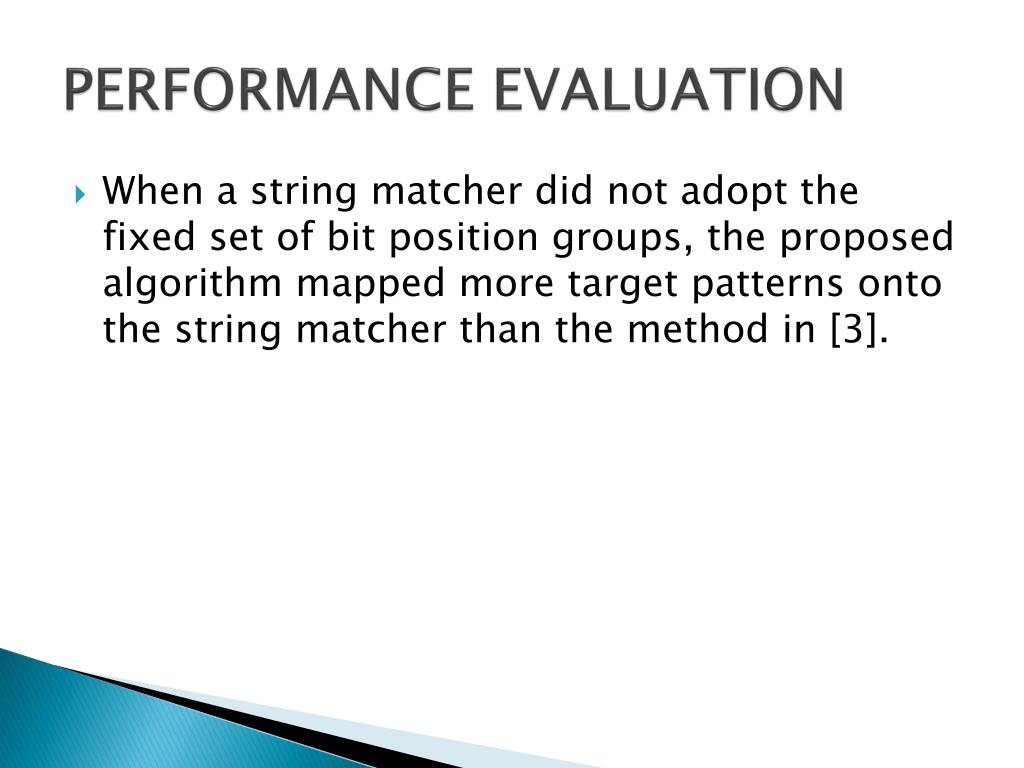

PERFORMANCE EVALUATION

  • When a string matcher did not adopt the fixed set of bit position groups, the proposed algorithm mapped more target patterns onto the string matcher than the method in [3].


Performance evaluation6

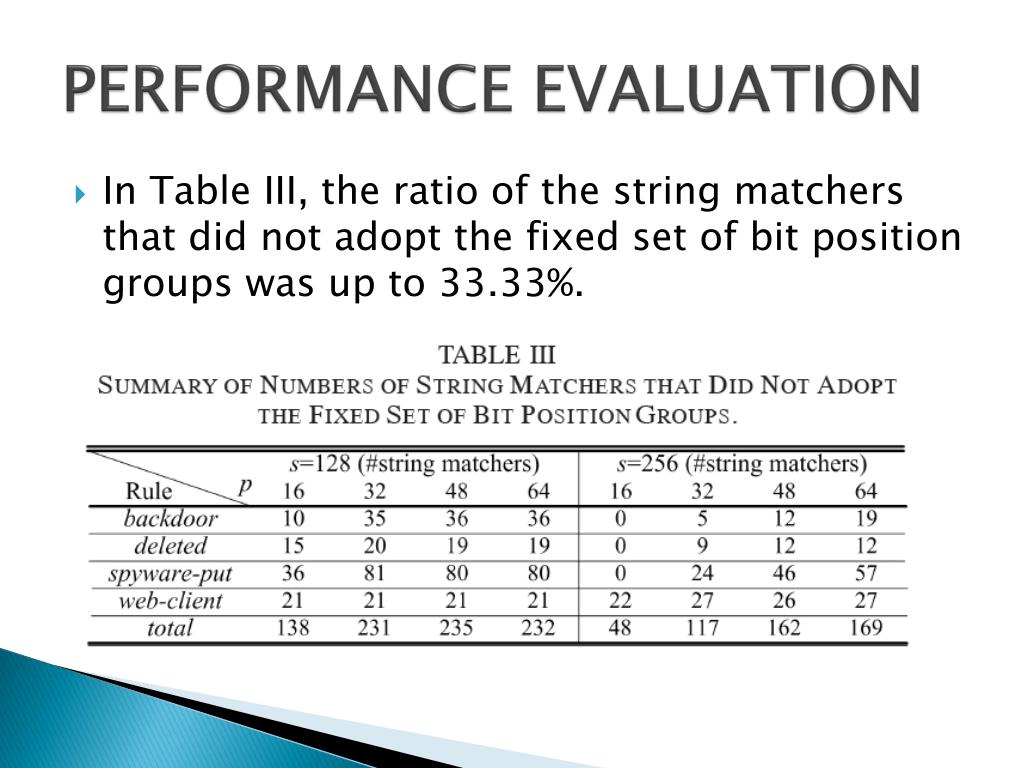

PERFORMANCE EVALUATION

  • In Table III, the ratio of the string matchers that did not adopt the fixed set of bit position groups was up to 33.33%.


Performance evaluation7

PERFORMANCE EVALUATION

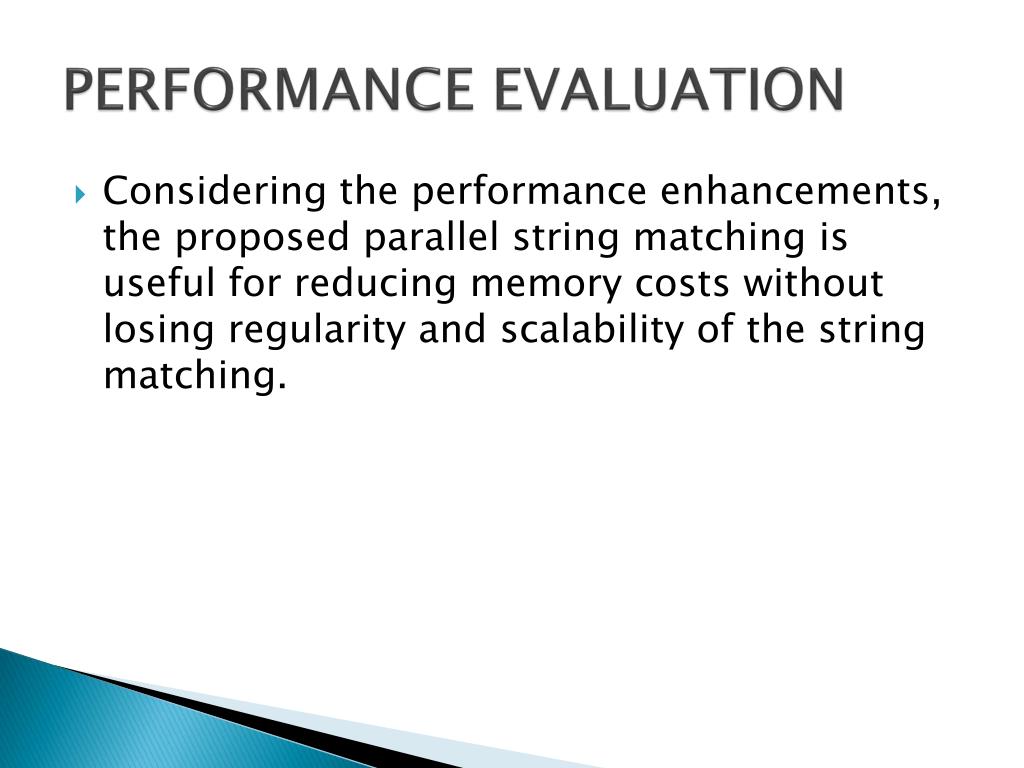

  • Considering the performance enhancements, the proposed parallel string matching is useful for reducing memory costs without losing regularity and scalability of the string matching.
