Faa ground to ground atn implementation plan

FAA Ground to Ground ATN Implementation Plan

Presentation ATN 2.5 by H. Tran

Varadero, Cuba

May 2002


Faa ground to ground atn implementation plan

FAA Ground to Ground ATN Implementation Plan

  • FAA ATN Backbone Infrastructure

  • FAA ATN Applications


Faa atn backbone infrastructure

FAA ATN Backbone Infrastructure


Faa ground to ground atn implementation plan

Current FAA Data/Voice Communications Networks

Packet Switched Network (PSN)Users include: AFTN, MSN, WMSCR, TDWR, TMS, CNS, …etc.

National Airspace Data Interchange Network II (NADIN PSN) X.25

Wide area network service for both dedicated and dial-up.Users include: FAA Headquarters, Regional Offices, Aeronautical Center, Technical Center, OCC, NOCC, AFSS, and…etc.

Administrative Data Transmission Network(ADTN) TCP/IP

Switched voice and data, video conferencing, bandwidth on demand and dynamic adaptive routing.Users include: ARTCC and ATCSCC

Bandwidth Manager(BWM)

Data Multiplexing Network(DMN)

Use multiplexing techniques enable number of independent data signals to be consolidated into a single transmission channel.Users include: Radar data, weather data, ASOS, VORTAC, …etc.


Faa ground to ground atn implementation plan

Current FAA Data/Voice Communications Networks (cont.)

Air-to-Ground links, ATS Ground-to-Ground Communications, and Backbone circuits

Leased Interface Network Communications Service (LINCS)

Dial-up services for administrative and routing communications.

Users include: FAA Headquarters, Regional Offices, Aeronautical Center, Technical Center, OCC, NOCC, AFSS, and…etc.

Federal Telecommunications Service

(FTS)


Faa ground to ground atn implementation plan

CLNP

VOICE

TCP/IP

Frame Relay

X.25

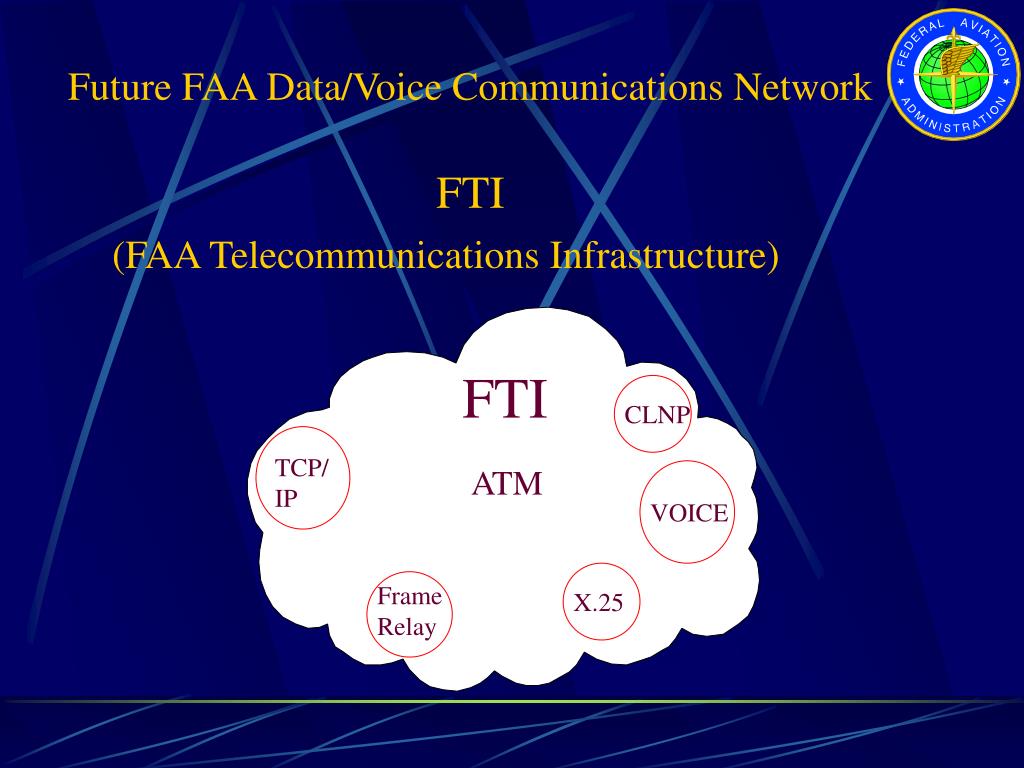

Future FAA Data/Voice Communications Network

FTI

(FAA Telecommunications Infrastructure)

FTI

ATM


Faa ground to ground atn implementation plan

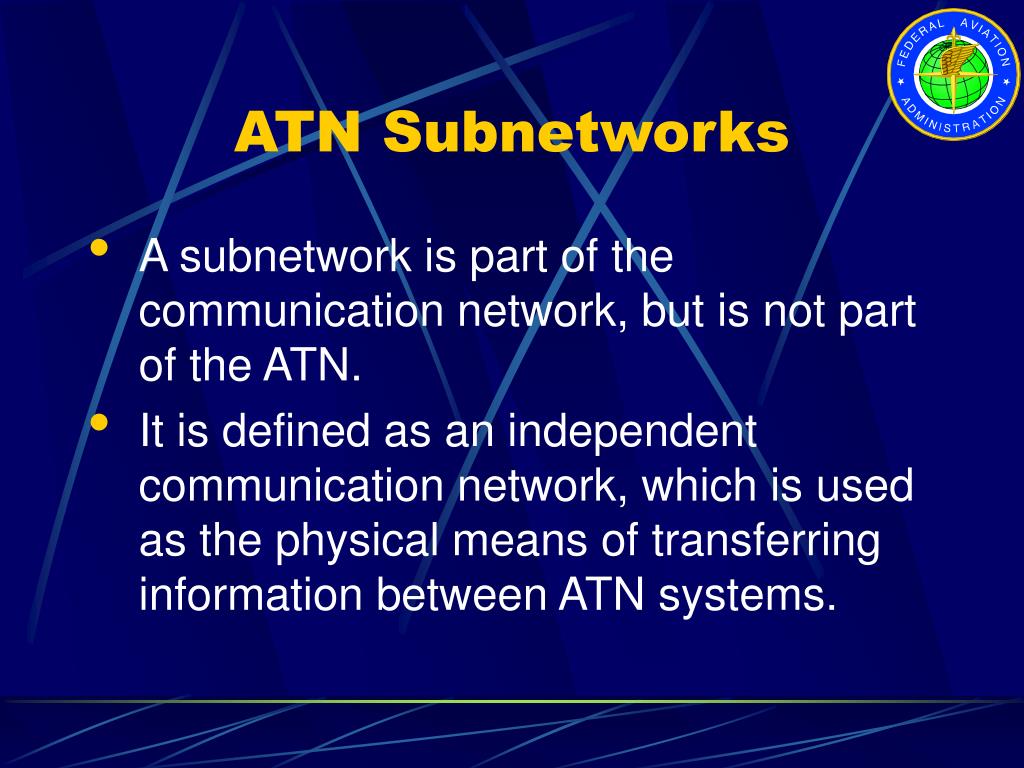

ATN Subnetworks

  • A subnetwork is part of the communication network, but is not part of the ATN.

  • It is defined as an independent communication network, which is used as the physical means of transferring information between ATN systems.


Faa ground to ground atn implementation plan

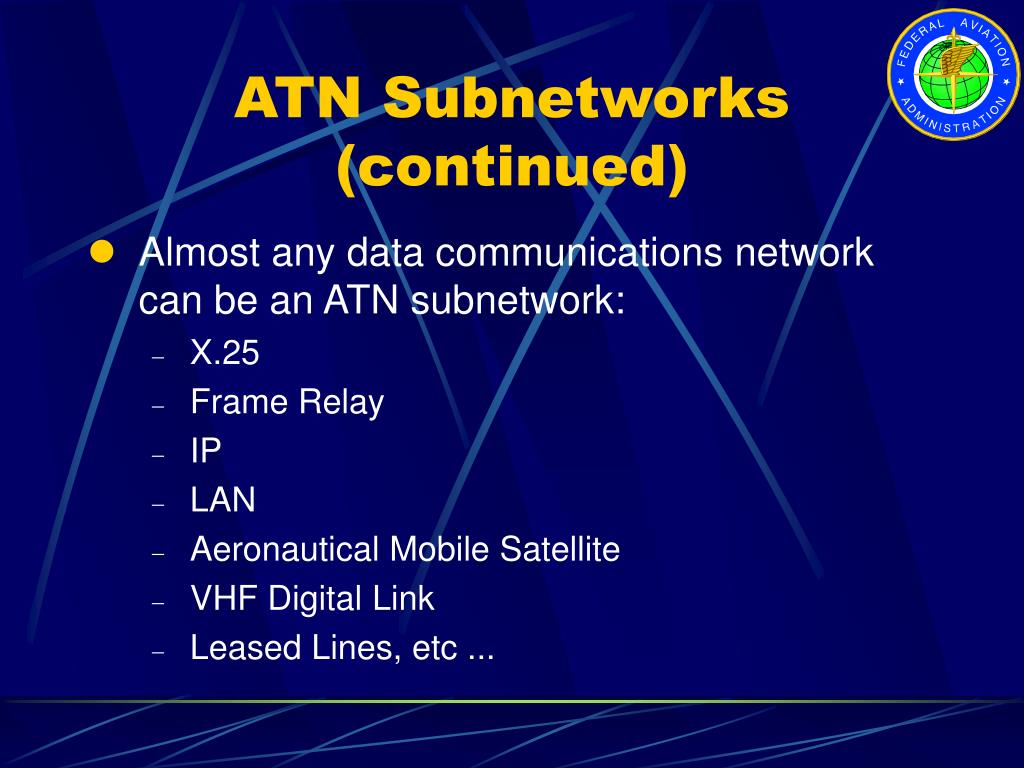

ATN Subnetworks (continued)

  • Almost any data communications network can be an ATN subnetwork:

    • X.25

    • Frame Relay

    • IP

    • LAN

    • Aeronautical Mobile Satellite

    • VHF Digital Link

    • Leased Lines, etc ...


Faa ground to ground atn implementation plan

ATN

BIS

ATN

BIS

ATN

BIS

FTI

ATN

BIS

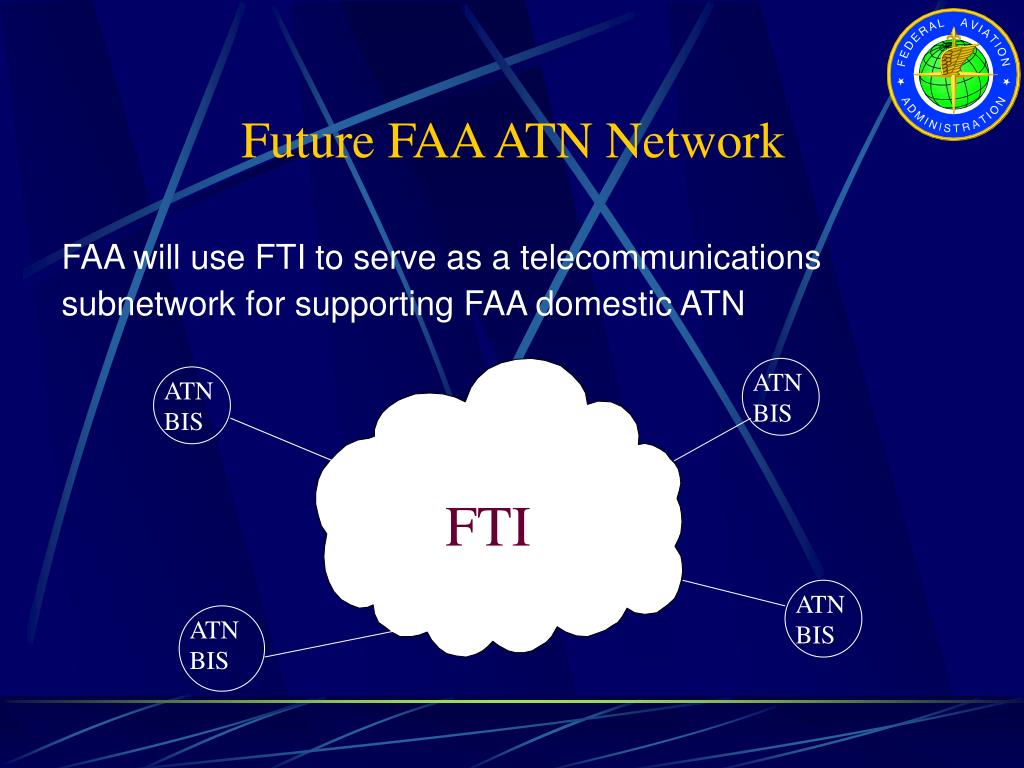

Future FAA ATN Network

FAA will use FTI to serve as a telecommunications subnetwork for supporting FAA domestic ATN


Faa ground to ground atn implementation plan

FAA ATN Program Plan

Current FAA ATN Plan:

  • Implement BIS routers network to support the domestic and global ATN networks

  • Implement AMHS servers to support Ground-to-Ground the Aeronautical Message Handling Service

  • Implement CPDLC to support Air to Ground data communications


Faa ground to ground atn implementation plan

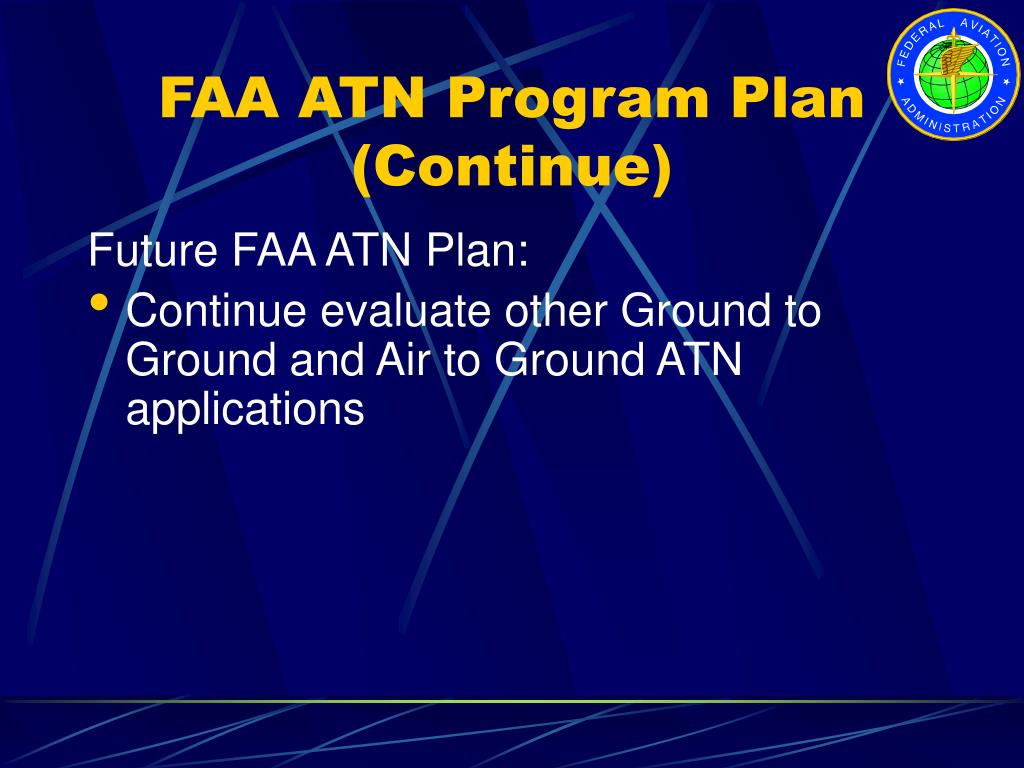

FAA ATN Program Plan (Continue)

Future FAA ATN Plan:

  • Continue evaluate other Ground to Ground and Air to Ground ATN applications


Current faa atn program plan

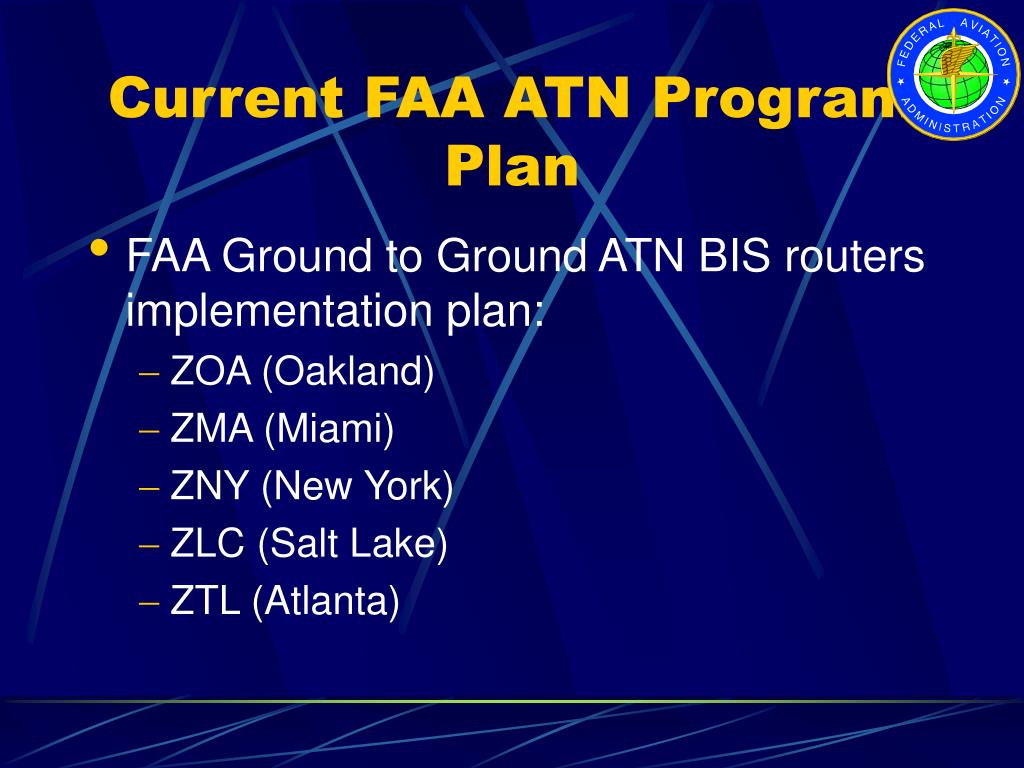

Current FAA ATN Program Plan

  • FAA Ground to Ground ATN BIS routers implementation plan:

    • ZOA (Oakland)

    • ZMA (Miami)

    • ZNY (New York)

    • ZLC (Salt Lake)

    • ZTL (Atlanta)


Faa atn applications implementation

FAA ATN Applications Implementation


Faa ground to ground atn implementation plan

FAA Existing AFTN

  • Existing AFTN is a point-to-point X.25 infrastructure, confirmation is required

  • AFTN messages are required to be processed by a transit station (ZLC Salt Lake or ZTL Atlanta) before they can be forwarded, including transited messages

  • Non deliverable AFTN messages is required to store and forward


Faa ground to ground atn implementation plan

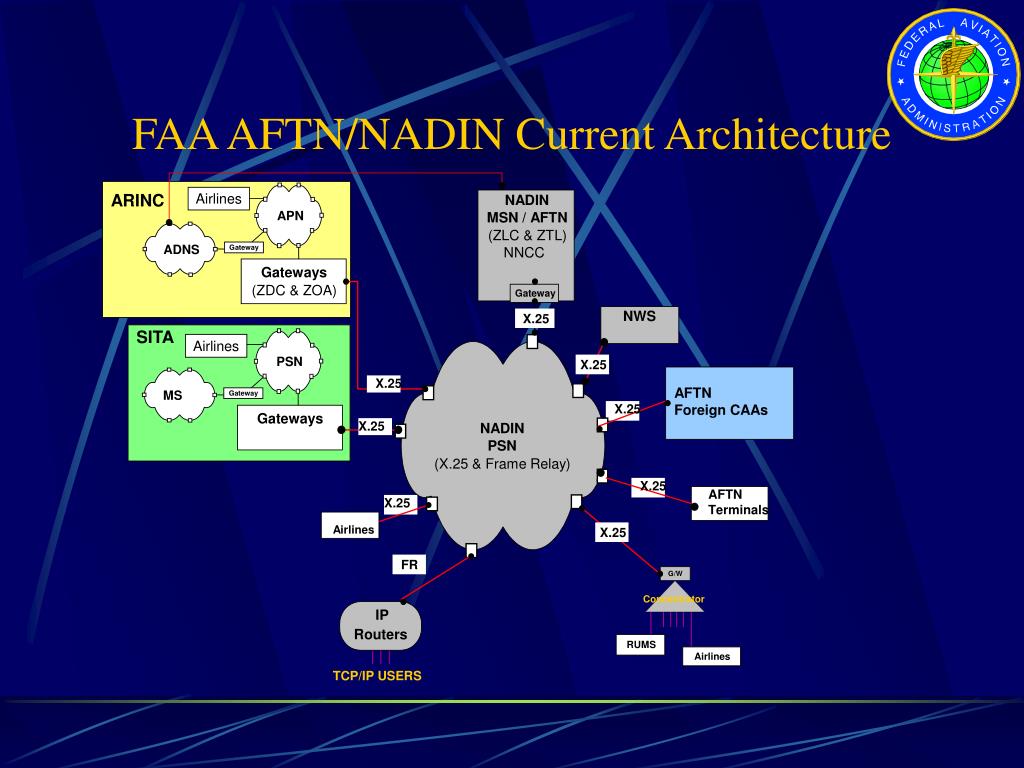

FAA AFTN/NADIN Current Architecture

ARINC

Airlines

NADIN

APN

MSN / AFTN

(ZLC & ZTL)

NNCC

ADNS

Gateway

Gateways

(ZDC & ZOA)

Gateway

NWS

X.25

SITA

Airlines

PSN

X.25

X.25

AFTN

Foreign CAAs

MS

Gateway

X.25

Gateways

X.25

NADIN

PSN

(X.25 & Frame Relay)

X.25

AFTN

Terminals

X.25

Airlines

X.25

FR

G/W

Concentrator

IP

Routers

RUMS

Airlines

TCP/IP USERS


Faa ground to ground atn implementation plan

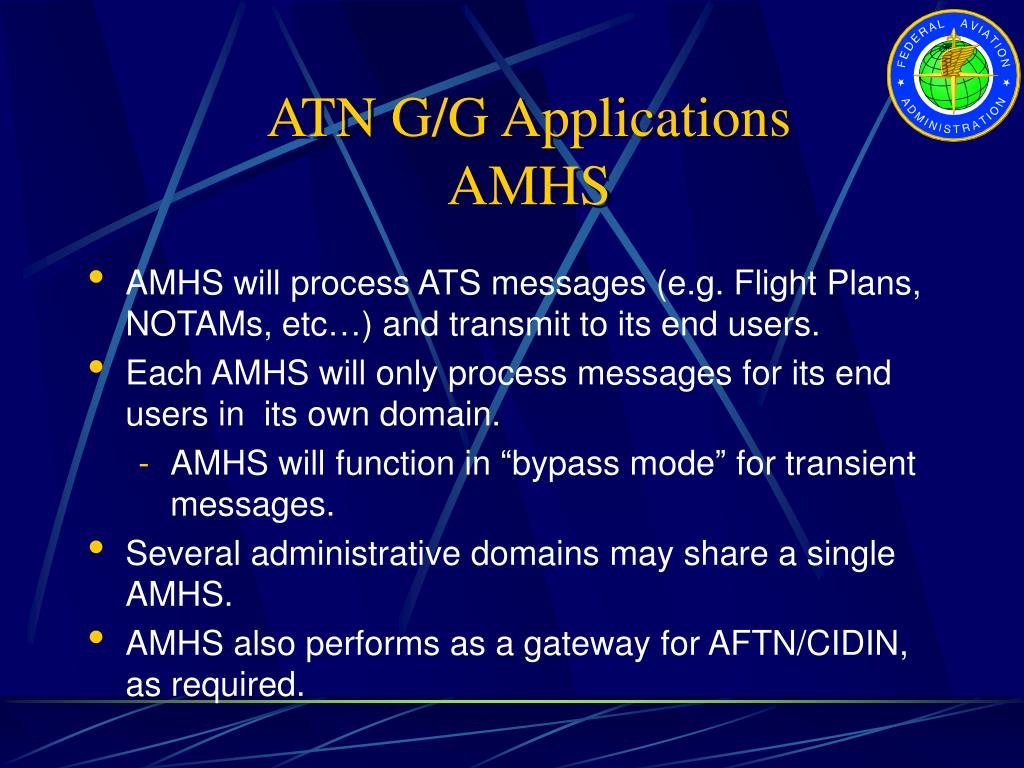

ATN G/G ApplicationsAMHS

  • AMHS will process ATS messages (e.g. Flight Plans, NOTAMs, etc…) and transmit to its end users.

  • Each AMHS will only process messages for its end users in its own domain.

    • AMHS will function in “bypass mode” for transient messages.

  • Several administrative domains may share a single AMHS.

  • AMHS also performs as a gateway for AFTN/CIDIN, as required.


Faa ground to ground atn implementation plan

FAA ATN/AMHS/NADIN

Transition Architecture

ARINC

Airlines

NADIN

APN

MSN / AFTN

(ZLC & ZTL)

ADNS

Gateway

NNCC

Gateways

(ZDC & ZOA)

Foreign

Gateway

CAAs

X.25

NWS

SITA

Airlines

CLNP

PSN

X.25

IDRP

Other

X.25

MS

Gateway

Service

Gateways

Provider

NADIN

X.25

ATN G/G Routers

X.25

PSN

(ZNY, ZMA, ZOA,

SCL and ATL)

(X.25 & Frame Relay)

CLNP

X.25

IDRP

X.25

AMHS

X.25

Airlines

X.25

FR

AFTN

Terminals

X.25

IP

G/W

Foreign

Routers

ATN

Interface

Concentrator

CAAs

Airlines

RUMS

TCP/IP USERS


Faa ground to ground atn implementation plan

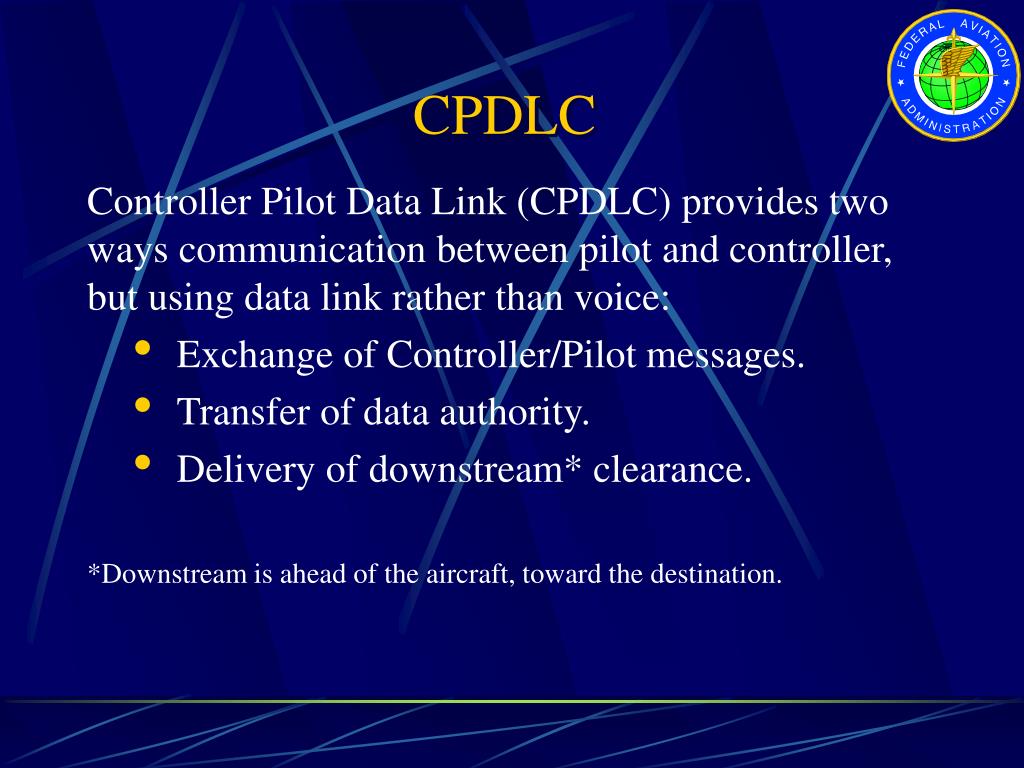

CPDLC

  • Controller Pilot Data Link (CPDLC) provides two ways communication between pilot and controller, but using data link rather than voice:

    • Exchange of Controller/Pilot messages.

    • Transfer of data authority.

    • Delivery of downstream* clearance.

  • *Downstream is ahead of the aircraft, toward the destination.


Faa ground to ground atn implementation plan

AMHS

Incoming/

Outgoing

Message

MTA C

ASMTP

MTA D

Mail Box

Control

Position

AFTN

Processor

AMHS

Pop3

MTA

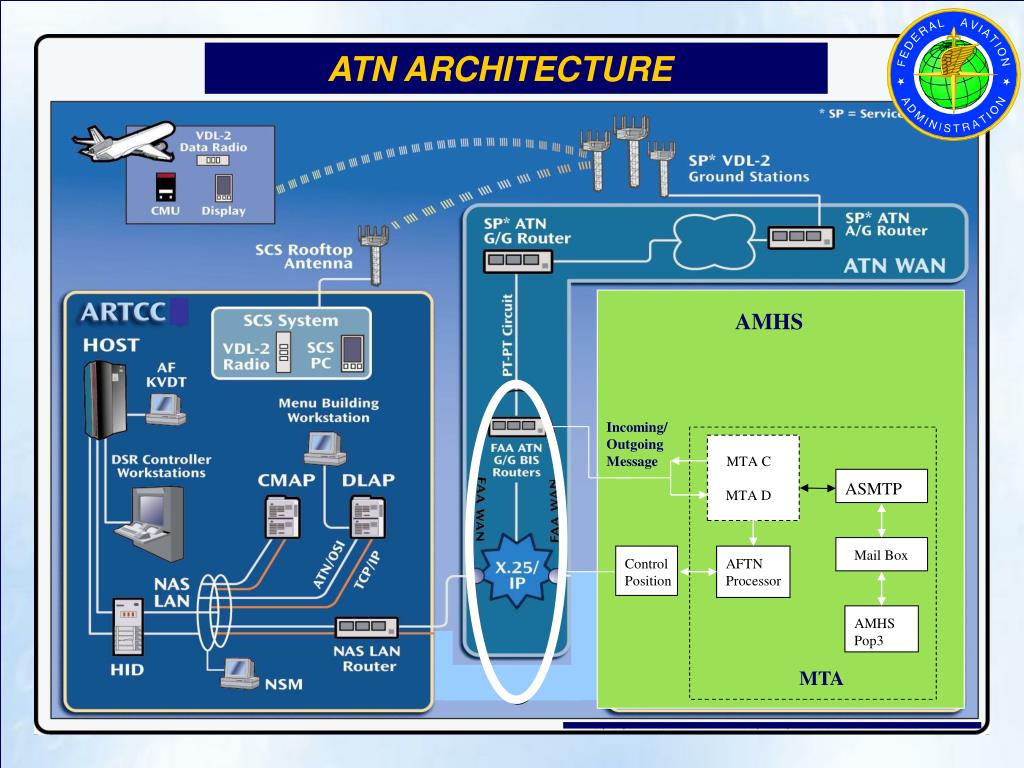

ATN ARCHITECTURE


Us atn amhs implementation plan and schedule

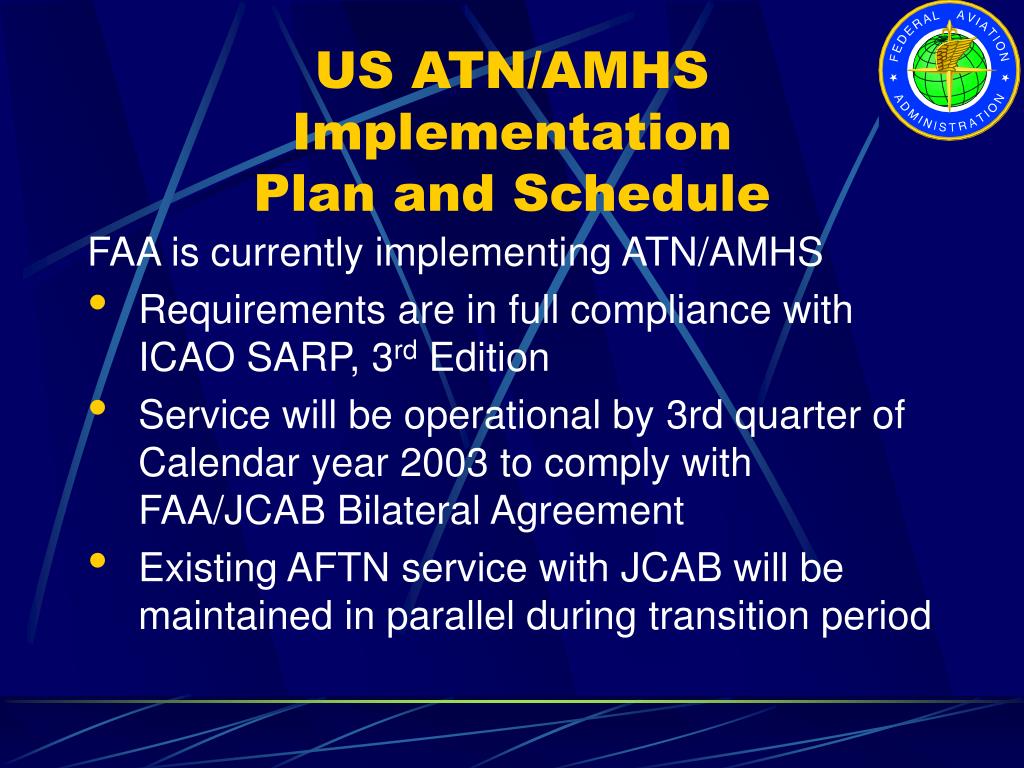

US ATN/AMHS Implementation Plan and Schedule

FAA is currently implementing ATN/AMHS

  • Requirements are in full compliance with ICAO SARP, 3rd Edition

  • Service will be operational by 3rd quarter of Calendar year 2003 to comply with FAA/JCAB Bilateral Agreement

  • Existing AFTN service with JCAB will be maintained in parallel during transition period


Faa ground to ground atn implementation plan

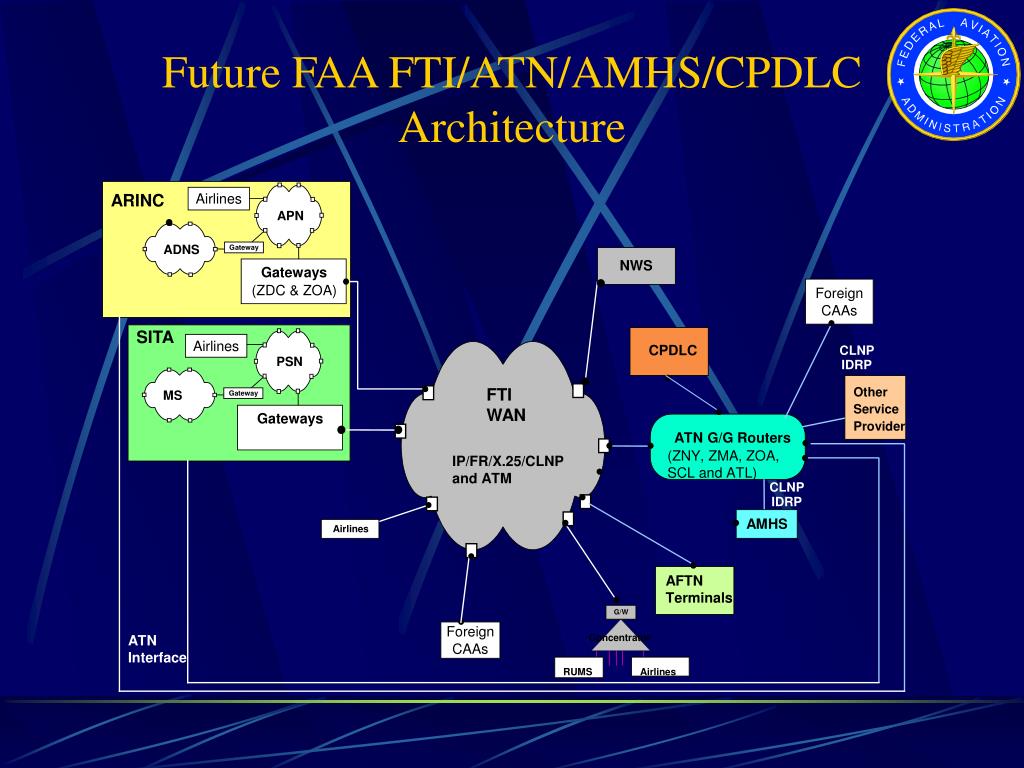

Future FAA FTI/ATN/AMHS/CPDLC

Architecture

ARINC

Airlines

APN

ADNS

Gateway

NWS

Gateways

(ZDC & ZOA)

Foreign

CAAs

SITA

Airlines

CPDLC

CLNP

PSN

IDRP

FTI

WAN

Other

MS

Gateway

Service

Gateways

Provider

ATN G/G Routers

(ZNY, ZMA, ZOA,

SCL and ATL)

IP/FR/X.25/CLNP

and ATM

CLNP

IDRP

AMHS

Airlines

AFTN

Terminals

G/W

Foreign

ATN

Interface

Concentrator

CAAs

RUMS

Airlines


Faa ground to ground atn implementation plan

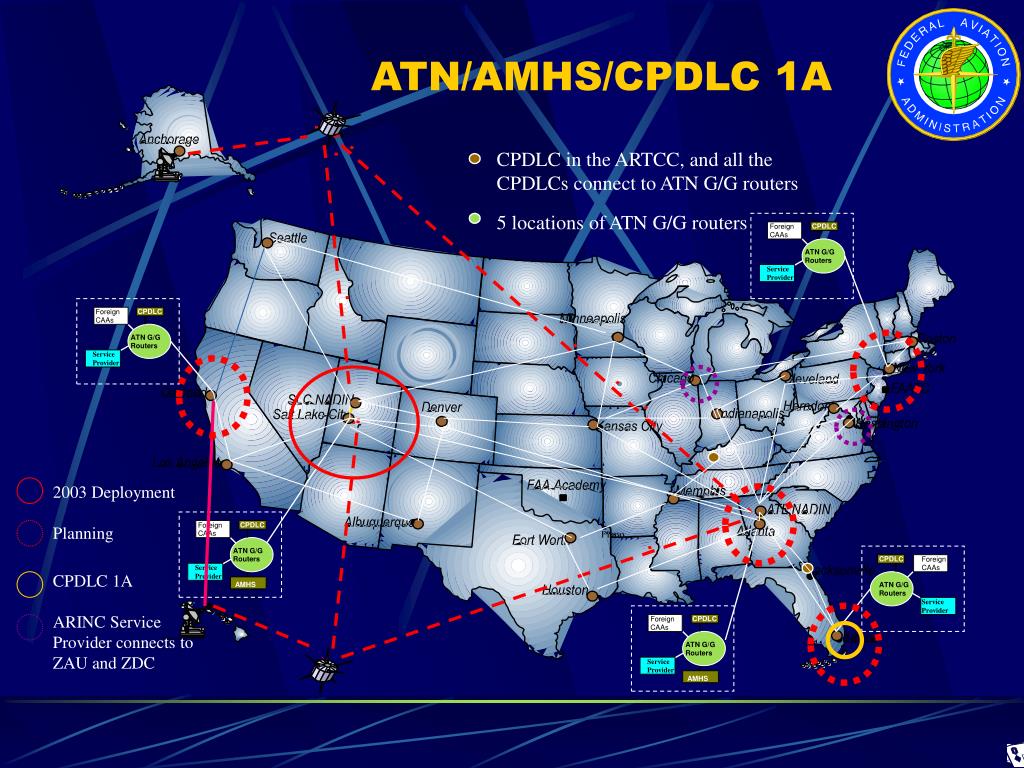

5 locations of ATN G/G routers

CPDLC

CPDLC

Foreign

CAAs

Foreign

CAAs

ATN G/G

Routers

ATN G/G

Routers

Service

Provider

Service

Provider

AMHS

AMHS

ATN/AMHS/CPDLC 1A

CPDLC in the ARTCC, and all the CPDLCs connect to ATN G/G routers

Foreign

CAAs

CPDLC

ATN G/G

Routers

Service

Provider

Foreign

CAAs

CPDLC

ATN G/G

Routers

Service

Provider

2003 Deployment

Planning

CPDLC

Foreign

CAAs

ATN G/G

Routers

Service

Provider

CPDLC 1A

ARINC Service Provider connects to ZAU and ZDC


Faa ground to ground atn implementation plan

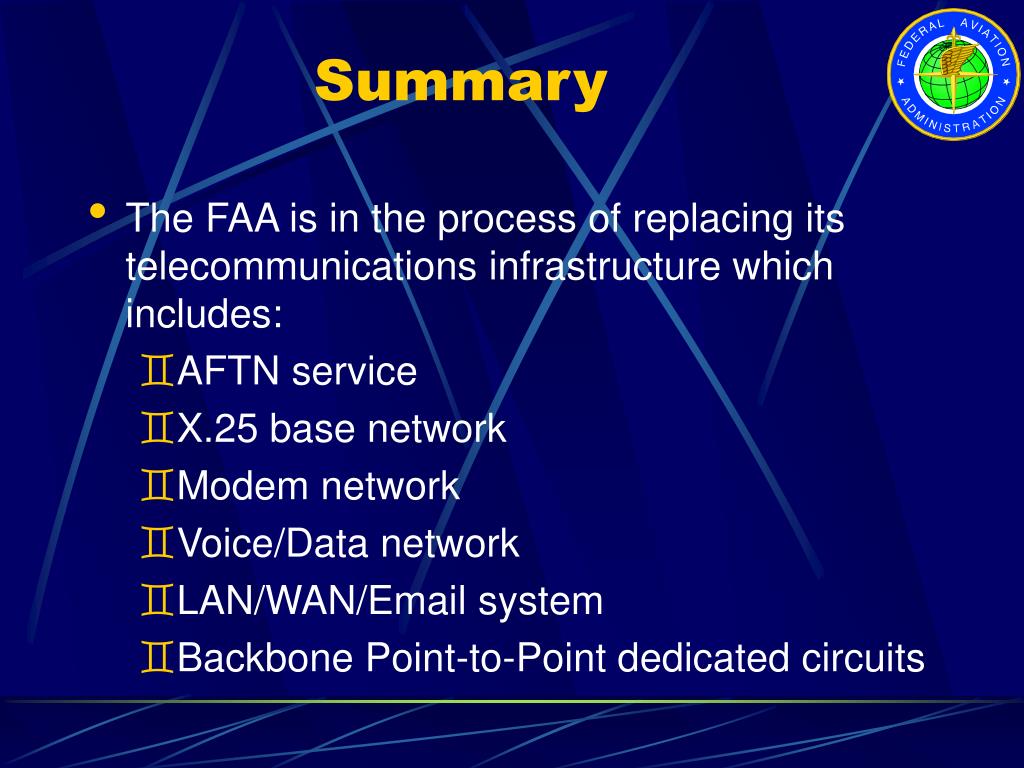

Summary

  • The FAA is in the process of replacing its telecommunications infrastructure which includes:

    • AFTN service

    • X.25 base network

    • Modem network

    • Voice/Data network

    • LAN/WAN/Email system

    • Backbone Point-to-Point dedicated circuits


Faa ground to ground atn implementation plan

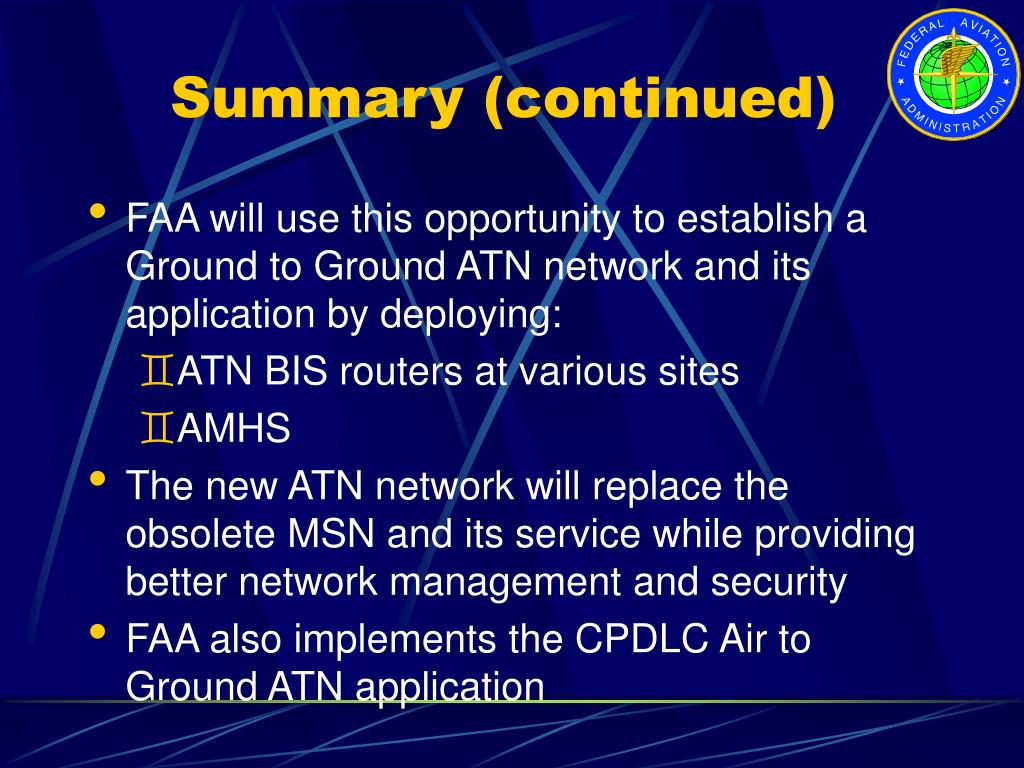

Summary (continued)

  • FAA will use this opportunity to establish a Ground to Ground ATN network and its application by deploying:

    • ATN BIS routers at various sites

    • AMHS

  • The new ATN network will replace the obsolete MSN and its service while providing better network management and security

  • FAA also implements the CPDLC Air to Ground ATN application


Faa ground to ground atn implementation plan

Summary (continued)

  • The ATN backbone will allow FAA to respond to the telecommunications technology evolution without interfering with the neighboring states network infrastructure

  • Implementing ATN will allow seamless transmission of ATN messages with minimum impact/delay to transiting domain


Faa ground to ground atn implementation plan

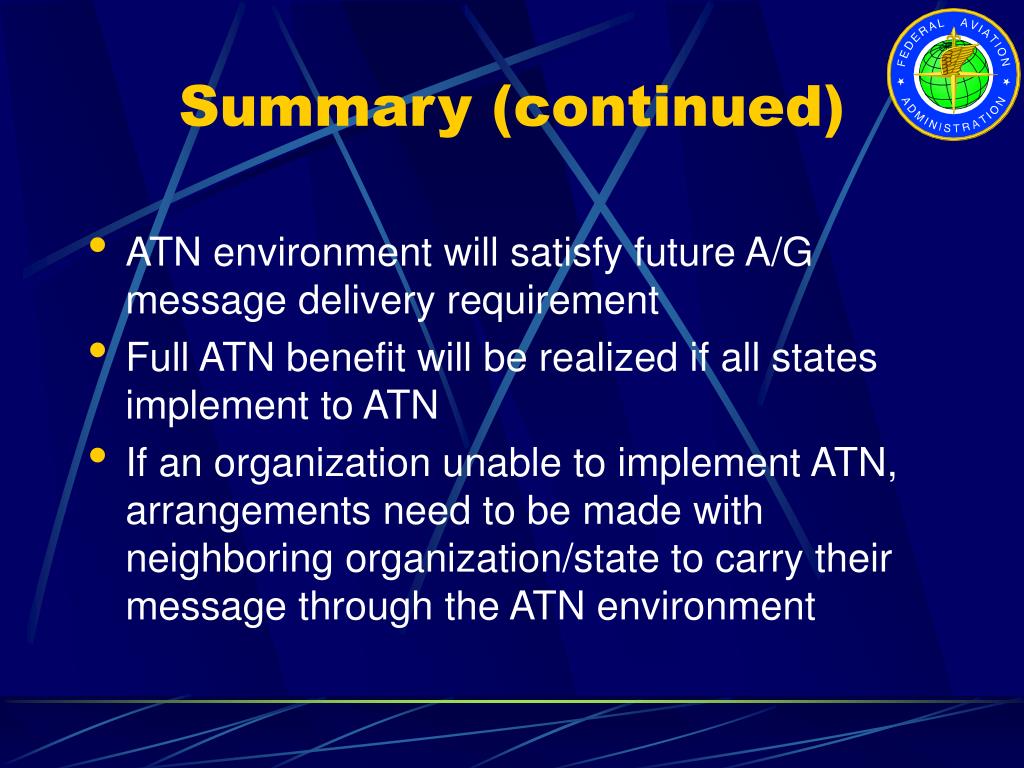

Summary (continued)

  • ATN environment will satisfy future A/G message delivery requirement

  • Full ATN benefit will be realized if all states implement to ATN

  • If an organization unable to implement ATN, arrangements need to be made with neighboring organization/state to carry their message through the ATN environment
