Hoonyol lee jae hee lee kangwon national university korea

IGARSS2008, Boston, MA, USA

An Experiment of GB-SAR Interferometric Measurement of Target Displacement and Atmospheric Correction

Hoonyol Lee, Jae-Hee Lee

Kangwon National University, Korea

Seong-Jun Cho, Nak-Hoon Sung, Jung-Ho Kim

Korea Institute of Geoscience and Mineral Resources


Contents

Contents

  • GB-SAR System

  • Displacement Measurement

  • Atmospheric Correction

  • Conclusion


Introduction

Introduction

  • GB-SAR: Ground-Based Synthetic Aperture Radar

    • “Synthetic Aperture Radar”

      • Imaging Radar

      • Azimuth aperture synthesis

    • “Ground-Based”

      • Fairly versatile system configuration

        • Multiple frequency (L, C, X, Ku, Ka, etc)

        • Full Polarization (VV, VH, HV, HH)

      • Ultimate SAR focusing

        • Zero Doppler centroid (stationary vehicle and target during Tx/Rx)

        • Accurate estimation of Doppler rate from geometry

      • Topography Mapping: Cross-Track InSAR

      • Surface Motion: Zero-baseline and short atmospheric path for high temporal coherency, DInSAR

      • Useful for new SAR concept design

  • GB-SAR Activities

    • EU and Japan for avalanche, landslide, glacier, building monitoring


Gb sar system

GB-SAR System

< Example >

Center frequency : 5.3 GHz

Range bandwidth: 600 MHz

Range resolution: 25 cm

Number of points : 1601

Maximum Range: 200 m

Azimuth length : 5 m

Azimuth Step : 5 cm

Azimuth Resolution: 0.32 degree

Azimuth width: 32 degree

Power : 33 dBm

Polarization: Full


System configuration

System Configuration


Sar focusing algorithms

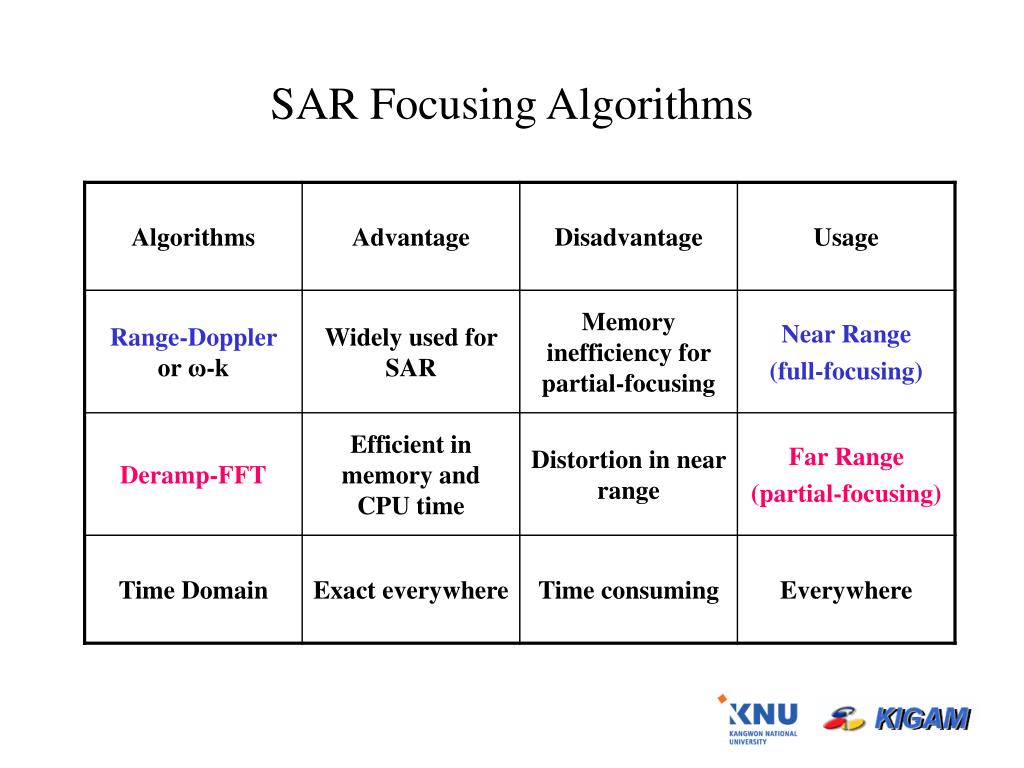

SAR Focusing Algorithms


Df vs rd indoor

DF vs RD (Indoor)

(a) DF algorithm

(b) RD algorithm


Df vs rd outdoor

DF vs RD (outdoor)

(a) DF algorithm (2MB Memory)

(b) DF algorithm (geocoded)

(b) RD algorithm (128MB Memory)


Gb sar resolutions

GB-SAR Resolutions

(b) Partial Focusing (Region I)

(a) Full Focusing (Region IV)


Image area bw 200 mhz

Image Area (Bw = 200 MHz)


Hoonyol lee jae hee lee kangwon national university korea

VV

T1


Hoonyol lee jae hee lee kangwon national university korea

VH

T1


Hoonyol lee jae hee lee kangwon national university korea

HH

T1


Dinsar t2 t1 temporal baseline of 20 minutes

DInSAR (T2-T1):Temporal baseline of 20 minutes

VV


Cross track insar t3 t2 vertical baseline of 30cm

Cross-Track InSAR (T3-T2)Vertical baseline of 30cm

VV


Delta f insar t4 t3 carrier frequency shift of 10 mhz

Delta-f InSAR (T4-T3)Carrier frequency shift of -10 MHz

VV

VV


Cross track and delta f insar t4 t2 vertical baseline of 30 cm carrier frequency shift of 10mhz

Cross-Track and Delta-f InSAR (T4-T2)Vertical baseline of 30 cm, Carrier frequency shift of -10MHz

VV

VV

VV


Wider view 2cm step 2007 3 19 7 22pm 4 20am a1 a9

Wider View2cm Step, 2007. 3. 19 7:22pm- 4:20am, A1~A9

VV

HH


System phase errors

System Phase Errors

Ideal Case

A6-A5, HH

Azimuth scan shift of 2cm. A9-A1, HH

Range System Shift of 2mm


Temporal coherence

Temporal Coherence

Temporal Coherence of 9 acquisitions for 2 hours.

Color scheme: black (0) to white (0.9), blue (0.9) to red (1)


Measurement of target displacement 2007 7 18 3pm 7pm

Measurement of Target Displacement2007. 7. 18 3pm ~ 7pm


Image area

Image Area

Image Area (KIGAM, Daejeon, Korea)


Hoonyol lee jae hee lee kangwon national university korea

Precise Motion of the Trihedral Corner Reflector

(160m away from the system)

↑ Radar

Direction

Displacements toward GB-SAR:

1, 6, 10, 30, and 40 mm

A trihedral corner reflector on top of an acrylic plate with rulers on both sides


Gb sar images

GB-SAR Images

VV

VH

HH

HV


Comparisons with actual displacement

Comparisons with Actual Displacement

Co-polarization


Hoonyol lee jae hee lee kangwon national university korea

Comparisons with Actual Displacements

Cross-polarization


Gb sar interferometry in a non dispersive medium

GB-SAR Interferometry in a Non-Dispersive Medium

  • GB-SAR phase in a medium:

    n = refractive index

    λ = wavelength

    R = range

  • Displacement sensitivity of phase:

    ex) -12.72 degree/mm for C-band when n = 1 (vacuum)


Refractive index

Refractive Index

  • n is a spatio-temporal function of temperature, pressure and humidity (Pipia et al., 2008).

    n = n (T, P, h)

  • Among them humidity has the strongest influence on n (Noferini et al., 2005).

    n = n (h)


Phase range vs humidity

Phase/Range vs. Humidity


Atmospheric correction algorithm

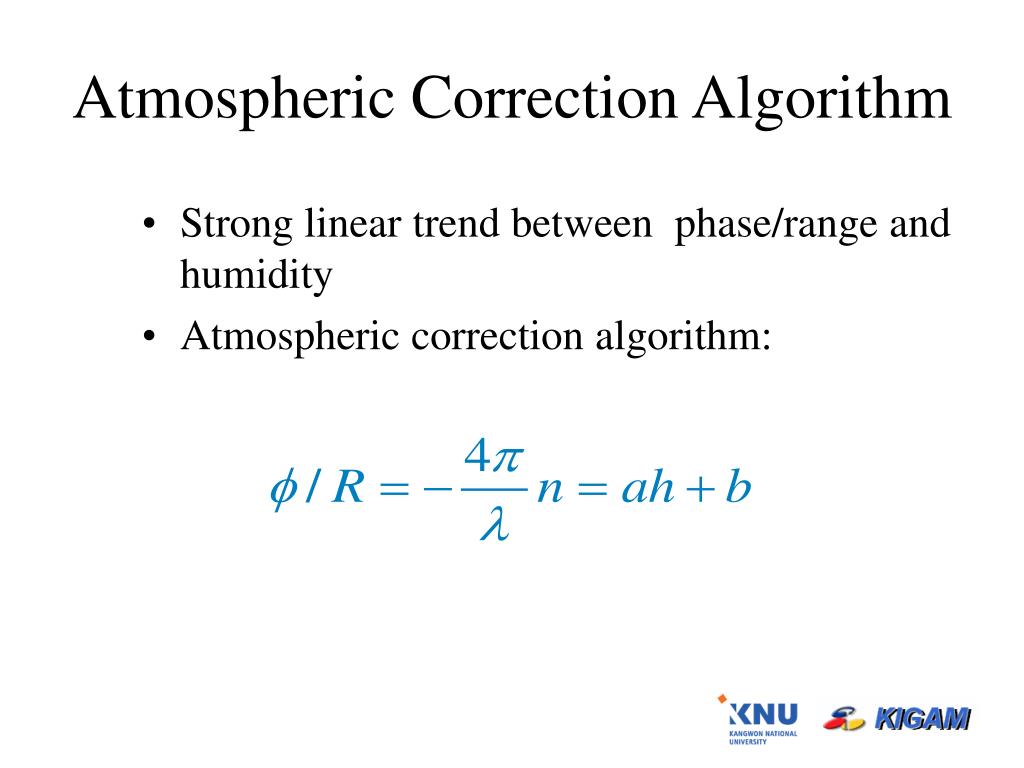

Atmospheric Correction Algorithm

  • Strong linear trend between phase/range and humidity

  • Atmospheric correction algorithm:


Regression coefficients

Regression Coefficients


Comparisons after correction total data

Comparisons – After Correction (total data)

Co-polarization


Hoonyol lee jae hee lee kangwon national university korea

Comparisons – After Correction (total data)

Cross-polarization


Comparisons after correction each pol

Comparisons – After Correction (each pol.)

Co-polarization


Comparisons after correction each pol1

Comparisons – After Correction (each pol.)

Cross-polarization


Rms errors

RMS Errors


Comparison with pipia et al 2008

Comparison with Pipia et al., 2008

  • Pipia et al., 2008

    • X-band (9.65GHz) GB-SAR system

    • HH polarization

    • Temp: 21°C

    • Humidity: 44 ~ 59%

  • Our algorithm in HH polarization at 52% humidity (average of Pipia et al.) is:


Wavelength dependency of phase delay

Wavelength Dependency of Phase Delay

  • n is constant over the wide range of electromagnetic spectrum (non-dispersive).

  • Phase delay is inversely proportional to wavelength.

  • Gradient ratio between X and C-band: 1.78

  • Wavelength ratio between C and X-band: 1.82


So what s the point

So, what’s the point?

Satellite SAR

  • Merely 11% of the humidity change (47%-58%) between two C-band SAR observations may cause:

    • a DInSAR-error of 3 mm at 200 m range,

    • a satellite DInSAR-error of 3 cm (one fringe)assuming 2 km range propagation through the tropospheric thick moist zone

    • 1.5mm DInSAR-error between near-range and far-range (100 m path difference for 2 km lower troposphere) for Envisat IS2

  • Care should be taken of when we try to seek a geophysical meaning of one or two fringes.

2 km thick moist layer


Conclusion

Conclusion

  • We made a SAR system capable of highly accurate consecutive measurements.

  • GB-SAR displacement measurement have shown 2-3 mm error with moisture change of 11% (47-58%) at 160 m range.

  • Phase/Range vs humidity showed highly linear trend, resulting in a simple atmospheric correction algorithm in terms of humidity.

  • Comparison with an X-band experiment (Pipia et al., 2008) confirmed the non-dispersive nature of microwave.

  • Merely 11% moisture change both in time and space, for example, is enough to generate one or two fringes for satellite-based InSAR applications.


Hoonyol lee jae hee lee kangwon national university korea

Thank You
