### Standard Deviation

Lecture 18

Sec. 5.3.4

Tue, Oct 4, 2005

Deviations from the Mean
• Each unit of a sample or population deviates from the mean by a certain amount.
• Define the deviation of x to be (x –x).

0

1

2

3

5

6

7

8

4

x = 3.5

Deviations from the Mean
• Each unit of a sample or population deviates from the mean by a certain amount.

deviation = -3.5

0

1

2

3

5

6

7

8

4

x = 3.5

Deviations from the Mean
• Each unit of a sample or population deviates from the mean by a certain amount.

dev = -1.5

0

1

2

3

5

6

7

8

4

x = 3.5

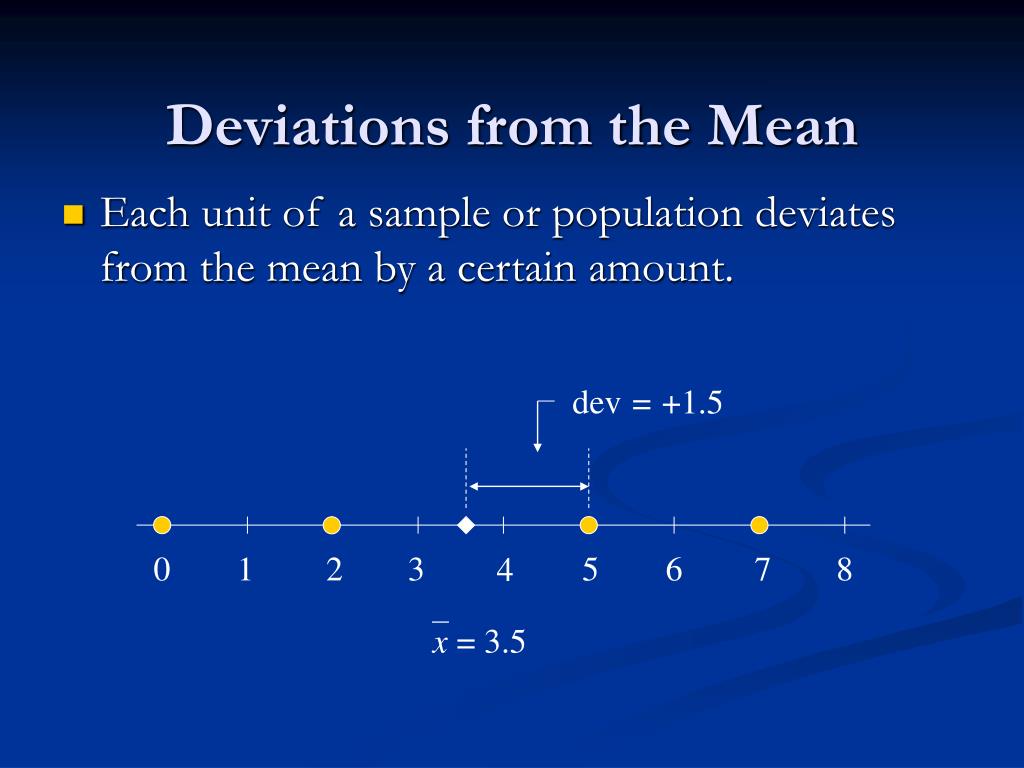

Deviations from the Mean
• Each unit of a sample or population deviates from the mean by a certain amount.

dev = +1.5

0

1

2

3

5

6

7

8

4

x = 3.5

Deviations from the Mean
• Each unit of a sample or population deviates from the mean by a certain amount.

deviation = +3.5

0

1

2

3

5

6

7

8

4

x = 3.5

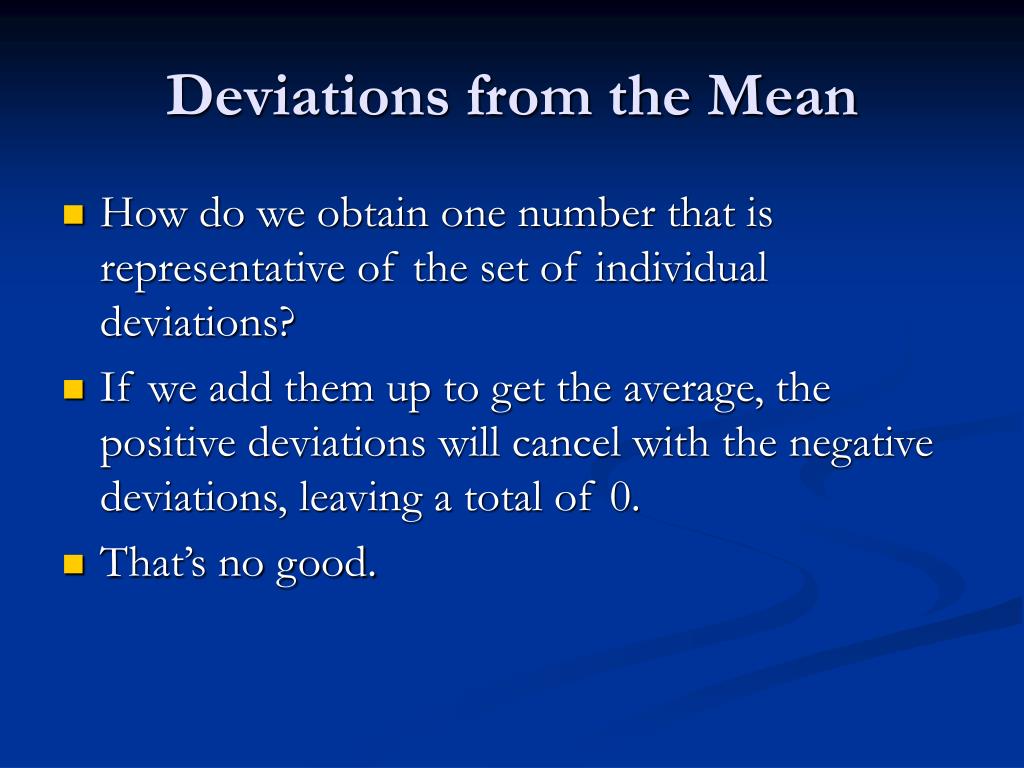

Deviations from the Mean
• How do we obtain one number that is representative of the set of individual deviations?
• If we add them up to get the average, the positive deviations will cancel with the negative deviations, leaving a total of 0.
• That’s no good.

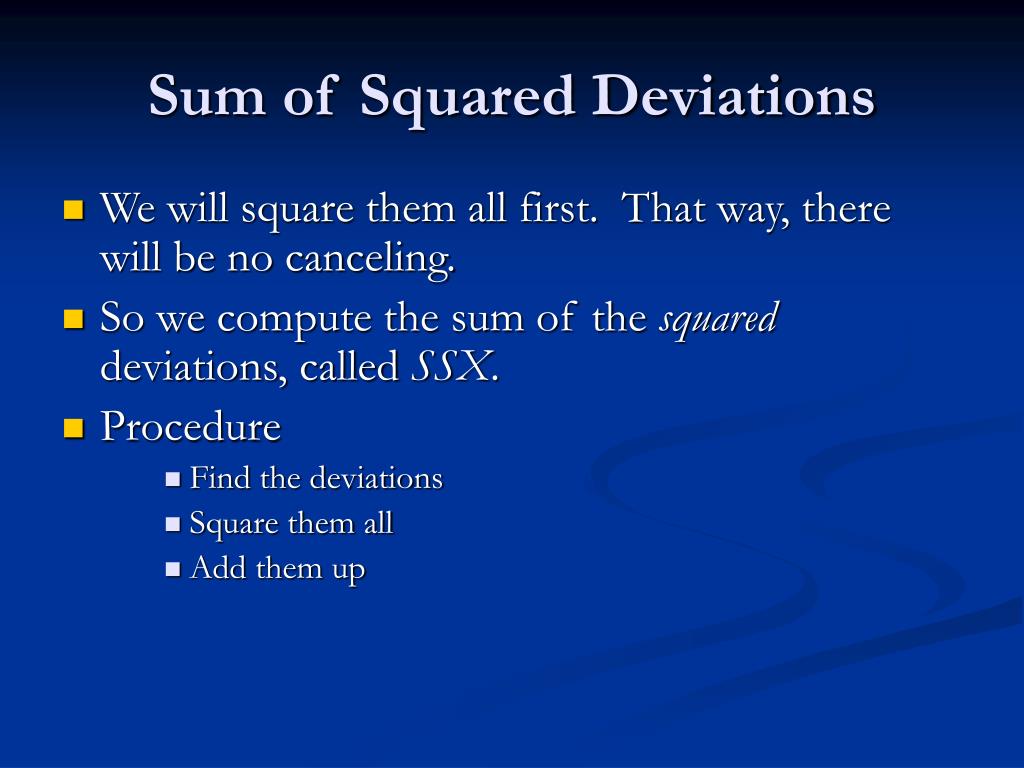

Sum of Squared Deviations
• We will square them all first. That way, there will be no canceling.
• So we compute the sum of the squared deviations, called SSX.
• Procedure
• Find the deviations
• Square them all
Sum of Squared Deviations
• SSX = sum of squared deviations
• For example, if the sample is {0, 2, 5, 7}, then

SSX = (0 – 3.5)2 + (2 – 3.5)2 + (5 – 3.5)2 + (7 – 3.5)2

= (-3.5)2 + (-1.5)2 + (1.5)2 + (3.5)2

= 12.25 + 2.25 + 2.25 + 12.25

= 29.

The Population Variance
• Variance of the population – The average squared deviation for the population.
• The population variance is denoted by 2.

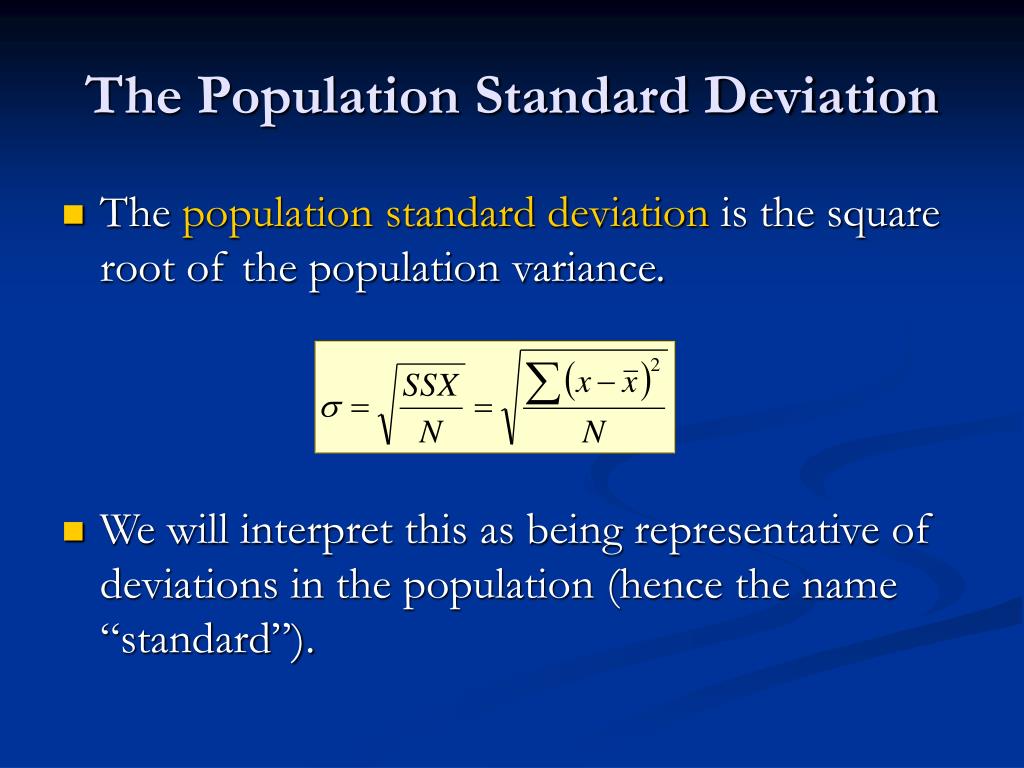

The Population Standard Deviation
• The population standard deviation is the square root of the population variance.
• We will interpret this as being representative of deviations in the population (hence the name “standard”).
The Sample Variance
• Variance of a sample – The average squared deviation for the sample, except that we divide by n – 1 instead of n.
• The sample variance is denoted by s2.
• This formula for s2 makes a better estimator of 2 than if we had divided by n.

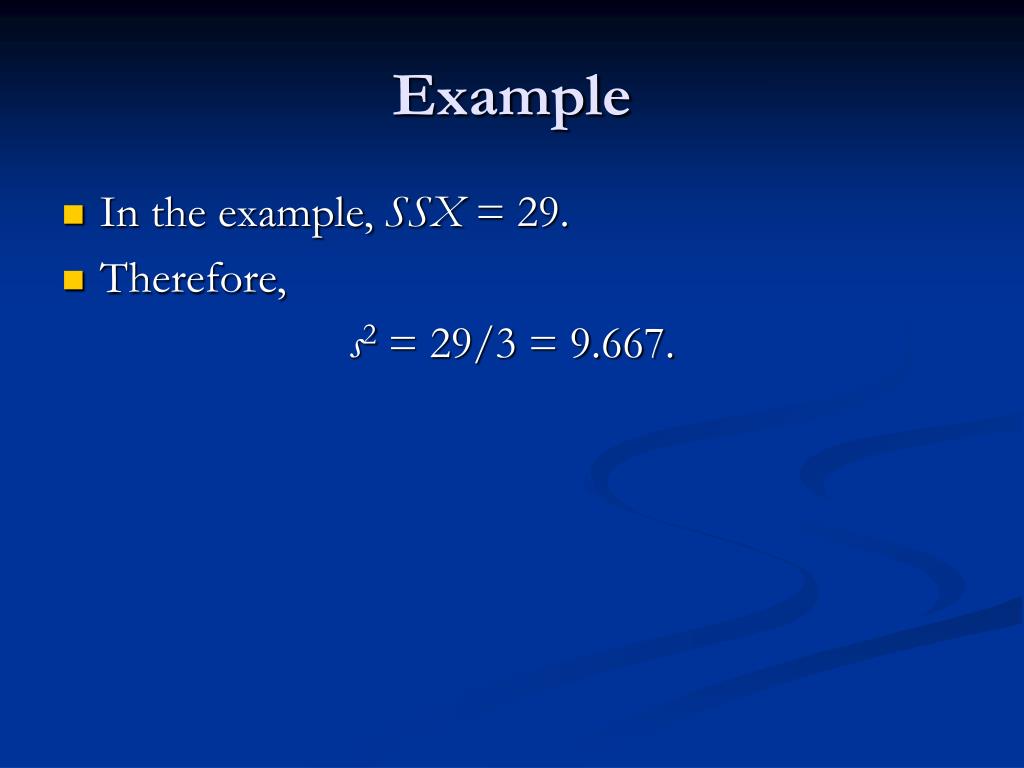

Example
• In the example, SSX = 29.
• Therefore,

s2 = 29/3 = 9.667.

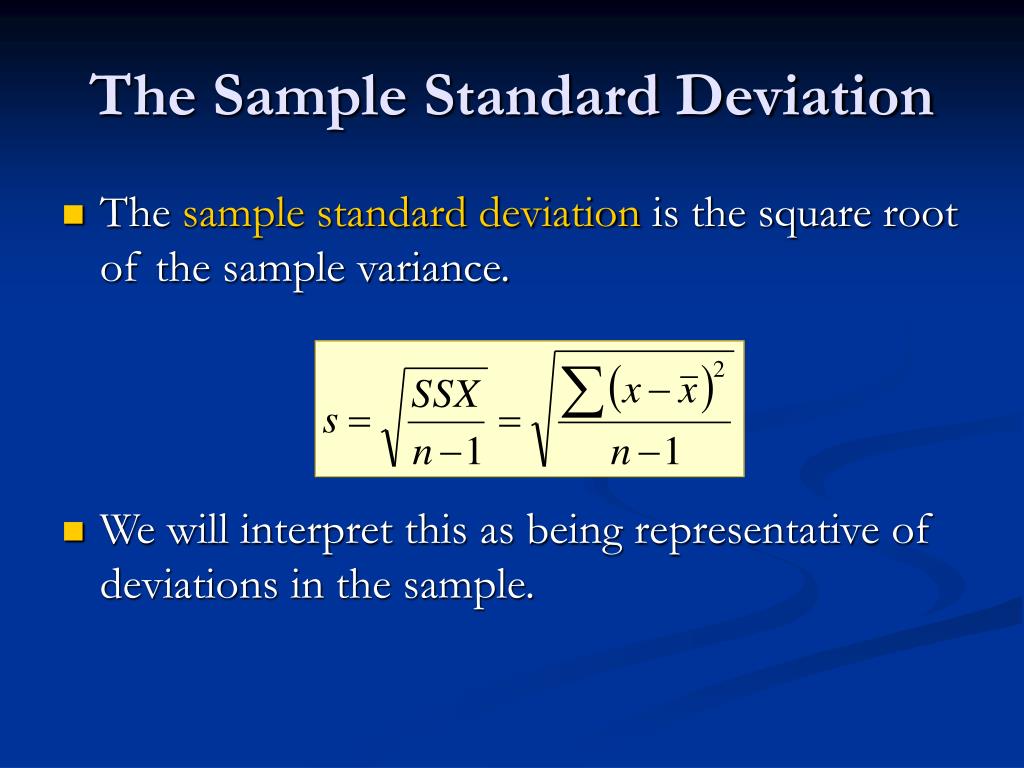

The Sample Standard Deviation
• The sample standard deviation is the square root of the sample variance.
• We will interpret this as being representative of deviations in the sample.

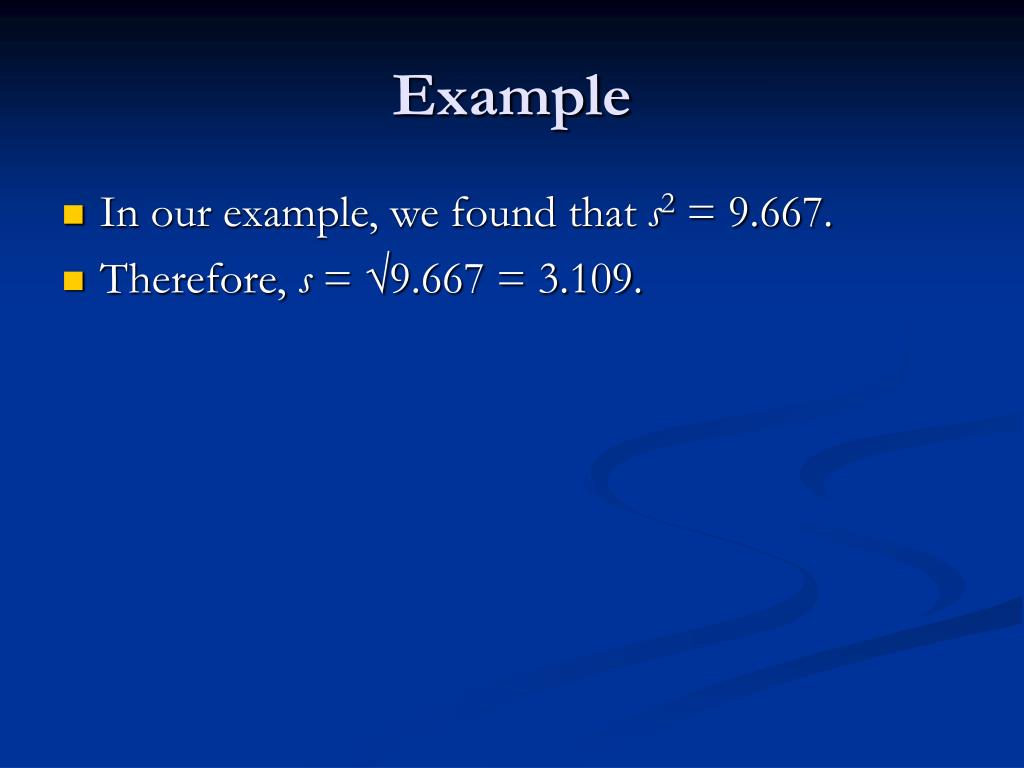

Example
• In our example, we found that s2 = 9.667.
• Therefore, s = 9.667 = 3.109.

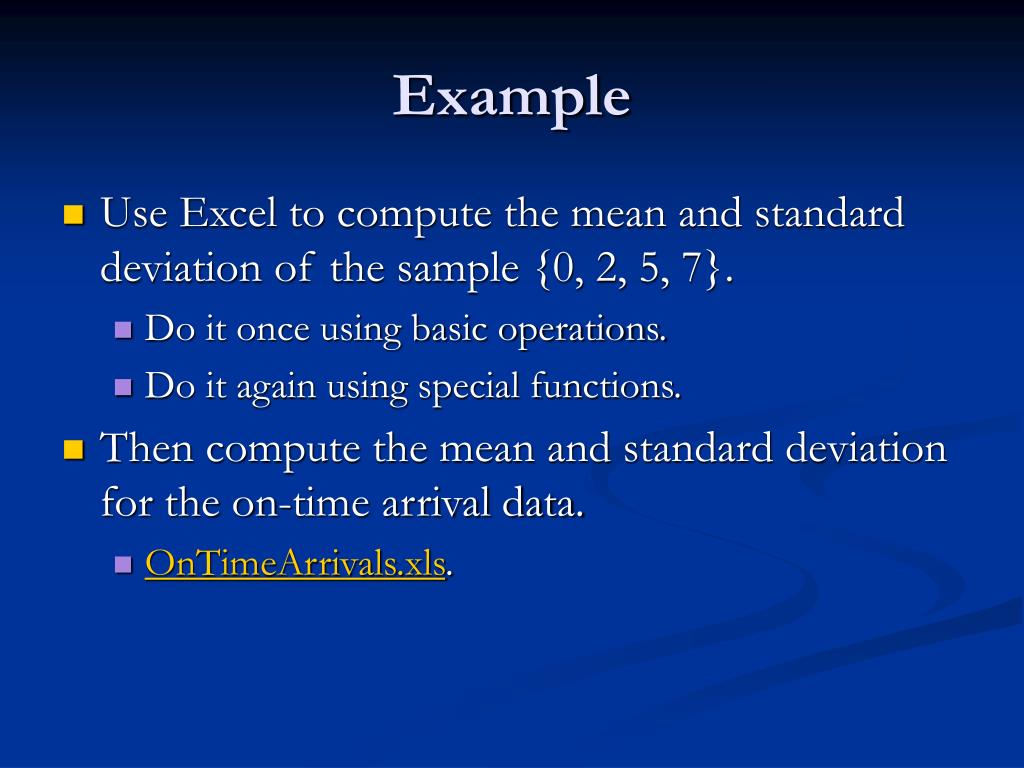

Example
• Use Excel to compute the mean and standard deviation of the sample {0, 2, 5, 7}.
• Do it once using basic operations.
• Do it again using special functions.
• Then compute the mean and standard deviation for the on-time arrival data.
• OnTimeArrivals.xls.
Alternate Formula for the Standard Deviation
• An alternate way to compute SSXis to compute
• Note that only the second term is divided by n.
• Then, as before

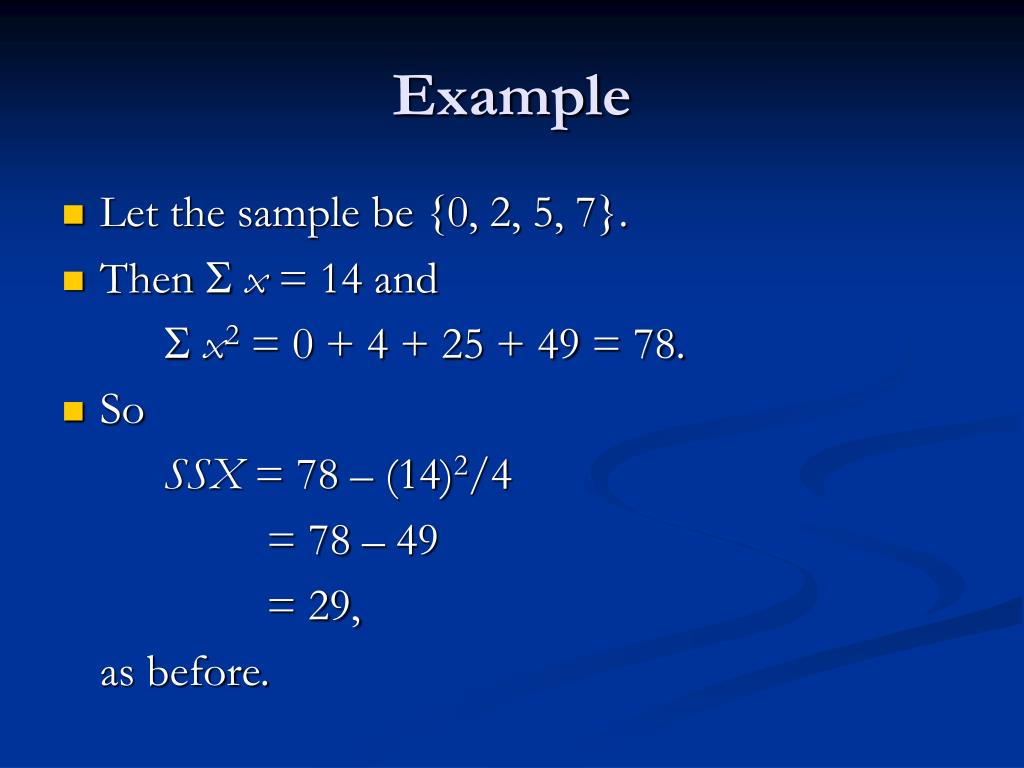

Example
• Let the sample be {0, 2, 5, 7}.
• Then  x = 14 and

 x2 = 0 + 4 + 25 + 49 = 78.

• So

SSX = 78 – (14)2/4

= 78 – 49

= 29,

as before.

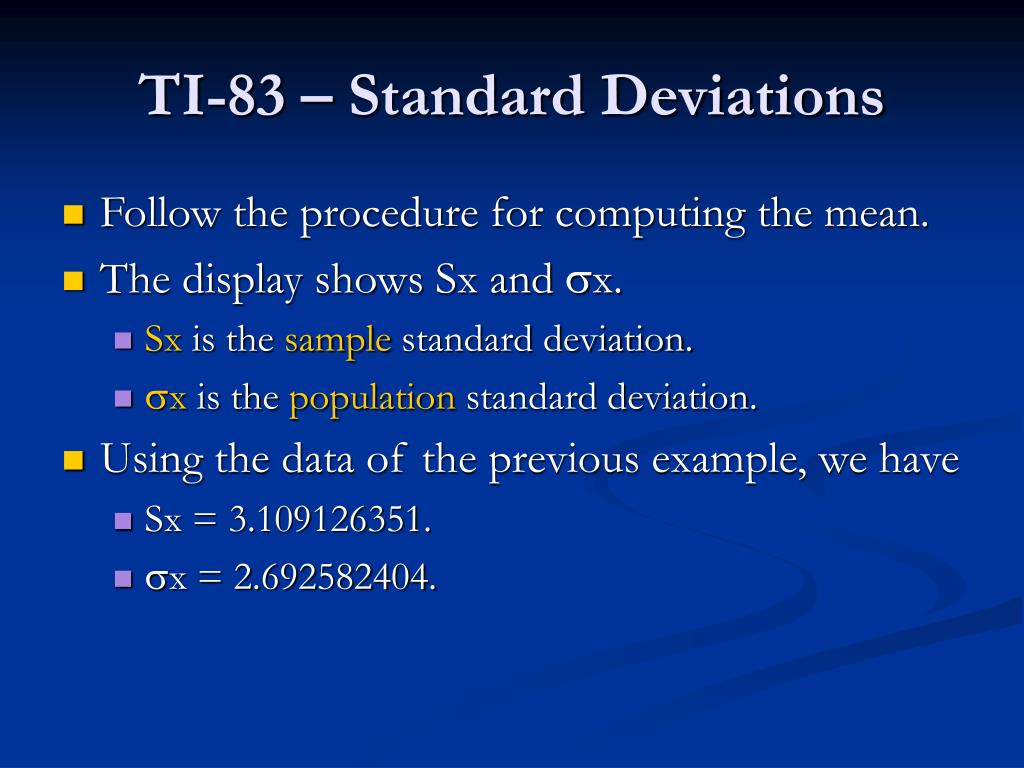

TI-83 – Standard Deviations
• Follow the procedure for computing the mean.
• The display shows Sx and x.
• Sx is the sample standard deviation.
• x is the population standard deviation.
• Using the data of the previous example, we have
• Sx = 3.109126351.
• x = 2.692582404.

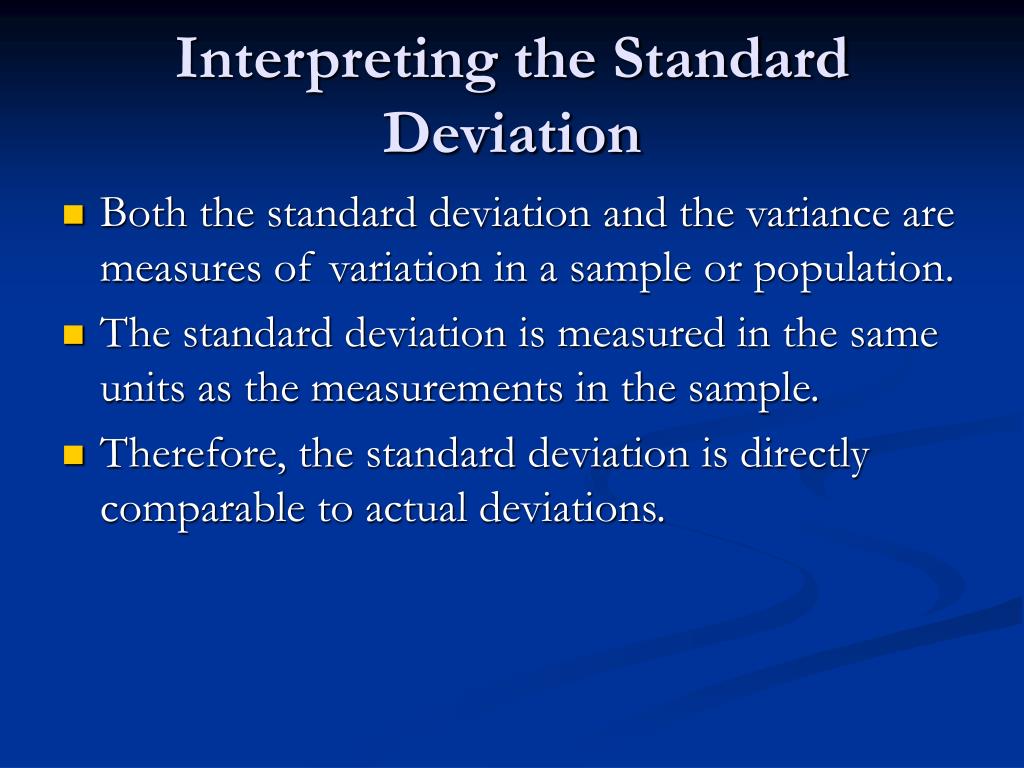

Interpreting the Standard Deviation
• Both the standard deviation and the variance are measures of variation in a sample or population.
• The standard deviation is measured in the same units as the measurements in the sample.
• Therefore, the standard deviation is directly comparable to actual deviations.

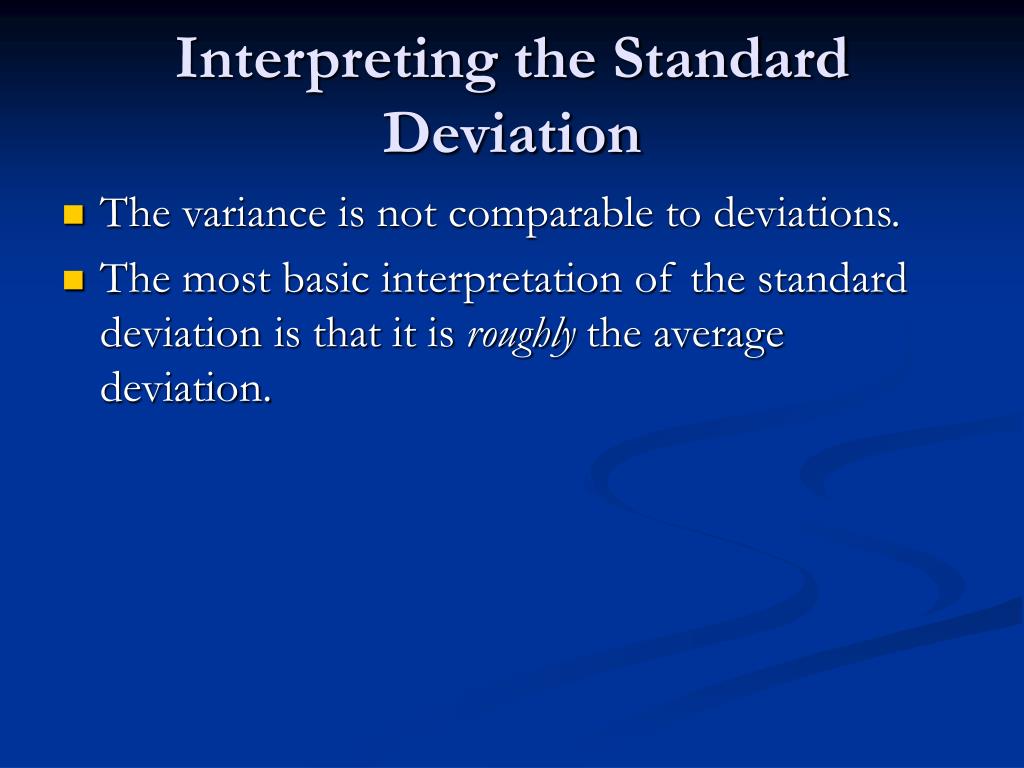

Interpreting the Standard Deviation
• The variance is not comparable to deviations.
• The most basic interpretation of the standard deviation is that it is roughly the average deviation.

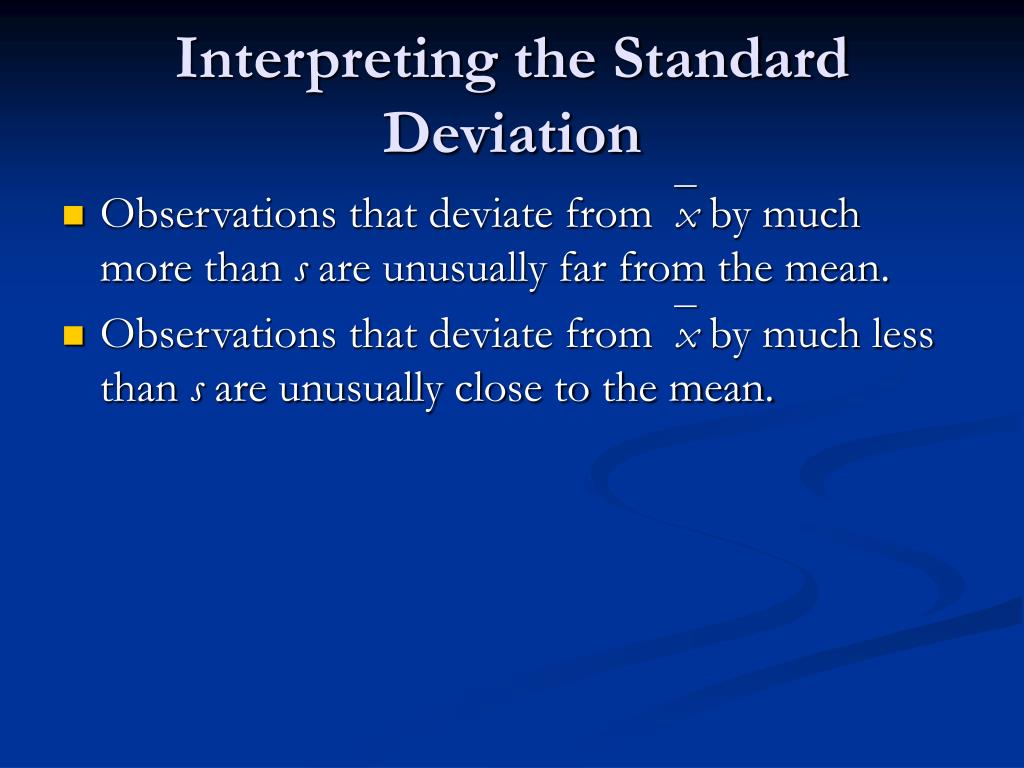

Interpreting the Standard Deviation
• Observations that deviate fromx by much more than s are unusually far from the mean.
• Observations that deviate fromx by much less than s are unusually close to the mean.

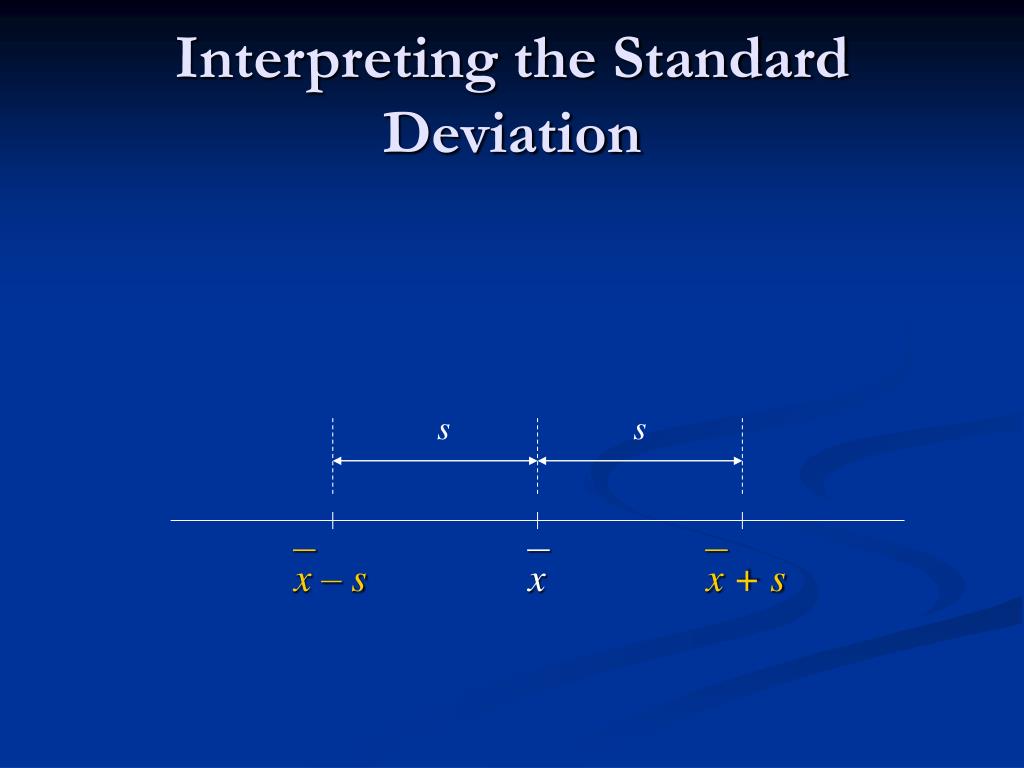

Interpreting the Standard Deviation

s

s

x – s

x

x + s

Interpreting the Standard Deviation

A little closer than normal tox

but not unusual

x – s

x

x + s

Interpreting the Standard Deviation

Unusually close tox

x – s

x

x + s

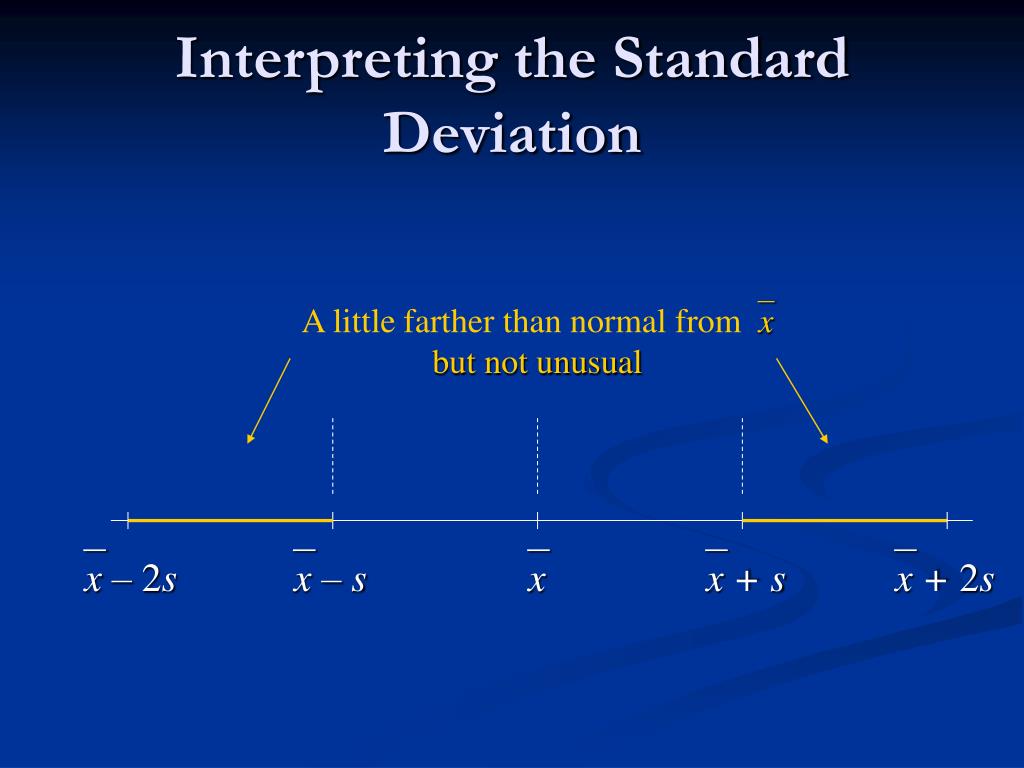

Interpreting the Standard Deviation

A little farther than normal fromx

but not unusual

x – 2s

x – s

x

x + s

x + 2s

Interpreting the Standard Deviation

Unusually far fromx

x – 2s

x – s

x

x + s

x + 2s

Let’s Do It!
• Let’s Do It! 5.13, p. 329 – Increasing Spread.
• Example 5.10, p. 329 – There Are Many Measures of Variability.
