10 30 13

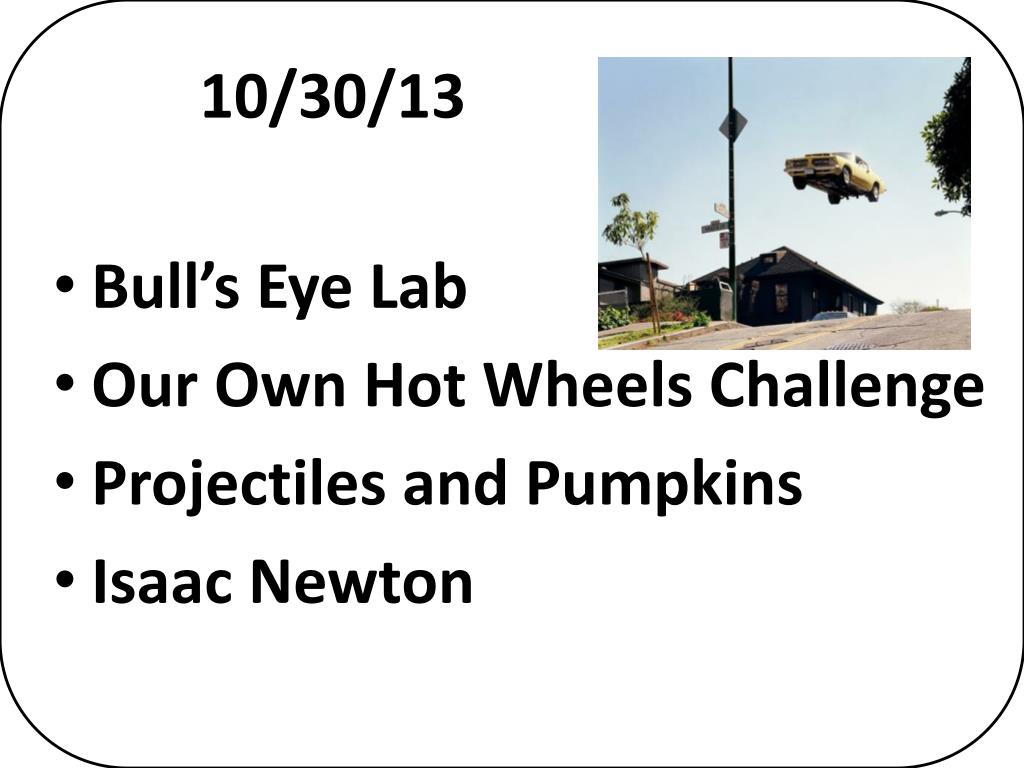

10/30/13

  • Bull’s Eye Lab

  • Our Own Hot Wheels Challenge

  • Projectiles and Pumpkins

  • Isaac Newton


11 4 2013
11/4/2013

  • Turn in Bullseye Lab by 3:15

  • Pumpkins and Projectiles?

  • Hey remember that scientific method activity?

  • And so it comes to this, the mind blowing Sir Isaac Newton and his laws of motion

  • Newton’s Laws


11 5 2013
11/5/2013

  • Pumpkins and Projectiles?

  • And so it comes to this, the mind blowing Sir Isaac Newton and his laws of motion

  • Newton’s Laws


11 1 12
11/1/12

  • Shooting the Moon

  • Normal Force

  • Tug of war physics, oh…okay

  • Vectors in multiple directions!


  • 10 30 2012
    10/30/2012

    • Bullseye Lab

    • Shooting the Moon

    • Newton’s Third Law


    11/6/2013

    • Turn in Homework!

    • That’s some good inertia

    • What is this Force? (not that force)

    • Newton’s 1st and 2nd Law Demos


    Newton’s First Law: Inertia

    An object at rest tends to stay at rest and an object in motion tends to stay in motion with the same speed and in the same direction unless acted upon by an unbalanced force.


    First Law: Application

    Center of gravity (mass)



    First Law - Inertia

    Law of Inertia – every object continues in a state of rest, or of motion in a straight line at a constant speed, unless it is compelled to change that state by forces exerted upon it.



    Inertia Concepts

    Mass – the more mass an object has, the greater its inertia and the more force it takes to change its state of motion. Mass is the measure of the inertia of an object.


    11/7/2013

    • Turn in Homework!

    • That’s some good inertia

    • What is this Force? (not that force)

    • Newton’s 1st and 2nd Law Demos


    Representing forces
    Representing Forces...

    • Forces are vectors

      • Forces are drawn as arrows, the length represents the magnitude and the direction of the arrow is the direction of the force.

      • forces add like vectors.

      • the sum of all the forces is called the net force.

    • A picture of a body with arrows drawn representing all the forces acting upon it is called a FREE BODY DIAGRAM.


    Try it
    Try it...

    Draw a picture of your book sitting on the desk. Identify all the forces acting on it.


    Free body diagrams
    Free Body Diagrams...

    T (table)

    Book

    W (weight)


    Free Body Diagrams...

    What forces are acting on a

    skier as she races down a hill?


    Plane Free Body Diagram



    11/14/2013

    • Test Make-ups

    • Newton’s 2nd and 3rd Laws

    • Newton’s Laws Work


    Newton s second law the law of acceleration
    Newton’s Second Law:The Law of Acceleration

    When an unbalanced force is applied to an object it will accelerate in the direction of the net force with an acceleration proportional to the force applied.

    F = m x a

    a = F/m

    Forces cause accelerations!


    What is a "newton?"

    F = ma

    Mass = kg

    Acceleration = m/s2

    Force = kg ·m/s2

    Newton (N) = kg ·m/s2


    Examples

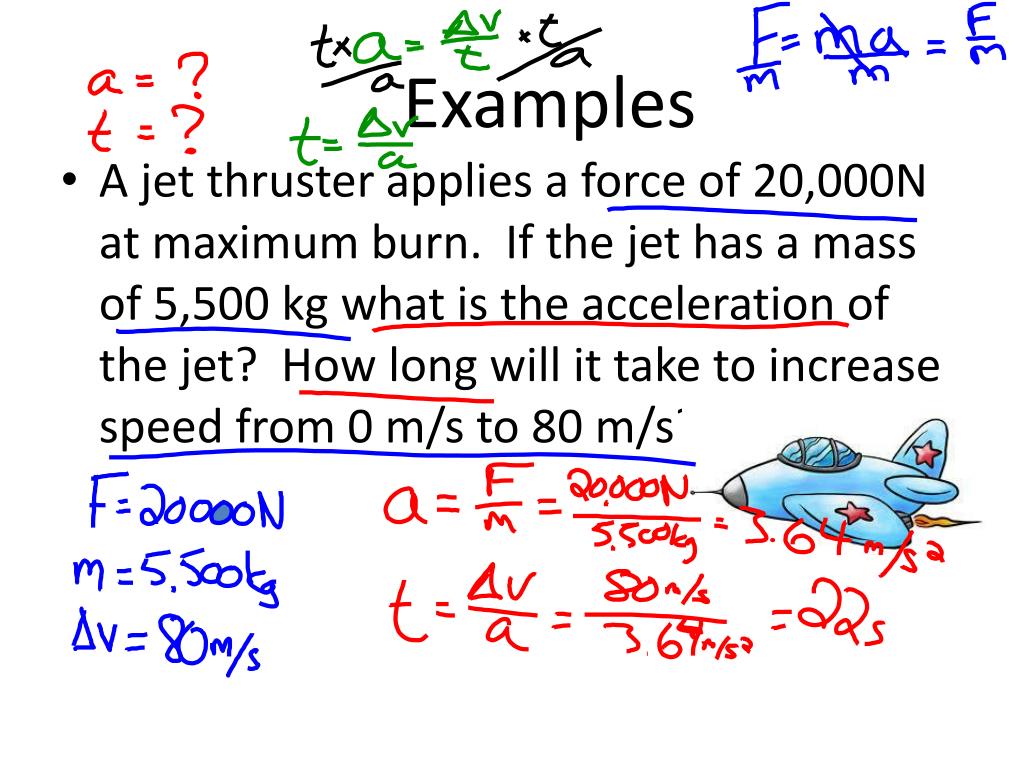

    Examples

    • A jet thruster applies a force of 20,000N at maximum burn. If the jet has a mass of 5,500 kg what is the acceleration of the jet? How long will it take to increase speed from 0 m/s to 80 m/s?


    11/15/2013

    • Test Make-ups

    • Newton’s 2nd and 3rd Laws

    • Newton’s Laws Work


    Examples1

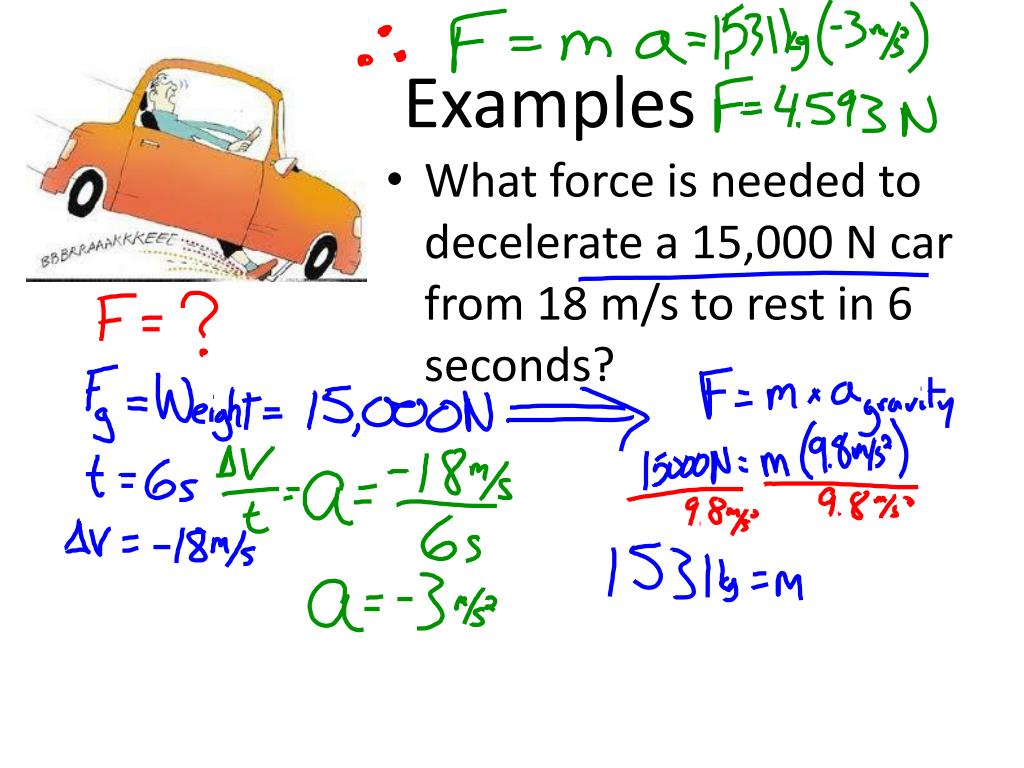

    Examples

    • What force is needed to decelerate a 15,000 N car from 18 m/s to rest in 6 seconds?


    Think about it
    Think About it...

    • A textbook rests on a table. What forces act on the book? On the table?

    • True or False. When you jump the Earth accelerates.

    • An 8 ton bus crashes into a 1200 lb VW Rabbit. If the bus applies a force of 20,000 lb on the car, what is the force of the car on the bus?


    Second Law of Motion

    Newton was the first to realize that the acceleration produced when we move something depends not only on how hard we push or pull, but also on the object’s mass. The acceleration produced by a net force on an object is directly proportional to the magnitude of the net force and is inversely proportional to the mass of the object.


    Third Law:

    Action - Reaction


    The law of force counterforce
    The Law of Force-Counterforce

    • unaccompanied forces do not exist in nature.

    • ‘action-reaction’ forces are not the same as ‘balanced’ forces.

    When one body exerts a force on another body the second one exerts an equal and opposite force on the first.


    Third Law:

    Action - Reaction

    • Whenever a first body exerts a force F on an second body, the second body exerts a force -F on the first body. F and –F are equal in magnitude but opposite in direction.

    • The law of action reaction

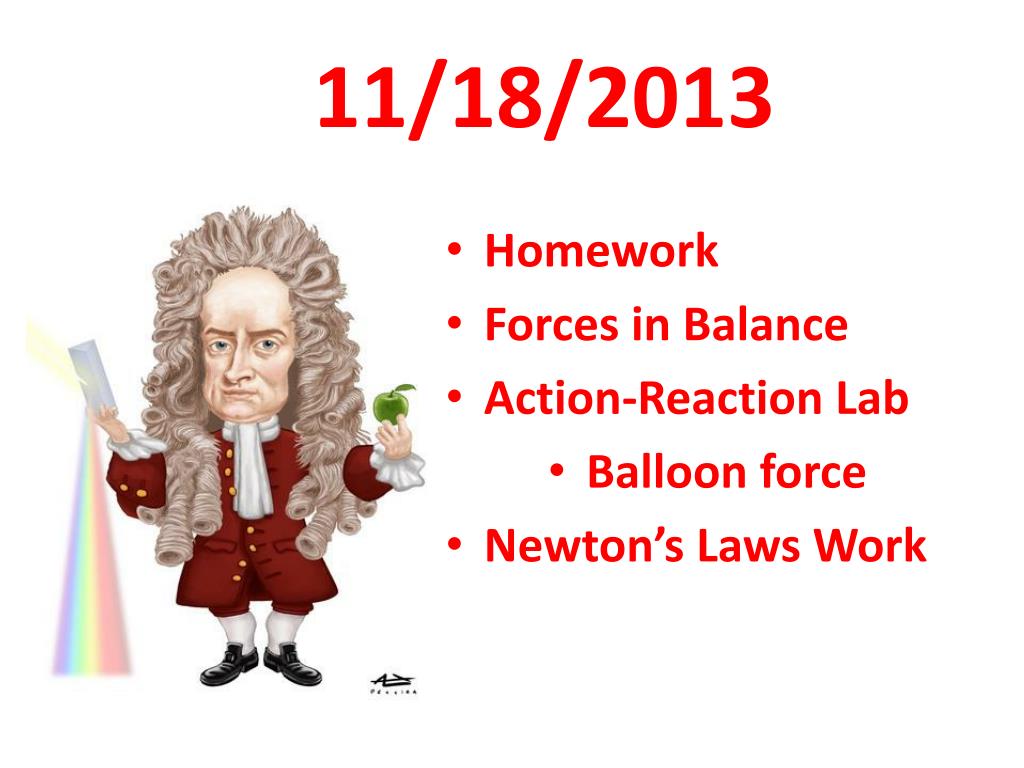

    11/18/2013

    • Homework

    • Forces in Balance

    • Action-Reaction Lab

      • Balloon force

  • Newton’s Laws Work


    • According to legend, a horse learned newton's laws. When the horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?


    Interaction pairs
    Interaction Pairs horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    Two forces that are in opposite directions have equal magnitude.

    You push your friend, this does not cause your friend to exert a force on you. The forces exist together or not at all.


    The conditions for a particle to be in equilibrium

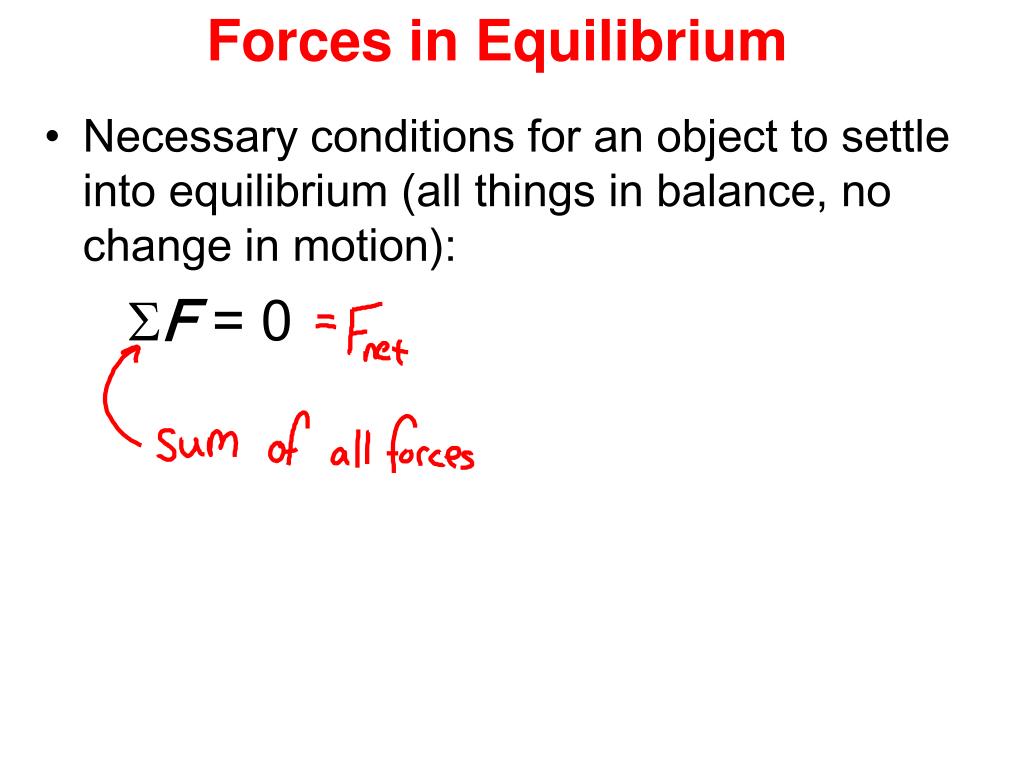

    Forces in Equilibrium horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    The conditions for a particle to be in equilibrium

    • Necessary conditions for an object to settle into equilibrium (all things in balance, no change in motion):

      SF = 0


    Dog fight
    Dog Fight horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    • Susan is holding her dog, its’ mass is 8.0 kg, when Allen decides that he wants it and tries to pull it away from Susan.

    • If Allen pulls horizontally on the dog with a force of 10 N and Susan pulls with a horizontal force of 11 N in the opposite direction, what is the horizontal acceleration of the dog??

    • Why doesn’t the dog bite one of them?


    Normal force
    Normal Force horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    The perpendicular contact force exerted by a surface on another object.


    11 19 13
    11/19/13 horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    • Drag force

  • Tug of war physics, oh…okay

  • New Lab: Balloon Cars


  • Drag force
    Drag Force horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    • Is it true that particles in the air around an object exert forces on it?

    • Yes, a huge force, but they all balance, and there is no net effect.

    • What if the object is moving through the air?

      • It experiences a drag force

    • Drag Force: the force exerted by a fluid on an object moving through a fluid.

    • There is a direct relationship between the magnitude of the drag force and the surface area of a moving object.


    Terminal velocity

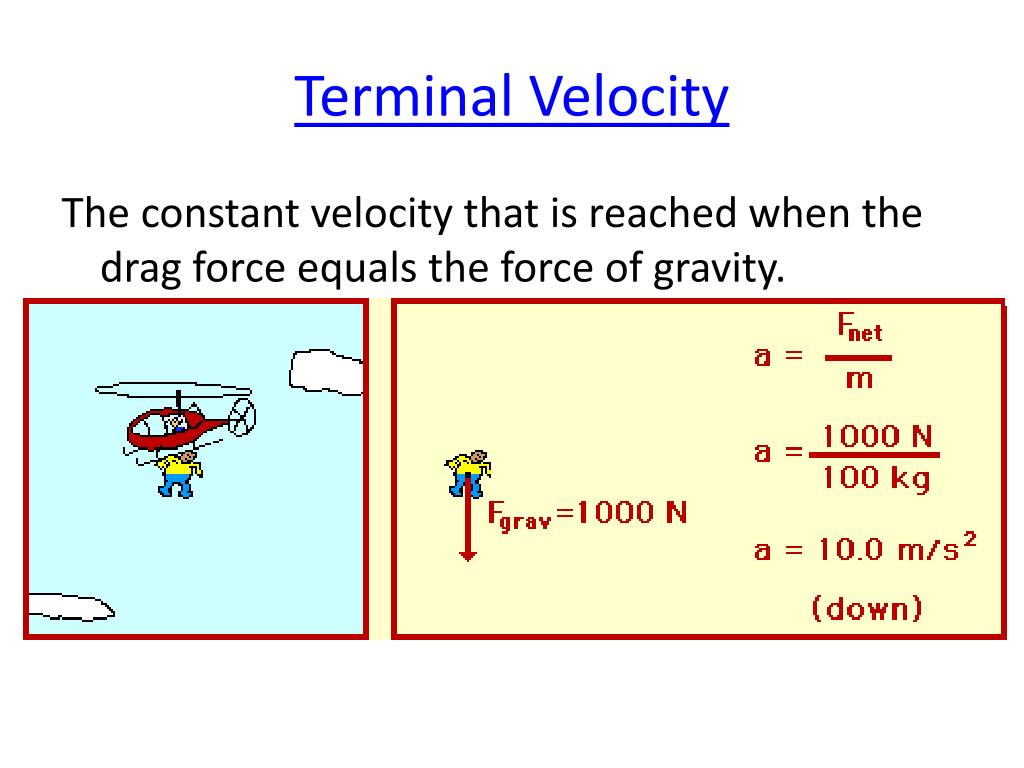

    Terminal Velocity horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    The constant velocity that is reached when the drag force equals the force of gravity.


    Tug of war in physics
    TUG OF WAR in Physics horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    Which of Newton’s laws are involved?

    How do you determine the winner?


    What is friction

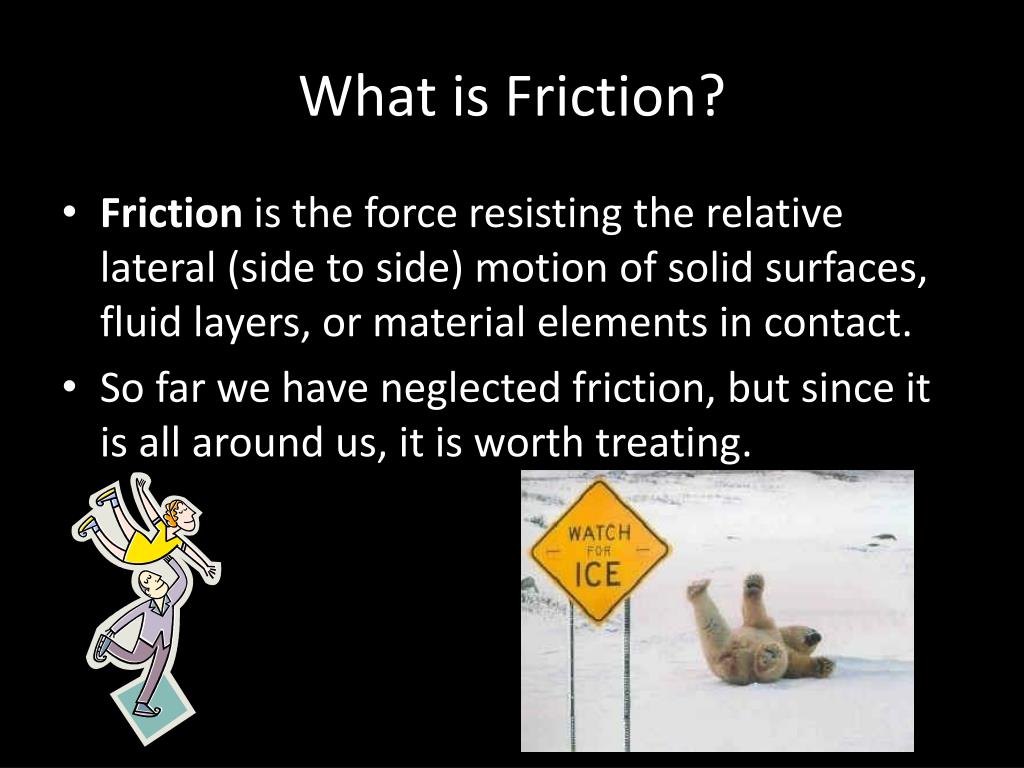

    What is Friction? horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    • Friction is the force resisting the relative lateral (side to side) motion of solid surfaces, fluid layers, or material elements in contact.

    • So far we have neglected friction, but since it is all around us, it is worth treating.


    Two main types of friction
    Two Main Types of Friction horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    • Push a book across a desk, it experiences a type of friction that acts on all moving bodies.

    • KINETIC FRICTION (Fk)

      a force that is exerted by one surface against another when the two surfaces rub against each other because one or both of the surfaces are moving.


    11 20 2013
    11/20/2013 horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    • Friction Force

  • New Lab: Balloon Cars


  • Two main types of friction1
    Two Main Types of Friction horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    • Now try pushing a heavy couch across the floor, give it a push, and it stays where it is. Why?

    • STATIC FRICTION (Fs)

      the force exerted on one surface by another when there is no motion between the two surfaces.


    11 21 2013
    11/21/2013 horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    • Friction Force

  • New Lab: Balloon Cars HW


  • *** At Constant Velocity: horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    Fapplied = Friction Force

    a = 0

    Fnet= 0


    *** When object is moving  horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?on a horizontal surface, the normal force equals .....

    …the weight force.


    F horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?n= weight force

    = w = mg

    On a horizontal surface:


    11 22 2013
    11/22/2013 horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    • Friction Force

  • New Lab: Balloon Cars HW

  • Friction Lab


  • 11 25 2013
    11/25/2013 horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    • Friction Force

  • Friction Lab

  • Remember Balloon Cars HW


  • 11 26 2013
    11/26/2013 horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    • Friction Force

  • Friction Lab Excel Work

  • RememberBalloon Cars HW


  • 12 2 2013
    12/2/2013 horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    • Balloon cars to the test

    • Friction Lab Excel Work


    12 6 2013
    12/6/2013 horse was told to pull a cart, it refused, saying that if it pulled the cart forward, according to Newton's third law, there would be an equal force backwards: thus there would be balanced forces, and the cart would not accelerate. How would you reason with this horse?

    • Balloon car packet due!

    • Appling Newton’s Laws

    • Universal Forces

    • Friction Lab Excel Work






    Master thief Manny is running across the roof top of International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?


    Which fundamental interaction is responsible for: International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    Friction?

    Planetary orbits?

    Nuclear bonding?


    What does the slope represent
    What does the slope represent? International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    • In this case the slope represents the coefficient of kinetic friction.

    • We use it to find Kinetic Friction Force (Fk), as follows:

    Kinetic Frictional Force vs. Normal Force

    Sandpaper

    Rough Table

    Highly Polished Table


    • Think of the ropes cut in two halves. International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    • The left hand is not moving, so the net force is 0.

    • Thus, F A on rope = Fright on left = 500 N.

    • Similarly, F B on rope = Fleft on right = 500 N.

    • But the two tensions Fright on left and Fleft on right are an interaction pair, so they are equal and opposite.

    • So the tension on the rope equals the force each team pulls with, 500 N.


    How much force is needed to keep a 20-N stone from falling? International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    20 N

    20 N

    F = 20 N


    3. International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?What applied force

    accelerates a 20-kg stone

    straight up at 9.8 m/s2?

    9.8 m/s2

    Fnet = Fup + Fdown

    Fup

    Fnet

    Fup = Fnet - Fdown

    Fup = manet - madown

    Fup = m(anet - adown)

    Fdown


    F International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?up = 20kg[9.8m/s2-(-9.8m/s2)]

    Fup = 20kg[19.6 m/s2]

    9.8 m/s2

    Fup = 392 N


    4. A rocket weighs International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?9800 N

    a) What is its mass?

    4 m/s2

    W = mg

    m= W/g

    m = 9800n/9.8m/s2

    m = 1000 kg

    W = 9800 N


    4. A rocket weighs International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?9800 N

    b) What force gives it a

    vertical acceleration of

    4 m/s2?

    4 m/s2

    Fnet = Fup + Fdown

    Fup = Fnet - Fdown

    Fup = manet - Fdown

    W = 9800 N


    4 m/s International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?2

    Fup = (1000 kg·4 m/s2) - (-9800 N)

    Fup = 4000 N + 9800 N

    Fup = 13800 N


    Shooting the moon
    Shooting the Moon International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    Mad Hatter Harry is sick of being watched by the man in the moon every night. So he sets out on a mission to rid him self of the moon once and for all. He is trying to build a cannon that can shoot the peeping tom in the sky. If the combustion process of the cannon’s “fuel” takes 0.2 seconds, the cannon ball is 20 kg, and escape velocity is 11,201 m/s. What magnitude of force must he impart on the cannon shell?


    Elevator problem
    Elevator Problem International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    Your mass is 75kg, and you are standing on a bathroom scale in an elevator. Starting from rest, the elevator accelerates upward at 2 m/s2 for 2 seconds and then continues at a constant speed. Is the scale reading during the acceleration greater than, equal to, or less than the scale reading when the elevator is at rest?


    11 5 12
    11/5/12 International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    • Bullseye reward?

    • Old Homework

  • Tug of war physics, oh…okay

  • Chapter 5 application of Newton’s Three Laws

  • New Lab: Circular motion


  • Forces on ropes and strings
    Forces on Ropes and Strings International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    Tension:

    • A specific name for the force exerted by a string or rope.


    Goals for chapter 5
    Goals for Chapter 5 International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    • To study conditions that establish equilibrium.

    • To study applications of Newton’s Laws as they apply when the net force is not zero.

    • To consider contact forces and the effects of friction.

    • To study elastic forces (such as spring force).

    • To consider forces as they subdivide in nature (strong, electromagnetic, weak, and gravitational).


    Forces on ropes and strings1
    Forces on Ropes and Strings International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    Tension:

    • A specific name for the force exerted by a string or rope.


    11 6 2012
    11/6/2012 International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    • Old Homework

    • Applying Newton’s Three Laws

    • Circular motion lab


    Two dimensional equilibrium example 5 2
    Two dimensional equilibrium – Example 5.2 International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    • Both x and y forces must be considered separately.

    • Follow worked example 5.2 on page 130.


    Two dimensional equilibrium example 5 21
    Two dimensional equilibrium – Example 5.2 International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?


    Problem 4 on page 152
    Problem 4 on page 152 International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?


    11 7 2012
    11/7/2012 International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    • Watch Inclined Plane Force Components on YouTube from KhanAcademy.org

    • Practice Problem in back

    • Forces not in equilibrium


    Inclined plane force components
    Inclined Plane Force Components International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?


    Problem in the back of the room
    Problem in the back of the room International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?


    Problem 6
    Problem 6 International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?


    An example involving two systems example 5 4
    An example involving two systems – Example 5.4 International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    • See the worked example on page 132 and 133.

    • This example brings nearly every topic we have covered so far in the course.


    11 8 2012
    11/8/2012 International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    • Newton’s Laws in dynamic situations

    • Sample problems

    • Contact Forces

    • Circular motion lab


    Forces in dynamics
    Forces in Dynamics International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    • An object is no longer in equilibrium due to forces acting on it.

    • Same as the things we have discussed before, now we just apply Newton’s Laws.

    • Can you think of any examples of an object experiencing unbalanced forces?


    Superman problem
    Superman Problem International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    • A train is approaching a washed out railroad bridge and it is accelerating uncontrollably at 2 m/s2. Superman arrives just in time and begins pushing on the front of the train when there is only 500 m of track left. Assuming Superman causes the 750,000 kg train to uniformly decelerate from 30 m/s to 0 m/s just in time to keep from going off the end of the track, what total force did Superman have to apply to the train in order to stop it?


    11 9 2012
    11/9/2012 International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    • Projectile motion problem solving.

    • Newton’s Laws in dynamic situations

    • Sample problems

    • Circular motion lab


    Air cannon problem
    Air cannon problem International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    • How fast is the air cannon shooting?

      • Find horizontal and vertical components, then velocity.

    • What kind of information can we get from experimentation?


    Problem 19 on 153
    Problem 19 on 153 International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?


    Problem 22 conceptually in back
    Problem 22 conceptually in back. International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?


    11 13 2012
    11/13/2012 International Jewelry, jumps off the roof and grabs on to a mass-less rope hanging from the escape helicopter. In the process of running Manny’s left shoe becomes untied. Self appointed superhero Captain Hammer is chasing Manny and jumps off the roof and grabs onto the thief’s shoe lace. Manny has a mass of 65 kg, Captain Hammer has a mass of 115 kg, what is the tension on Manny’s rope and the shoe lace?

    • Test on Chap 3 and 4

    • Circular motion lab


    • Nate is driving along a cliff side road when a wayward moose crosses his path. Nate slams on the brakes and swerves into the guard rail. He gets out to inspect the damage and sees the front right side of his car is completely wrecked. In frustration he throws his keys horizontally at 8 m/s off a 64 meter high cliff. How far from the base of the cliff should Nate look for his keys?


    • An outfielder is throwing a baseball to the third baseman. The ball is released from shoulder height with an initial velocity of 29.4 m/s at an initial angle of 30° with respect to the ground. If the ball flies through the air for 3 seconds before being caught by the third baseman at an equal shoulder height, what was the maximum height of the ball above the outfielders shoulder height as it flew through the air?






    11 15 2012
    11/15/2012 to fall freely from rest near the surface of the planet. What will be the velocity of the mass after falling for 6.0 seconds?

    • Test

    • Lab due Monday

    • Homework Problem

    • Friction and motion

    • Two main types of friction

    • Friction Lab


    • Number 12 on page 153. to fall freely from rest near the surface of the planet. What will be the velocity of the mass after falling for 6.0 seconds?

    • In a rescue, the 73 kg police officer is suspended by two cables as shown below.

      • Sketch a free body diagram of the officer.

      • Find the tension in each cable.


    Pull a block of known mass along a table at a constant velocity, stack more blocks on top to increase the normal force and note the effect. If you do all this, collect your data and then try it with different surfaces coming into contact with the table, you can make a graph like this one.

    The slope of each line is related to the magnitude of the resulting frictional force.

    The steeper the slope, the greater the force needed to pull the object across the surface.

    Kinetic Frictional Force vs. Normal Force

    Sandpaper

    Rough Table

    Kinetic frictional force

    Highly Polished Table

    Normal Force


    Maximum static friction force is related to the normal force in a similar way
    Maximum Static Friction Force is related to the normal force in a similar way.

    • Static Friction Force (Fs)is the force that responds to a force trying to cause a stationary object to move.

    • If no force is acting on an object, Fs is zero.

    • If a force begins to act on an object, then Fs will increase to a maximum value before it is overcome and the object will begin moving.

    • We calculate Fs using the coefficient of static friction as follows:


    11 16 2012
    11/16/2012 in a similar way.

    • Test Grades

    • Lab due Monday

    • Friction Problems

    • Friction Lab


    Girl and her sled in a similar way.

    • A girl exerts a 36 N horizontal force as she pulls a 52 N sled across a cement sidewalk. What is the coefficient of kinetic friction between the sidewalk and the metal sled runners? Ignore air resistance.


    Logan on the icy hill
    Logan on the icy hill in a similar way.

    Logan is at the top of an ice covered hill and he is wearing a slippery snow suit (very little friction between the two). Assuming he weights 15 kg and the hill is at a 20 degree angle to the horizontal, what is his acceleration down the hill?


    Now add friction
    Now add friction in a similar way.

    A 62 kg person on skis is going down a hill sloped at 37. The coefficient of kinetic friction between the skis and the snow is 0.15. How fast is the skier going 5 s after starting?


    11 20 2012
    11/20/2012 in a similar way.

    • Homework ?’s

    • Practice with Friction

    • Apophis

    • Friction Lab


    Problem 38 on page 155
    Problem # 38 on page 155 in a similar way.

    • Tires on a road, rolling friction:


    11 26 12
    11/26/12 in a similar way.

    • New Homework

    • Test Make-up Question and review session (Tues. and Wed. after school)

    • Elastic Forces (Phet Demo)

    • Friction Lab


    Hooke s law
    Hooke's law in a similar way.

    is the relationship between the force exerted on the mass attached to a spring and its position x.

    Consider a object with mass m, that is on a frictionless surface and is attached to a spring with spring constant k. The force the spring exerts on the mass depends on how much the spring is stretched or compressed, and so this force is a function of the mass's position.

    Fs= kx


    k in a similar way.= F/ x

    Fs= kx


    A in a similar way.= ½bh

    Ws= ½ Fsx


    Problem 57 on page 156
    Problem 57 on page 156 in a similar way.


    11 27 12
    11/27/12 in a similar way.

    • New Homework

    • Test Make-up Question and review session (Tues. and Wed. after school)

    • Friction Lab


    Problem 77 on page 158
    Problem 77 on page 158 in a similar way.


    Goals for chapter 6
    Goals for Chapter 6 in a similar way.

    • To understand the dynamics of circular motion.

    • To study the unique application of circular motion as it applies to Newton’s Law of Gravitation.

    • To examine the idea of weight and relate it to mass and Newton’s Law of Gravitation.

    • To study the motion of objects in orbit as a special application of Newton’s Law of Gravitation.



    Newton's Cannon in a similar way.

    ac = v2/r


    Centripetal Force in a similar way.

    The force needed to keep an object moving in a circular path is called the centripetal force. It is the force that produces the acceleration and is always directed toward the center.

    Fc= mv2/r



    Practice is happening in the cup?

    What centripetal force is needed to keep a 4-kg mass moving at a constant speed of 3 m/s in a circle having a radius of 8 m?

    Fc = mv2/r

    Fc = (4 kg)(3 m/s)2/8 m

    Fc = 4.5 kg-m/s2

    Fc = 4.5 N



    P 166 rounding the curve
    p. 166 Rounding the curve is happening in the cup?


    11 29 12
    11/29/12 is happening in the cup?

    • Homework Questions?

    • Circular Motion

    • Cavendish Measures Gravity

    • Force of gravity between two objects

    • Objects in orbit

    • What about the guy that said there is no gravity?


    P 167 rounding a banked curve
    p. 167 Rounding a banked curve is happening in the cup?


    Practice is happening in the cup?

    A frictionless rollercoaster does a vertical loop with a radius of 6.0m. What is the minimum speed that the roller coaster must have at the top of the loop so that it stays in touch with the rail?

    mv2/r = mg

    g = v2/r

    v2 =gr

    Fnet = FN + Fg

    v2 =9.8 m/s2 x 6 m

    Fc = 0 + Fg

    v = 7.7 m/s



    What is the net force on the rider at point A? coaster.

    What is Fnet at point A also called?

    What is FN at point A acting on the rider(apparent weight)?

    What velocity is needed at point A to produce an FN on the rider of 0?

    Fnet = -Fg + (FN)

    Fnet = Fcentripetal

    A

    FN = Fg - Fc

    mg = mv2/r

    v = (gr)½

    0 = Fg - Fc

    Fg = Fc


    What is the net force on the rider at point B? coaster.

    What is Fnet at point B also called?

    What is FN at point B acting on the rider(apparent weight)?

    What is the “g-force” at point B?

    Fnet = FN + (-Fg)

    Fnet = Fcentripetal

    FN = Fc + Fg

    B

    G-force = FN / Fg


    What is the net force on the rider at point C? coaster.

    What is Fnet at point C also called?

    What is FN at point C acting on the rider?

    What does a negative FN mean?

    C

    Fnet = FN + Fg

    Fnet = Fcentripetal

    FN = Fc - Fg

    - FN = “I’m falling”


    Gravitation coaster.




    11 30 12
    11/30/12 coaster.

    • New Homework

    • Force of gravity between two objects

    • Objects in orbit

    • Does Gravity exist?

    • Gravitation Lab


    M coaster.1

    M2

    R

    Fg =

    mg

    GM1 M2

    Fg =

    R2


    m coaster.1

    m2

    R

    Gm1 m2

    Gm1 m2

    m2g =

    Fg =

    R2

    R2

    Gm1

    Fg = m2g

    g =

    R2


    M coaster.e

    m2

    R

    G Me

    g =

    R2


    M coaster.e

    m2

    R

    6.7 x 10-11N•m2/kg2(6.0 x 1024 kg)

    g=

    (6.4 x 106 m)2


    M coaster.e

    m2

    R

    g=

    9.8 m/s2


    50 kg coaster.

    6 kg

    2 .0 m

    GM1 M2

    Fg =

    R2


    50 kg coaster.

    6 kg

    2 .0 m

    6.7 x 10-11N•m2/kg2(50 kg)(6 kg)

    Fg=

    (2 m)2


    50 kg coaster.

    6 kg

    2 .0 m

    Fg=

    5.0 x 10-8N


    It looks like a shooting star
    It looks like a shooting star coaster.

    The International space station is orbiting above the Earth at approximately 350 km. If it has a mass of 450000 kg, what is the force of gravity between it and the Earth? SEE IT?


    It looks like a shooting star1
    It looks like a shooting star coaster.

    Given your answer to the following question, how fast must the ISS be moving to stay in orbit?


    m coaster.1

    m2

    R

    Gm1 m2

    Gm1 m2

    m2g =

    Fg =

    R2

    R2

    Gm1

    Fg = m2g

    g =

    R2


    M coaster.1

    100 kg

    M2

    50 kg

    1.0 m

    R

    GM1 M2

    Fg =

    R2


    M coaster.1

    100 kg

    M2

    50 kg

    1.0 m

    R

    6.7 x 10-11N•m2/kg2(50 kg)(100 kg)

    Fg=

    (1.0 m)2

    Fg=

    3.35 x 10-7 N


    M coaster.1

    100 kg

    M2

    50 kg

    1.0 m

    R

    Fg=

    3.35 x 10-7 N = 50 kg x g

    g = 6.7 x 10-9 m/s2


    M coaster.1

    100 kg

    M2

    50 kg

    1.0 m

    R

    Fg=

    3.35 x 10-7 N = 100 kg x g

    g = 3.35 x 10-9 m/s2


    Concept Problem #5 coaster.

    A radioactive cesium nucleus emits a beta particle of mass 9.1 x 10-31 kg and transmutes (changes) into a barium nucleus that has a mass of 2.2 x 10-25 kg. What is the gravitational force of attraction between the barium nucleus and the beta particle when they are 2.0 x 10-8 m apart? Based on your answer, is the force of gravity important in holding subatomic particles together? Explain.


    Concept Problem #5 coaster.

    3.3 x 10-50 N


    12 15 11
    12/15/11 coaster.

    • Lunar Mystery question

    • Homework

    • Pass back Old Homework

    • Universal Gravitation practice

    • What about the guy that said there is no gravity?


    Jupiter and earth
    Jupiter and Earth coaster.

    Jupiter is 5.2 times farther from the Sun than Earth. Find Jupiter’s orbital period in Earth yrs.


    Gravitational Field coaster.

    GM

    g=

    R2


    Orbiting the earth
    Orbiting the Earth coaster.

    • To maintain a constant distance around the Earth, a satellite must maintain a certain speed.

    • If it did not it would fall into the atmosphere.

    • We can determine the speed with which something orbits the Earth by the radius of its orbit.


    Orbiting the earth1
    Orbiting the Earth coaster.

    • We can also use the radius of a satellites orbit to determine the period of its orbit.



    Gravity is all around
    Gravity is all around radius is 6.7 X 10

    A moon in orbit around a planet, like ours, experiences a gravitational force not only from the planet, but also from the Sun. The illustration below shows a moon during a solar eclipse, when the planet, the moon and the Sun are aligned. The moon has a mass of 3.9x1021 kg, the planet is 2.4x1026 kg and the Sun is 2.0x1030 kg. The distance from the moon to the center of the planet is 6.0x108 m. The moon to the Sun is 1.5x1011 m. What is the ratio of the gravitational force on the moon due to the planet compared to the gravitational force on the moon due to the Sun?


    12 16 11
    12/16/11 radius is 6.7 X 10

    • Lunar Mystery question

    • Universal Gravitation practice

    • Newton/Einstein Gravity

    • What about the guy that said there is no gravity?


    W radius is 6.7 X 10s = Fs x d

    Ws= ½ Fsx

    Fs= kx

    R

    Ws = PEs = ½ kx2

    (x = distance stretched = d)


    What does frictional force depend on
    What does Frictional Force depend on? radius is 6.7 X 10

    Plays a role

    Does not Play a role


    What does frictional force depend on1
    What does Frictional Force depend on? radius is 6.7 X 10

    Plays a role

    Does not Play a role


    11 16 11
    11/16/11 radius is 6.7 X 10

    • Homework due tomorrow

    • Friction sample problems

    • Equilibrium and the Equilibrant

    • Friction on an inclined plane

    • Friction Lab


    Find the equilibrant
    Find the equilibrant radius is 6.7 X 10


    More feng shui problem
    More radius is 6.7 X 10Feng shui Problem

    • You need to move a 105 kg sofa to a different location in the room. It takes 102 N to start it moving. What is the coefficient of static friction between the sofa and the carpet?


    Simple push problem
    Simple Push Problem radius is 6.7 X 10

    You push a box across a wooden floor at a constant speed of 1 m/s. The coefficient of kinetic friction between the box and floor is 0.2. How much force do you exert on the box?


    Simple push problem continued
    Simple Push Problem continued radius is 6.7 X 10

    If you double the force you exerted on the box in the previous problem, what is the resulting acceleration of the box?


    When on a ramp, gravity must be broken into the effect it has on the angle of the ramp.

    Gravity is diluted by the angle of the ramp.


    11 17 11
    11/17/11 has on the angle of the ramp.

    • Homework

    • Nanotechnology Applications, things to ask about tomorrow.

    • Friction on an inclined plane

    • Friction Lab


    Apply motion to an inclined plane
    Apply motion to an inclined plane has on the angle of the ramp.

    • A crate that weighs 562 N is resting on a plane that is inclined 30 above the horizontal. Find the components of weight force that are parallel and perpendicular to the plane.


    Logan on a slide
    Logan on a slide has on the angle of the ramp.

    Logan, who has a mass of 15 kg, starts down a slide that is inclined at 45⁰ with the horizontal. If the coefficient of kinetic friction between the slide and Logan is 0.25, what is his acceleration?


    11 22 11
    11/22/11 has on the angle of the ramp.

    • http://www.lifesaverusaonline.com/

    • Friction on an inclined plane

    • Work:

      • Friction Lab

      • Homework

      • Case Study related assignment


    Pulling up a slope
    Pulling up a slope has on the angle of the ramp.

    • A 100N block is pulled up a ramp that is at a 45⁰ angle. The coefficient of friction is 0.3. What force is needed to move it up the ramp at a constant speed?


    10 23 11
    10/23/11 has on the angle of the ramp.

    • Robots: just sayin’

    • Work:

      • Friction Lab

      • Homework

      • Case Study related assignment

    Enjoy your time with

    Family and friends!


    Accelerating block
    Accelerating Block has on the angle of the ramp.

    • The coefficient of kinetic friction between the block and the ramp is (0.20). The pulley is frictionless.

    • What is the acceleration of the system?


    11 1 10
    11/1/10 has on the angle of the ramp.

    • Hand in Homework

    • Test on vectors and friction

    • Go over Homework

    • Pushing up a slope against friction and gravity

    • Practice Problems

    • Friction worksheet

    • Projectile Motion


    When on a ramp, gravity must be broken into the effect it has on the angle of the ramp.

    Gravity is diluted by the angle of the ramp.


    A stone is thrown at a speed of 10 m/s from the top of a 100 meter high cliff.

    How long does it take the stone to reach the bottom of the cliff?

    How far from the base of the cliff does the stone hit the ground?

    What are horizontal and vertical components of the stones velocity just before it hits the ground?

    Vertical Displacement (m)

    Horizontal Displacement (m)


    ad
