  1. Section 4.6Isosceles, Equilateral and Right Triangles

  2. Review: Ways to Prove Triangles are Congruent • SSS Congruence Postulate • SAS Congruence Postulate • ASA Congruence Postulate • AAS Congruence Theorem

  3. NEW: Way to Prove Triangles are Congruent • H-L Congruence Theorem Only applies to Right Triangles!States that if the hypotenuses are congruent and one set of legs are congruent then the triangles are congruent!

  4. Isosceles triangle theorems • Base Angles Theorem • If two sides of a triangle are congruent, then the angles opposite them are also congruent. • Converse of the Base Angles theorem • If two angles of a triangle are congruent, then the sides opposite them are also congruent Look at angles and sides that are across from one another!!! If <P and <Q are congruent then sides PR and QR must also be congruent. Likewise, if Sides PR and QR are congruent, then <P and <Q must also be congruent!

  5. 35° x Example 1 – Find the measure of x

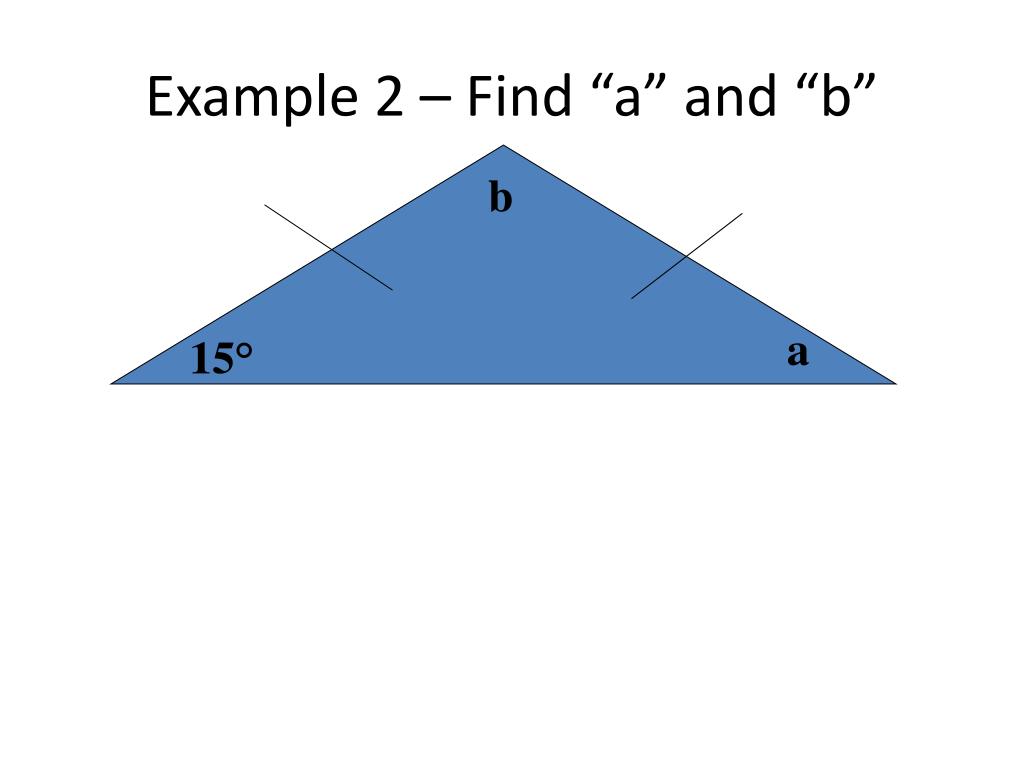

  6. b a 15° Example 2 – Find “a” and “b”

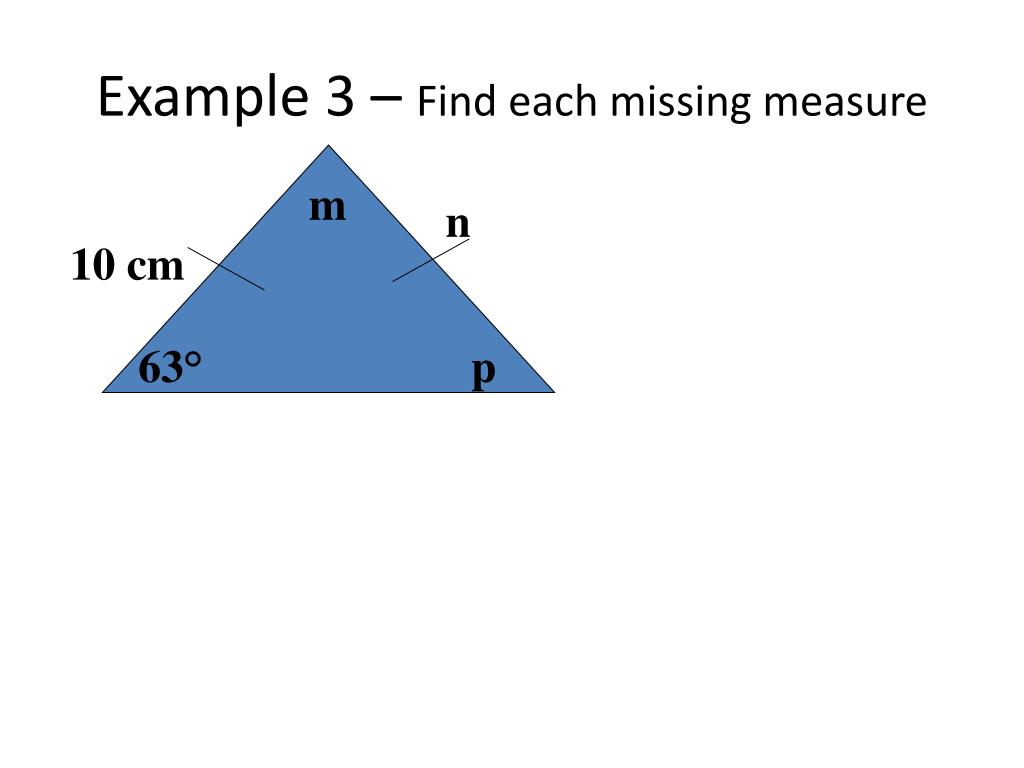

  7. m n 10 cm 63° p Example 3 – Find each missing measure

  8. Equilateral Triangles • If a triangle is equilateral, then it is equiangular (each angle measures 60o.) • If a triangle is equiangular (each angle measures 60o), then it is equilateral.

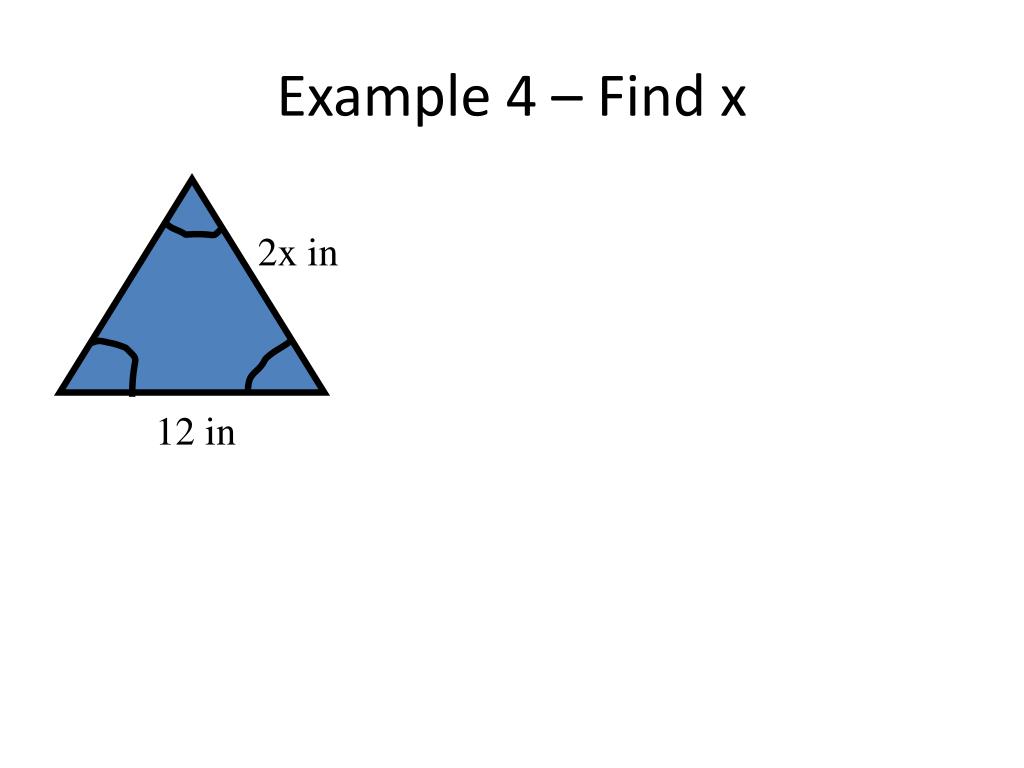

  9. 2x in 12 in Example 4 – Find x

  10. x y Example 5 – find x & y

  11. 75° y° x° Example 6 – Find x & y
