Inde 2333 engineering statistics i goodness of fit

INDE 2333

ENGINEERING STATISTICS I

GOODNESS OF FIT

University of Houston

Dept. of Industrial Engineering

Houston, TX 77204-4812

(713) 743-4195


Agenda

AGENDA

  • Chi-square goodness of fit test


Goodness of fit tests

GOODNESS OF FIT TESTS

  • Used to determine if a sample could have come from a distribution with the specified parameters

  • Commonly used to determine if data is normally distributed

    • Many tests such as the ones that we have been using require normally distributed data.

    • If data is not normally distributed, non-parametric tests must be used (next subject in the course)

  • Also used for input distributions in system modeling

    • Customers or jobs arrive exponentially distributed?

    • Service times follow what distribution?

    • Failures occur according to what distribution?


Goodness of fit tests1

GOODNESS OF FIT TESTS

  • Based on a comparison of observations between

    • Observed data

    • Theoretical data

  • The comparison utilizes a set of intervals or cells

  • Each cell has a lower and upper boundary values

  • The determination of the boundaries are a function of

    • Theoretical distribution

    • Number of observations in the sample

    • 2 different approaches…


Two different approaches

TWO DIFFERENT APPROACHES

  • Approach 1

    • Used in the book

    • Equal interval approach

    • No cell grouping can have less than 5 expected observations

  • Approach 2

    • Used in other books

    • Equiprobable approach

    • Maximum number of cells not to exceed 100 such that the expected number of observations is at least 5 = Int ( obs/5 )

    • Expected number of obs in each cell = obs / cells

    • More statistically robust


Hypotheses test procedure

HYPOTHESES TEST PROCEDURE

  • Identify Ho and Ha

  • Determine level of significance (generally 0.05 or 0.01)

  • Determine “critical value” criterion from level of significance

  • Calculate “test statistic”

  • Make decision

    • Fail to reject Ho

    • Reject Ho


Hypotheses

HYPOTHESES

  • Ho

    • The sample could have come from a distribution with the specified parameters

  • Ha

    • The sample could not have come from a distribution with the specified parameters


Critical value

CRITICAL VALUE

  • Chi-square distribution chart

  • One sided test

  • Alpha typically 0.05

  • Degrees of freedom

    • # of cells - # of parameters used from sample -1

    • The -1 is always used due to the known sample size n

    • Note, if the parameters are specified not sampled then they do not reduce the number of degrees of freedom in the above equation


Chi square for a particular number of degrees of freedom

CHI-SQUAREfor a particular number of degrees of freedom

f(X^2)

Right tail probability, alpha, typically 0.05

0

X^2

X^2 Critical value


Test statistic

TEST STATISTIC


Decision

DECISION

  • Cannot reject

    • Test statistic is less than the critical value

    • Sample could have come from a distribution with the specified parameters

  • Reject

    • Test statistic is greater than the critical value

    • Sample could not have come from a distribution with the specified parameters

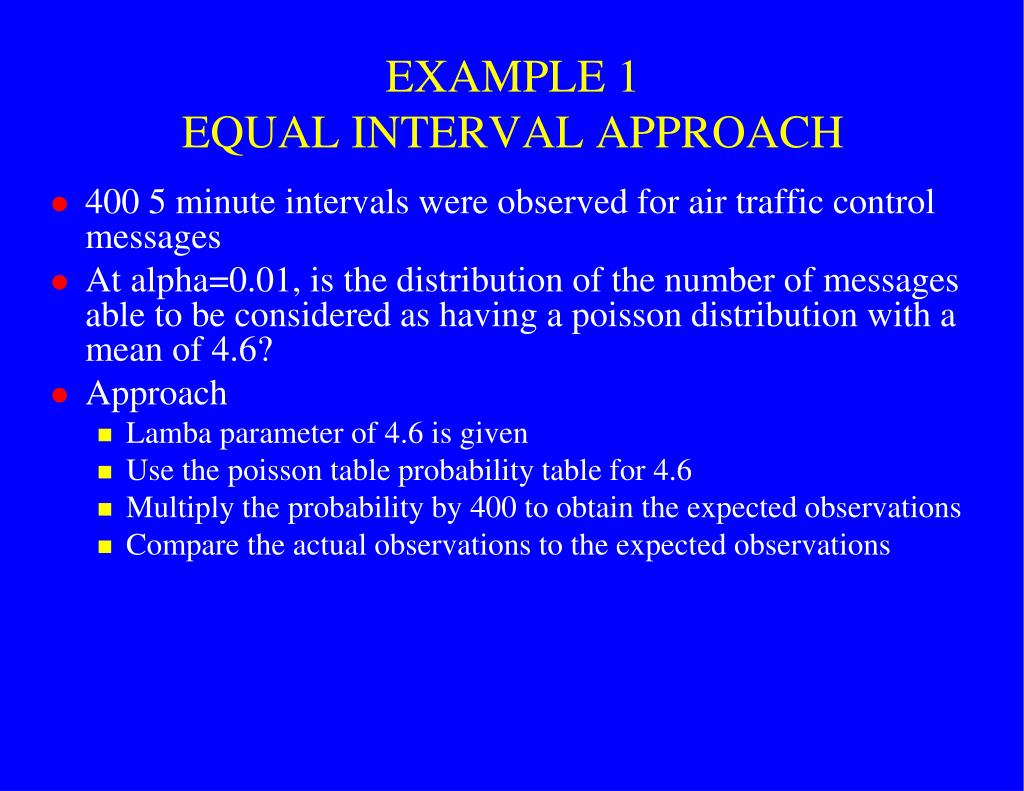

Example 1 equal interval approach

EXAMPLE 1EQUAL INTERVAL APPROACH

  • 400 5 minute intervals were observed for air traffic control messages

  • At alpha=0.01, is the distribution of the number of messages able to be considered as having a poisson distribution with a mean of 4.6?

  • Approach

    • Lamba parameter of 4.6 is given

    • Use the poisson table probability table for 4.6

    • Multiply the probability by 400 to obtain the expected observations

    • Compare the actual observations to the expected observations


Hypotheses1

HYPOTHESES

  • Ho:

    • Poisson distribution with mean of 4.6

  • Ha:

    • Not poisson distribution with a mean of 4.6


Chi square for 10 1 degrees of freedom

CHI-SQUAREfor 10-1 degrees of freedom

f(X^2)

Right tail probability, alpha = 0.01

0

X^2

16.919 Critical value


Test statistic1

TEST STATISTIC


Decision1

DECISION

  • Test statistic of 6.749 is less than the critical value of 16.919

  • Cannot reject Ho of distribution being poisson with a mean of 4.6

  • There is evidence to support the claim that the data came from a poisson distribution with a mean of 4.6 at an alpha level of 0.01


Example 2 equiprobable approach

EXAMPLE 2EQUIPROBABLE APPROACH

  • Were the scores from an INDE 2333 exam normally distributed?

  • Sample statistics

    • Mean=71.95

    • Std=11.93

    • N=43


Hypotheses2

HYPOTHESES

  • Ho

    • The sample could have come from a normally distributed population with a mean of 71.95 and a std of 11.93

  • Ha

    • The sample could not have come from a normally distributed population with a mean of 71.95 and a std of 11.93


Critical value1

CRITICAL VALUE

  • Chi-square distribution chart

  • One sided test

  • 0.05

  • Degrees of freedom

    • The sample size is 43

    • Want the maximum number of cells not to exceed 100 with a minimum expected number of observation of 5

    • 43/5=8.6 cells

    • With 8 cells, the expected number of observations is 5.375

    • Degrees of freedom is number of cells – number of parameters used from sample-1

    • Degrees of freedom=8-2-1=5


Chi square for 5 of degrees of freedom

CHI-SQUAREfor 5 of degrees of freedom

f(X^2)

0.05

0

X^2

11.070


Test statistic2

TEST STATISTIC


Cell boundaries

CELL BOUNDARIES

  • To calculate observed values in each cell, we must determine the actual x cell boundaries from the 8 equiprobable cells

  • For normal distributions

    • Look up z value corresponding to probability

    • Boundaries =mean+std * Z


Calculating observations

CALCULATING OBSERVATIONS


Calculating test statistic

CALCULATING TEST STATISTIC


Decision2

DECISION

  • 2.581 < 11.070

  • Cannot reject the Ho

  • Evidence to support the claim that the test scores are normally distributed with a mean of 71.95 and std of 11.93


In excel

IN EXCEL

  • Frequency

    • Data_array, bins_array

  • Range operation

    • CTRL-SHIFT-ENTER

  • Norminv function

    • Probability, mean, std

  • Chiinv function

    • Probability, df
