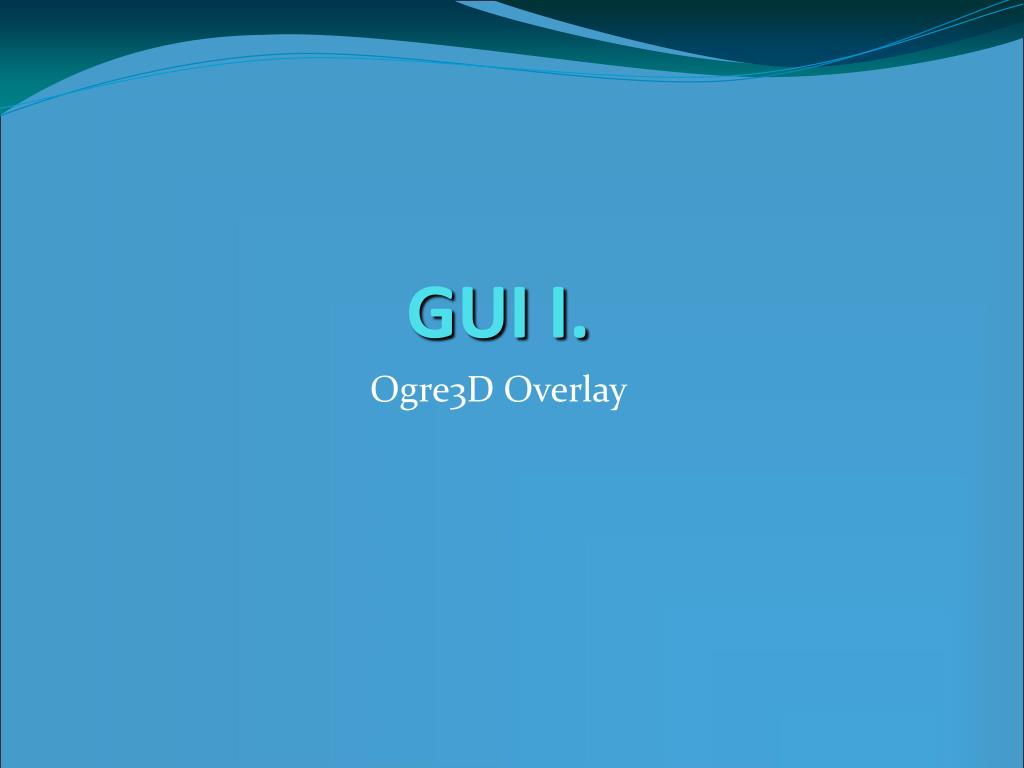

GUI I.

Ogre3D Overlay


Project initialization
Project initialization

  • http://cg.iit.bme.hu/gamedev/KIC/06_GUI/

  • 06_01_Ogre3D_Overlays_Base.zip

  • Extract

  • Run: OgreOverlays.sln

  • Set include and library paths (if not correct)

  • Set working directory (if not $(SolutionDir)/bin)

  • Compile

  • Run

  • Play!!



Newness implementation

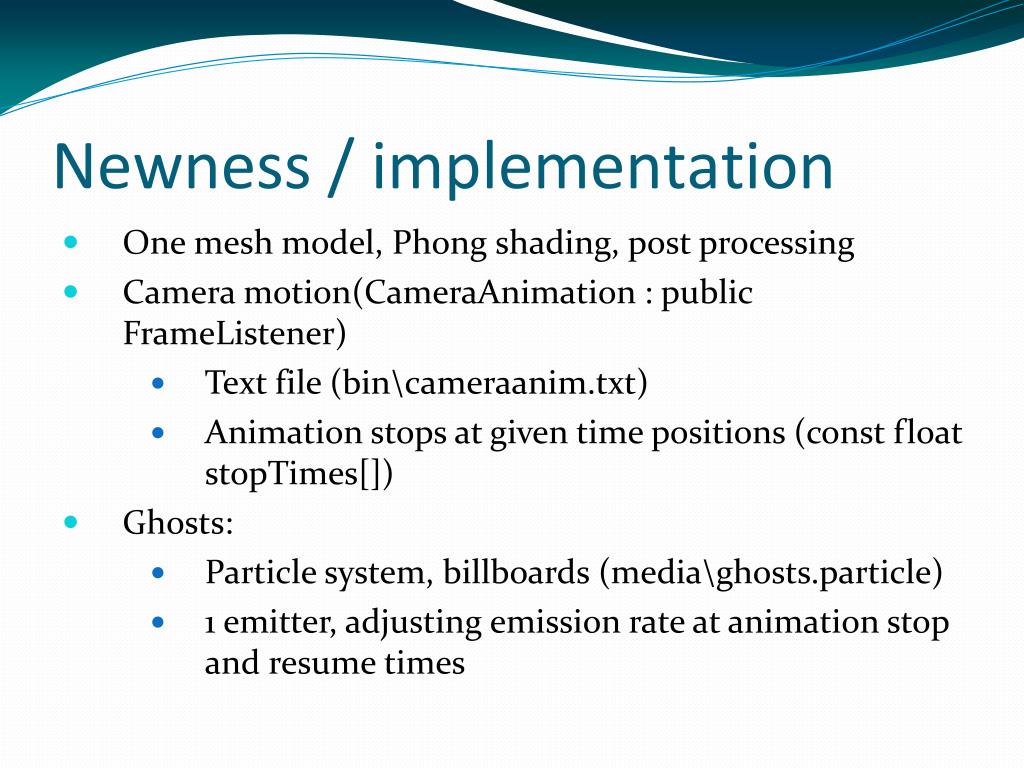

Newness / implementation

  • Onemeshmodel, Phongshading, post processing

  • Camera motion(CameraAnimation : public FrameListener)

    • Text file (bin\cameraanim.txt)

    • Animationstopsatgiventimepositions (const float stopTimes[])

  • Ghosts:

    • Particlesystem, billboards (media\ghosts.particle)

    • 1 emitter, adjustingemissionrateatanimation stop and resumetimes


Newness implementation1

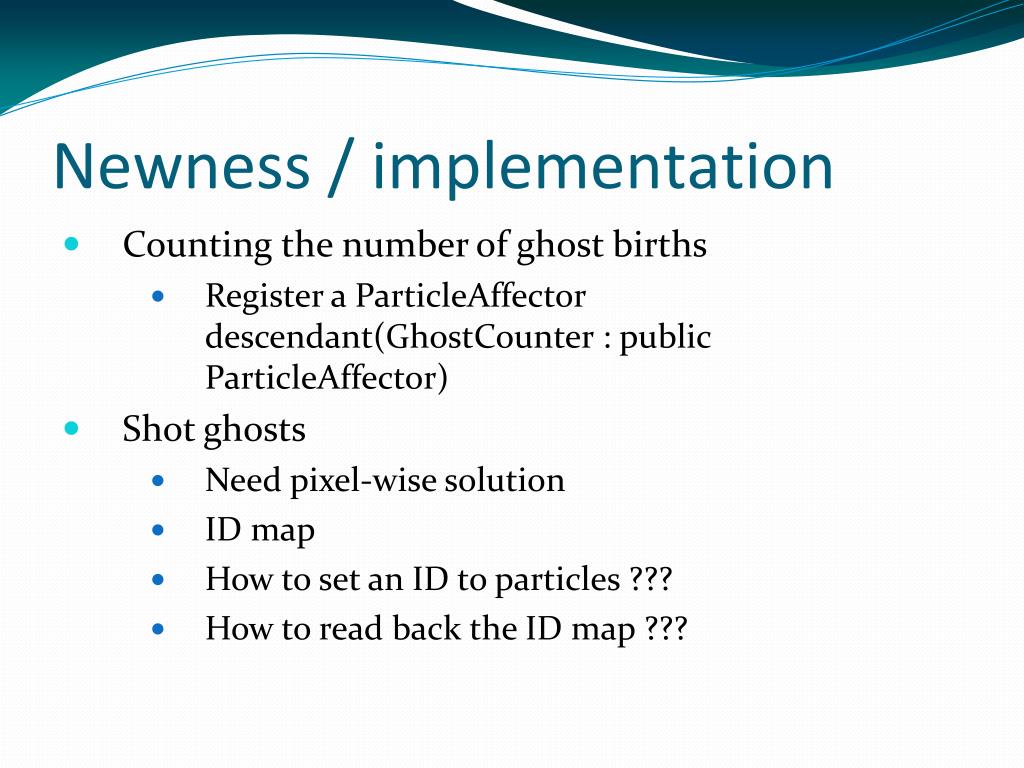

Newness / implementation

  • Counting the number of ghost births

    • Register a ParticleAffector descendant(GhostCounter: public ParticleAffector)

  • Shot ghosts

    • Need pixel-wise solution

    • ID map

    • How to set an ID to particles ???

    • How to read back the ID map ???


Hud overlay
HUD, Overlay

main.cpp

#include “HUD.h”

...

HUD* mainHUD;

...

void setupScene()

{

mainHUD = new HUD();

}

HUD.h

#ifndef HUD_H

#define HUD_H

#include "stdafx.h"

#include "Ogre.h"

class HUD

{

public:

HUD()

{

Ogre::Overlay* mainOverlay =

Ogre::OverlayManager::getSingleton().getByName("MainOverlay");

mainOverlay->show();

}

};

#endif /* HUD_H */


Hud overlay1
HUD.overlay

material HUD/IDMAP

{

technique

{

pass

{

lighting off

texture_unit

{

textureidMap

}

}

}

}

MainOverlay

{

container Panel(MainContainer)

{

transparent true

left 0

top 0

width 1

height 1

element Panel(GhostIDMap)

{

left 0.8

top 0.0

width 0.2

height 0.2

material HUD/IDMAP

transparent false

uv_coords 0 0 1 1

}

}

}

unique names

relative,

parentspacevalues

absolute,

screenspacevalues



Cross hair hiding the cursor
Cross-hair, hiding the cursor

inputs.h

#if defined OIS_WIN32_PLATFORM

pl.insert(std::make_pair(std::string("w32_mouse"), std::string("DISCL_FOREGROUND" )));

pl.insert(std::make_pair(std::string("w32_mouse"), std::string("DISCL_NONEXCLUSIVE")));

pl.insert(std::make_pair(std::string("w32_keyboard"), std::string("DISCL_FOREGROUND")));

pl.insert(std::make_pair(std::string("w32_keyboard"), std::string("DISCL_NONEXCLUSIVE")));

#elif defined OIS_LINUX_PLATFORM

pl.insert(std::make_pair(std::string("x11_mouse_grab"), std::string("false")));

pl.insert(std::make_pair(std::string("x11_mouse_hide"), std::string("false")));

pl.insert(std::make_pair(std::string("x11_keyboard_grab"), std::string("false")));

pl.insert(std::make_pair(std::string("XAutoRepeatOn"), std::string("true")));

#endif


Cross hair image
Cross-hair image

MainOverlay

{

container Panel(MainContainer)

{

….

element Panel(Cross)

{

metrics_mode pixels

width 20

height 20

material HUD/crosshair

uv_coords 0 0 1 1

}

material HUD/crosshair

{

technique

{

pass

{

lighting off

scene_blend add

texture_unit

{

texture crosshair.jpg

}

}

}

}


Cross hair movement i
Cross-hair movement I.

class HUD

{

float cursorSize;

float cursorScaler;

public:

HUD()

{

...

cursorSize = 20;

cursorScaler = 1;

}

void setCursorPos(float x, float y)

{

Ogre::OverlayElement* cursor = Ogre::OverlayManager::getSingleton()

.getOverlayElement("Cross", false);

cursor->setPosition(x-cursorScaler*cursorSize*0.5f, y-cursorScaler*cursorSize*0.5f);

}

void setCursorSize(float scaler)

{

cursorScaler = scaler;

Ogre::OverlayElement* cursor = Ogre::OverlayManager::getSingleton()

.getOverlayElement("Cross", false);

cursor->setWidth(cursorScaler*cursorSize);

cursor->setHeight(cursorScaler*cursorSize);

}

};


Cross hair movement ii
Cross-hair movement II.

class ShootController

{

public:

boolhandleEvent(float t, float dt, OIS::Keyboard* keyboard, OIS::Mouse* mouse)

{

unsigned int w = renderWindow->getWidth();

unsigned int h = renderWindow->getHeight();

unsigned intmouseX = mouse->getMouseState().X.abs;

unsigned intmouseY = mouse->getMouseState().Y.abs;

if(mouse->getMouseState().buttonDown(OIS::MB_Left))

{

mainHUD->setCursorSize(2.0);

}

else

{

mainHUD->setCursorSize(1.0);

}

mainHUD->setCursorPos(mouseX, mouseY);

return true;

}



Diplaying current score i
Diplaying current score I.

MainOverlay

{

container Panel(TMP)

{

transparent true

element TextArea(TMPTEXT)

{

font_name TrebuchetMSBold

caption blablablab

}

}

container Panel(MainContainer)

{

left 0

top 0

width 1

height 1

element TextArea(Score)

{

left 0.02

width 0.2

top 0.02

height 0.06

char_height 0.04

font_name TrebuchetMSBold

caption 0/0

}

BUG!!!???


Diplaying current score ii
Diplaying current score II.

class HUD

{

...

public:

...

void refreshScore(intallGhosts, intkilledGhosts)

{

Ogre::String newCaption = Ogre::StringConverter::toString(killedGhosts) + "/" + Ogre::StringConverter::toString(allGhosts);

Ogre::OverlayElement* score = Ogre::OverlayManager::getSingleton().getOverlayElement("Score");

score->setCaption(newCaption);

}

Main.cpp

printf("ghosts %i/%i\n", ghostBorn, ghostShooted);

mainHUD->refreshScore(ghostBorn, ghostShooted);



Game statistics i
Game statistics I.

template element TextArea(GhostsTemplate)

{

left 0.35

width 0.153

top 0.045

height 0.06

char_height 0.04

alignment center

font_nameTrebuchetMSBold

}

template element TextArea(HealthTemplate)

{

left 0.47

width 0.153

top 0.045

height 0.06

char_height 0.04

alignment center

font_nameTrebuchetMSBold

}

template elementTextArea(PlayerTemplate)

{

left 0.106

width 0.153

top 0.045

height 0.06

char_height 0.04

alignment center

font_nameTrebuchetMSBold

}

template element TextArea(KillsTemplate)

{

left 0.245

width 0.153

top 0.045

height 0.06

char_height 0.04

alignment center

font_nameTrebuchetMSBold

}


Game statistics ii
Game statistics II.

container Panel(MainContainer)

{

...

}

container Panel(PlayerStats)

{

left 0.2

top 0.02

width 0.6

height 0.6

material HUD/Stats

element TextArea(PlayerName) : PlayerTemplate

{

caption Player

}

element TextArea(PlayerKills) : KillsTemplate

{

caption Kills

}

element TextArea(PlayerGhosts) : GhostsTemplate

{

caption Ghosts

}

element TextArea(PlayerHealth) : HealthTemplate

{

caption Health

}

}

material HUD/Stats

{

technique

{

pass

{

lighting off

scene_blend alpha_blend

texture_unit

{

texture stats.png

}

}

}

}


Game statistics iii
Game statistics III.

class ShootController : public InputListener, public RenderTargetListener

{

public:

boolhandleEvent(float t, float dt, OIS::Keyboard* keyboard, OIS::Mouse* mouse)

{

if(keyboard->isKeyDown(OIS::KC_SPACE)

&& mTimeUntilNextToggle < 0)

{

mainHUD->showStats();

mTimeUntilNextToggle = 1;

}

...


Game statistics i v
Game statistics IV.

class HUD

{

HUD()

{

Ogre::OverlayElement* stats = Ogre::OverlayManager::getSingleton().getOverlayElement("PlayerStats", false);

stats->hide();

}

voidshowStats()

{

Ogre::OverlayElement* stats = Ogre::OverlayManager::getSingleton().getOverlayElement("PlayerStats", false);

if(stats->isVisible())

stats->show()

else

stats->hide();

}


Example of inserting a new element into the statistics table

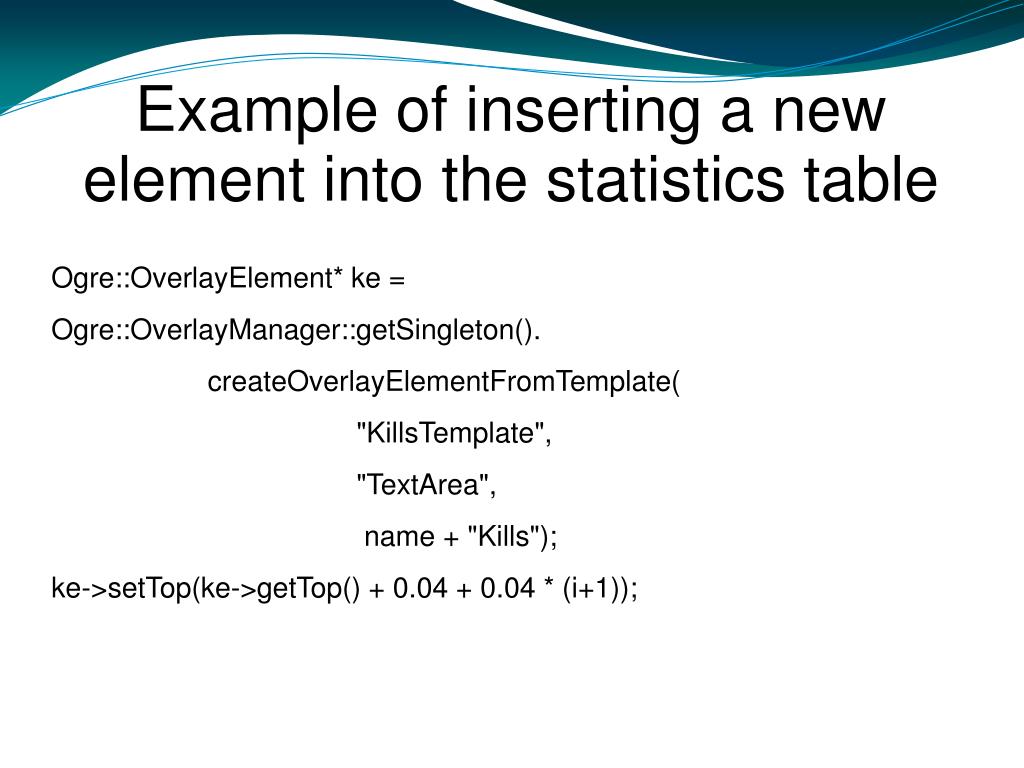

Example of inserting a new element into the statistics table

Ogre::OverlayElement* ke =

Ogre::OverlayManager::getSingleton().

createOverlayElementFromTemplate(

"KillsTemplate",

"TextArea",

name + "Kills");

ke->setTop(ke->getTop() + 0.04 + 0.04 * (i+1));
