J. Willis altimetry testing for pressure bias:
E N D
J. Willis altimetry testing for pressure bias: 1. Construct Tmean for 1/2005 – 12/2007, using only floats deployed 1/2004 or later and excluding “bad” and “Bad but correctable” floats, plus floats from the 3 WHOI lists (WHOI/FSI correctable, WHOI/FSI not correctable, WHOI/SBE) and 4 CSIRO lists (insuff. p0, -p0, no tech file, unknown type). 2. Remove the same time mean from temperature and altimetric height data. Essentially this assumes that pressure from PROVOR, SIO SOLO, and APEX positive p0 (corrected), are unbiased. 3. Calculate regression coefficients for SSH vs T’. 4. Use SSH to estimate <T’> for each collection. 5. Convert <Terror> = T’-<T’> to <perror> using climatological dT/dp.
Number of profiles APEX neg p0, pre-2004: 15122 APEX neg p0, 2004 and later: 54404 APEX pos p0, NO CND: 8581 APEX pos p0, SBE: 218824 APEX pos p0, FSI: 3561 Number of profiles SOLO FSI (corrected): 9052 SOLO SBE (corrected): 40163 SOLO SBE (non-WHOI): 58731 PROVOR SBE: 29875 PROVOR FSI: 11452
Suspected “large negative drift” APEX* WMO ID PI 1900175 Jon Turton 1900310 JAMSTEC 1900457 Jon Turton 1900507 Jon Turton 1900681 Jon Turton 2900105 Stephen Riser 2900338 K.RADHAKRISHNAN 2900398 Charlie Horton 2900634 Yong-Hoon Youn 2900637 Yong-Hoon Youn 3900161 Stephen Riser 3900403 Gregory C. Johnson 39037 Steve Riser 4900350 Juergen FISCHER 4900352 Juergen FISCHER 4900449 Gregory C. Johnson 5900250 Stephen Riser 5900351 Susan Wijffels 5900377 Kensuke Takeuchi 5900458 Gregory C. Johnson 5900485 kensuke Takeuchi 5900578 Stephen Riser 5900684 Stephen Riser 5900984 Gregory C. Johnson 5900998 Nobuyuki Shikama 5901024 Gregory C. Johnson 5901611 Susan Wijffels • *Based on comparison of SSH (corrected for mass in ECCO model) to steric height (from T and S) • Others may have records too short or location in problematic regions.

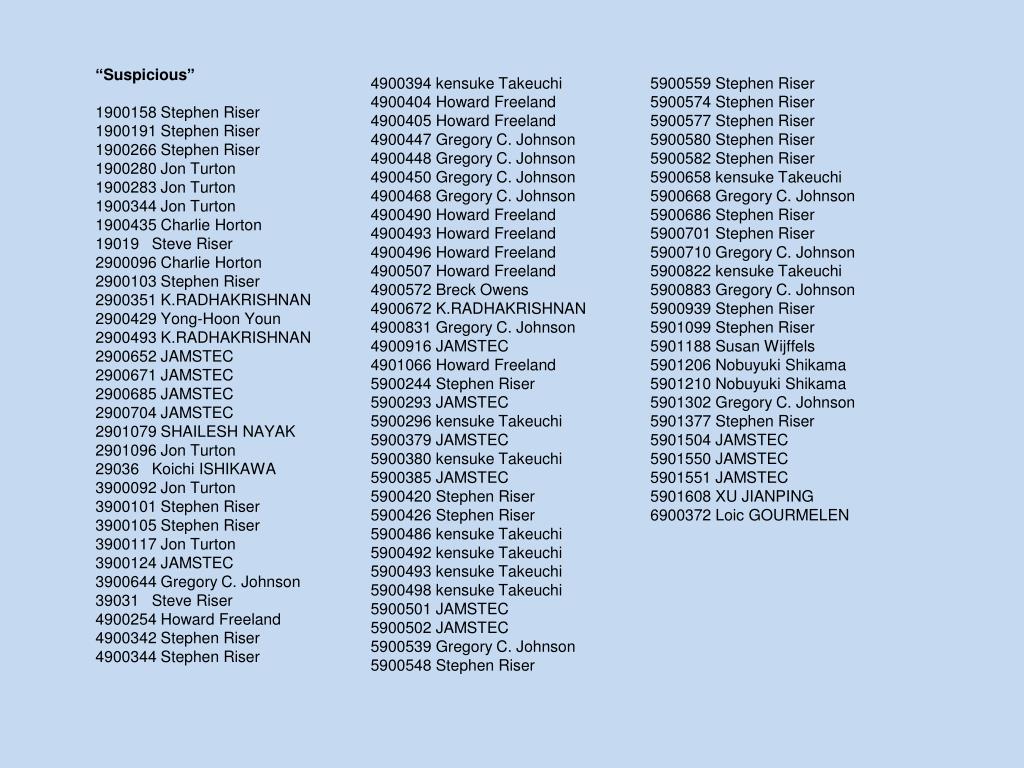

“Suspicious” 1900158 Stephen Riser 1900191 Stephen Riser 1900266 Stephen Riser 1900280 Jon Turton 1900283 Jon Turton 1900344 Jon Turton 1900435 Charlie Horton 19019 Steve Riser 2900096 Charlie Horton 2900103 Stephen Riser 2900351 K.RADHAKRISHNAN 2900429 Yong-Hoon Youn 2900493 K.RADHAKRISHNAN 2900652 JAMSTEC 2900671 JAMSTEC 2900685 JAMSTEC 2900704 JAMSTEC 2901079 SHAILESH NAYAK 2901096 Jon Turton 29036 Koichi ISHIKAWA 3900092 Jon Turton 3900101 Stephen Riser 3900105 Stephen Riser 3900117 Jon Turton 3900124 JAMSTEC 3900644 Gregory C. Johnson 39031 Steve Riser 4900254 Howard Freeland 4900342 Stephen Riser 4900344 Stephen Riser 4900394 kensuke Takeuchi 4900404 Howard Freeland 4900405 Howard Freeland 4900447 Gregory C. Johnson 4900448 Gregory C. Johnson 4900450 Gregory C. Johnson 4900468 Gregory C. Johnson 4900490 Howard Freeland 4900493 Howard Freeland 4900496 Howard Freeland 4900507 Howard Freeland 4900572 Breck Owens 4900672 K.RADHAKRISHNAN 4900831 Gregory C. Johnson 4900916 JAMSTEC 4901066 Howard Freeland 5900244 Stephen Riser 5900293 JAMSTEC 5900296 kensuke Takeuchi 5900379 JAMSTEC 5900380 kensuke Takeuchi 5900385 JAMSTEC 5900420 Stephen Riser 5900426 Stephen Riser 5900486 kensuke Takeuchi 5900492 kensuke Takeuchi 5900493 kensuke Takeuchi 5900498 kensuke Takeuchi 5900501 JAMSTEC 5900502 JAMSTEC 5900539 Gregory C. Johnson 5900548 Stephen Riser 5900559 Stephen Riser 5900574 Stephen Riser 5900577 Stephen Riser 5900580 Stephen Riser 5900582 Stephen Riser 5900658 kensuke Takeuchi 5900668 Gregory C. Johnson 5900686 Stephen Riser 5900701 Stephen Riser 5900710 Gregory C. Johnson 5900822 kensuke Takeuchi 5900883 Gregory C. Johnson 5900939 Stephen Riser 5901099 Stephen Riser 5901188 Susan Wijffels 5901206 Nobuyuki Shikama 5901210 Nobuyuki Shikama 5901302 Gregory C. Johnson 5901377 Stephen Riser 5901504 JAMSTEC 5901550 JAMSTEC 5901551 JAMSTEC 5901608 XU JIANPING 6900372 Loic GOURMELEN
