Chapter 8.5 Notes: Use Properties of Trapezoids and Kites

Chapter 8.5 Notes: Use Properties of Trapezoids and Kites. Goal: You will use properties of trapezoids and kites. Trapezoids A trapezoid is a quadrilateral with exactly one pair of parallel sides. The parallel sides are called the bases . A trapezoid has two pairs of base angles .

stormy
Download Presentation

Chapter 8.5 Notes: Use Properties of Trapezoids and Kites

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

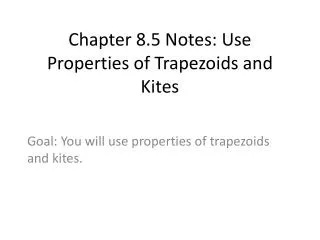

  1. Chapter 8.5 Notes: Use Properties of Trapezoids and Kites Goal: You will use properties of trapezoids and kites.

  2. Trapezoids • A trapezoid is a quadrilateral with exactly one pair of parallel sides. • The parallel sides are called the bases. • A trapezoid has two pairs of base angles. • The nonparallel sides are the legs of the trapezoid.

  3. Ex.1: Show that ORST is a trapezoid. • If the legs of a trapezoid are congruent, then the trapezoid is an isosceles trapezoid.

  4. Theorem 8.14: If a trapezoid is isosceles, then each pair of base angles are congruent. • Theorem 8.15: If a trapezoid has a pair of congruent base angles, then it is an isosceles trapezoid. • Theorem 8.16: A trapezoid is isosceles if and only if its diagonals are congruent.

  5. Ex.2: The stone above the arch in the diagram is an isosceles trapezoid. Find

  6. Ex.3: The top of the table in the diagram is an isosceles trapezoid. Find • The midsegment of a trapezoid is the segment that connects the midpoints of its legs.

  7. Theorem 8.17 Midsegment Theorem for Trapezoids: The midsegment of a trapezoid is parallel to each base and its length is one half the sum of the lengths of the bases. Midsegment = __________________________

  8. Ex.4: In the diagram, is the midsegment of trapezoid PQRS. Find MN. Ex.5: In the diagram, is the midsegment of trapezoid DEFG. Find HK.

  9. Ex.6: Use the diagram of trapezoid EFGH. • If EG = FH, is trapezoid EFGH isosceles? Explain. • If and , is trapezoid EFGH isosceles? Explain.

  10. Kites • A kite is a quadrilateral that has two pairs of consecutive congruent sides, but opposite sides are not congruent. • Theorem 8.18: If a quadrilateral is a kite, then its diagonals are perpendicular. • Theorem 8.19: If a quadrilateral is a kite, then exactly one pair of opposite angles are congruent.

  11. Ex.7: Find in the kite shown below. Ex.8: In a kite, the measures of the angles are 3xo, 75o, 90o, and 120o. Find the value of x. What are the measures of the angles that are congruent.

  12. Ex.9: Find in the kite shown.
