  1. ICOS BOF Securing Internet Configuration Bernard Aboba Microsoft IETF 62, Minneapolis, MN

  2. Outline • What is IP Configuration? • Problem definition • Architectural Principles • Potential approaches • Provisioning

  3. What is IP Configuration? • Parameters • IP address configuration (IP address, subnet mask) • Default gateway configuration • Internet layer parameter configuration (MTU, etc.) • Name server configuration (IEN 116, DNS, WINS, iSNS, NIS) • Boot configuration (TFTP, NFS, iSCSI) • Service Location/Directory configuration (RLS, SLPv2, LDAP) • Mobility configuration (MIP) • Time server configuration (NTP, SNTP) • Scenarios • Intra-domain: Hosts that only obtain configuration within a single administrative domain • Inter-domain: Mobile hosts moving between administrative domains (corpnet, home, carrier/ISP)

  4. Security Problems • Secure IP configuration • Definition: secure configuration of IP address & configuration parameters • Example: Secure configuration of the TFTP server • Not a substitute for protocol security • Does not preclude insecure use of a securely configured server • Secure protocols • Definition: Security for the protocols whose servers are configured • Example: Secure TFTP • Not a substitute for configuration security • Assume mutual authentication/integrity/replay protection • Enables continued operation if at least one good server can be discovered • Client can detect/blacklist rogue servers • Issues • Attacker can DoS configuration servers, so that only bogus configuration gets through • Not all protocols are secured, so blacklist not always possible • Applications with major security problems • Remote boot (boot server, boot image) • Mobility (BU security)

  5. Threat Model • Documents • RFC 3756, “IPv6 Neighbor Discovery (ND) Trust Models and Threats”, May 2004 • RFC 3118, “Authentication for DHCP Messages” • draft-ietf-dhc-v4-threat-analysis-02.txt, “Dynamic Host Configuration Protocol for IPv4 (DHCPv4) Threat Analysis”, April 2004 • draft-prigent-dhcpv6-threats-00.txt, “DHCPv6 Threats”, March 2001 • Threats • Rogue configuration servers (man-in-the-middle, DoS) • Redirect attacks (e.g. rogue default gateway, DNS server) • DoS attack via invalid configuration • Accidentally configured configuration servers • Rogue clients (DoS) • Impersonation of another client • Resource exhaustion attack on server (more likely on IPv4) • CPU exhaustion (if heavyweight computation required) • Non-threats • Disclosure • MAC, IP addresses are public information • Most server addresses considered public information • Not clear what, if any configuration data is sensitive

  6. Required Security Services • Data origin authentication and integrity/replay protection of IP address assignment & configuration parameters • Protection of clients against rogue servers • Protection of servers against rogue clients • DoS protection • Efficient request limiting (implementation issue) • Lightweight anti-spoofing (e.g. cookies)

  7. Architectural Principles • Less is more • Lower layer independence • Higher layer independence • Security at the Internet layer • Algorithm support • Mobility Support

  8. Less is More • The number of Internet layer configuration (security) mechanisms should be minimized and the chosen mechanisms should be as simple as possible. • Need to support embedded hosts with limited resources • Proliferation of configuration (security) mechanisms compromises interoperability, increases footprint and configuration latency • Potential for conflict and additional traffic • With multiple mechanisms, may need to try several and/or merge returned configuration

  9. Lower Layer Independence • Desirable for hosts to be able to configure themselves on multiple networks without adding configuration code specific to a new link layer. • Multi-homed hosts becoming popular • Examples: WWAN/WLAN phones • Counter-examples • RFC 903 (RARP) • RFC 1661 (PPP IPCPv4) • Assigns IP addresses instead of using BOOTP/DHCP • NAS devices did not act as BOOTP/DHCP servers at the time (now common) • IPv6CP (RFC 2472) only assigns link identifier, not prefix • RFC 1877 (IPCPv4 Extensions for Name Service Configuration) • PPPEXT WG has resisted equivalent IPv6CP extensions • IPCP allocation no longer FCFS, requires IETF Consensus (RFC 3818) • DHCPINFORM can be implemented over PPP instead • IKEv2 CFG_REQUEST/REPLY (Section 2.19, 3.15) • Allows IKEv2 peer to request configuration from its peer • Support for configuration of IPv4/IPv6 address, netmask, prefix, DHCPv4/v6 server, DNS server, WINS server, routes • WINS not even defined for IPv6! • Need to avoid chicken/egg problem (need inner address to configure tunnel mode SA, but can’t obtain inner address without a tunnel mode SA) • Alternative mechanism still needed for other configuration parameters • Alternative is multi-stage setup, snopping of IP address configuration by VPN server (RFC 3456)

  10. Higher Layer Independence • Internet Layer Configuration should avoid higher layer dependencies. • Circular dependencies • Higher layer operation depends on Internet layer configuration (addressing, fragmentation) • Without an IP address, can't set up a TCP/SCTP connection • Can't use higher layer protocols depending on reliable transport • Resource issues • Embedded hosts may wish to minimize boot ROM code • Some boot ROMs support IP/UDP, but not TCP/SCTP • Embedded systems may not have headroom for complex higher layer protocols (e.g. LDAP) • Food for thought • Certificate processing requires a footprint of the same order (or greater) than TCP.

  11. Internet Layer Reliance • If both lower and higher layer dependencies are undesirable, then IP configuration (security) needs to depend on the Internet layer. • During boot, some Internet layer facilities may not be available • IP fragmentation and reassembly not reliable when sending from the unspecified address • IPsec requires an IP address • Implications • IPsec typically used only after address assignment or for relay-server security • Payloads no larger than MTU; may need to build-in fragmentation support to handle certificate payloads

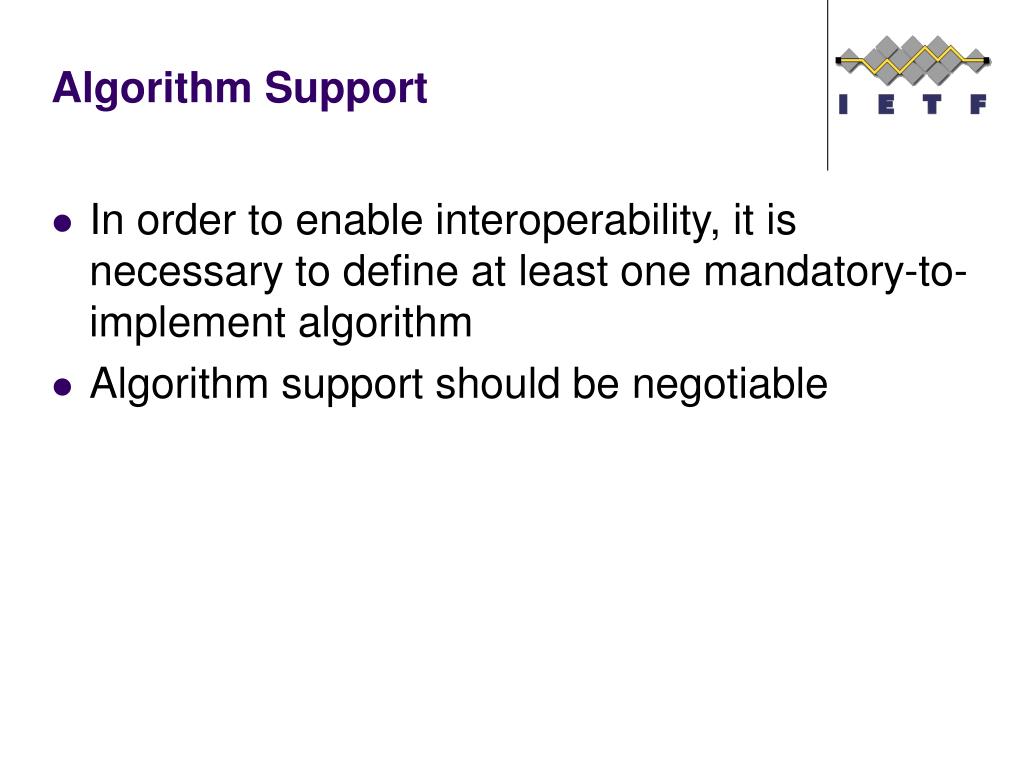

  12. Algorithm Support • In order to enable interoperability, it is necessary to define at least one mandatory-to-implement algorithm • Algorithm support should be negotiable

  13. EAP • Extensible Authentication Protocol (EAP) is a media-independent framework for network access authentication • RFC 3748 defines EAP over PPP • IEEE 802.1X defines EAP over IEEE 802 wired networks • IEEE 802.11i defines EAP over IEEE 802.11 • EAP encapsulation not defined on other link layers • Defining EAP on a new link not just a protocol design exercise • Standards organization defining the link layer must agree to the EAP security model (new state machine) • Example: Would ANSI T.10 define EAP over Fibre Channel? • Result: EAP introduces link layer dependency unless it can be run over IP (or higher) layers • Algorithm support • RFC 3748 mandatory-to-implement algorithm is MD5 • Where this is inadequate, application needs to define its own mandatory-to-implement algorithm

  14. Mobility Support • Mobility is an important feature of the Internet Architecture and needs to be supported by Internet Layer Configuration (security) mechanisms • Need for both intra and inter-domain support • Need to be able to obtain (secure) configuration within administrative domains not previously visited or explicitly configured • Transition issues • Mix of security-capable/incapable clients and servers likely to persist for a long time • Security capabilities and policies likely to vary between administrative domains

  15. Potential Approaches • Server-side • Pre-shared keys • Typically only used with mutual authentication • Certificates • Used to sign messages sent from client to server • Requires provisioning of trust anchor on the client • Client-side • Nothing: client authentication not always important • Same as before: client proves that it is the same client as in a previous transaction • Resource ownership: client proves authorization for a resource (e.g. SEND) • Client authentication to the server (e.g. EAP)

  16. Provisioning Issues • Initial provisioning: how does a customer obtain X hosts provisioned to obtain configuration securely? • Re-provisioning: how do we deal with credential expiry, change or revocation?

  17. Initial Provisioning • Scenario: Company Y calls OEM, says “please send me 10K hosts, pre-provisioned for IP configuration security.” • Can they easily be manufactured? • Where goal is secure boot, credentials may need to be provisioned in NVRAM • How many different credentials are required? • Shared secrets, certificates, trust anchors, etc. • How much boot ROM code is required? • Certificate handling requires substantial footprint • Boot ROM code often runs in REAL mode • Does NVRAM need to be individually provisioned? • Unique shared secret/certificate for each client? • Same set of trust anchors?

  18. Feedback?
