Presentation Transcript


Transport accessibility analysis with enif and railplan l.jpg

Transport Accessibility Analysis with ENIF and Railplan

Matt Carlson, Arup

  • Steve Miller, Transport for London


Introduction l.jpg

Introduction

  • Transport for London

  • The Railplan Model

  • The Capital Model

  • Accessibility Analysis with ENIF


Transport for london l.jpg

Transport for London

  • Transport for London (TfL) is the integrated body responsible for London's transport system.

  • Its role is:

    • to implement the Mayor's Transport Strategy for London

    • manage the transport services across the capital for which the Mayor has responsibility.

  • TfL manages:

    • London's buses,

    • The Underground,

    • Docklands Light Railway (DLR)

    • London Trams.


The railplan model l.jpg

The Railplan Model

  • Runs on EMME/2 under UNIX

  • AM Peak Crowded Transit Assignment model of London (Based on Congtras.mac)

    • Underground

    • Rail

    • Tram

    • Bus

    • Docklands Light Rail (DLR)

  • Uses Size 16 licence

    • 1500-3000+ Zones

    • 50000+ Links

  • Distribution-Mode Split model outside Railplan


The capital model l.jpg

PT access 1

(Bus Stop)

3 mins

10 mins

20 mins

ED Origin(s)

Centroid

PT access 2

(LUL Station)

ED Destination(s)

Centroid

7 mins

6 mins

10 mins

PT access 3

(TOC Rail Station)

10 mins

4 mins

5 mins

Walk Access Time

via OSCAR network

(GIS)

PT Travel Time

via Railplan network

(emme/2)

Walk Egress Time

via OSCAR network

(GIS)

The Capital Model

  • CAPITAL = Calculator (for) Public Transport Accessibility in London

  • Integrates Railplan with GIS

  • Uses finer level of detail for trip access and egress zones and walk network

  • Provides detailed calculations of travel time by public transport from a set of origins to a specific destination, such as:

    • Town centres

    • Development sites

    • Hospitals

    • Supermarkets

  • Considers all aspects of the journey time including

    • Access and Egress time

    • Wait time

    • In Vehicle time

  • Uses census output areas to combine socio-economic data such as population to further quantify the level of accessibility –

    • jobs within 45 minutes journey time of a town centre.

  • Diagrams taken from “Combining EMME/2 and ArcView GIS: The CAPITAL Model Case Study”, by Richard Hopkins, Transport for London, Nigel Robbins, David James, Brown & Root, London, U.K., 10th European EMME/2 User Group, Thessaloniki, 2001


Capital strengths and weaknesses l.jpg

Can produce very detailed outputs

Can link to socio-economic data

Runs under Windows only, while master version of Railplan runs under UNIX

Long Run Times: 24 hours+

Capital: Strengths and Weaknesses

Solution?

  • Simpler approach: EMME/2 and ENIF only – no linkage to GIS

  • ENIF will work on any EMME/2 platform


Accessibility analysis with emme 2 enif l.jpg

Accessibility Analysis with EMME/2 & ENIF

  • EMME/2 – Assemble Data

    • Use “Disaggregate Assignment” (p4-371, EMME/2 Manual)

    • Analysis of individual trips between origins and destinations using Module 5.35

  • ENIF - Display Data

    • Isochrones in pseudo-grids

    • Using outputs of Module 5.35

  • Inspired by node/link grids (Winnipeg emissions example)


Emme 2 considerations l.jpg

EMME/2 Considerations

  • Module 5.35 is only partially integrated with other modules

    • Cannot use @attributes in place of trip file

    • Cannot store DISA results directly in scenario

    • Lack of control over DISA outputs

  • Therefore a workaround is needed…


How it works 1 emme 2 macro l.jpg

How it works (1) – EMME/2 Macro

  • User calls an EMME/2 macro

    • Whether origin or destination

    • Which origin or destination

  • The macro will do the following

    • Mark Nodes for output to a file

    • Output Nodes to file

    • Create Trip File for Module 5.35

    • Run Module 5.35

    • Import Module 5.35 Results

  • Main points of macros will be shown in turn


Macro details 1 mark nodes for output l.jpg

Macro Details (1) - Mark Nodes for Output

  • Relevant Nodes

    • Station Entrances (XXYY01-XXYY09)

    • Selected Bus Nodes (XX9801-XX9999)

  • Standard 2.42/2.41 Operation:

    • 2.41

    • [email protected] |n|(i.mod.100).lt.10 ||10000,999999||1|2

    • [email protected]|n|(i.mod.10000).ge.9800 ||10000,999999||1|2

    • [email protected]|n|(@[email protected]).gt.0 ||10000,999999||1|2

    • q


Macro details 2 output nodes to file l.jpg

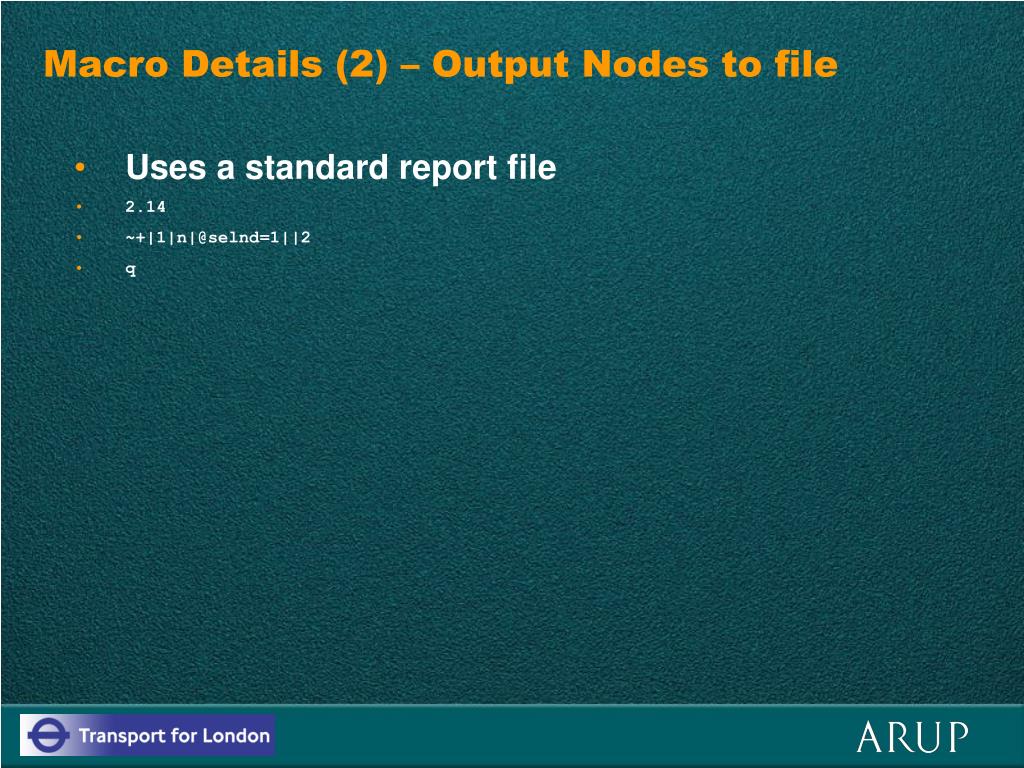

Macro Details (2) – Output Nodes to file

  • Uses a standard report file

  • 2.14

  • [email protected]=1||2

  • q


Macro details 3 create trip file for 5 35 l.jpg

Macro Details (3) - Create Trip File for 5.35

  • The report file is read

    • ~@ is used to skip the first few lines of the output file, then read each selected node sequentially

    • The single origin and all destinations are written to a trip file

  • A file of the following format is produced:

    t trips

    a acnod=309903 egnod= 10101

    a acnod=309903 egnod= 10201

    a acnod=309903 egnod= 10202

    a acnod=309903 egnod= 10203

    a acnod=309903 egnod= 10301

    Etc…


Macro details 4 run module 5 35 l.jpg

Macro Details (4) – Run Module 5.35

  • Report and Punch

  • Condensed Report

    • Does not show itineraries

    • Allows easier parsing of data

    • Following data extracted:

      • inveh

      • wait

      • board

      • auxtr


Macro details 5 store results in network l.jpg

Macro Details (5) – Store Results in Network

  • Import to Network from Output file

  • 2.41

  • [email protected][email protected]=1||%x%,4|y|2|y

  • [email protected] [email protected]=1||%x%,5|y|2|y

  • [email protected][email protected]=1||%x%,6|y|2|y

  • [email protected][email protected]=1||%x%,7|y|2|y

  • q

  • Once node attributes are stored in the network scenario, they can be viewed in ENIF


Enif considerations l.jpg

ENIF Considerations

  • ENIF Grids can only sum node or link values

    • They cannot compute min/max/avg

  • Another workaround - generic elements and generic symbols are used

    • Node values are aggregated within a generic element grid

    • Node values are displayed using generic symbols

  • The size of the symbols are scaled to the zoom level, to give the appearance of a geographical grid


How it works 2 enif configurable attributes l.jpg

How it works (2) - ENIF Configurable Attributes


Example zone 2205 as an origin l.jpg

Example: Zone 2205 as an Origin


Conclusions l.jpg

Conclusions

  • Each set of isochrones takes around 2 minutes to produce

  • Self-contained process within EMME/2 and ENIF

  • Useful as a ‘first sieve’ of options before running full Capital runs


Further developments l.jpg

Further Developments

  • More options added:

    • Modify Weights

    • Change Default Walk Speeds

  • Run entirely from ENIF:

    • Integration of EMME/2 and ENIF hinted at by INRO

    • Click on a node, automatically run Module 5.35 and display outputs


Contact details l.jpg

  • Steve Miller

  • Transport for London

  • 19th Floor, Portland House

  • Bressenden Place

  • London

  • SW1E 5RS

  • UK

  • +44 20 8433 6970

  • [email protected]

  • http://www.TfL.gov.uk

Contact Details

Matt Carlson

Arup

13 Fitzroy Street

London

W1T 4BQ

UK

+44 20 7755 4114

[email protected]

http://www.arup.com
