  1. Question of the Day • Three people check into a hotel for which they pay the manager $30. The manager finds out the rate is $25 and gives $5 to the bellboy to return. To make it easier, the bellboy pockets $2 and gives $1 back to each person.Each person paid $10 and got back $1. So they paid $9 each, totaling $27. The bellboy has $2, totaling $29. Where is the remaining dollar?

  2. Question of the Day • Three people check into a hotel for which they pay the manager $30. The manager finds out the rate is $25 and gives $5 to the bellboy to return. To make it easier, the bellboy pockets $2 and gives $1 back to each person.Each person paid $10 and got back $1. So they paid $9 each, totaling $27. The bellboy has $2, totaling $29. Where is the remaining dollar? • $25 (manager) + $2 (bellboy) + $3 (customers) = $30

  3. CSC 212 – Data Structures Lecture 23:Queues

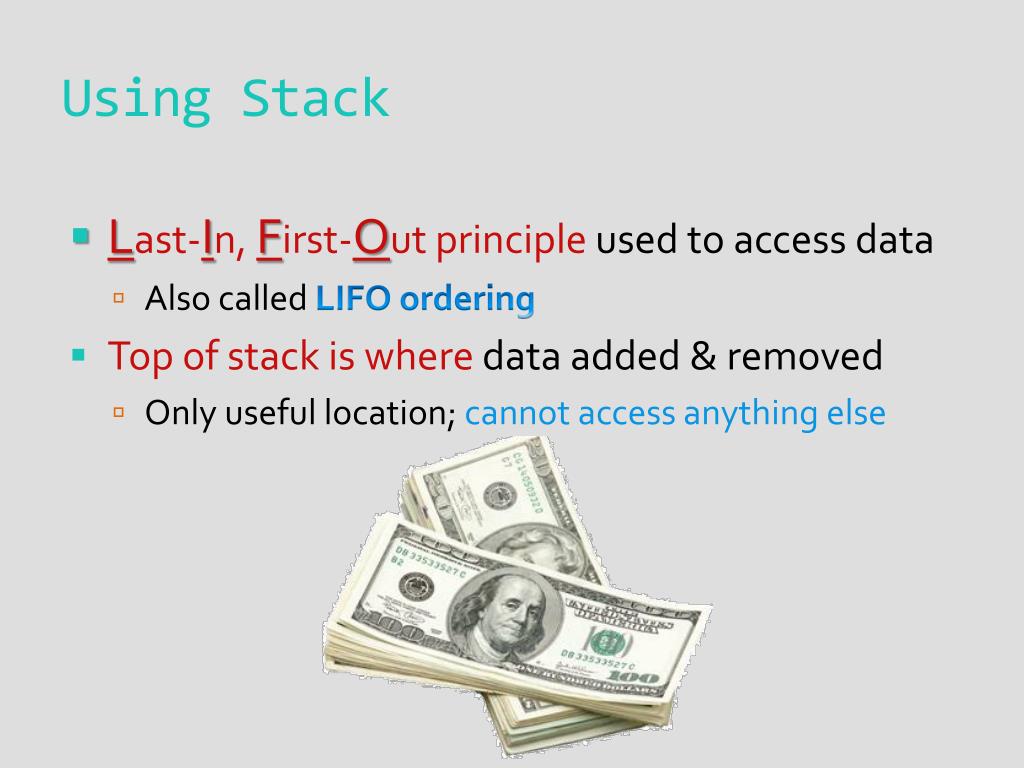

  4. Using Stack • Last-In, First-Out principle used to access data • Also called LIFO ordering • Top of stack is where data added & removed • Only useful location; cannot access anything else

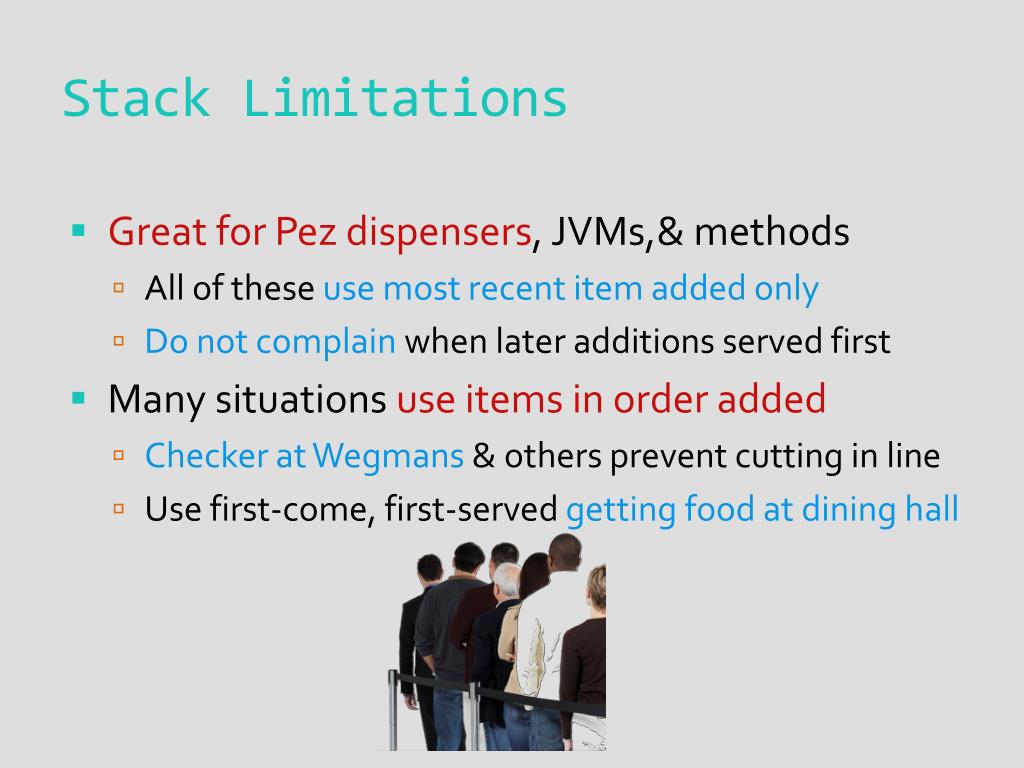

  5. Stack Limitations • Great for Pez dispensers, JVMs,& methods • All of these use most recent item added only • Do not complain when later additions served first • Many situations use items in order added • Checker at Wegmans& others prevent cutting in line • Use first-come, first-served getting food at dining hall

  6. Stack Limitations • Great for Pez dispensers, JVMs,& methods • All of these use most recent item added only • Do not complain when later additions served first • Many situations use items in order added • Checker at Wegmans& others prevent cutting in line • Use first-come, first-served getting food at dining hall

  7. Stack Limitations • Great for web browsers, JVMs,& methods • All of these use most recent item added only • Do not complain when later additions served first • Many situations use items in order added • Checker at Wegmans& others prevent cutting in line • Use first-come, first-served getting food at dining hall

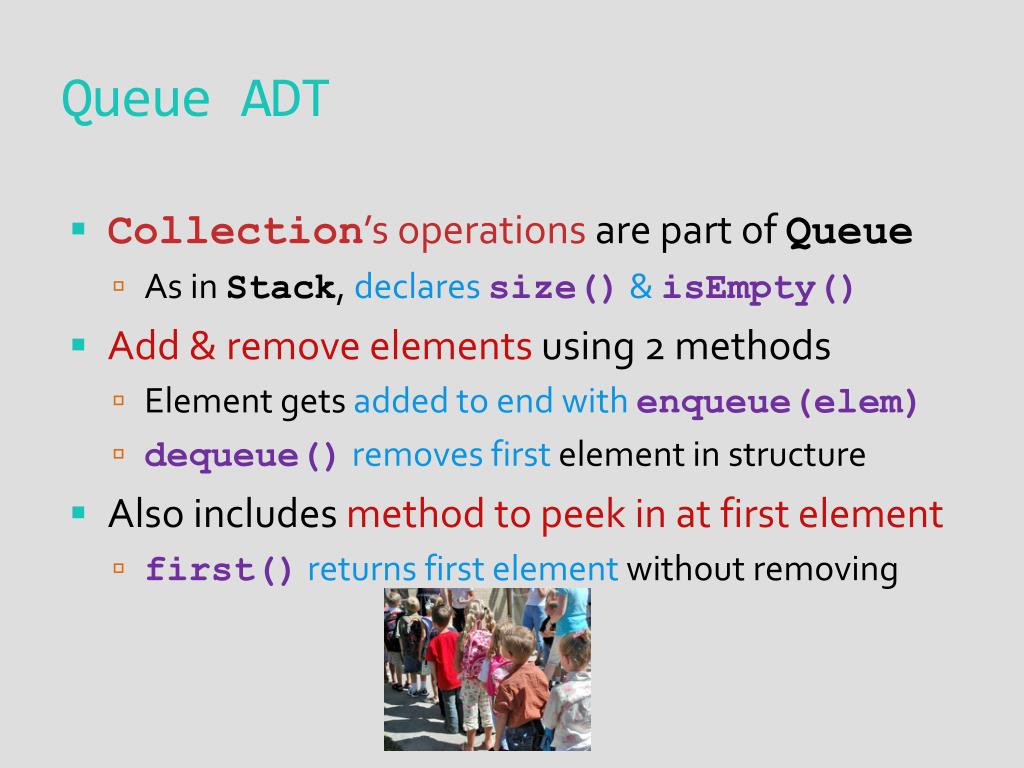

  8. Queue ADT • Collection’s operations are part of Queue • As in Stack, declares size()& isEmpty() • Add & remove elements using 2 methods • Element gets added to end with enqueue(elem) • dequeue()removes first element in structure • Also includes method to peek in at first element • first()returns first element without removing

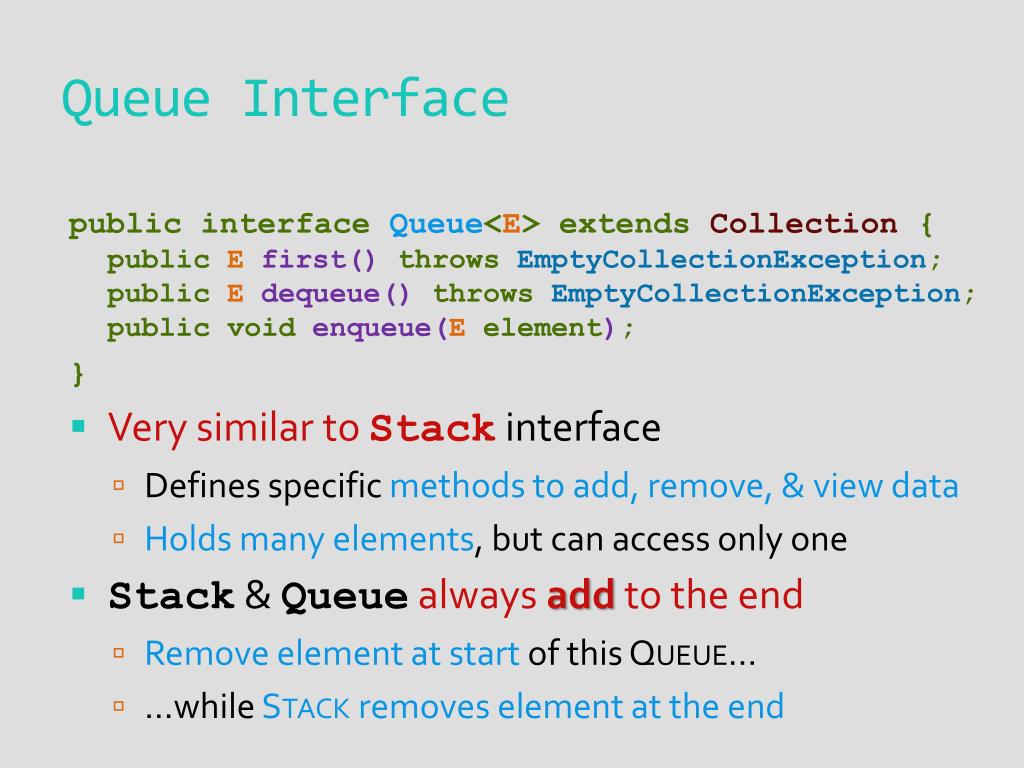

  9. Queue Interface public interface Queue<E> extends Collection {public Efirst()throws EmptyCollectionException;public Edequeue() throws EmptyCollectionException;public void enqueue(E element); } • Very similar to Stackinterface • Defines specific methods to add, remove, & view data • Holds many elements, but can access only one • Stack & Queuealways addto the end • Remove element at start of this Queue… • …while Stack removes element at the end

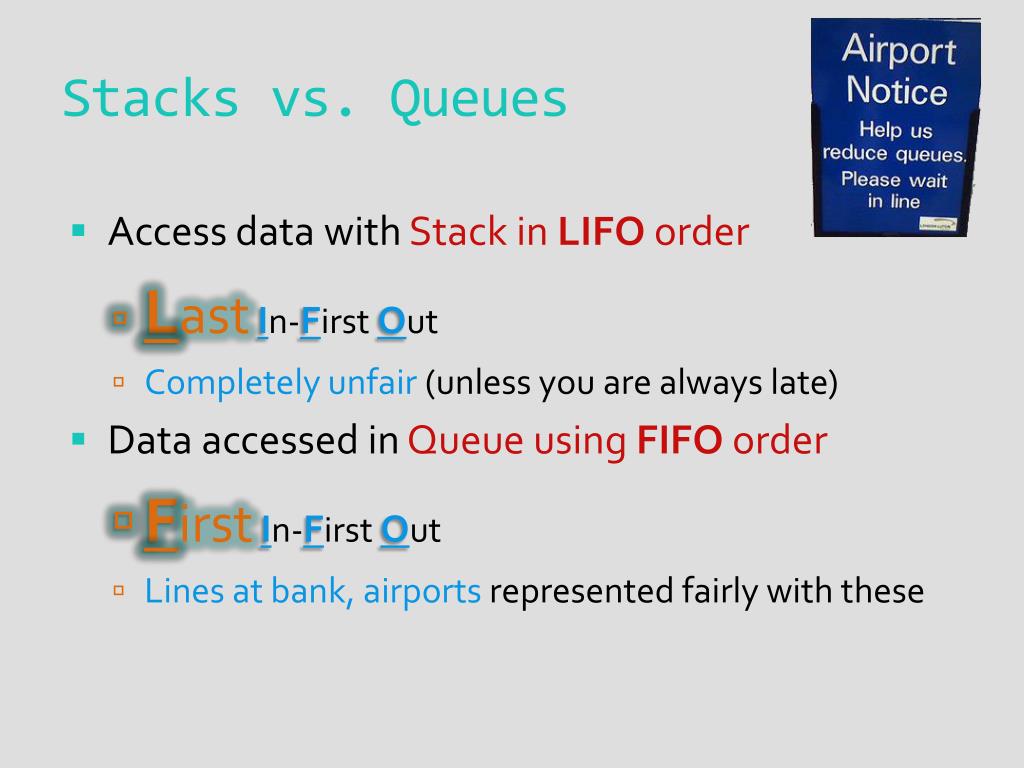

  10. Stacks vs. Queues • Access data with Stack in LIFO order • LastIn-First Out • Completely unfair (unless you are always late) • Data accessed in Queue using FIFO order • FirstIn-First Out • Lines at bank, airports represented fairly with these

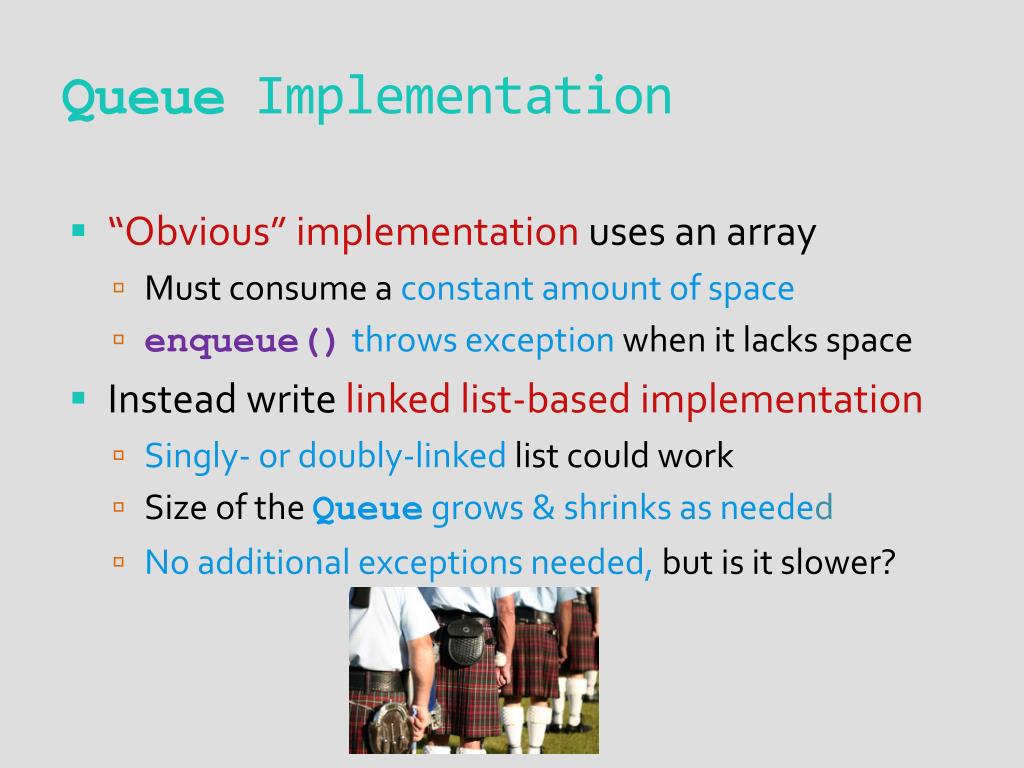

  11. Queue Implementation • “Obvious” implementation uses an array • Must consume a constant amount of space • enqueue()throws exceptionwhen it lacks space • Instead write linked list-based implementation • Singly- or doubly-linked list could work • Size of the Queue grows & shrinks as needed • No additional exceptions needed, but is it slower?

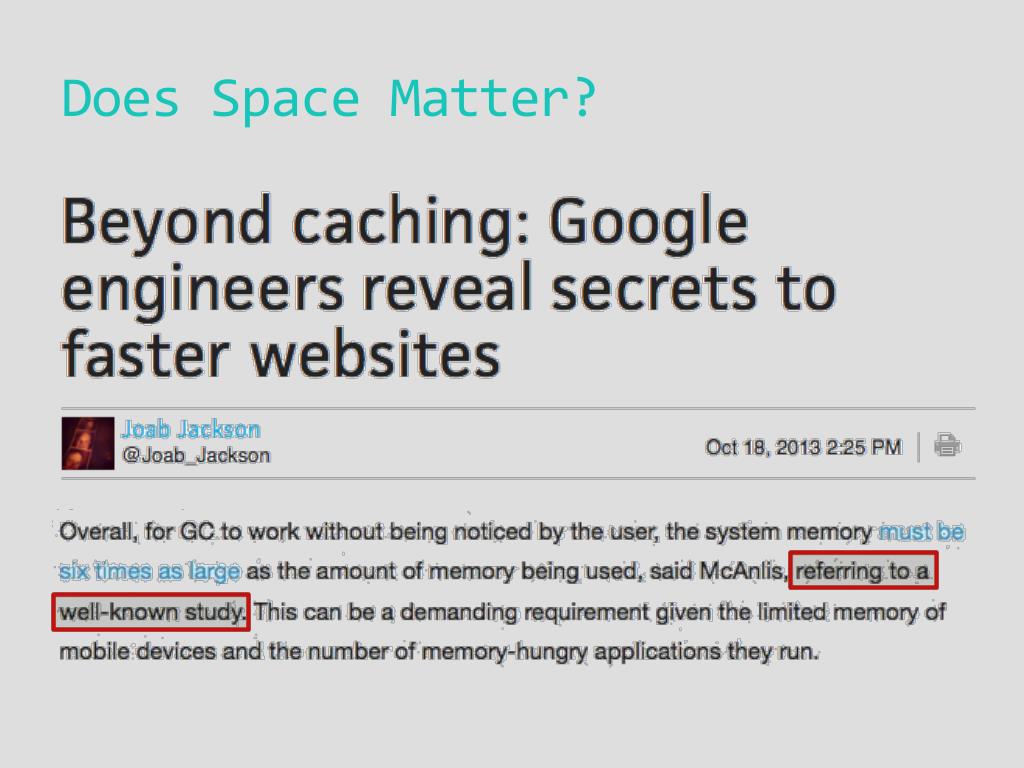

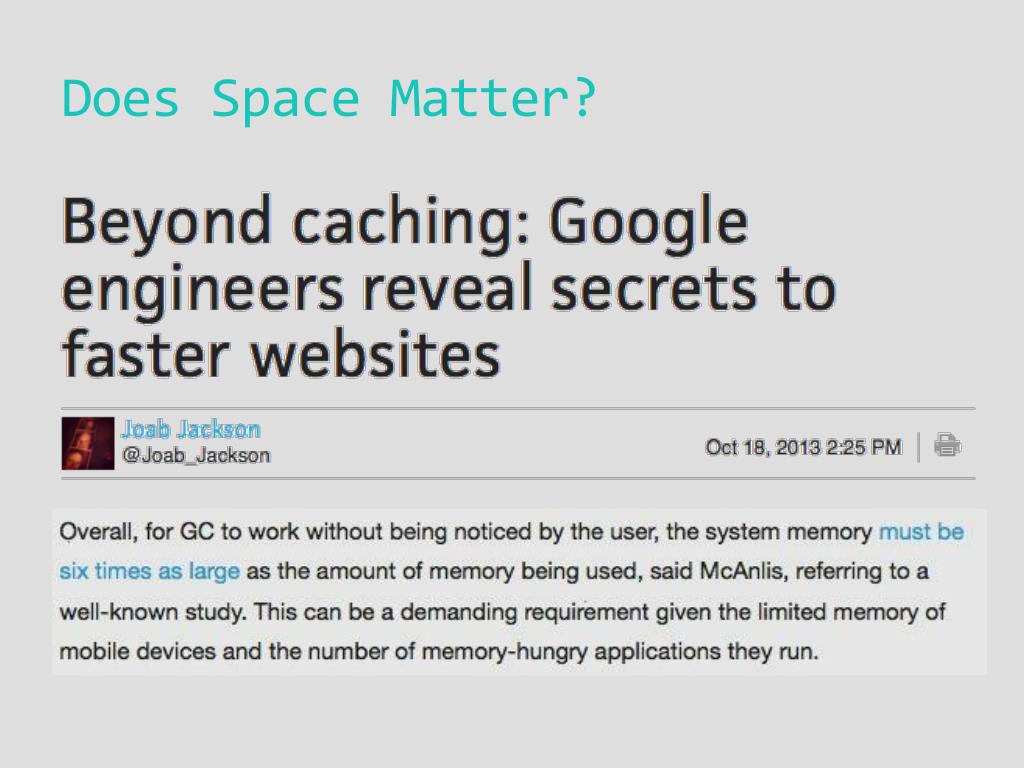

  12. Does Space Matter?

  13. Does Space Matter?

  14. “Well-Known Study” On Space

  15. “Well-Known Study” On Space

  16. “Well-Known Study” On Space

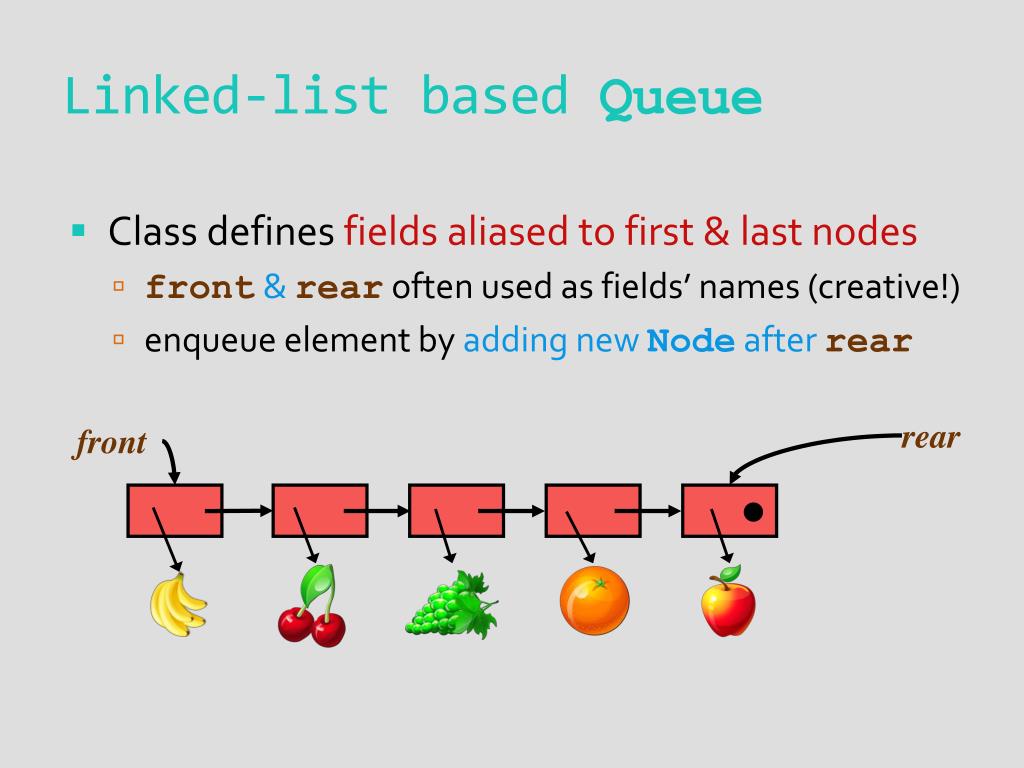

  17. Linked-list based Queue • Class defines fields aliased to first & last nodes • front & rearoften used as fields’ names (creative!) • enqueue element by adding new Node after rear rear front

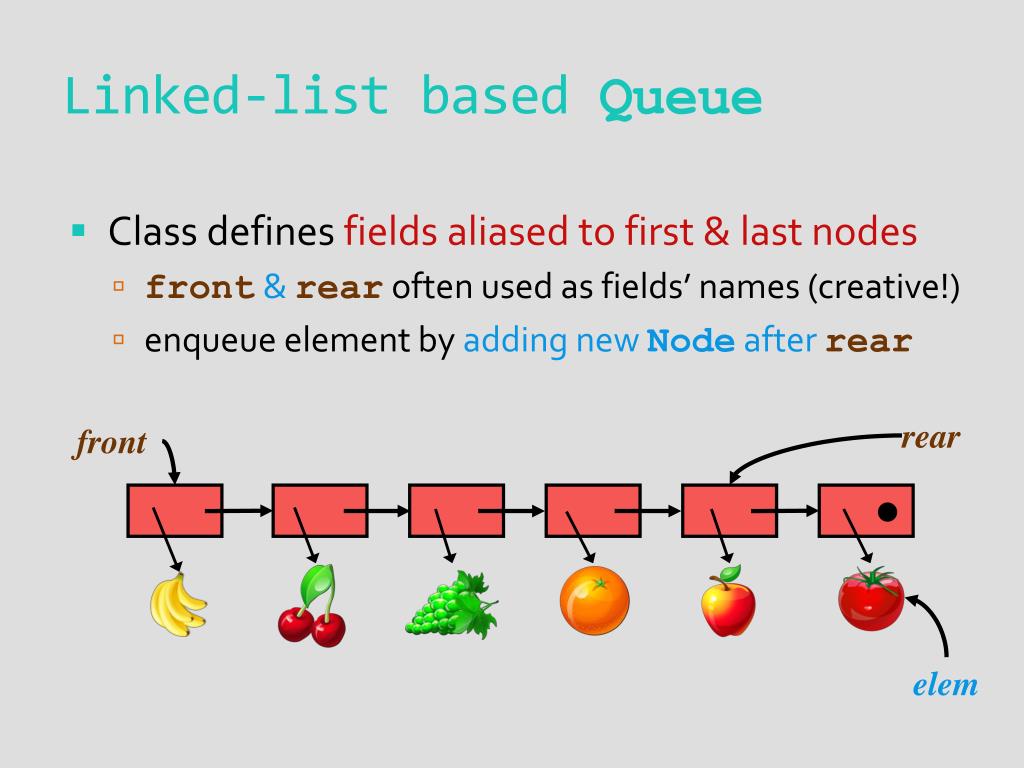

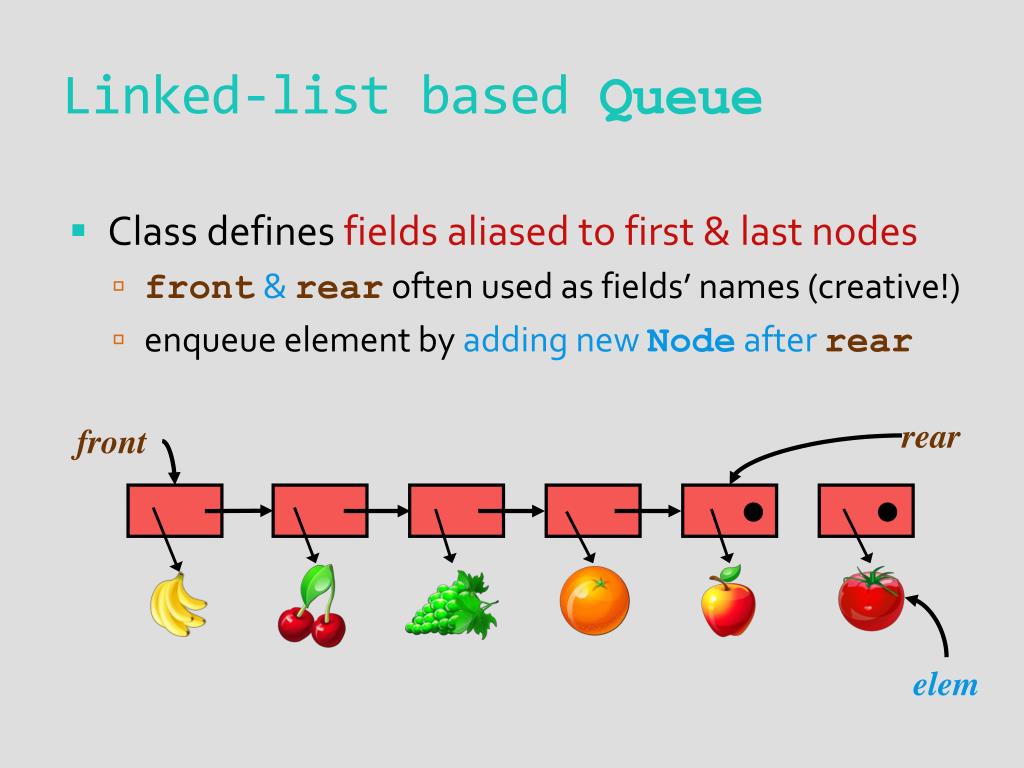

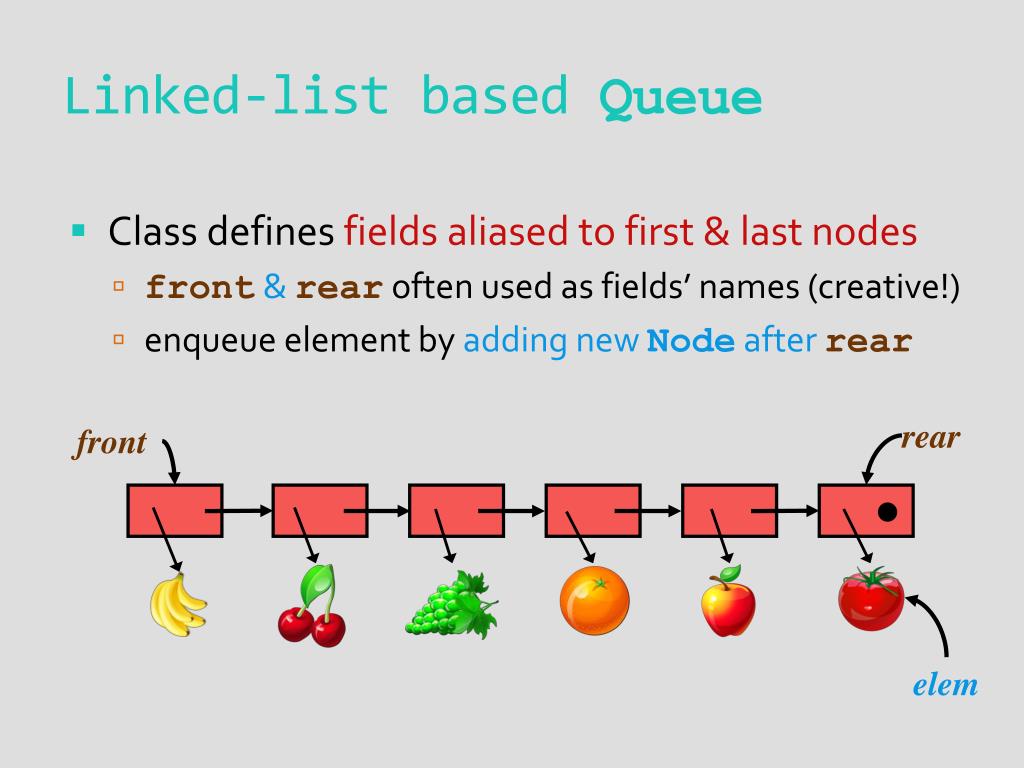

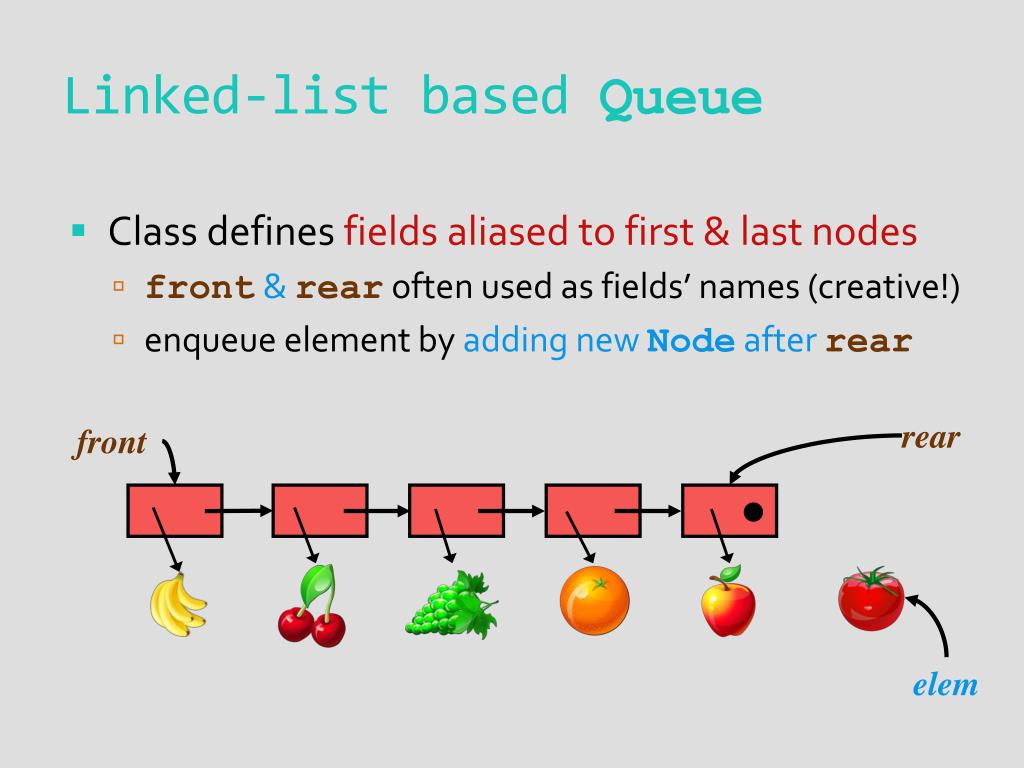

  18. Linked-list based Queue • Class defines fields aliased to first & last nodes • front & rearoften used as fields’ names (creative!) • enqueue element by adding new Node after rear rear front elem

  19. Linked-list based Queue • Class defines fields aliased to first & last nodes • front & rearoften used as fields’ names (creative!) • enqueue element by adding new Node after rear rear front elem

  20. Linked-list based Queue • Class defines fields aliased to first & last nodes • front & rearoften used as fields’ names (creative!) • enqueue element by adding new Node after rear rear front elem

  21. Linked-list based Queue • Class defines fields aliased to first & last nodes • front & rearoften used as fields’ names (creative!) • enqueue element by adding new Node after rear rear front elem

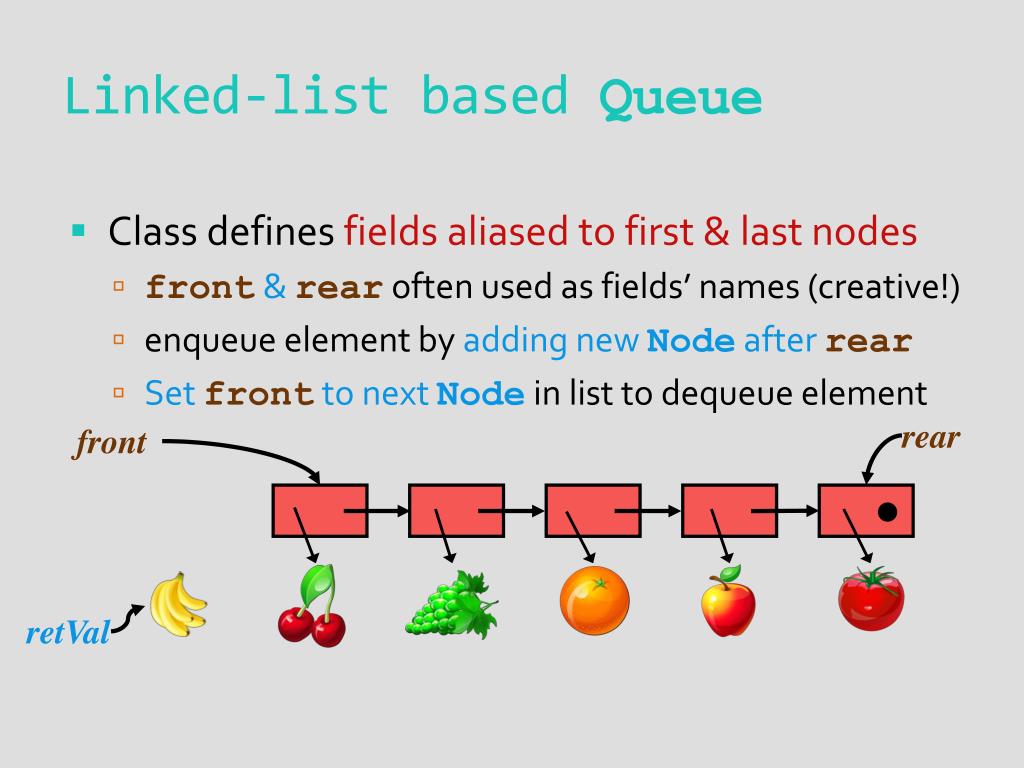

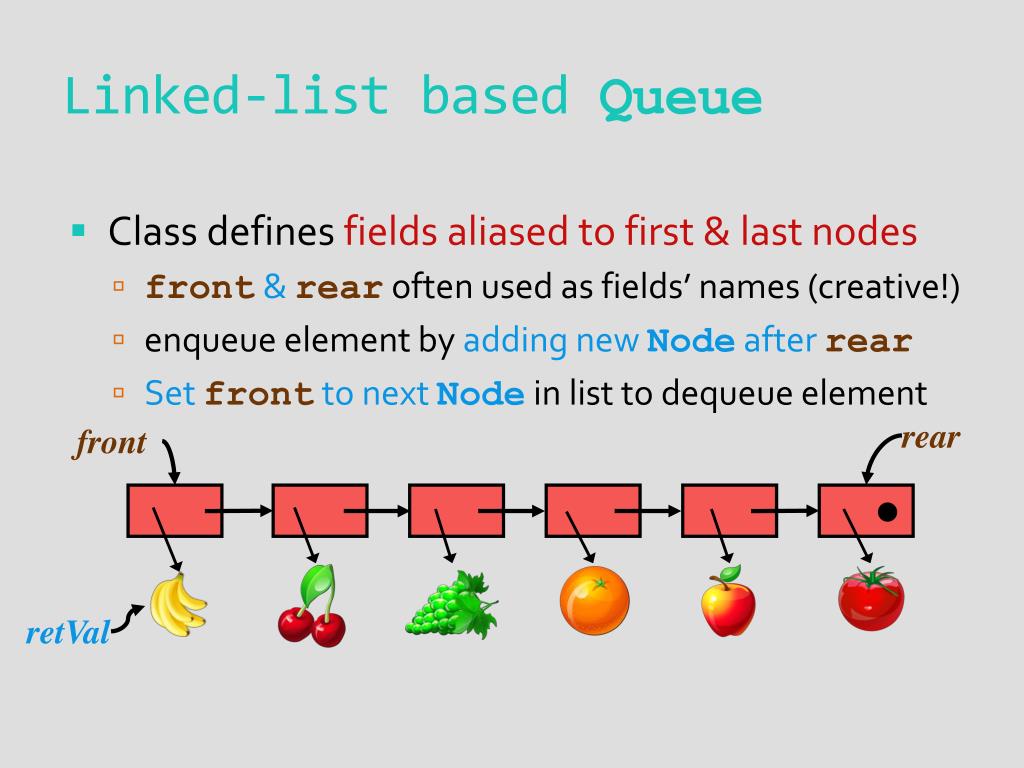

  22. Linked-list based Queue • Class defines fields aliased to first & last nodes • front & rearoften used as fields’ names (creative!) • enqueue element by adding new Node after rear • Set front to next Nodein list to dequeue element rear front retVal

  23. Linked-list based Queue • Class defines fields aliased to first & last nodes • front & rearoften used as fields’ names (creative!) • enqueue element by adding new Node after rear • Set front to next Nodein list to dequeue element rear front retVal

  24. Linked-list based Queue • Class defines fields aliased to first & last nodes • front & rearoften used as fields’ names (creative!) • enqueue element by adding new Node after rear • Set front to next Nodein list to dequeue element rear front retVal

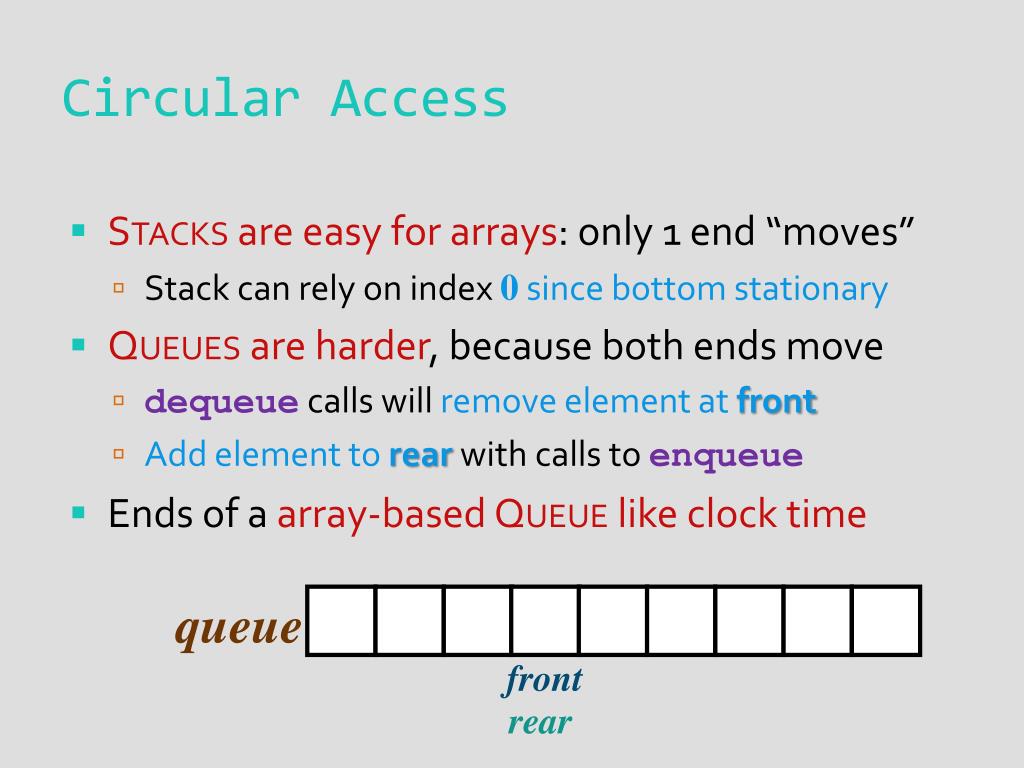

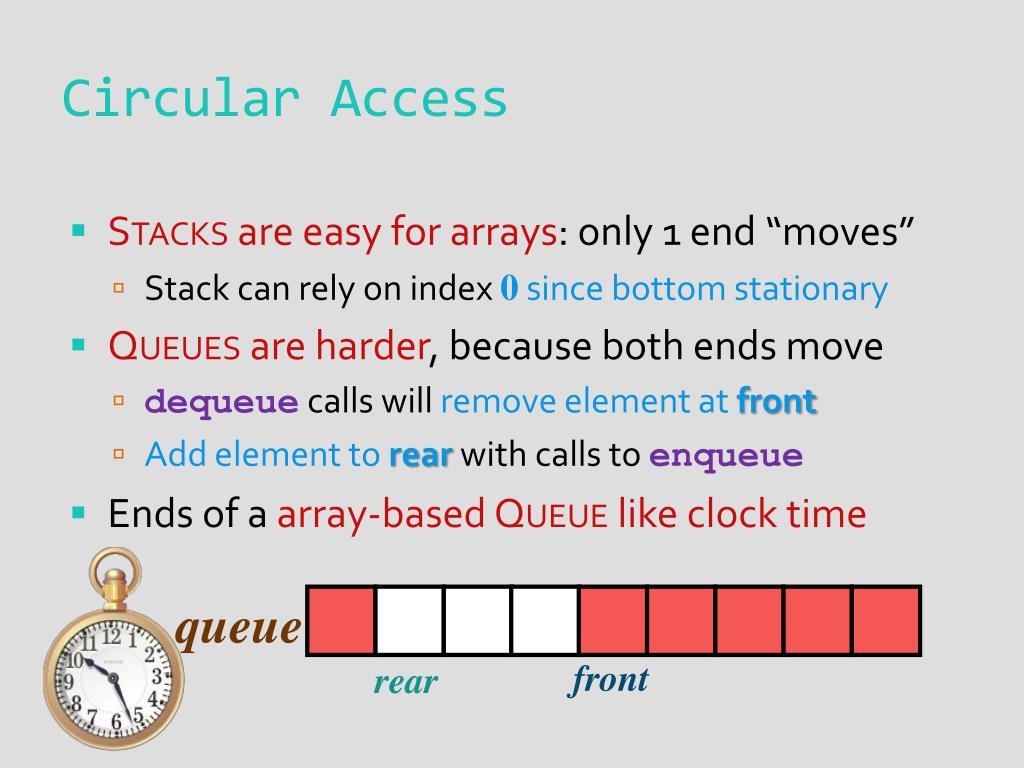

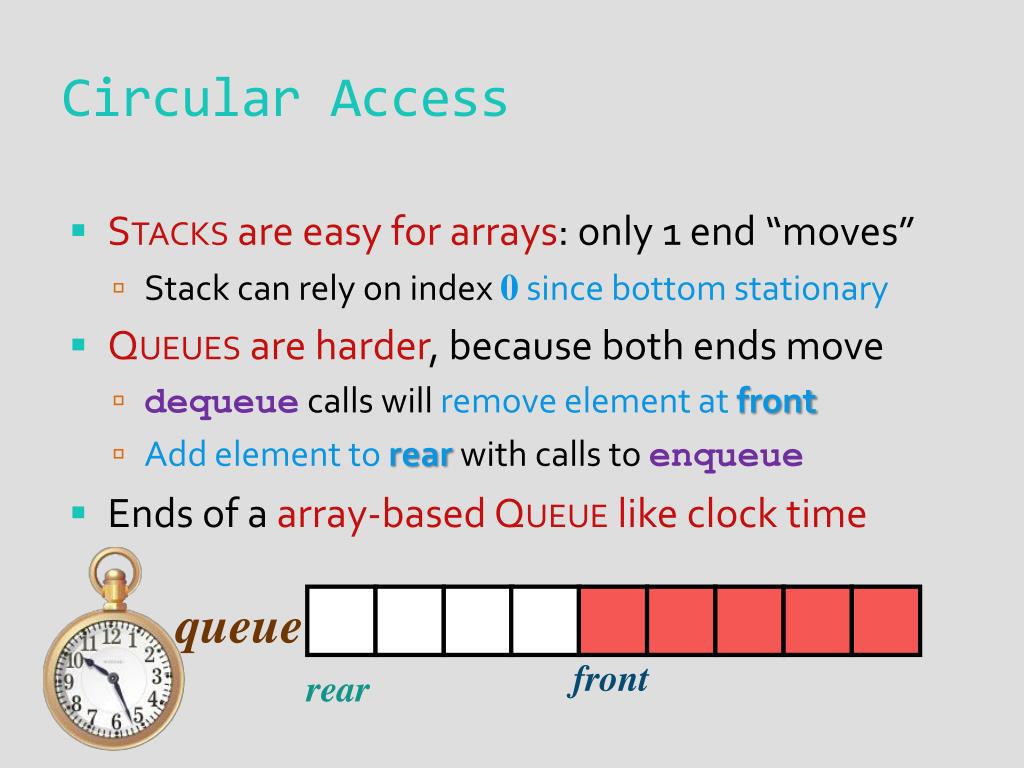

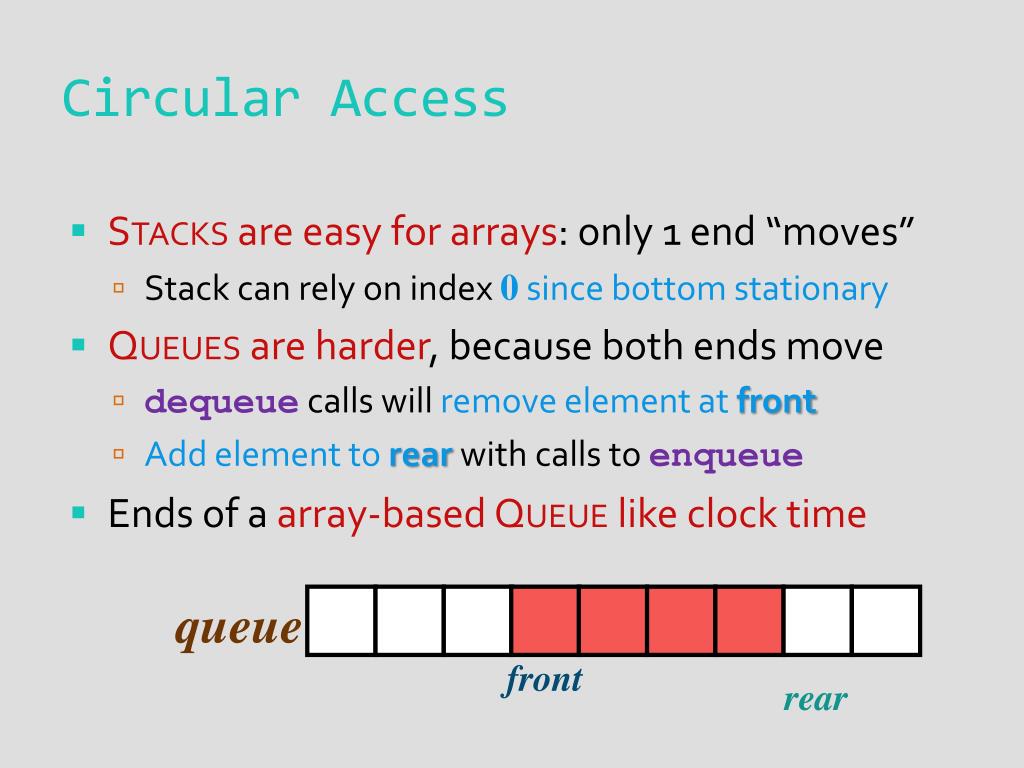

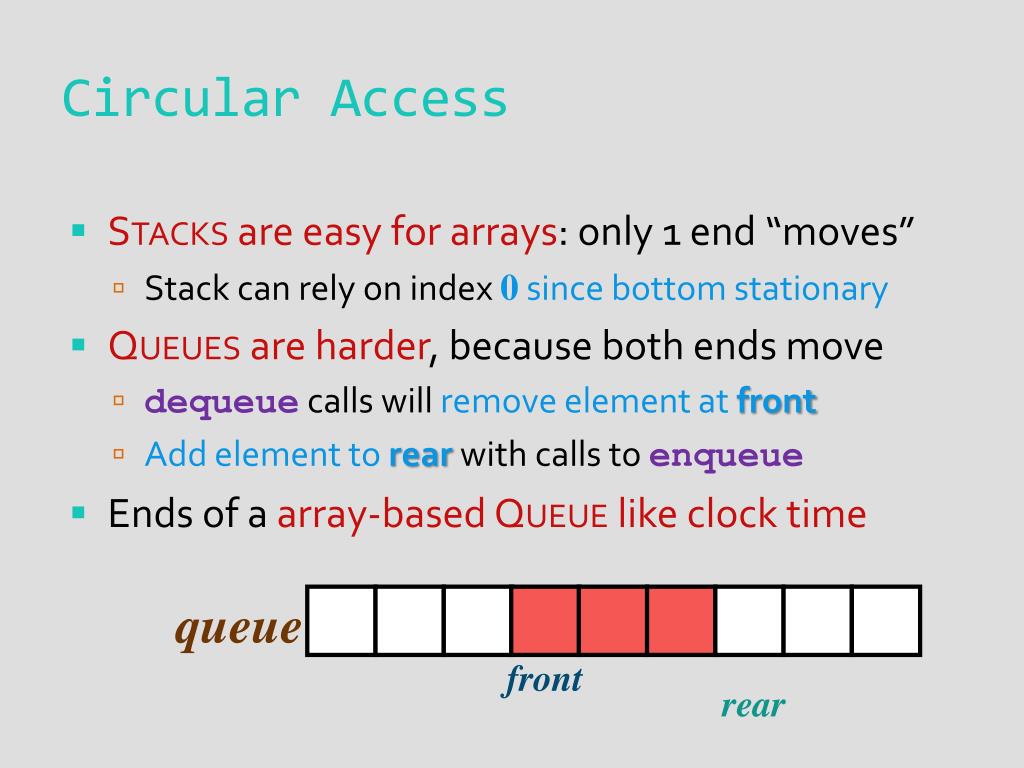

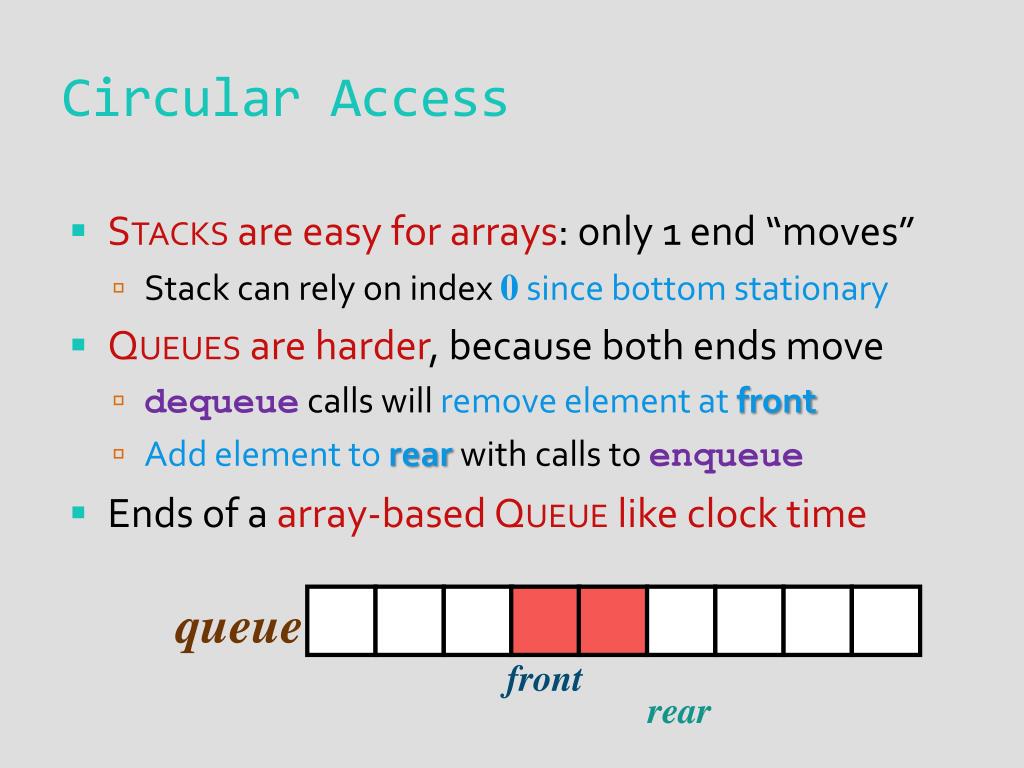

  25. Circular Access queue front rear • Stacks are easy for arrays: only 1 end “moves” • Stack can rely on index 0 since bottom stationary • Queues are harder, because both ends move • dequeue calls will remove element at front • Add element to rear with calls to enqueue • Ends of a array-based Queue like clock time

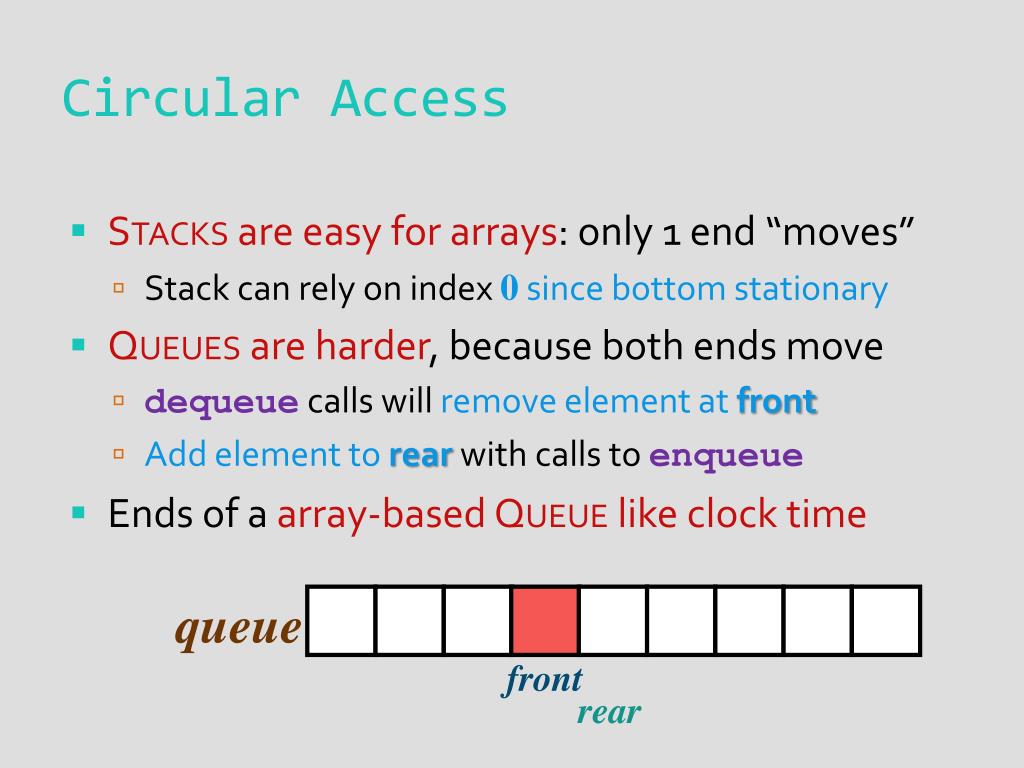

  26. Circular Access queue front rear • Stacks are easy for arrays: only 1 end “moves” • Stack can rely on index 0 since bottom stationary • Queues are harder, because both ends move • dequeue calls will remove element at front • Add element to rear with calls to enqueue • Ends of a array-based Queue like clock time

  27. Circular Access queue front rear • Stacks are easy for arrays: only 1 end “moves” • Stack can rely on index 0 since bottom stationary • Queues are harder, because both ends move • dequeue calls will remove element at front • Add element to rear with calls to enqueue • Ends of a array-based Queue like clock time

  28. Circular Access queue front rear • Stacks are easy for arrays: only 1 end “moves” • Stack can rely on index 0 since bottom stationary • Queues are harder, because both ends move • dequeue calls will remove element at front • Add element to rear with calls to enqueue • Ends of a array-based Queue like clock time

  29. Circular Access queue front rear • Stacks are easy for arrays: only 1 end “moves” • Stack can rely on index 0 since bottom stationary • Queues are harder, because both ends move • dequeue calls will remove element at front • Add element to rear with calls to enqueue • Ends of a array-based Queue like clock time

  30. Circular Access queue front rear • Stacks are easy for arrays: only 1 end “moves” • Stack can rely on index 0 since bottom stationary • Queues are harder, because both ends move • dequeue calls will remove element at front • Add element to rear with calls to enqueue • Ends of a array-based Queue like clock time

  31. Circular Access queue front rear • Stacks are easy for arrays: only 1 end “moves” • Stack can rely on index 0 since bottom stationary • Queues are harder, because both ends move • dequeue calls will remove element at front • Add element to rear with calls to enqueue • Ends of a array-based Queue like clock time

  32. Circular Access queue front rear • Stacks are easy for arrays: only 1 end “moves” • Stack can rely on index 0 since bottom stationary • Queues are harder, because both ends move • dequeue calls will remove element at front • Add element to rear with calls to enqueue • Ends of a array-based Queue like clock time

  33. Circular Access queue front rear • Stacks are easy for arrays: only 1 end “moves” • Stack can rely on index 0 since bottom stationary • Queues are harder, because both ends move • dequeue calls will remove element at front • Add element to rear with calls to enqueue • Ends of a array-based Queue like clock time

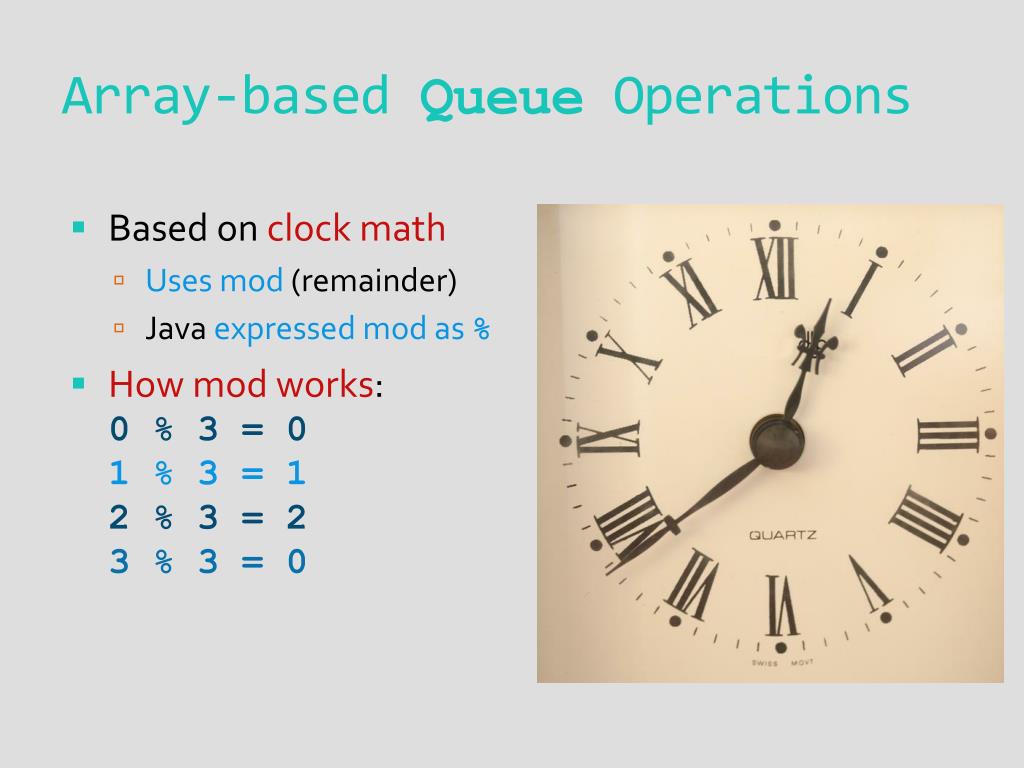

  34. Array-based Queue Operations • Based on clock math • Uses mod (remainder) • Java expressed mod as % • How mod works:0 % 3 = 01 % 3 = 12 % 3 = 23 % 3 = 0

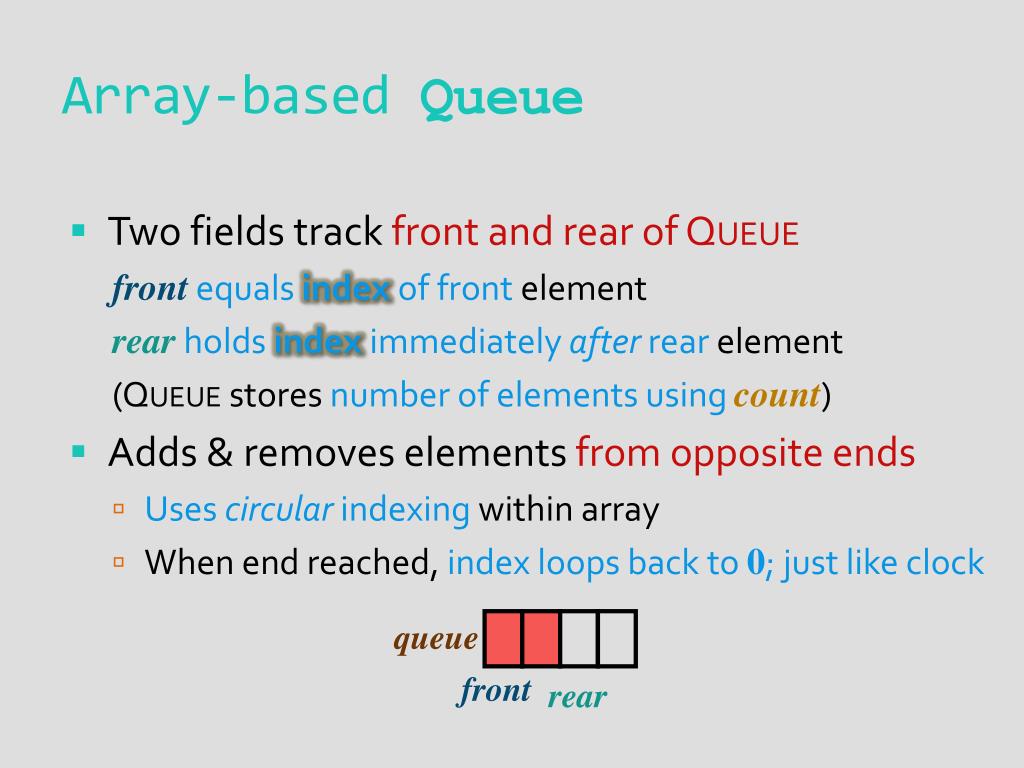

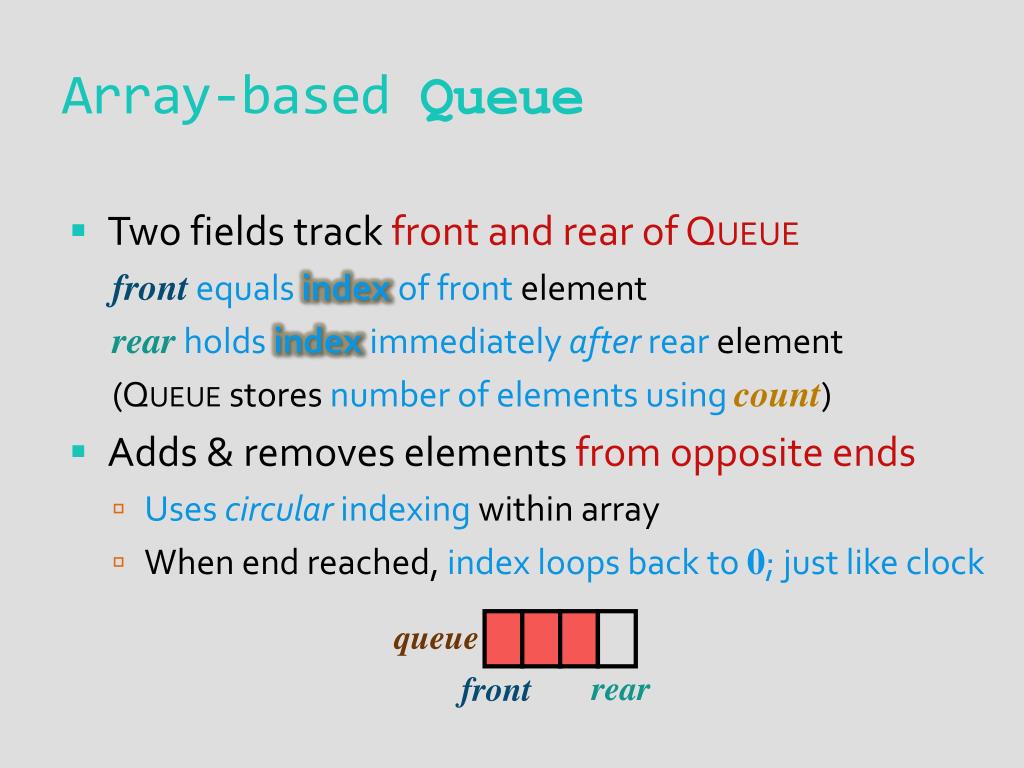

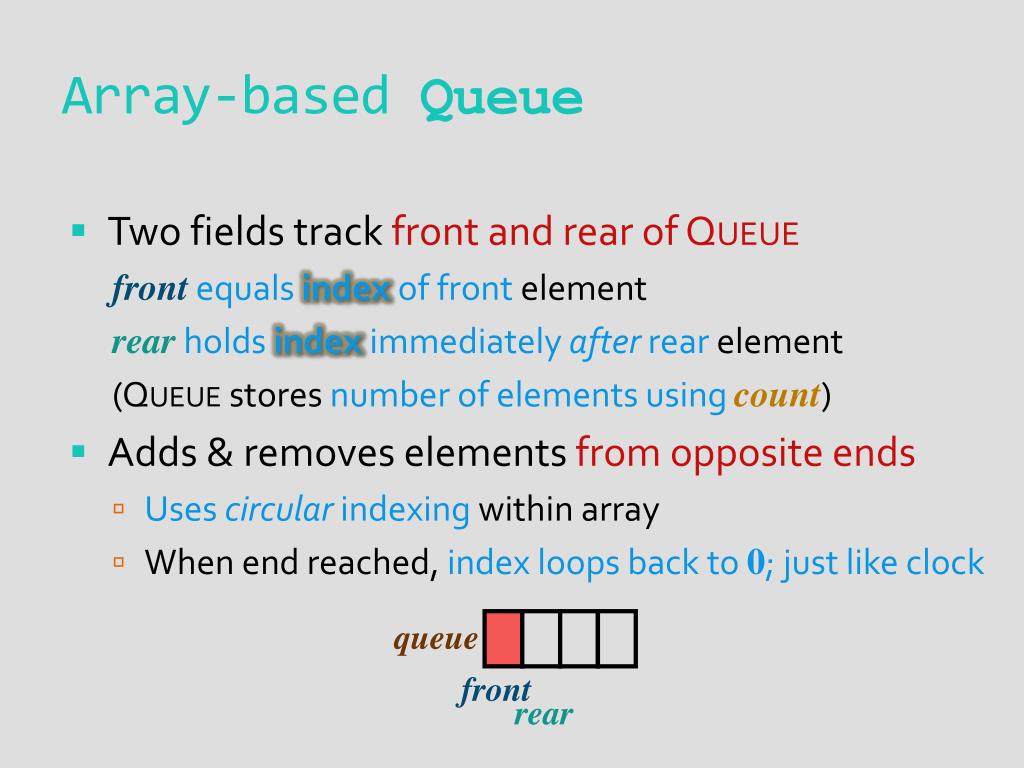

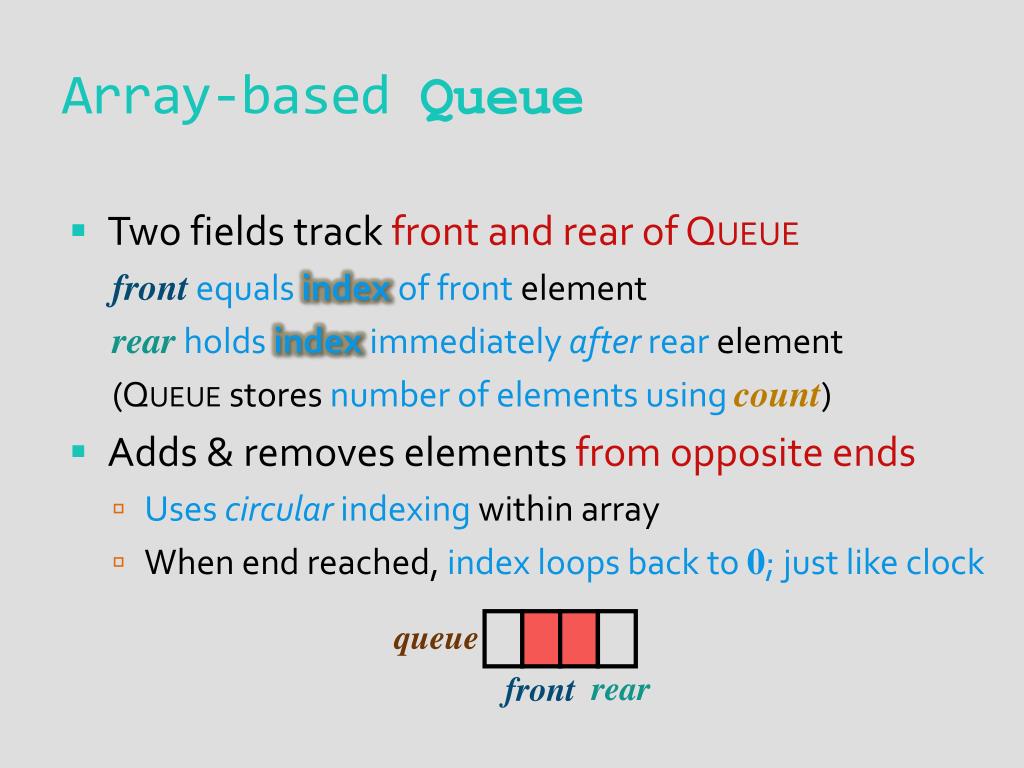

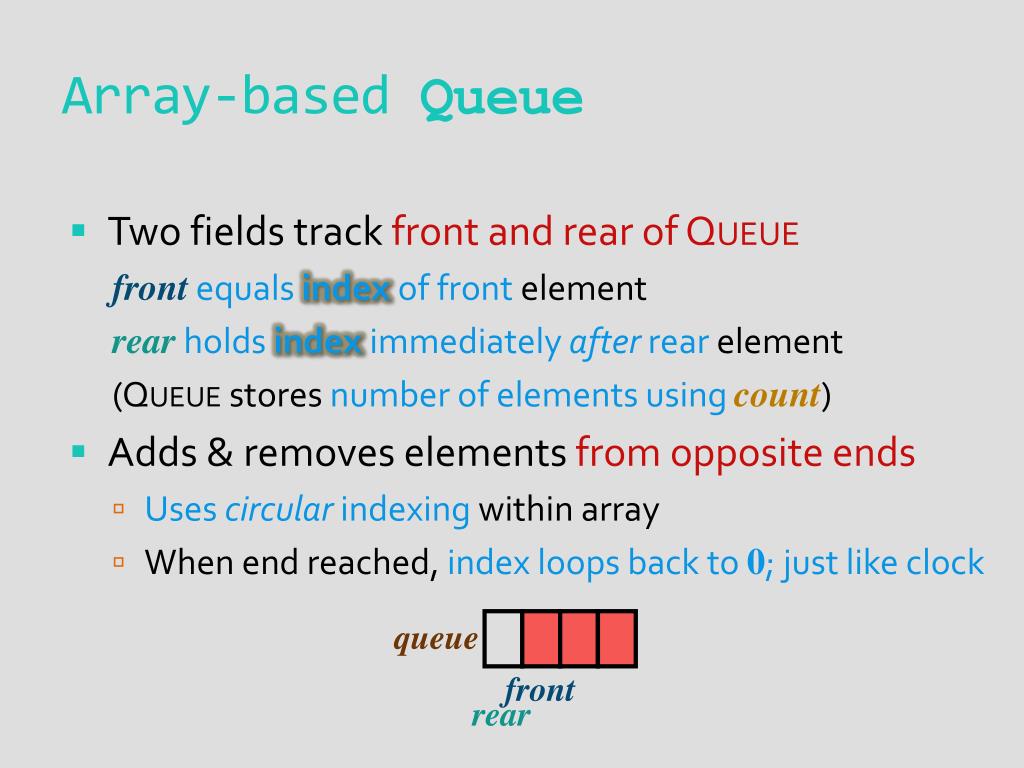

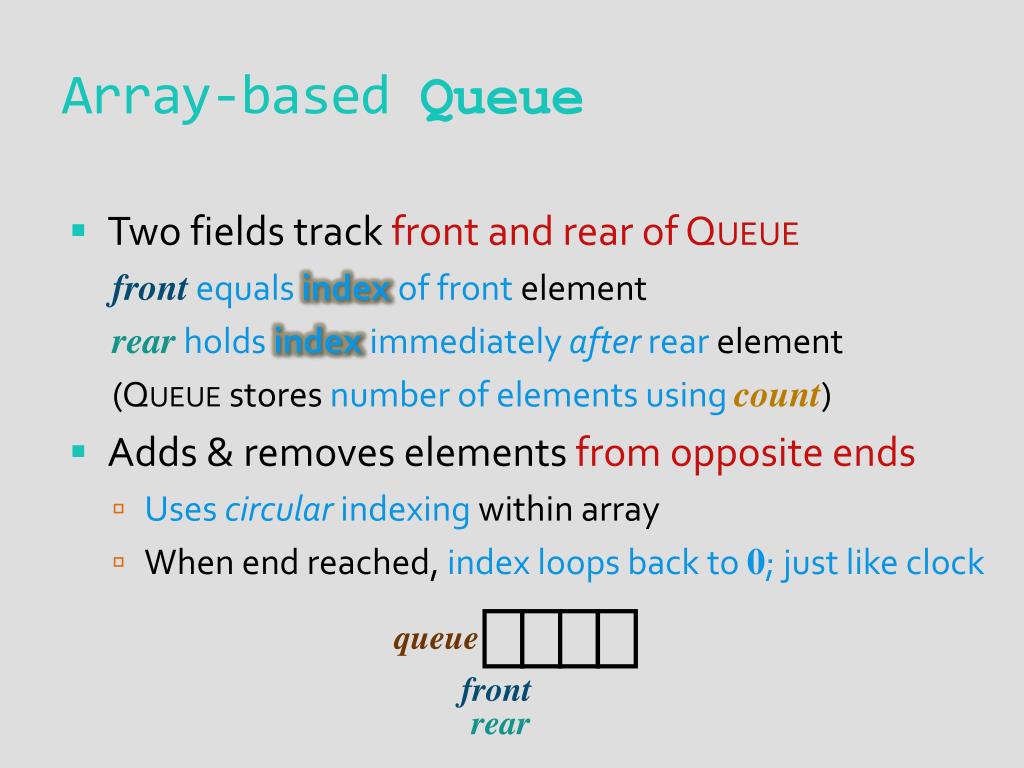

  35. Array-based Queue • Two fields track front and rear of Queue frontequals indexof front element rearholds indeximmediately after rear element (Queue stores number of elements using count) • Adds & removes elements from opposite ends • Uses circular indexing within array • When end reached, index loops back to 0; just like clock queue front rear

  36. Array-based Queue • Two fields track front and rear of Queue frontequals indexof front element rearholds indeximmediately after rear element (Queue stores number of elements using count) • Adds & removes elements from opposite ends • Uses circular indexing within array • When end reached, index loops back to 0; just like clock queue front rear

  37. Array-based Queue • Two fields track front and rear of Queue frontequals indexof front element rearholds indeximmediately after rear element (Queue stores number of elements using count) • Adds & removes elements from opposite ends • Uses circular indexing within array • When end reached, index loops back to 0; just like clock queue front rear

  38. Array-based Queue • Two fields track front and rear of Queue frontequals indexof front element rearholds indeximmediately after rear element (Queue stores number of elements using count) • Adds & removes elements from opposite ends • Uses circular indexing within array • When end reached, index loops back to 0; just like clock queue rear front

  39. Array-based Queue • Two fields track front and rear of Queue frontequals indexof front element rearholds indeximmediately after rear element (Queue stores number of elements using count) • Adds & removes elements from opposite ends • Uses circular indexing within array • When end reached, index loops back to 0; just like clock queue rear front

  40. Array-based Queue • Two fields track front and rear of Queue frontequals indexof front element rearholds indeximmediately after rear element (Queue stores number of elements using count) • Adds & removes elements from opposite ends • Uses circular indexing within array • When end reached, index loops back to 0; just like clock queue front rear

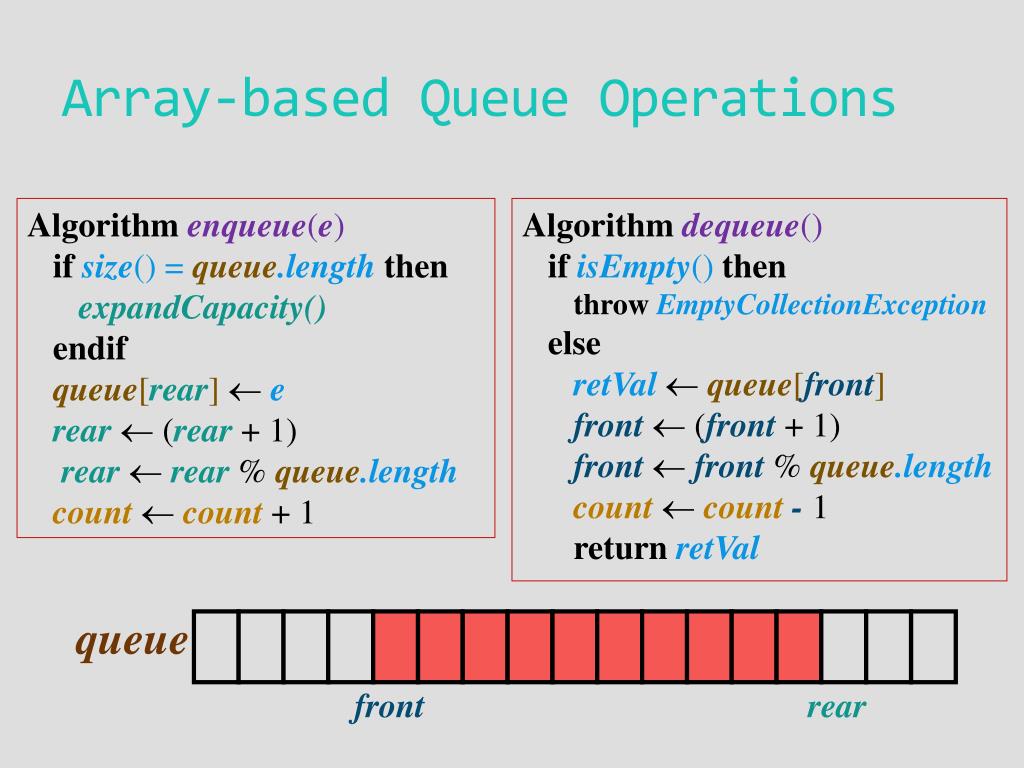

  41. queue front rear Array-based Queue Operations Algorithmenqueue(e) ifsize() = queue.lengththen expandCapacity() endif queue[rear]e rear(rear+ 1) rearrear%queue.length countcount+ 1 Algorithmdequeue() ifisEmpty() then throw EmptyCollectionException else retValqueue[front] front(front+ 1)front front%queue.length countcount - 1 returnretVal

  42. Your Turn • Get into your groups and complete activity

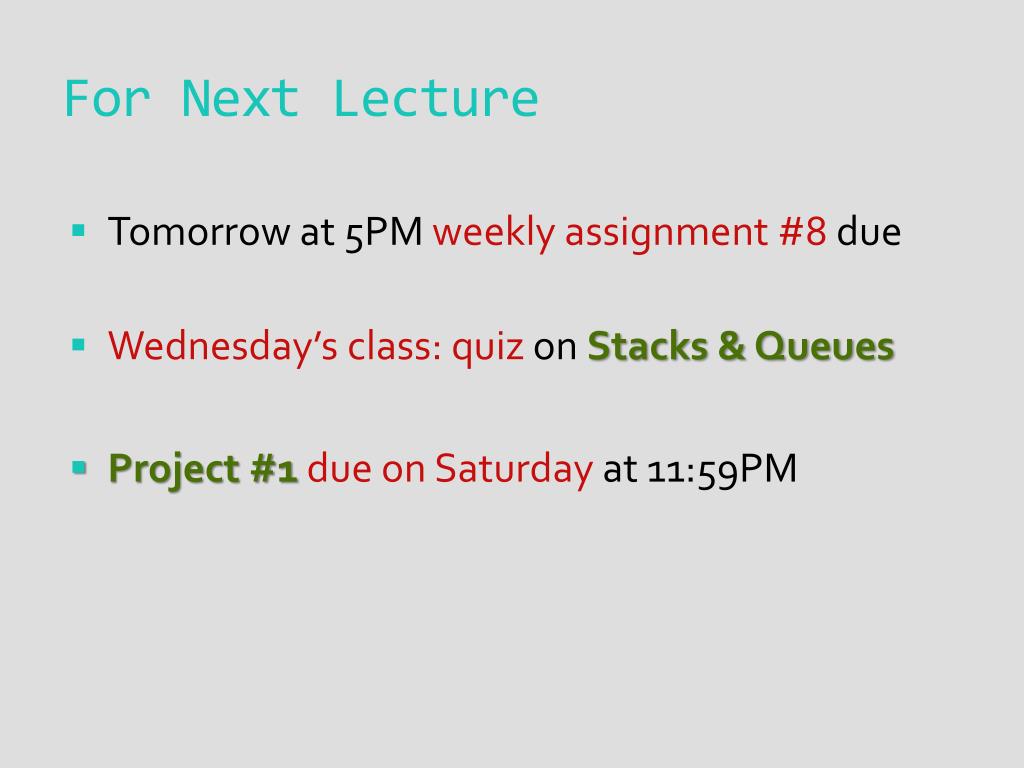

  43. For Next Lecture • Tomorrow at 5PM weekly assignment #8 due • Wednesday’s class: quiz on Stacks & Queues • Project #1 due on Saturday at 11:59PM
