  1. More Invertebrates

  2. Outline • The coelom • Molluscs • Bivalves • Cephalopods • Gastropods • Annelids • Arthropods • Crustaceans • Uniramians • Chelicerates • Echinoderms

  3. Advantages of Coelom • Protostomes vs. deuterostomes • Differentiated according to three major events in embryological development • 1 Cleavage • Spiral cleavage in protostomes • Radial cleavage in deuterostomes

  4. Protostomes Compared to Deuterostomes

  5. Advantages of Coelom • 2 Fate of blastopore • Mouth appears near blastopore in protostomes • Anus appears near blastopore in deuterstomes • 3 Coelom Formation • Schizocoelom forms in protostomes • Enterocoelom forms in deuterstomes

  6. Mollusks • Mollusks (phylum Mollusca) • Have three-part body plan • Visceral Mass • Contains internal organs • Mantle • May secrete shell and/or contribute to development of gills or lungs • Foot • Muscle adapted for locomotion, attachment, or food capture

  7. Body Plan of Mollusks

  8. Mollusks • Mollusks (cont.) • Nervous system consists of several ganglia connected by nerve cords • Coelom is reduced, and largely limited to the region around the heart • Heart pumps hemolymph through vessels into hemocoel

  9. Bivalves • Clams, oysters, mussels, and scallops • Shell of two hinged parts, closed by powerful muscles • No head, no radula • Circulatory system open • Sexes are separate • Ciliated gills hang down within mantle cavity on either side of visceral mass • Beating of cilia causes water to enter cavity • Filter Feeders – capture tiny food particles suspended in water

  10. Bivalve Diversity

  11. Cephalopods • Head Footed • Force water out mantle cavity • Tentacles and arms capture prey by adhesive secretions or suckers • Beak used to tear prey apart • Well-developed sense organs • Closed circulatory system • Spermatophore packets passed from males to females

  12. Cephalopod Diversity

  13. Gastropods, cont. • Have elongated, flattened foot • Well-developed head region • Eyes and tentacles project from coiled shell • Gills are found in mantle cavity in aquatic gastropods • Mantle functions as lung in terrestrial gastropods

  14. Gastropod Diversity

  15. Annelids • Phylum Annelida are • Segmented partitions (septa) divide the well-developed, fluid-filled coelom, which acts as hydrostatic skeleton • Specialized digestive tract • Closed circulatory system • Ventral solid nerve cord • Most are marine • Setae (bristles) help in movement

  16. Polychaete Diversity

  17. Earthworms • Do not have well-developed head or parapodia • Setae protrude in pairs directly from surface of body • Food drawn into mouth by action of muscular pharynx • Digestion and absorption occur in long internal intestine • Typhlosole increases surface for absorption

  18. Earthworm, Lumbricus terrestris

  19. Earthworms • Segmentaion evidenced by: • Body rings • Coelom divided by septa • Setae on most segments • Gangli and lateral nerves in each segment • Nephridia in most segments • Branch blood vessels in each segment

  20. Earthworms • Reproduction • Hermaphroditic • Two worms lie in parallel to each other facing in opposite directions • Fused midbody segment (clitellum) secretes mucus, protecting sperm from dessication

  21. Leeches • Usually found in fresh water • Same body plan as other annelids • No setae • Two additional suckers • Some parasitic • Keep blood flowing and prevent clotting by means of hirudin, a powerful anticoagulant

  22. Medicinal Leeches, Hirudo medicinalis

  23. Arthropods • Arthropods (phylum Arthropoda) have freely movable jointed appendages • Very successful due to many characteristics • Rigid, jointed exoskeleton • Must molt as they grow • Segmented, but some segments are fused into regions • Head, thorax, abdomen • Well-developed nervous system

  24. Arthropod Skeleton and Eye

  25. Arthropods • Variety of respiratory organs • Occurrence of metamorphosis • Three major arthropod subphyla • Crustaceans • Crayfish • Uniramians • Centipedes • Chelicerates • Spiders

  26. Crustaceans • Decapods are the most familiar and numerous of crustaceans • Shrimp, lobsters, crayfish, and crabs • Thorax bears five pairs of walking legs • Head and thorax fused into cephalothorax • Covered by nonsegmented carapace • Abdominal segments equipped with swimmerets • Respiratory system consists of gills

  27. Crustacean Diversity

  28. Male crayfish, Cambarus

  29. Uniramians • Include insects, millipedes, and centipedes • Appendages attached to the thorax and abdomen only have one branch • Head appendages include: • Only one pair of antennae • One pair of mandibles, and • One or two pairs of maxillae • Live on land and breathe by tracheae

  30. Insect Diversity

  31. Two Types of Insect Mouthparts

  32. Female Grasshopper, Romalea

  33. Centipede and Millipede

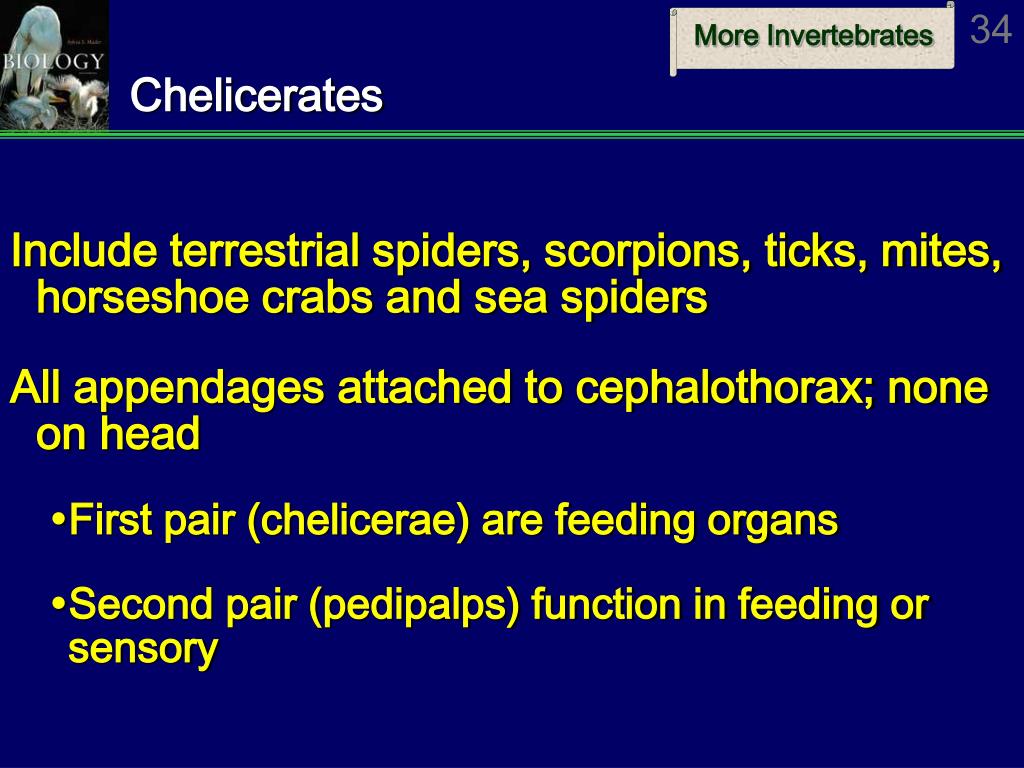

  34. Chelicerates • Include terrestrial spiders, scorpions, ticks, mites, horseshoe crabs and sea spiders • All appendages attached to cephalothorax; none on head • First pair (chelicerae) are feeding organs • Second pair (pedipalps) function in feeding or sensory

  35. Chelicerate Diversity

  36. Echinoderms • Sea stars, sea urchins, sea cucumbers, and sea lilies • Radial symmetry as adults (not as larvae) • Internal calcium-rich plates with spines • Central nerve ring with branches • Water vascular system for locomotion

  37. Echinoderms

  38. Review • The coelom • Mollusks • Bivalves • Cephalopods • Gastropods • Annelids • Arthropods • Crustaceans • Uniramians • Chelicerates • Echinoderms

  39. More Invertebrates
