DataFlash® Products

Product Overview

Paul Hill – Product Marketing Director

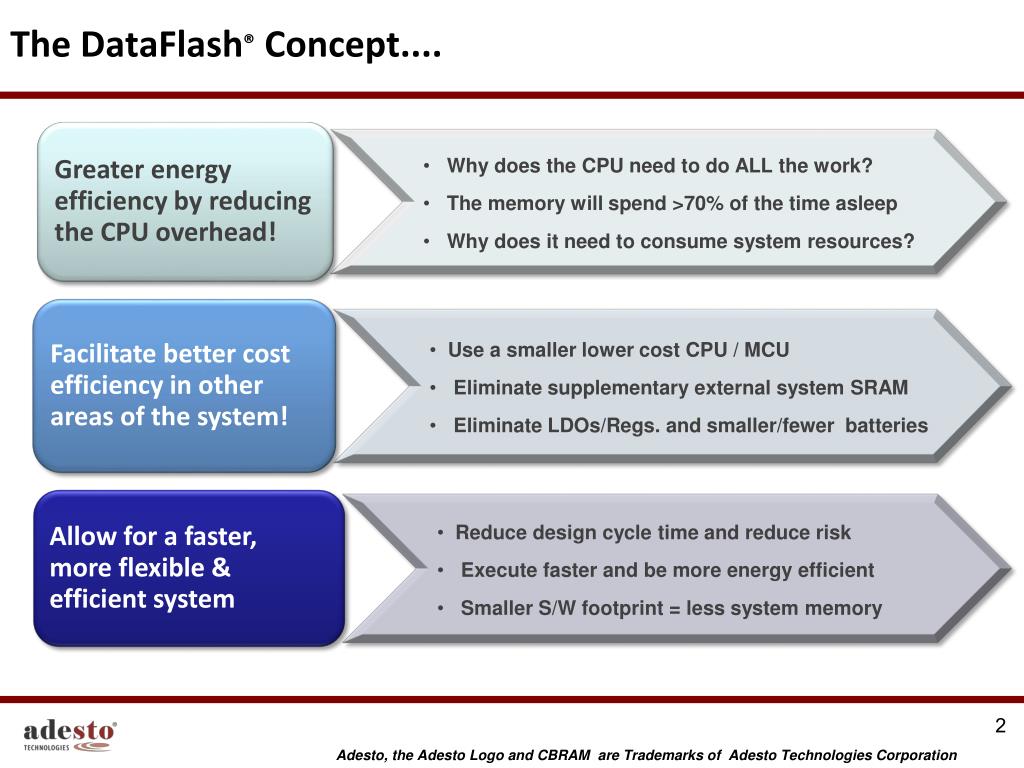

The DataFlash® Concept....


DataFlash® Product Line Evolution…

15 years of support and backwards compatibility

2002-2007

AT45DBxxxB

Legacy

2007-2013

AT45DBxxxD

Current

2013+

AT45DBxxxE

Next Generation

  • Smallest Page Sizes

  • Dual SRAM Buffers

  • Command Rich I/F

  • Serial E² Emulation

  • Page Erase / Page Write

  • Flexible Sector Protection

  • Any Sector Lockdown

  • 128Byte Security Register

  • Ind. Std. Device ID

  • Byte Write Capability

  • Dual/Quad IO Interfaces

  • Low-power Modes

  • 1.65V & 2.3V Operation

3


The DataFlash®‘E’ Series Revolution!

  • Read While Write Capability

  • Erase-Program-Suspend-Resume

NEW E Series Features

  • Sector Security

  • Flexible Non-Vol.

  • Sector Protection

Extended VCC Range

  • 1.65V – 3.6V

  • 2.3V – 3.6V

NOR FLASH MEMORY ARRAY

Small Page Array Architecture

  • Higher Performance

  • 85Mhz SPI Clock

RESET

  • Sector Lockdown

  • Make any Sector

  • Perm. Read Only

PAGE SIZE = BUFFER SIZE

WP

Low Power Read

  • Lower Power Read

  • <20MHz

Dual SRAM Buffers

  • Each SRAM Buffer

  • = One Page Size.

BUFFER 2

BUFFER 1

SCK

CS

I/O INTERFACE

  • Byte Write Capability

  • Byte write Option

  • without Pre-Erase

  • 3% More Memory

  • Additional NVM

  • Storage Capacity

  • Enhanced Interface Options

  • RapidS, Dual IO, Quad IO & Rapid4

SI

SO

  • Zero Power Mode

  • Ultra Deep Power

  • Down Mode @ 300nA

  • Software RST CMD.

  • Built In Device

  • Reset command

4


DataFlash® Value Proposition....

DataFlash contributes to an overall lowersystem cost


DataFlash® SRAM Buffer BenefitsAdditional System SRAM

FLASH MEMORY ARRAY

PAGE

BUFFER 1

BUFFER 2

I/O INTERFACE

SI

  • Use the DataFlash internal SRAM Buffers as EXTRA system RAM

  • Temporarily off-load data from the MCU RAM to the DataFlash RAM Buffers

SRAM

Utilization

SYSTEM SRAM ALERT

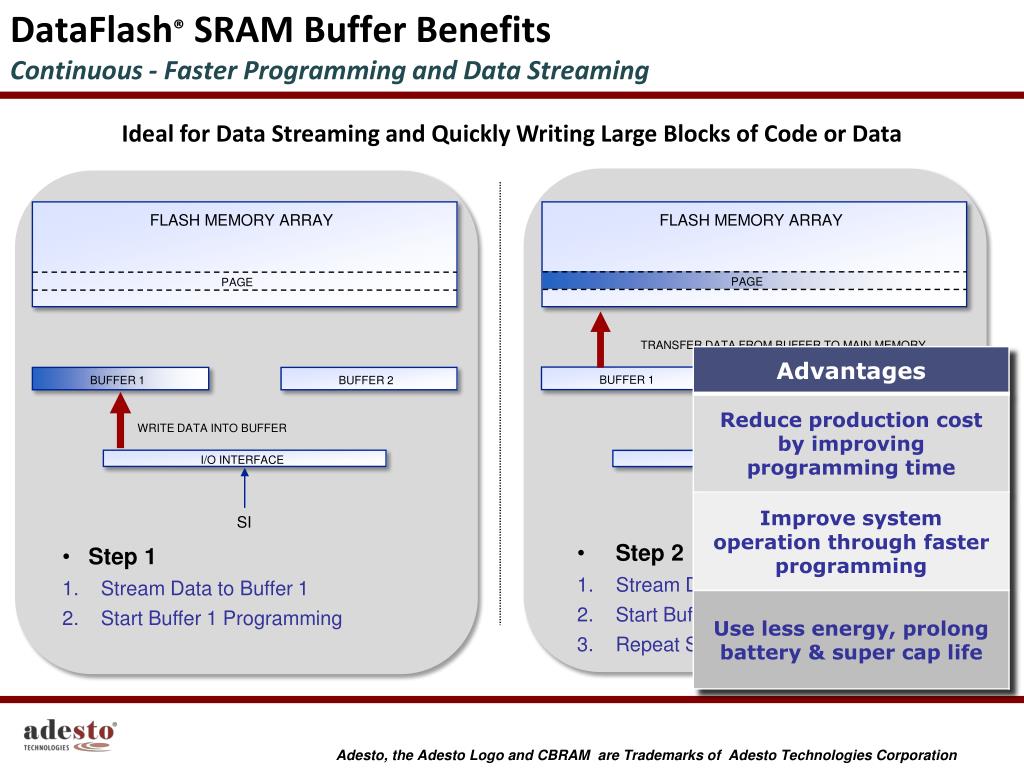

DataFlash®SRAM Buffer BenefitsContinuous - Faster Programming and Data Streaming

FLASH MEMORY ARRAY

FLASH MEMORY ARRAY

PAGE

PAGE

TRANSFER DATA FROM BUFFER TO MAIN MEMORY

BUFFER 1

BUFFER 2

BUFFER 1

BUFFER 2

WRITE DATA INTO BUFFER

WRITE DATA INTO BUFFER

I/O INTERFACE

I/O INTERFACE

SI

SI

Ideal for Data Streaming and Quickly Writing Large Blocks of Code or Data

  • Step 2

  • 1. Stream Data to Buffer 2

  • Start Buffer Programming

  • Repeat Step 1

  • Step 1

  • Stream Data to Buffer 1

  • Start Buffer 1 Programming

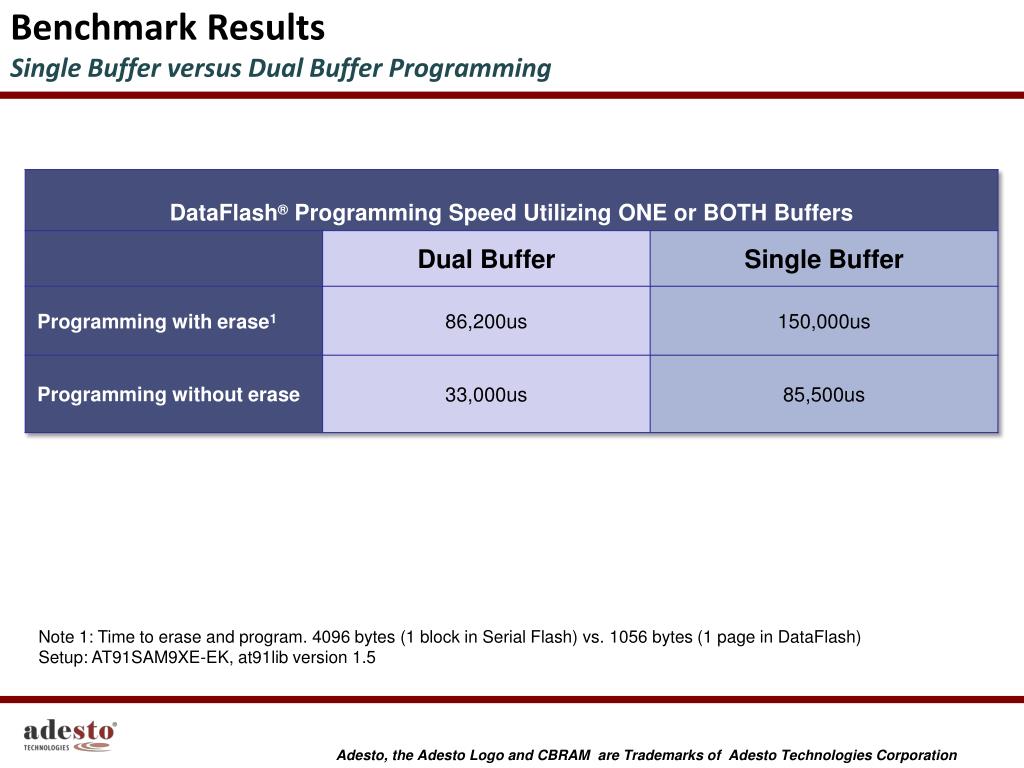

Benchmark ResultsSingle Buffer versus Dual Buffer Programming

Note 1: Time to erase and program. 4096 bytes (1 block in Serial Flash) vs. 1056 bytes (1 page in DataFlash)

Setup: AT91SAM9XE-EK, at91lib version 1.5

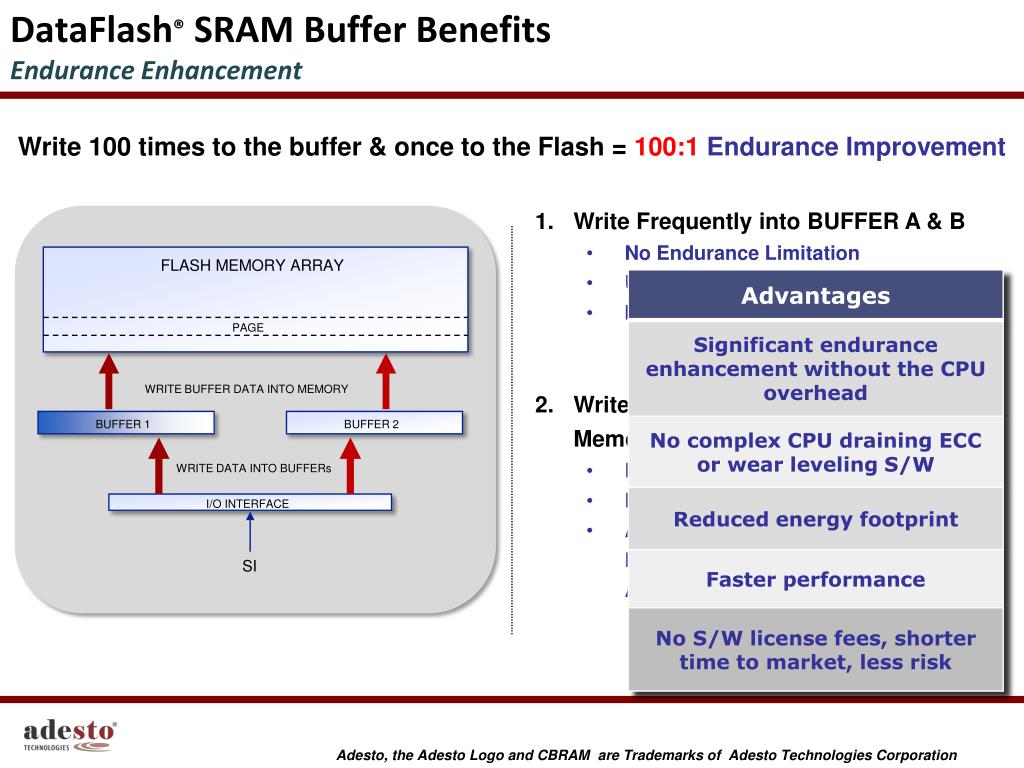

DataFlash®SRAM Buffer Benefits Endurance Enhancement

Write 100 times to the buffer & once to the Flash = 100:1 Endurance Improvement

FLASH MEMORY ARRAY

  • Write Frequently into BUFFER A & B

    • No Endurance Limitation

    • Uses Less Energy

    • Is much faster

  • Write Buffer Data occasionally into Memory

    • Reduces the # Program cycles

    • Extends the life of the memory

    • Avoids Complex Software Wear Leveling & Endurance Enhancement Algorythms (ECC)

PAGE

WRITE BUFFER DATA INTO MEMORY

BUFFER 1

BUFFER 2

WRITE DATA INTO BUFFERs

I/O INTERFACE

SI


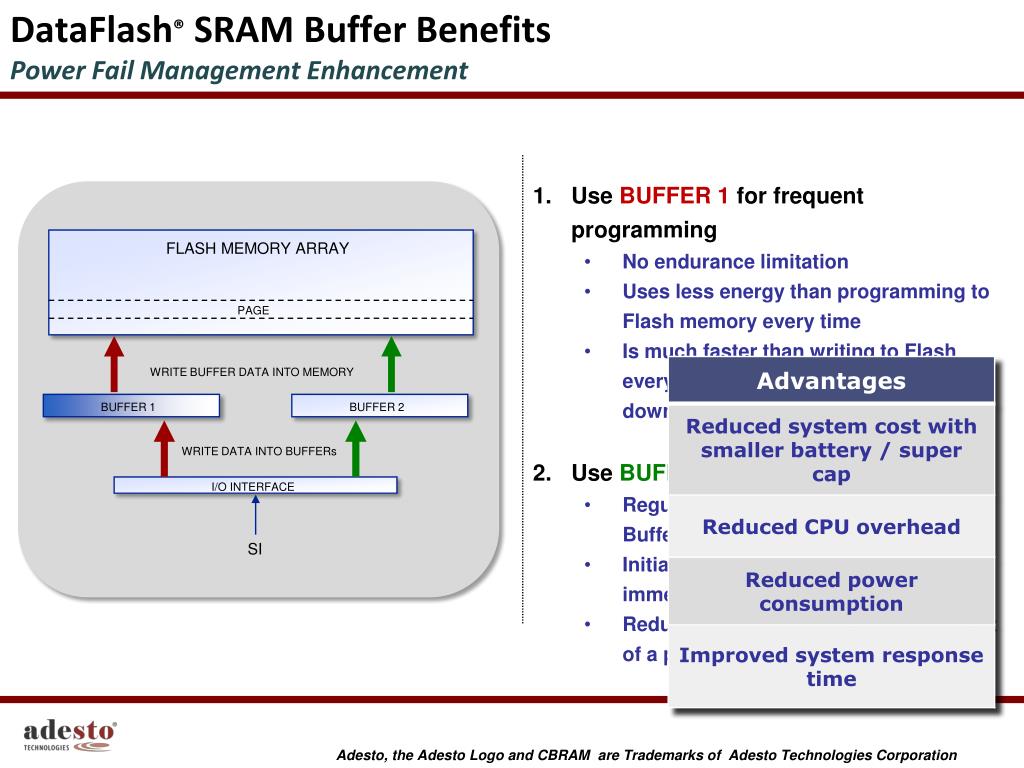

DataFlash®SRAM Buffer Benefits Power Fail Management Enhancement

FLASH MEMORY ARRAY

  • Use BUFFER 1 for frequent programming

    • No endurance limitation

    • Uses less energy than programming to Flash memory every time

    • Is much faster than writing to Flash every time allowing the CPU to shut-down faster

  • Use BUFFER 2 for Power Fail Data

    • Regularly upload power fail data to Buffer B

    • Initiate Buffer B programming immediately on power fail

    • Reduces the CPU overhead in the event of a power fail.

PAGE

WRITE BUFFER DATA INTO MEMORY

BUFFER 1

BUFFER 2

WRITE DATA INTO BUFFERs

I/O INTERFACE

SI


DataFlash® Intelligent Internal AlgorithmsEnable “Offloading” CPU Tasks: More CPU Cycles Available for Metering Functions

  • DataFlash

  • The first Serial Flash Memory to Support a BYTE WRITE operation

  • Requires NO CPU override, Management or support

  • Enable DataFlash to pick up where Serial E² Finishes.

Traditional Flash

DataFlash “D”

DataFlash “E”

Copy 4KB block to CPU SRAM

Memory Page to Buffer Transfer

Issue 0x58h Cmd. with 1-PageN Bytes

Erase 4KB Block in Memory

Modify Buffer Contents

Poll Device

Page to Memory Program

Erase

Done?

Modify Data in System SRAM

Poll Device

Program 4KBytes

SRAM Data 256byte / cycle

PGM.

Done?

11


Program Erase Suspend / Resume

  • Program Erase Suspend / Resume

    • This pair of commands will allow the application to read data from the memory array even during a Programming or Erase operation

    • Traditionally the application would have to wait for the end of the Flash memory programming or erase cycle first before the next read operation can begin.

    • It can be considered to be a Program or Erase PAUSE Command

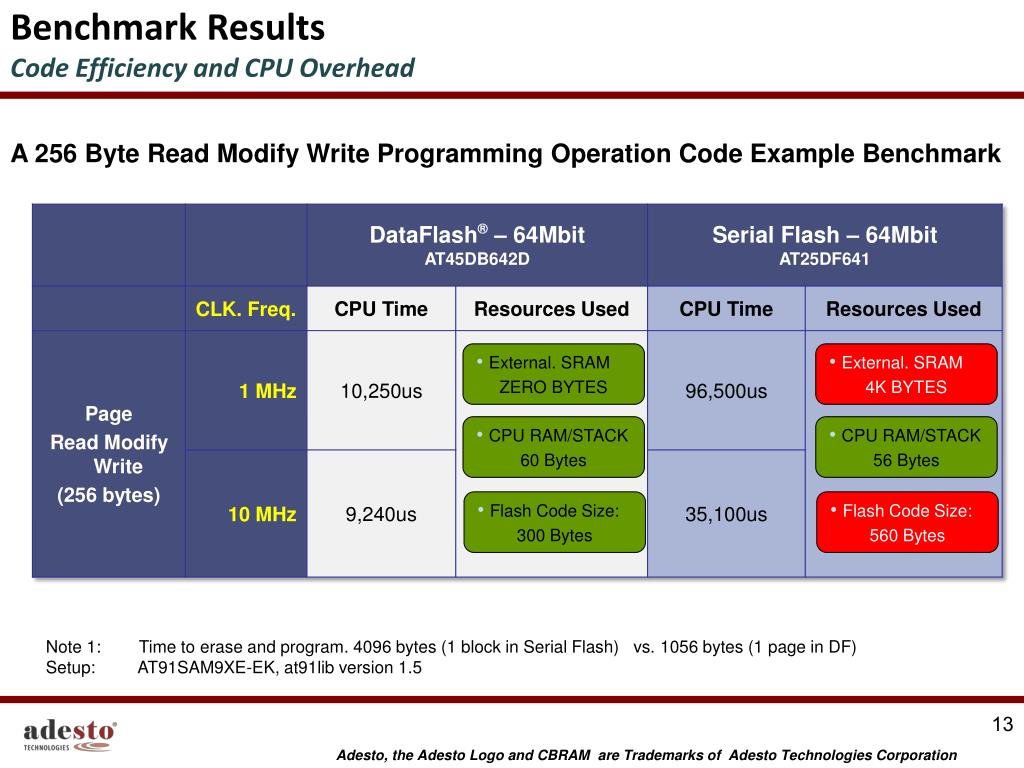

Benchmark ResultsCode Efficiency and CPU Overhead

A 256 Byte Read Modify Write Programming Operation Code Example Benchmark

  • External. SRAM

  • ZERO BYTES

  • External. SRAM

  • 4K BYTES

  • CPU RAM/STACK

  • 60 Bytes

  • CPU RAM/STACK

  • 56 Bytes

  • Flash Code Size:

  • 300 Bytes

  • Flash Code Size:

  • 560 Bytes

Note 1: Time to erase and program. 4096 bytes (1 block in Serial Flash) vs. 1056 bytes (1 page in DF)

Setup: AT91SAM9XE-EK, at91lib version 1.5

13

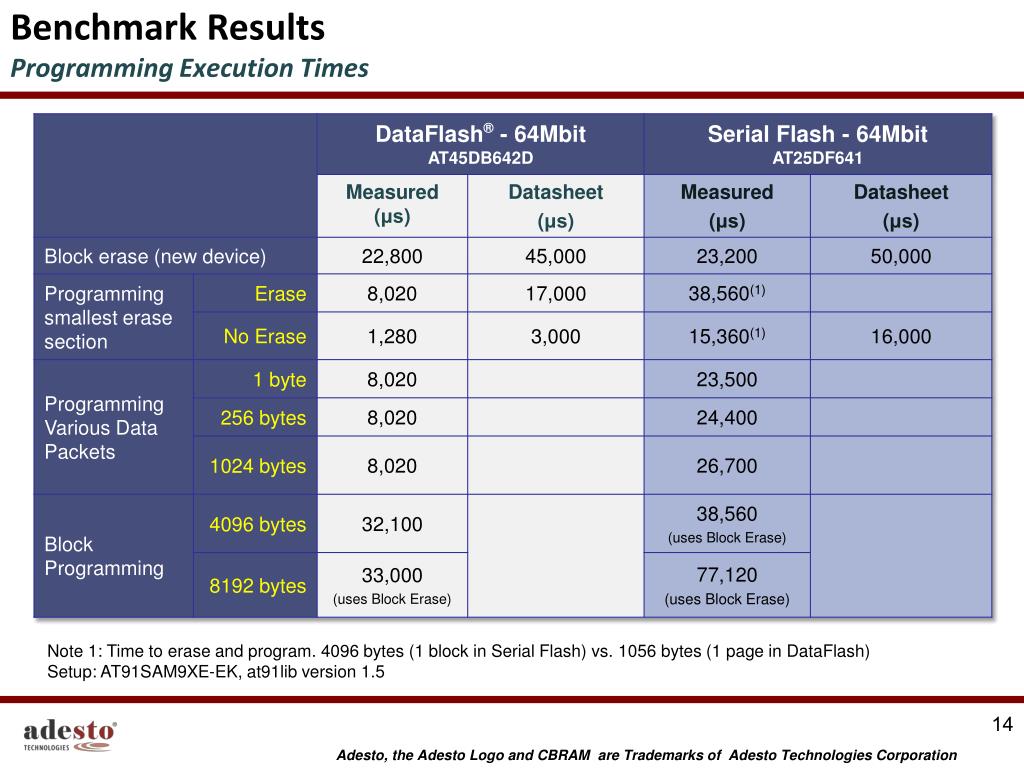

Benchmark ResultsProgramming Execution Times

Note 1: Time to erase and program. 4096 bytes (1 block in Serial Flash) vs. 1056 bytes (1 page in DataFlash)

Setup: AT91SAM9XE-EK, at91lib version 1.5

14


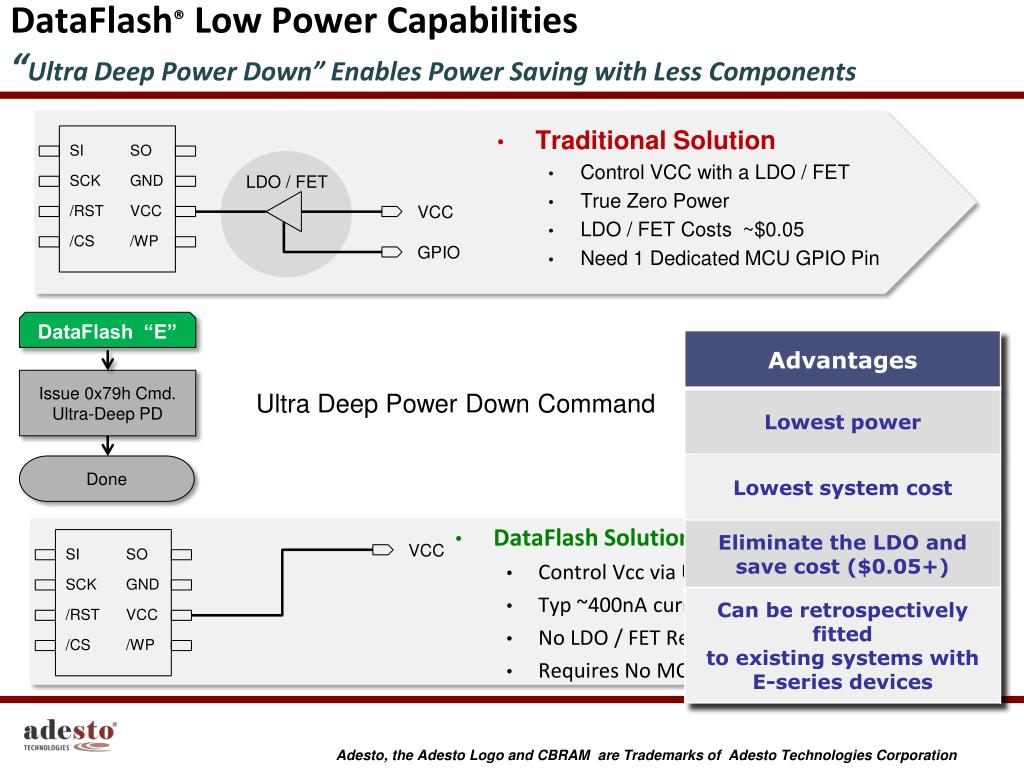

DataFlash®Low Power Capabilities“Ultra Deep Power Down” Enables Power Saving with Less Components

  • Traditional Solution

    • Control VCC with a LDO / FET

    • True Zero Power

    • LDO / FET Costs ~$0.05

    • Need 1 Dedicated MCU GPIO Pin

LDO / FET

VCC

SO

SO

SI

SI

GPIO

GND

GND

SCK

SCK

VCC

VCC

/RST

/RST

/WP

/WP

/CS

/CS

DataFlash “E”

Issue 0x79h Cmd. Ultra-Deep PD

Ultra Deep Power Down Command

Done

  • DataFlash Solution

    • Control Vcc via UDPD Command

    • Typ ~400nA current

    • No LDO / FET Required

    • Requires No MCU GPIO

VCC


DataFlash®Low Power CapabilitiesExtended Vcc Range (1.65 to 3.6V) enables longer battery life and cost savings

2.7V

2.5V

2.3V

1.65V – 3.6V

Amp-Hours

113%

413% More Battery Life

Note: Battery discharge data from www.powerstream.com/AA-tests.htm

1073% More Battery Life


DataFlash®Low Power CapabilitiesExtended Vcc Range (1.65 to 3.6V) Enhanced Power Fail Performance

2.7V

2.5V

2.3V

1.65V – 3.6V

Time

Power Fail Alert

CPU Executing Shut Down Sequence

Last Minute Power Fail Data Program Operation

Initial Page-Program

(Pre-Stored Data)

DataFlash can operate for Longer due to the wide operating VCC range

Note: Battery discharge data from www.powerstream.com/AA-tests.htm


Software Reset

  • This command will allow the application to force the DataFlash to RESET

  • A Software Reset is essential when considering eXecute-in-Place (XiP) applications or critical Data Storage events such as Power Fail

  • Kill any Program Erase Operation.

    • Read from other parts of the array

    • Terminate the Erase-Program-Resume-Suspend cycle

  • Spec

    • Software Reset time ~30us plus CPU time

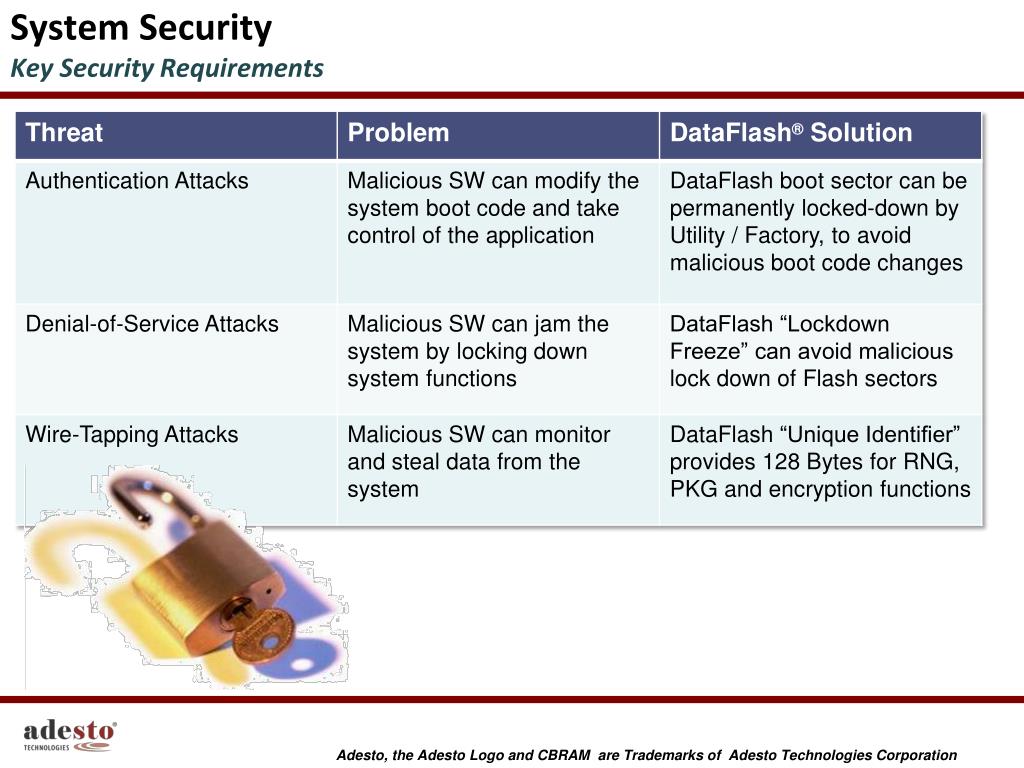

System SecurityKey Security Requirements


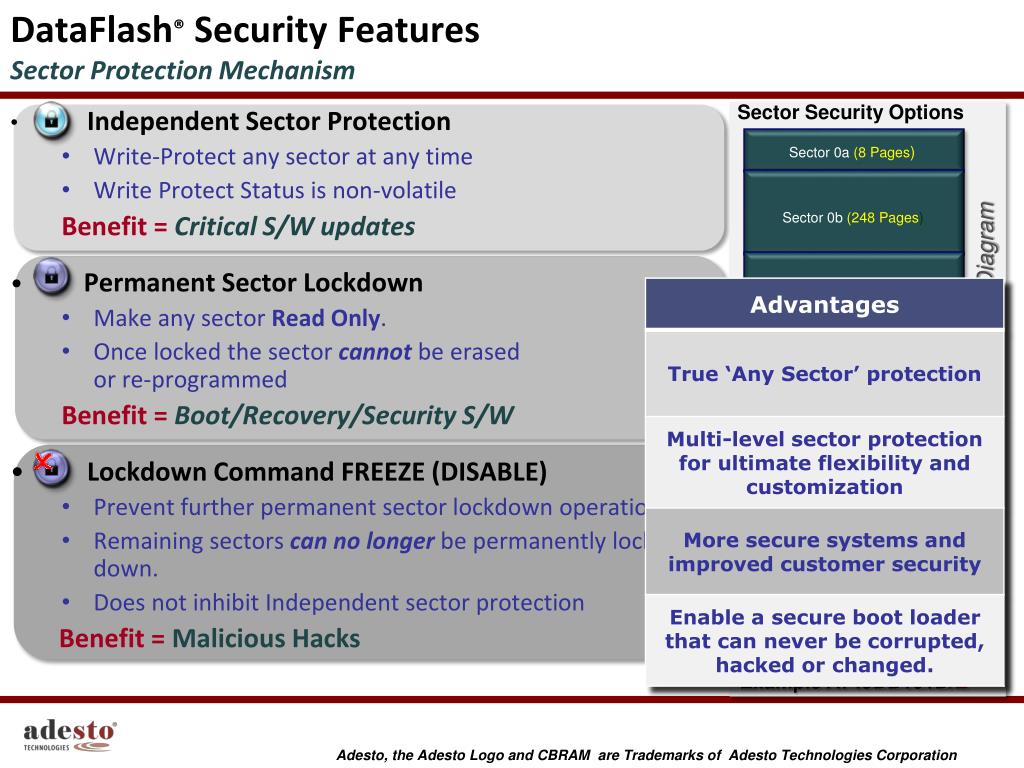

DataFlash® Security FeaturesSector Protection Mechanism

Independent Sector Protection

Write-Protect any sector at any time

Write Protect Status is non-volatile

Benefit =Critical S/W updates

Permanent Sector Lockdown

Make any sector Read Only.

Once locked the sector cannot be erased or re-programmed

Benefit =Boot/Recovery/Security S/W

Lockdown Command FREEZE (DISABLE)

Prevent further permanent sector lockdown operations

Remaining sectors can no longer be permanently locked down.

Does not inhibit Independent sector protection

Benefit =Malicious Hacks

Sector Security Options

Sector 0a (8 Pages)

Sector 0b (248 Pages)

Sector 1 (256 Pages)

Sector 2 (256 Pages)

Sector and Page Architecture Diagram

.

.

.

.

.

.

Sector 15 (256 Pages)

Example AT45DB161D/E


DataFlash®Security FeaturesUnique Device ID

  • Enhance System Security & Electronic Inventory Control

  • The Security Register Is Divided into Two parts

    • The 1st 64 bytes

      • Can be programmed by the customer and also securely locked.

      • Once programmed it Cannot be Erased / Re-programmed

    • The 2nd 64 bytes

      • Are Factory Programmed with a Unique S/N

      • The S/N can provide traceability to LOT#, Wafer# and DIE XY Level


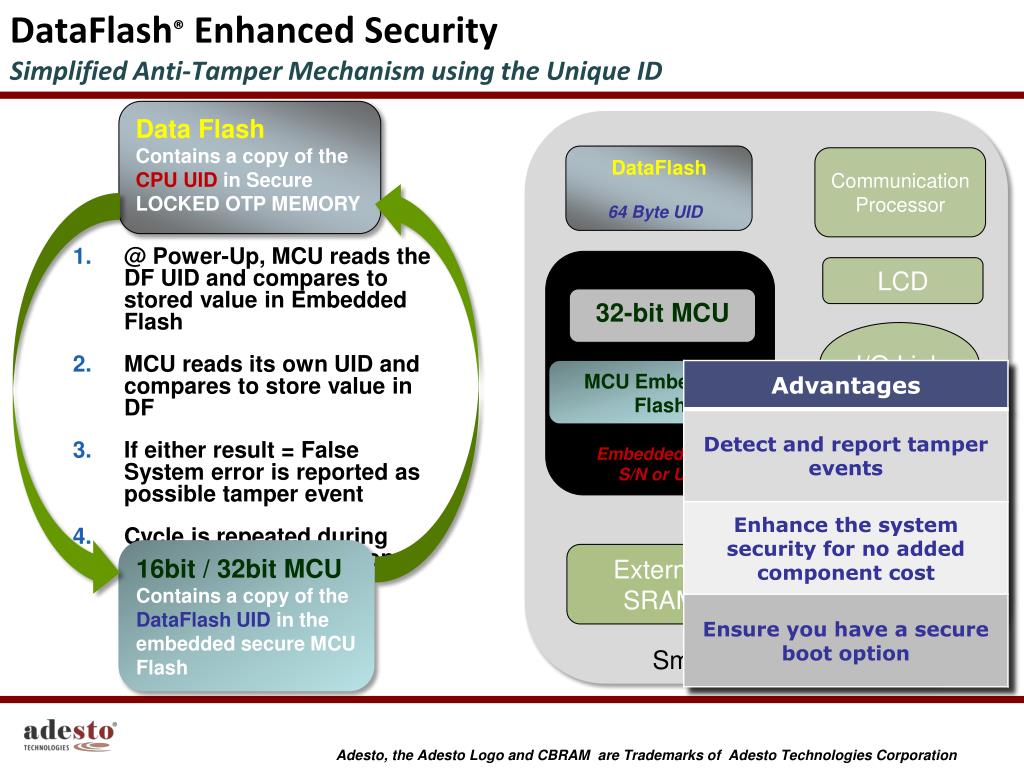

DataFlash® Enhanced SecuritySimplified Anti-Tamper Mechanism using the Unique ID

Data Flash

Contains a copy of the CPU UID in Secure LOCKED OTP MEMORY

  • @ Power-Up, MCU reads the DF UID and compares to stored value in Embedded Flash

  • MCU reads its own UID and compares to store value in DF

  • If either result = False System error is reported as possible tamper event

  • Cycle is repeated during normal system operation

DataFlash

Communication

Processor

64 Byte UID

LCD

32-bit MCU

I/O Link

MCU Embedded Flash

Breaker

Embedded CPU

S/N or UID

Line Operated &

Battery Back-Up

16bit / 32bit MCU

Contains a copy of the DataFlash UID in the embedded secure MCU Flash

External SRAM

24-bit ADC &

Precision Energy

Metering IC

Smart Meter Sub System


DataFlash® Quality and Performance Inside.....Enhanced Intelligent Adaptive Embedded Programming Algorithms

DataFlash PRGM. Cycle

Adaptive Algorithm

Program all ‘1’s to ‘0’s

Program / Erase Pulse

‘Balance’

Cycle

Adaptive Algorithm

Compare

Cell Margin > Buffer

Erase All Bits to ‘1’

Done

‘Erase’

Cycle

Adaptive Algorithm

Program Buffer Contents to NVM Array

‘Program’

Cycle

Adaptive Algorithm

Done

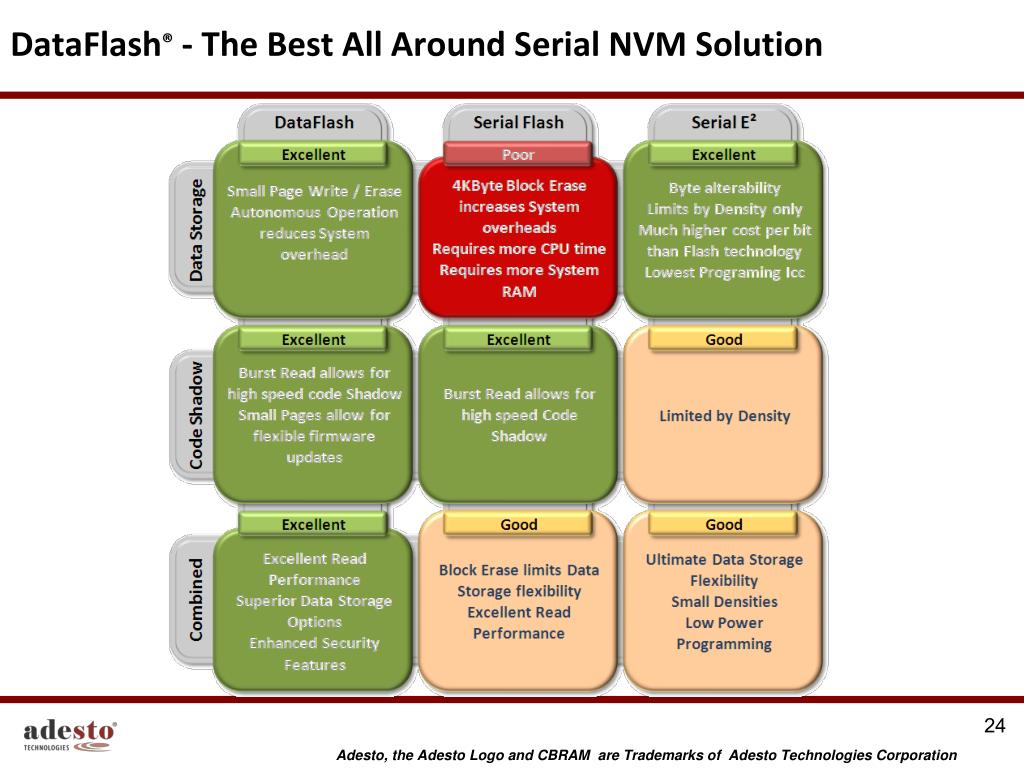

DataFlash®- The Best All Around Serial NVM Solution

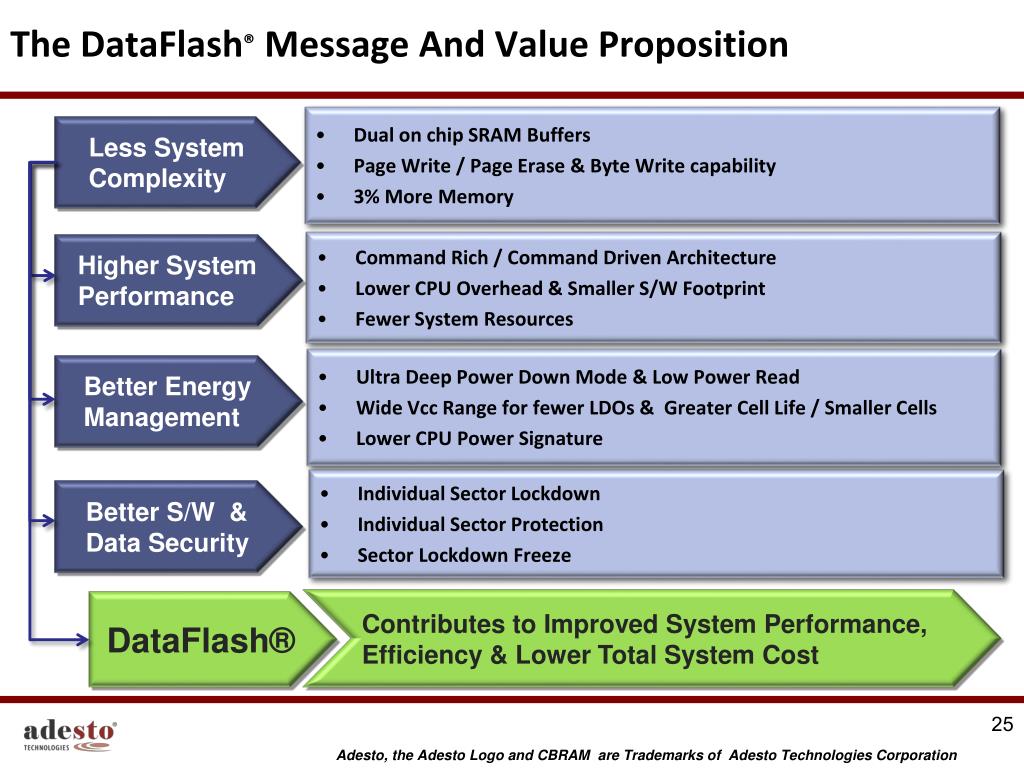

The DataFlash® Message And Value Proposition

  • Dual on chip SRAM Buffers

  • Page Write / Page Erase & Byte Write capability

  • 3% More Memory

Less System Complexity

  • Command Rich / Command Driven Architecture

  • Lower CPU Overhead & Smaller S/W Footprint

  • Fewer System Resources

Higher System Performance

  • Ultra Deep Power Down Mode & Low Power Read

  • Wide Vcc Range for fewer LDOs & Greater Cell Life / Smaller Cells

  • Lower CPU Power Signature

Better Energy Management

  • Individual Sector Lockdown

  • Individual Sector Protection

  • Sector Lockdown Freeze

Better S/W &

Data Security

Contributes to Improved System Performance, Efficiency & Lower Total System Cost

DataFlash®

25
