Structural modeling of flames for a production environment

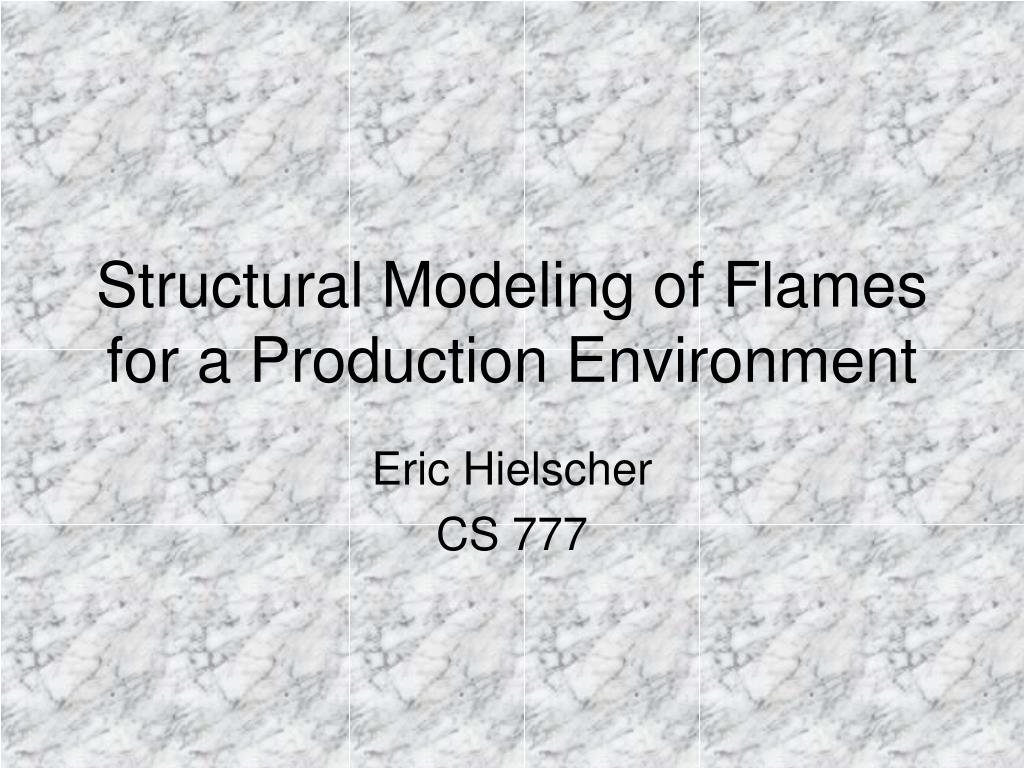

Structural Modeling of Flames for a Production Environment

Eric Hielscher

CS 777


Reasons not to use a simulator

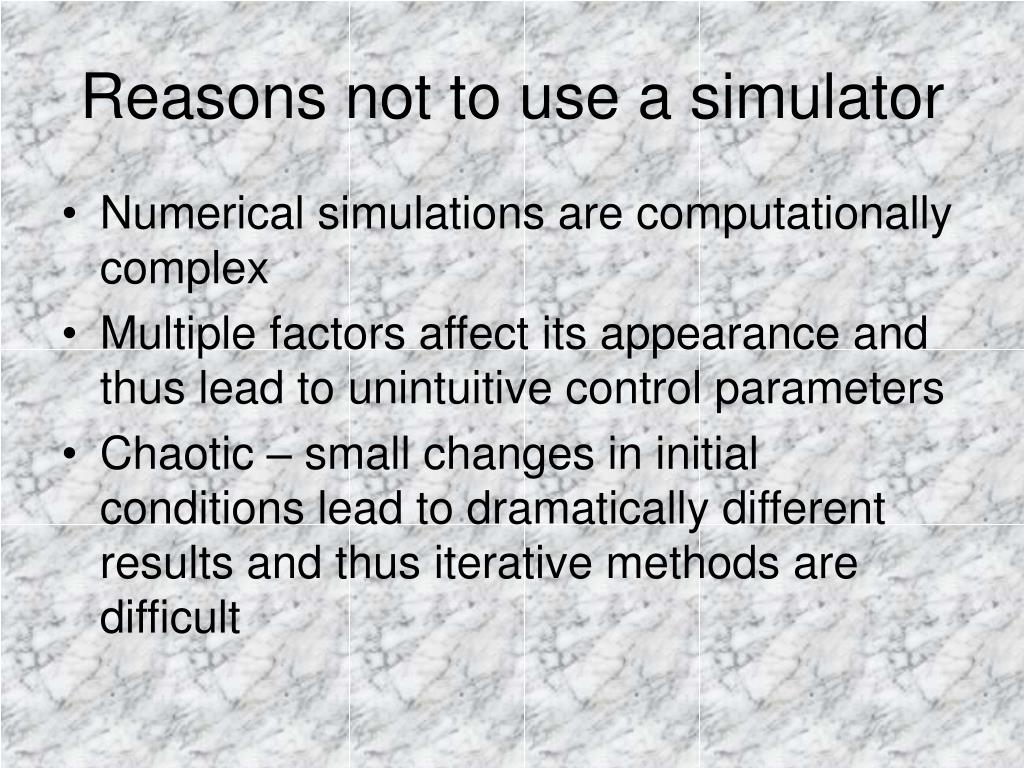

Reasons not to use a simulator

  • Numerical simulations are computationally complex

  • Multiple factors affect its appearance and thus lead to unintuitive control parameters

  • Chaotic – small changes in initial conditions lead to dramatically different results and thus iterative methods are difficult


So we cheat

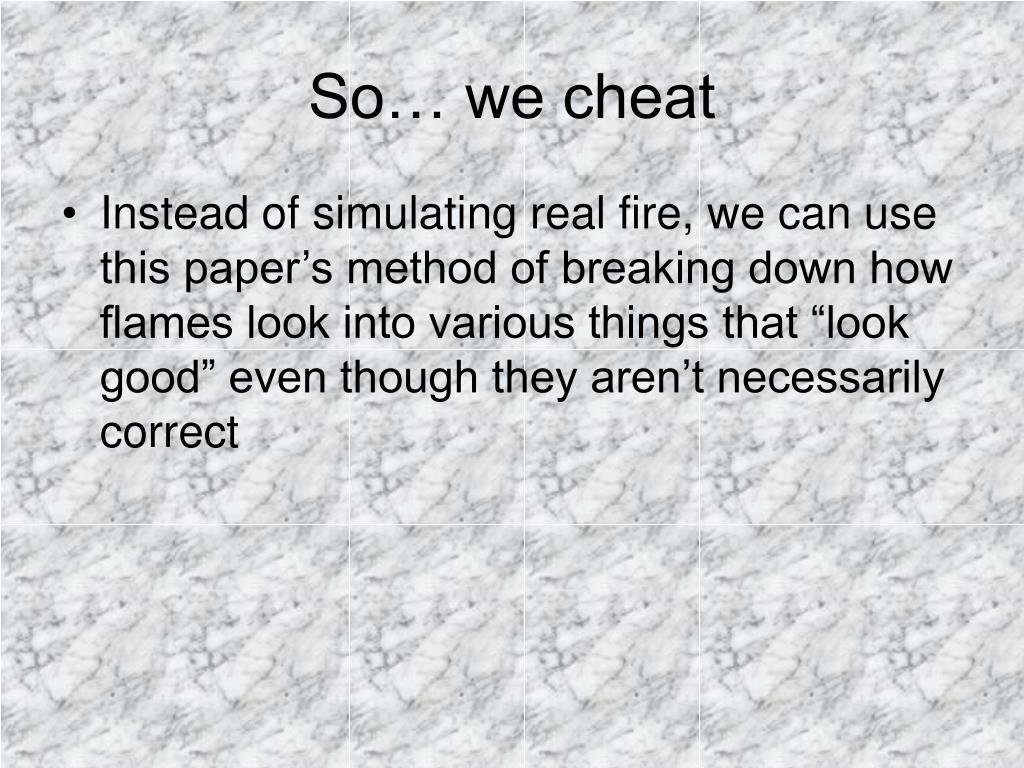

So… we cheat

  • Instead of simulating real fire, we can use this paper’s method of breaking down how flames look into various things that “look good” even though they aren’t necessarily correct


System components

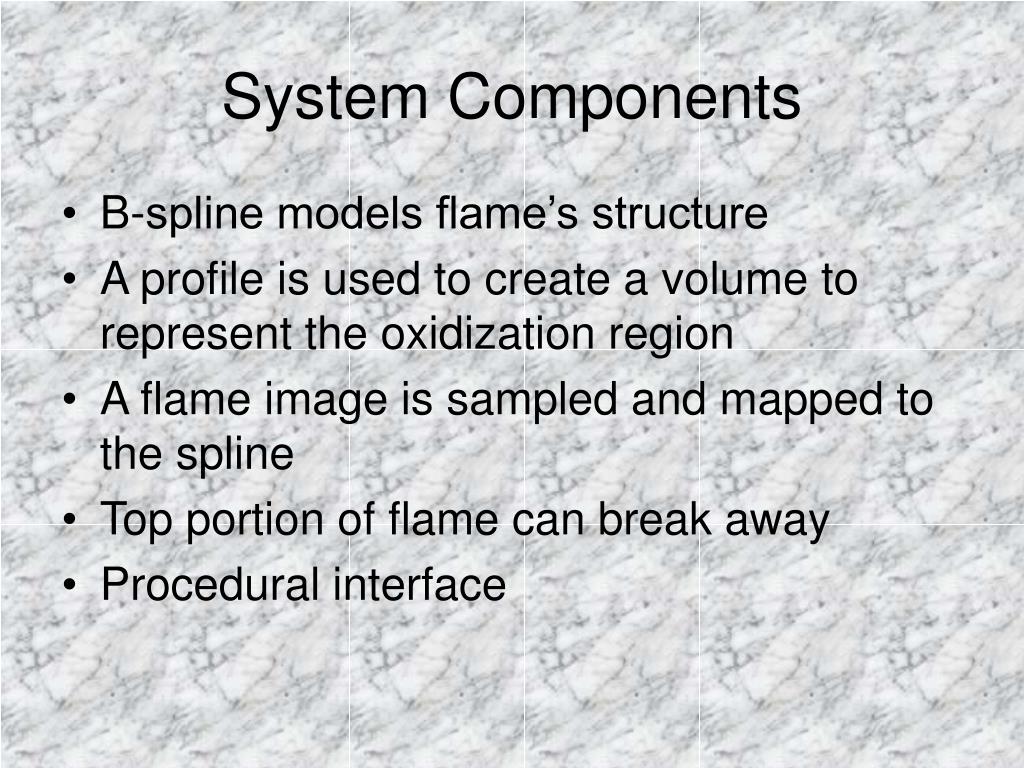

System Components

  • B-spline models flame’s structure

  • A profile is used to create a volume to represent the oxidization region

  • A flame image is sampled and mapped to the spline

  • Top portion of flame can break away

  • Procedural interface


B spline the curve s spine

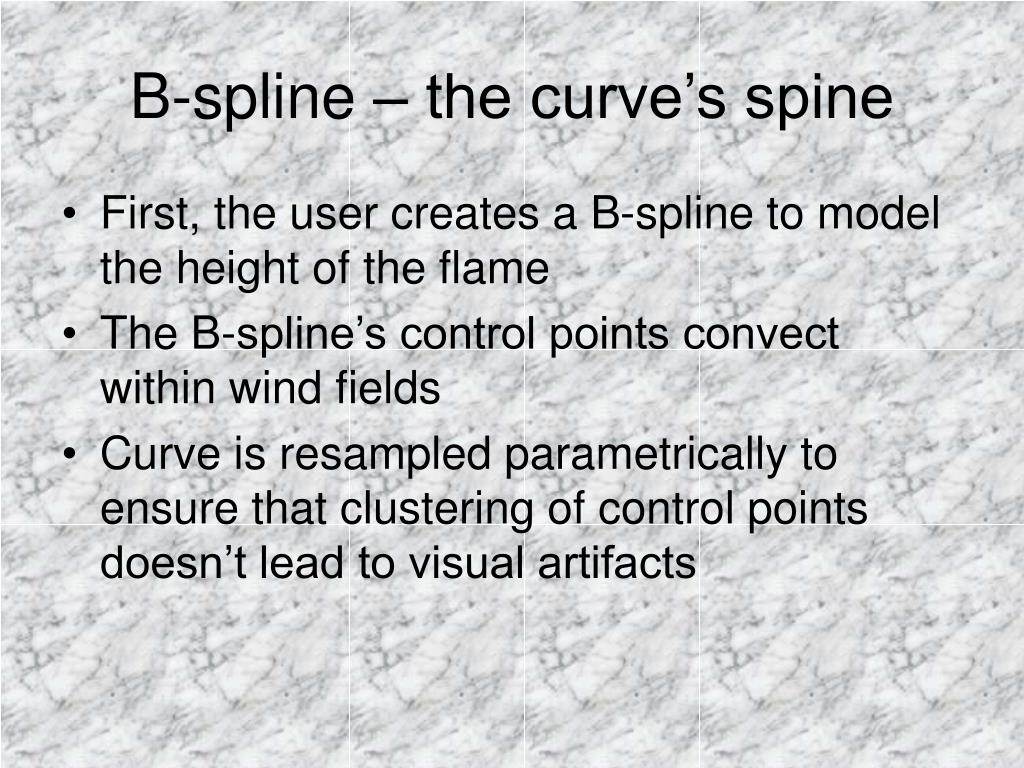

B-spline – the curve’s spine

  • First, the user creates a B-spline to model the height of the flame

  • The B-spline’s control points convect within wind fields

  • Curve is resampled parametrically to ensure that clustering of control points doesn’t lead to visual artifacts


Flame profile

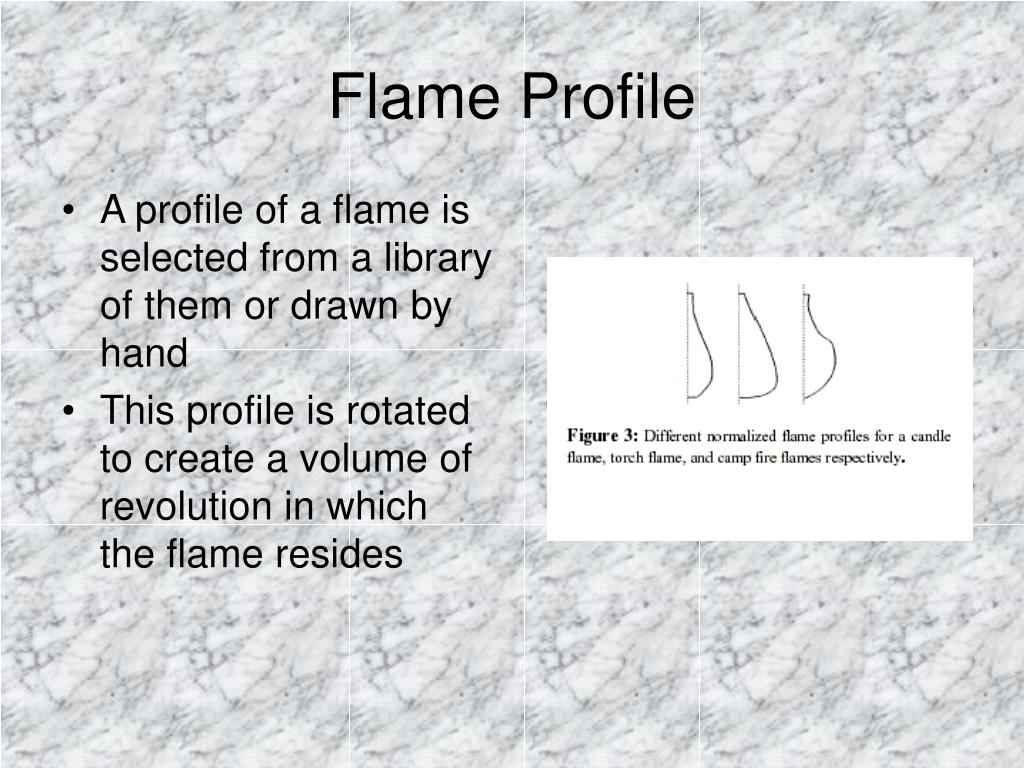

Flame Profile

  • A profile of a flame is selected from a library of them or drawn by hand

  • This profile is rotated to create a volume of revolution in which the flame resides


Flame image sampling

Flame image sampling

  • Next, a flame image is sampled and particles are created that match the image’s colors

  • These particles are then cylindrically mapped to the B-spline


Separation

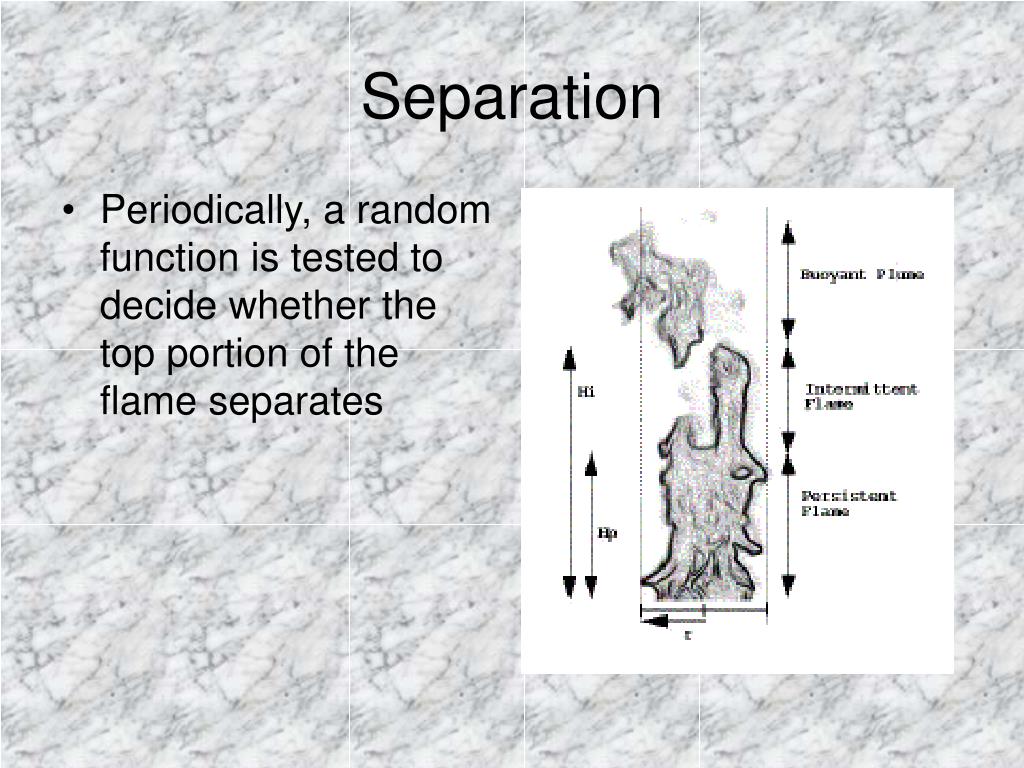

Separation

  • Periodically, a random function is tested to decide whether the top portion of the flame separates


Procedural interface

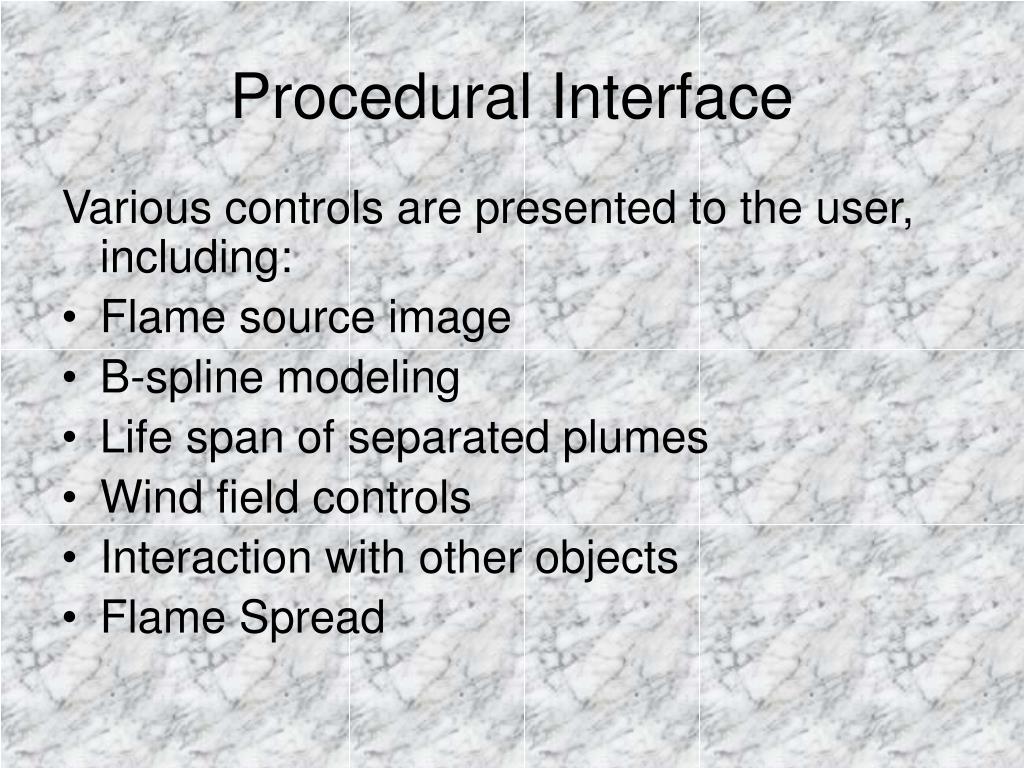

Procedural Interface

Various controls are presented to the user, including:

  • Flame source image

  • B-spline modeling

  • Life span of separated plumes

  • Wind field controls

  • Interaction with other objects

  • Flame Spread


What i did

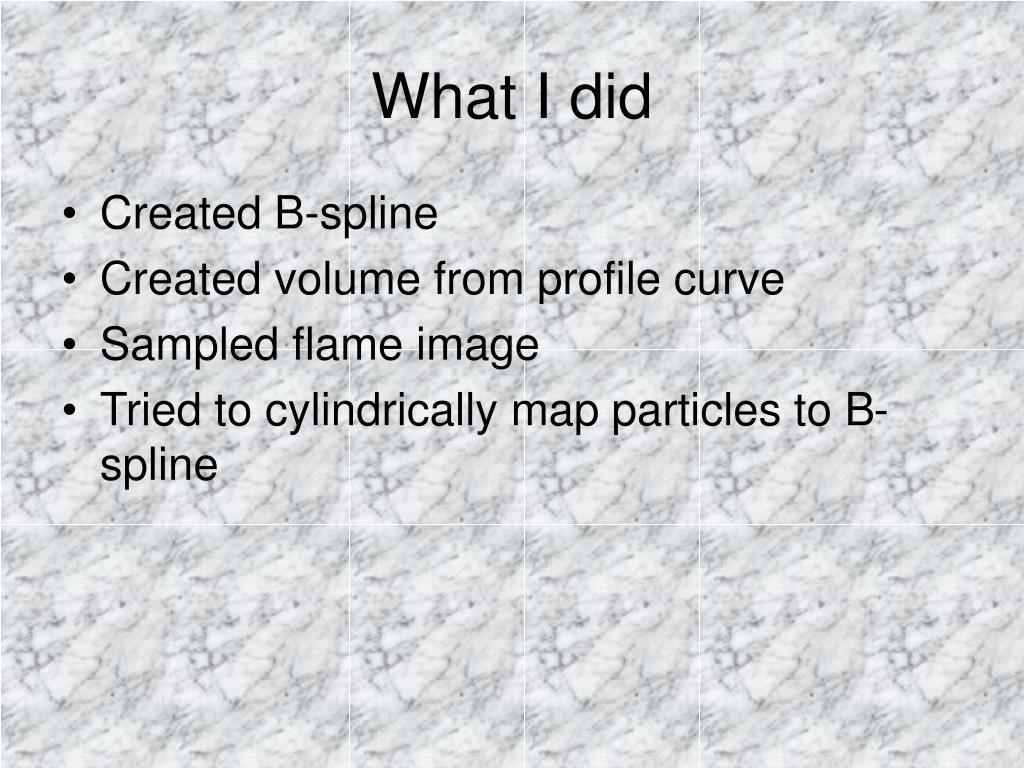

What I did

  • Created B-spline

  • Created volume from profile curve

  • Sampled flame image

  • Tried to cylindrically map particles to B-spline


Some shots

Some shots

A screenshot of a

flame

A source flame image


What was hard

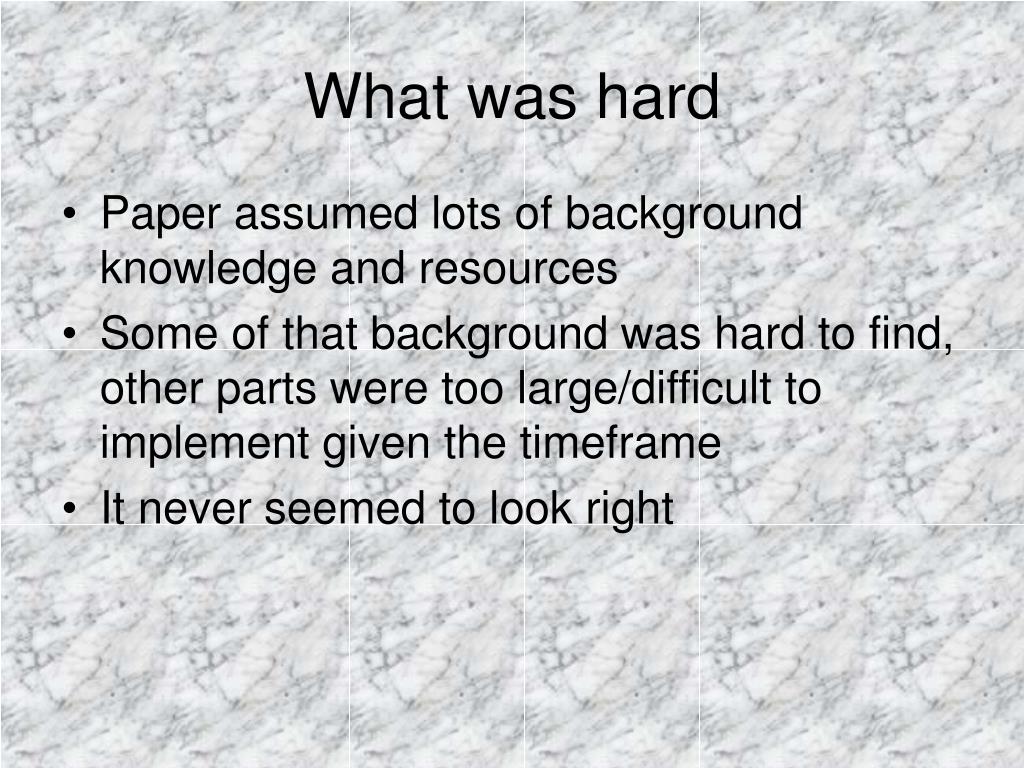

What was hard

  • Paper assumed lots of background knowledge and resources

  • Some of that background was hard to find, other parts were too large/difficult to implement given the timeframe

  • It never seemed to look right
