  1. Introducing the TLS Series Libraries

  2. Qualstar TLS Library Systems • Full range of tape libraries • AIT • SAIT • SDLT • LTO • Intra-family scalability • Proven robotics design • Advanced features • Flexible options

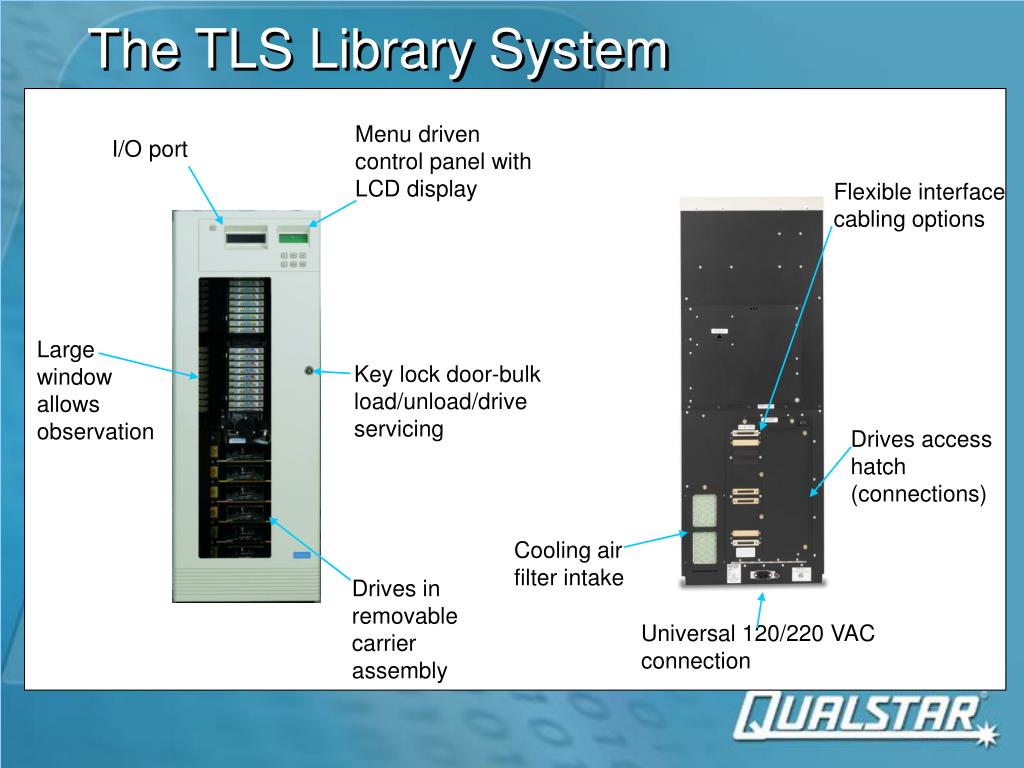

  3. Menu driven control panel with LCD display I/O port Large window allows observation Cooling air filter intake Drives in removable carrier assembly Universal 120/220 VAC connection The TLS Library System Flexible interface cabling options Key lock door-bulk load/unload/drive servicing Drives access hatch (connections)

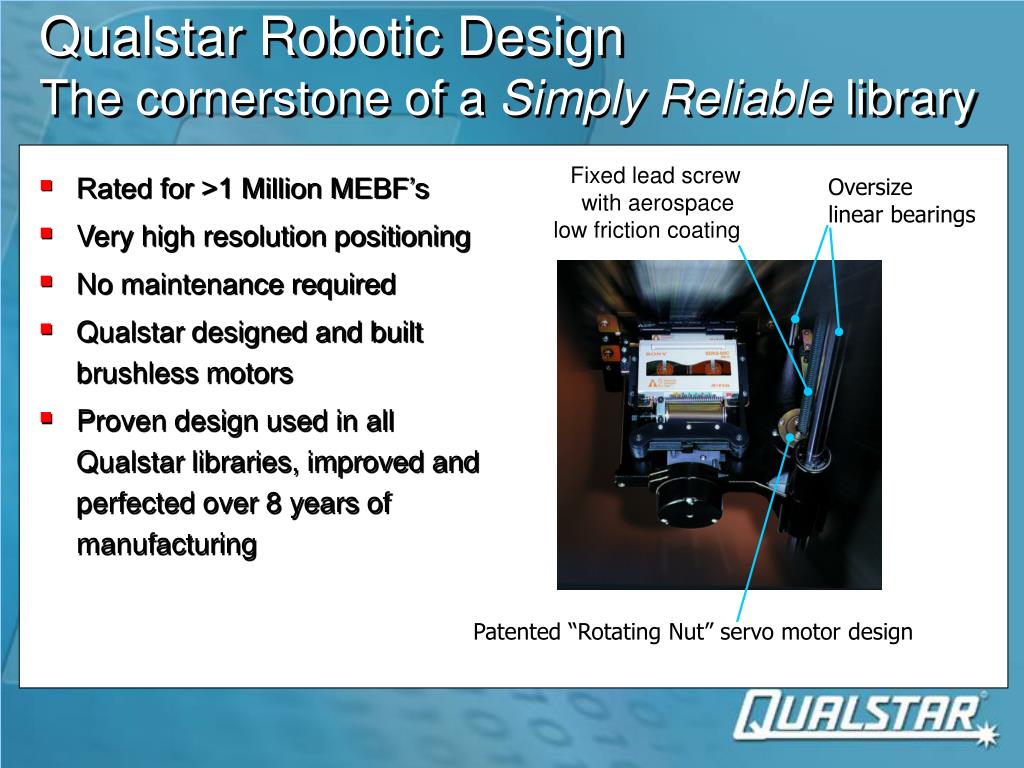

  4. Qualstar Robotic DesignThe cornerstone of a Simply Reliable library Fixed lead screw with aerospace low friction coating Oversize linear bearings • Rated for >1 Million MEBF’s • Very high resolution positioning • No maintenance required • Qualstar designed and built brushless motors • Proven design used in all Qualstar libraries, improved and perfected over 8 years of manufacturing Patented “Rotating Nut” servo motor design

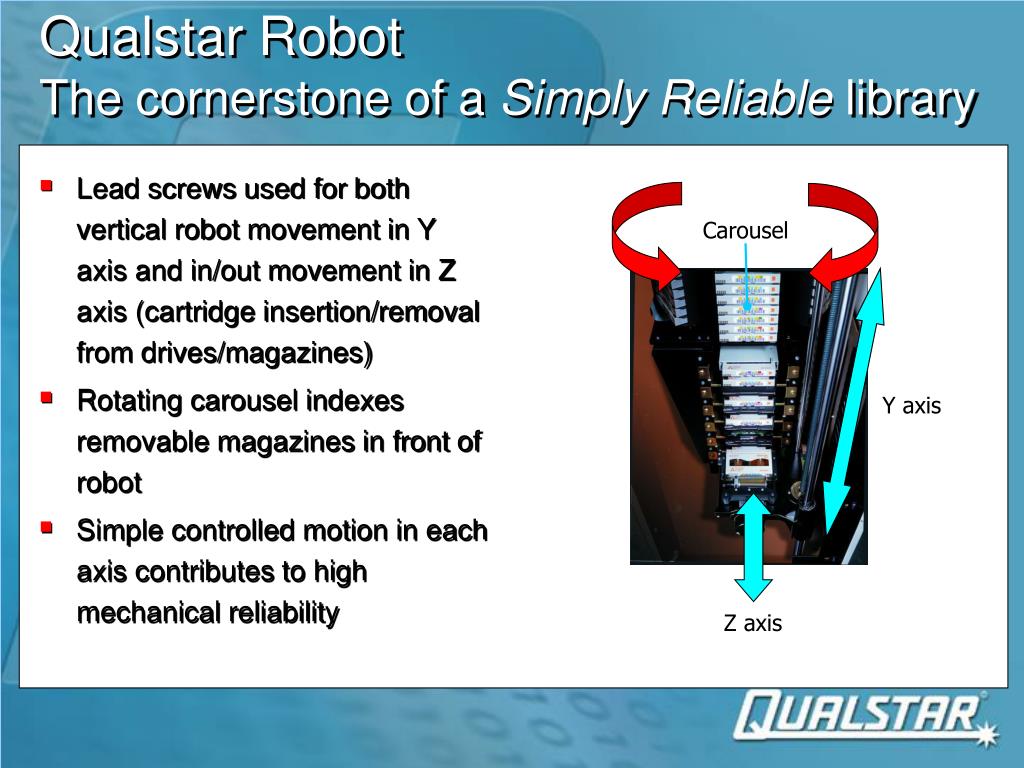

  5. Qualstar RobotThe cornerstone of a Simply Reliable library • Lead screws used for both vertical robot movement in Y axis and in/out movement in Z axis (cartridge insertion/removal from drives/magazines) • Rotating carousel indexes removable magazines in front of robot • Simple controlled motion in each axis contributes to high mechanical reliability Carousel Y axis Z axis

  6. Qualstar Standard Features VIOP allows the user to configure Import/Export resources to match requirements Positive pressure filtered air cooling eliminates airborne contaminants Logical Library allows the user to partition the library into separate logical units each assigned its own set of library resources Inventory Sentry prevents time consuming re-inventories

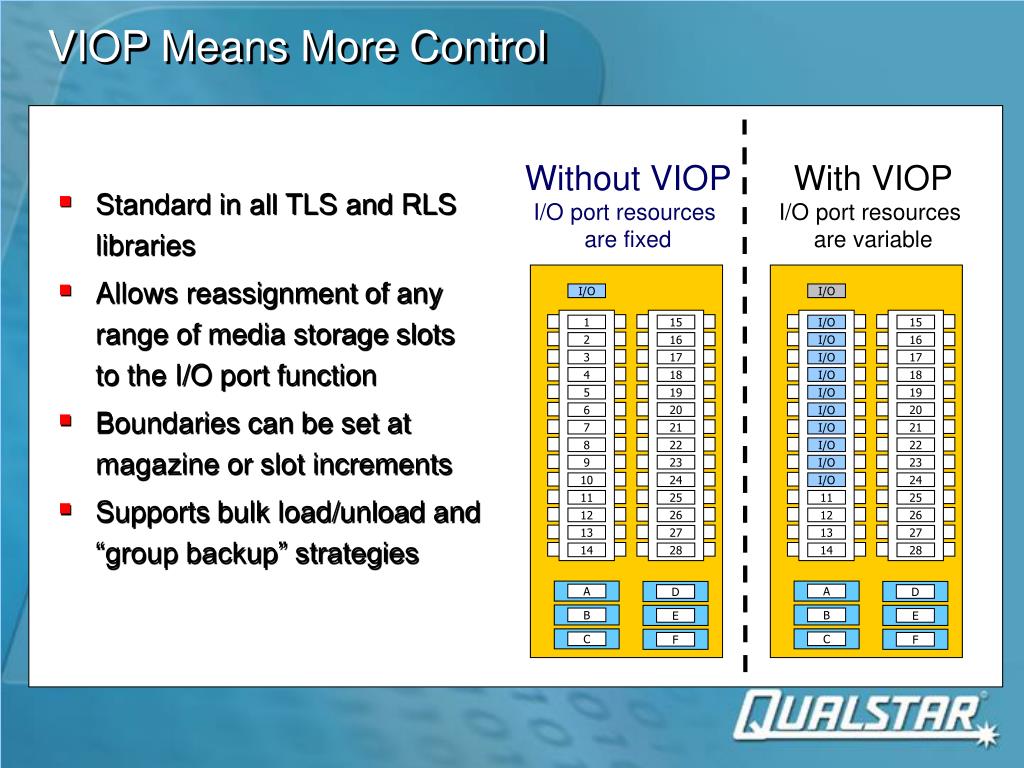

  7. Without VIOP I/O port resources are fixed With VIOP I/O port resources are variable I/O I/O 15 15 1 I/O 16 16 2 I/O 17 17 18 18 3 I/O 19 19 4 I/O 20 20 21 21 5 I/O 22 22 6 I/O 23 23 24 24 7 I/O 25 25 8 I/O 26 26 27 27 9 I/O 28 28 10 I/O A A D D 11 11 B B E E 12 12 C C F F 13 13 14 14 VIOP Means More Control • Standard in all TLS and RLS libraries • Allows reassignment of any range of media storage slots to the I/O port function • Boundaries can be set at magazine or slot increments • Supports bulk load/unload and “group backup” strategies

  8. 1 15 2 16 3 17 Media Storage Slots Media Storage Slots 4 18 5 19 6 20 7 21 8 22 9 23 10 24 11 25 12 26 13 27 14 28 A D Tape Drives Tape Drives B E C F Host 1 Host 1 Host 2 Host 3 Drives A-F Slots 1-28 Drives A-C Slots 1-14 Drive D Slots 15-17 Drives E-F Slots 18-28 Logical Library • Standard feature in all models of Qualstar libraries allowing the Library to be partitioned into multiple smaller “logical libraries” • Allows support of concurrent hosts (I/O port must be dedicated to one only) • The same slots and drives cannot be shared between hosts in logical mode (no overlap of resources) Without Logical Library With Logical Library Logical library The software on Each host is configured For the same medium Changer ID, the tape Drive ID’s are different For each host 1 15 2 16 3 17 4 18 5 19 6 20 7 21 8 22 9 23 10 24 11 25 12 26 13 27 14 28 A D B E C F Library Control Library Control Robot Robot Single Host Multiple Hosts (Max 4)

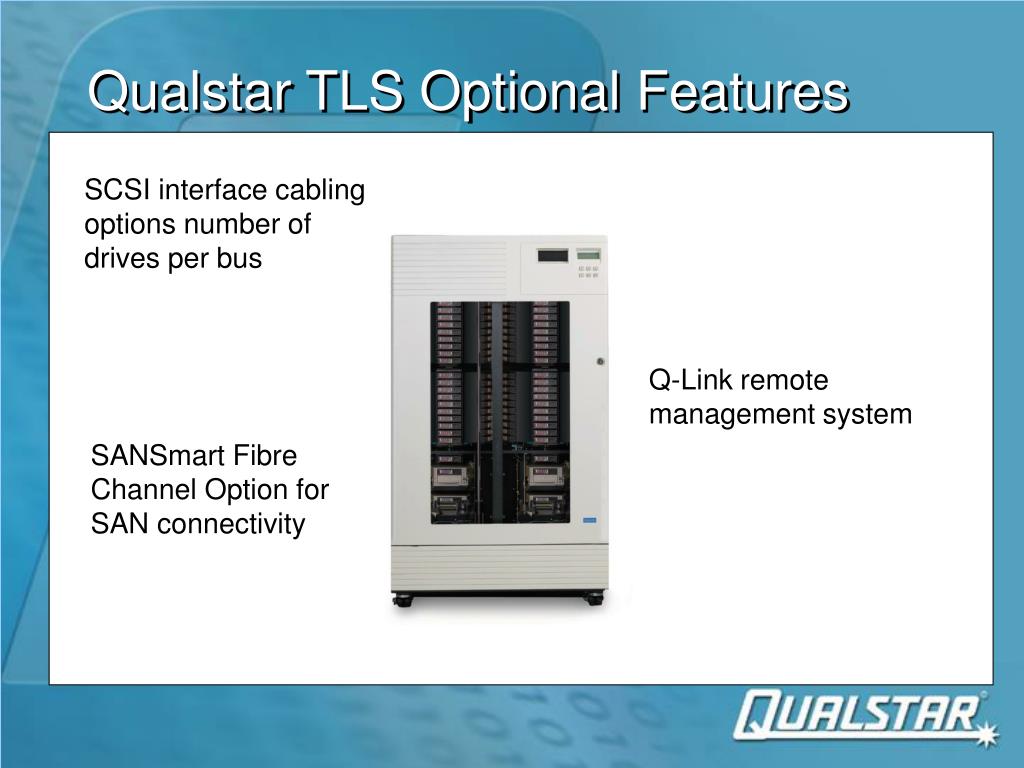

  9. Qualstar TLS Optional Features SCSI interface cabling options number of drives per bus Q-Link remote management system SANSmart Fibre Channel Option for SAN connectivity

  10. Rear Panel Library Rear Panel 1X2 Cable Nomenclature Library Robot Robot Number of Drives per Bus Number of external SCSI Buses 2 2 1 3 3 4 1 4 2 1 3 1 4 1 2 2 TLS-42XX 1X2 TLS-42XX 2X1 Rear Panel Library Rear Panel Library Rear Panel Library Robot Robot Robot External Bridge Cable External Bridge Cable Inline Terminator TLS-44XX 2X2 TLS-44XX 1X4 TLS-44XX 4X1 TLS Cabling Options 42XX, 44XX

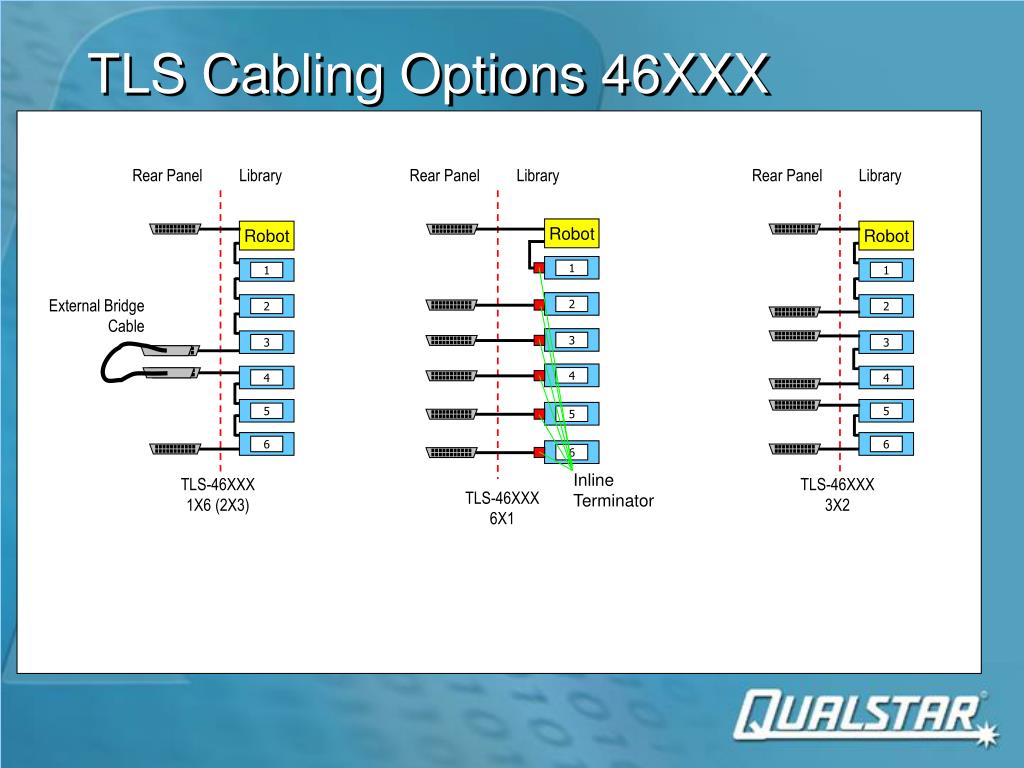

  11. Rear Panel Library Robot Rear Panel Library 1 2 4 3 4 3 6 2 5 5 2 1 1 3 4 5 6 6 Rear Panel Library Robot External Bridge Cable Robot TLS-46XXX 1X6 (2X3) Inline Terminator TLS-46XXX 6X1 TLS-46XXX 3X2 TLS Cabling Options 46XXX

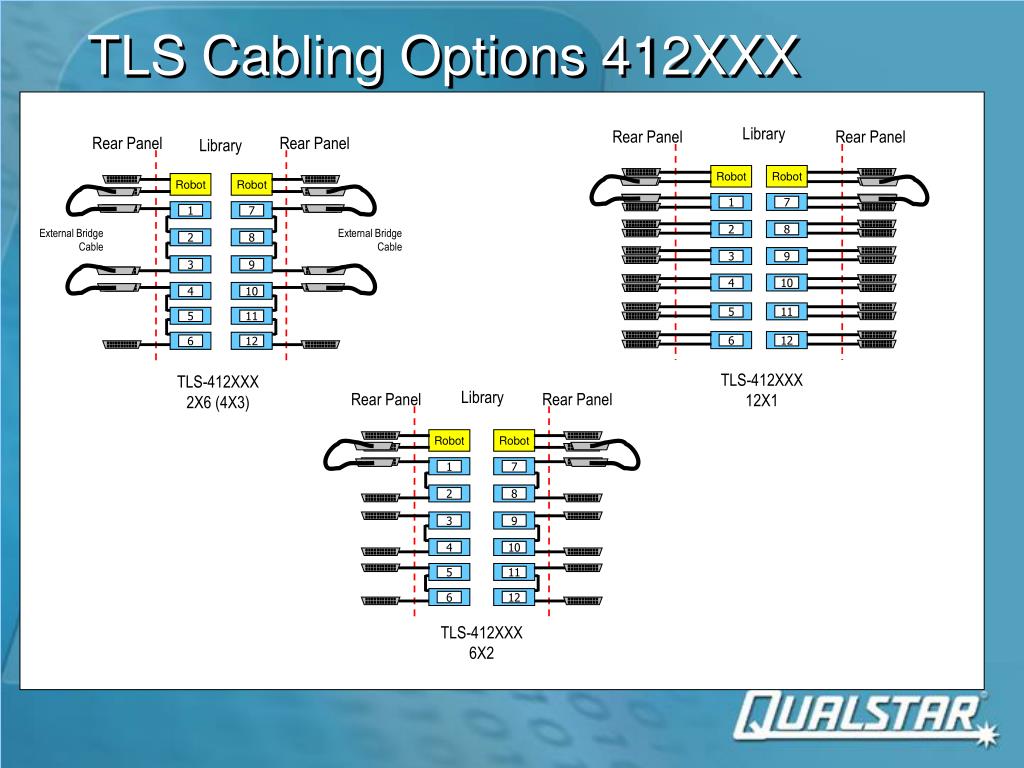

  12. Library Rear Panel Rear Panel Rear Panel Rear Panel Library Robot Robot Robot Robot External Bridge Cable External Bridge Cable 3 4 5 6 7 8 5 9 1 2 10 11 12 11 2 3 1 12 12 7 11 9 8 10 6 1 2 4 4 5 6 7 8 9 10 3 TLS-412XXX 12X1 TLS-412XXX 2X6 (4X3) Library Rear Panel Rear Panel Robot Robot TLS-412XXX 6X2 TLS Cabling Options 412XXX

  13. Library Rear Panel 1X2 Fibre bridge Nomenclature Fibre Bridge Robot SFP 2 Gb/1Gb FC Connection Number of internal SCSI busses Number of Fibre ports 1 2 1 2 3 4 Rear Panel Library Robot Fibre Bridge SFP 2 Gb/1Gb FC Connection TLS-44XX, 64XX, 84XX SANSmart Options 42XX, 62XX, 82XX, 44XX, 64XX, 84XX • Fibre channel option available for all Qualstar products • FC-AL or FC-SW topologies supported • 1Gb or 2 Gb auto-negotiating • SCSI-FCP Protocol • Support for 3rd party copy operations in bridge TLS-42XX, 62XX, 82XX

  14. Library Library Two 2 Gb/1Gb FC Connections Fibre Bridge GBICs Two 2 Gb/1Gb FC Connections Fibre Bridge GBICs Rear Panel Library Robot 3 2 1 1 2 6 4 3 6 4 5 7 5 6 2 9 10 11 12 8 7 1 8 3 4 5 Robot Robot Robot Robot Fibre Bridge SFP TLS-46XXX 1X2 2 Gb/1Gb FC Connection Rear Panel Rear Panel TLS-68XXX TLS-88XXX Rear Panel Rear Panel TLS-412XXX 2X6 SANSmart Options 46XXX, 68XXX, 88XXX, 412XXX

  15. TLS Q-Link Option • Adds web based remote management to library • 10 user accounts with administrator controlled permissions • Email alerting • Cumulative history • Remote firmware updates • Any function which can be performed locally at the control panel can be performed remotely via Q-Link

  16. RLS LTO TLS SDLT TLS AIT TLS SAIT TLS Qualstar TLS Library Range Scalability 1000 800 600 400 200 100 90 80 70 60 50 130 120 110 100 90 80 70 60 50 40 30 20 10 5 3 1 GB per hour xfer rate (Native) Capacity in TB (Native)

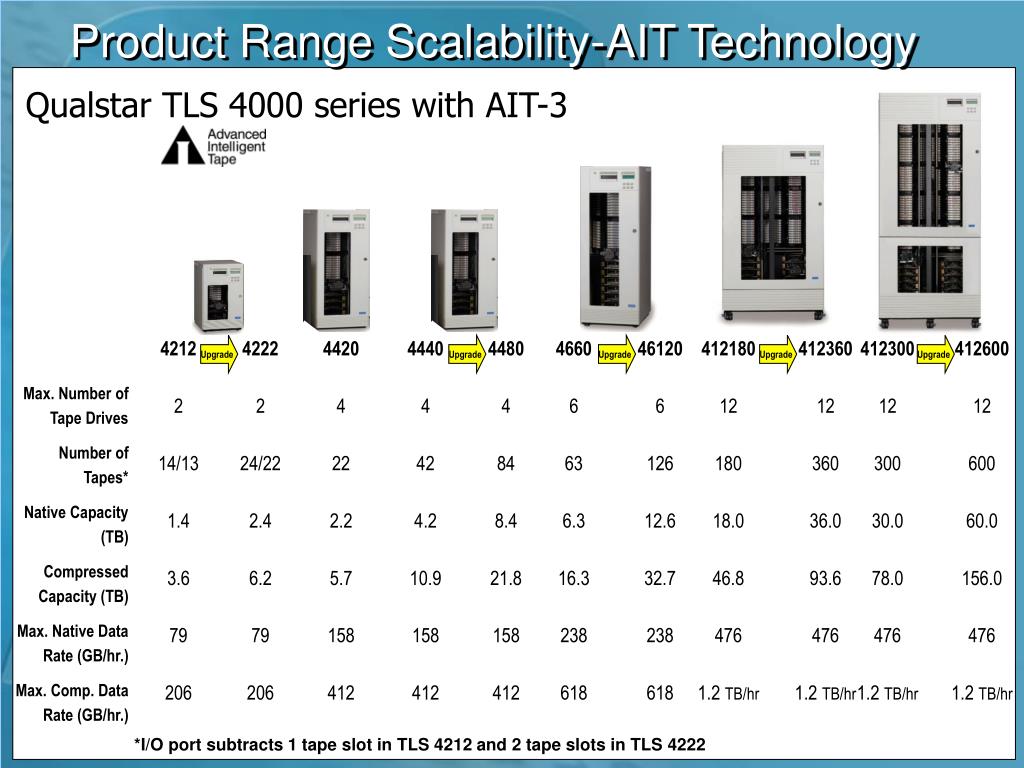

  17. Qualstar TLS 4000 series with AIT-3 4212 2 14/13 1.4 3.6 79 206 4420 4 22 2.2 5.7 158 412 4440 4 42 4.2 10.9 158 412 4660 6 63 6.3 16.3 238 618 412180 12 180 18.0 46.8 476 1.2 TB/hr 412300 12 300 30.0 78.0 476 1.2 TB/hr Product Range Scalability-AIT Technology 4222 2 24/22 2.4 6.2 79 206 4480 4 84 8.4 21.8 158 412 46120 6 126 12.6 32.7 238 618 412360 12 360 36.0 93.6 476 1.2 TB/hr 412600 12 600 60.0 156.0 476 1.2 TB/hr Upgrade Upgrade Upgrade Upgrade Upgrade *I/O port subtracts 1 tape slot in TLS 4212 and 2 tape slots in TLS 4222

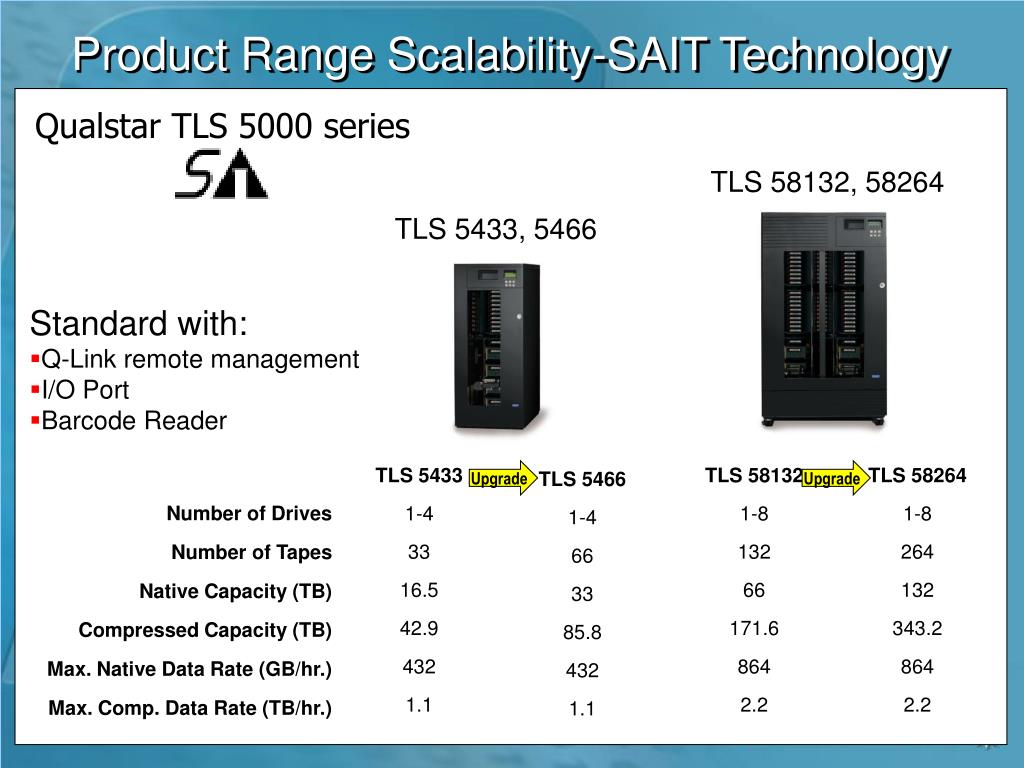

  18. Qualstar TLS 5000 series TLS 58132, 58264 TLS 5433, 5466 TLS 5433 1-4 33 16.5 42.9 432 1.1 TLS 58132 1-8 132 66 171.6 864 2.2 Product Range Scalability-SAIT Technology • Standard with: • Q-Link remote management • I/O Port • Barcode Reader TLS 58264 1-8 264 132 343.2 864 2.2 TLS 5466 1-4 66 33 85.8 432 1.1 Upgrade Upgrade

  19. 6210 2 10 1.6 3.2 115 230 6430 4 30 4.8 9.6 230 460 68120 8 120 19.2 38.4 460 921 Product Range Scalability-SDLT Technology Qualstar TLS 6000 series with SDLT320 6220 2 20 3.2 6.4 115 230 6460 4 60 9.6 19.2 230 460 68240 8 240 38.4 76.8 460 921 Upgrade Upgrade Upgrade

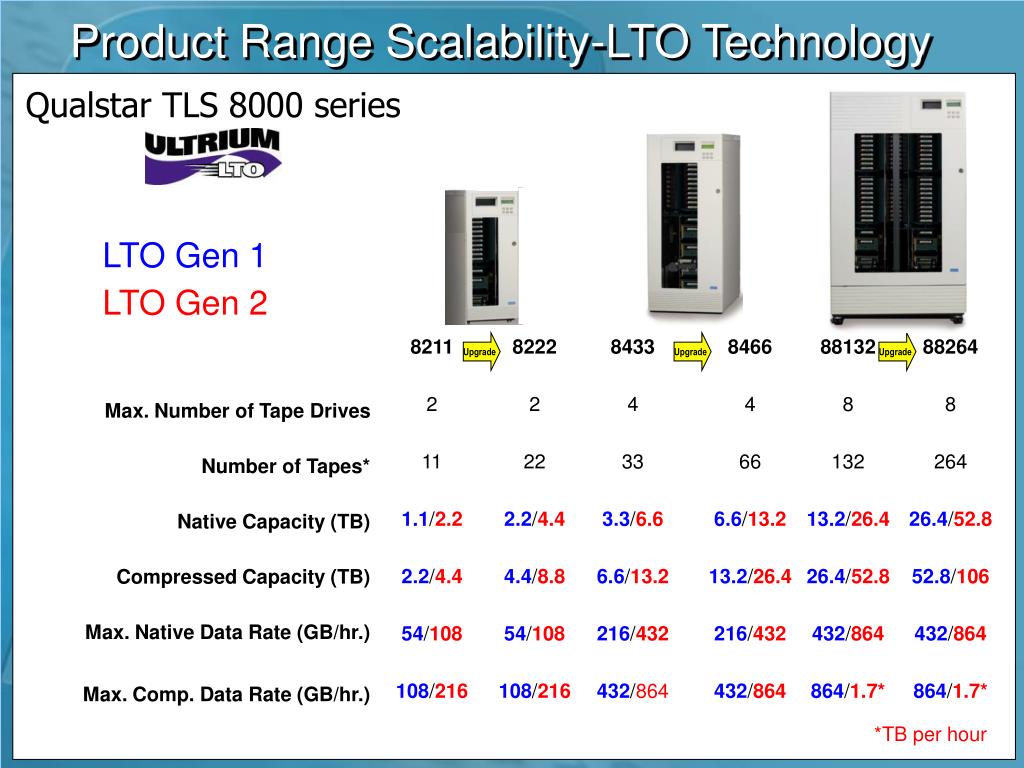

  20. Qualstar TLS 8000 series 8211 2 11 1.1/2.2 2.2/4.4 54/108 108/216 8433 4 33 3.3/6.6 6.6/13.2 216/432 432/864 88132 8 132 13.2/26.4 26.4/52.8 432/864 864/1.7* *TB per hour Product Range Scalability-LTO Technology LTO Gen 1 LTO Gen 2 8222 2 22 2.2/4.4 4.4/8.8 54/108 108/216 8466 4 66 6.6/13.2 13.2/26.4 216/432 432/864 88264 8 264 26.4/52.8 52.8/106 432/864 864/1.7* Upgrade Upgrade Upgrade
