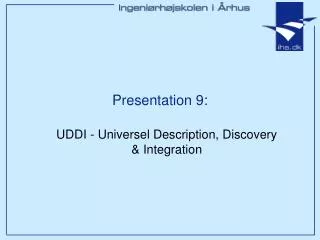

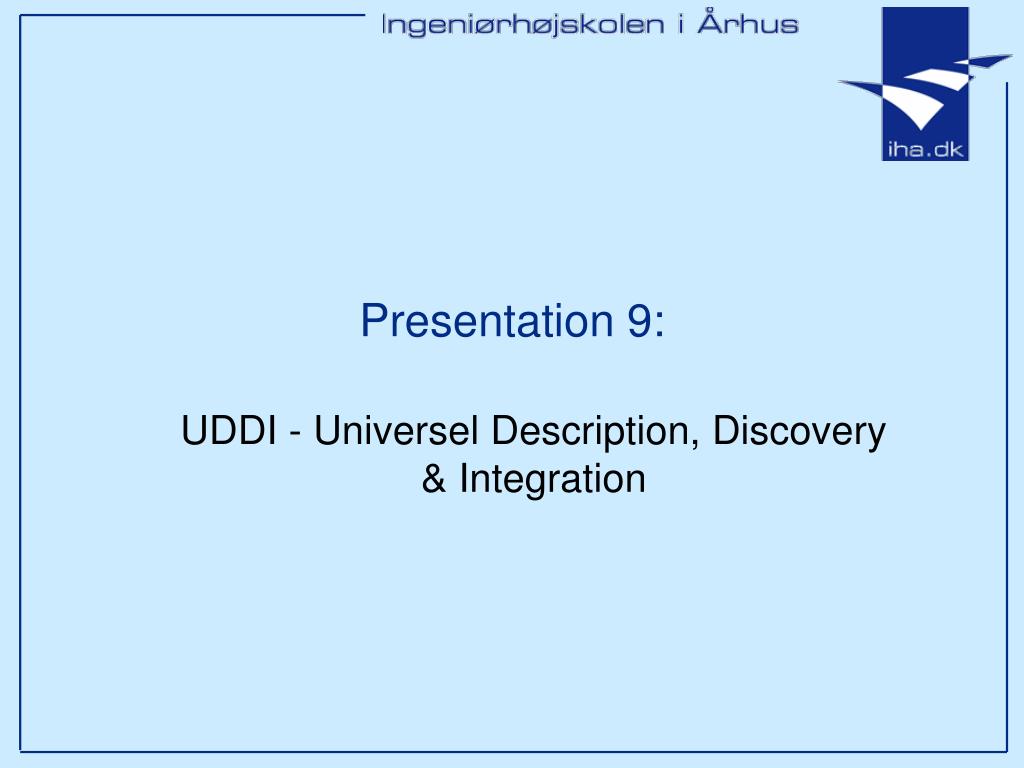

UDDI - Universel Description, Discovery & Integration

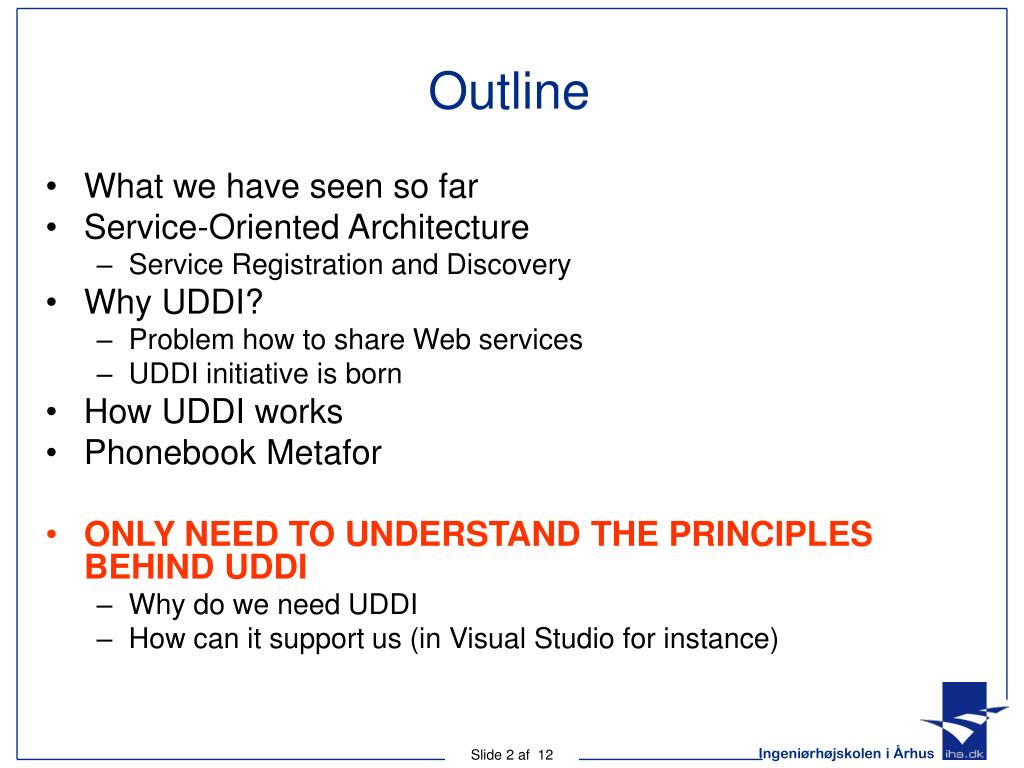

Outline

Outline

  • What we have seen so far

  • Service-Oriented Architecture

    • Service Registration and Discovery

  • Why UDDI?

    • Problem how to share Web services

    • UDDI initiative is born

  • How UDDI works

  • Phonebook Metafor

  • ONLY NEED TO UNDERSTAND THE PRINCIPLES BEHIND UDDI

    • Why do we need UDDI

    • How can it support us (in Visual Studio for instance)


Service oriented architecture soa

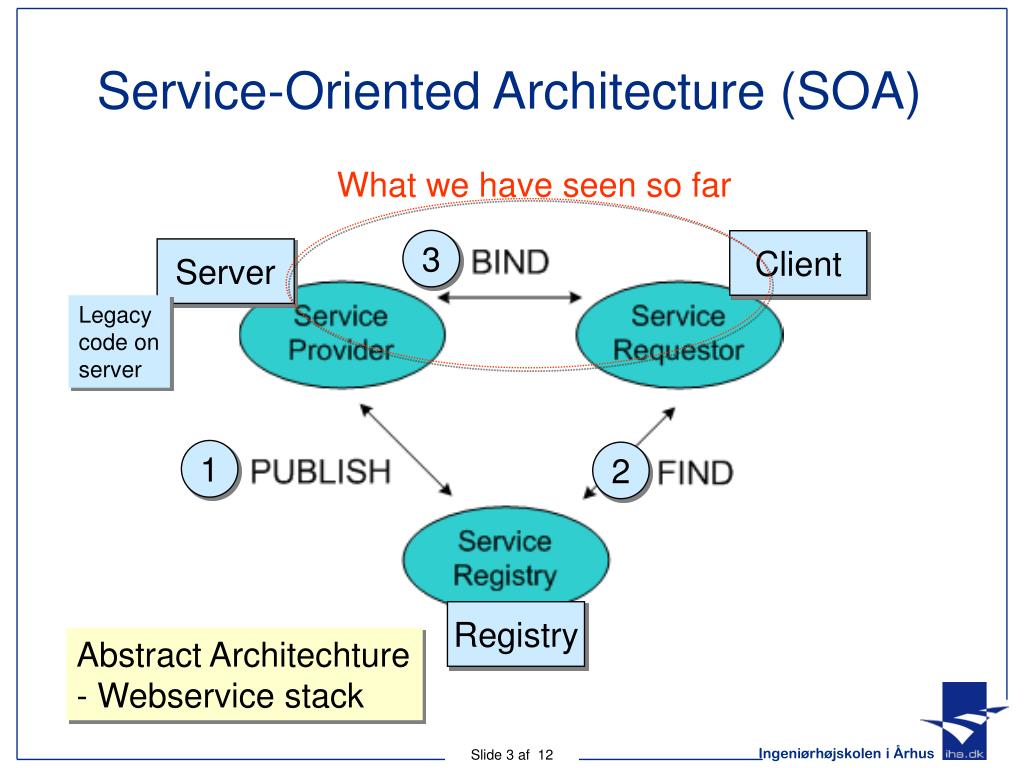

Service-Oriented Architecture (SOA)

What we have seen so far

3

Client

Server

Legacy

code on

server

1

2

Registry

Abstract Architechture

- Webservice stack


How to share web services

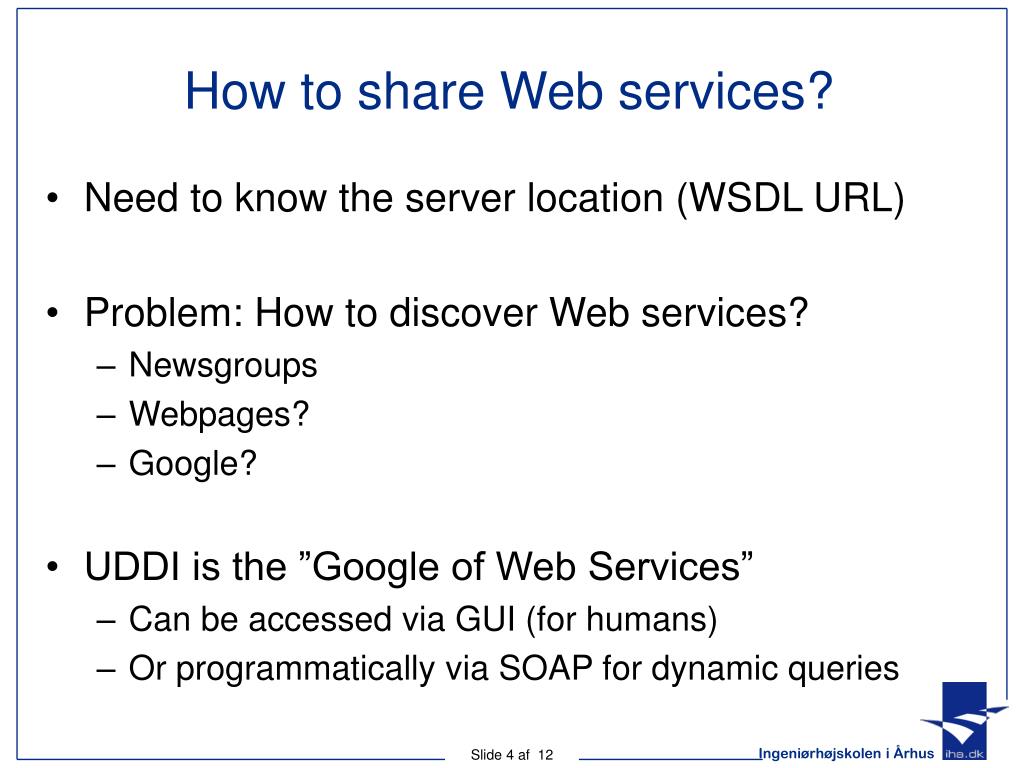

How to share Web services?

  • Need to know the server location (WSDL URL)

  • Problem: How to discover Web services?

    • Newsgroups

    • Webpages?

    • Google?

  • UDDI is the ”Google of Web Services”

    • Can be accessed via GUI (for humans)

    • Or programmatically via SOAP for dynamic queries


Uddi initiative is born

UDDI initiative is born

  • Naturally “evolved”

    • Ariba and IBM collaboration around B2B

    • IBM and Microsoft collaboration around XML and SOAP

    • Microsoft and Ariba collaboration around BizTalk and cXML

    • UDDI “born” in 2001


How uddi works

4.

Marketplaces, search engines, and business apps query the registry to discover services at other companies

2.

5.

BusinessRegistrations

Businesses populate the registry with

descriptions of the services they support

Business uses this data to facilitate easier integration with each other over the Web

3.

UBR assigns a programmatically unique identifier to each service and business registration

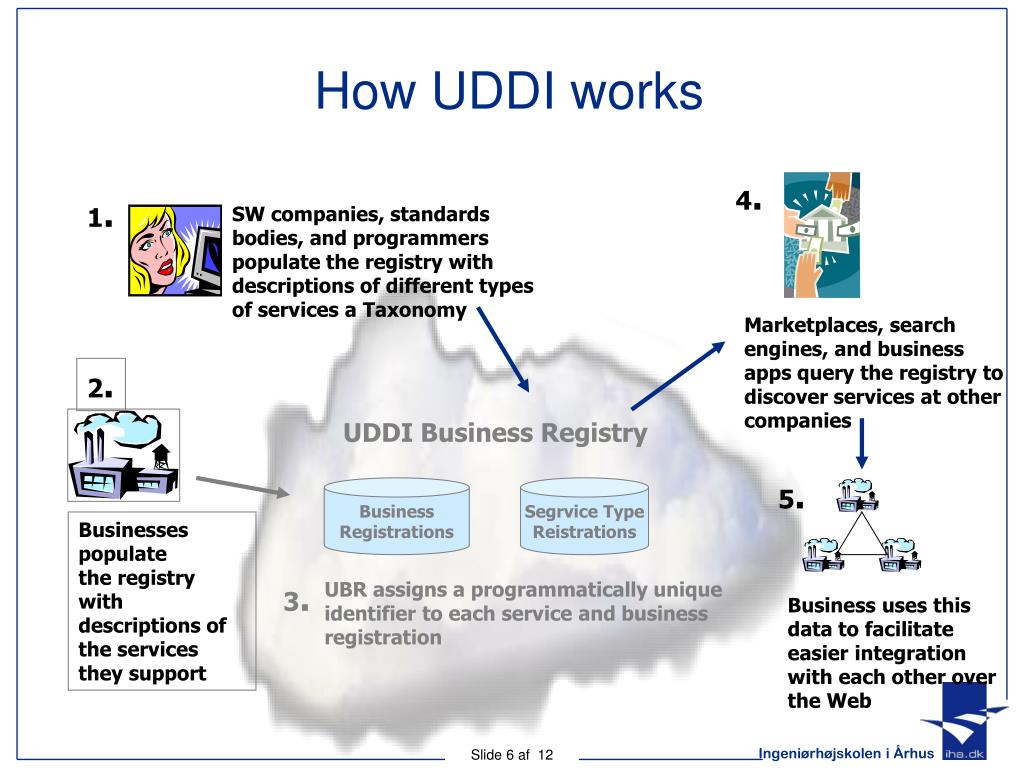

How UDDI works

1.

SW companies, standards bodies, and programmers populate the registry with

descriptions of different types of services a Taxonomy

UDDI BusinessRegistry

Segrvice Type

Reistrations


Registry and replication

Registry and replication

  • Peer nodes (websites)

  • Companies registerwith any node

  • Registrations replicatedon a daily basis

  • Complete set of“registered” recordsavailable at all nodes

  • Common set ofSOAP APIs supportedby all nodes

  • Compliance enforced bybusiness contract

queries

IBM

Ariba

other

UDDI.org

other

Microsoft


Phonebook metaphor

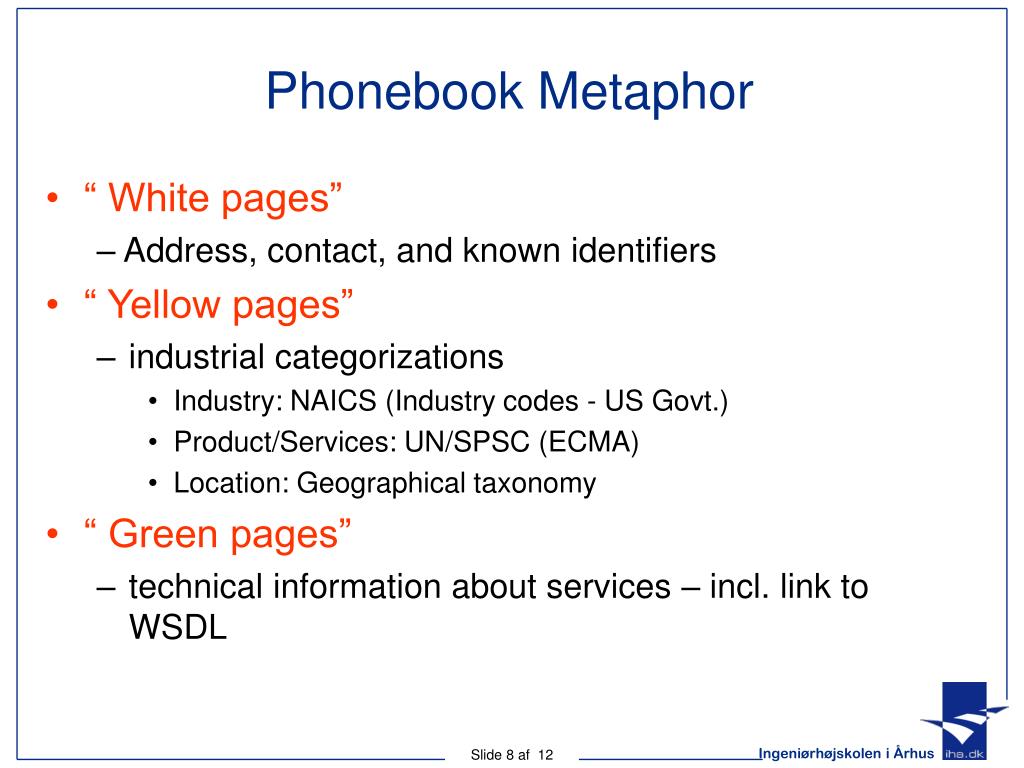

Phonebook Metaphor

  • “ White pages”

    – Address, contact, and known identifiers

  • “ Yellow pages”

    • industrial categorizations

      • Industry: NAICS (Industry codes - US Govt.)

      • Product/Services: UN/SPSC (ECMA)

      • Location: Geographical taxonomy

  • “ Green pages”

    • technical information about services – incl. link to WSDL


Who what uses uddi

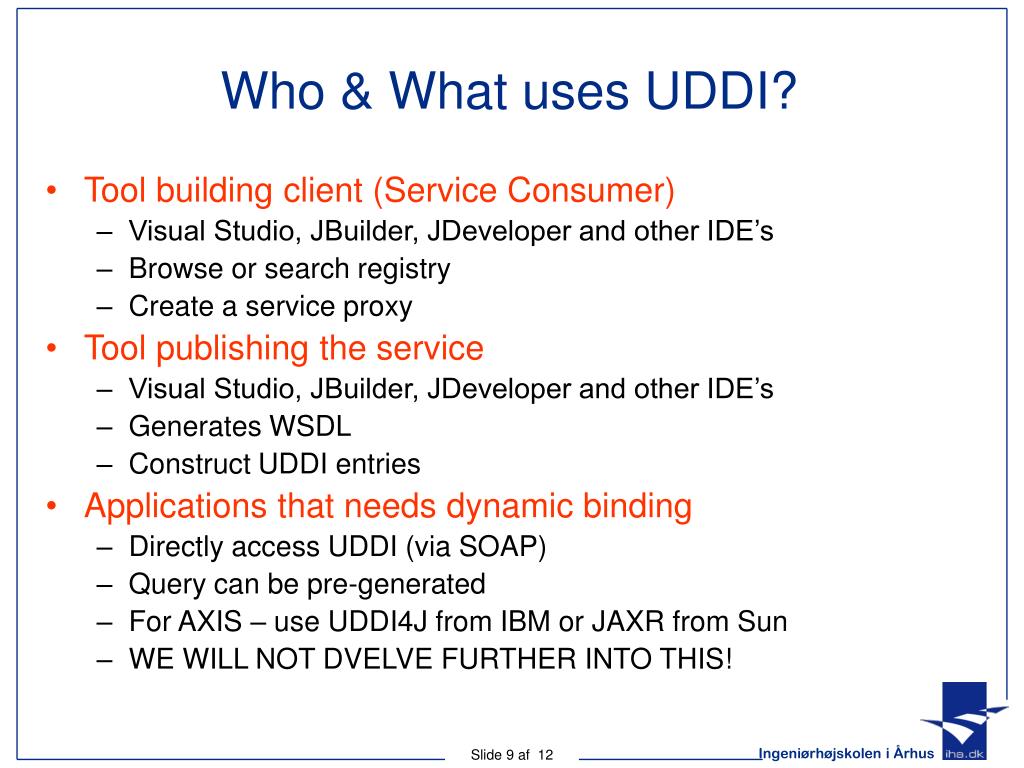

Who & What uses UDDI?

  • Tool building client (Service Consumer)

    • Visual Studio, JBuilder, JDeveloper and other IDE’s

    • Browse or search registry

    • Create a service proxy

  • Tool publishing the service

    • Visual Studio, JBuilder, JDeveloper and other IDE’s

    • Generates WSDL

    • Construct UDDI entries

  • Applications that needs dynamic binding

    • Directly access UDDI (via SOAP)

    • Query can be pre-generated

    • For AXIS – use UDDI4J from IBM or JAXR from Sun

    • WE WILL NOT DVELVE FURTHER INTO THIS!


Visual studio consuming a web service

Visual Studio – consuming a Web service


Finding a suitable weather web service

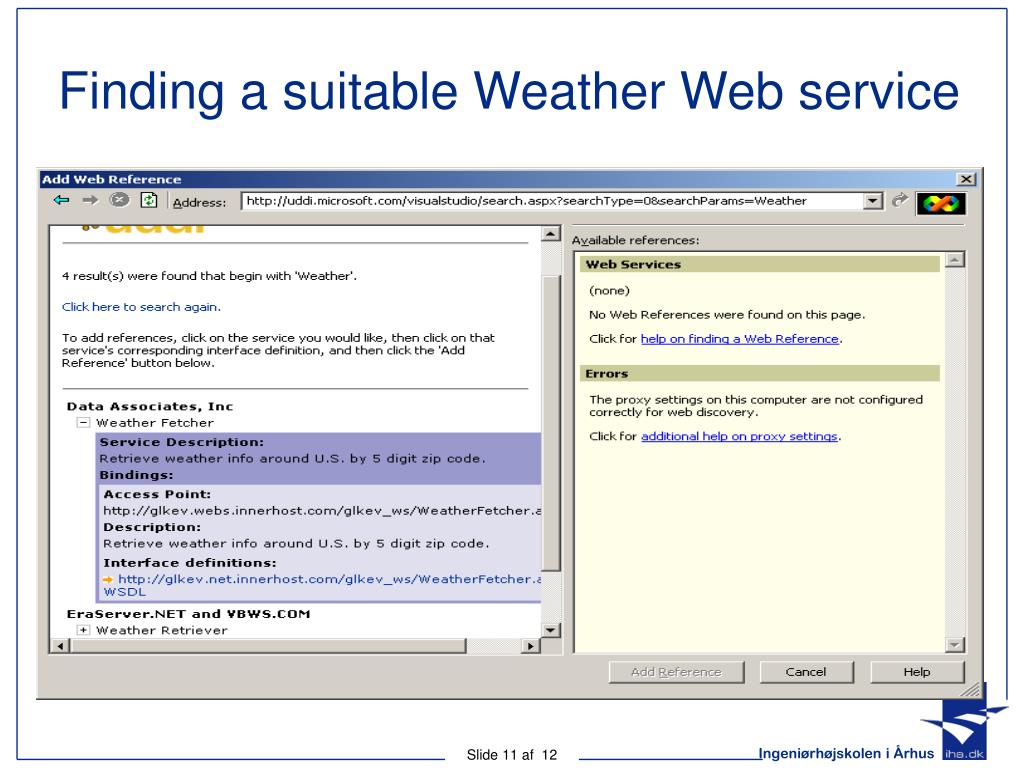

Finding a suitable Weather Web service


Private uddi registries

Private UDDI registries

  • As a part of an application or intranet

    • For sharing data access

    • For dynamic binding

      • For load balancing & fail over – finding the right server

    • More will probably come

    • Maybe use other technologies – UDDI considered weakest link

  • Not wanting to share with others

    • Security concerns etc.

  • Problem with public UDDI registration:

    • only around 50% of the Web services actually works!

    • Because of ”no moderation” by editors
