  1. Process Flow Diagram (PFD) and Piping and Instrumentation Diagram (P&ID) Priyatmadi Teknik Elektro FT UGM

  2. What is a Process Flow Diagram? priyatmadi

  3. priyatmadi

  4. priyatmadi

  5. Apakah Piping and Instrumentation Diagram - P&ID itu ? priyatmadi

  6. priyatmadi

  7. priyatmadi

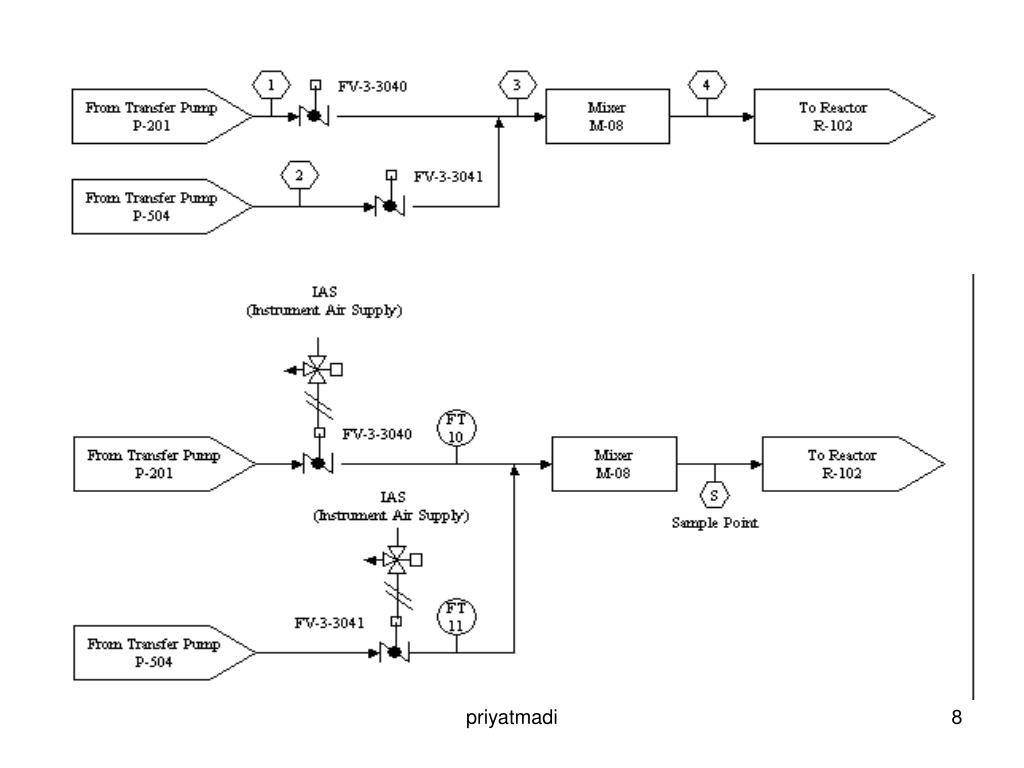

  8. priyatmadi

  9. SIMBOL DALAM P&ID priyatmadi

  10. SIMBOL DALAM P&ID priyatmadi

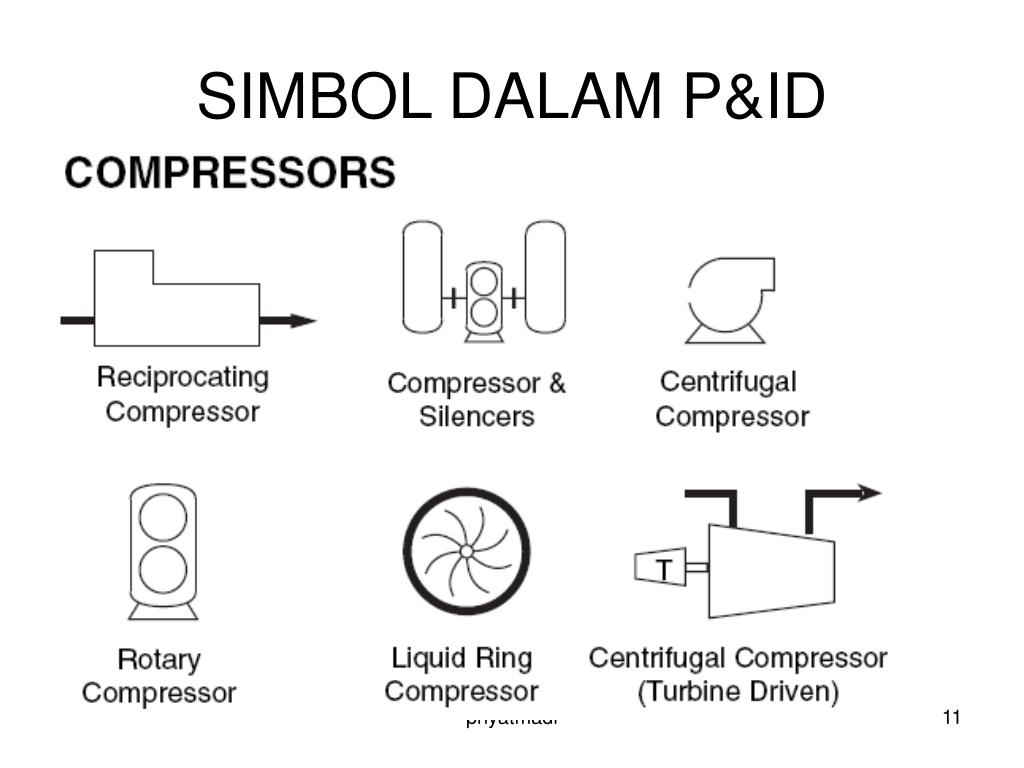

  11. SIMBOL DALAM P&ID priyatmadi

  12. SIMBOL DALAM P&ID priyatmadi

  13. SIMBOL DALAM P&ID priyatmadi

  14. SIMBOL DALAM P&ID priyatmadi

  15. SIMBOL DALAM P&ID priyatmadi

  16. SIMBOL DALAM P&ID priyatmadi

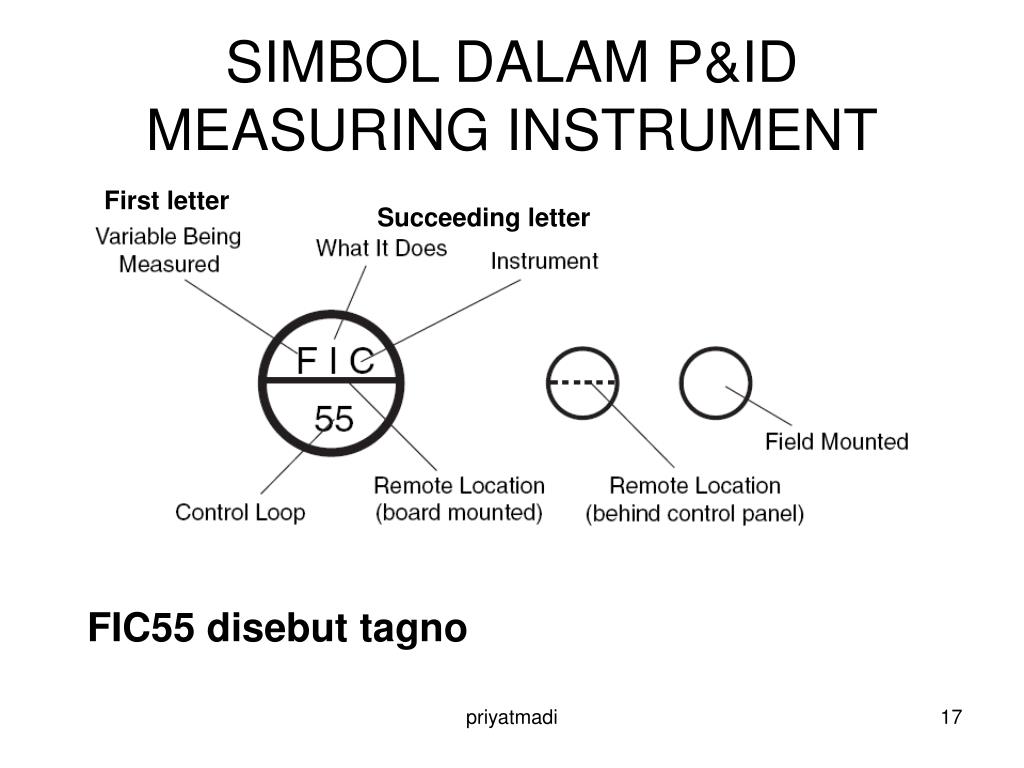

  17. SIMBOL DALAM P&IDMEASURING INSTRUMENT First letter Succeeding letter FIC55 disebut tagno priyatmadi

  18. LETTER DESIGNATION for instrument only FIRST LETTER A - Analysis B - Burner, combustion C - User's choice D - User's choice E - Voltage F - Flow rate G- User's choice H - Hand I - Current (electrical) J - Power K - Time, time schedule L - Level M- User's choice PT 4301 N- User's choice O- User's choice P - Pressure, vacuum Q - Quantity R - Radiation S - Speed, frequency T - Temperature U - Multivariable V - Vibration, mechanical analyses W - Weight, force X - Unclassified Y - Event, state or presence Z - Position, dimension priyatmadi

  19. LETTER DESIGNATION for instrument only Succeeding letter A - Alarm B - User's choice C - Control D - Differential E - Sensor (primary element) F - Ration (fraction G- Glass, viewing device H - High I - Indication J – Scan K - Time rate of change, Control Station L - Light , low M – Momentary, medium N- User's choice O- Orifice, restriction P - Point (test connection) Q - Integrate, totalizer R - Record N- User's choice S – Switch, Safety T - Transmit U - Multifunction V - Valve, damper, louver W - Well X – Unclassified, X-axis Y - Relay, compute, convert , Y-axis Z - Driver, actuator, Z-axis PT 4301 priyatmadi

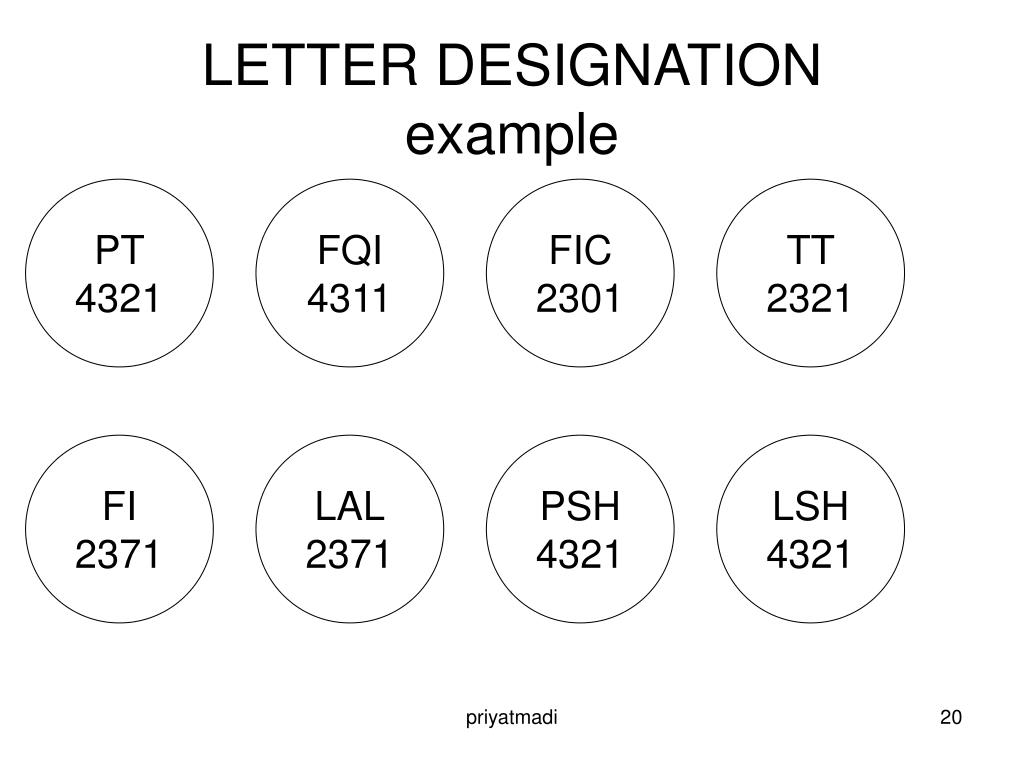

  20. LETTER DESIGNATIONexample PT 4321 FQI 4311 FIC 2301 TT 2321 FI 2371 LAL 2371 PSH 4321 LSH 4321 priyatmadi

  21. Standard Sinyal • 3 – 15 psig • 4 – 20 mA • 1 – 5 V DC • 0 – 10 V DC priyatmadi

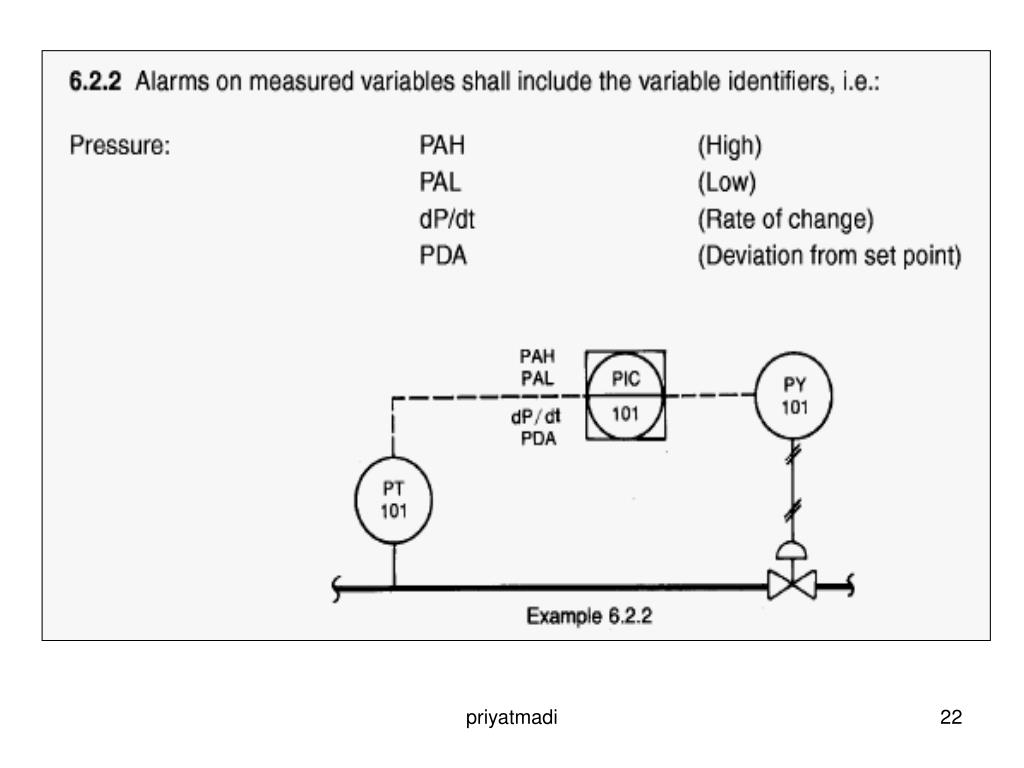

  22. priyatmadi

  23. priyatmadi

  24. priyatmadi

  25. priyatmadi
