EEG/MEGsource reconstruction

Jean Daunizeau

Vladimir Litvak

Wellcome Trust Centre for Neuroimaging

9 / 05 / 2008

slide2

Outline

Introduction

Forward problem

Inverse problem

Bayesian inference applied to the EEG/MEG inverse problem

Conclusion

slide3

Outline

Introduction

Forward problem

Inverse problem

Bayesian inference applied to the EEG/MEG inverse problem

Conclusion

slide4

Introduction

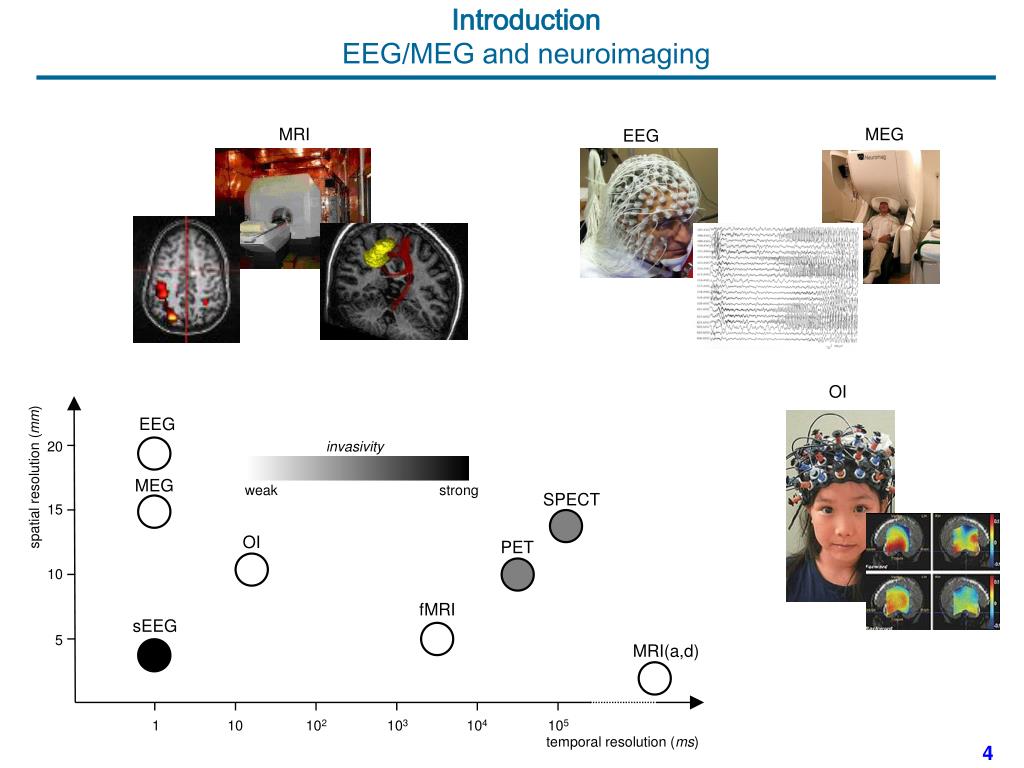

EEG/MEG and neuroimaging

MRI

MEG

EEG

invasivity

weak

strong

OI

EEG

20

spatial resolution (mm)

MEG

SPECT

15

OI

PET

10

fMRI

sEEG

5

MRI(a,d)

1

10

102

103

104

105

temporal resolution (ms)

slide5

Introduction

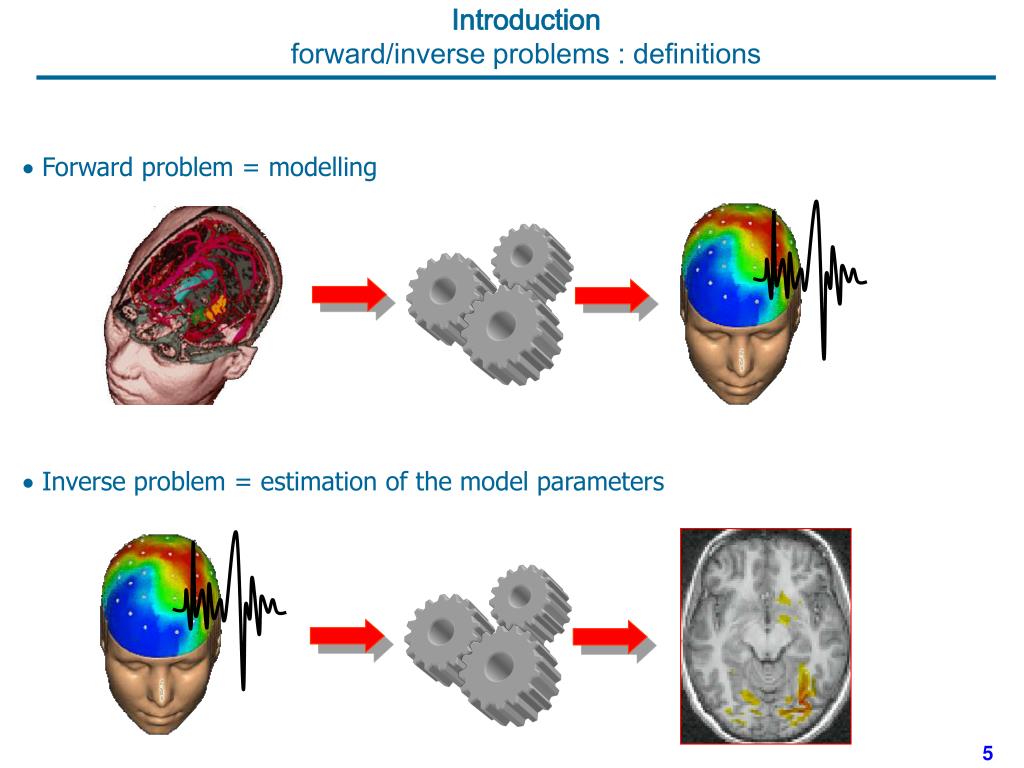

forward/inverse problems : definitions

 Forward problem = modelling

  • Inverse problem = estimation of the model parameters
slide6

Outline

Introduction

Forward problem

Inverse problem

Bayesian inference applied to the EEG/MEG inverse problem

Conclusion

slide7

Forward problem

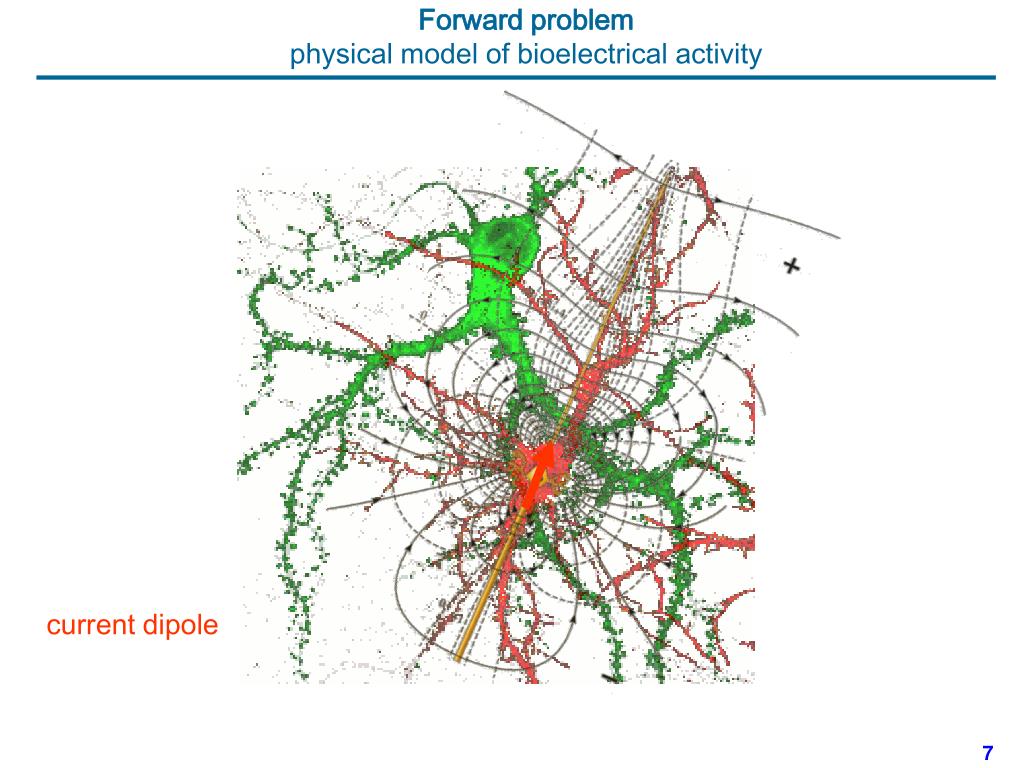

physical model of bioelectrical activity

current dipole

slide8

Forward problem

the general linear model

noise

dipoles

gain matrix

measurements

Y = KJ + E1

slide9

Outline

Introduction

Forward problem

Inverse problem

Bayesian inference applied to the EEG/MEG inverse problem

Conclusion

slide10

Inverse problem

an ill-posed problem

  • Jacques Hadamard (1865-1963)
    • Existence
    • Unicity
    • Stability
slide11

Inverse problem

an ill-posed problem

  • Jacques Hadamard (1865-1963)
    • Existence
    • Unicity
    • Stability
slide12

Inverse problem

cortically distributed current dipoles

slide13

Inverse problem

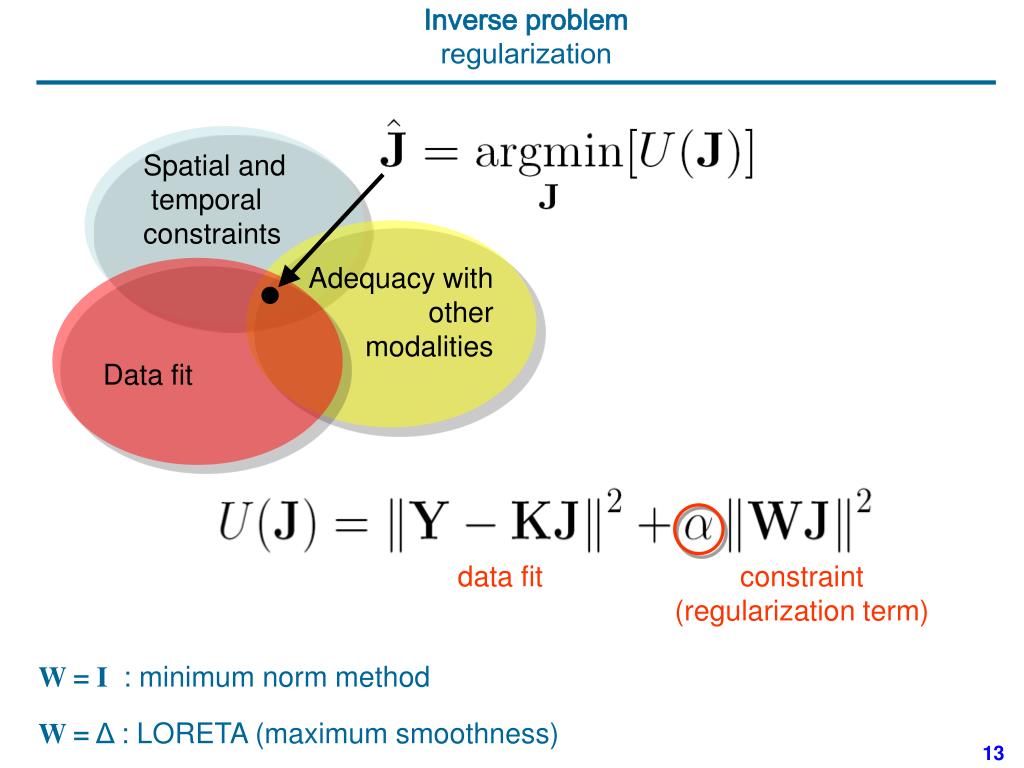

regularization

Spatial and

temporal

constraints

Adequacy with

other

modalities

Data fit

data fit

constraint

(regularization term)

W = I : minimum norm method

W =Δ : LORETA (maximum smoothness)

slide14

Outline

Introduction

Forward problem

Inverse problem

Bayesian inference applied to the EEG/MEG inverse problem

Conclusion

slide15

Bayesian inference

principle

posterior pdf

likelihood

prior pdf

model evidence

slide16

Bayesian inference

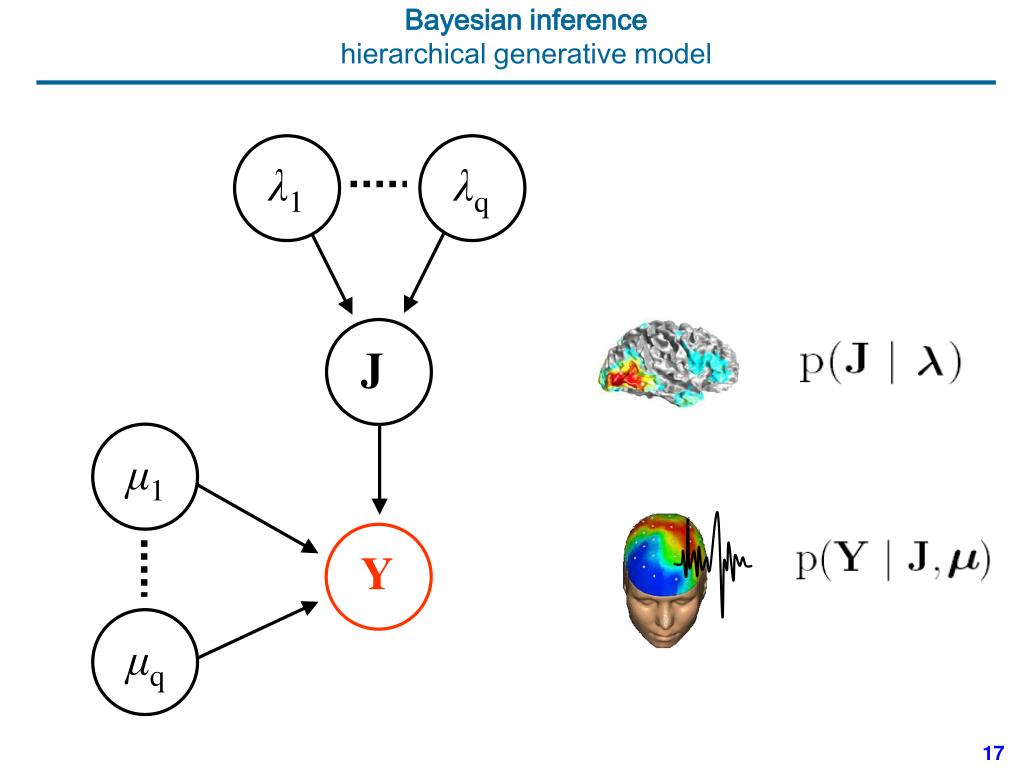

hierarchical generative model

sensor level

source level

Q : (known) variance components

(λ,μ) : (unknown) hyperparameters

slide17

Bayesian inference

hierarchical generative model

λ1

λq

J

μ1

Y

μq

slide18

Bayesian inference

SPM implementations

IID

COH

prior covariance structure

ARD/GS

generative model M

slide19

Outline

Introduction

Forward problem

Inverse problem

Bayesian inference applied to the EEG/MEG inverse problem

Conclusion

slide20

Conclusion

at the end of the day…

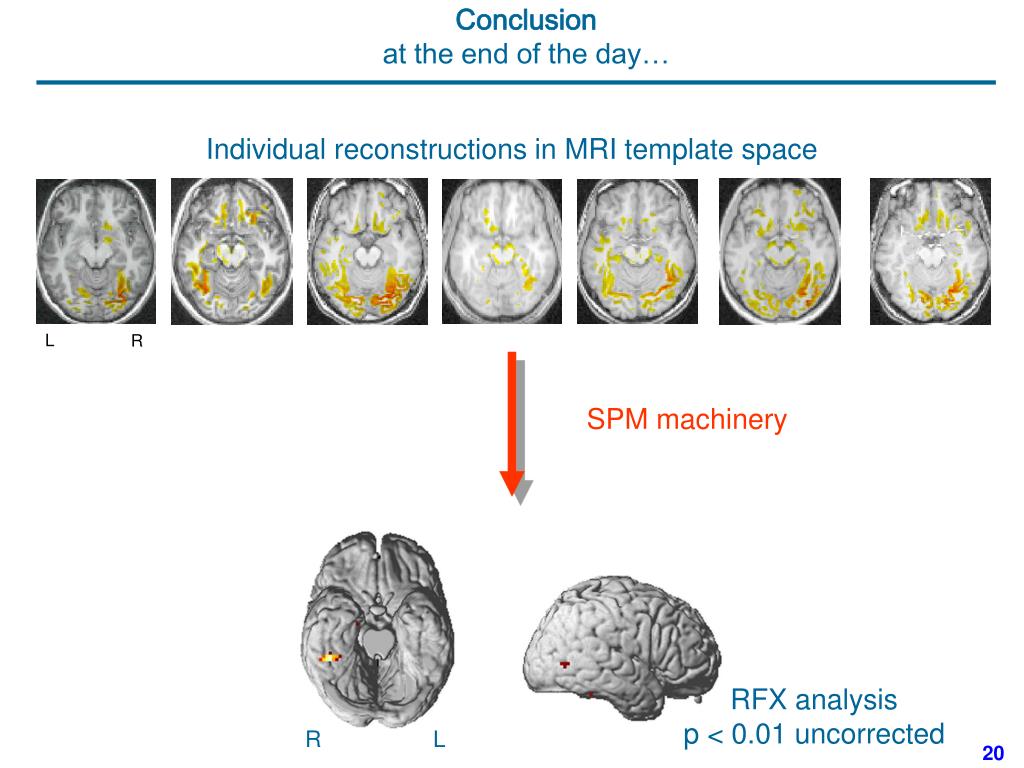

Individual reconstructions in MRI template space

L

R

SPM machinery

RFX analysis

p < 0.01 uncorrected

R

L

slide21

Conclusion

summary

• EEG/MEG source reconstruction:

1. forward problem;

2. inverse problem (ill-posed).

• Prior information is mandatory

to solve the inverse problem.

• Bayesian inference is well suited for:

1. introducing such prior information…

2. … and estimating their weight wrt the data

3. providing us with a quantitative feedback

on the adequacy of the model.

slide22

Many thanks to

Karl Friston, Stephan Kiebel, Jeremie Mattout

slide23

Bayesian inference

expectation-maximization (EM)

average over J

model associated with F

generative model M

slide24

Bayesian inference

expectation-maximization (EM)

M-step

E-step

EM / ReML algorithm
